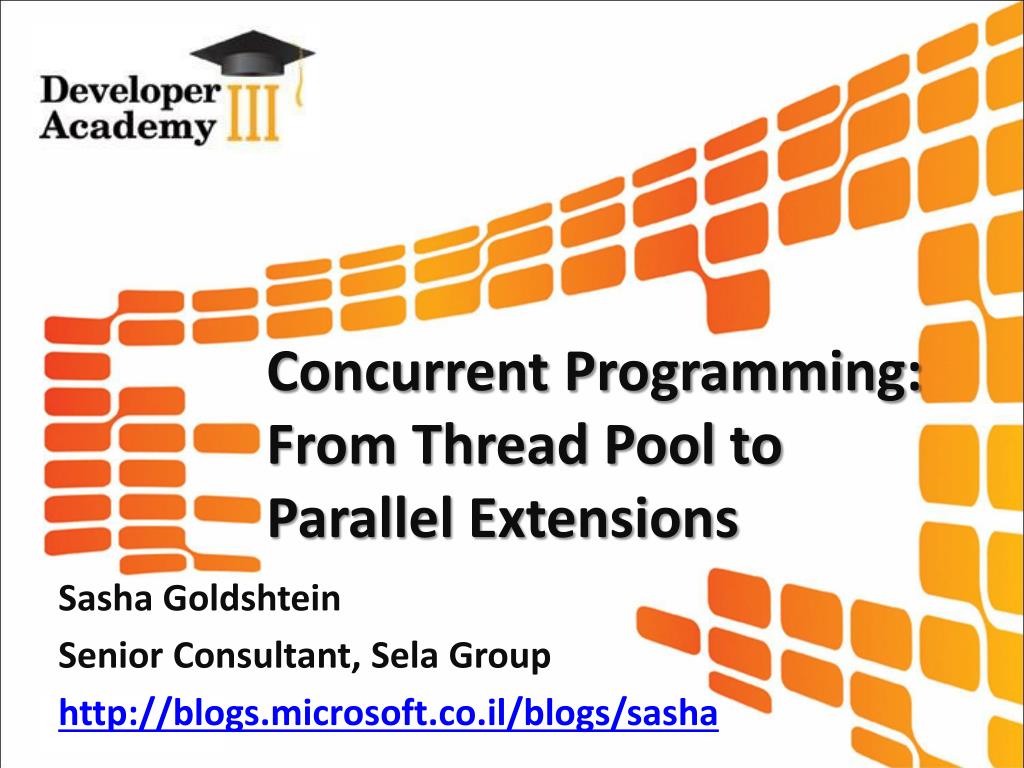

  1. Concurrent Programming: From Thread Pool to Parallel Extensions Sasha Goldshtein Senior Consultant, Sela Group http://blogs.microsoft.co.il/blogs/sasha

  2. The Reason We’re Here • I spare you: • “The free lunch is over” • “Moore’s law has changed” • “Amdahl’s law demands shift in software concepts” • I give you: Sasha’s Law Only Parallel Applications Will Survive

  3. There Is No Silver Bullet • Code, rinse, repeat • Patterns are emerging • Frameworks are emerging

  4. So What’s In This Session? • What kind of work likes parallelism? • Threads and thread pool • APM • Synchronization (is hard) • Concurrency architecture and patterns • Upcoming frameworks

  5. The Faces Of Parallelism • Embarrassingly parallel applications: • Calculating prime numbers, predicting weather • (Partially) CPU-bound applications: • Business rule engine, database server • I/O-bound applications: • Web server, file server, web browser

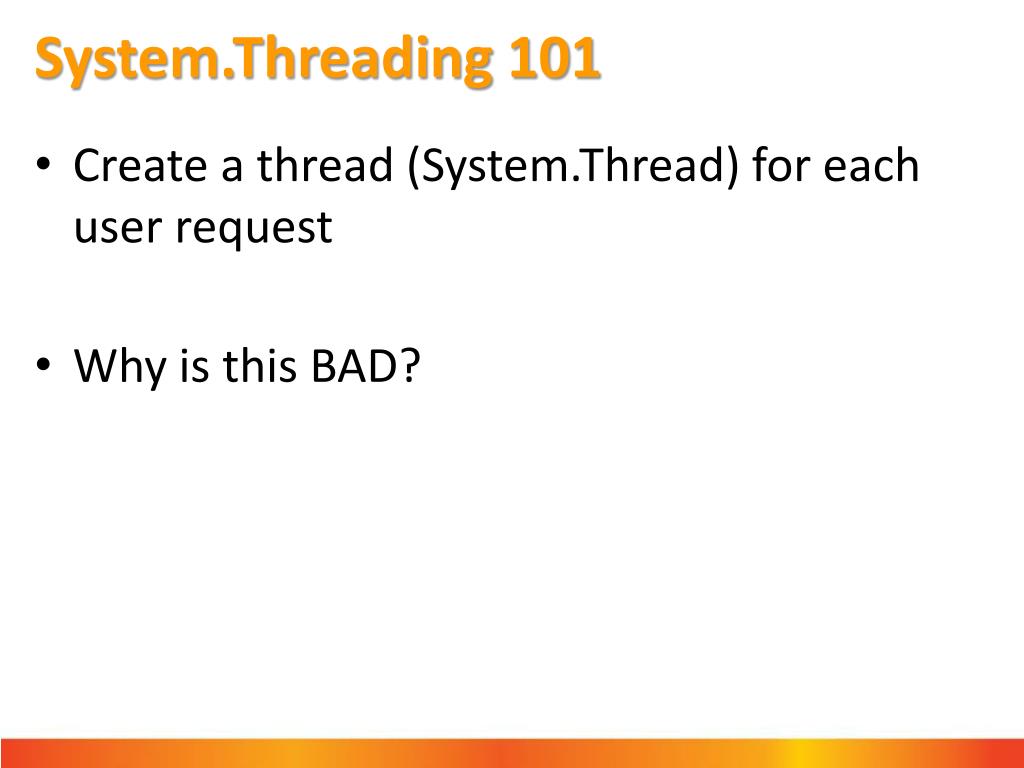

  6. System.Threading 101 • Create a thread (System.Thread) for each user request • Why is this BAD?

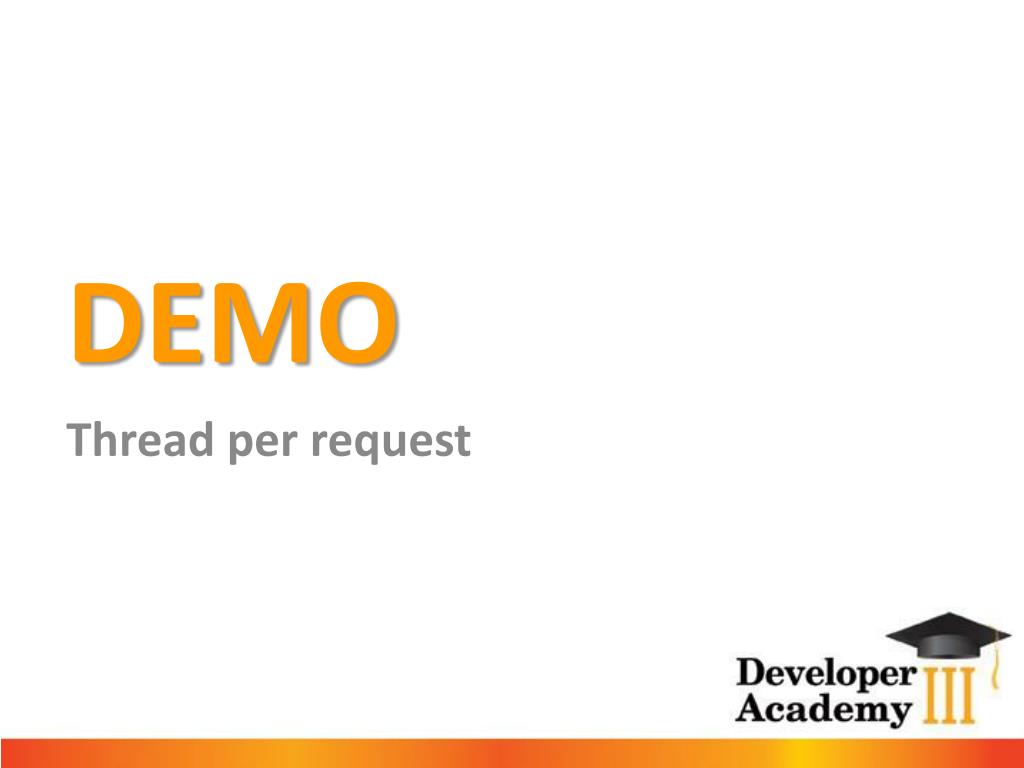

  7. Demo Thread per request

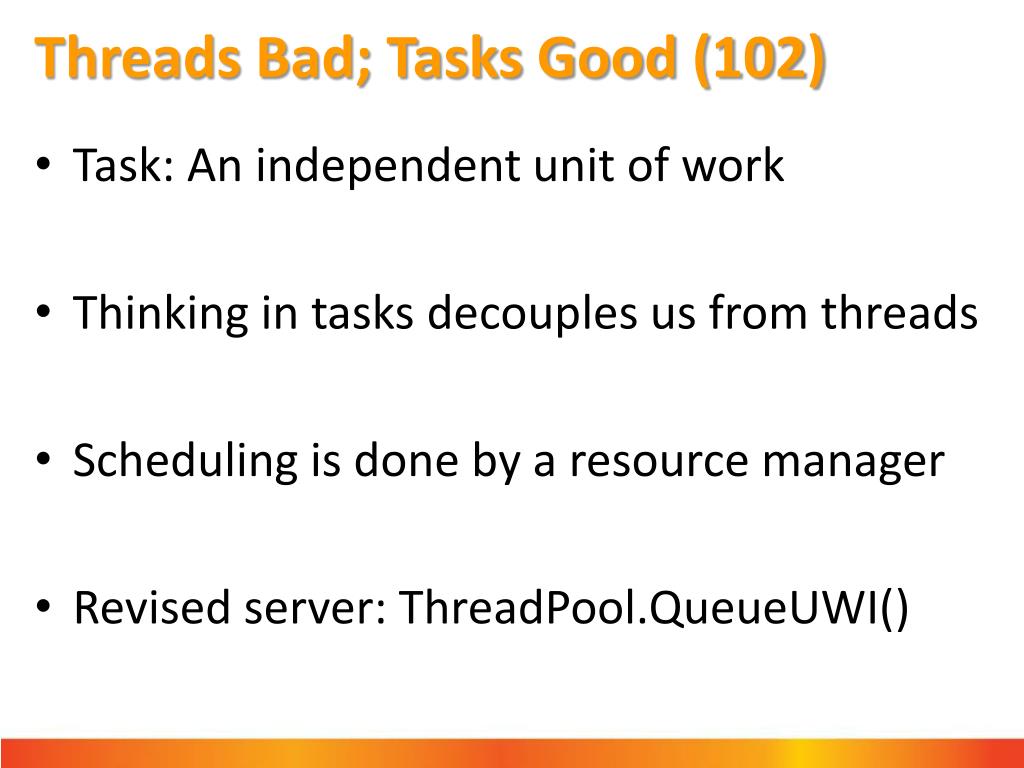

  8. Threads Bad; Tasks Good (102) • Task: An independent unit of work • Thinking in tasks decouples us from threads • Scheduling is done by a resource manager • Revised server: ThreadPool.QueueUWI()

  9. Demo Fire-and-forget using System.ThreadPool

  10. What If The Thread Pool Explodes? • There is no throttling: • Arrival rate: 1,000/second • Execution rate: 10/second • What do you think will happen? • We need a bounded thread pool

  11. DEMO Bounded thread pool

  12. We depend on tasks! System.Threading 103 • User clicks a button • Synchronous operation = UI not responsive • Fix: Execute the request asynchronously and (somehow) get the response later

  13. Demo The ubiquitous APM

  14. Synchronization Intermezzo • Shared writeable data will become corrupt unless protected • Design aspects: Lock high / lock low • Don’t lock on the first line of Main() 

  15. Synchronization Problems • Resources are now protected • Performance is not: Contention • Execution flow is not: • Wait chain: T1 -> M1 -> T2 -> M2 -> T1 • Forward progress: • Timeouts (cf. DB transactions) • Lock leveling

  16. Demo Lock leveling

  17. Advanced Synchronization Problems • Reentrancy • Lock convoys • N readers, one writer

  18. Architecting Concurrency • Partition • Pipeline • Pipeline X Partition = Grid

  19. Announcing Parallel Extensions for .NET 4.0 (Parallel LINQ, Coordination Data Structures, Task Parallel Library)

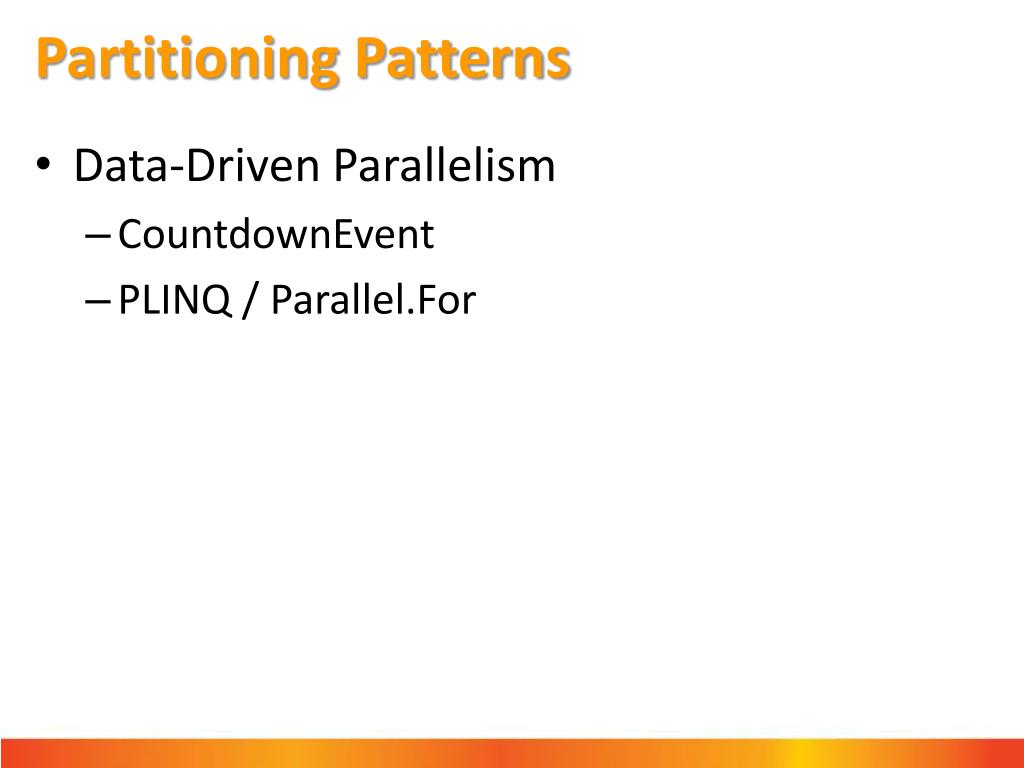

  20. Partitioning Patterns • Data-Driven Parallelism • CountdownEvent • PLINQ / Parallel.For

  21. Pipeline Patterns • N-1 producers, N-1 consumers • BoundedQueue • BlockingQueue • Condition variable (Wait/Pulse) • Cyclic buffer

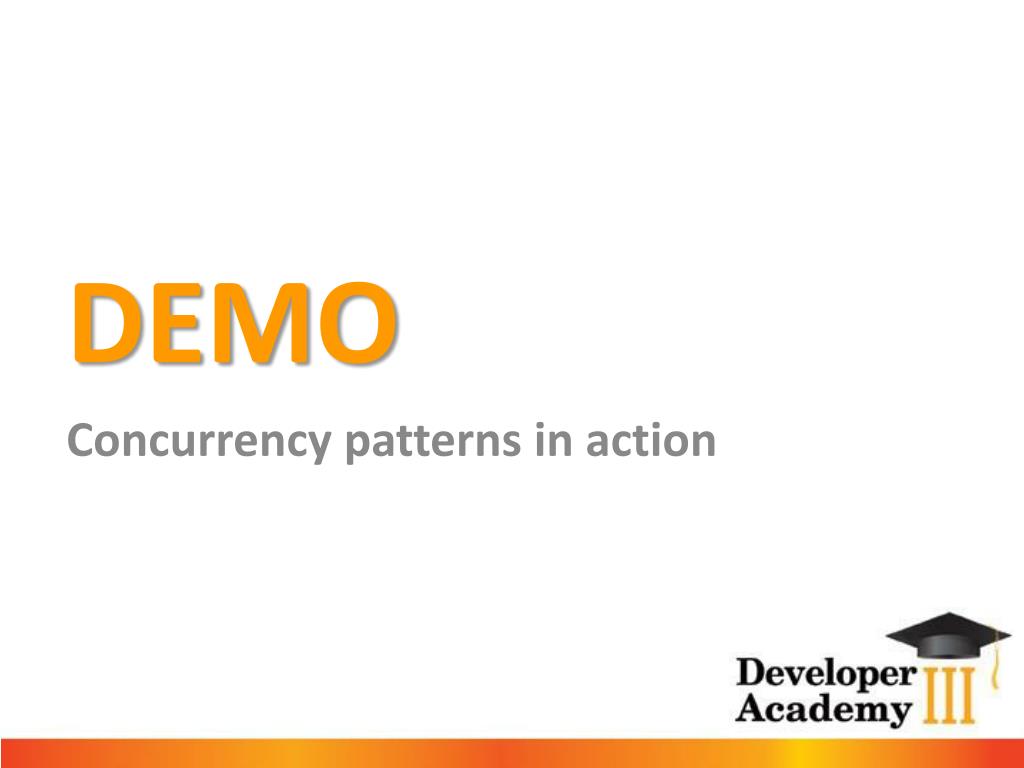

  22. DEMO Concurrency patterns in action

  23. Advanced Patterns • Read/write cache • Init-once

  24. Tooling Support • Multi-threaded profilers • Multi-threaded debuggers • Runtime “bug trappers” • Visual Studio 2010 • Grab the CTP now

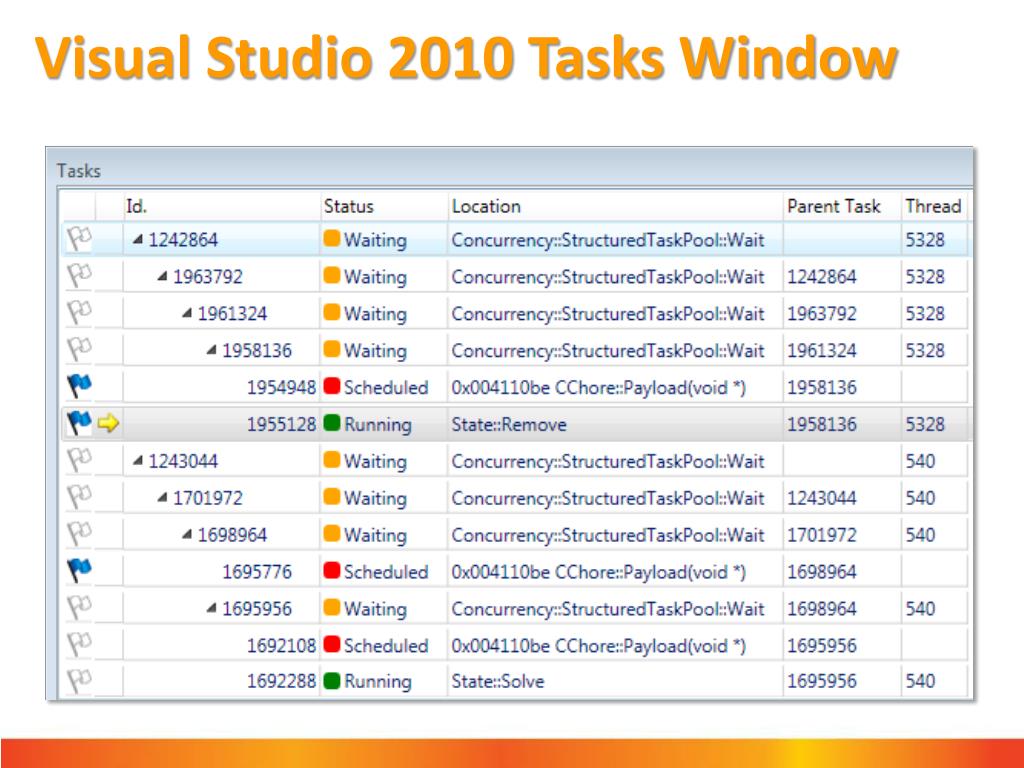

  25. Visual Studio 2010 Tasks Window

  26. Visual Studio 2010 Parallel Stacks • With an abundance of tasks, call stack view is not enough!

  27. Summary • Exit threads; enter tasks • Only parallel applications will survive • CPU-bound: TPL, PLINQ, thread pool • I/O-bound: APM • Shared state is a key problem • Patterns and frameworks are emerging • Tooling support

  28. Related Sessions ARC301: "Velocity": Distributed Cache … Yair Shibak 16:00 – 17:10 Tavor Hall

  29. Please Fill your Evaluation!
