Structure and Semantics of BN

Structure and Semantics of BN. draw causal nodes first draw directed edges to effects (“direct causes”) links encode conditional probability tables absence of link implies conditional independence given parents

pamelabutler
Télécharger la présentation

Structure and Semantics of BN

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

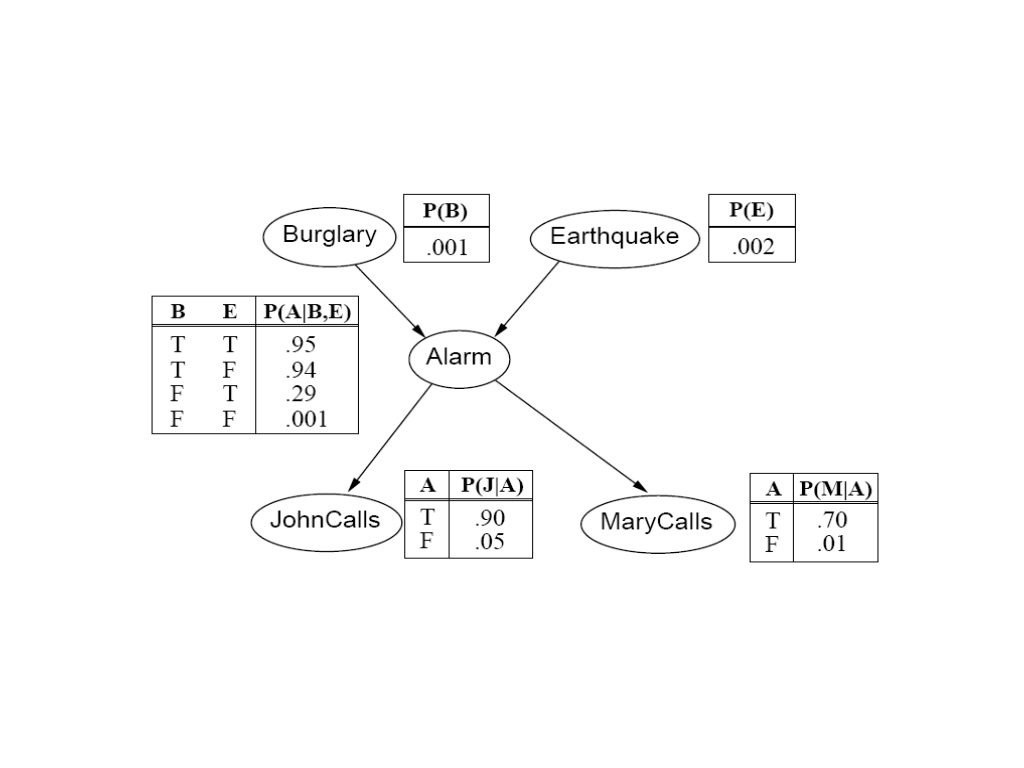

  1. Structure and Semantics of BN • draw causal nodes first • draw directed edges to effects (“direct causes”) • links encode conditional probability tables • absence of link implies conditional independence given parents • advantage: fewer parameters than full joint prob table (25=32 entries in this case)

  2. Equation for full joint probability =

  3. Inference in Bayesian Nets • Objective: calculate posterior probability of a variable X conditioned on evidence Y and marginalizing over Z (unobserved variables) • suppose we wanted to know the probability that there was a burglary (B) given that john calls (j) and mary calls (m) (but we don’t know alarm or earthquake) so the conditional prob is proportional to joint prob. next, we marginalize over unobserved vars e and a... full joint rearrange

  4. Lumiere – Office Assistant
