Topic 1: Introduction to Data Mining

Topic 1:Introduction to Data Mining Instructor: Chris Volinsky Data Mining - Columbia University

Intro • Who am I? • Who are you? Data Mining - Columbia University

Class Schedule • Sept 8 – December 8 • No class Election Day or Thanksgiving • Syllabus: www.research.att.com/~volinsky/DataMining/Columbia2011/Columbia2011.html My email: volinsky@research.att.com My phone: 973-360-8644 My office hours: by appointment before or after class Data Mining - Columbia University

Class Assessment • 30% HW • Due every two weeks • 1st HW due next Thursday September 15 • No late HW accepted • 40% Tests • Midterm and Final • 30% Data Mining Project • Proposal due in October • Project due Tuesday Dec 13 Data Mining - Columbia University

Course Objectives • Direct Objectives: • To learn data mining techniques • To see their use in real-world/research applications • To understand limitations of standard statistical techniques in data mining applications • To get an understanding of the methodological principles behind data mining • To be able to read about data mining in the popular press with a critical eye • To implement & use data mining models using statistical software Data Mining - Columbia University

Data Analysis Project • The goal of data mining is to find interesting patterns in data. You will be required to: • Define a scientific question of interest • Collect a data set n>1000 (probably online) • Prepare the data set properly • Analyze the data using appropriate models • Write a 10-20 page report on your analysis (graphics included) • Project proposals (1/2 -1 page) will be due in early October. • “Volunteers” to present projects in class for extra credit. • Finished reports will be due December 13. Data Mining - Columbia University

Data Mining Software • Software • Can use any software you like – must know how to input, manipulate, graph, and analyze data. • Preferred: R • Also: SAS, Weka, SPSS, Systat, Enterprise Miner, JMP, Minitab, Matlab, SQL Server • Maybe not: Excel, C • What is R? • Open source statistical software grown out of S/Splus • www.r-project.org • Many user-contributed packages at CRAN (cran.r-project.org) • Active, helpful user community (help lists, bulletin boards, etc) • R Tutorials available online (see class website and CRAN) • Great graphics (with a bit of a learning curve) • Other useful tools: Perl/Python, AWK, Shell scripts Data Mining - Columbia University

Resources • Data mining is a new field and as such, does not have authoritative texts (yet). • This class draws from many sources, best are • “Elements of Statistical Learning” Hastie, Tibshirani, and Friedman • “Handbook of Data Mining” Hand, Mannila and Smyth • “Interactive and Dynamic Graphics for Data Analysis” Cook and Swayne • “Data Mining – Practical Machine Learning Tools and Techniques” Witten and Frank • Also good class notes available from other classes: • David Madigan, Columbia • Di Cook, Iowa State • Padhraic Smyth, UC Irvine • Jiawei Han, Simon Fraser • see class web site for pointers to these notes, or just Google them!) • Also a few good books which teach stats/DM through R: • “The R Book” Crawley • “A Handbook of Statistical Analyses Using R” Evirtt and Hothorn • “Modern Applied Statistics Using S-Plus” Venables and Ripley Data Mining - Columbia University

Course Outline • Each ‘unit’ covers two lectures • Units: • Intro to Data Mining • Data exploration and visualization • Data Mining Concepts • Regression Topics • Classification and Supervised Learning • Clustering and Unsupervised Learning • Text Mining and Information Retrieval • Web Mining • Social Networks • Assorted Topics • Advanced Classification – Neural networks, Support Vector machines • Ensemble methods • Recommender Systems • Fraud Data Mining - Columbia University

What is Data Mining? • Not well defined…. • No one can agree on what data mining is! In fact the experts have very different descriptions: • “finding interesting structure (patterns, statistical models, relationships) in data bases”. - Fayyad, Chaduriand • “the nontrivial process of identifying valid, novel, potentially useful, and ultimately understandable patterns in data.” - Fayyad • “a knowledge discovery process of extracting previously unknown, actionable information from very large data bases” – Zorne • “a process that uses a variety of data analysis tools to discover patterns and relationships in data that may be used to make valid predictions.”--- Edelstein Data Mining - Columbia University

What is Data Mining • From Zaiane: • Data Mining, also popularly known as Knowledge Discovery in Databases (KDD)... • The Knowledge Discovery in Databases process comprises of a few steps leading from raw data collections to some form of new knowledge. The iterative process consists of the following steps: • Data cleaning: ... • Data integration: ... • Data selection: ... • Data transformation: ... • Data mining: it is the crucial step in which clever techniques are applied to extract patterns potentially useful. • Pattern evaluation: ... • Knowledge representation: ... Data Mining - Columbia University

What is Data Mining? • What does the authority say? • Data mining is the process of extracting hidden patterns from data. • Data mining is the process of discovering new patterns from large data sets involving methods from statistics and artificial intelligence but also database management. • Hand, Mannila, Smyth: • “data mining is the analysis of (often large) observational data sets to find unsuspected relationships and to summarize the data in novel ways that are both understandable and useful to the data owner” • Isn’t that the same as statistics? Data Mining - Columbia University

Data Mining vs. Statistics • Snark: Data Mining = Statistics + Marketing • Statistics is known for: • well defined hypotheses used to learn about a • specifically chosen population studied using • carefully collected data providing inferences with • well known properties. • Data mining isn’t that careful. It is: • data driven discovery of • models and patterns from • massive and • observational data sets Data Mining - Columbia University

Data Mining v. Statistics • Traditional statistics • first hypothesize, then collect data, then analyze • often model-oriented (strong parametric models) • Focused on understanding • Data mining (also Machine Learning): • few if any a priori hypotheses • data is usually already collected a priori • analysis is typically data-driven not hypothesis-driven • Often algorithm-oriented rather than model-oriented • Focused on prediction • But • statistical ideas are very useful in data mining, e.g., in validating whether discovered knowledge is useful • Increasing overlap at the boundary of statistics and DM • Cultures could learn from each other • Very powerful when used together Data Mining - Columbia University

Data Mining Enablers • Explosion of data • Fast and cheap computation and storage • Moore’s Law: processing doubles every two years • Disk storage doubles every 9 months • Database technology • Competitive pressure in business • Data has value! Successes are widely publicized • Commercial products • SAS, SPSS, Google Analytics, IBM, Oracle • Open Source products • Weka • R • Don’t need a data mining expert to do data mining! Data Mining - Columbia University

Data-Driven Discovery • Observational data • cheap relative to experimental data • Examples: • Retail stores, airlines, etc • Amazon, Google, etc • Do iPhone users use more data than Android users? • makes sense to leverage available, observational data • What are the perils of observational data? • Easy to do pseudo-experiments • Observational data can also help in hypothesis formulation. Data Mining - Columbia University

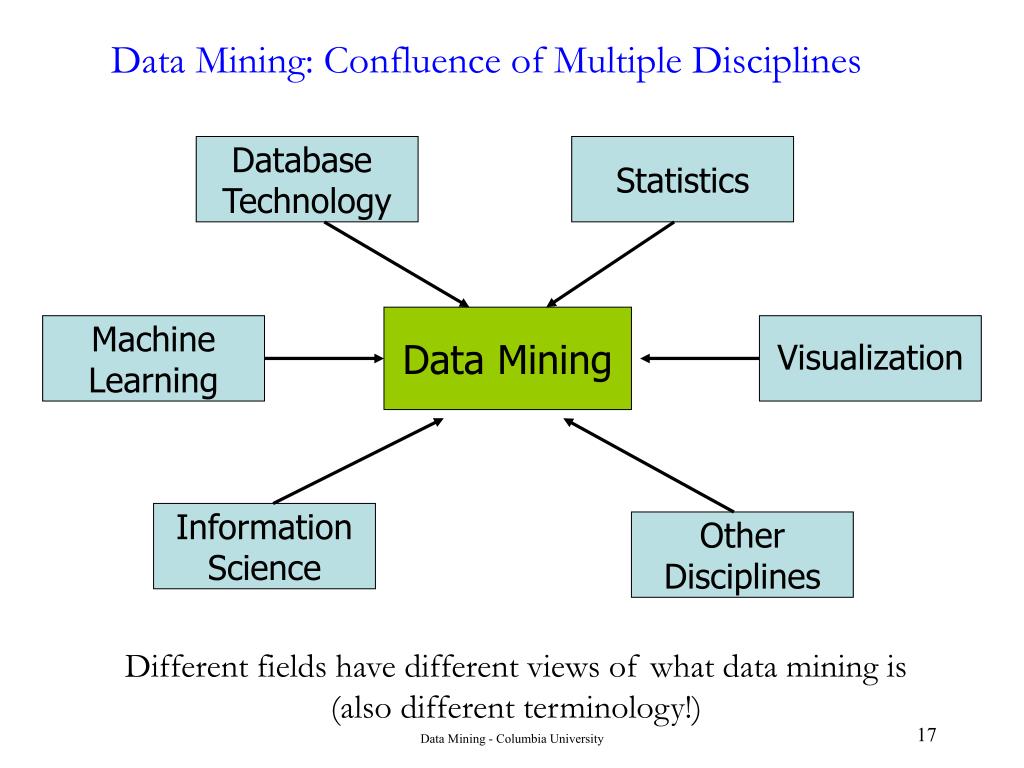

Database Technology Statistics Data Mining Machine Learning Visualization Information Science Other Disciplines Data Mining: Confluence of Multiple Disciplines Different fields have different views of what data mining is (also different terminology!) Data Mining - Columbia University

Data Data Data • It’s all about the data - where does it come from? • www • NASA • Business processes/transactions • Telecommunications and networking • Medical imagery • Government, census, demographics (data.gov!) • Sensor networks, RFID tags • sports Data Mining - Columbia University

Types of Data: Flat File or Vector Data • Rows = objects • Columns = measurements on objects • Represent each row as a p-dimensional vector, where p is the dimensionality • In efffect, embed our objects in a p-dimensional vector space • Both n and p can be very large in data mining (also p>>n) • Matrix can be quite sparse n p Data Mining - Columbia University

Types of Data: TextData Can be represented as a sparse matrix Obama Text Documents “The Help” Word IDs Data Mining - Columbia University

Transactional Data Date stamped events (weblogs, phone calls): 128.195.36.195, -, 3/22/00, 10:35:11, W3SVC, SRVR1, 128.200.39.181, 781, 363, 875, 200, 0, GET, /top.html, -, 128.195.36.195, -, 3/22/00, 10:35:16, W3SVC, SRVR1, 128.200.39.181, 5288, 524, 414, 200, 0, POST, /spt/main.html, -, 128.195.36.195, -, 3/22/00, 10:35:17, W3SVC, SRVR1, 128.200.39.181, 30, 280, 111, 404, 3, GET, /spt/images/bk1.jpg, -, 128.195.36.101, -, 3/22/00, 16:18:50, W3SVC, SRVR1, 128.200.39.181, 60, 425, 72, 304, 0, GET, /top.html, -, 128.195.36.101, -, 3/22/00, 16:18:58, W3SVC, SRVR1, 128.200.39.181, 8322, 527, 414, 200, 0, POST, /spt/main.html, -, 128.195.36.101, -, 3/22/00, 16:18:59, W3SVC, SRVR1, 128.200.39.181, 0, 280, 111, 404, 3, GET, /spt/images/bk1.jpg, -, 128.200.39.17, -, 3/22/00, 20:54:37, W3SVC, SRVR1, 128.200.39.181, 140, 199, 875, 200, 0, GET, /top.html, -, 128.200.39.17, -, 3/22/00, 20:54:55, W3SVC, SRVR1, 128.200.39.181, 17766, 365, 414, 200, 0, POST, /spt/main.html, -, 128.200.39.17, -, 3/22/00, 20:54:55, W3SVC, SRVR1, 128.200.39.181, 0, 258, 111, 404, 3, GET, /spt/images/bk1.jpg, -, 128.200.39.17, -, 3/22/00, 20:55:07, W3SVC, SRVR1, 128.200.39.181, 0, 258, 111, 404, 3, GET, /spt/images/bk1.jpg, -, 128.200.39.17, -, 3/22/00, 20:55:36, W3SVC, SRVR1, 128.200.39.181, 1061, 382, 414, 200, 0, POST, /spt/main.html, -, 128.200.39.17, -, 3/22/00, 20:55:36, W3SVC, SRVR1, 128.200.39.181, 0, 258, 111, 404, 3, GET, /spt/images/bk1.jpg, -, 128.200.39.17, -, 3/22/00, 20:55:39, W3SVC, SRVR1, 128.200.39.181, 0, 258, 111, 404, 3, GET, /spt/images/bk1.jpg, -, 128.200.39.17, -, 3/22/00, 20:56:03, W3SVC, SRVR1, 128.200.39.181, 1081, 382, 414, 200, 0, POST, /spt/main.html, -, 128.200.39.17, -, 3/22/00, 20:56:04, W3SVC, SRVR1, 128.200.39.181, 0, 258, 111, 404, 3, GET, /spt/images/bk1.jpg, -, 128.200.39.17, -, 3/22/00, 20:56:33, W3SVC, SRVR1, 128.200.39.181, 0, 262, 72, 304, 0, GET, /top.html, -, 128.200.39.17, -, 3/22/00, 20:56:52, W3SVC, SRVR1, 128.200.39.181, 19598, 382, 414, 200, 0, POST, /spt/main.html, -, Can be represented as a time series: User 1 2 3 2 2 3 3 3 1 1 1 3 1 3 3 3 3 User 2 3 3 3 1 1 1 User 3 7 7 7 7 7 7 7 7 User 4 1 5 1 1 1 5 1 5 1 1 1 1 1 1 User 5 5 1 1 5 … … Data Mining - Columbia University

Types of Data: Relational Data 128.200.39.17, -, 3/22/00, 20:55:07, W3SVC, SRVR1, 128.200.39.181, 0, 258, 111, 404, 3, GET, /spt/images/bk1.jpg, -, 128.200.39.17, -, 3/22/00, 20:55:36, W3SVC, SRVR1, 128.200.39.181, 1061, 382, 414, 200, 0, POST, /spt/main.html, -, 128.200.39.17, -, 3/22/00, 20:55:36, W3SVC, SRVR1, 128.200.39.181, 0, 258, 111, 404, 3, GET, /spt/images/bk1.jpg, -, 128.195.36.195, -, 3/22/00, 10:35:11, W3SVC, SRVR1, 128.200.39.181, 781, 363, 875, 200, 0, GET, /top.html, -, 128.195.36.195, -, 3/22/00, 10:35:16, W3SVC, SRVR1, 128.200.39.181, 5288, 524, 414, 200, 0, POST, /spt/main.html, -, 128.195.36.195, -, 3/22/00, 10:35:17, W3SVC, SRVR1, 128.200.39.181, 30, 280, 111, 404, 3, GET, /spt/images/bk1.jpg, -, …, 128.195.36.195, Doe, John, 12 Main St, 973-462-3421, Madison, NJ, 07932 114.12.12.25,Trank, Jill, 11 Elm St, 998-555-5675, Chester, NJ, 07911 … 07911, Chester, NJ, 07954, 34000, , 40.65, -74.12 07932, Madison, NJ, 56000, 40.642, -74.132 … • Most large data sets are stored in relational data sets • Special data query language: SQL • Oracle, MSFT, IBM • Good open source versions: MySQL, PostGres Data Mining - Columbia University

Types of Data: Time Series Data Often many time series, long time series, or multivariate time series Data Mining - Columbia University

Time Series: Ebay Data Jank, Shmueli, et al (2005) Data Mining - Columbia University

Types of Data: Image Data Data Mining - Columbia University

Spatio Temporal Data • http://senseable.mit.edu/nyte/movies/nyte-globe-encounters.mov-encounters.mov Data Mining - Columbia University

Network Data: Physical Network Data Mining - Columbia University

Network Data: Derived Social Network Algorithms for estimating relative importance in networks S. White and P. Smyth, ACM SIGKDD, 2003. Data Mining - Columbia University

Social Network: Real social network HP Labs email network 500 people, 20k relationships Data Mining - Columbia University

Examples of Data Mining Successes • Market Basket (WalMart) • Recommender Systems (Amazon.com) • Fraud Detection in Telecommunications (AT&T) • Target Marketing / CRM • Financial Markets • DNA Microarray analysis (or is it?) • Web Traffic / Blog analysis Data Mining - Columbia University

Examples of Data Mining Successes • Google is a company built on data mining • PageRank mined the web to build better search • Google as spell checker • Google as ad placer • Google as news aggregator • Google as face recognizer Data Mining - Columbia University

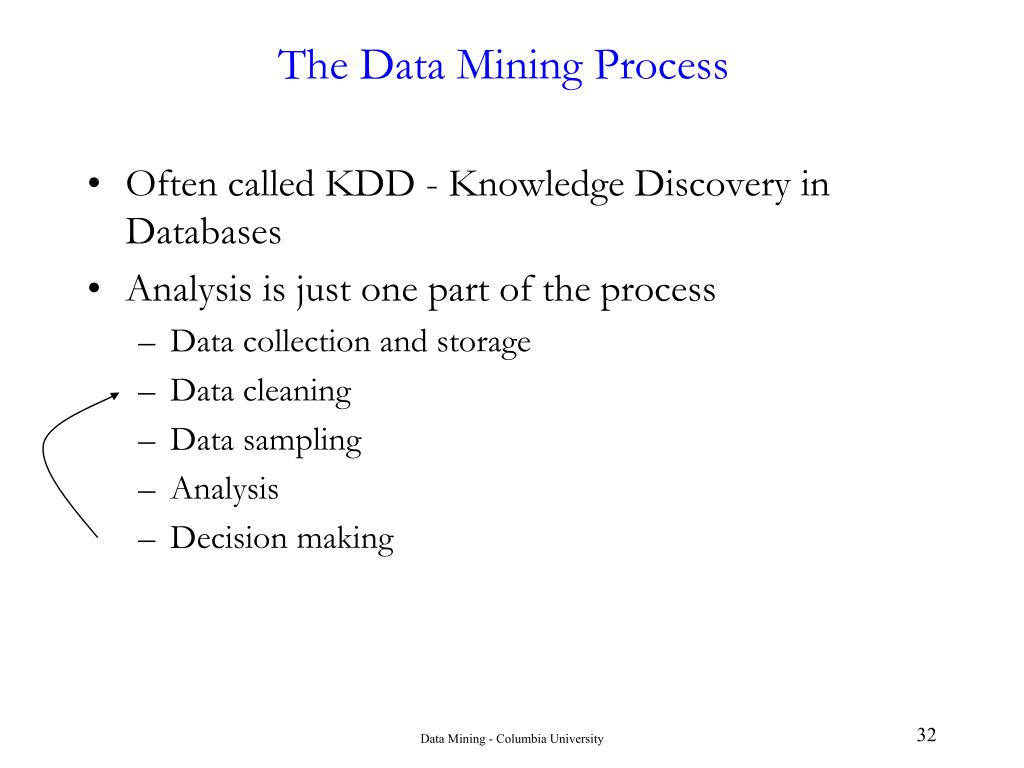

The Data Mining Process • Often called KDD - Knowledge Discovery in Databases • Analysis is just one part of the process • Data collection and storage • Data cleaning • Data sampling • Analysis • Decision making Data Mining - Columbia University

Different Data Mining Tasks • Exploratory Data Analysis • Descriptive Modeling • Predictive Modeling • Discovering Patterns and Rules • + others…. Data Mining - Columbia University

Exploratory Data Analysis • Before you model – what do you do? • Must check your data • Compute summary statistics: range, max, min, mean, median, variance, skewness,.. • Missing values, outliers, skewness, etc • What types of variables do you have? • Visualization is widely used • 1d histograms • 2d scatter plots • Higher-dimensional methods • Simple exploratory analysis can be extremely valuable • Always “look” at your data before applying any data mining algorithms Data Mining - Columbia University

Example of Exploratory Data Analysis Languages of the World Wide Web – Google Research Blog July, 2011 Data Mining - Columbia University

Descriptive Modeling • Goal is to build a “descriptive” model • e.g., a model that could simulate the data if needed • models the underlying process • Examples: • Density estimation: • estimate the joint distribution P(x1,……xp) • Cluster analysis: • Find natural groups in the data • Dependency models among the p variables • Learning a Bayesian network for the data Data Mining - Columbia University

Example of Descriptive Modeling Hemoglobin vs. cell volume Control Group Anemia Group Data Mining - Columbia University

Example of Descriptive Modeling Control Group Anemia Group Data Mining - Columbia University

Predictive Modeling • Predict one variable Y given a set of other variables X • Here X could be a p-dimensional vector • Classification: Y is categorical • Regression: Y is real-valued • In effect this is function approximation, learning the relationship between Y and X • In data mining, the emphasis is on predictive accuracy, not on understanding the model Data Mining - Columbia University

Predictive Modeling: Fraud Detection • Telecommunications fraud detection • Fraud costs companies US$ Billions per year • very few transactions are fraudulent, but they are costly • Approach • For each transaction estimate “fraudiness”. • Based on known fraud AND known user behavior • High probability cases investigated by fraud police • Example models: • Credit card usage profiling • anomaly detection • guilt by association Data Mining - Columbia University

Pattern Discovery • Goal is to discover interesting “local” patterns in the data rather than to characterize the data globally • given market basket data we might discover that • If customers buy wine and bread then they buy cheese with probability 0.9 • These are known as “association rules” • This was how data mining was born. • But I don’t like it • Other examples: • Astronomy • Finance Data Mining - Columbia University

Example of Pattern Discovery • IBM “Advanced Scout” System • Bhandari et al. (1997) • Every NBA basketball game is annotated, • e.g., time = 6 mins, 32 seconds event = 3 point basket player = Michael Jordan • This creates a huge untapped database of information • IBM algorithms search for rules of the form“If player A is in the game, player B’s scoring rate increases from 3.2 points per quarter to 8.7 points per quarter” Data Mining - Columbia University

Data Mining Pitfalls • Is data mining always necessary • Just because you have a terabyte doesn’t mean you need to use it. • Privacy concerns • Differ by country, industry, application, generation • Meaningfulness of patterns unclear • Rhine paradox • Terrorism • DM has a lot to learn from statistics! Data Mining - Columbia University

Rhine Paradox • David Rhine: parapsychologist who studied ESP (he was a believer!) • He devised an experiment where subjects were asked to guess 10 hidden cards --- red or blue. • Reported: 1 in 1000 people have ESP • He told these people they had ESP and called them in for another test of the same type. • What do you think happened? • What is the conclusion? Data Mining - Columbia University

Data Mining Pitfalls • PR Problems: data mining as a four letter word? • ...increasingly people’s data is at risk. The old ways ...are still at use like dumpster diving, stealing from mailboxes, physical theft, and credit card receipt copying. New tactics include disparate techniques of phishing, email fraud, data mining, spam, key-logging and an array of other technological processes. - Steven D. Domenikos, IdentityTruth, 2008 • One place oversight is sorely lacking is in the whole matter of data mining. ...What have they contributed? Not a single case comes to mind in which security services apprehended a terrorist following identification by data mining. ...that huge database will be out there, win or lose, for some government agency to divert to its purposes or some hacker to turn to private gain or crime. - John Prados, TomPaine.com Data Mining - Columbia University

Fighting Terrorism in the US • US Government is widely known to be collecting lots of data on Americans and using data mining to look for patterns consistent with terrorist activity. • Bruce Schneier, Wired Magazine, “Why Data Mining Won’t Stop Terror”: • Assume: • 1 in 100 false positive (99% precision) • 1 in 1000 false negative • 1 trillion events (phone calls, credit card transactions, emails) per day • 10 are really terrorist plots • Then: • 1 billion false alarms for every true plot uncovered • 27 million leads daily • Even if 99.9999% precision = 2,750 false alarms Data Mining - Columbia University

Data Mining v. Privacy • There is often tension between data mining and personal privacy: • http://www.aclu.org/pizza/images/screen.swf • Now, some case studies…. Data Mining - Columbia University

Risk v. Reward in Data Mining More data about more people in fewer places Data Mining - Columbia University

The risks of research My own personal story: or…how a paper published in JCGS leads me to be connected to FBI wiretapping. 2001-2005: Publish papers on “Communities of Interest” – using social networks and “Guilt by association” to catch fraud 9 September 2007: NYT lead story “F.B.I. Data Mining Reached Beyond Initial Targets” – discusses FBI techniques COI and GBA 23 October 2007: Blogosphere erupts: “How AT&T Provides the FBI with Terror Suspect Leads” Data Mining - Columbia University

The Good, The Bad, and the Maybe • The question remains: how do we effectively leverage sensitive personal data for research purposes? • Three case studies can give insight • Netflix Prize • AOL search dataset • Barabasi mobile study Data Mining - Columbia University
