  1. Web Application Security SE-2840 Dr. Mark L. Hornick

  2. There are three main security concerns your web apps need to address • Impersonation • A client pretends to be someone else in order to gain access to your site • Upgrading • A client gains access to restricted aspects of your web app • Eavesdropping • A third-party gains access to confidential information exchangedbetween your site and a valid user SE-2840 Dr. Mark L. Hornick

  3. All of these can be managed via the Deployment Descriptor • Tomcat incorporatesa declarative security model that requires no changes to your Servlets or pages • Tomcat itself handles Authentication, Authorization, and Data Encryption SE-2840 Dr. Mark L. Hornick

  4. The server.xml file contains configuration specifications for Tomcat operation, including enabling HTTPS: <!-- Define a SSL HTTP/1.1 Connector on port 8443 This connector uses the JSSE configuration, when using APR, the connector should be using the OpenSSL style configuration described in the APR documentation --> <!-- uncommented by MLH --> <Connector port="8443" protocol="HTTP/1.1" SSLEnabled="true" maxThreads="150" scheme="https" secure="true" keystoreFile=“C:/Apache/keystore" keystorePass="changeit" clientAuth="false" sslProtocol="TLS" /> <!-- uncommented by MLH --> Note: the blue text is (usually) already in this file, although commentedout. I rearranged the comments and added the green line that specifiesthe file containing the generated Certificate. SE-2840 Dr. Mark L. Hornick

  5. Encrypting the transport of data ensures that sensitive data (eg. passwords) will not be viewable during transmission either to or from the server • <?xml version="1.0" encoding="UTF-8"?> • <web-app> • <!-- This section declares specific resources whose access is to be constrained by the Tomcat security manager. • --> • <security-constraint> • <!– Here is where the restricted resources are specified (1 to many)--> • <web-resource-collection> • <!– “SecuredPages” is just an arbitrary identifier --> • <web-resource-name>SecuredPages</web-resource-name> • <!– The constrained resources for this collection: --> • <url-pattern>/MyApp/somepage.html</url-pattern> • <url-pattern>/MyApp/page2.jsp</url-pattern> • <url-pattern>/MyApp/myServlet</url-pattern> • </web-resource-collection> • <!-- This specifies that the browser and server establish an encrypted • Connection for exchanging request and response data --> • <user-data-constraint> • <transport-guarantee>CONFIDENTIAL</transport-guarantee> • </user-data-constraint> • ... <!– More resource collections can be added here… --> • </security-constraint> • <!-- Additional security constraint sections can be added here --> </web-app> The default transport is NONE SE-2840 Dr. Mark L. Hornick

  6. Demo SE-2840 Dr. Mark L. Hornick

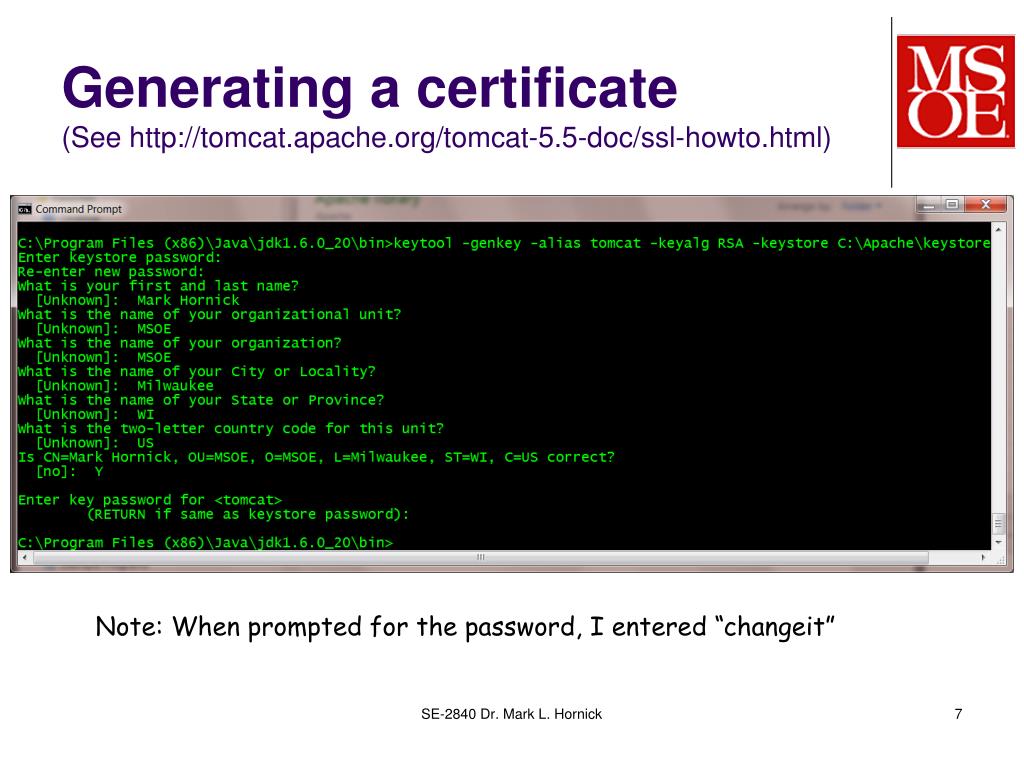

  7. Generating a certificate(See http://tomcat.apache.org/tomcat-5.5-doc/ssl-howto.html) Note: When prompted for the password, I entered “changeit” SE-2840 Dr. Mark L. Hornick

  8. CS-4220 Dr. Mark L. Hornick

  9. CS-4220 Dr. Mark L. Hornick

  10. SE-2840 Dr. Mark L. Hornick

  11. Authorization allows a web app to restrict access to specific parts of an application <?xml version="1.0" encoding="UTF-8"?> • <web-app> • <!– Here is where the authorized roles are defined. --> • <security-role> • <role-name>admin</role-name> • </security-role> • <security-role> • <role-name>member</role-name> • </security-role> • <!-- This section declares specific resources to be accessible only by usersin certain roles (defined in the separate tomcat-users.xml file. • --> • <security-constraint> • <!– Here is where the restricted resources are specified (1 to many)--> <web-resource-collection> <!– “SecuredPages” is just an arbitrary identifier --> <web-resource-name>SecuredPages</web-resource-name> • <!– The constrained resources (1 to many) for this collection: --> <url-pattern>/MyApp/admin.jsp</url-pattern> <url-pattern>/MyApp/manage.jsp</url-pattern> </web-resource-collection> • ... <!– more collections here… --> • <!– Here is where the authorized roles are specified. --> <auth-constraint> <role-name>Admin</role-name> • <role-name>Manager</role-name> ... </auth-constraint> • </security-constraint> </web-app> SE-2840 Dr. Mark L. Hornick

  12. The tomcat-users.xml file contains role, username, and password definitions: <tomcat-users> <!-- NOTE: By default, no user is included in the "manager" role required to operate the "/manager" web application. If you wish to use this app, you must define such a user - the username and password are arbitrary. --> <!-- NOTE: The sample user and role entries below are wrapped in a comment and thus are ignored when reading this file. Do not forget to remove <!.. ..> that surrounds them. --> <!-- <role rolename="tomcat"/> <role rolename="role1"/> <user username="tomcat" password="tomcat" roles="tomcat"/> <user username="both" password="tomcat" roles="tomcat,role1"/> <user username="role1" password="tomcat" roles="role1"/> --> <role rolename="manager"/> <role rolename="admin"/> <role rolename="member"/> <user username="tomcat" password="tomcat" roles="manager,admin"/> <user username="mark" password="mlh" roles="member,manager"/> </tomcat-users> SE-2840 Dr. Mark L. Hornick

  13. Demo SE-2840 Dr. Mark L. Hornick

  14. Authentication allows a web app to validate the identity of a client • <?xml version="1.0" encoding="UTF-8"?> • <web-app> • <security-role> • <role-name>admin</role-name> • </security-role> • <security-role> • <role-name>member</role-name> • </security-role> • <security-constraint> • <web-resource-collection> • <web-resource-name>SecuredPages</web-resource-name> • <url-pattern>/MyApp/admin.jsp</url-pattern> • <url-pattern>/MyApp/manage.jsp</url-pattern> • </web-resource-collection> • <auth-constraint> • <role-name>Admin</role-name> • <role-name>Manager</role-name> • </auth-constraint> • </security-constraint> • <!– When you specify a login-config, the container automatically supplies • a username/password prompt --> • <login-config> • <auth-method>BASIC</auth-method> • </login-config> </web-app> SE-2840 Dr. Mark L. Hornick

  15. You can define your own login page if you don’t like the default popup dialog: • <?xml version="1.0" encoding="UTF-8"?> • <web-app> • <security-role> • <role-name>admin</role-name> • </security-role> • <security-role> • <role-name>member</role-name> • </security-role> • <security-constraint> • <web-resource-collection> • <web-resource-name>SecuredPages</web-resource-name> • <url-pattern>/MyApp/admin.jsp</url-pattern> • <url-pattern>/MyApp/manage.jsp</url-pattern> • </web-resource-collection> • <auth-constraint> • <role-name>Admin</role-name> • <role-name>Manager</role-name> • </auth-constraint> • <user-data-constraint> • <transport-guarantee>CONFIDENTIAL</transport-guarantee> • </user-data-constraint> • </security-constraint> • <login-config> • <auth-method>FORM</auth-method> • <form-login-config> • <form-login-page>/login.html</form-login-page> • <form-error-page>/loginError.html</form-login-page> • </form-login-config> • </login-config> </web-app> SE-2840 Dr. Mark L. Hornick

  16. The login form must use the indicated action and input field names: <!DOCTYPE html > <html> <head> <meta charset=“ISO-8859-1"> <title>Login please</title> </head> <body> <form method="POST" action="j_security_check"> <p>username:</p> <input type="text" name="j_username"> <p>password:</p> <input type="password" name="j_password"> <input type="submit" value="Login"> </form> </body> </html> SE-2840 Dr. Mark L. Hornick
