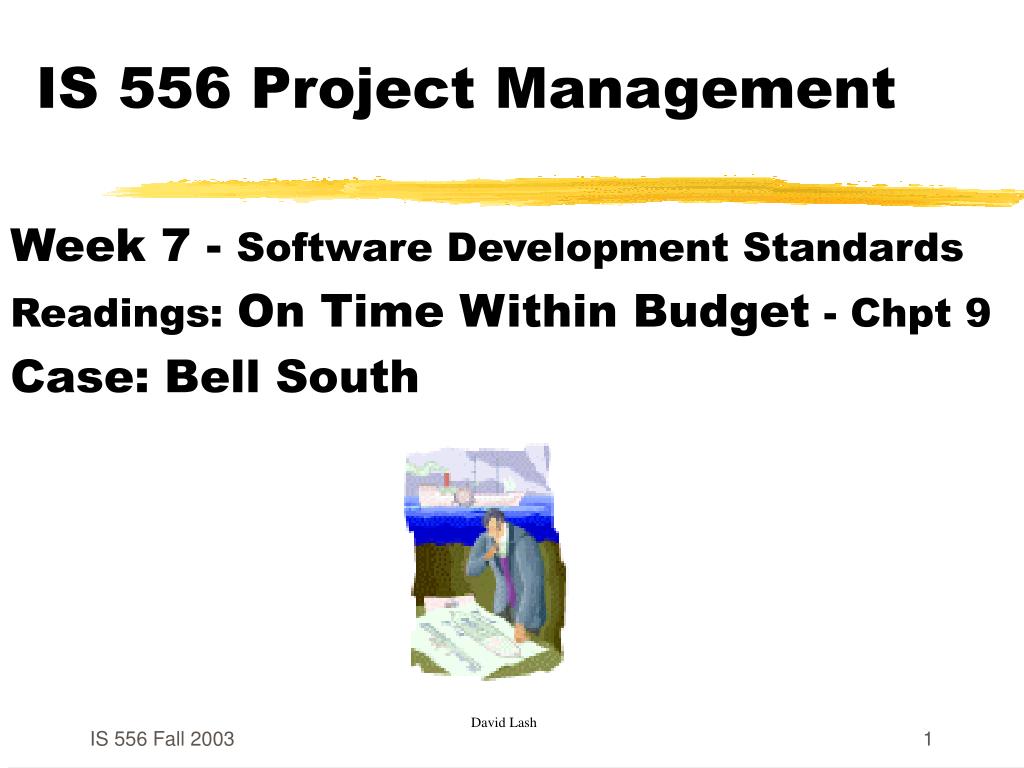

  1. IS 556 Project Management Week 7 - Software Development Standards Readings: On Time Within Budget - Chpt 9 Case: Bell South David Lash

  2. Overview • Why use standards • What are main standard bodies • IEEE - Institute of Electrical and Electronics Engineers • ISO - International Standards Organization • DOD - US Department of Defense. • Using Standards

  3. Software Development and Standards • A necessary evil? • Limit developer freedom • One-size-fits all danger • Why create standards? • Makes software management manageable • Help software developers understand others work • E.g., Perl standard will document regular expressions. if ( /^[01]d/[0123]d/2ddd$/ ) { if (/^[01]d/ # look for month mm /[0123]d/ # day mm /2ddd$/w ) { # Year yy - century

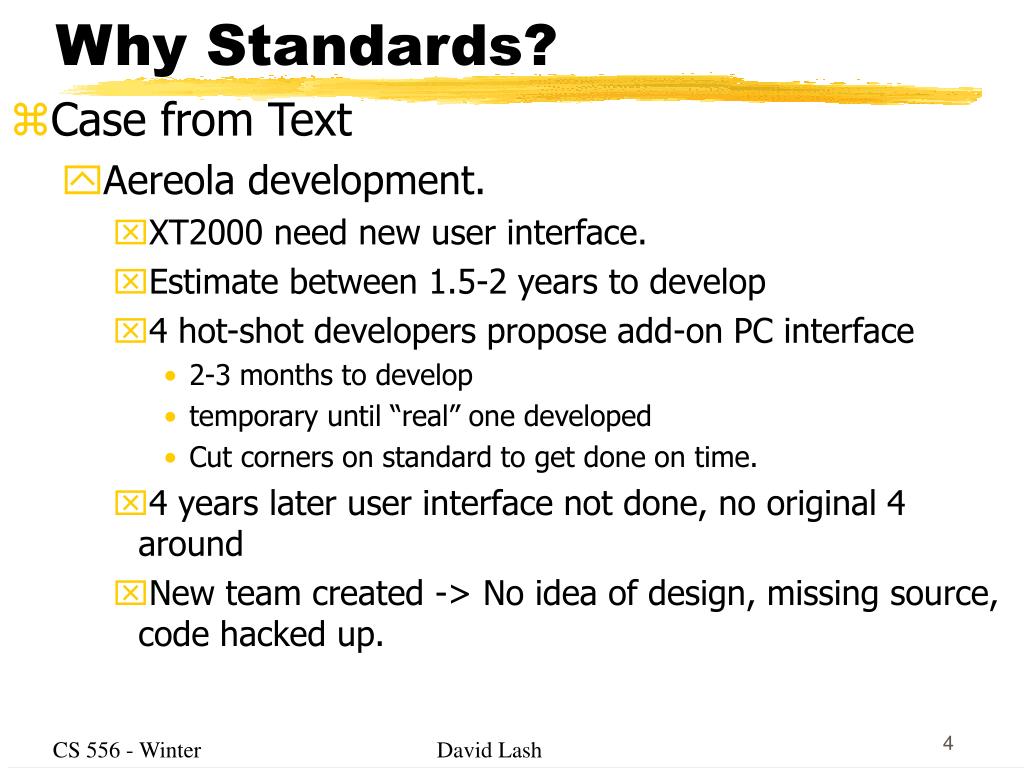

  4. Why Standards? • Case from Text • Aereola development. • XT2000 need new user interface. • Estimate between 1.5-2 years to develop • 4 hot-shot developers propose add-on PC interface • 2-3 months to develop • temporary until “real” one developed • Cut corners on standard to get done on time. • 4 years later user interface not done, no original 4 around • New team created -> No idea of design, missing source, code hacked up.

  5. Does that really happen • Maintaining Web-based form package • Package keeps track of quality records for inspections. • Only 1 developer for 2-3 years. • No design, no code reviews, no code control • Develop leaves company, new person assigned • Has to reverse engineer design • Discovers ugly code, f-file based instead of DB. • Corrupted form states.

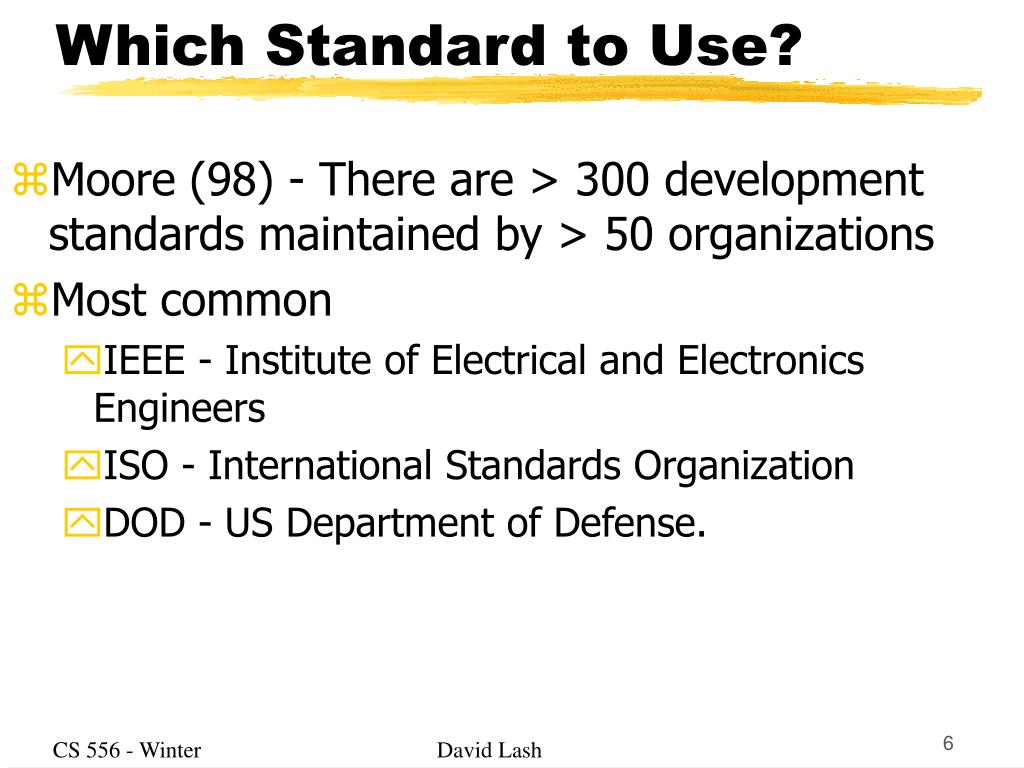

  6. Which Standard to Use? • Moore (98) - There are > 300 development standards maintained by > 50 organizations • Most common • IEEE - Institute of Electrical and Electronics Engineers • ISO - International Standards Organization • DOD - US Department of Defense.

  7. IEEE • One of first software engineering standards: 1984 • Included 4 development standards • requirements, quality assurance, testing and configuration management. • Fifth volume later include standard definitions & terms • 1999 - 4 volume standards collection • Standard can be used for • A recommended practice, A guide, a standard or supplement to standard • 1999 volumes (contained 40 standards) • Customer and terminology • Process • Product standards • Resource and technique

  8. IEEE 1999 SE Stds - Volume 1 • Customer and Terminology Standards • Pages 192-193 list Process standards, product standards and resource and technique standards

  9. IEEE Standard Layers Figure 9.2

  10. An example standard - IEEE Std 830Software Requirements Specification Basic Characteristics • Started in 1983 and upgraded many time since • Does each requirement accurately represent the expectation of the customer? (correct) • Is each requirement clear and does it have the same interpretation for all who read it? (unambiguous) • Are all requirements documented, have we ensured that no "verbal" understandings remain? (complete) • Can we prove in a reasonable manner, and at a reasonable expense, that each requirement has been met? (verifiable) • Does any requirement conflict with another requirement? (consistent) • In determining future trade-offs, has the relative importance of each requirement been assigned? (ranked) • Is the requirements specification documented in a way that will enable it to be easily corrected or changed later? (modifiable) • Are the origins of each requirement clear (backward traceability), and can the testing and design documents be later traced to requirements? (forward traceability) • Has the requirement specification been written so that it can be understood not only by the organization writing it, but also by the software maintenance organization? (usable) • Best use for non-evolutionary models.

  11. An Example IEEE Standard • IEEE 610.12 - Glossary of standard Terminology • Covers 1300 Software Engineering terms: • compilers • configuration management • Operating system • Errors, faults, failures • Quality attributes • Some terms with multiple definitions such as: • Quality - 2 separate definitions - 1 related to requirements another related to customer expectations • Patch - 4 separate definitions Not the only definition set others include ISO and DOD.

  12. IEEE Software lifecycle standards • Std 12207 Purpose: • to establish common framework for software life cycle processes. • Contains • software processes, activities and tasks for software acquire, development, operation, support • Centers on 5 views of software lifecycle • contract, engineering, operating and maintenance, supporting processes (E.g., documentation, configuration, q/a) Organizational (management, infrastructure, training)

  13. Fig 9.5 STD12207Software Life Cycle Processes

  14. ISO - International Organization for Standards • Initially European body now have world wide membership • ISO members offered to national bodies • Bodies apply and adapt standard to country • USA is represented by ANSI (American National Standards Institute) • Famous for ISO 9000 - Standard concerned with Quality Management • ISO 9001 – business ranges from design to build to install to service • ISO 9002 – business does not design and develop • ISO 9003 – business does testing and inspection

  15. ISO vs IEEE • Standards are similar to IEEE with differing terminology • Overall guide is ISO 9000 • Software also falls under the 9001-9002 guides depending on company • ISO 9004 describes quality management • 4 additional volumes of standards define quality terminology, quality plan standards, configuration management, quality audit plans • ISO 9000 are developed an maintained by technical committee 176 • Has been American Society of Q/C (ASQC)

  16. IEEE Standards • Advantages • Flexible - can adapt as needed • Standards may be used independently • Relatively easy to use - Examples are given • Disadvantages • Not used worldwide • Allow too much flexibility • Implementers define how they are used

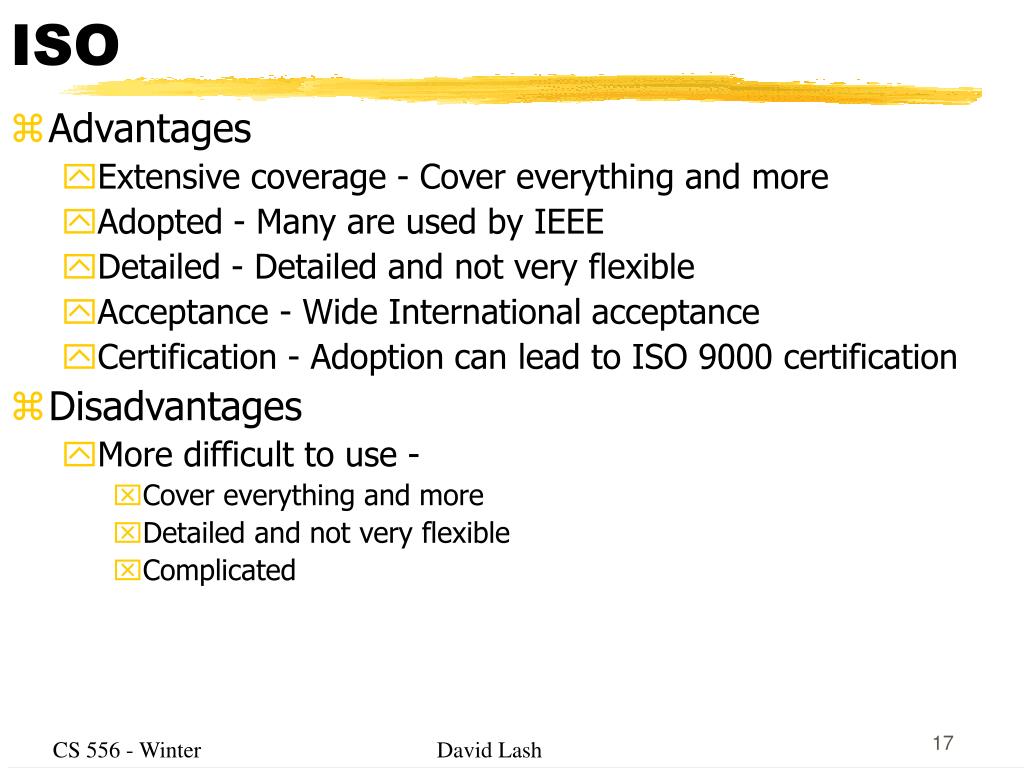

  17. ISO • Advantages • Extensive coverage - Cover everything and more • Adopted - Many are used by IEEE • Detailed - Detailed and not very flexible • Acceptance - Wide International acceptance • Certification - Adoption can lead to ISO 9000 certification • Disadvantages • More difficult to use - • Cover everything and more • Detailed and not very flexible • Complicated

  18. DOD and other • Bodies such as DOD, NASA and European Space Agency (ESA) Std 2167A • Create own standards for areas consider ill-defined • DOD - An extremely large software customer. • Much work done before stnds bodies firmly established (eary 1980s) • Std 2167 - specified software documentation, reviews. • STD2167 supervision tool • STD2167A developer tool • Eventually became IEEE 12207

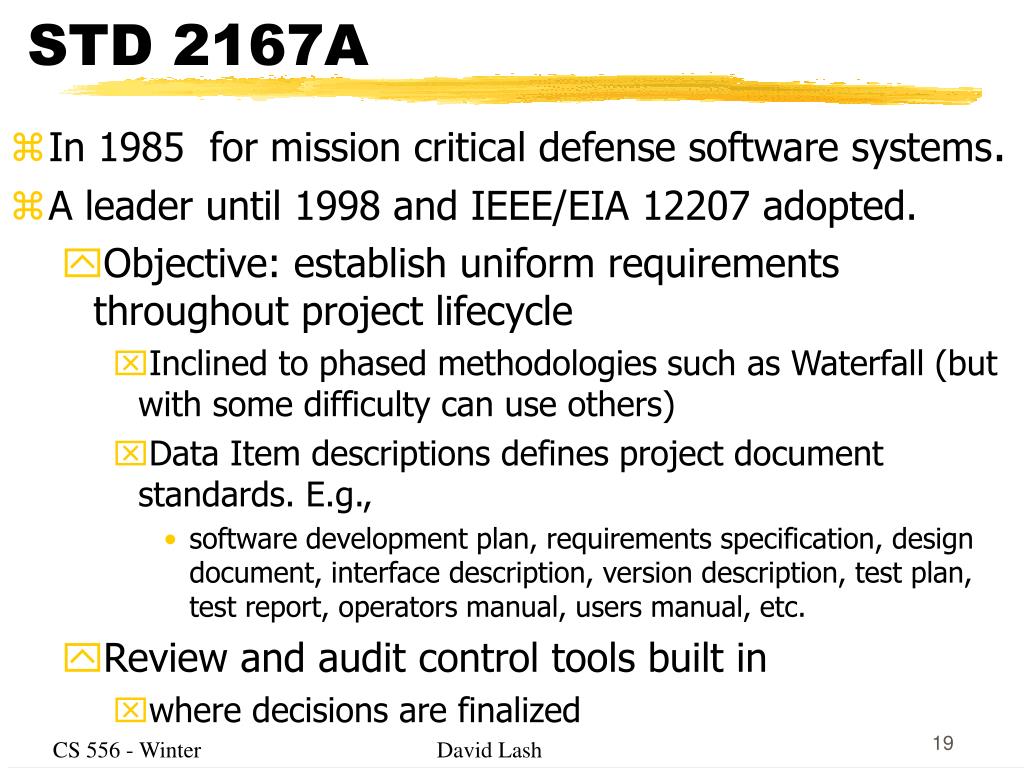

  19. STD 2167A • In 1985 for mission critical defense software systems. • A leader until 1998 and IEEE/EIA 12207 adopted. • Objective: establish uniform requirements throughout project lifecycle • Inclined to phased methodologies such as Waterfall (but with some difficulty can use others) • Data Item descriptions defines project document standards. E.g., • software development plan, requirements specification, design document, interface description, version description, test plan, test report, operators manual, users manual, etc. • Review and audit control tools built in • where decisions are finalized

  20. More on STD 2167A • Major baseline (gates) • fucntional baseline - finalizes users view of system • allocated baseline - finalizes software requirements • Critical design baseline - finalize design • product baseline - finalizes the software development • Contractors required to tailor the standard • done by deleting non-applicable items • 2167 “issues” • Generated a lot of paperwork • Not well suited to small projects • But customer was involvement in process

  21. DOD 2167a software development approach Fig. 9.6 DOD STD 2167A

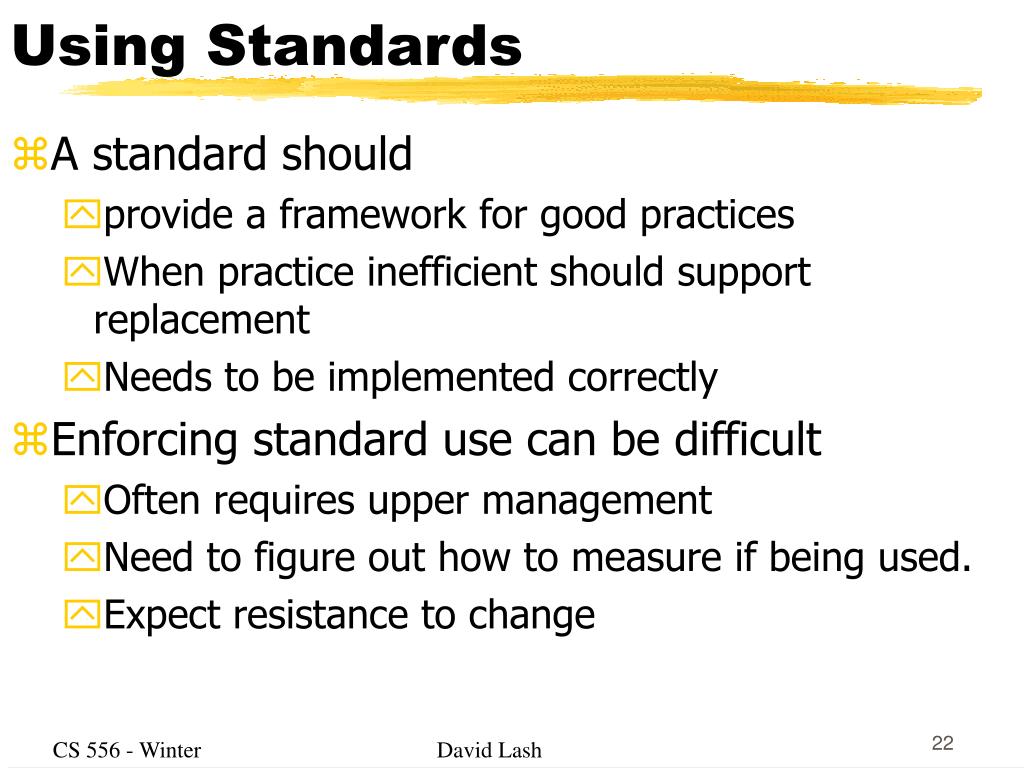

  22. Using Standards • A standard should • provide a framework for good practices • When practice inefficient should support replacement • Needs to be implemented correctly • Enforcing standard use can be difficult • Often requires upper management • Need to figure out how to measure if being used. • Expect resistance to change

  23. Summary • Why use standards • What are main standard bodies • IEEE - Institute of Electrical and Electronics Engineers • ISO - International Standards Organization • DOD - US Department of Defense. • Using Standards
