Tutorial: OpenFlow in GENI with Instrumentation and Monitoring

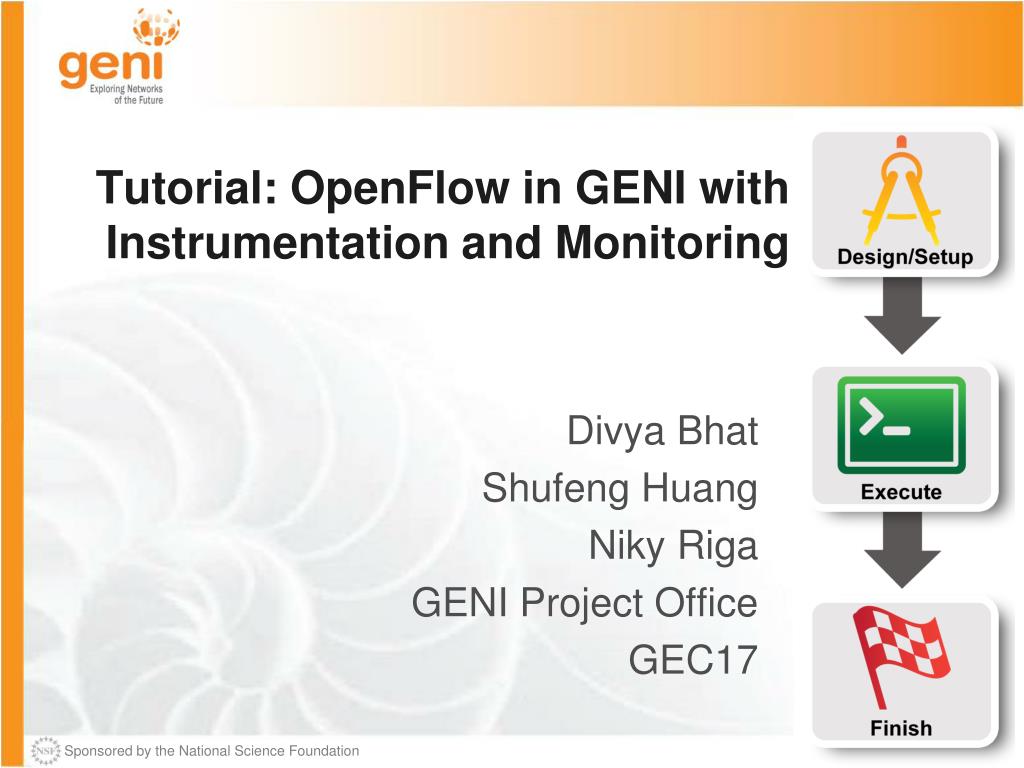

Tutorial: OpenFlow in GENI with Instrumentation and Monitoring DivyaBhat Shufeng Huang Niky Riga GENI Project Office GEC17

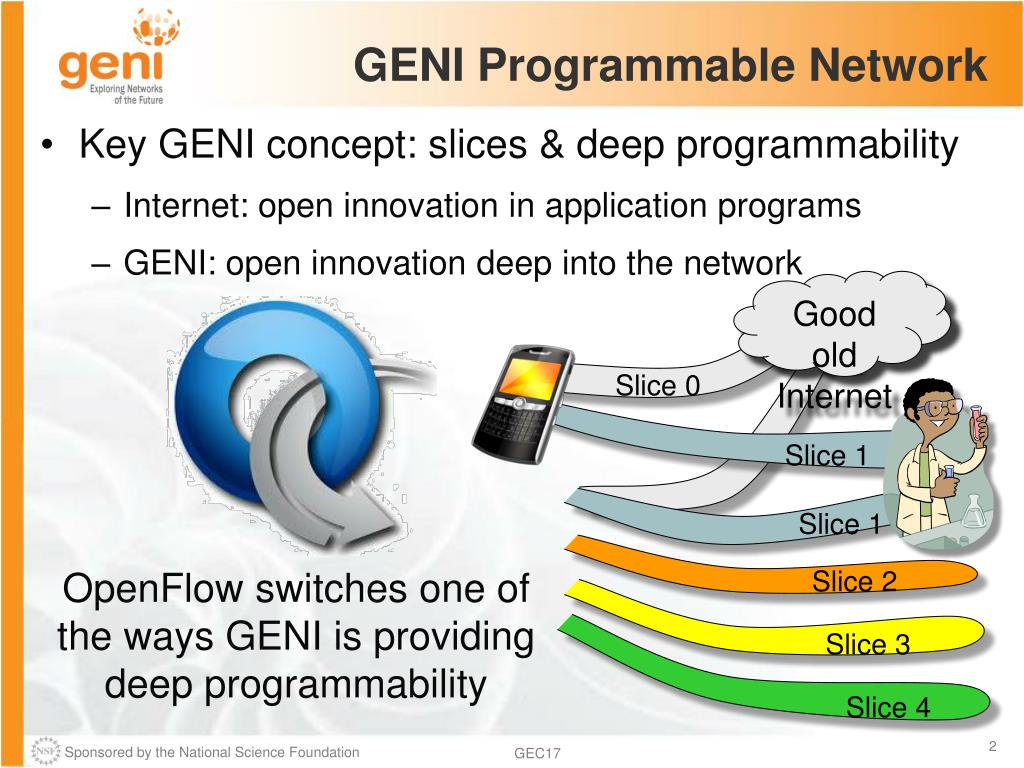

GENI Programmable Network • Key GENI concept: slices & deep programmability • Internet: open innovation in application programs • GENI: open innovation deep into the network OpenFlow switches one of the ways GENI is providing deep programmability Good old Internet Slice 0 Slice 1 Slice 1 Slice 2 Slice 3 Slice 4

Racks and Campuses • GENI Rack projects are expanding available GENI infrastructure in the US. • Racks provide reservable, sliceable compute and network resources using Aggregate Managers. • GENI AM API compliance

GENI Rack Campuses Fundsin hand • 43 racks planned this year • Each rack has an OpenFlow-enabled switch Needs funding Oct. 24, 2012

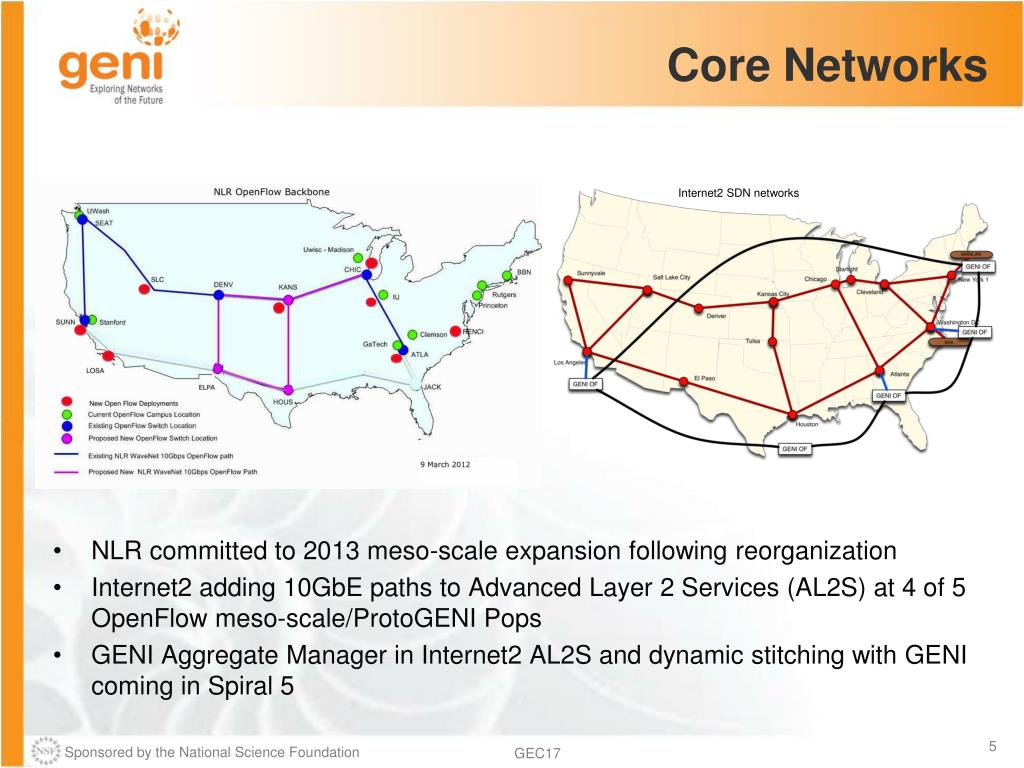

Core Networks NLR committed to 2013 meso-scale expansion following reorganization Internet2 adding 10GbE paths to Advanced Layer 2 Services (AL2S) at 4 of 5 OpenFlow meso-scale/ProtoGENI Pops GENI Aggregate Manager in Internet2 AL2S and dynamic stitching with GENI coming in Spiral 5 Internet2 SDN networks

FOAM • An OpenFlow Aggregate Manager • It’s a GENI compliant reservation service • Helps experimenters reserve flowspace in the FlowVisor • Speaks AM API v1 • Rspecs GENI v3, OpenFlow v3 extension

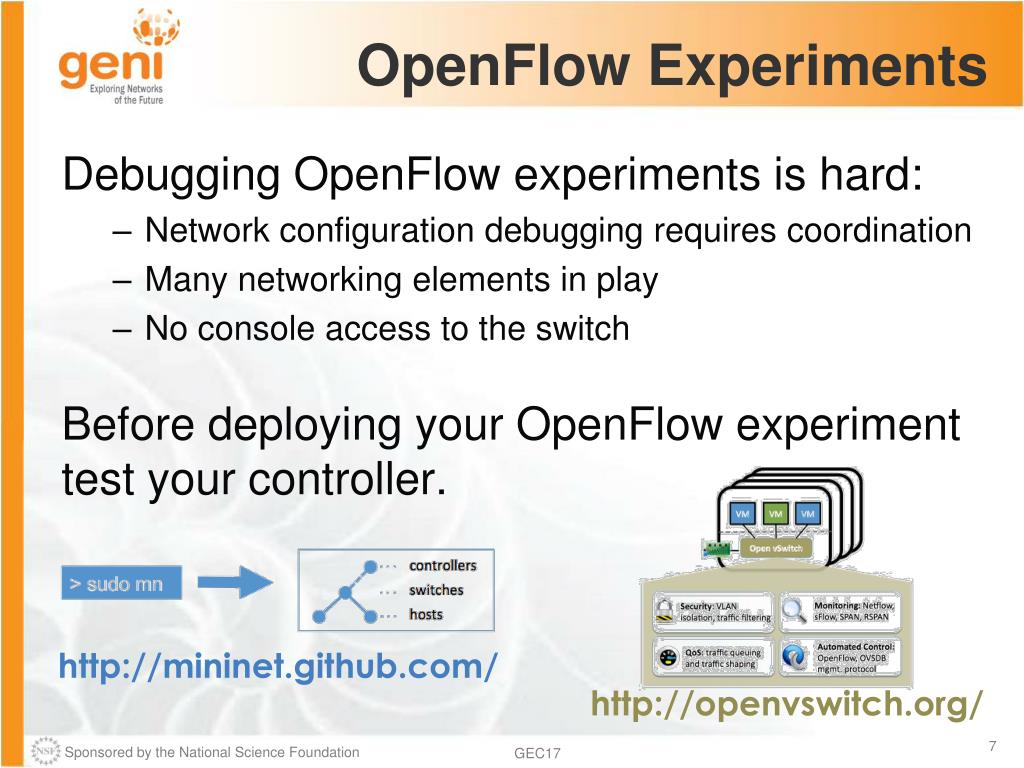

OpenFlow Experiments Debugging OpenFlow experiments is hard: • Network configuration debugging requires coordination • Many networking elements in play • No console access to the switch Before deploying your OpenFlow experiment test your controller. http://mininet.github.com/ http://openvswitch.org/

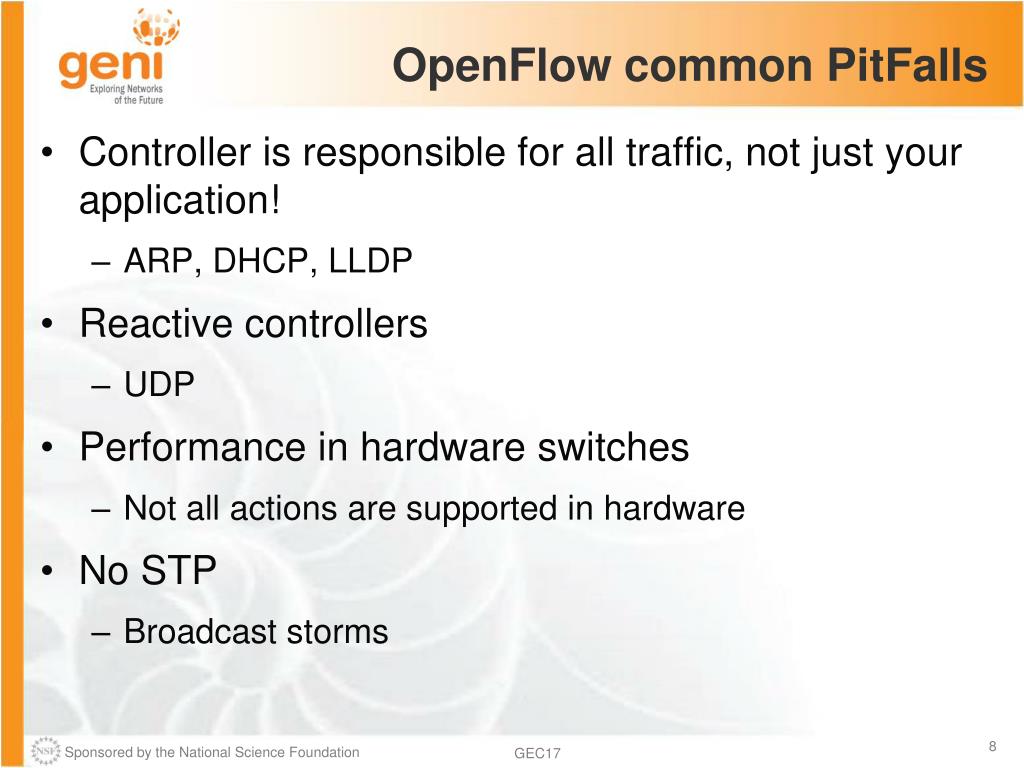

OpenFlow common PitFalls • Controller is responsible for all traffic, not just your application! • ARP, DHCP, LLDP • Reactive controllers • UDP • Performance in hardware switches • Not all actions are supported in hardware • No STP • Broadcast storms

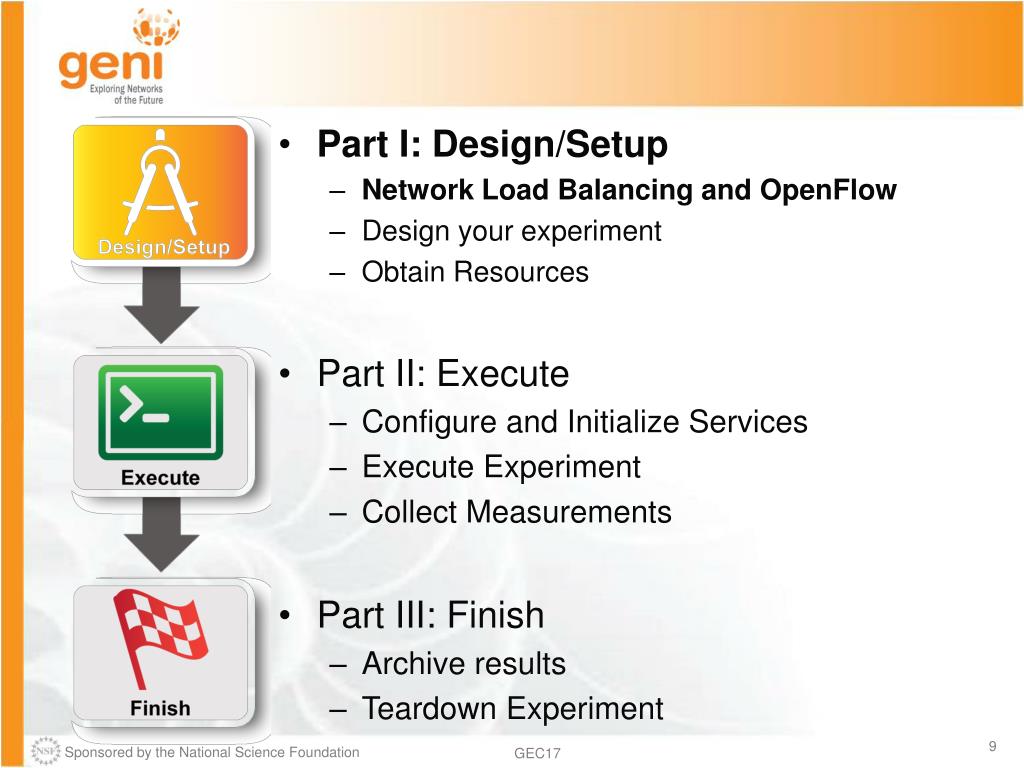

Part I: Design/Setup • Network Load Balancing and OpenFlow • Design your experiment • Obtain Resources • Part II: Execute • Configure and Initialize Services • Execute Experiment • Collect Measurements • Part III: Finish • Archive results • Teardown Experiment

Balanced Service • Balance load between two or more server providers • In networks Balance traffic between two or more paths Need to run load balancer in each decision point, i.e. within the network Picture from : www.inetu.ne

OpenFlow • The controller is responsible for populating forwarding table of the switch • Controller can get statistics directly from each switch: • per port • per flow • per table Any Host OpenFlow Controller OpenFlow Protocol (SSL/TCP) Switch Control Path OpenFlow Data Path (Hardware) Modified slide from : http://www.deutsche-telekom-laboratories.de/~robert/GENI-Experimenters-Workshop.ppt

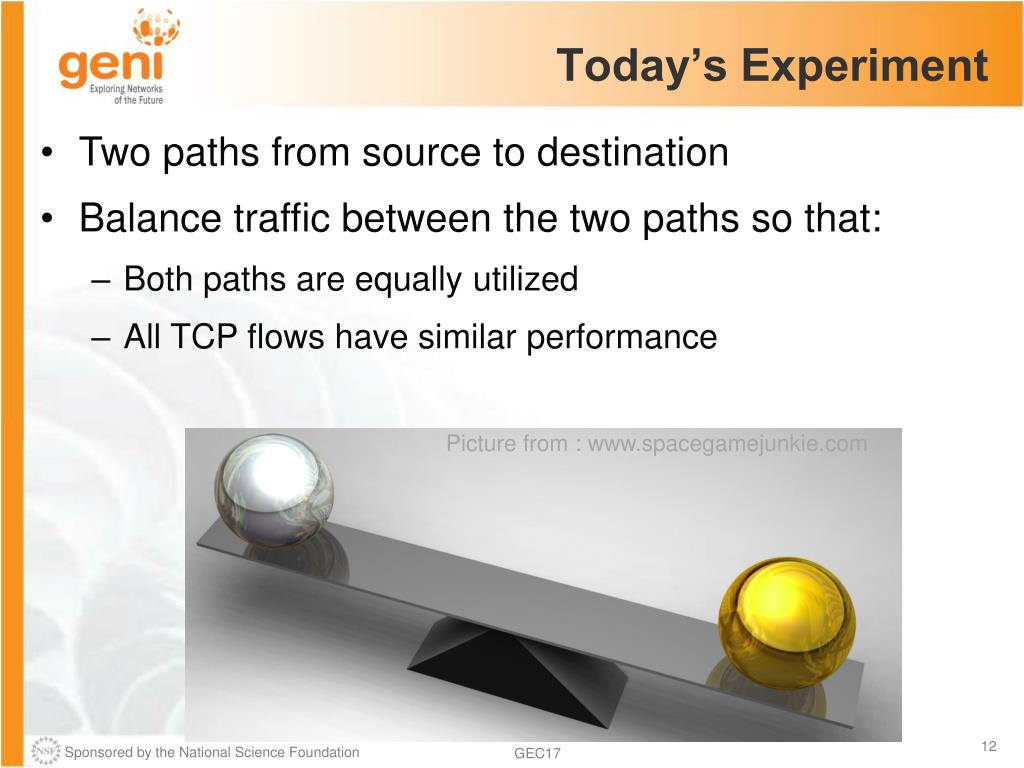

Today’s Experiment • Two paths from source to destination • Balance traffic between the two paths so that: • Both paths are equally utilized • All TCP flows have similar performance Picture from : www.spacegamejunkie.com

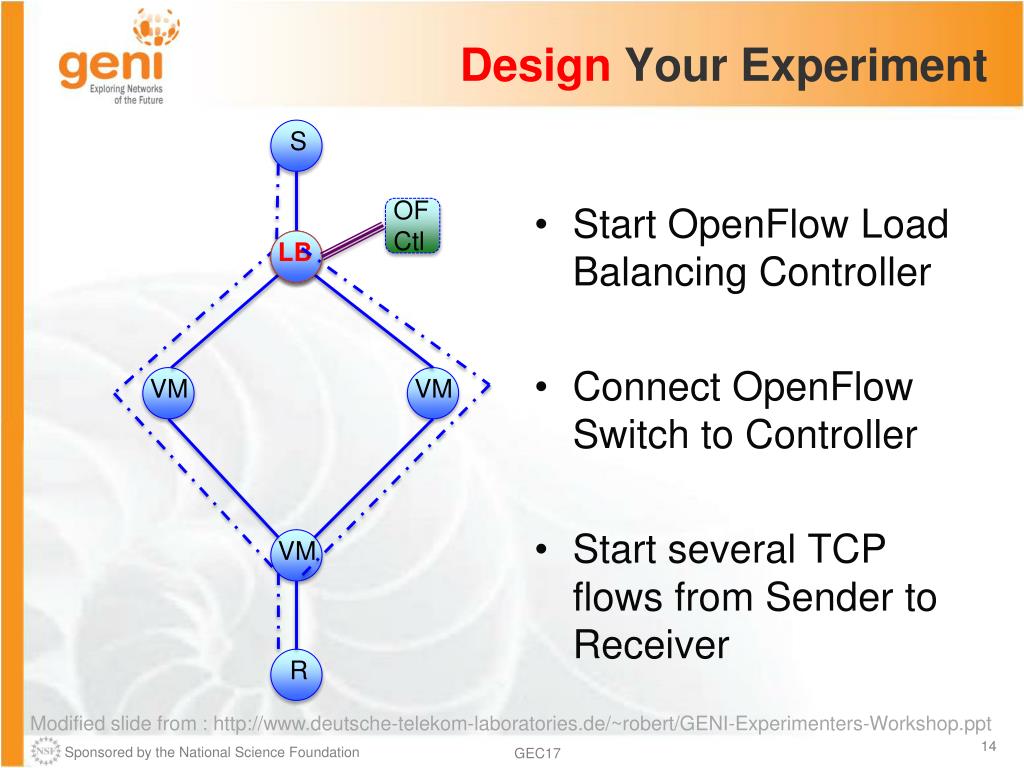

Design Your Experiment • Start OpenFlow Load Balancing Controller • Connect OpenFlow Switch to Controller • Start several TCP flows from Sender to Receiver VM VM VM LB R S OF Ctl SW Modified slide from : http://www.deutsche-telekom-laboratories.de/~robert/GENI-Experimenters-Workshop.ppt

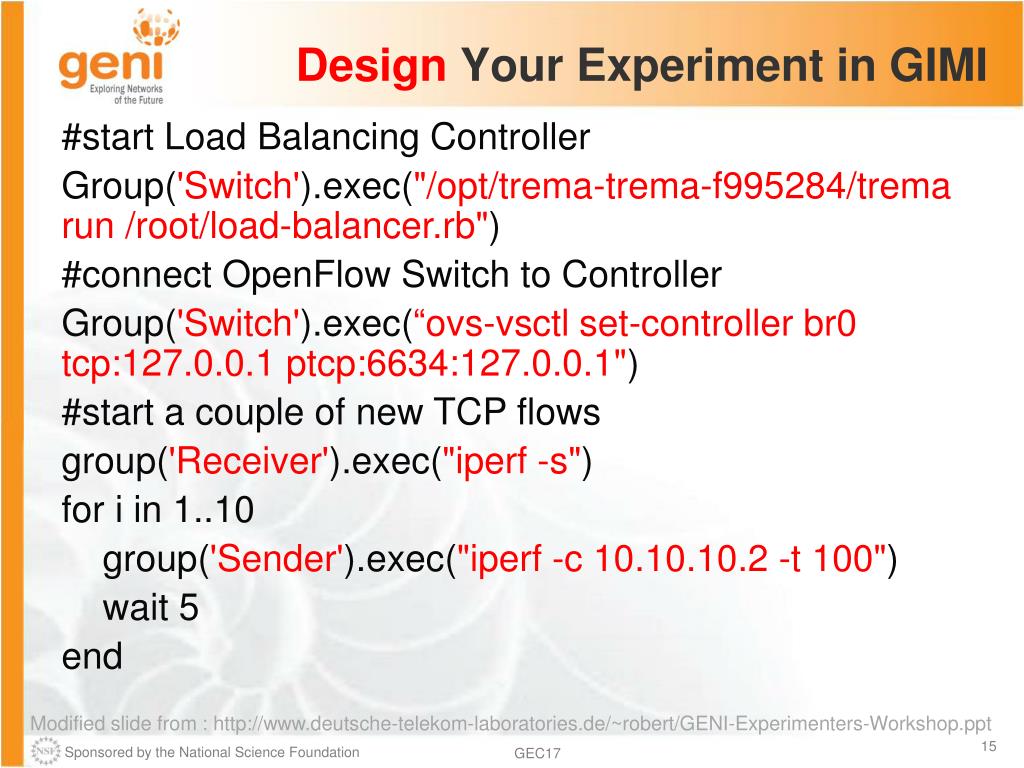

Design Your Experiment in GIMI #start Load Balancing Controller Group('Switch').exec("/opt/trema-trema-f995284/trema run /root/load-balancer.rb") #connect OpenFlow Switch to Controller Group('Switch').exec(“ovs-vsctl set-controller br0 tcp:127.0.0.1 ptcp:6634:127.0.0.1") #start a couple of new TCP flows group('Receiver').exec("iperf -s") for i in 1..10 group('Sender').exec("iperf -c 10.10.10.2 -t 100") wait 5 end Modified slide from : http://www.deutsche-telekom-laboratories.de/~robert/GENI-Experimenters-Workshop.ppt

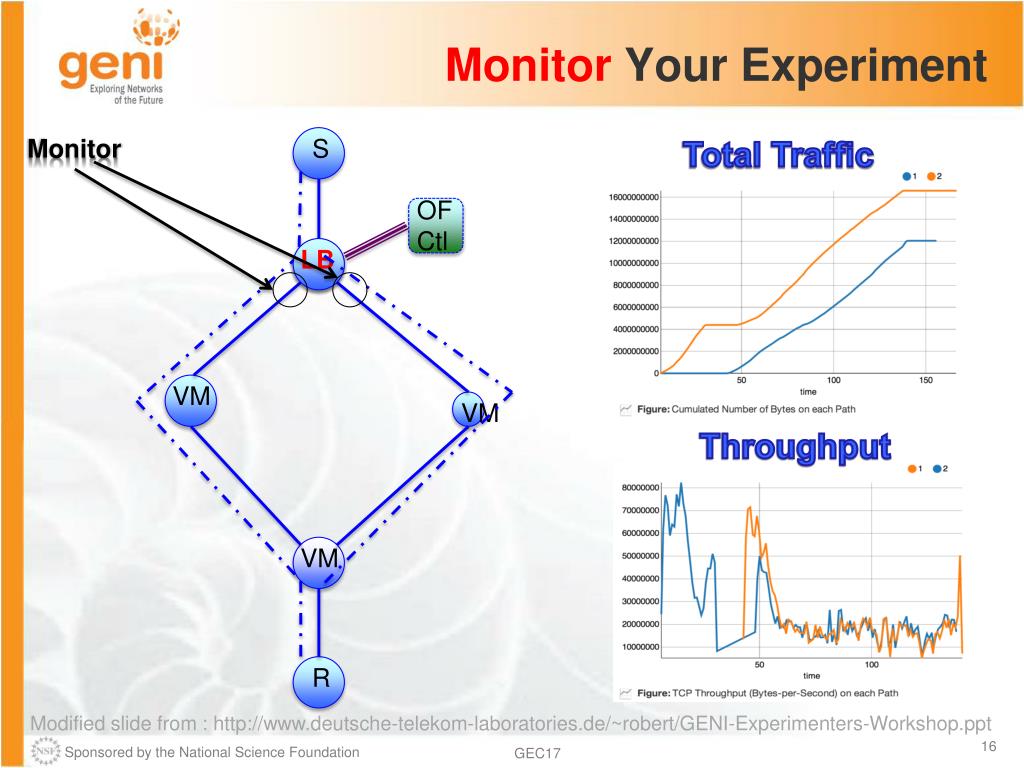

Monitor Your Experiment Monitor Total Traffic SW VM VM VM LB R S OF Ctl Throughput Modified slide from : http://www.deutsche-telekom-laboratories.de/~robert/GENI-Experimenters-Workshop.ppt

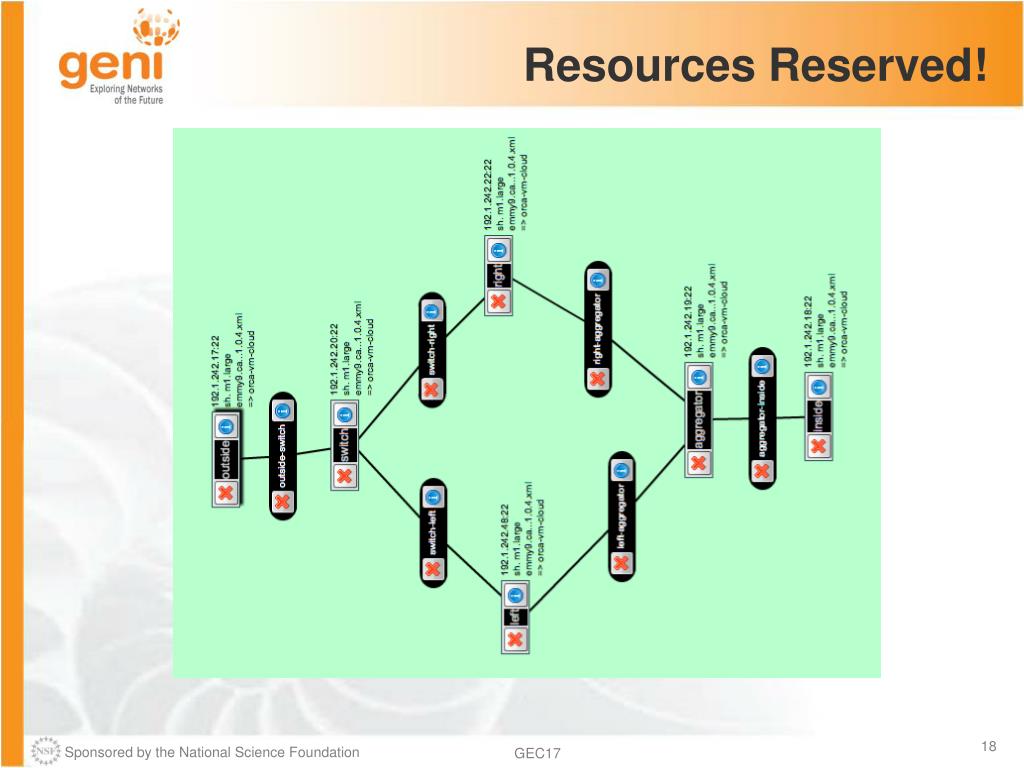

Resources Reserved!

Configure and Initialize Services • Figure out the interfaces to monitor • Update GIMI Script to monitor the correct interface: left = ‘eth1’ right = ‘eth2’ • start Load Balancing Controller

Execute Experiment • Follow Instructions on Tutorial page to execute your experiment on LabWiki • Pay attention to the output of your OpenFlow Controller:

Trema • Trema is NOT an OpenFlow Controller • Trema is a Programming Framework for implementing OpenFlow Controllers • Trema is a Platform to run OpenFlow Controllers • You need to: • Write your own controller using TremaAPI • Run your controller with Trema

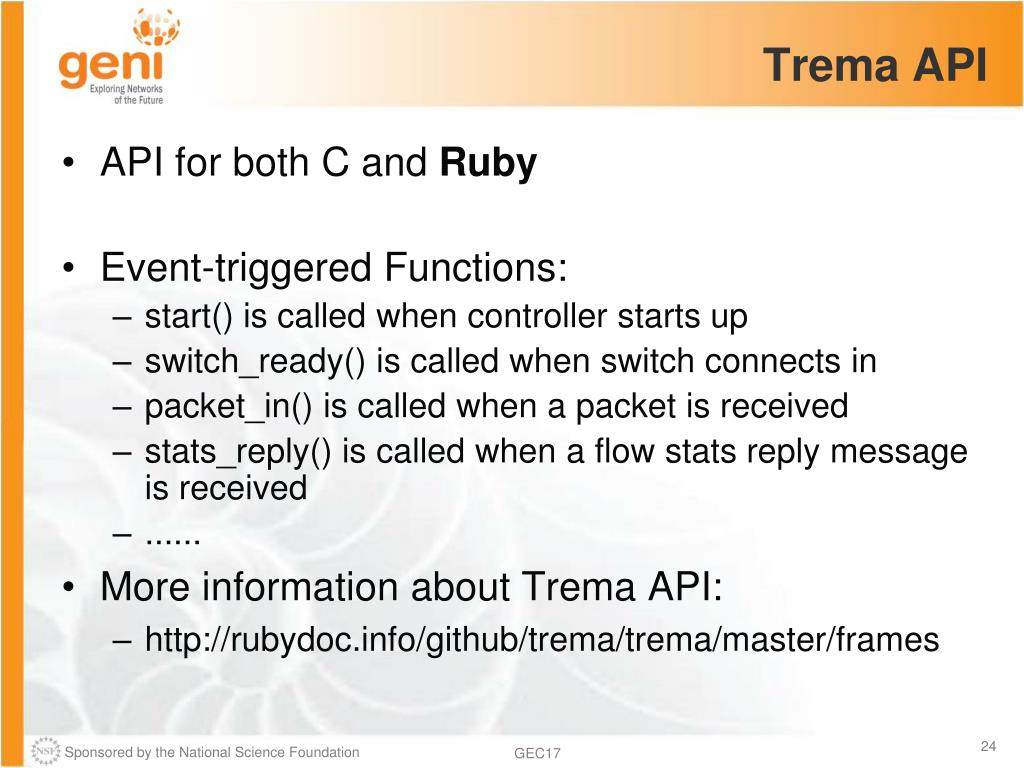

TremaAPI • API for both C and Ruby • Event-triggered Functions: • start() iscalledwhencontrollerstartsup • switch_ready() iscalledwhenswitchconnects in • packet_in() iscalledwhen a packet isreceived • stats_reply() iscalledwhen a flowstatsreplymessageisreceived • ...... • More information about Trema API: • http://rubydoc.info/github/trema/trema/master/frames

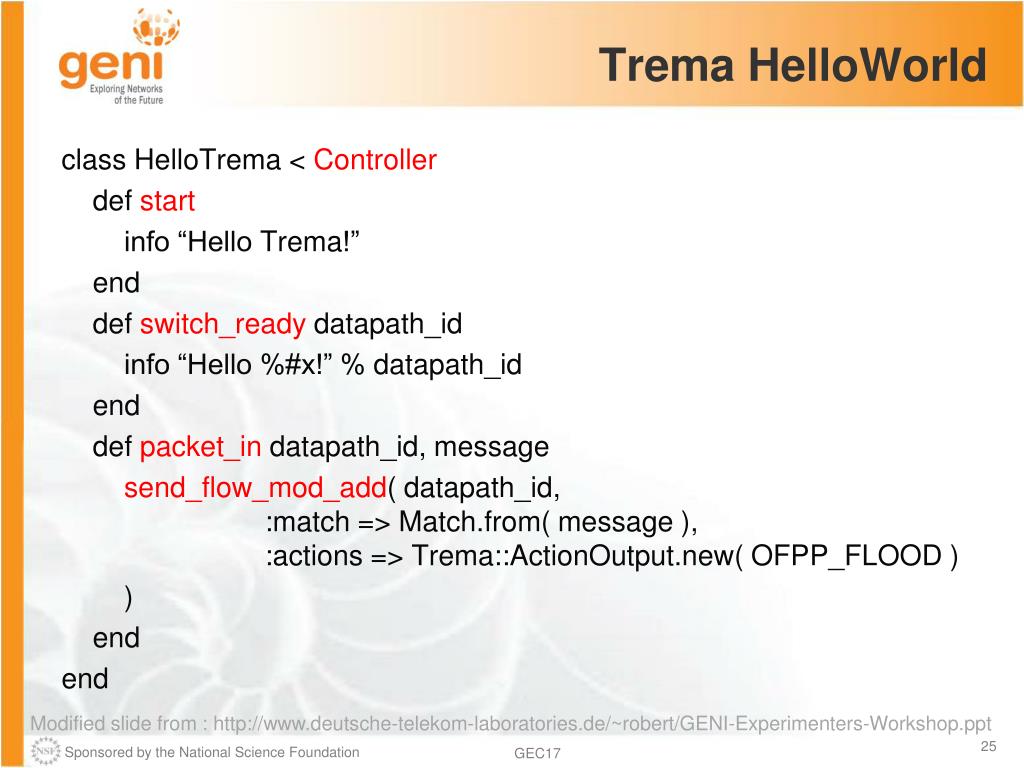

TremaHelloWorld class HelloTrema < Controller defstart info “Hello Trema!” end defswitch_readydatapath_id info “Hello %#x!” % datapath_id end defpacket_indatapath_id, message send_flow_mod_add( datapath_id, :match => Match.from( message ), :actions => Trema::ActionOutput.new( OFPP_FLOOD ) ) end end Modified slide from : http://www.deutsche-telekom-laboratories.de/~robert/GENI-Experimenters-Workshop.ppt

Run Trema • ./trema run [controller] • e.g., ./trema run hello_trema.rb • Trema Advantage: • Simple, easy to write • You will need to write your own OpenFlow Controller in this tutorial using Trema (in Ruby)!

Labwiki and OML • Developed by NICTA, used for GIMI (GENI Instrumentation and Measurement Infrastructure) • 3 Simple steps • Plan • Prepare • Execute • A video demonstration of LabWiki is available at http://labwiki.mytestbed.net/

Plan • Plan your Experiment • Write descriptions about steps to perform experiments, see and compare results • Lab notebook where graphs can be inserted • Editable for additional comments about results • Can be saved for future reference

Plan

Prepare • Write OMF Scripts • Simple Ruby like scripts that call OML-ified applications like ping, nmetrics and many more • Select from Existing templates • Edit the template • Save it as your own copy • Click and drag to the execute window when the script is ready

Prepare

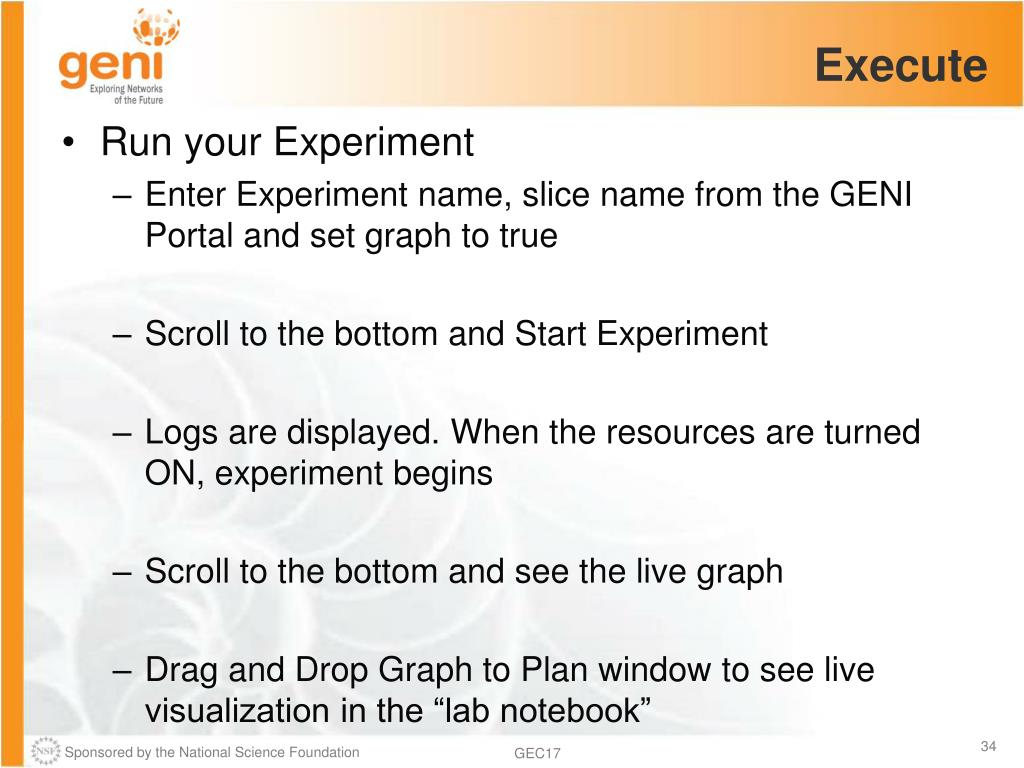

Execute • Run your Experiment • Enter Experiment name, slice name from the GENI Portal and set graph to true • Scroll to the bottom and Start Experiment • Logs are displayed. When the resources are turned ON, experiment begins • Scroll to the bottom and see the live graph • Drag and Drop Graph to Plan window to see live visualization in the “lab notebook”

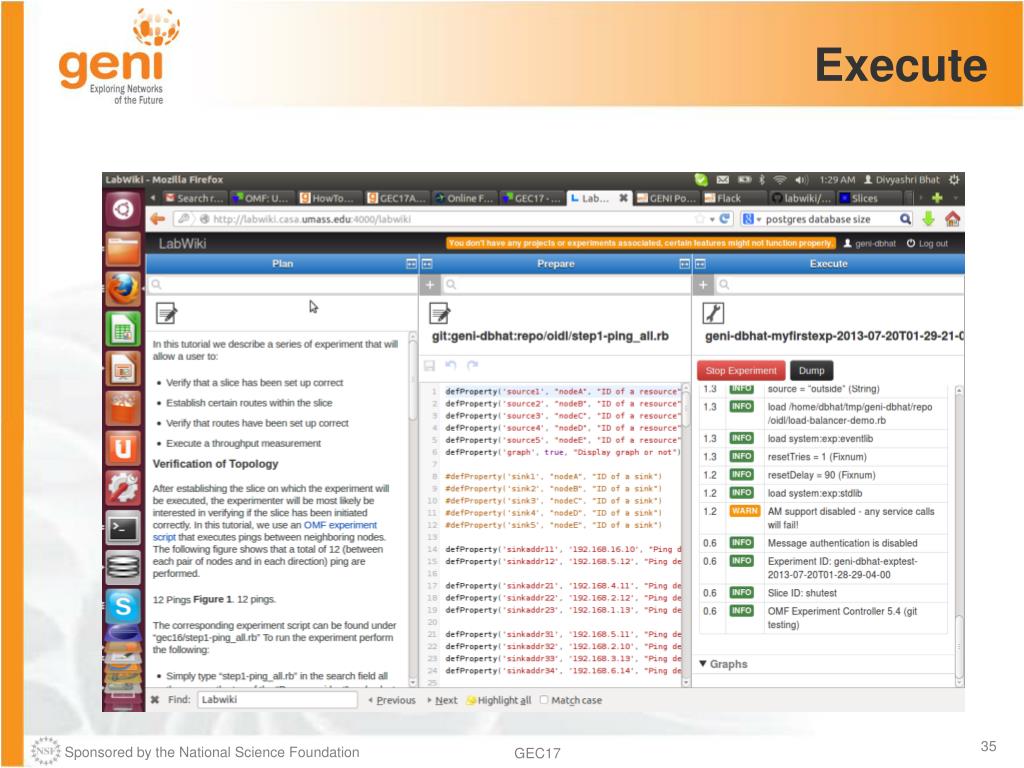

Execute

Collect and Archive Experimenter iRODS Automated 6.Obtain 5.Save 5.Save LabWiki 1.Instrument 4.Plot 4.Plot OML Server 0.Reserve 2.Run 2.Run 3.Collect 3.Collect GENI TestBed OMLClient

Archive - iRODs • Integrated Rule-Oriented Data System • LabWiki stores all experiment related data here. Your scripts, result data and the manifest Rspec is stored in a user-specific directory structure • Download iRODs client (already on VM) - https://www.irods.org/index.php/Downloads • Go to the GENI Portal, under Profile and Click iRODs account • Configure iRODs Environment • To view experiment related data, go to iDrop, web interface for viewing iRODs data (link on GENI Portal and enter user name and password as shown.

iRODs

Part III: Finish Experiment When your experiment is done, you should always release your resources. • Normally this is when you would archive your data • Delete your slivers at each aggregate sliver credentials sliver project RSpec resource user AM API aggregate certificate slice

Tutorial: OpenFlow in GENI with Instrumentation and Monitoring
