  1. Integrating Oracle HTML DB with Oracle Application Server 10g

  2. Scott SpendoliniSenior Product Manager, Oracle HTML DB Oracle Corporation

  3. Agenda • Oracle HTML DB Overview • Integration Points with Oracle Application Server 10g • Summary • Q & A

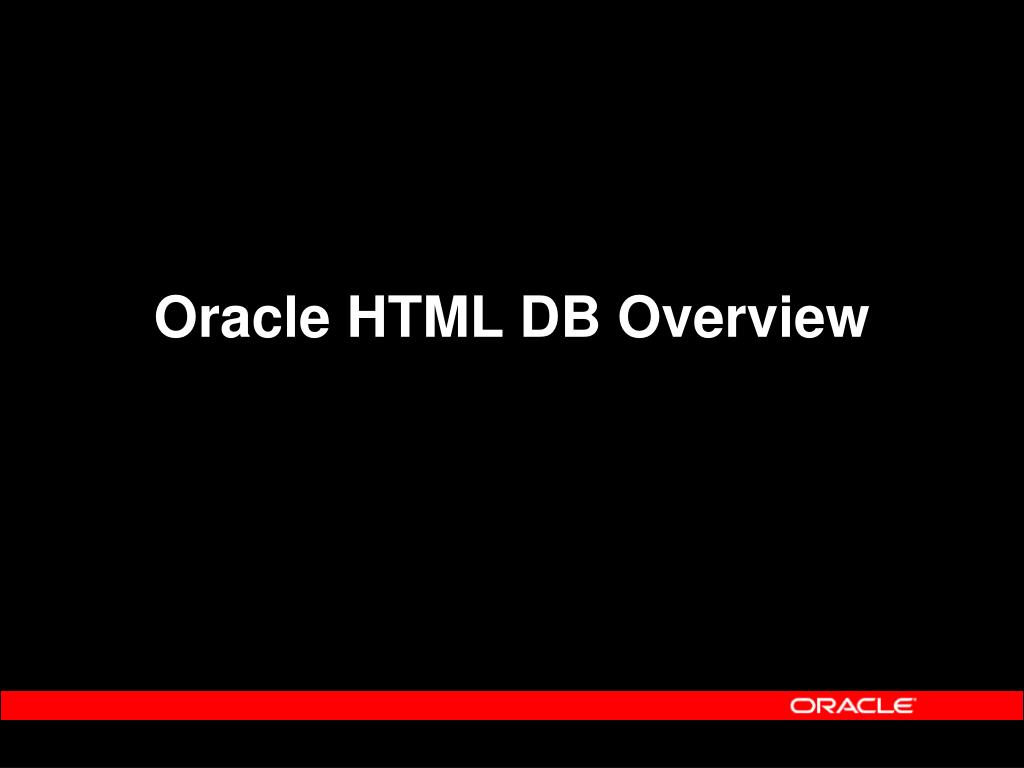

  4. Oracle HTML DB Overview

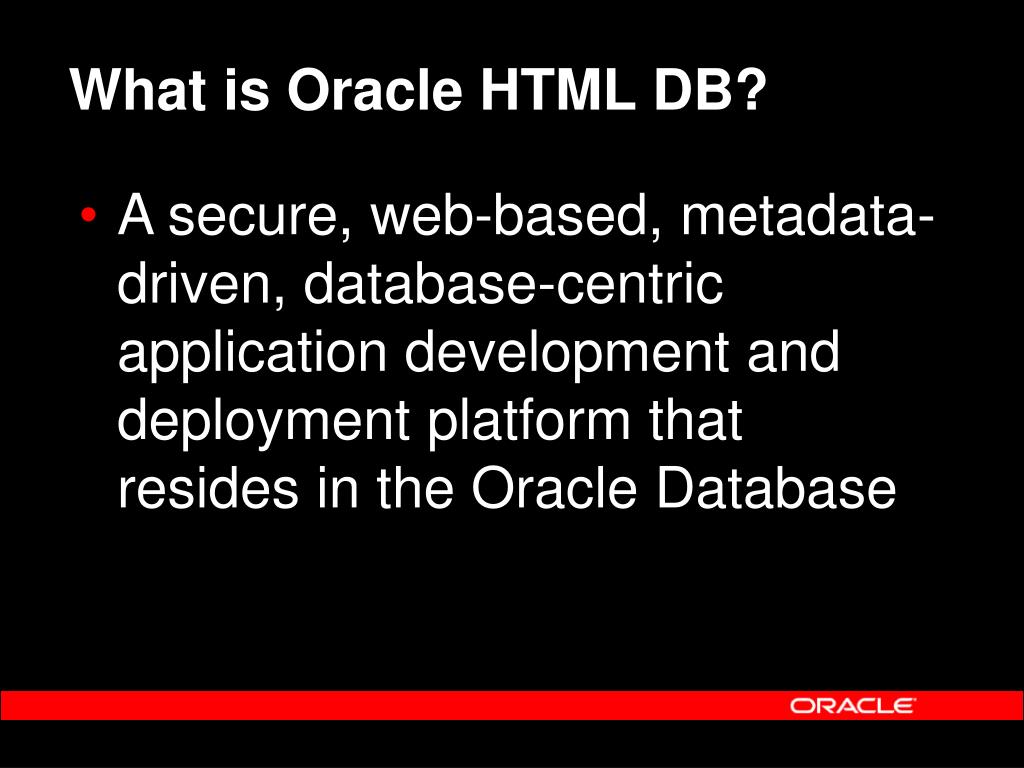

  5. What is Oracle HTML DB? • A secure, web-based, metadata-driven, database-centric application development and deployment platform that resides in the Oracle Database

  6. Portal vs. HTML DB • Oracle PortalConsolidated View of Personalized Data from Multiple Sources • Oracle HTML DBSecure, Scalable Platform for Web Application Development & Deployment

  7. Availability • Release 1.5 • Software ships on Oracle Database 10g Companion CD • Release 1.6 • Available as a Download from OTN • 1.6.1 Patchset Available via Metalink • Works & Supported in Oracle Database 10g and Oracle Database 9iR2 (9.2.0.3+) • Included as a component of Standard One, Standard and Enterprise Editions • No Additional Charge

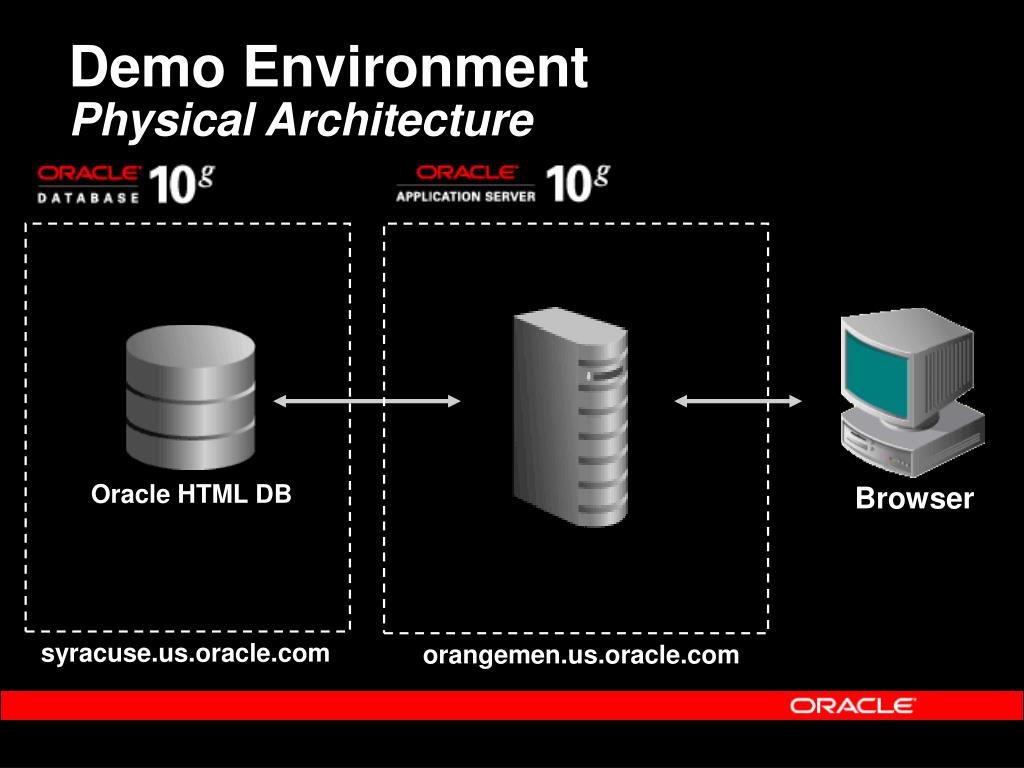

  8. Browser Oracle HTML DB syracuse.us.oracle.com Demo EnvironmentPhysical Architecture orangemen.us.oracle.com

  9. InternetDirectory Single Sign-On Reports Portal HTTP & mod_plsql Oracle HTML DB syracuse.us.oracle.com MapViewer OC4J orangemen.us.oracle.com Demo EnvironmentPhysical Architecture

  10. Demo EnvironmentToday’s Architecture Red Hat Advanced Server htmldb-demo.us.oracle.com

  11. Oracle HTML DBLogical Architecture • Shared Workgroup Database Service • Ability to Host Many Users on a Single Instance • Centrally Deployed & Managed • Accessed anywhere via a Browser • Declarative development style • Pages & Objects Stored as Metadata • Wizard-Based Development

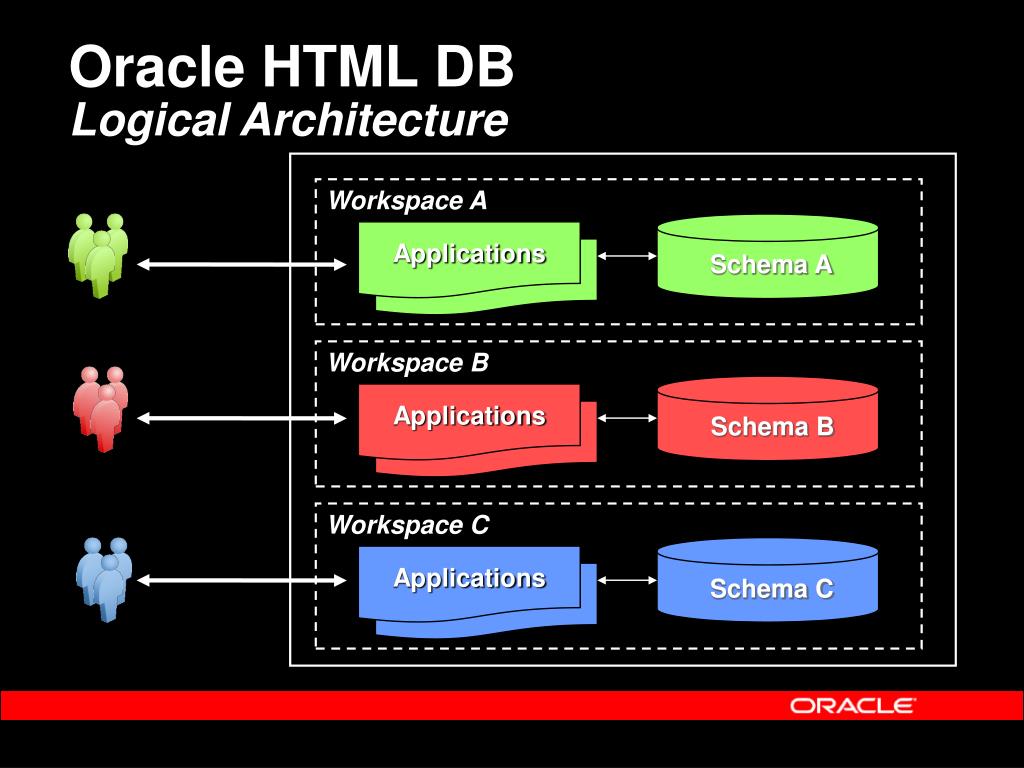

  12. Oracle HTML DBLogical Architecture Workspace A Applications Applications Schema A Workspace B Applications Applications Schema B Workspace C Applications Applications Schema C

  13. Integration Points with Oracle Application Server 10g

  14. InternetDirectory Single Sign-On Reports Portal HTTP & mod_plsql Oracle HTML DB syracuse.us.oracle.com MapViewer OC4J orangemen.us.oracle.com Oracle HTTP Server & mod_plsql

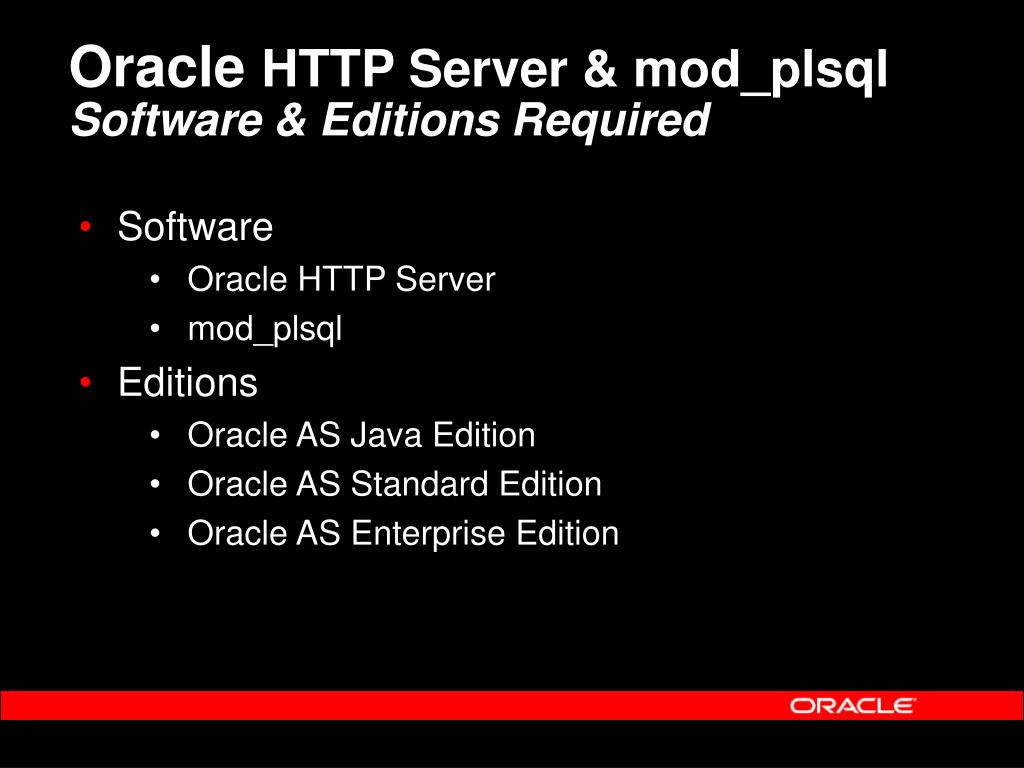

  15. Oracle HTTP Server & mod_plsqlSoftware & Editions Required • Software • Oracle HTTP Server • mod_plsql • Editions • Oracle AS Java Edition • Oracle AS Standard Edition • Oracle AS Enterprise Edition

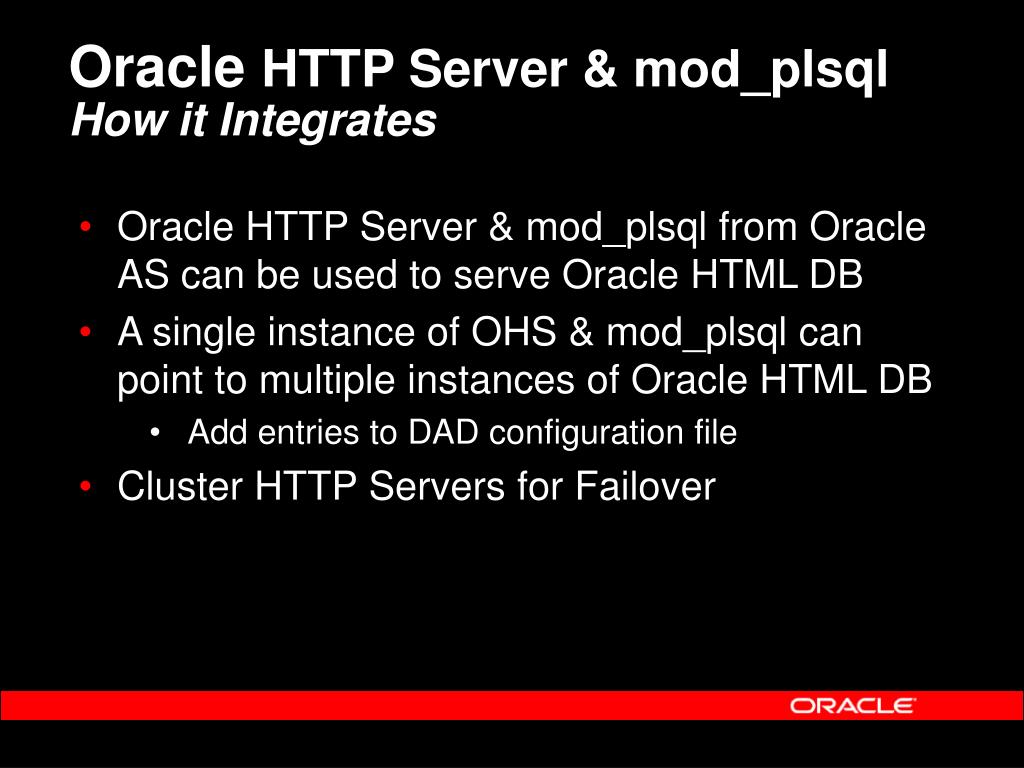

  16. Oracle HTTP Server & mod_plsqlHow it Integrates • Oracle HTTP Server & mod_plsql from Oracle AS can be used to serve Oracle HTML DB • A single instance of OHS & mod_plsql can point to multiple instances of Oracle HTML DB • Add entries to DAD configuration file • Cluster HTTP Servers for Failover

  17. Oracle HTTP Server & mod_plsqlSteps to Configure • Add an entry to your DAD configuration file for each instance of Oracle HTML DB: <Location /pls/htmldb> SetHandler pls_handler Order deny,allow Allow from all AllowOverride None PlsqlDatabaseUsername HTMLDB_PUBLIC_USER PlsqlDatabasePassword @BXUKpCh0pabnAcDAE+X2P9w= PlsqlDatabaseConnectString localhost:1521:sadler ServiceNameFormat PlsqlDefaultPage htmldb PlsqlDocumentTablename wwv_flow_file_objects$ PlsqlDocumentPath docs PlsqlDocumentProcedure wwv_flow_file_manager.process_download PlsqlAuthenticationMode Basic PlsqlNLSLanguage AMERICAN_AMERICA.WE8MSWIN1252 </Location>

  18. Oracle HTTP Server & mod_plsqlResources • OTN: Oracle HTTP Serverhttp://www.oracle.com/technology/products/ias/ohs/index.html • Studio: Install HTML DB into multiple Oracle Instances using a single Oracle HTTP Serverhttp://htmldb.oracle.com/pls/otn/f?p=18326:54:::::P54_ID:481 • How To: Install and Configure Oracle HTML DB for use with Oracle Application Server 10ghttp://www.oracle.com/technology/products/database/htmldb/howtos/howto_useoas10g.html • How To: Install and Configure Oracle HTML DB for use by a 9iR2 Oracle HTTP Server http://www.oracle.com/technology/products/database/htmldb/howtos/howto_use9ir2ohs.html

  19. Oracle HTTP Server & mod_plsqlDemonstration

  20. InternetDirectory Single Sign-On Reports Portal HTTP & mod_plsql Oracle HTML DB syracuse.us.oracle.com MapViewer OC4J orangemen.us.oracle.com Oracle Single Sign-On

  21. Oracle Single Sign-OnSoftware & Editions Required • Software • Oracle Single Sign-On Server • Editions • Oracle AS Standard Edition • Oracle AS Enterprise Edition

  22. Oracle Single Sign-OnHow it Integrates • Oracle HTML DB can integrate with Oracle Single Sign-on as a: • Partner Application • External Application • Signing on to the Oracle Login Server means you're authenticated to any Oracle HTML DB application using the SSO Authentication Scheme

  23. Oracle Single Sign-OnSteps to Configure • Download & Install the SSO SDK into your HTML DB Schema • Alternatively, you can install the SSO SDK into a separate schema, in order to preserve it when HTML DB is upgraded • Create an SSO Authentication Scheme in your HTML DB Application • Register Oracle HTML DB or a specific Oracle HTML DB Application as a Partner Application

  24. Oracle Single Sign-OnResources • OTN: Oracle Single Sign-Onhttp://www.oracle.com/technology/products/id_mgmt/osso/index.html • How To: Configure an HTML DB Application as a Partner Application in Oracle AS Single Sign-On http://www.oracle.com/technology/products/database/htmldb/howtos/sso_partner_app.html

  25. Oracle Single Sign-OnDemonstration

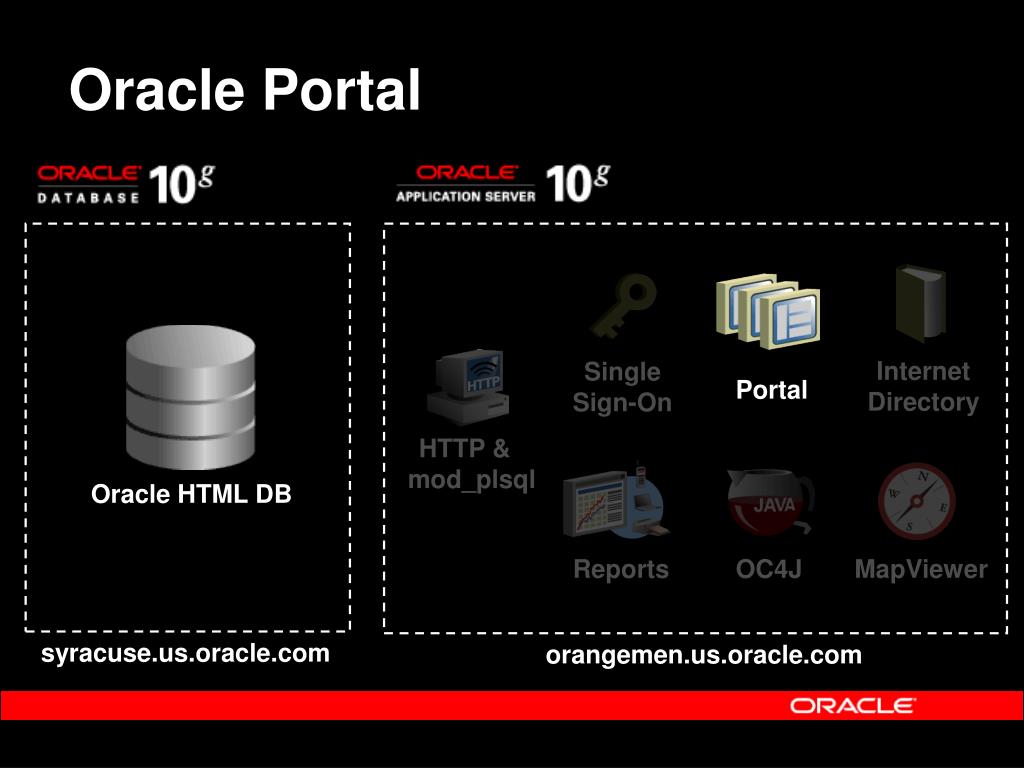

  26. InternetDirectory Single Sign-On Reports Portal HTTP & mod_plsql Oracle HTML DB syracuse.us.oracle.com MapViewer OC4J orangemen.us.oracle.com Oracle Portal

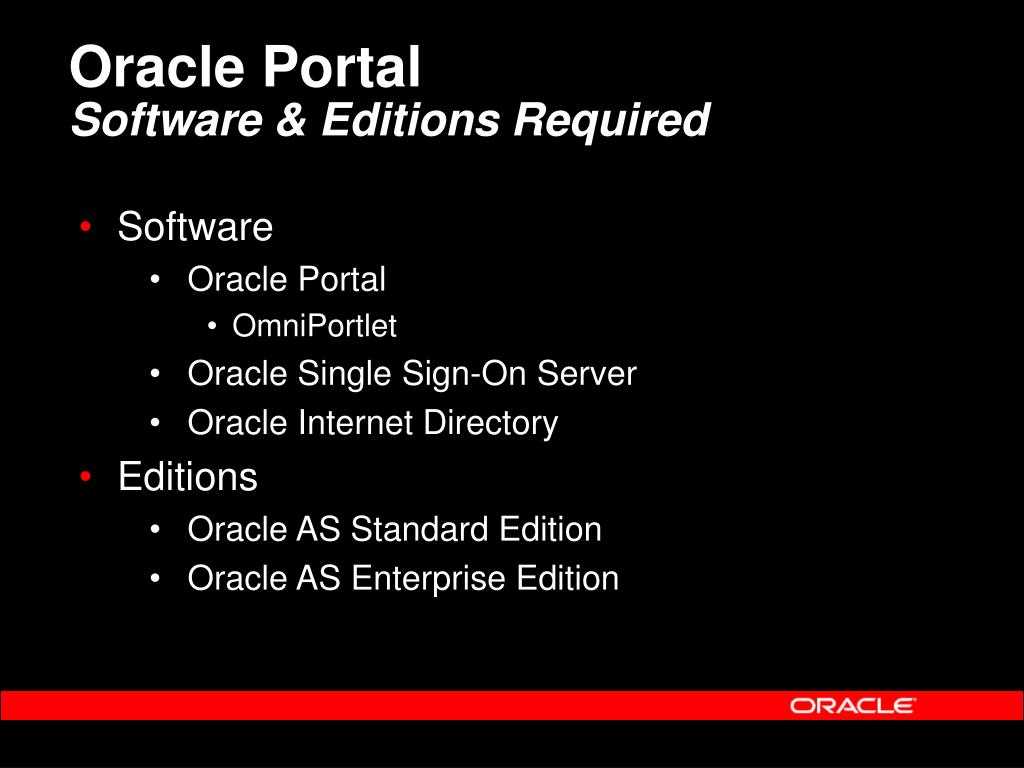

  27. Oracle PortalSoftware & Editions Required • Software • Oracle Portal • OmniPortlet • Oracle Single Sign-On Server • Oracle Internet Directory • Editions • Oracle AS Standard Edition • Oracle AS Enterprise Edition

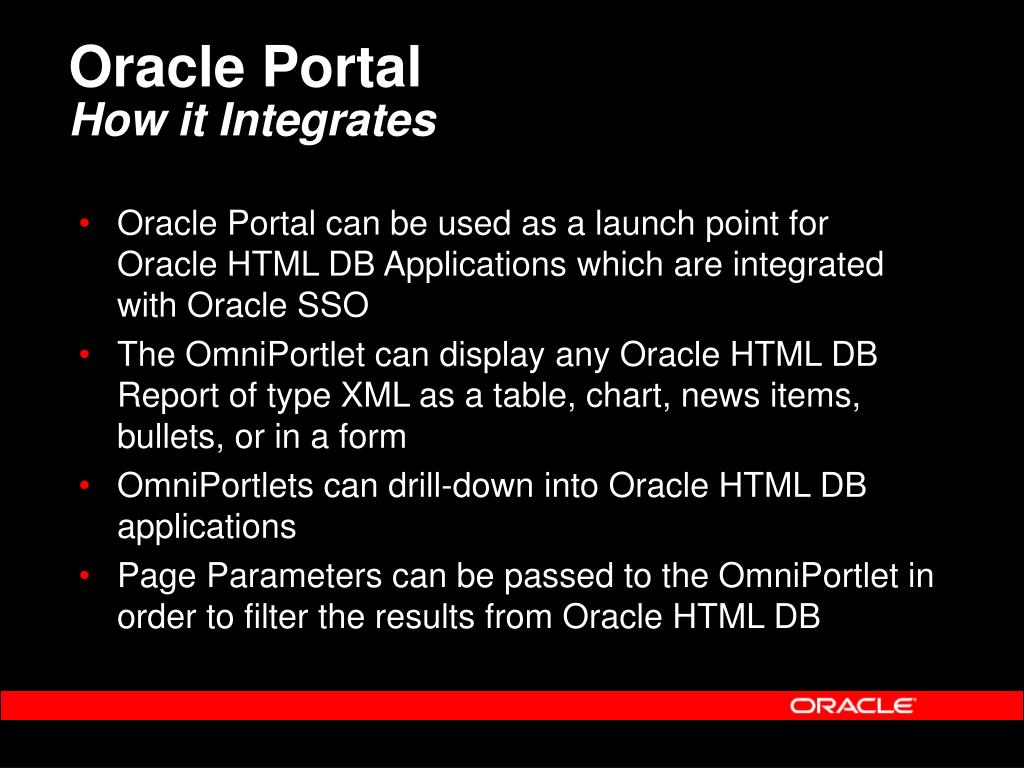

  28. Oracle PortalHow it Integrates • Oracle Portal can be used as a launch point for Oracle HTML DB Applications which are integrated with Oracle SSO • The OmniPortlet can display any Oracle HTML DB Report of type XML as a table, chart, news items, bullets, or in a form • OmniPortlets can drill-down into Oracle HTML DB applications • Page Parameters can be passed to the OmniPortlet in order to filter the results from Oracle HTML DB

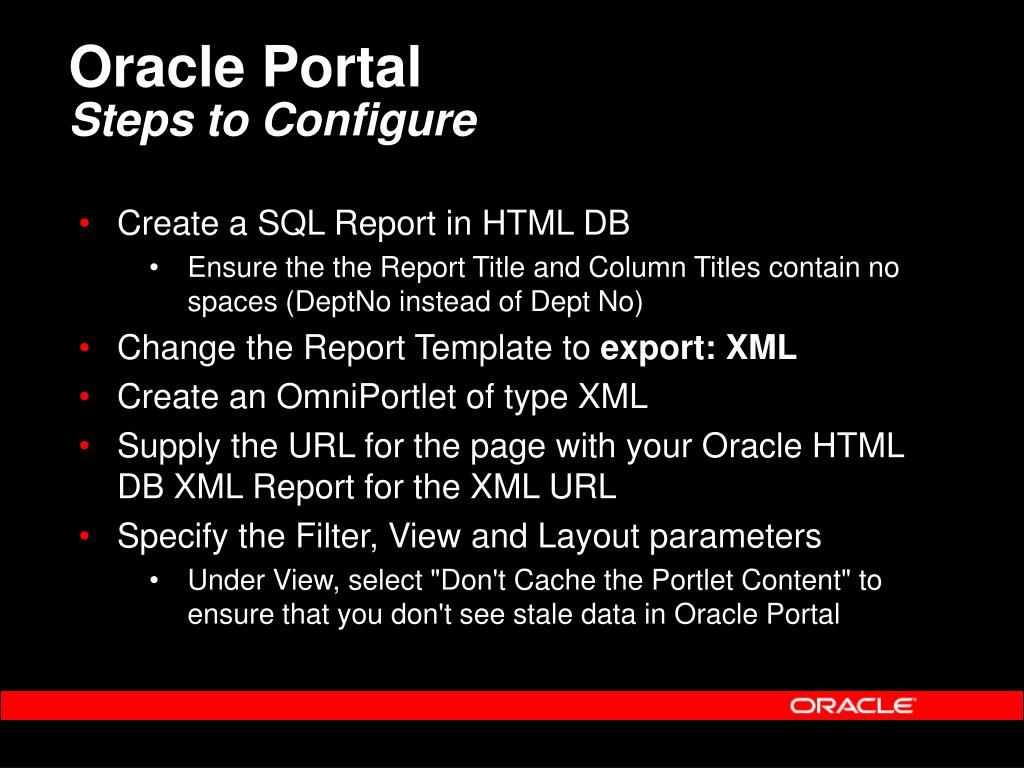

  29. Oracle PortalSteps to Configure • Create a SQL Report in HTML DB • Ensure the the Report Title and Column Titles contain no spaces (DeptNo instead of Dept No) • Change the Report Template to export: XML • Create an OmniPortlet of type XML • Supply the URL for the page with your Oracle HTML DB XML Report for the XML URL • Specify the Filter, View and Layout parameters • Under View, select "Don't Cache the Portlet Content" to ensure that you don't see stale data in Oracle Portal

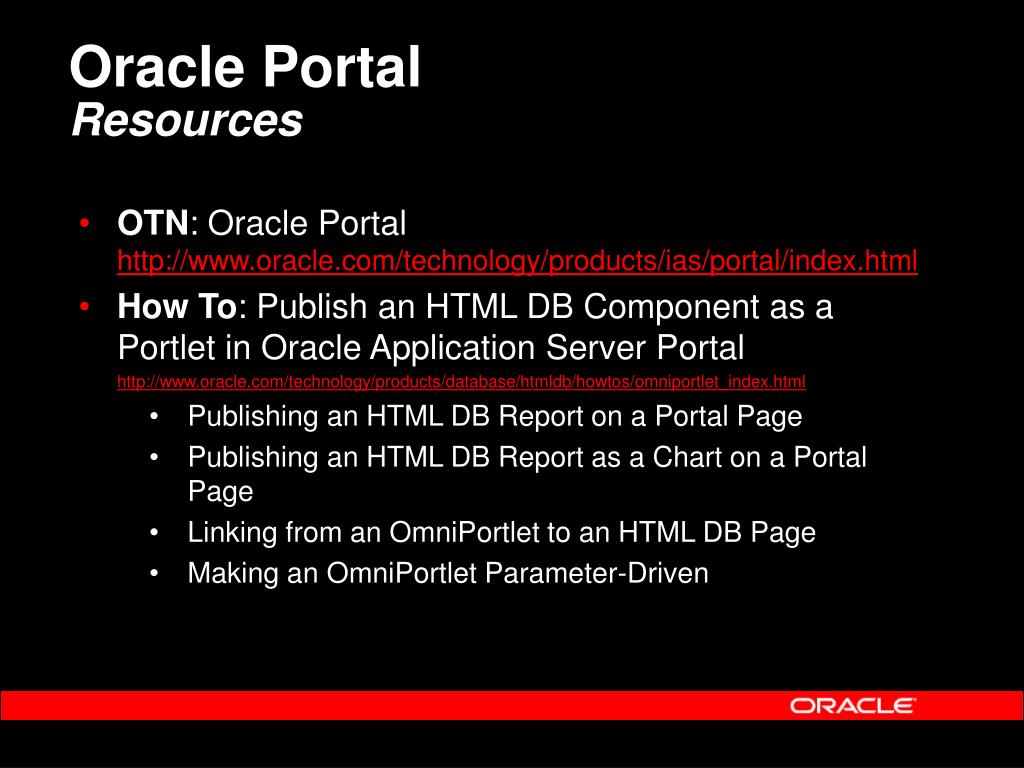

  30. Oracle PortalResources • OTN: Oracle Portalhttp://www.oracle.com/technology/products/ias/portal/index.html • How To: Publish an HTML DB Component as a Portlet in Oracle Application Server Portal http://www.oracle.com/technology/products/database/htmldb/howtos/omniportlet_index.html • Publishing an HTML DB Report on a Portal Page • Publishing an HTML DB Report as a Chart on a Portal Page • Linking from an OmniPortlet to an HTML DB Page • Making an OmniPortlet Parameter-Driven

  31. Oracle PortalDemonstration

  32. InternetDirectory Single Sign-On Reports Portal HTTP & mod_plsql Oracle HTML DB syracuse.us.oracle.com MapViewer OC4J orangemen.us.oracle.com Oracle Internet Directory

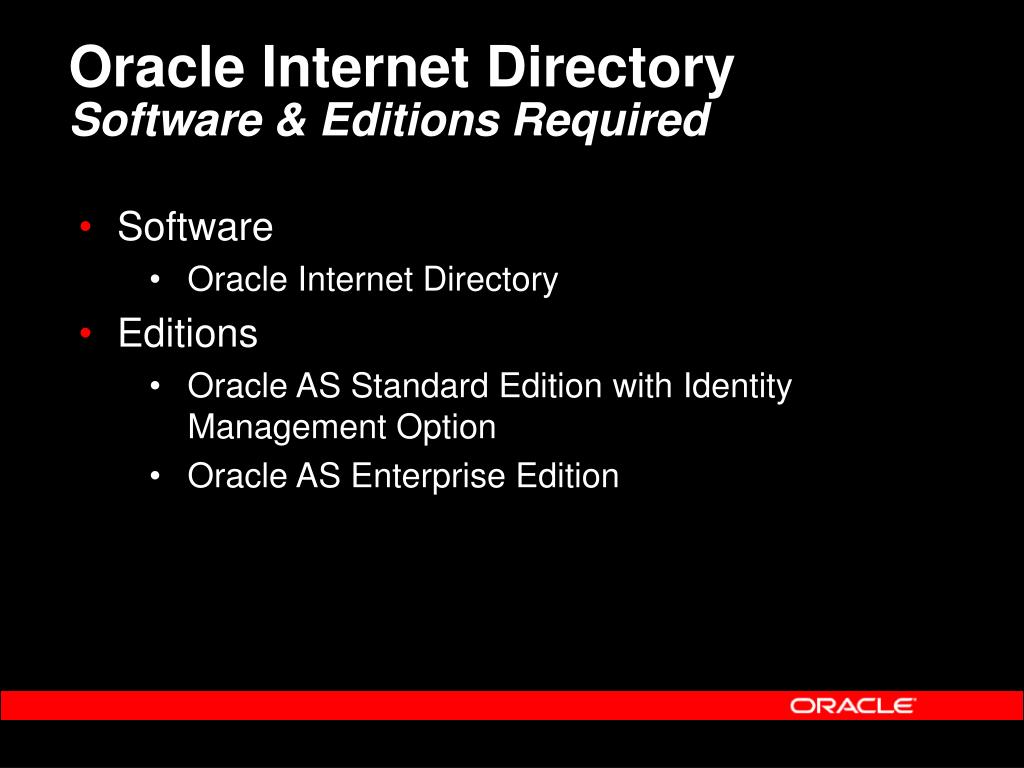

  33. Oracle Internet DirectorySoftware & Editions Required • Software • Oracle Internet Directory • Editions • Oracle AS Standard Edition with Identity Management Option • Oracle AS Enterprise Edition

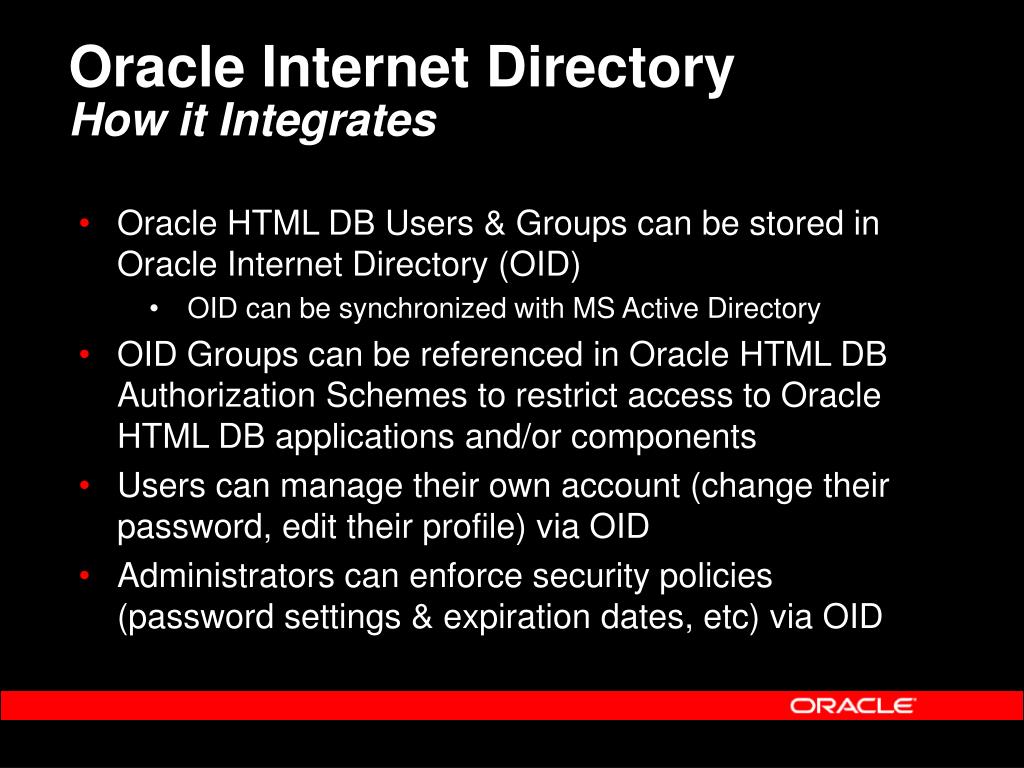

  34. Oracle Internet DirectoryHow it Integrates • Oracle HTML DB Users & Groups can be stored in Oracle Internet Directory (OID) • OID can be synchronized with MS Active Directory • OID Groups can be referenced in Oracle HTML DB Authorization Schemes to restrict access to Oracle HTML DB applications and/or components • Users can manage their own account (change their password, edit their profile) via OID • Administrators can enforce security policies (password settings & expiration dates, etc) via OID

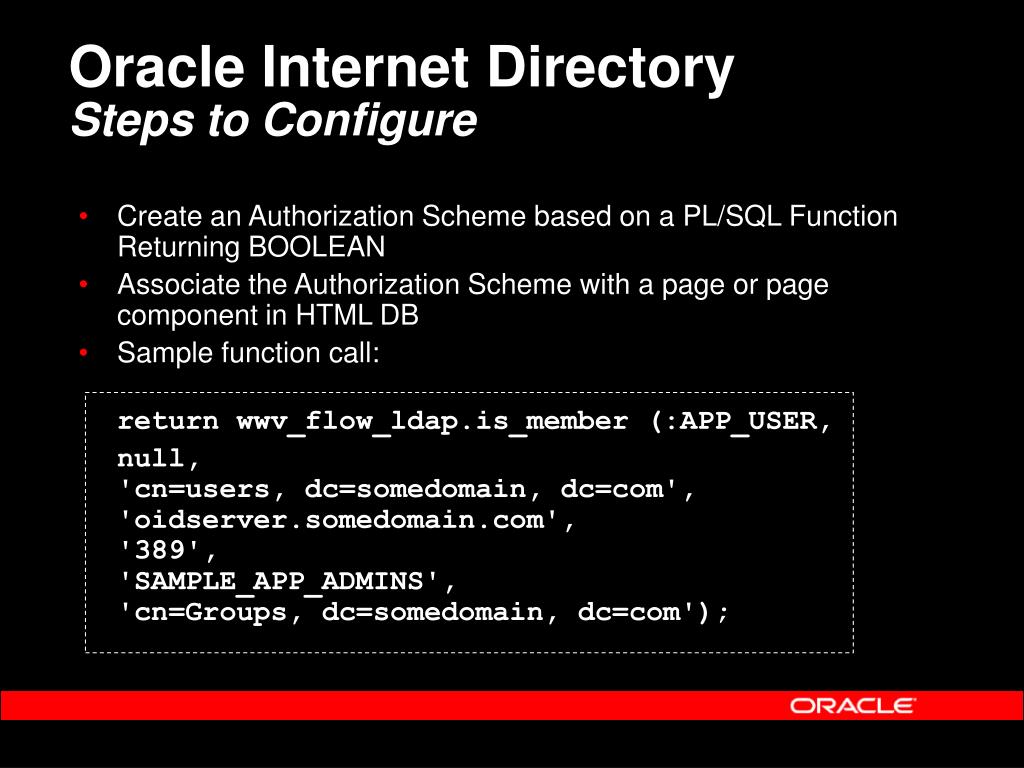

  35. Oracle Internet DirectorySteps to Configure • Create an Authorization Scheme based on a PL/SQL Function Returning BOOLEAN • Associate the Authorization Scheme with a page or page component in HTML DB • Sample function call: return wwv_flow_ldap.is_member (:APP_USER, null, 'cn=users, dc=somedomain, dc=com', 'oidserver.somedomain.com', '389', 'SAMPLE_APP_ADMINS', 'cn=Groups, dc=somedomain, dc=com');

  36. Oracle Internet DirectoryResources • OTN: Oracle Internet Directoryhttp://www.oracle.com/technology/products/oid/index.html • Studio: How to use OID Groups to Manage HTML DB Securityhttp://htmldb.oracle.com/pls/otn/f?p=18326:54:::::P54_ID:281

  37. Oracle Internet DirectoryDemonstration

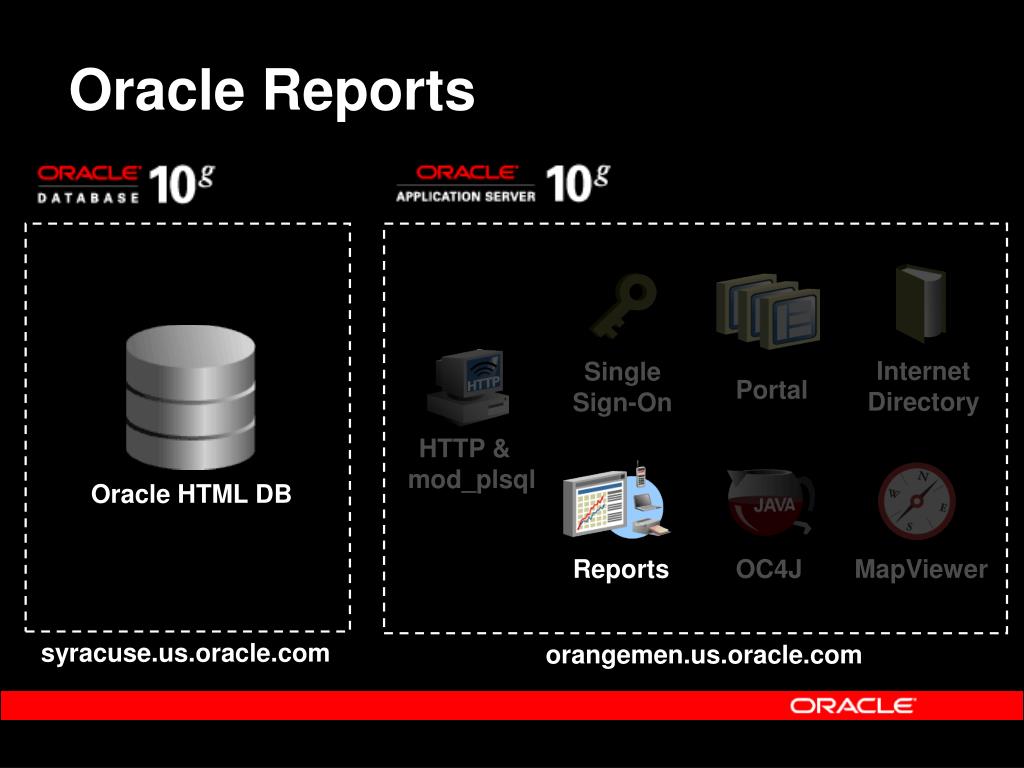

  38. InternetDirectory Single Sign-On Reports Portal HTTP & mod_plsql Oracle HTML DB syracuse.us.oracle.com MapViewer OC4J orangemen.us.oracle.com Oracle Reports

  39. Oracle ReportsSoftware & Editions Required • Software • Oracle Reports Services • Editions • Oracle AS Business Intelligence • Oracle AS Enterprise Edition

  40. Oracle ReportsHow it Integrates • Oracle HTML DB applications can directly call Oracle Reports to produce PDF output • Parameters can be passed to the Report

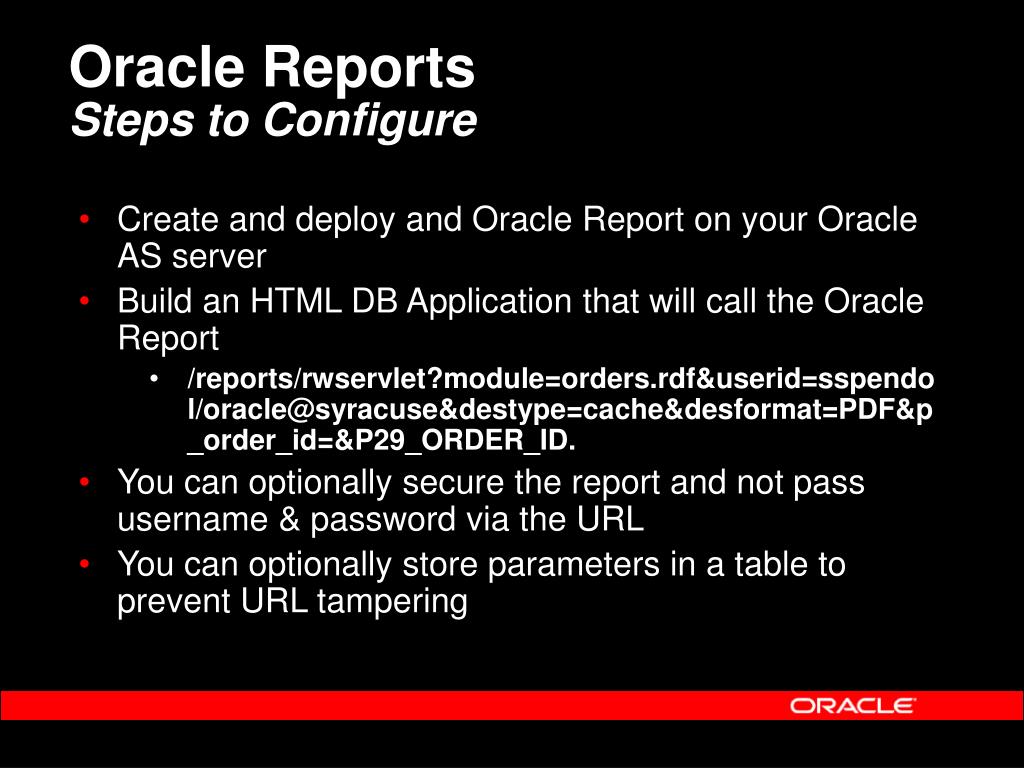

  41. Oracle ReportsSteps to Configure • Create and deploy and Oracle Report on your Oracle AS server • Build an HTML DB Application that will call the Oracle Report • /reports/rwservlet?module=orders.rdf&userid=sspendol/oracle@syracuse&destype=cache&desformat=PDF&p_order_id=&P29_ORDER_ID. • You can optionally secure the report and not pass username & password via the URL • You can optionally store parameters in a table to prevent URL tampering

  42. Oracle ReportsResources • OTN: Oracle Reportshttp://www.oracle.com/technology/products/reports/index.html • How To: Integrate Oracle Reports with Oracle HTML DBhttp://www.oracle.com/technology/products/database/htmldb/howtos/howto_integrate_oracle_reports.html

  43. Oracle ReportsDemonstration

  44. InternetDirectory Single Sign-On Reports Portal HTTP & mod_plsql Oracle HTML DB syracuse.us.oracle.com MapViewer OC4J orangemen.us.oracle.com WebServices on Oracle AS

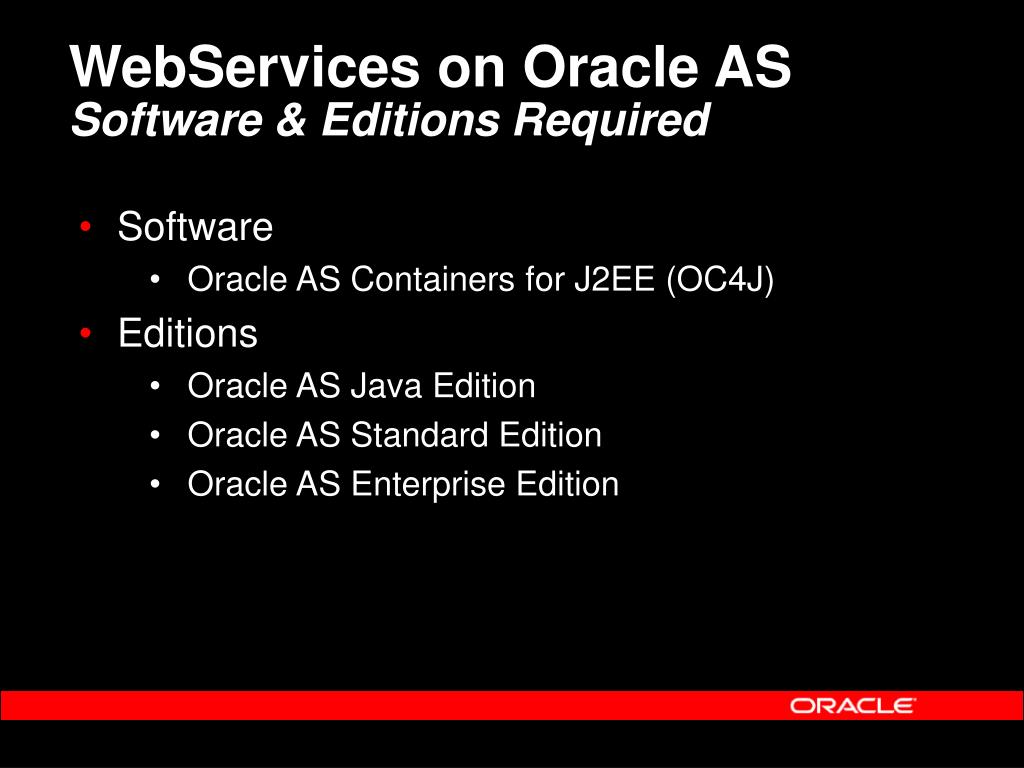

  45. WebServices on Oracle AS Software & Editions Required • Software • Oracle AS Containers for J2EE (OC4J) • Editions • Oracle AS Java Edition • Oracle AS Standard Edition • Oracle AS Enterprise Edition

  46. WebServices on Oracle AS How it Integrates • WebServices can be built using Oracle JDeveloper and Deployed in an OC4J container in Oracle AS Containers for J2EE • Oracle HTML DB can consume WebServices • WebService must have valid WSDL document • Both Input & Output parameters supported

  47. WebServices on Oracle AS Steps to Configure • Build & Deploy a WebService and associated WSDL document with Oracle JDeveloper & Oracle AS • Consume the WebService with Oracle HTML DB • Build a report and/or a form based on the in/out parameters of the WebService

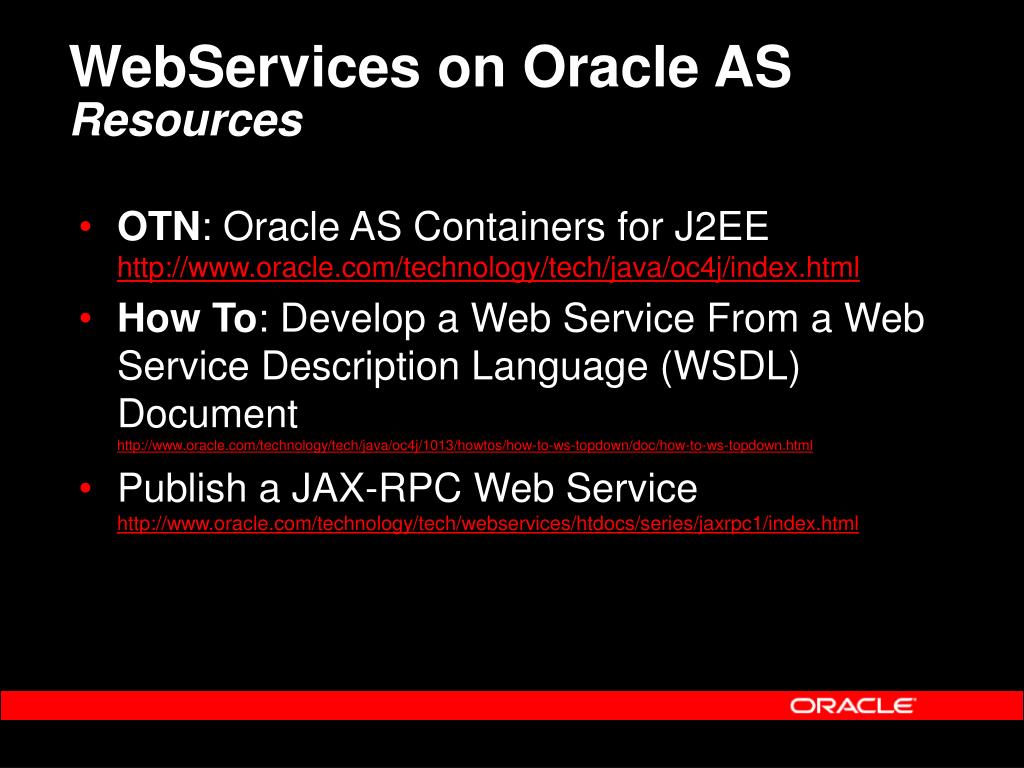

  48. WebServices on Oracle AS Resources • OTN: Oracle AS Containers for J2EEhttp://www.oracle.com/technology/tech/java/oc4j/index.html • How To: Develop a Web Service From a Web Service Description Language (WSDL) Documenthttp://www.oracle.com/technology/tech/java/oc4j/1013/howtos/how-to-ws-topdown/doc/how-to-ws-topdown.html • Publish a JAX-RPC Web Servicehttp://www.oracle.com/technology/tech/webservices/htdocs/series/jaxrpc1/index.html

  49. Oracle AS Containers for J2EE Demonstration
