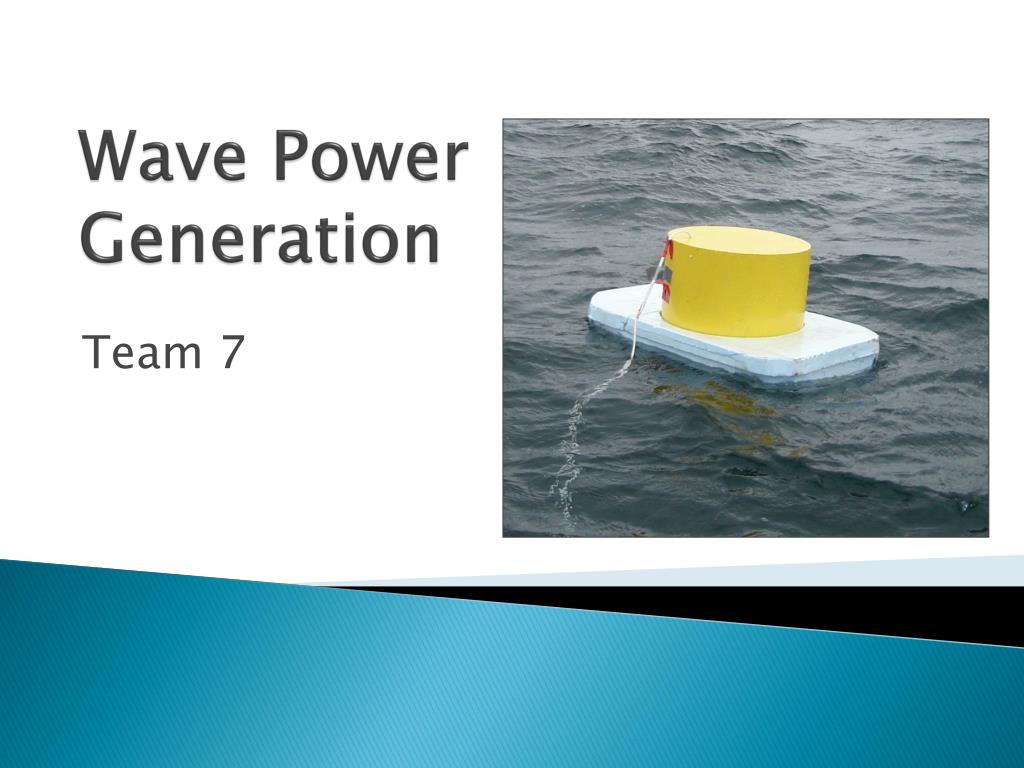

Wave Power Generation. Team 7. Team 7. Stephanie Beaton Keith Gillis Mark Larade Eric Sharp Yves Sharp Supervisor: Dr. Marek Kujath. Project. Demonstrate the ability to generate electrical power from ocean waves Design and test a device in real world conditions Evaluate the success

patch
Télécharger la présentation

Wave Power Generation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Wave Power Generation Team 7

  2. Team 7 • Stephanie Beaton • Keith Gillis • Mark Larade • Eric Sharp • Yves Sharp • Supervisor: • Dr. Marek Kujath

  3. Project • Demonstrate the ability to generate electrical power from ocean waves • Design and test a device in real world conditions • Evaluate the success of the device

  4. Agenda • Final Design • Simulation • Testing • Results • Analysis • Scalability • Efficiency • Budget • Conclusions • Questions

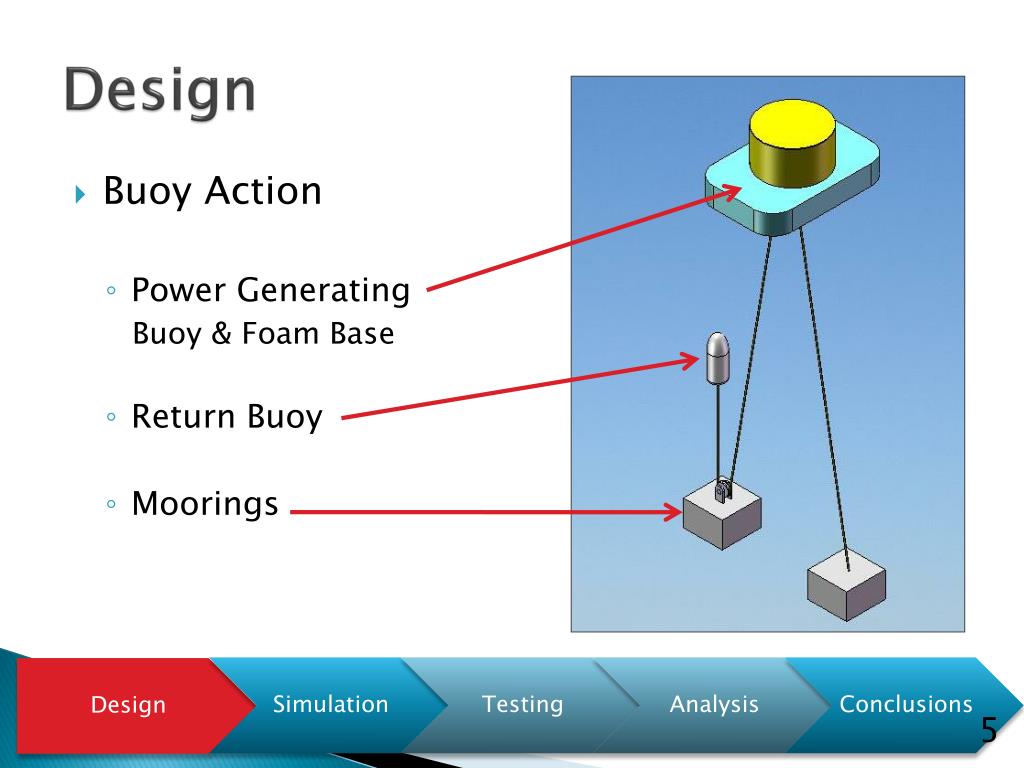

  5. Design • Buoy Action • Power Generating Buoy & Foam Base • Return Buoy • Moorings

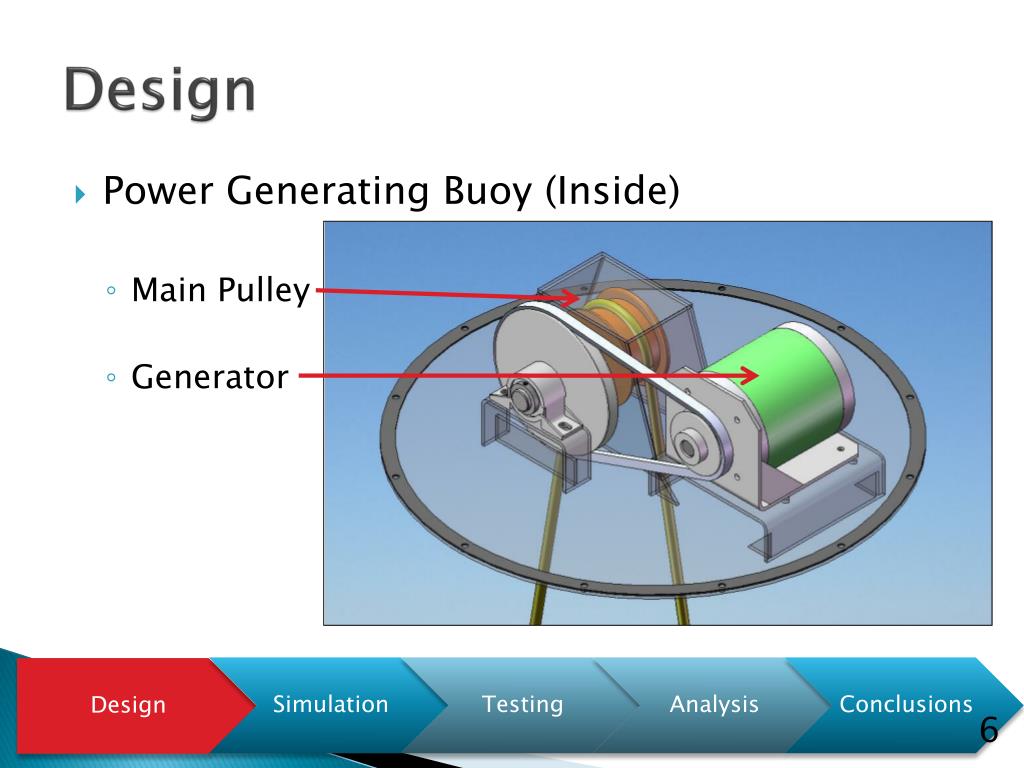

  6. Design • Power Generating Buoy (Inside) • Main Pulley • Generator

  7. Design • Power Generating Buoy (Inside) • Generator • Pulley

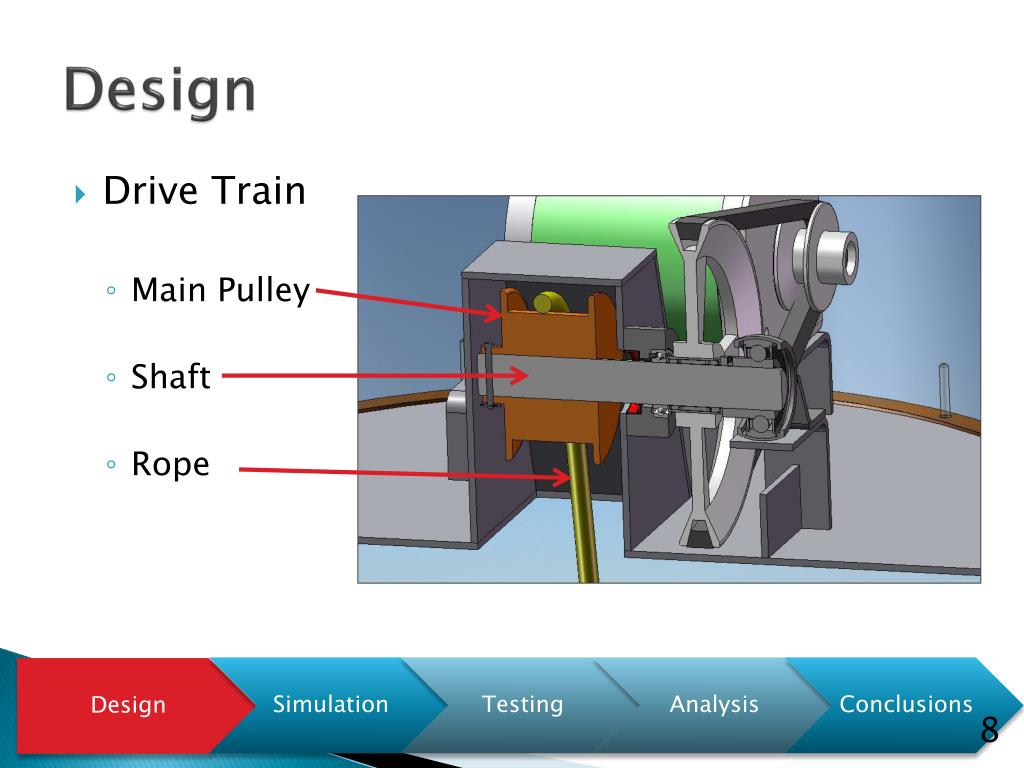

  8. Design • Drive Train • Main Pulley • Shaft • Rope

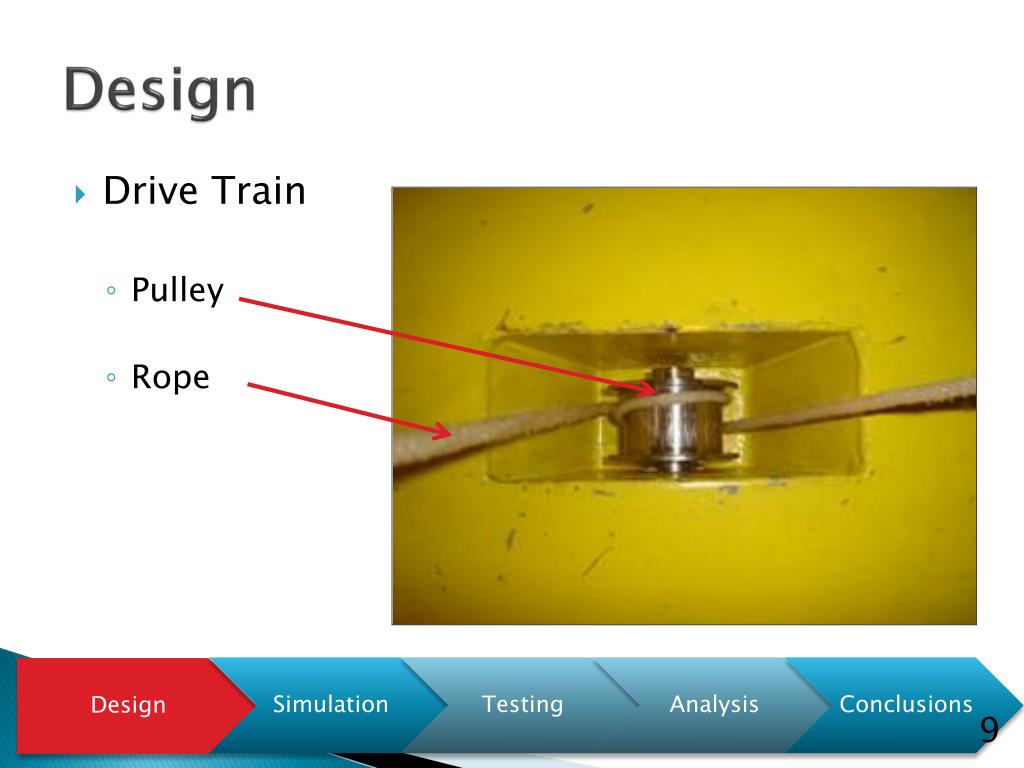

  9. Design • Drive Train • Pulley • Rope

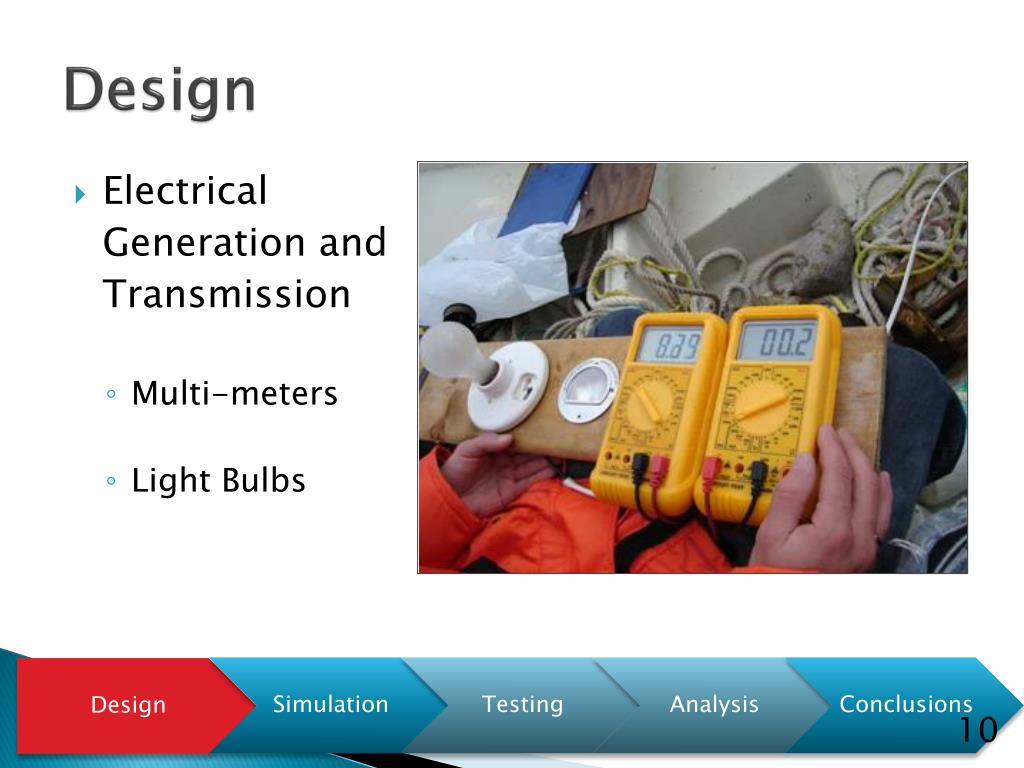

  10. Design • Electrical Generation and Transmission • Multi-meters • Light Bulbs

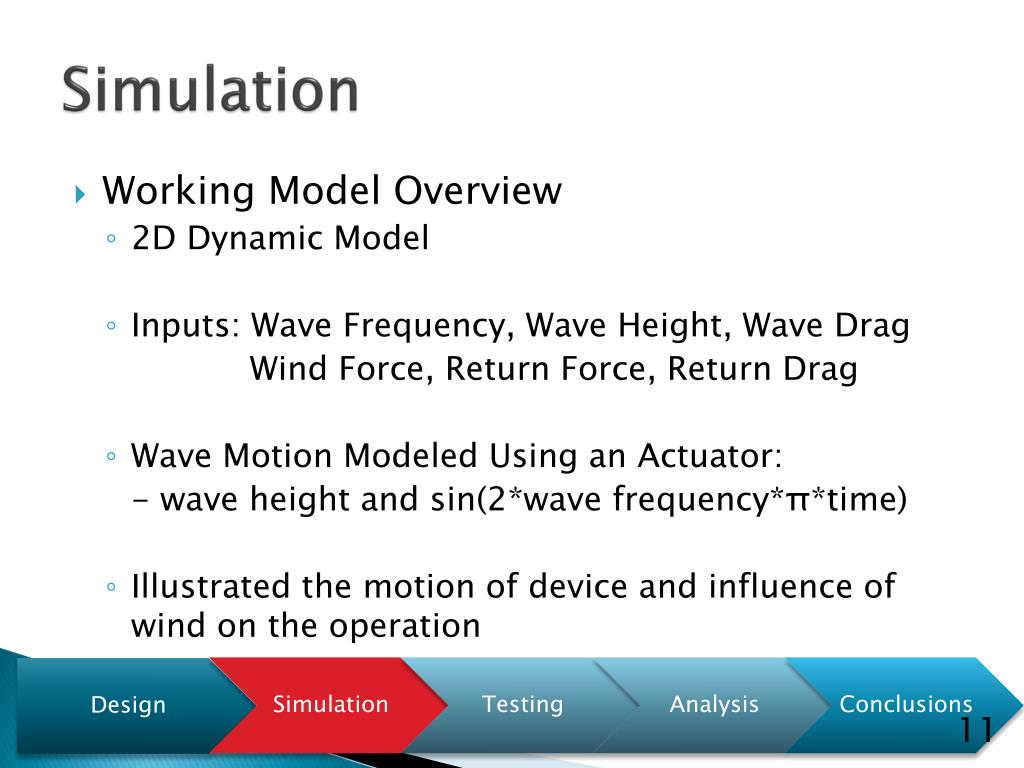

  11. Simulation • Working Model Overview • 2D Dynamic Model • Inputs: Wave Frequency, Wave Height, Wave Drag Wind Force, Return Force, Return Drag • Wave Motion Modeled Using an Actuator: - wave height and sin(2*wave frequency*π*time) • Illustrated the motion of device and influence of wind on the operation

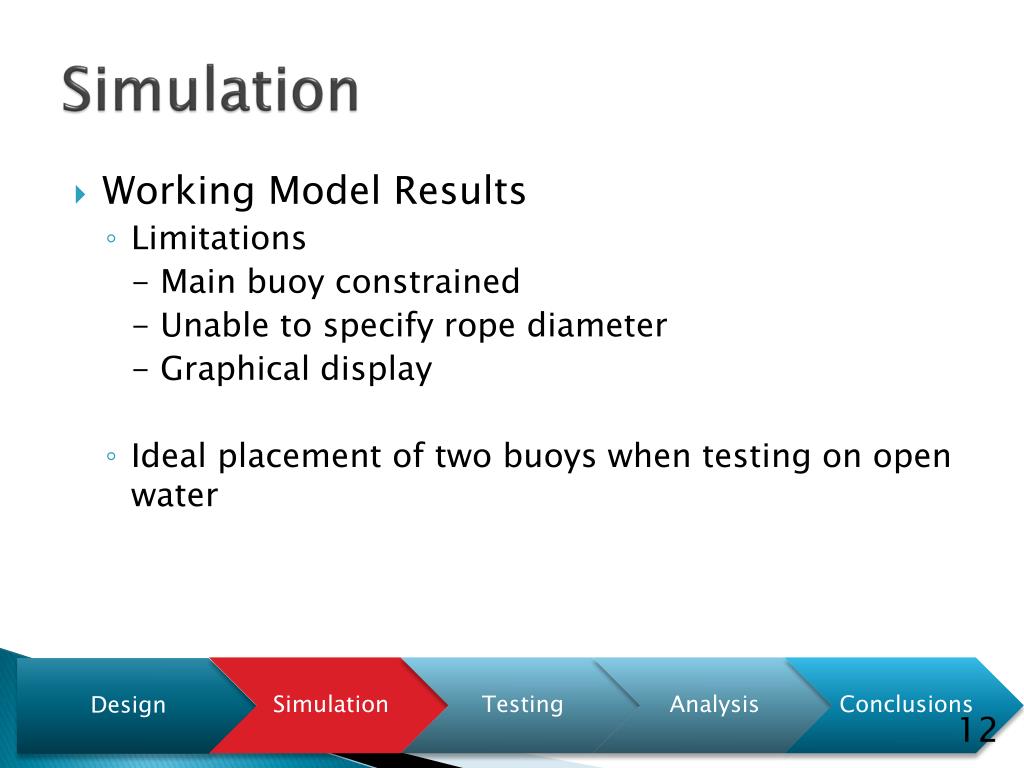

  12. Simulation • Working Model Results • Limitations - Main buoy constrained - Unable to specify rope diameter - Graphical display • Ideal placement of two buoys when testing on open water

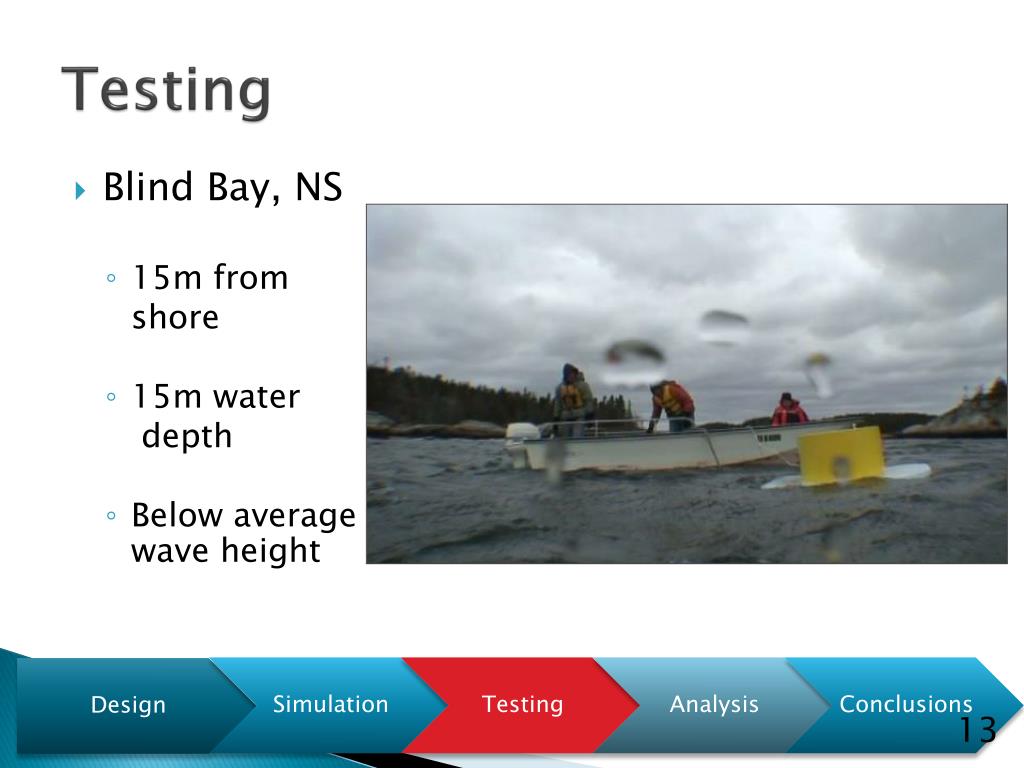

  13. Testing • Blind Bay, NS • 15m from shore • 15m water depth • Below average wave height

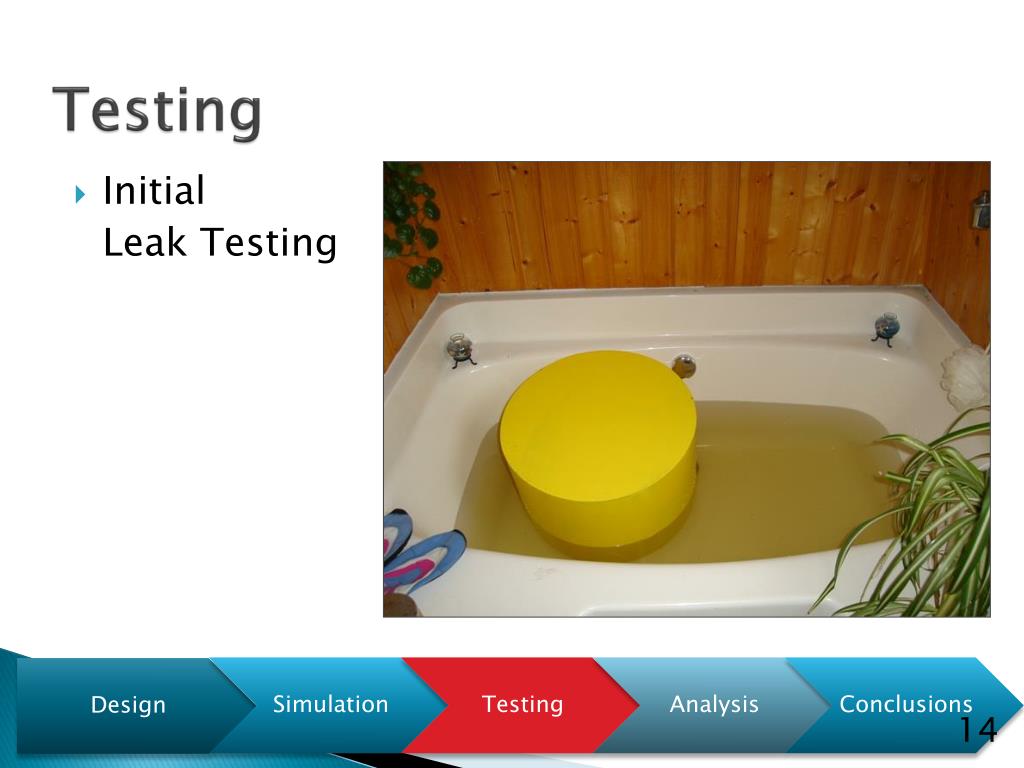

  14. Testing • Initial Leak Testing

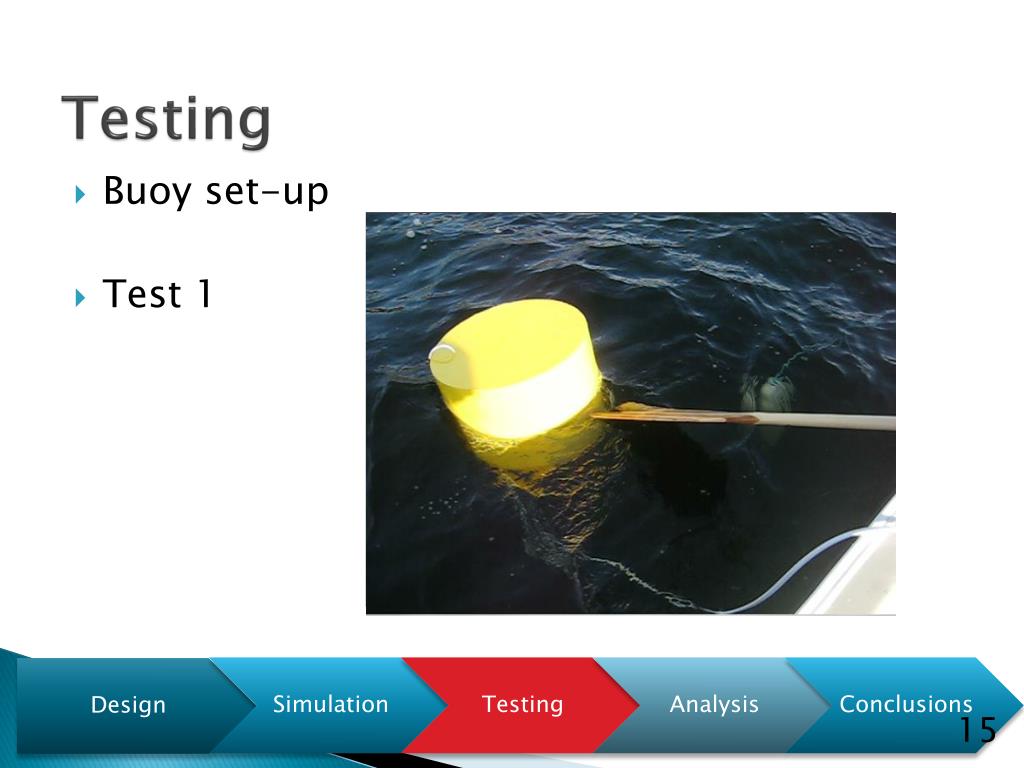

  15. Testing • Buoy set-up • Test 1

  16. Testing • Electrical Measurements • Marine cable run from boat to buoy • Measured amperage, voltage • Lit light bulb

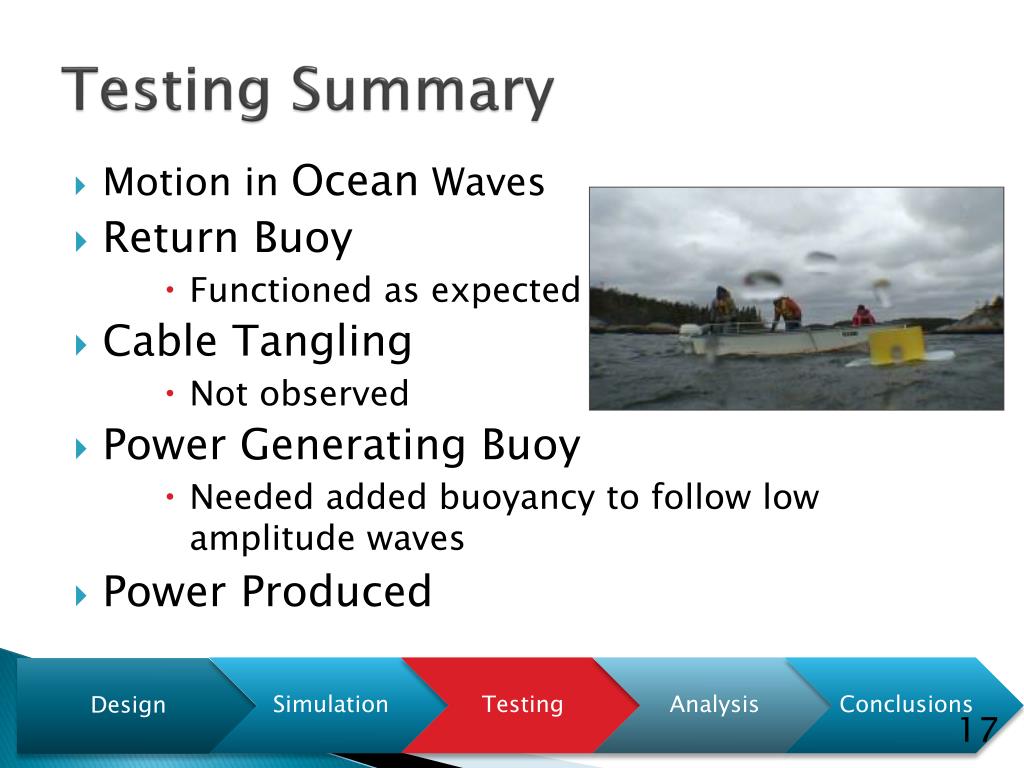

  17. Testing Summary • Motion in Ocean Waves • Return Buoy • Functioned as expected • Cable Tangling • Not observed • Power Generating Buoy • Needed added buoyancy to follow low amplitude waves • PowerProduced

  18. Testing • Demonstration – On Shore Pull Test

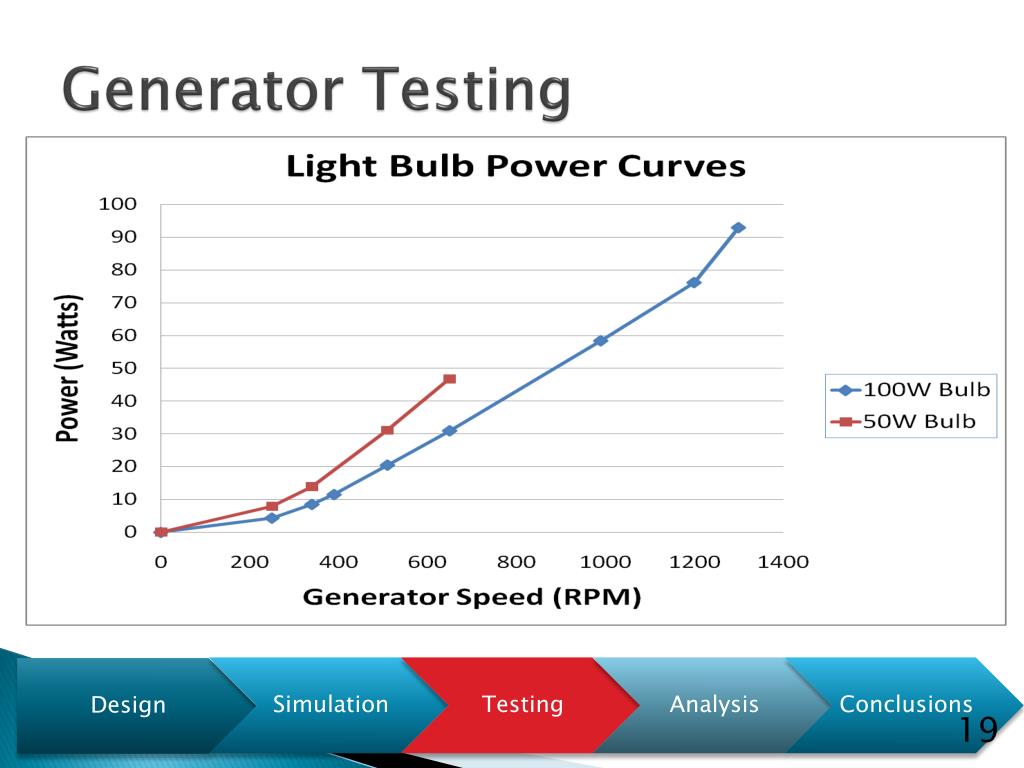

  19. Generator Testing

  20. Analysis

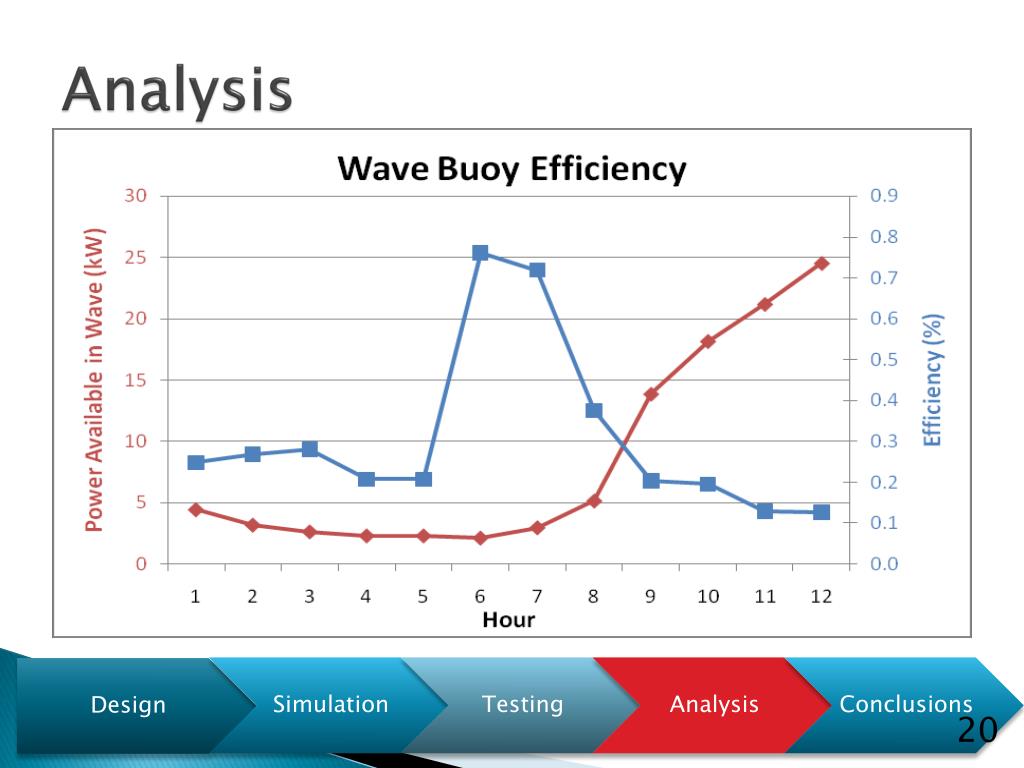

  21. Analysis • Efficiency • From wave to buoy

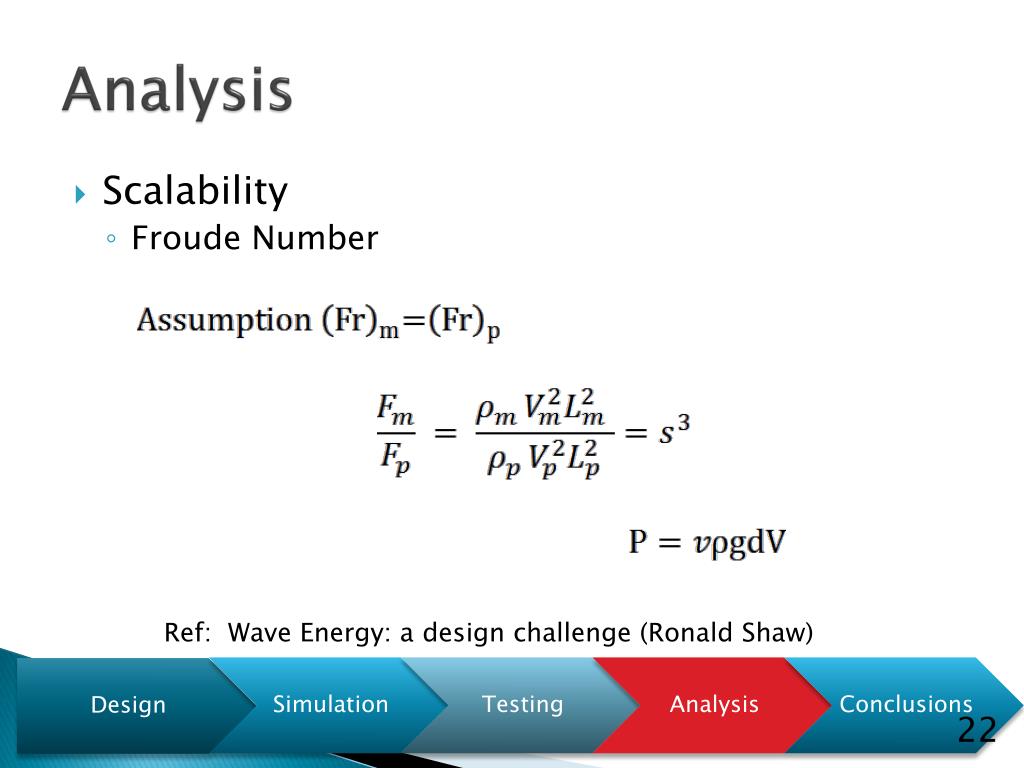

  22. Analysis • Scalability • Froude Number Ref: Wave Energy: a design challenge (Ronald Shaw)

  23. Analysis • How big a buoy to get a kW • 5.5m ∅ • How many buoys to power a house? • 40

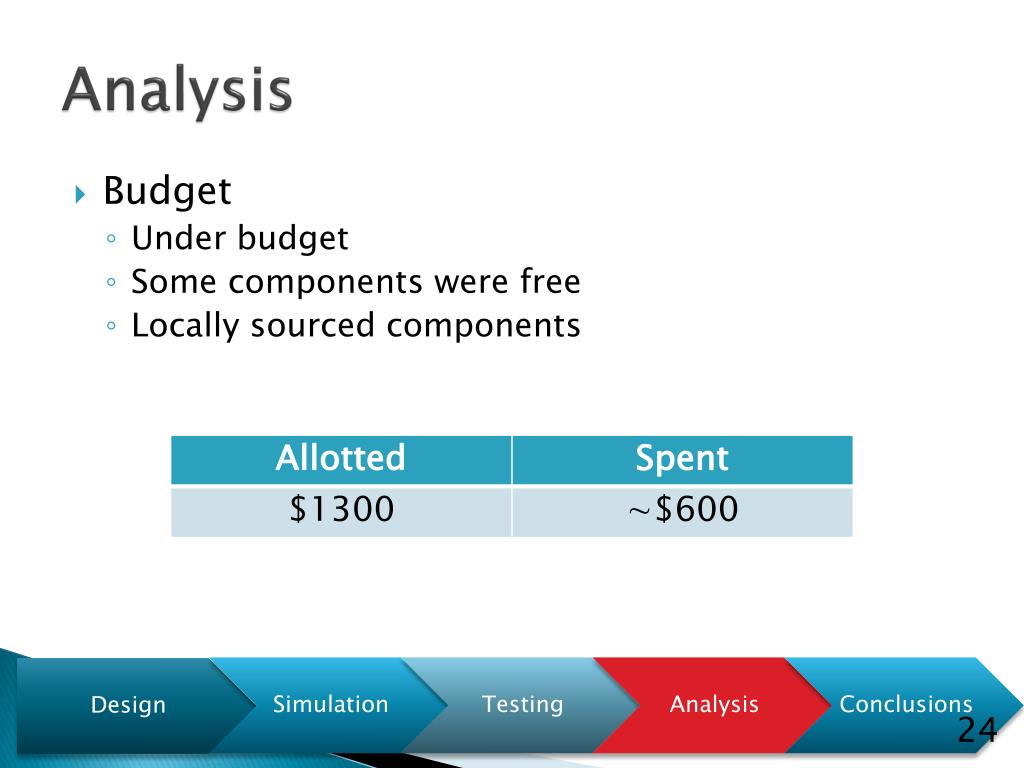

  24. Analysis • Budget • Under budget • Some components were free • Locally sourced components

  25. Conclusions • Comparison to Requirements

  26. Conclusions • Strengths • Adaptable to different wave heights and tides • Design uses off the shelf components • Simple construction • Works well mechanically

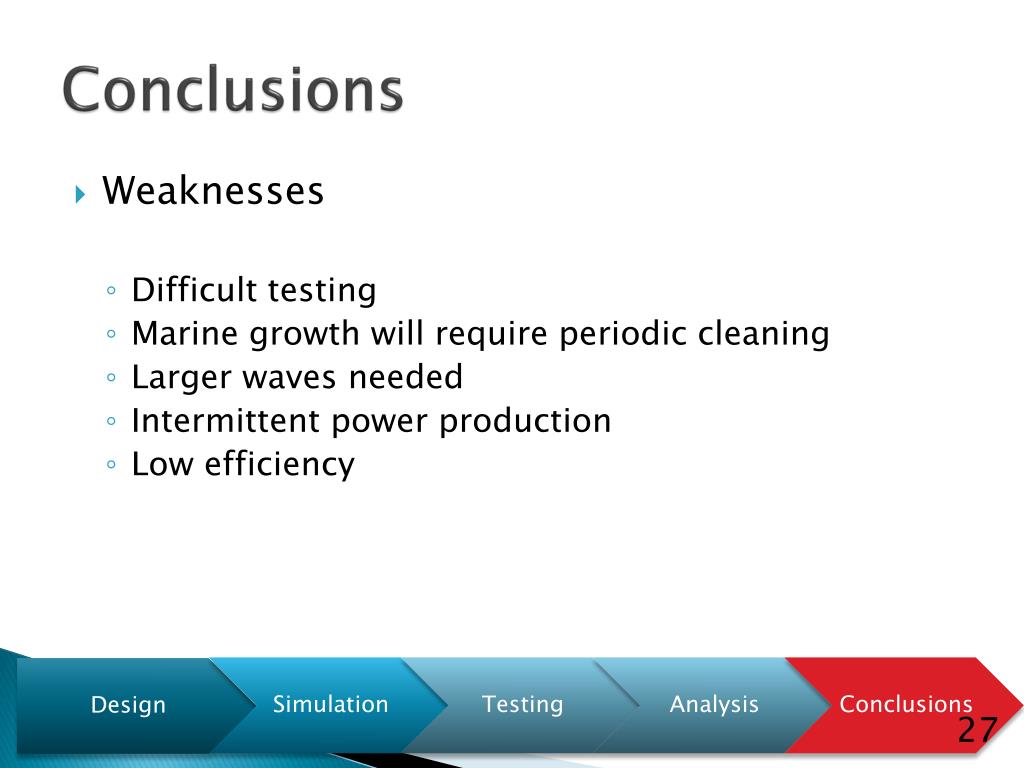

  27. Conclusions • Weaknesses • Difficult testing • Marine growth will require periodic cleaning • Larger waves needed • Intermittent power production • Low efficiency

  28. Conclusions • Possible Design Changes • Use non-stretching rope for better response • Placing handles on the buoy • Test in tropical location • Place generator on ocean floor • Consider more closely the effects of friction

  29. Acknowledgements • Dr. Kujath (Supervisor) • Dr. Hubbard (Coordinator) • Mechanical Technicians • Albert, Angus, Greg, Peter • Glyn Sharp • Sponsor: • Shell

  30. Questions
