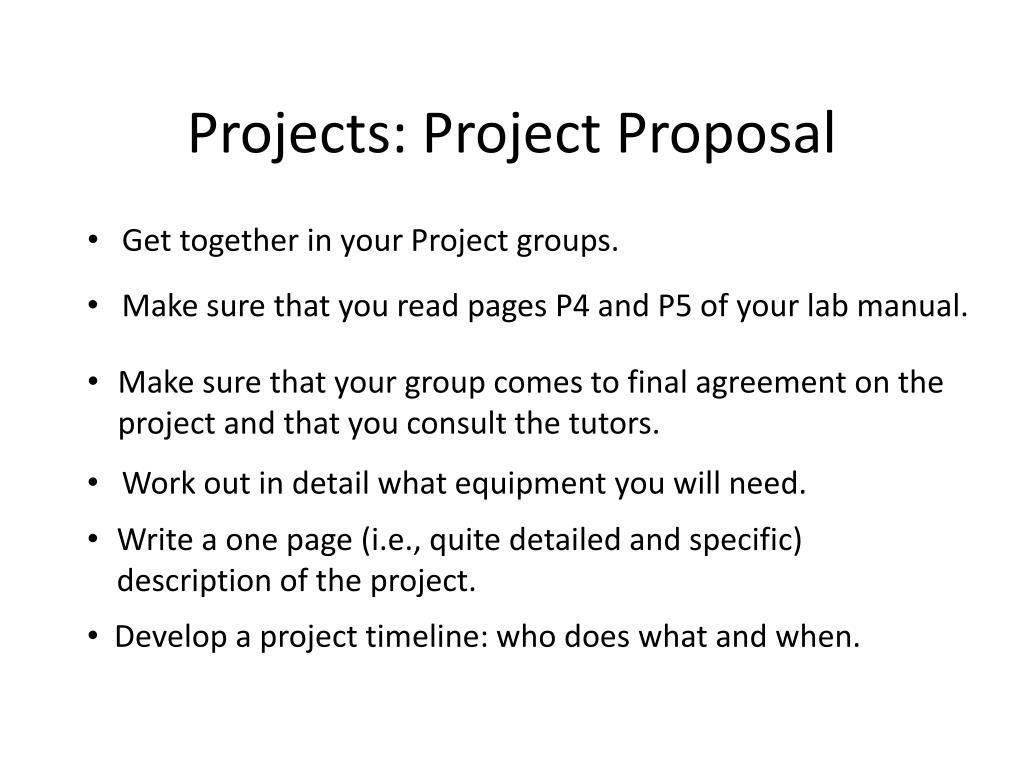

  1. Get together in your Project groups. Projects: Project Proposal • Make sure that you read pages P4 and P5 of your lab manual. • Make sure that your group comes to final agreement on the project and that you consult the tutors. • Work out in detail what equipment you will need. • Write a one page (i.e., quite detailed and specific) description of the project. • Develop a project timeline: who does what and when.

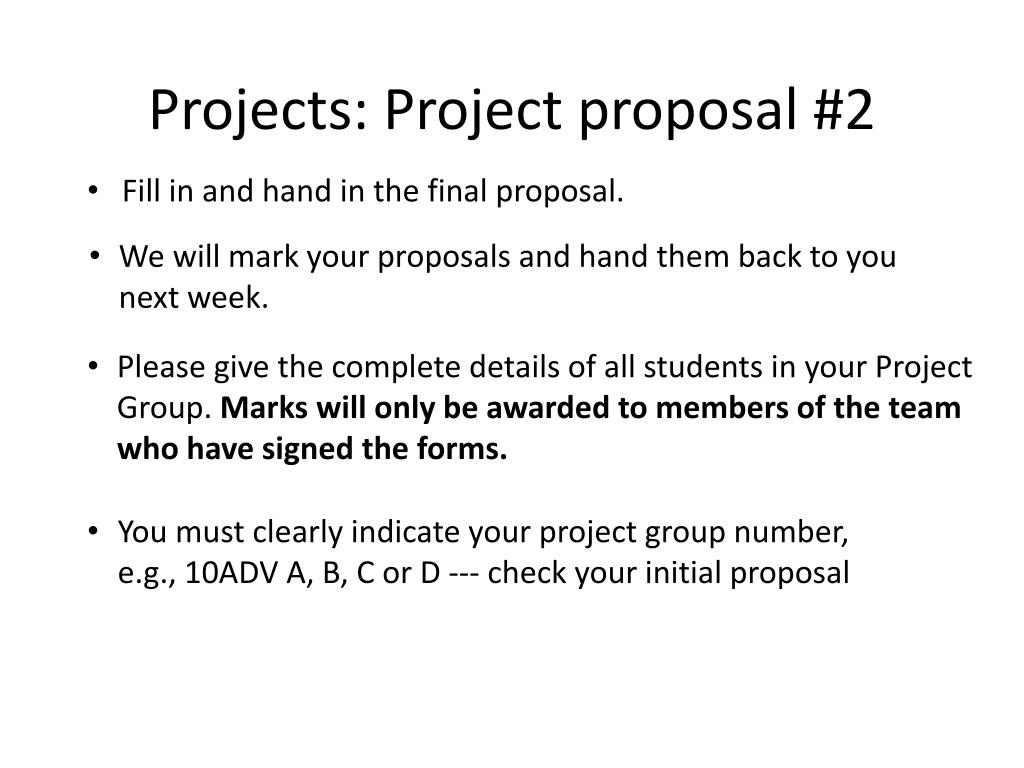

  2. Fill in and hand in the final proposal. • We will mark your proposals and hand them back to you next week. Projects: Project proposal #2 • Please give the complete details of all students in your Project Group. Marks will only be awarded to members of the team who have signed the forms. • You must clearly indicate your project group number, • e.g., 10ADV A, B, C or D --- check your initial proposal

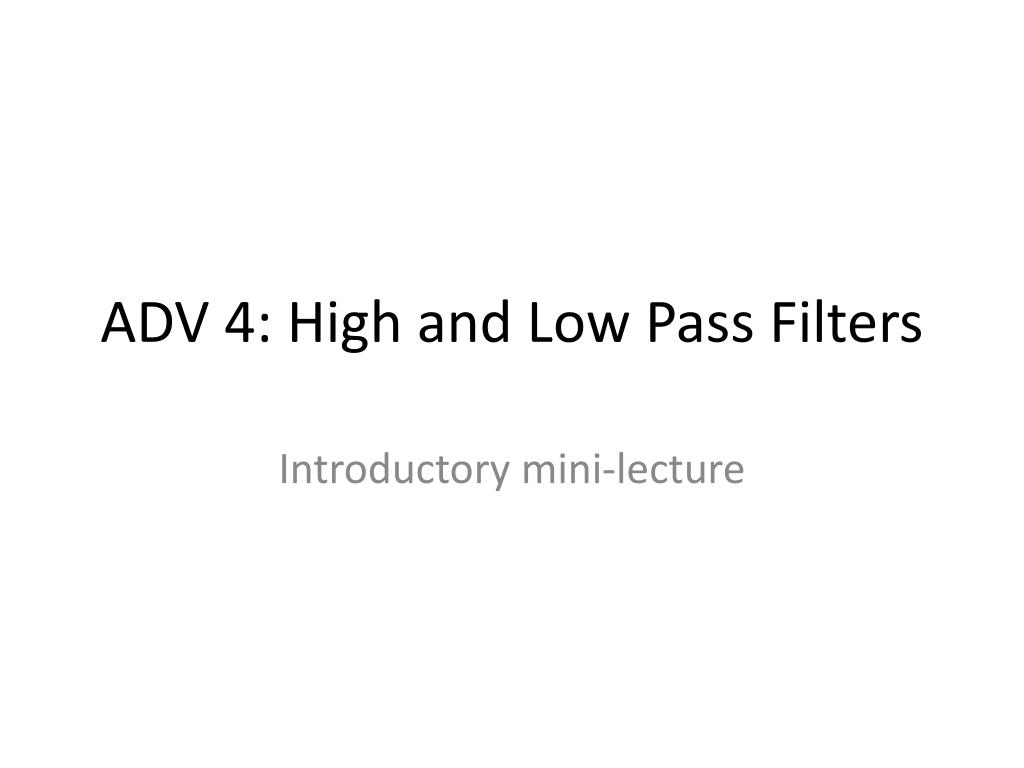

  3. ADV 4: High and Low Pass Filters Introductory mini-lecture

  4. Generalised Ohm’s Law • Impedance defined by ratio Z = v/i • Z = R + jX, where R is the resistance and X is the reactance: • R is constant • X depends on frequency • Ohmic materials: Z independent of i • Ohm’s Law for AC Circuits:v = Zi

  5. Series impedances • Series: current flows through one component and then the other • Voltage drop across two components in series: Vtotal = I(Z1+Z2) • Currents through the two components are equal by Kirchhoff’s junction law

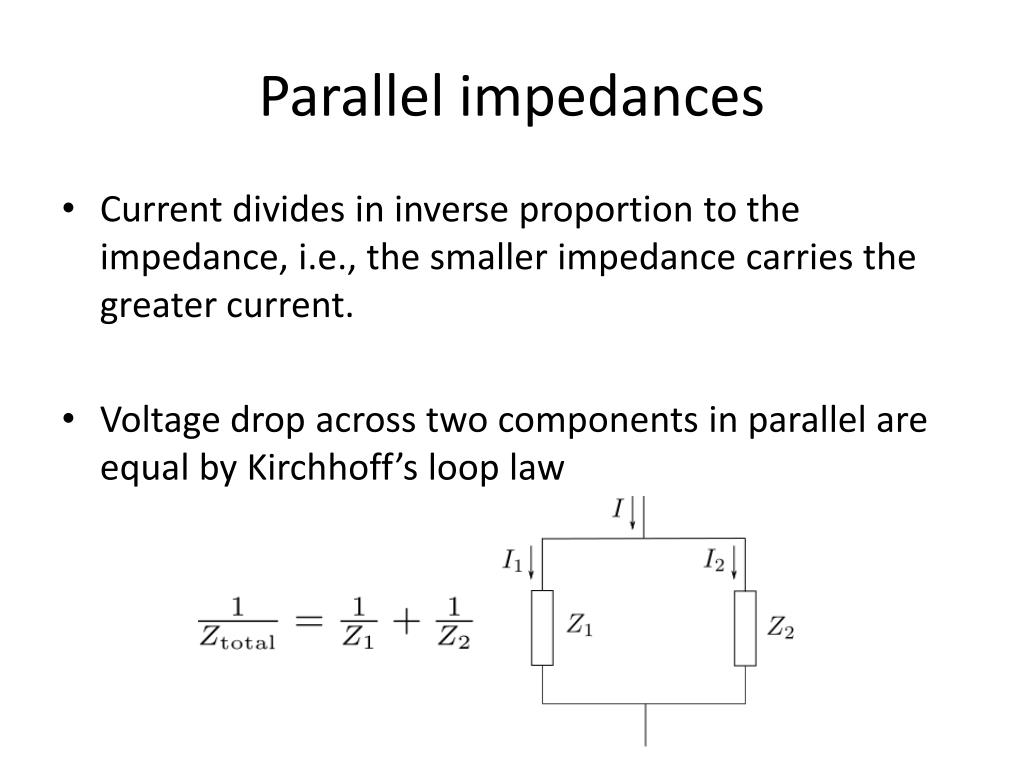

  6. Parallel impedances • Current divides in inverse proportion to the impedance, i.e., the smaller impedance carries the greater current. • Voltage drop across two components in parallel are equal by Kirchhoff’s loop law

  7. AC voltage dividers • An AC voltage divider produces an output voltage vout that is a proportion of the input voltage vin • |vout/vin| is set by the relative magnitudes of Z1 and Z2 , i.e.,

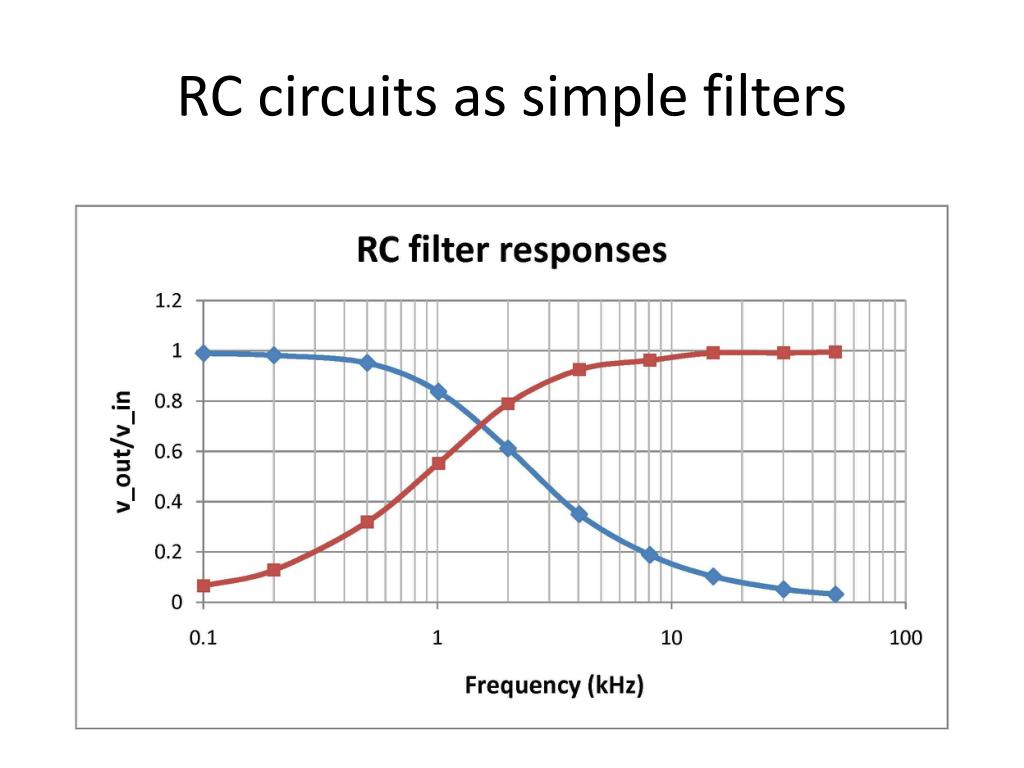

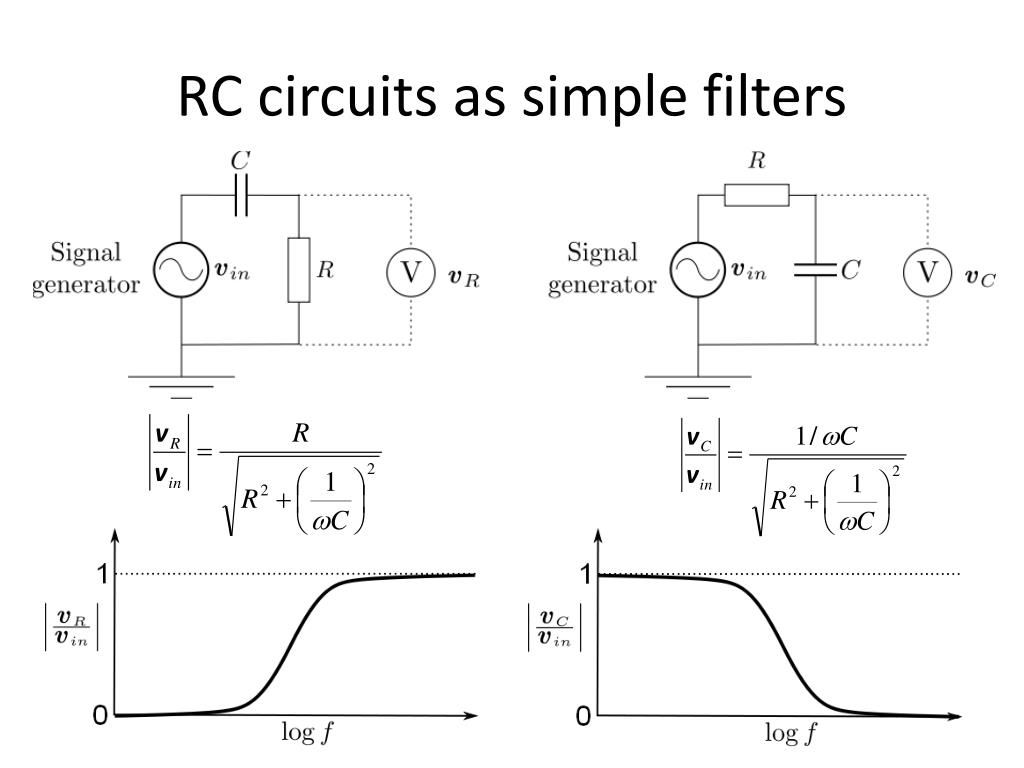

  8. RC circuits as simple filters

  9. RC circuits as simple filters

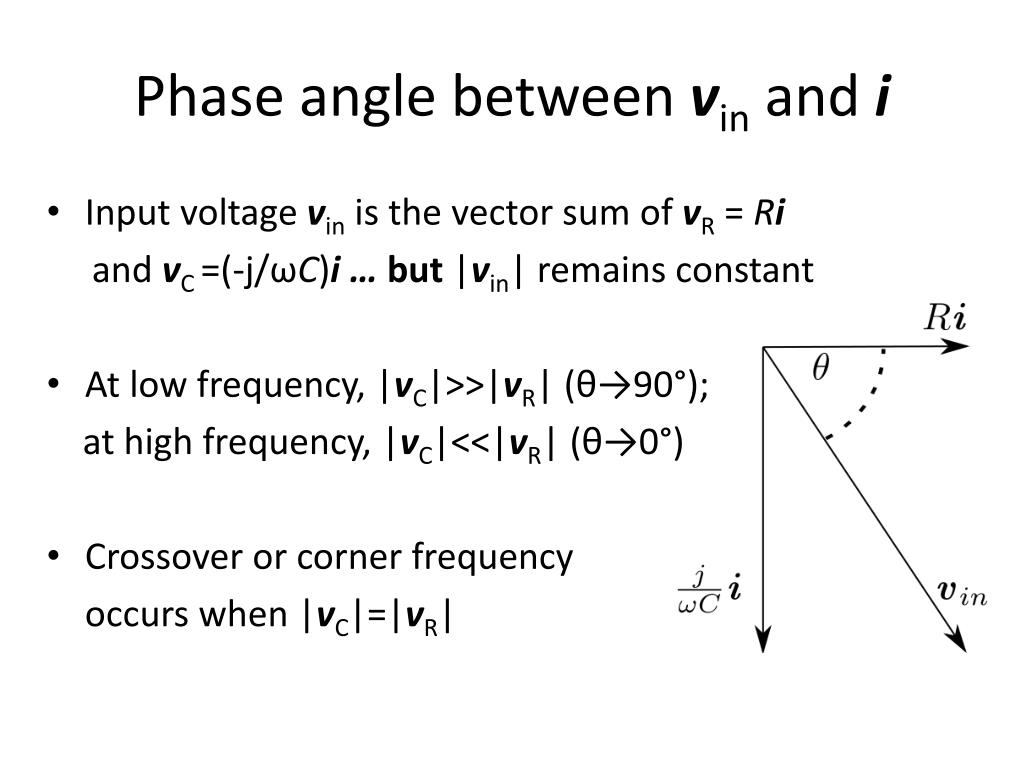

  10. Phase angle between vin and i • Input voltage vin is the vector sum of vR = Ri and vC=(-j/ωC)i … but |vin| remains constant • At low frequency, |vC|>>|vR| (θ→90°); at high frequency, |vC|<<|vR| (θ→0°) • Crossover or corner frequency occurs when |vC|=|vR|
