  1. Section 8.1 Conic Basics

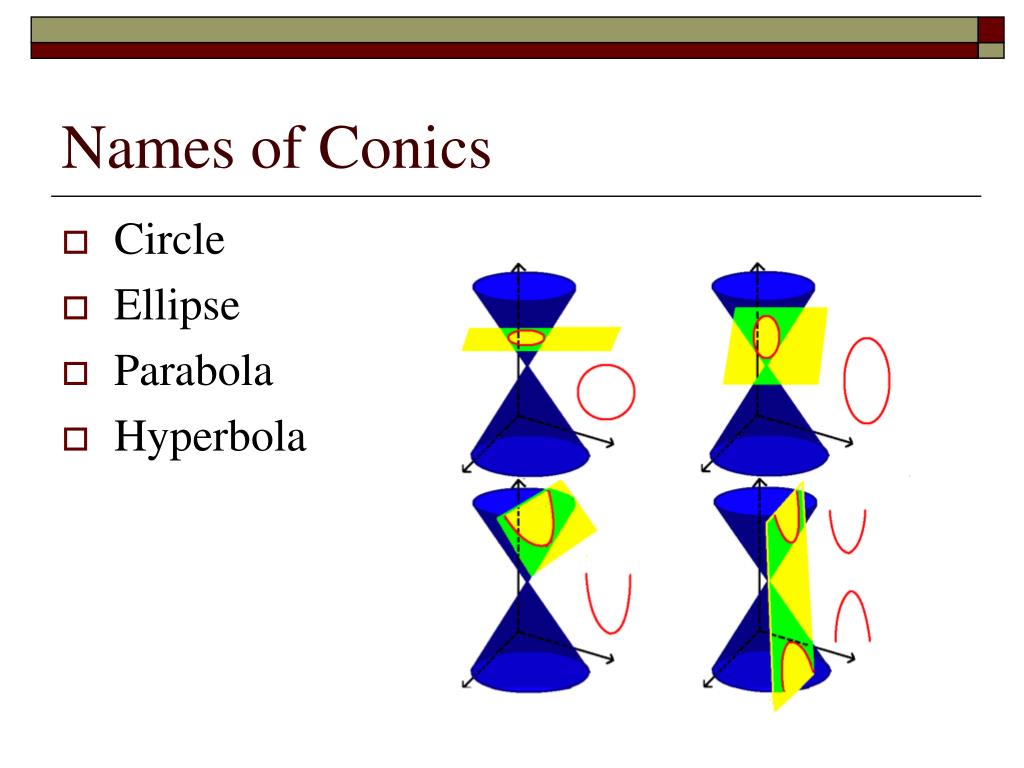

  2. Names of Conics • Circle • Ellipse • Parabola • Hyperbola

  3. Definitions • Circle • The set of all points, equidistant from the same point • Parabola • The set of all points, equidistant from both a line and a point • Ellipse • The set of all points, the sum of whose distances to two fixed points is constant • Hyperbola • The set of all points, the difference of whose distances to two fixed points is a constant

  4. General form of a second degree equation in two variables Use the discriminant (B2 – 4AC) determine the shape of conics.

  5. Determine the type of conic Step 1: Identify A,B,C,D,E, and F A = 2 , B = 0, C = 1, D = 0, E = 0, F = -4 Step 2: Calculate the discriminant Ellipse Note: If the equation is an ellipse, and A = C, then it is actually a circle.

  6. Determine the type of conic A = 2, B = 0, C = -1, D = 0, E = 0, F = -4 Hyperbola

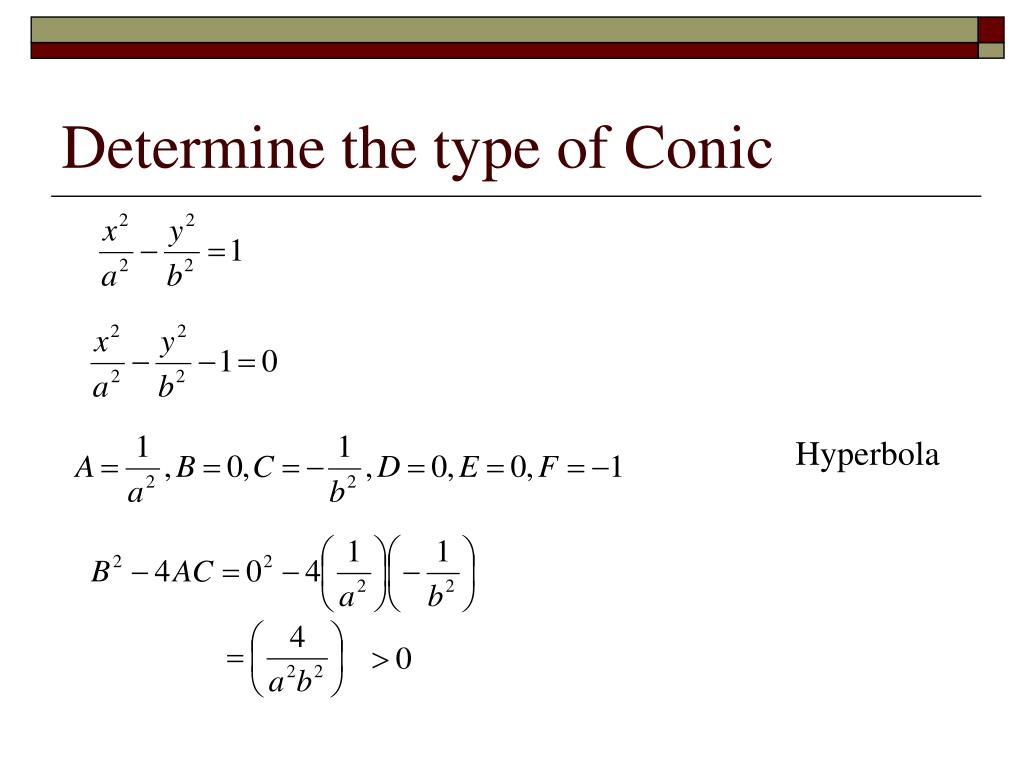

  7. Determine the type of Conic Hyperbola
