Determining Formulas The Criss-Cross Method

Determining Formulas The Criss-Cross Method. Examples Na +1 + O -2  Ca +2 + P -3  C +4 + O -2 . Na 2 O. Ca 3 P 2. C 2 O 4  reduced to CO 2. Naming Compounds. Chemical Nomenclature --> system used to name chemical substances.

Télécharger la présentation

Determining Formulas The Criss-Cross Method

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

  1. Determining FormulasThe Criss-Cross Method • Examples • Na+1 + O-2 • Ca+2 + P-3  • C+4 + O-2  Na2O Ca3P2 C2O4  reduced to CO2

  2. Naming Compounds • Chemical Nomenclature--> system used to name chemical substances. • The Name of a compound indicates the composition of the substance. From the name one can deduce a chemical formula.

  3. Naming Binary Compounds • The first element is named as usual but only a stem of the second is used followed by the suffix “ide” • For example: MgCl2 is Magnesium chloride : Al2O3 is Aluminum Oxide • The Chlorine and Oxygen must change their suffix from “ine” and “ygen” to “ide” !

  4. Naming Compounds • Try these! • NaCl • Li3N • MgI2 Sodium Chloride Lithium Nitride Magnesium Iodide

  5. Stock System for Transitional Metals • A compound that contains a transitional metal must be named so that the oxidation # of the metal is identified. • A Roman numeral is placed after the metal. It represents the oxidation # of the metal. Ex. FeCl3 Iron (III) Chloride CuCl2  Copper (II) Chloride

  6. Assigning Oxidation # Transitional Metals • The total charge on any compound or molecule is always equal to zero. • To determine unknown oxidation #s, add up the oxidation #s of the Cation and Anion and set them equal to zero. (Create an algebra formula and solve for X.) Example Cr2O3 total charge = 0 Cr = x , O = -2 Formula 2x + 3(-2)= 0  2x-6= 0 x= +3 Cr= +3

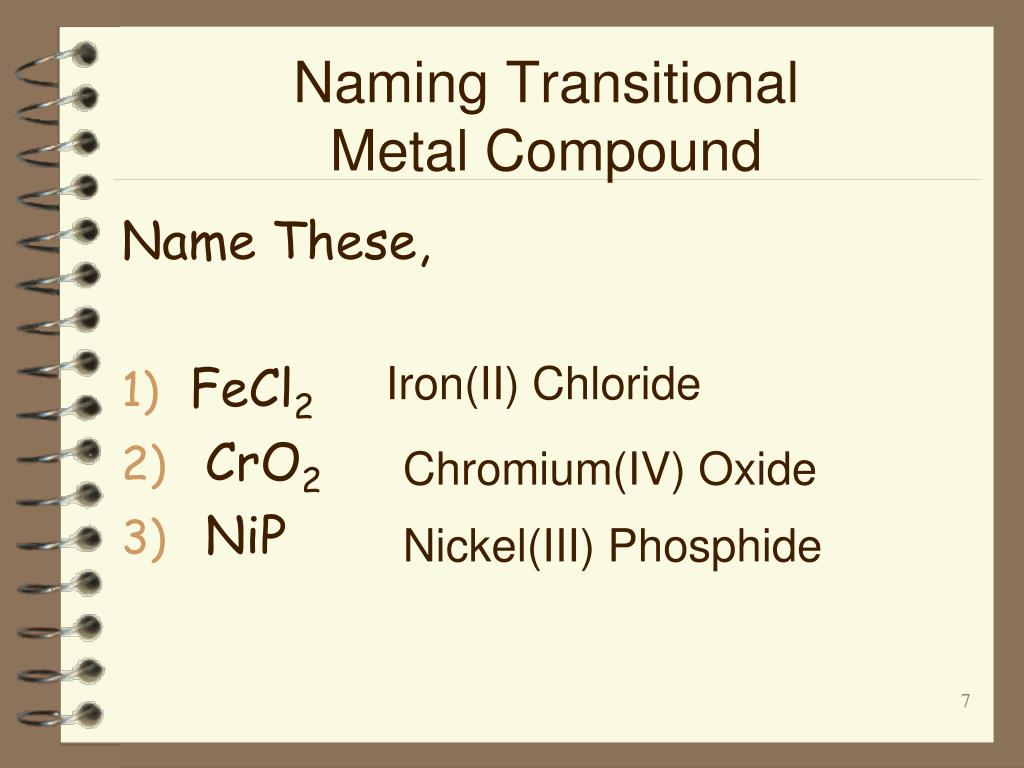

  7. Naming Transitional Metal Compound Name These, • FeCl2 • CrO2 • NiP Iron(II) Chloride Chromium(IV) Oxide Nickel(III) Phosphide

  8. Naming compounds that contain Poly-atomic ions • Identify the formula using Criss-Cross method. • Name the cation (metal) 1st . If a transitional metal determine the charge and assign the Roman numeral that is equivalent to the charge. • Name the poly-atomic ion using its normal name. Ex. Calcium + Nitrate  Calcium Nitrate Ca+2 + (NO3) -1  Ca(NO3)2

  9. Naming compounds that contain Poly-atomic ions Name These, • Ba3(PO4)2 • CrSO4 • W(OH)3 Barium Phosphate Chromium(II) Sulfate Tungsten(III) Hydroxide

  10. Naming Molecules(the old system) • If two non-metals are bonded covalently, the name can be shown using prefixes. • The number of atoms for each element in a molecule is usually indicated by the prefix: • mono - 1 atom - hexa - 6 atoms • di - 2 atoms - hepta - 7 atoms • tri - 3 atoms - octa - 8 atoms • tetra - 4 atoms • penta - 5 atoms

  11. Naming Molecules • Examples: • nitrogen dioxide is NO2 • dinitrogen pentoxide is N2O5 • phosphorus tribromide is PBr3 • The prefix represents the subscript.  If the subscript is one mono is not needed.

  12. Binary Molecules Name these ::: Use Old Naming system and Stock system • PCl3 • PCl5 • SO2 Phosphorus TriChloride Phosphorus(III) Chloride Phosphorus PentaChloride Phosphorus(V) Chloride Sulfur Dioxide Sulfer (IV) Oxide
