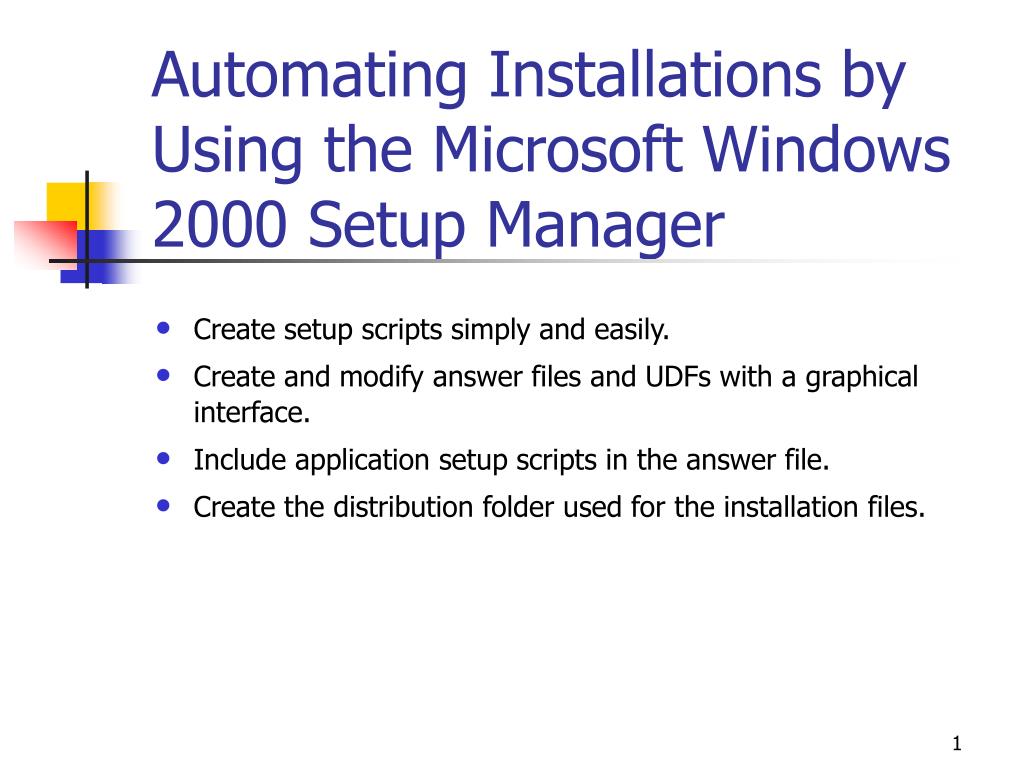

  1. Automating Installations by Using the Microsoft Windows 2000 Setup Manager • Create setup scripts simply and easily. • Create and modify answer files and UDFs with a graphical interface. • Include application setup scripts in the answer file. • Create the distribution folder used for the installation files. 1

  2. Setup Manager Presents Three Options When Started • Create A New Answer File • Create An Answer File That Duplicates This Computer’s Configuration • Modify An Existing Answer File

  3. Introducing Disk Duplication • Install Windows 2000 on several computers with identical hardware. • Create a disk image of a Windows 2000 installation. • Copy the disk image to multiple computers. • You’ll be able to reinstall computers quickly. • Use the System Preparation tool (Sysprep.exe) to create the image. • Use third party disk-imaging tools to distribute the image.

  4. Examining the Disk Duplication Process • Install and configure Windows 2000 on a test computer. • Install and configure any applications on the test computer. • Install any application update packs on the test computer. • Run the System Preparation tool on the test computer.

  5. Installing the Windows 2000 System Preparation Tool • Extract the files from Deploy.cab. • Copy these files onto the test computer.

  6. Using the System Preparation Tool • Every computer must have a unique SID. • Every master image has a Mini-Setup wizard added to it. • Runs the first time the computer is started • Guides a user through entering user-specific information • Enters the user-specific information automatically if scripted • Every destination computer must match the master computer.

  7. Installing Windows 2000 from a Master Disk Image • Run Sysprep on your test computer. • Run a third-party disk image copying tool. • Save the new disk image on a shared folder or CD-ROM. • Copy this image to the multiple destination computers. • Start the destination computers and the Mini-Setup wizard starts. • Provide a Sysprep.inf file to bypass the Mini-Setup wizard.

  8. Understanding Remote Installation • Remote installation is the most efficient method of deploying Windows 2000 Professional. • The process of performing a remote installation consists of • Connecting to a Remote Installation Services (RIS) server. • Starting an automatic installation of Windows 2000 Professional.

  9. The Benefits of Remote Installation • Enables remote installation of Windows 2000 Professional • Simplifies server image management • Supports recovery of the operating system and computer • Retains security settings after restarting the destination computer • Reduces Total Cost of Ownership (TCO)

  10. Examining the Prerequisites • RIS is available only with Windows 2000 Server products. • RIS requires additional network services. • DNS Service • DHCP Service • Active Directory directory services • RIS is installed on a volume that is shared over the network.

  11. The Remote Installation Services Setup Wizard • Installs the RIS software • Creates the remote installation folder • Copies the Windows 2000 Professional installation files to the server • Adds .SIF files • Configures the Client Installation wizard screens • Updates the registry • Starts the required Remote Installation Services

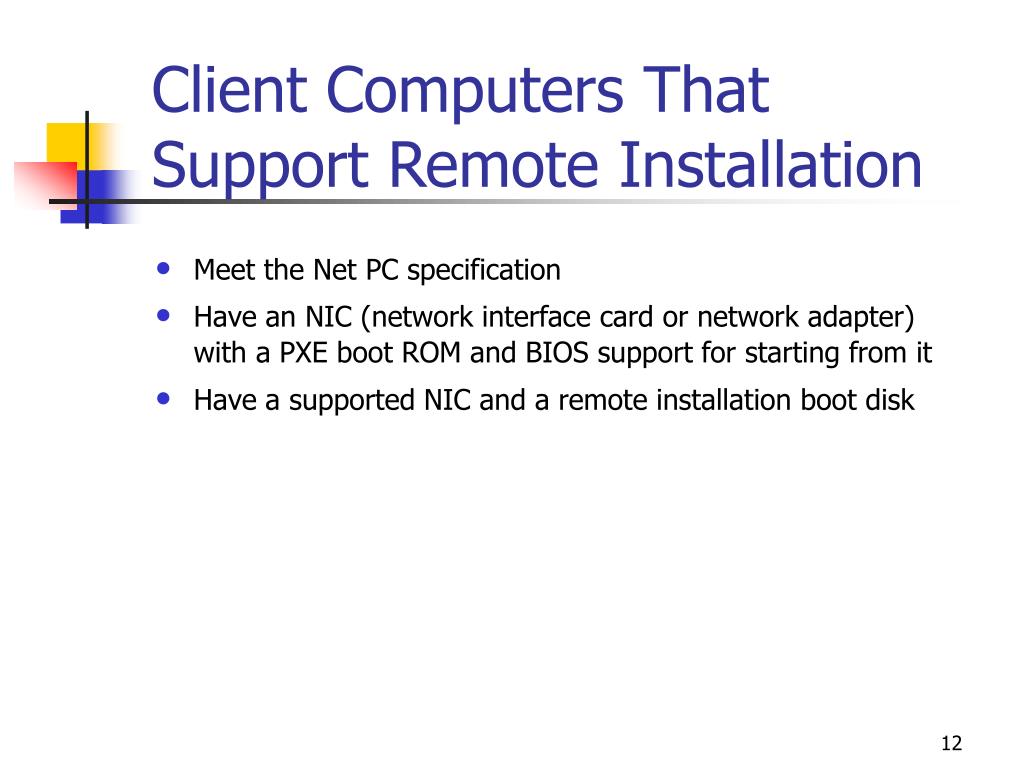

  12. Client Computers That Support Remote Installation • Meet the Net PC specification • Have an NIC (network interface card or network adapter) with a PXE boot ROM and BIOS support for starting from it • Have a supported NIC and a remote installation boot disk

  13. Net PCs • Have the ability to perform a network boot • Manage upgrades • Prevent users from changing the hardware or operating system configuration • Have additional configuration requirements for RIS installations

  14. Computers Not Meeting the Net PC Specification • Install a NIC with a PXE boot ROM. • Set BIOS to start from the PXE boot ROM. • Assign the user right “Log on as a batch job.” • Assign the user permissions to create computer accounts.

  15. Creating Boot Disks • Create a boot disk • If the NIC is not equipped with a PXE boot ROM. • If the BIOS does not allow starting from the NIC. • Use the boot disk to simulate the PXB boot process. • Run Rbfg.exe to create a boot disk.

  16. Identifying Client Upgrade Paths • Upgrade Microsoft Windows 95 to Windows 2000 Professional. • Upgrade Microsoft Windows 98 to Windows 2000 Professional. • Upgrade Windows NT Workstation 3.51 and 4 to Windows 2000 Professional. • Upgrade Windows NT 3.1 or 3.5 to Windows NT 3.51 or 4 first.

  17. Identifying Hardware Requirements • Intel Pentium processor 166 MHz or higher • 32 MB or more of memory • 650 MB or more free space on the boot partition • VGA or higher video card and monitor • CD-ROM or DVD-ROM drive for CD-ROM installations • Network interface card and related cables • Keyboard and mouse or other pointing device

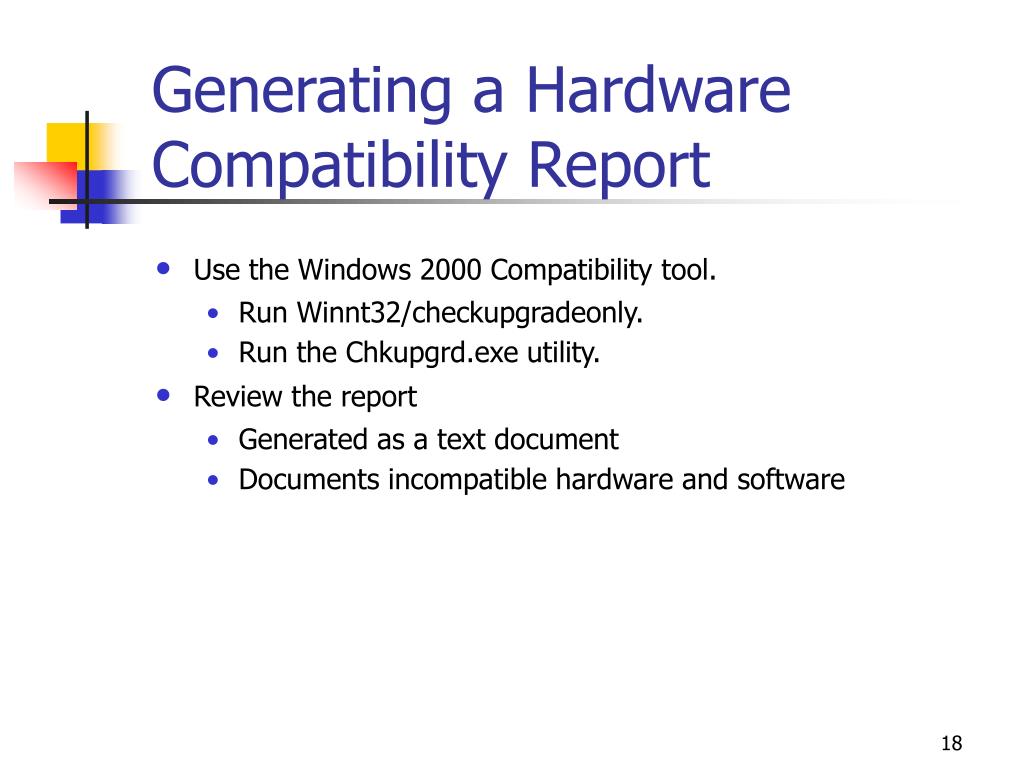

  18. Generating a Hardware Compatibility Report • Use the Windows 2000 Compatibility tool. • Run Winnt32/checkupgradeonly. • Run the Chkupgrd.exe utility. • Review the report • Generated as a text document • Documents incompatible hardware and software

  19. Identifying Incompatible Software • Third-party networking protocols without an update in i386\Winntupg • Third-party client software without an update in i386\Winntupg • All antivirus applications • All disk quota software • Custom power management software or tools

  20. Upgrading Windows 95 or Windows 98 • Run Winnt32.exe. • Accept the license agreement. • Create a computer account for computers in the domain. • Provide any application upgrade packs. • Decide if you want to upgrade to NTFS. • Check the Compatibility report and continue if compatible.

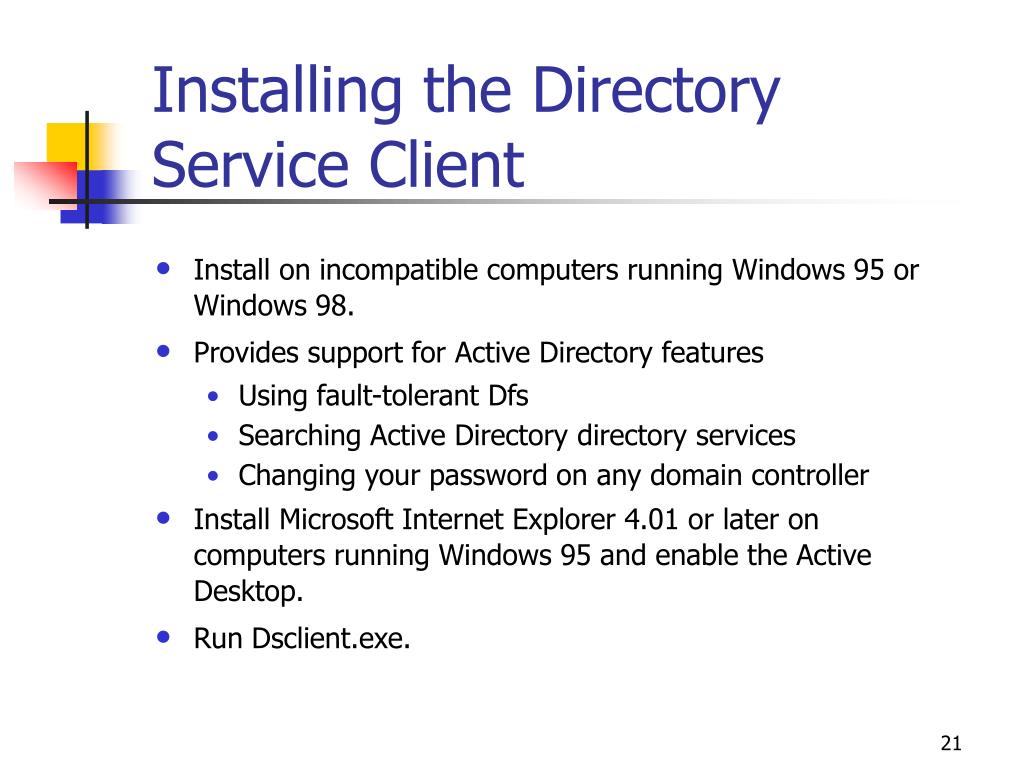

  21. Installing the Directory Service Client • Install on incompatible computers running Windows 95 or Windows 98. • Provides support for Active Directory features • Using fault-tolerant Dfs • Searching Active Directory directory services • Changing your password on any domain controller • Install Microsoft Internet Explorer 4.01 or later on computers running Windows 95 and enable the Active Desktop. • Run Dsclient.exe.

  22. Upgrading Windows NT 3.51 and 4 Clients • Run the Windows 2000 Compatibility tool. • Run Winnt32 and select Upgrade To Windows 2000 (Recommended). • No Directory Service Client is available for Windows NT 3.51 or Windows NT 4.

  23. Installing Service Packs in Previous Versions of Windows • You installed the operating system and then applied required service packs. • You had to reinstall components after installing a service pack. • Windows 2000 eliminates the need to reinstall components.

  24. Slipstreaming Service Packs • Integrates service packs with the Windows 2000 installation files • Allows you to keep one master image of the operating system. • Installs the service pack files during the Windows 2000 installation. • Saves time. • Apply new service packs by running Update.exe with the /slip switch.

  25. Deploying Service Packs After Windows 2000 Is Installed • Run Update.exe to replace the existing Windows 2000 files with the appropriate new files from the service pack. • Adding and removing services does not require service packs to be reapplied. • Windows 2000 automatically recognizes that a service pack has been applied. • Windows 2000 automatically copies the necessary files from either the Windows 2000 installation files or the service pack install location.
