  1. ECE 448 FPGA and ASIC Design with VHDL Spring 2007

  2. ECE 448 Team Course Instructor:Kris Gaj kgaj@gmu.edu Lab Instructors (TAs): Tuesday & Wednesday sections: Nghi Nguyen former MS CpE student nguyen.nghi@gmail.com Thursdaysection: Hoang Le MS CpE student, specializing in Digital Systems Designhle7@gmu.edu

  3. ECE 448 Team – Division of Tasks Course Instructor – Primary Responsibilities • Lectures • Preparing and grading exams and quizzes • - Coordination of work on development • of new experiments • Instructions for the lab experiments • Coordination of work done by the TAs • Enforcing consistent policies and grading standards • Mid-semester student satisfaction survey • Resolving conflicts and providing feedback to the TAs • Holding office hours

  4. ECE 448 Team – Division of Tasks Lab Instructors (TAs) – Primary Responsibilities • Teaching hands-on sessions on how to use software, hardware and testing equipment needed for experiments • Introductions to the lab experiments • Grading student demonstrations and reports • Holding office hours • Development and testing of new lab experiments

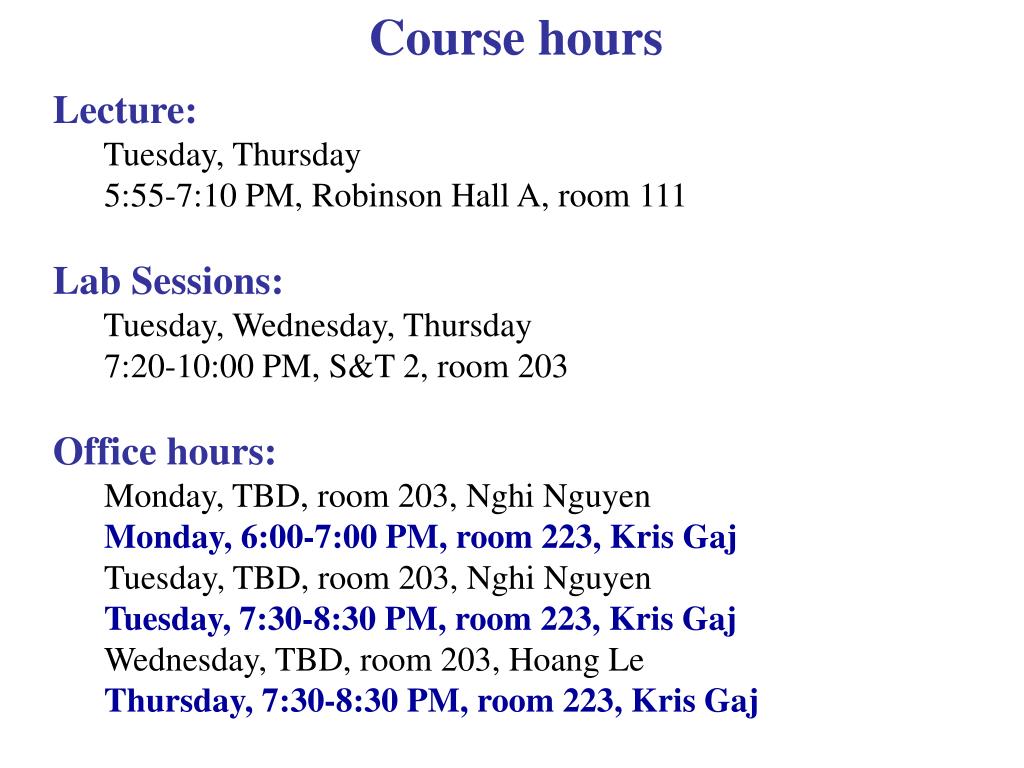

  5. Course hours • Lecture: • Tuesday, Thursday • 5:55-7:10 PM, Robinson Hall A, room 111 • Lab Sessions: • Tuesday, Wednesday, Thursday 7:20-10:00 PM, S&T 2, room 203 • Office hours: • Monday, TBD, room 203, Nghi Nguyen • Monday, 6:00-7:00 PM, room 223, Kris Gaj • Tuesday, TBD, room 203, Nghi Nguyen • Tuesday, 7:30-8:30 PM, room 223, Kris Gaj • Wednesday, TBD, room 203, Hoang Le • Thursday, 7:30-8:30 PM, room 223, Kris Gaj

  6. ECE 448 Section Assignment Rules • You are welcome to attend any of the • multiple office hour sessions • Please attend the class meetings of the other section only • in case of emergency and give preference in access • to the lab computers to the students attending • the right section • All experiment demonstrations need to be done • in the presence of your TA, and can be • done exclusively during the class time of your section

  7. Lab Access Rules and Behavior Code Please refer to the FPGA Design & Test Lab website: http://ece.gmu.edu/labs/fpgalab.htm

  8. Grading criteria First part of the semester (before the Spring break) Lab experiments & homework - Part I (individual assignments) 20% Quizzes: 5% Midterm exam for the lecture: 10% Midterm exam for the lab: 15% Second part of the semester (after the Spring break) Lab experiments & homework - Part II    (group assignments) 20% Quizzes: 5% Final exam 25%

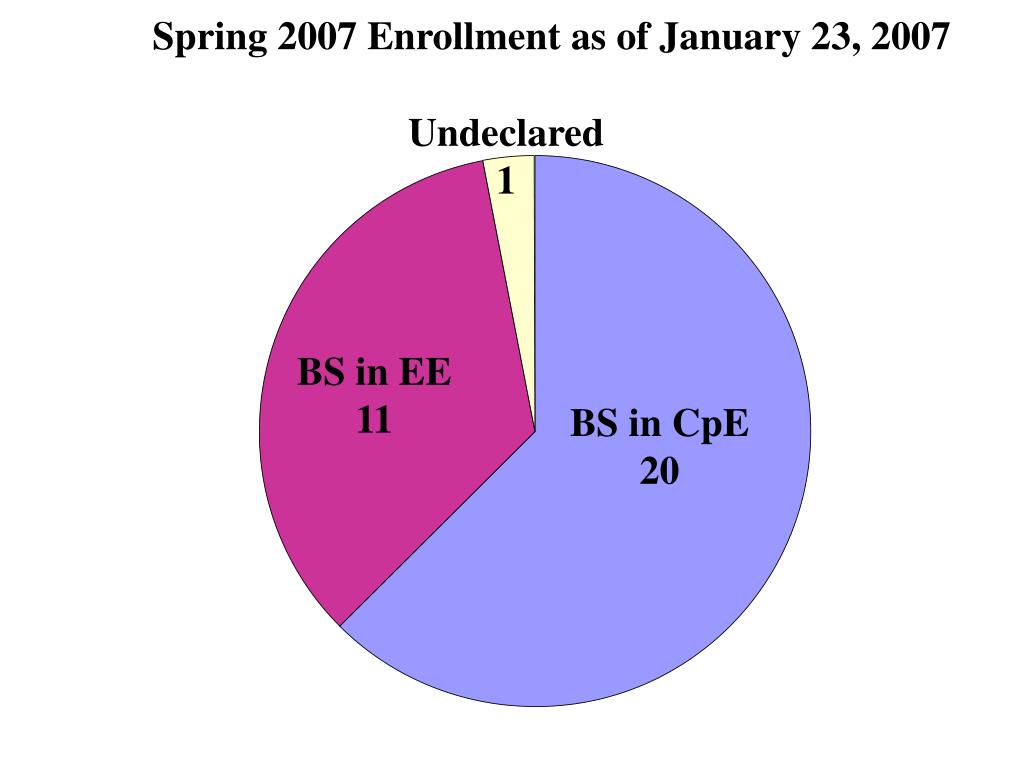

  9. Spring 2007 Enrollment as of January 23, 2007 Undeclared 1 BS in EE 11 BS in CpE 20

  10. Digital Systems & Computers Color code: Old Curriculum BS EE ECE 280 PHYS 261 PHYS 265 BS CpE  C or ECE 331 ECE 332  C  C ECE 445  C  C ECE 367 ECE 442 ECE 448 ECE 447 ECE 492 ECE 493

  11. Digital Systems & Computers Color code: New Curriculum BS EE ECE 280 PHYS 261 PHYS 265 BS CpE or  C ECE 331 ECE 332  C  C ECE 448 ECE 445  C ECE 492 CS 222 CS 367 ECE 447 ECE 493

  12. Transition from ECE 449 to ECE 448 starting in Spring 2006 ECE 449 NEW COURSE, ECE 448 4 credit hours 1 credit hour VHDL intro + FPGA intro + ASIC intro + more advanced lectures on applications and platforms Lab Lecture VHDL intro + FPGA intro + hands-on tools intro + experiment intro + lab time Lab hands-on tools intro + experiment intro + lab time

  13. ECE 448, FPGA and ASIC Design with VHDL Topics VHDL: - writing synthesizable RTL level code in VHDL - writing test benches FPGAs: - architecture of FPGA devices - tools for the computer-aided design with FPGAs - current FPGA families & future trends

  14. High-level ASIC Design: - standard cell implementation approach - logic synthesis tools - differences between FPGA & standard-cell ASIC design flow Applications: - basics of computer arithmetic - applications from communications, cryptography, digital signal processing, bioengineering, etc. Platforms: • FPGA boards • microprocessor board–FPGA board interfaces: PCI, PCI-X • reconfigurable computers New trends: • using high-level programming languages to design hardware • microprocessors embedded in FPGAs

  15. Tasks of the course Comprehensive introduction to FPGA & front-end ASIC technology Advanced course on digital system design with VHDL Testing equipment • hardware: • Xilinx FPGAs, • TSMC library • of standard ASIC • cells • software: • VHDL simulators • Synthesis tools • Xilinx ISE • writing VHDL code • for synthesis • design using • finite state machines • and algorithmic state • machines • test benches - oscilloscopes - logic analyzer

  16. VHDL for Specification VHDL for Simulation VHDL for Synthesis

  17. Levels of design description Algorithmic level Level of description most suitable for synthesis Register Transfer Level Logic (gate) level Circuit (transistor) level Physical (layout) level

  18. Combinational Logic Combinational Logic Register Transfer Level (RTL) Design Description … Registers

  19. dataflow VHDL Design Styles VHDL Design Styles • Testbenches structural behavioral Components and interconnects Concurrent statements Sequential statements • Registers • State machines Subset most suitable for synthesis

  20. Testbench Environment TB Processes Generating Stimuli Design Under Test (DUT) Testbenches Stimuli All DUT Inputs Simulated Outputs

  21. World of Integrated Circuits Integrated Circuits Full-Custom ASICs Semi-Custom ASICs User Programmable PLD FPGA PAL PLA PML LUT (Look-Up Table) MUX Gates

  22. Block RAMs Block RAMs What is an FPGA? Configurable Logic Blocks I/O Blocks Block RAMs

  23. Two competing implementation approaches FPGA FieldProgrammable GateArray ASIC ApplicationSpecific IntegratedCircuit • designed all the way • from behavioral description • to physical layout • no physical layout design; • design ends with • a bitstream used • to configure a device • designs must be sent • for expensive and time • consuming fabrication • in semiconductor foundry • bought off the shelf • and reconfigured by • designers themselves

  24. FPGAs vs. ASICs FPGAs ASICs Off-the-shelf High performance Low development costs Low power Short time to the market Low cost (but only in high volumes) Reconfigurability

  25. FPGA Design process (1) Design and implement a simple unit permitting to speed up encryption with RC5-similar cipher with fixed key set on 8031 microcontroller. Unlike in the experiment 5, this time your unit has to be able to perform an encryption algorithm by itself, executing 32 rounds….. Specification (Lab Experiments) VHDL description (Your Source Files) Library IEEE; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; entity RC5_core is port( clock, reset, encr_decr: in std_logic; data_input: in std_logic_vector(31downto0); data_output: out std_logic_vector(31downto0); out_full: in std_logic; key_input: in std_logic_vector(31downto0); key_read: out std_logic; ); end AES_core; Functional simulation Synthesis Post-synthesis simulation

  26. FPGA Design process (2) Implementation Timing simulation Configuration On chip testing

  27. Simulation Tools

  28. FPGA Synthesis Tools

  29. Logic Synthesis VHDL description Circuit netlist architecture MLU_DATAFLOW of MLU is signal A1:STD_LOGIC; signal B1:STD_LOGIC; signal Y1:STD_LOGIC; signal MUX_0, MUX_1, MUX_2, MUX_3: STD_LOGIC; begin A1<=A when (NEG_A='0') else not A; B1<=B when (NEG_B='0') else not B; Y<=Y1 when (NEG_Y='0') else not Y1; MUX_0<=A1 and B1; MUX_1<=A1 or B1; MUX_2<=A1 xor B1; MUX_3<=A1 xnor B1; with (L1 & L0) select Y1<=MUX_0 when "00", MUX_1 when "01", MUX_2 when "10", MUX_3 when others; end MLU_DATAFLOW;

  30. After synthesis the entire implementation process is performed by FPGA vendor tools FPGA Implementation

  31. Design Process control from Active-HDL

  32. Top Level ASIC Digital Design Flow Design Inception RTL Design Synthesis Macro Development Place + Route Physical Verification Design Complete

  33. ASIC Simulation Tools

  34. ASIC Synthesis Tools

  35. CAD software available at GMU (1) VHDL simulators • Aldec Active-HDL (under Windows) • available in the FPGA Lab, S&T II, room 203 • student edition can be purchased on an individual • basis ($59.95 + S&H) • ModelSim Xilinx Edition III (under Windows) • available in the FPGA Lab, S&T II, room 203 • limited version available for free for individual use • at home as a part of Xilinx WebPACK

  36. CAD software available at GMU (2) Tools used for logic synthesis Xilinx FPGA synthesis • Synplicity Synplify Pro (under Windows) • available in the FPGA Lab, S&T II, room 203 • Xilinx XST(under Windows) • available in the FPGA Lab, S&T II, room 203 • available for free as a part of WebPACK

  37. CAD software available at GMU (3) Tools used for implementation (mapping, placing & routing) in the Xilinx FPGA technology • Xilinx ISE (under Windows) • available in the FPGA Lab, S&T II, room 203 • Xilinx WebPACK (under Windows) • limited version available for free for individual use • at home as a part of Xilinx WebPACK

  38. CAD software available at GMU (4) ASIC synthesis • Synopsys Design Compiler and PrimeTime (under Unix) • available from all PCs in the ECE educational labs • using an X-terminal emulator • available remotely from home using a fast Internet • connection

  39. Xilinx FPGA Tools Windows Home for money Home for free Lab ModelSim Xilinx Edition Aldec Active HDL Student Edition Aldec Active HDL Synplicity Synplify Pro Xilinx ISE Xilinx XST Xilinx WebPACK Xilinx XST Xilinx WebPACK

  40. Altera FPGA Tools Windows Home for free Lab Altera Quartus II Altera Quartus II

  41. ASIC Tools Unix Home for free Lab Synopsys Design Analyzer remote access to cpe02.gmu.edu Synopsys Design Analyzer

  42. XESS Inc. Educational Boards

  43. FPGA available on the XESS board Xilinx Spartan 3,XC3S1000 FPGA • 1,000,000 equivalent logic • gates • 7680 CLB slices • 432 kbits of memory in block RAMs Block RAMs Programmable Interconnects Configurable Logic Block slices (CLB slices)

  44. Celoxica RC10 Educational Board

  45. FPGA available on the board Xilinx Spartan 3,XC3S1500 FPGA • 1,500,000 equivalent logic • gates • 13,312 CLB slices • 576 kbits of memory in block RAMs Block RAMs Programmable Interconnects Configurable Logic Block slices (CLB slices)

  46. Digital system design technologies coverage in the CpE & EE programs at GMU ASICs Microprocessors FPGAs Computer Organization ECE 445 ECE 447 ECE 431 Digital Circuit Design Single Chip Microcomputers ECE 448 FPGA and ASIC Design with VHDL ECE 545 Introductionto VHDL ECE 511ECE 611 ECE 645 Microprocessors Computer Arithmetic Digital Integrated Circuits Advanced Microprocessors ECE 586 ECE 681 VLSI Design Automation
