  1. Transition Metals & Coordination Chemistry • Uses of Transition Metals • Iron for steel • Copper for wiring and pipes • Titanium for paint • Silver for photographic paper • Platinum for catalysts

  2. Importance of Transition Metals • U.S. imports 60 “strategic and critical” minerals • Cobalt • Manganese • Platinum • Palladium • Chromium • Important for economy and defense

  3. Transition Metals and Living Organisms • Iron – transport & storage of O2 • Molybdenum and Iron • Catalysts in nitrogen fixation • Zinc – found in more than 150 biomolecules • Copper and Iron – crucial role in respiratory cycle • Cobalt – found in vitamin B12

  4. Transition Metals: A survey • Representative elements • Chemistry changes across a period • Similarities occur within a group • Transition Metals • Similarities occur within a period as well as within a group • Due to last electrons being “d” (or “f”) orbital electrons

  5. Transition Metals: A Survey • “d” and “f” electrons cannot easily participate in bonding, so chemistry of transition elements are not affected by increased number of these electrons

  6. Transition Metal Behavior • Typical metals • Metallic Luster • Relatively high electrical conductivity • Relatively high thermal conductivity • Silver is the best conductor of heat and electricity • Copper is second best

  7. Properties of Transition Metals • Transition metals vary considerably in some properties • Melting point • W – 3400oC vs. Hg, a liquid at 25oC • Hardness • Iron and Titanium are very hard • Copper, gold, and silver are relatively soft

  8. Properties of Transition Metals • Chemical Reactivity • Reaction with oxygen • Some form oxides that adhere to the metal, protecting the metal from further corrosion • Cr, Ni, Co • Some form oxides that scale off, resulting in exposure of the metal to further corrosion • Fe • Some noble metals do not form oxides readily • Au, Ag, Pt, Pd

  9. Properties of Transition Metals • Forming Ionic Compounds • Transition Metals can form more than one oxidation state • Fe+2 and Fe+3 • Complex Ions • Formed by the cations • The transition metal ion is surrounded by a certain number of ligands (Lewis bases)

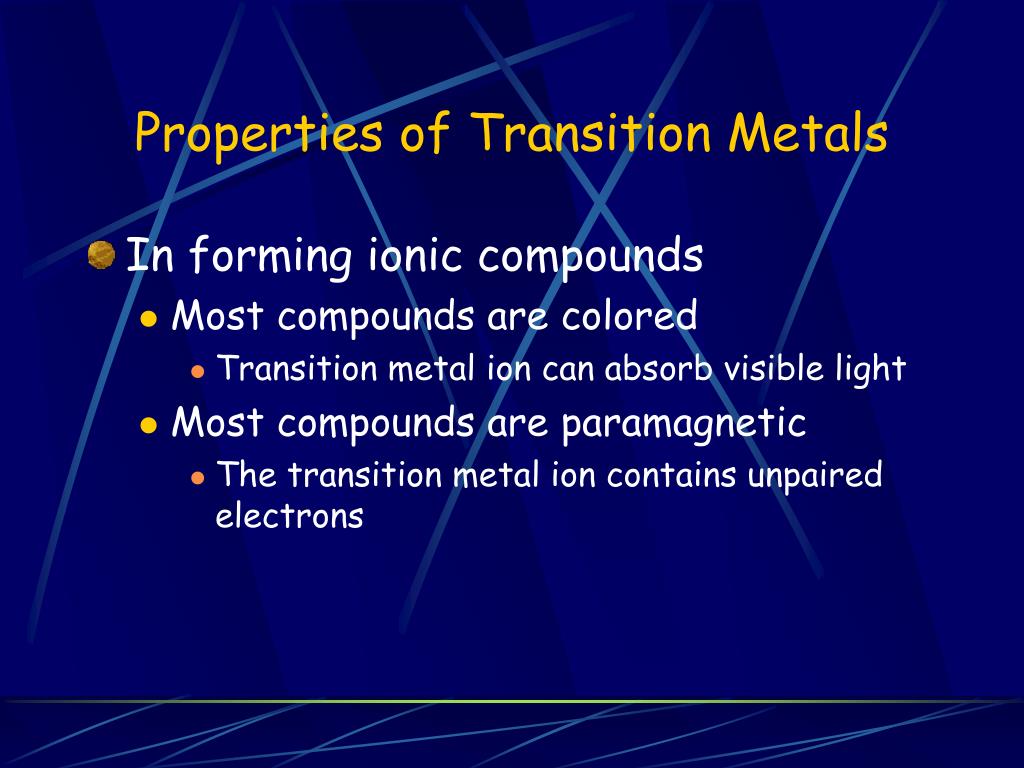

  10. Properties of Transition Metals • In forming ionic compounds • Most compounds are colored • Transition metal ion can absorb visible light • Most compounds are paramagnetic • The transition metal ion contains unpaired electrons

  11. Electron Configurations • Energies of the 4s and 3d electrons are very similar • Chromium is an exception to the diagonal rule, can be explained in terms of the similar energies of the 4s and 3d electrons • 4s __ 3d __ __ __ __ __ • Less electron-electron repulsion

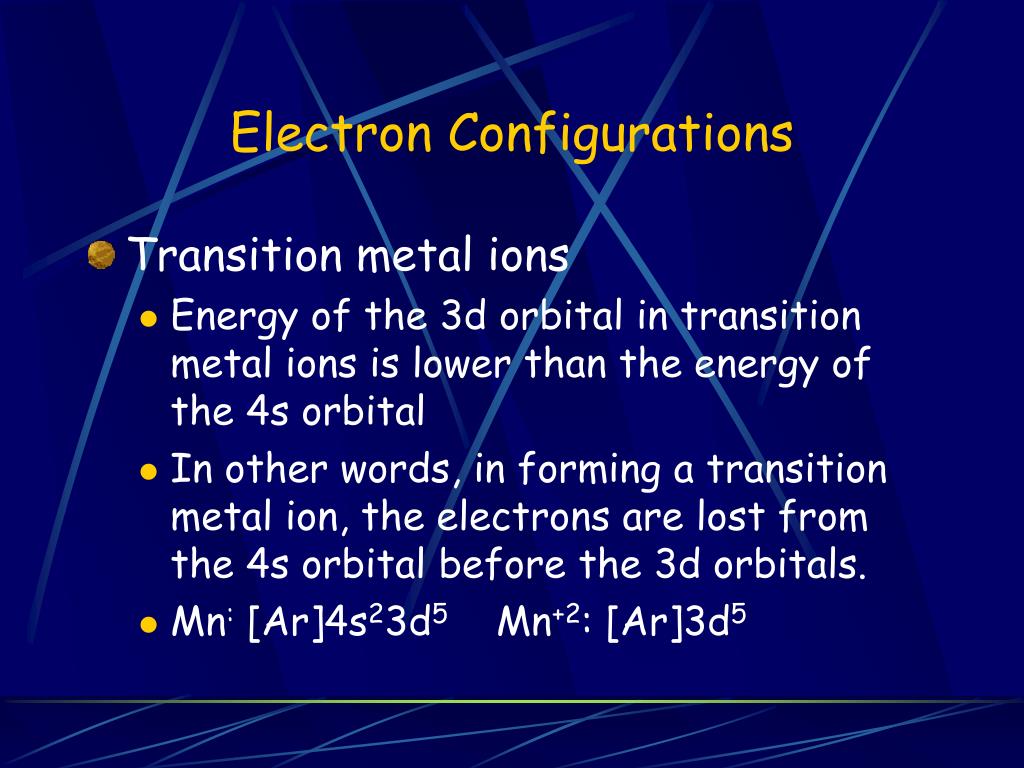

  12. Electron Configurations • Transition metal ions • Energy of the 3d orbital in transition metal ions is lower than the energy of the 4s orbital • In other words, in forming a transition metal ion, the electrons are lost from the 4s orbital before the 3d orbitals. • Mn: [Ar]4s23d5 Mn+2: [Ar]3d5

  13. Oxidation States & I.E. • First five transition metals • Maximum possible oxidation state is the result of losing the 4s and the 3d electrons • Cr: [Ar]4s13d5; max. ox. state = +6 • At the end of the period, +2 is the most common oxidation state. • Too hard to remove the d electrons as they become lower in energy as the nuclear charge increases

  14. Standard Reduction Potentials • Metals act as reducing agents • M  M+n + ne- • Metal with the most positive reducing potential is the best reducing agent • Sc  Sc+3 + 3 e- Eored = 2.08 V • Ti  Ti+2 + 2e- Eored = 1.63 V • All the metals except Cu can reduce H+ to H2 • Reducing ability decreases going across the period

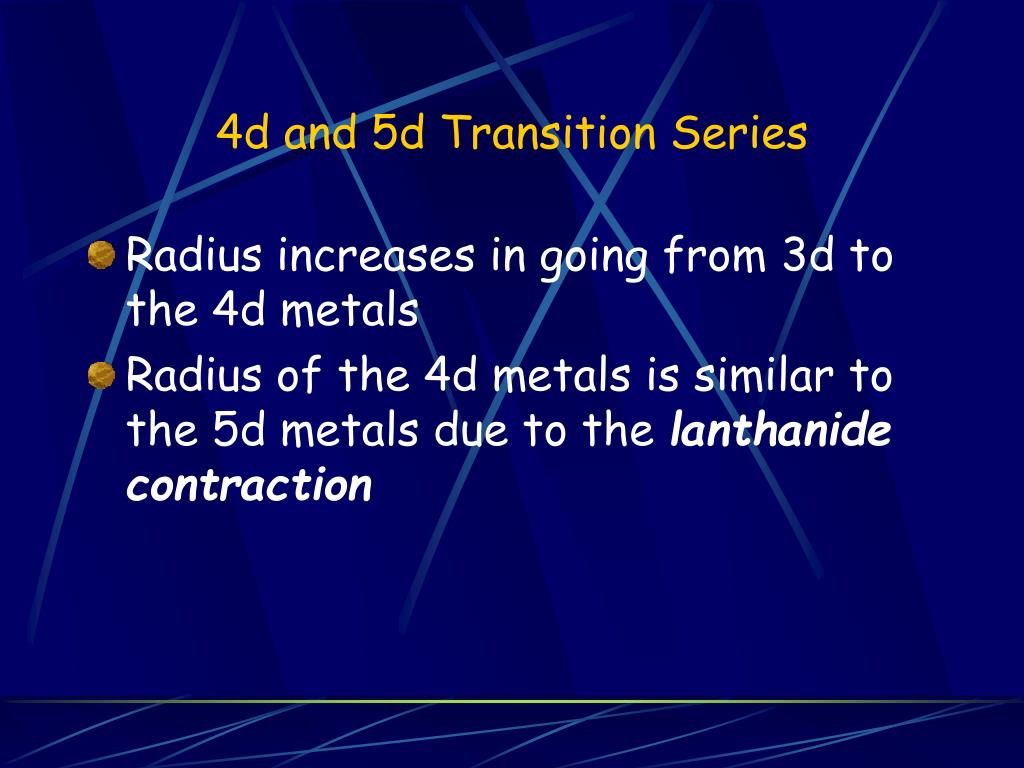

  15. 4d and 5d Transition Series • Radius increases in going from 3d to the 4d metals • Radius of the 4d metals is similar to the 5d metals due to the lanthanide contraction

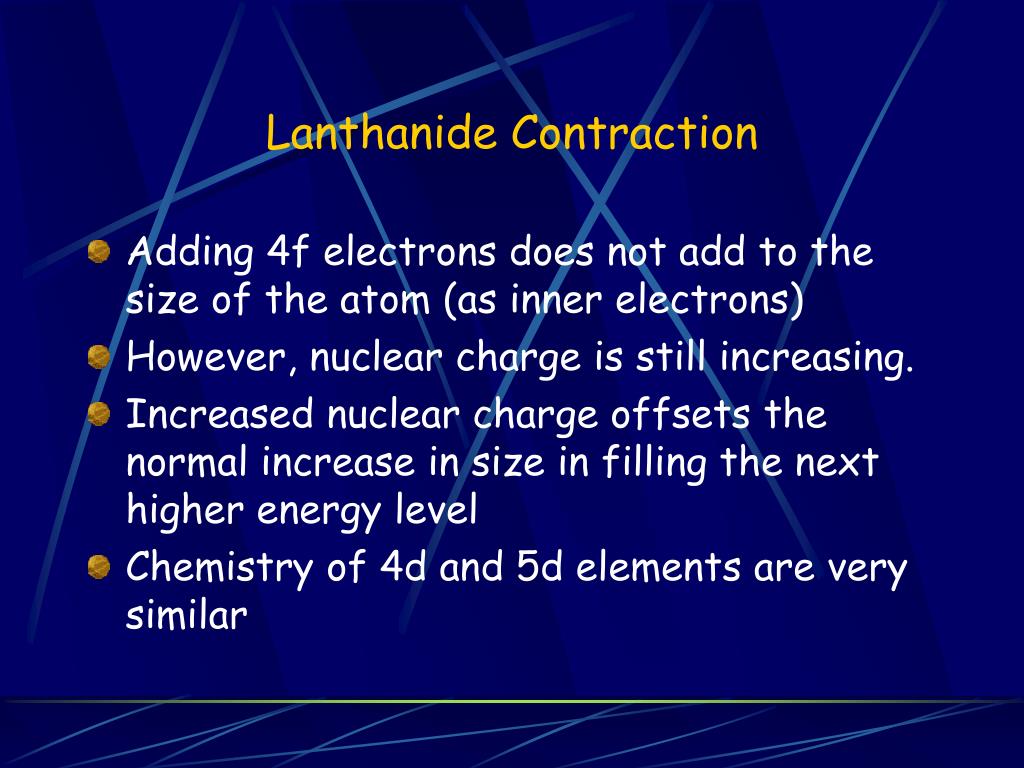

  16. Lanthanide Contraction • Adding 4f electrons does not add to the size of the atom (as inner electrons) • However, nuclear charge is still increasing. • Increased nuclear charge offsets the normal increase in size in filling the next higher energy level • Chemistry of 4d and 5d elements are very similar

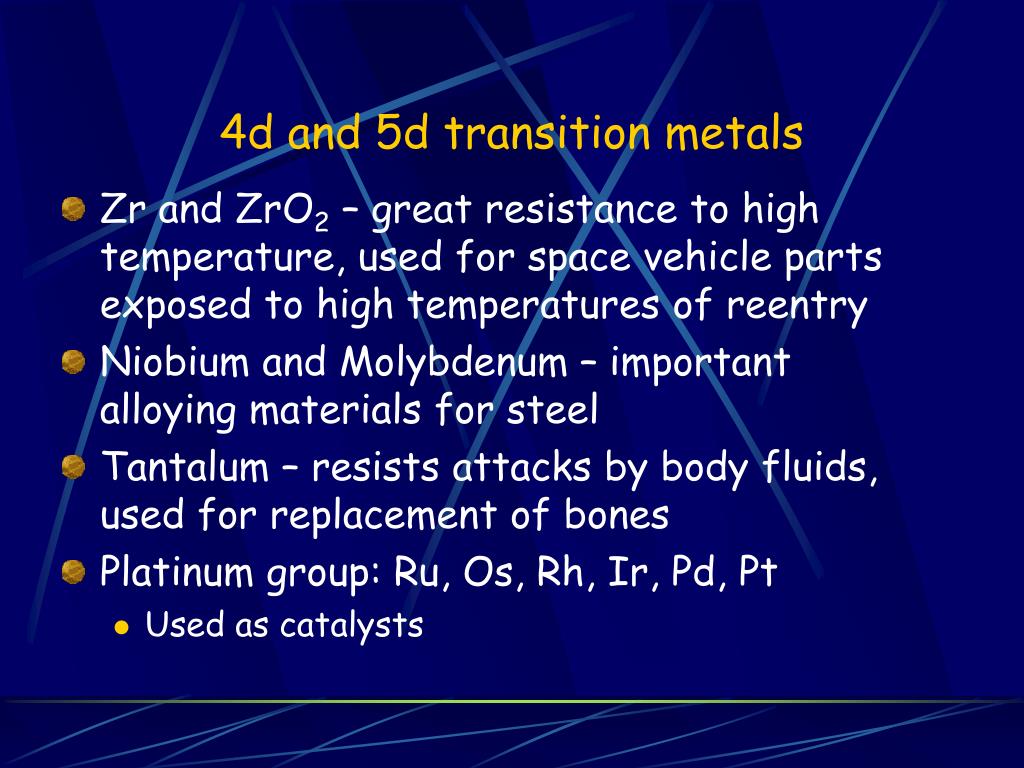

  17. 4d and 5d transition metals • Zr and ZrO2 – great resistance to high temperature, used for space vehicle parts exposed to high temperatures of reentry • Niobium and Molybdenum – important alloying materials for steel • Tantalum – resists attacks by body fluids, used for replacement of bones • Platinum group: Ru, Os, Rh, Ir, Pd, Pt • Used as catalysts

  18. Read • Pg. 971 – 977 • Look at pictures, note colors

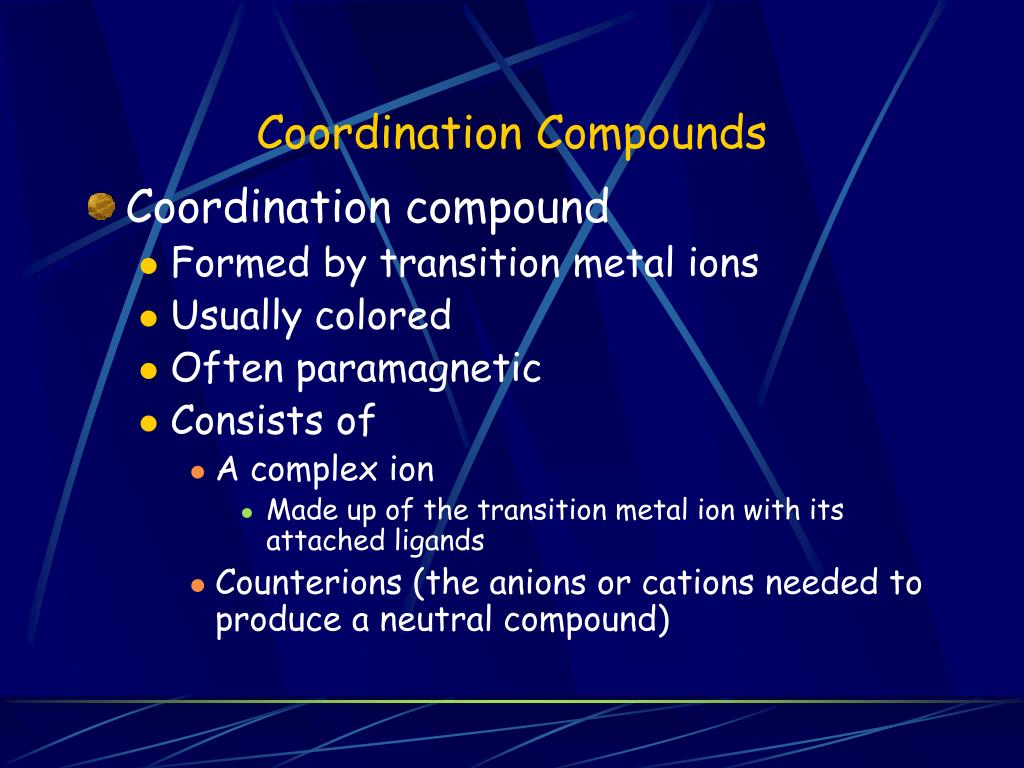

  19. Coordination Compounds • Coordination compound • Formed by transition metal ions • Usually colored • Often paramagnetic • Consists of • A complex ion • Made up of the transition metal ion with its attached ligands • Counterions (the anions or cations needed to produce a neutral compound)

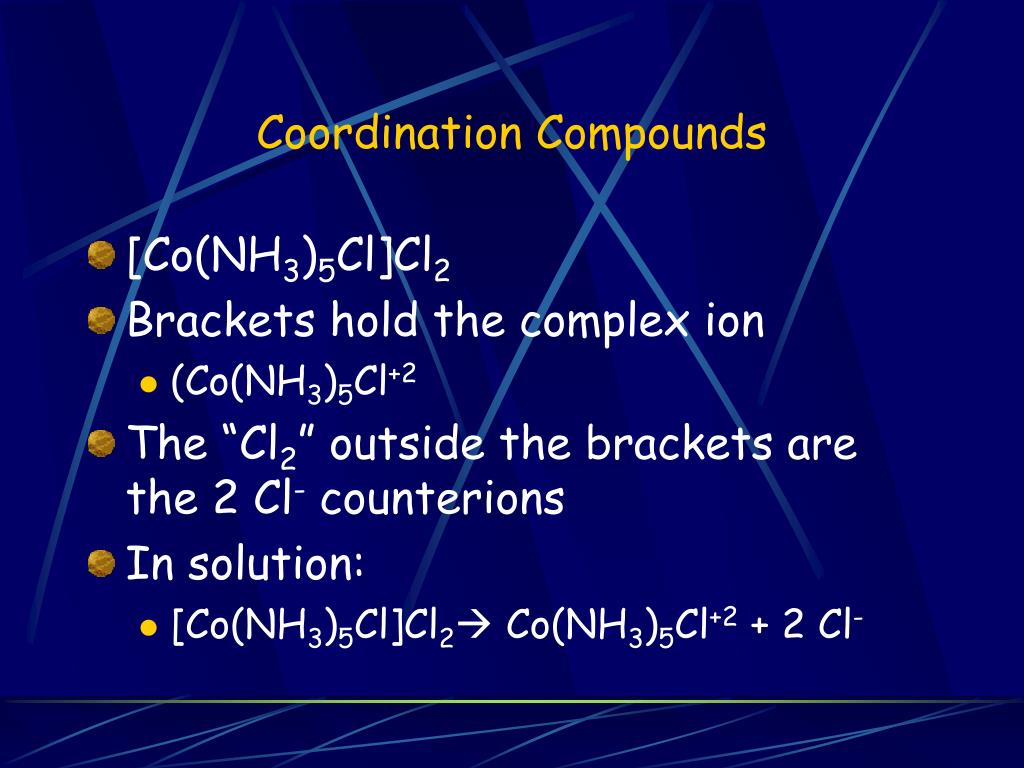

  20. Coordination Compounds • [Co(NH3)5Cl]Cl2 • Brackets hold the complex ion • (Co(NH3)5Cl+2 • The “Cl2” outside the brackets are the 2 Cl- counterions • In solution: • [Co(NH3)5Cl]Cl2 Co(NH3)5Cl+2 + 2 Cl-

  21. Coordination Compounds • Alfred Werner in the 1890’s • Transition metals have two types of valence (combining abilities) • Primary valence – ability to form ionic bonds with oppositely charged ions • Secondary valence – ability to to bind to Lewis bases (ligands) to form complex ions

  22. Coordination Compounds • Primary Valence = Oxidation State • Secondary Valence = Coordination Number • number of bonds formed between the metal ion and the ligands in the complex ion.

  23. Coordination Number • Coordination number • Varies from two to eight • Depends on the size, charge, and electron configuration of the transition metal • Most common coordination number is 6 • Next is 4, then 2 • Many metals show more than one coordination number • No way to predict which coordination number

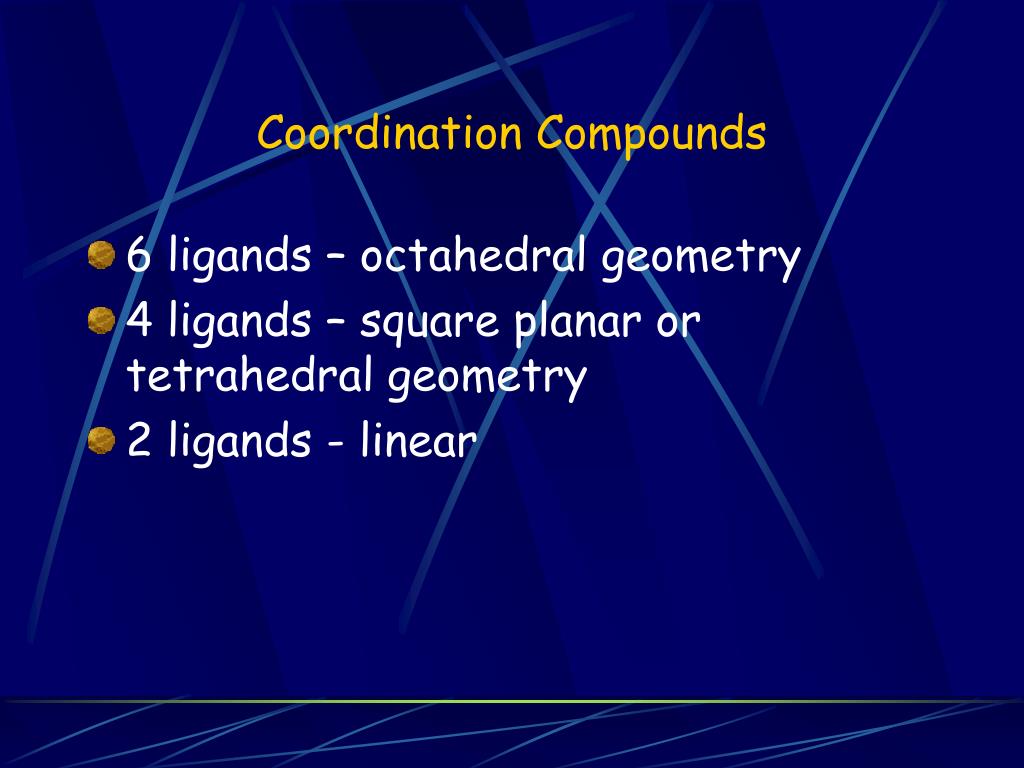

  24. Coordination Compounds • 6 ligands – octahedral geometry • 4 ligands – square planar or tetrahedral geometry • 2 ligands - linear

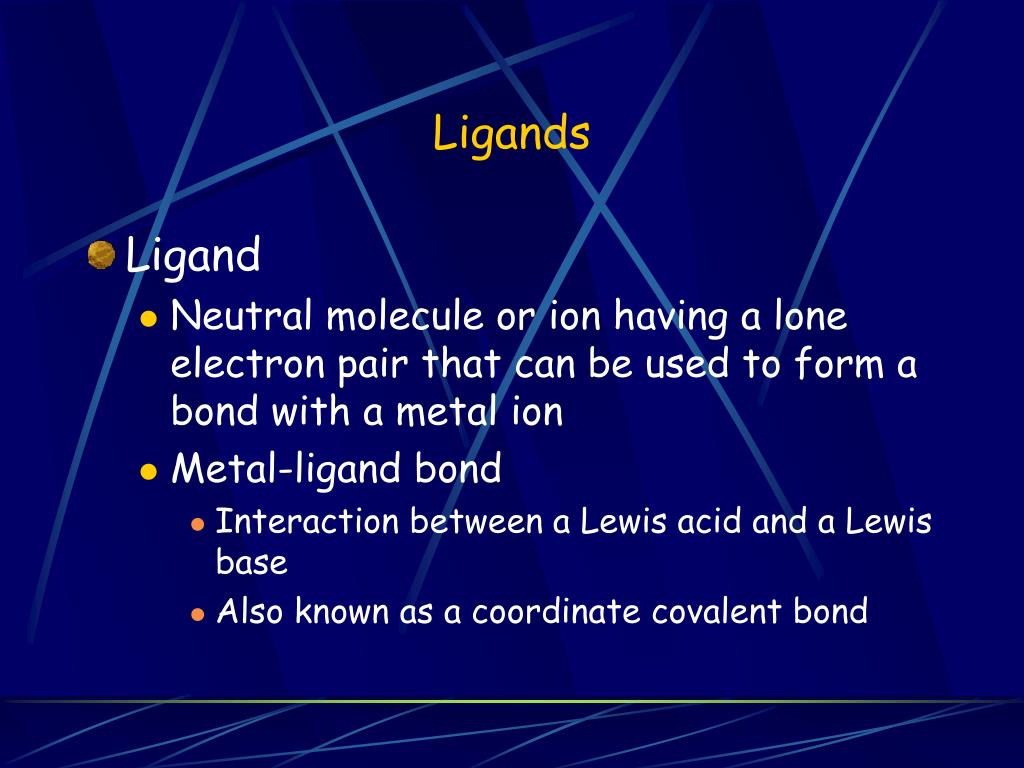

  25. Ligands • Ligand • Neutral molecule or ion having a lone electron pair that can be used to form a bond with a metal ion • Metal-ligand bond • Interaction between a Lewis acid and a Lewis base • Also known as a coordinate covalent bond

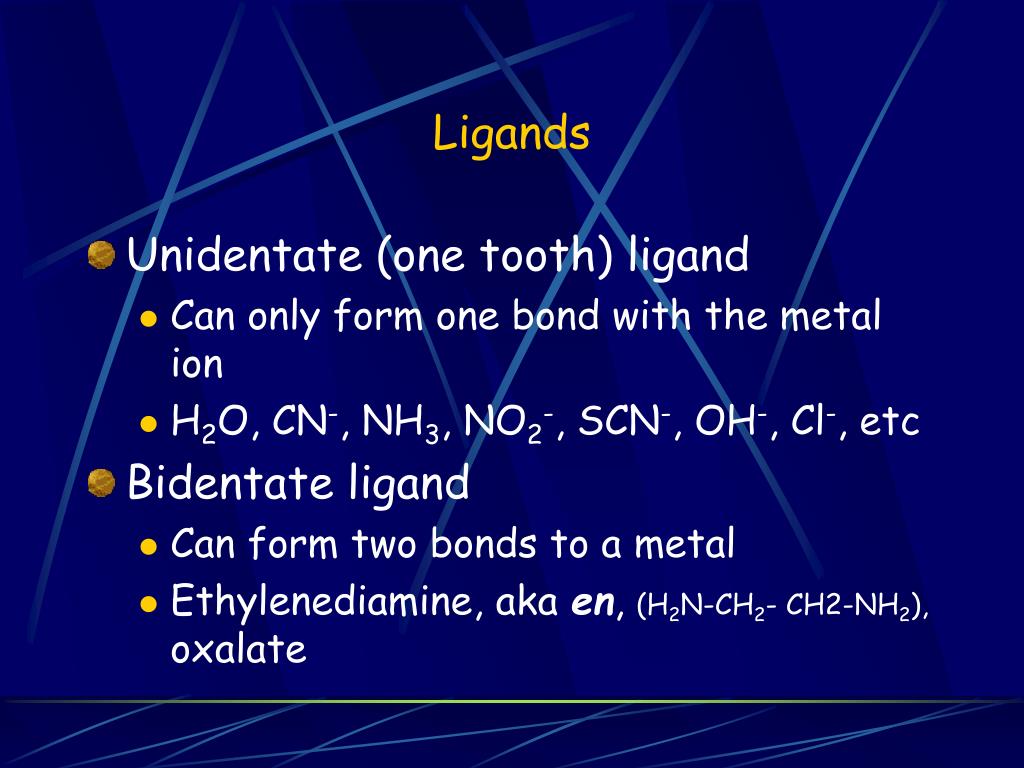

  26. Ligands • Unidentate (one tooth) ligand • Can only form one bond with the metal ion • H2O, CN-, NH3, NO2-, SCN-, OH-, Cl-, etc • Bidentate ligand • Can form two bonds to a metal • Ethylenediamine, aka en, (H2N-CH2- CH2-NH2), oxalate

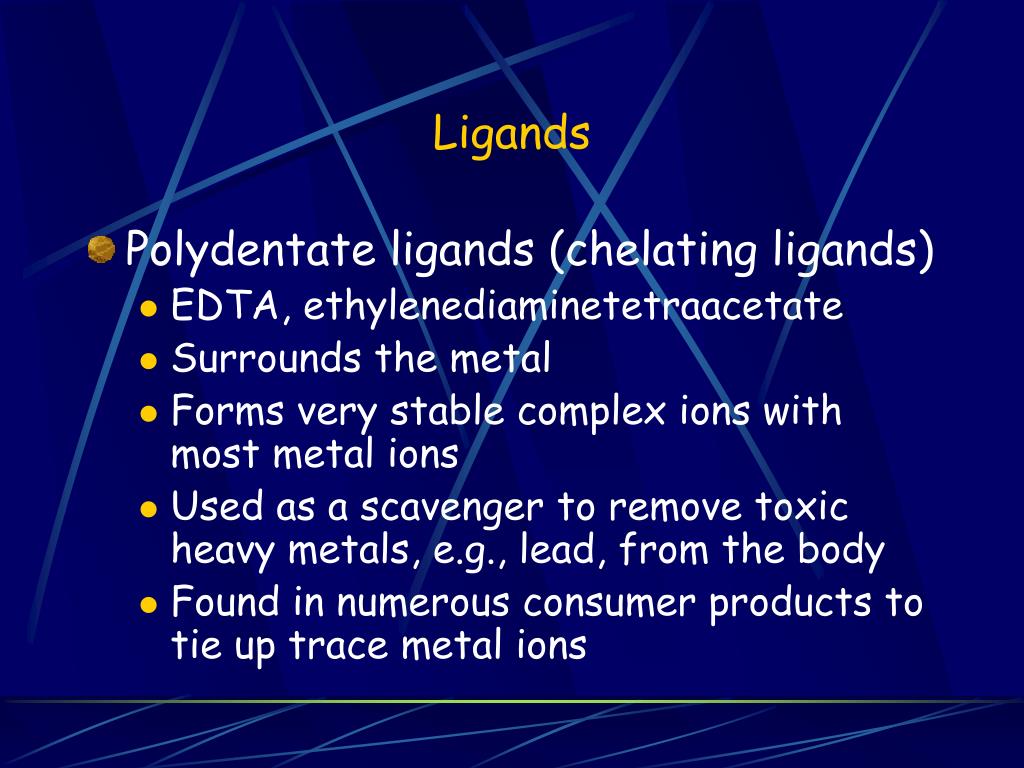

  27. Ligands • Polydentate ligands (chelating ligands) • EDTA, ethylenediaminetetraacetate • Surrounds the metal • Forms very stable complex ions with most metal ions • Used as a scavenger to remove toxic heavy metals, e.g., lead, from the body • Found in numerous consumer products to tie up trace metal ions

  28. Nomenclature • Cation is named before the anion • Ligands are named before the metal ion • Naming ligands • Add an o to the root name of an anion (fluoro, chloro, hydroxo, cyano, etc.) • Neutral ligand, use the name of the molecule except for the following: • H2O = aqua • NH3 = ammine • CH3NH2 = methylamine • CO = carbonyl • NO = nitro

  29. Nomenclature • Use prefixes to indicate number of simple ligands (mono, di, tri, tetra, penta, hexa) Use bis, tris, tetrakis for complicated ligands that already contain di, tri, etc) • Oxidation state of central metal ion is designated by a Roman numeral in parentheses • When more than one type of ligand is present, they are named alphabetically, where prefixes do not affect the order. • If the complex ion has a negative charge, add –ate to the name of the metal (eg. ferrate or cuprate)

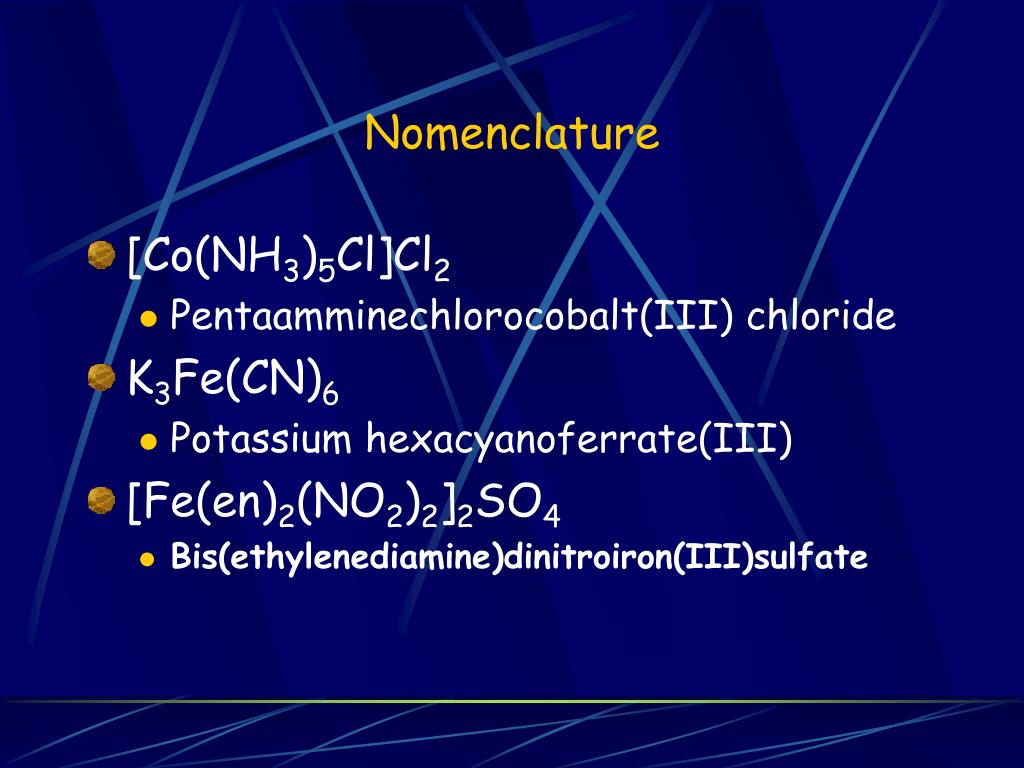

  30. Nomenclature • [Co(NH3)5Cl]Cl2 • Pentaamminechlorocobalt(III) chloride • K3Fe(CN)6 • Potassium hexacyanoferrate(III) • [Fe(en)2(NO2)2]2SO4 • Bis(ethylenediamine)dinitroiron(III)sulfate

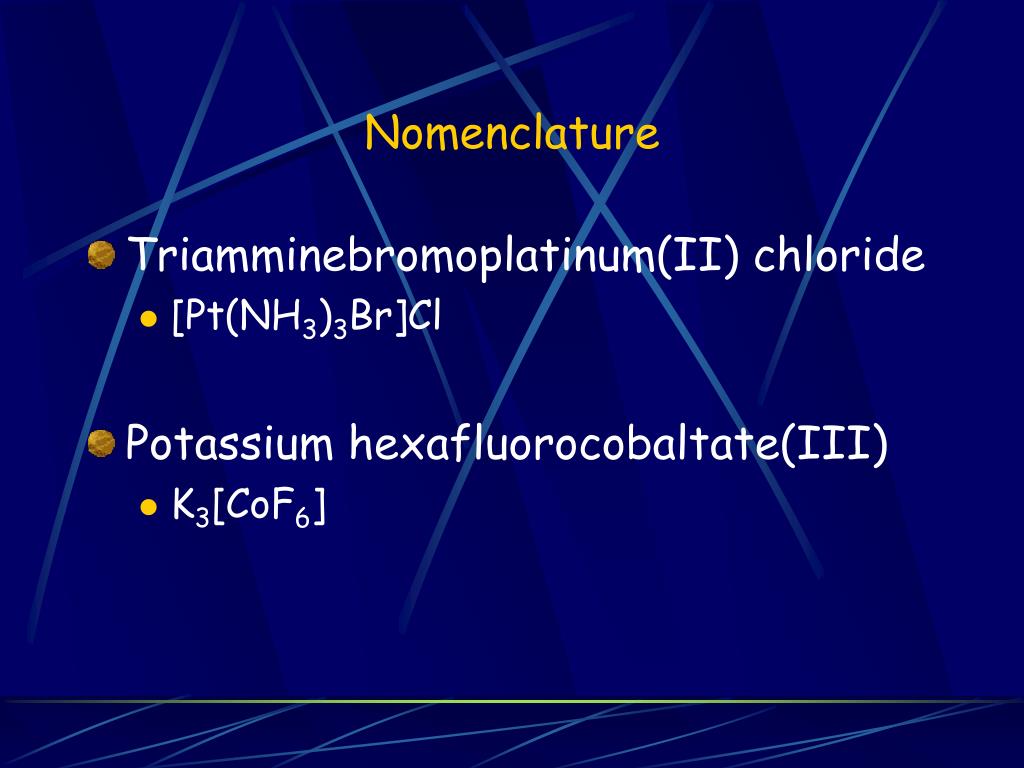

  31. Nomenclature • Triamminebromoplatinum(II) chloride • [Pt(NH3)3Br]Cl • Potassium hexafluorocobaltate(III) • K3[CoF6]

  32. The Crystal Field Model and Bonding in Complex Ions • Crystal field model focuses on the energies of the d orbitals • Color and magnetism of complex ions are due to changes in the energies of the d orbitals caused by the metal-ligand interaction

  33. The Crystal Field Model • Crystal Field Model assumes • Ligands are like negative point charges • Metal-ligand bonding is entirely ionic • In the free metal ion, all the d orbitals are degenerate, they have the same energies

  34. The Crystal Field Model • In the complex ion, the d orbitals are split into two sets with two different energies. • Lower energy set • The negative point charge ligands are farthest from the dxz, dyz, and dxy orbitals (the orbitals that point between the ligands) • Electron pair repulsions are minimized

  35. The Crystal Field Model • In the complex ion, the d orbitals are split into two sets with two different energies. • Higher energy set • dz2, dx2-y2 point at the ligands • More electron repulsions

  36. The Crystal Field Model • Splitting of the 3d orbital energies • Results in the color and magnetism of the complex ions

  37. The Crystal Field Model • Strong field case (or low spin case) • Splitting produced by the liqands is very large • Electrons will pair in the lower energy orbitals (the ones pointing between the ligands) • Result – a diamagnetic complex in which all electrons are paired

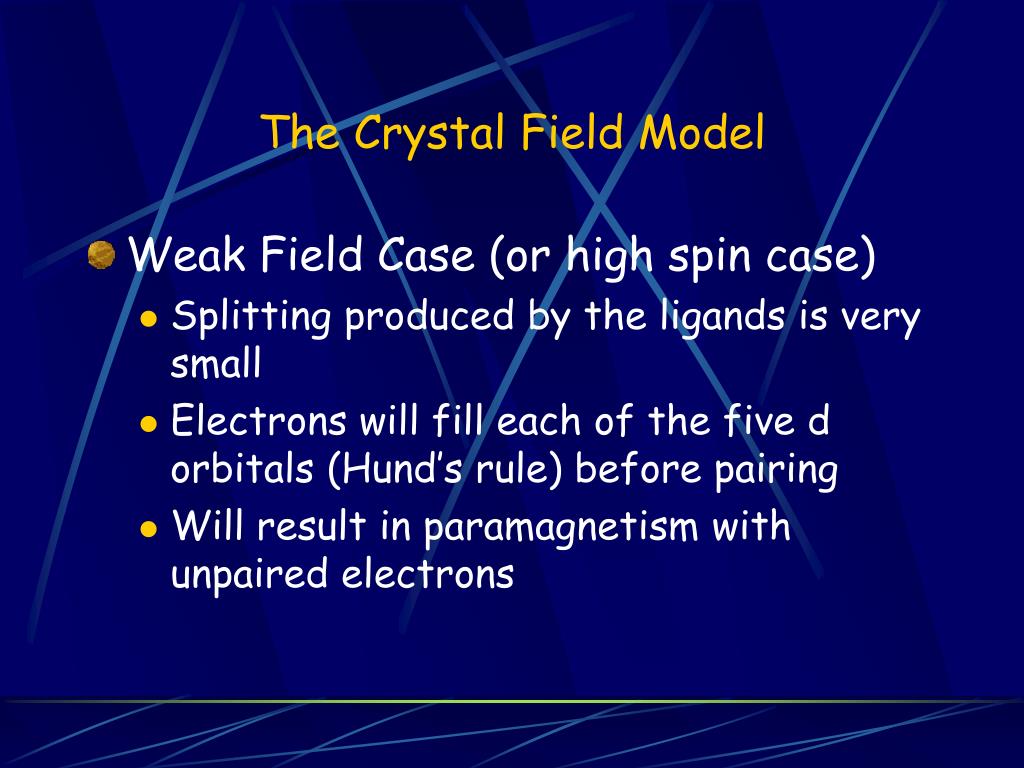

  38. The Crystal Field Model • Weak Field Case (or high spin case) • Splitting produced by the ligands is very small • Electrons will fill each of the five d orbitals (Hund’s rule) before pairing • Will result in paramagnetism with unpaired electrons

  39. The Crystal Field Model • Ligands have different abilities to produce d-orbital splitting • Strong Field ligands -----> Weak Fieldligands • Large D -------> Small D • CN- > NO2- > en > NH3 > H2O > OH- > F-> Cl- > Br- > I- • D increases as the charge on the metal ion increases • Larger charge on ion pulls the ligands closer, results in greater splitting to minimize repulsions

  40. The Crystal Field Model and Colors • Colors of complex ions • A complex ion will absorb certain wavelengths of light • The color we see is complementary to the color absorbed. • If yellow and green light is absorbed, then red and blue light passes through, so we would see violet.

  41. The Crystal Field Model and Colors • A complex ion will absorb a specific wavelength depending on the D between the d orbitals. • Different ligands on the same metal ion will result in different colors because of the different D’s. • DE = hc/l…for octahedral complex ions, the l is usually in the visible region

  42. Metallurgy • Steps in the process of separating a metal from its ore (metallurgy) • Mining • Pretreatment of the ore • Reduction to the free metal • Purification of the metal (refining) • Alloying

  43. Metallurgy • Ores are mixtures containing • Minerals (relatively pure metal compounds) • Gangue (sand, clay, and rock) • After mining, treat ores to remove the gangue and concentrate the mineral • Pulverize and process ore

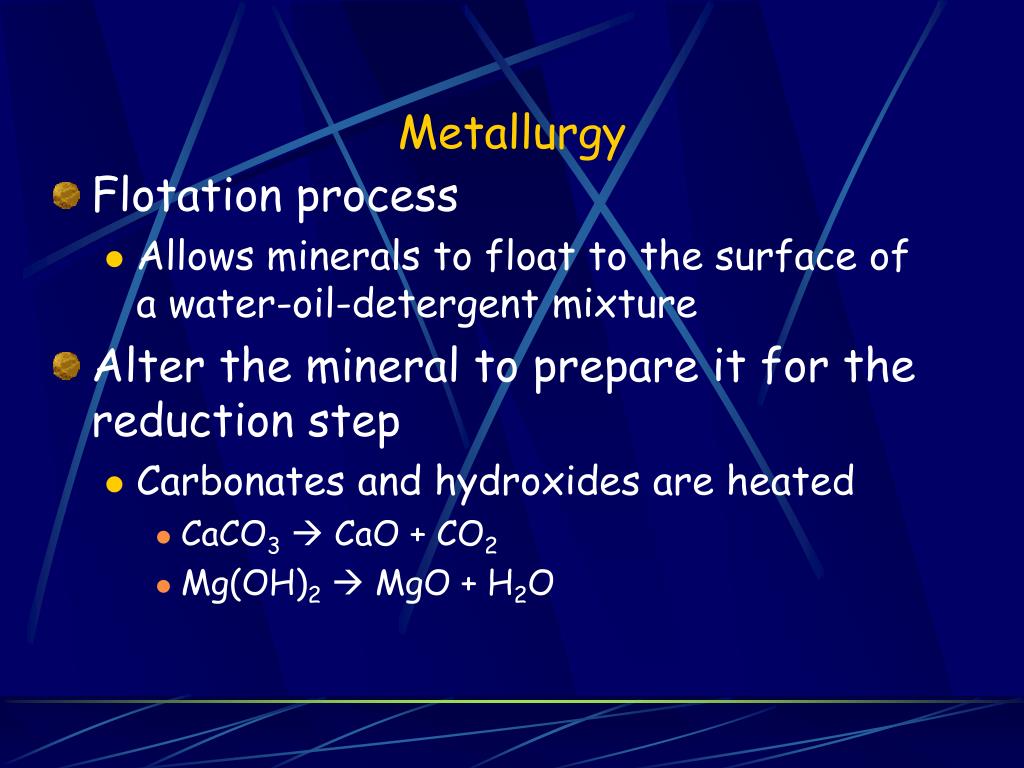

  44. Metallurgy • Flotation process • Allows minerals to float to the surface of a water-oil-detergent mixture • Alter the mineral to prepare it for the reduction step • Carbonates and hydroxides are heated • CaCO3 CaO + CO2 • Mg(OH)2  MgO + H2O

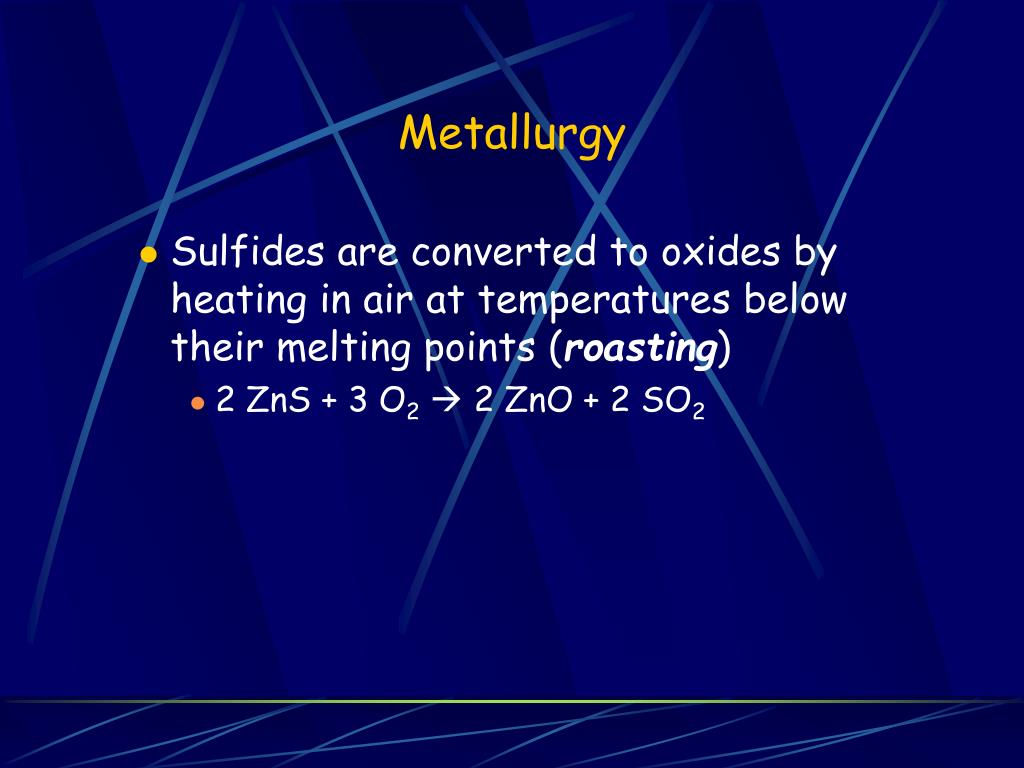

  45. Metallurgy • Sulfides are converted to oxides by heating in air at temperatures below their melting points (roasting) • 2 ZnS + 3 O2 2 ZnO + 2 SO2

  46. Metallurgy • Smelting – method used to reduce the metal ion to the free metal • Depends on the affinity of the metal ion for electrons • Good oxidizing agents produce the free metal in the roasting process HgS + O2 Hg(l) + SO2

  47. Metallurgy • More active metals • Use coke (impure carbon), carbon monoxide, or hydrogen, as a strong reducing agent • Fe2O3 + 3 CO  2 Fe + 3 CO2 • WO3 + 3 H2  W(l) + 3 H2O • ZnO + C  Zn(l) + CO

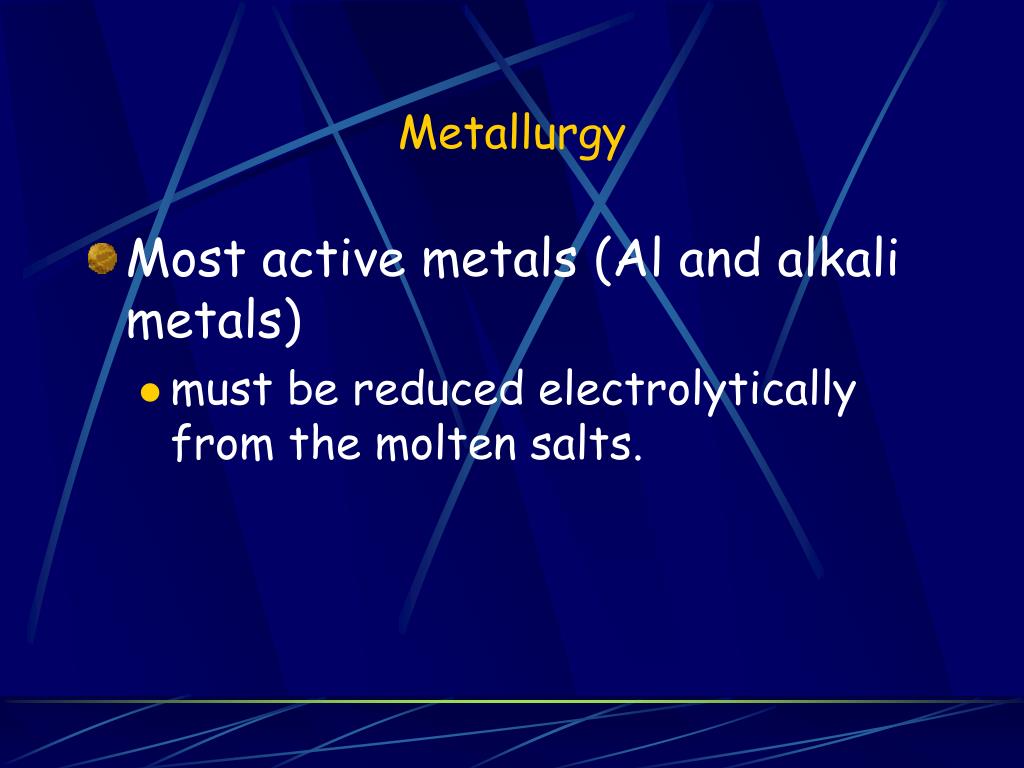

  48. Metallurgy • Most active metals (Al and alkali metals) • must be reduced electrolytically from the molten salts.

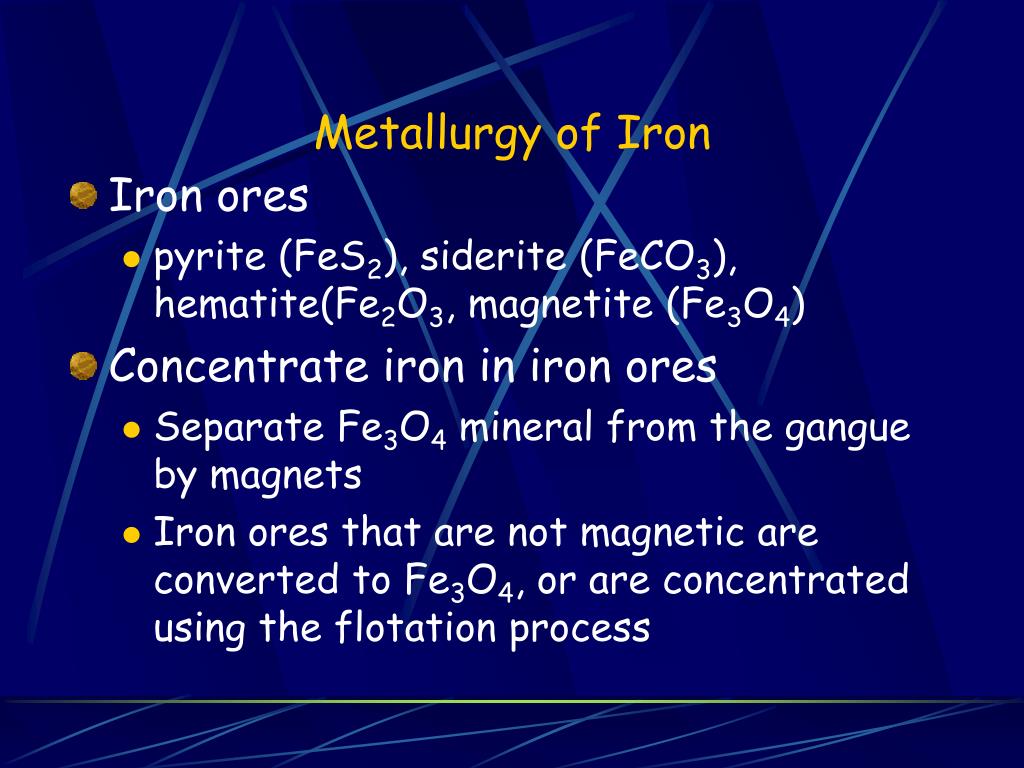

  49. Metallurgy of Iron • Iron ores • pyrite (FeS2), siderite (FeCO3), hematite(Fe2O3, magnetite (Fe3O4) • Concentrate iron in iron ores • Separate Fe3O4 mineral from the gangue by magnets • Iron ores that are not magnetic are converted to Fe3O4, or are concentrated using the flotation process

  50. Metallurgy of Iron • Reduction process • Occurs in the blast furnace • Uses coke which is converted to CO in the blast furnace • Reduction occurs in steps: • 3Fe2O3 + CO  2 Fe3O4 + CO2 • Fe3O4 + CO  3 FeO + CO2 • FeO + CO  Fe + CO2
