  1. Communication Capabilities of MCCB and ACB Circuit Breaker CommunicationGlobal Overview Installation Commission. Operation Maintenance Service

  2. NZM – Communication Levels Local Diagnostic software offers • Actual currents • History 10 latest events • Current trends • Data logging Ready-Made Application offers Visualization and Logging of CB Data BreakerVisu NZM 2,3,4 Electronic release Permanent connected fieldbus interfaces offers Fieldbus control • Access to all details PLC/SCADA • Actual status • Data logging customer engineered Checked on-site

  3. NZM – Communication Products BreakerVisu www.eaton.com NZM 2,3,4 Electronic release XMC SWD-704 Fieldbus control DMI XPC-Soft Checked on-site

  4. NZM – Market Highlights All NZM 2,3,4 with electronic releases offer: • Data interface • History memory of 10 events

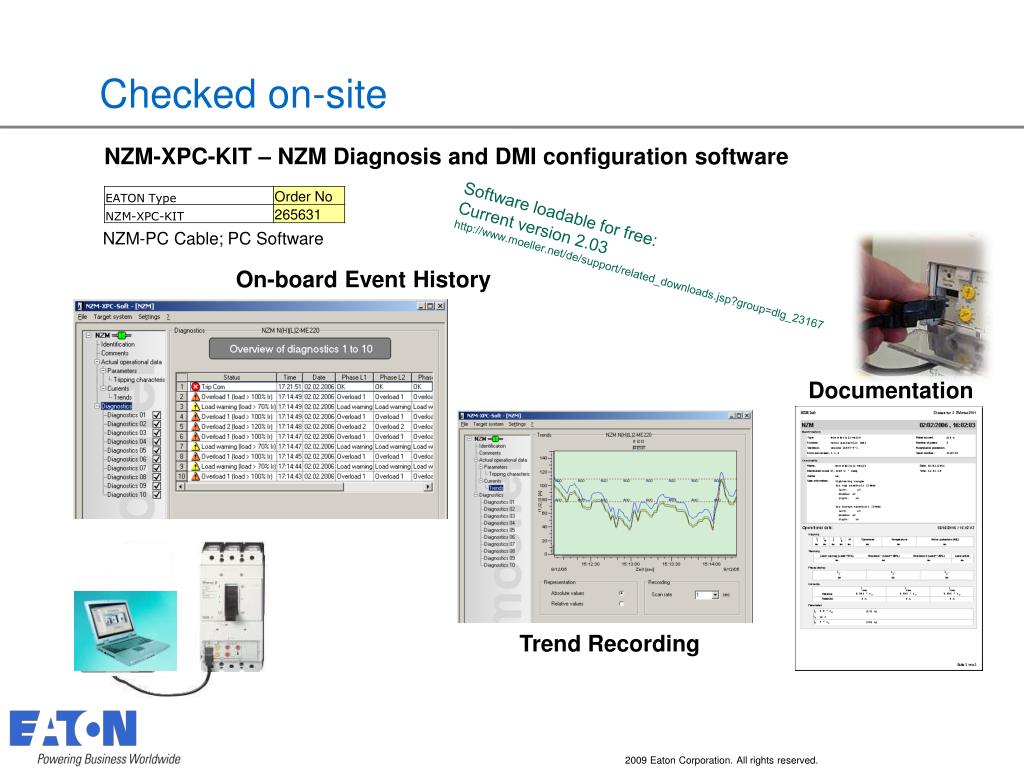

  5. Checked on-site NZM-XPC-KIT – NZM Diagnosis and DMI configuration software NZM-PC Cable; PC Software Software loadable for free: Current version 2.03 http://www.moeller.net/de/support/related_downloads.jsp?group=dlg_23167 On-board Event History Documentation Trend Recording

  6. Fieldbus control – High End InterfaceDMI (1st generation) DMI module with Fieldbus interface Access to all circuit-breaker data: • Status • Diagnostics • Currents • Parameter setting • Remote tripping • Remote operation • Motor starter function • Support of remote monitoring SW

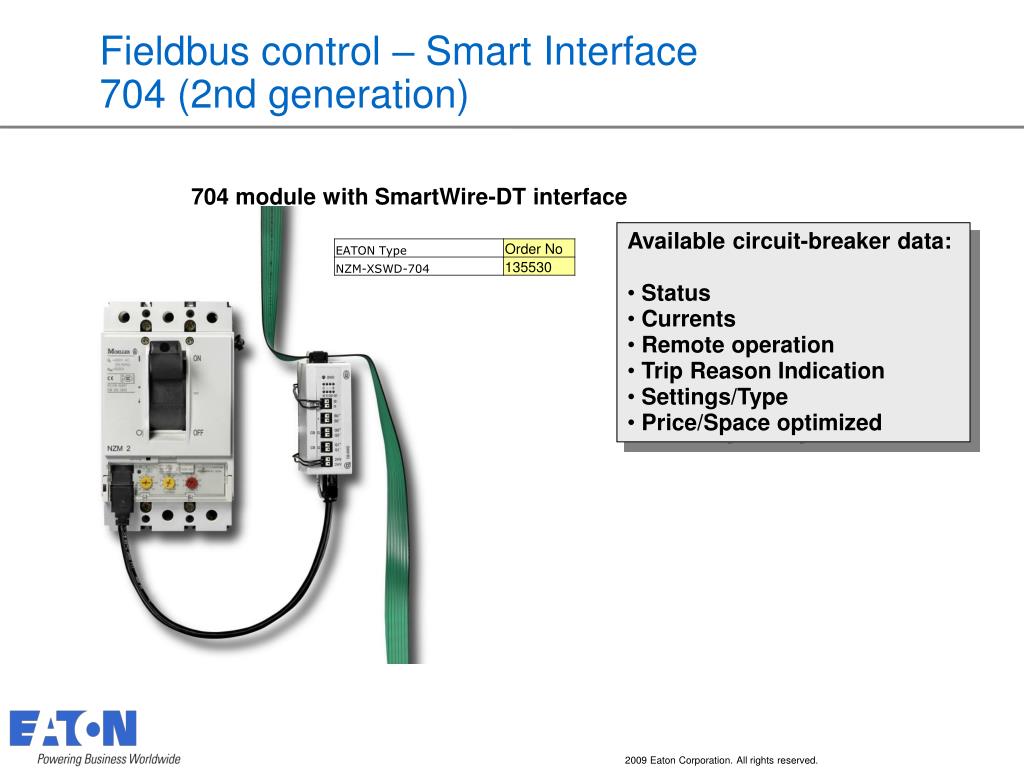

  7. Fieldbus control – Smart Interface704 (2nd generation) 704 module with SmartWire-DT interface Available circuit-breaker data: • Status • Currents • Remote operation • Trip Reason Indication • Settings/Type • Price/Space optimized

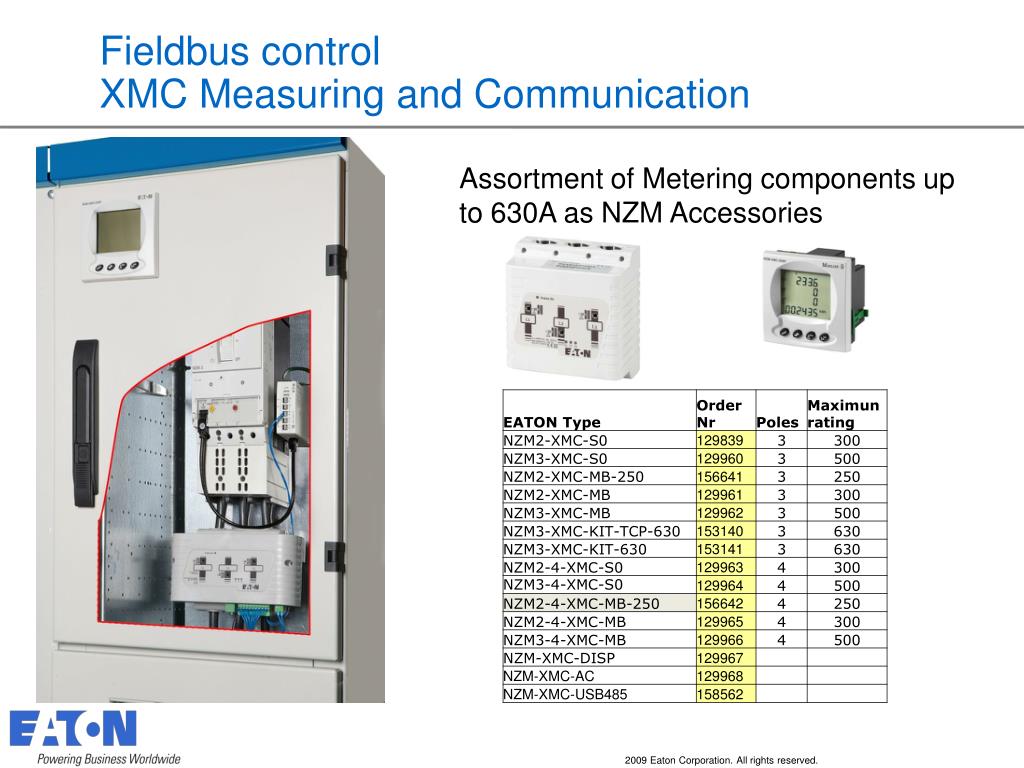

  8. Fieldbus controlXMC Measuring and Communication Assortment of Metering components up to 630A as NZM Accessories

  9. SummaryCommunication NZM Breakers PROFIBUS-DP Modbus RTU Ethernet CAN ModbusTCP Ethernet IP PROFINET XSWD-704 NZM 2/3/4 XDMI-612 PKE RMQ XMC-MB XPC-Soft Field bus Interface SW-DT-Communication Energy Metering

  10. IZMX – Communication Products BreakerVisu www.eaton.com Fieldbus control CAM Communication Adapter Module

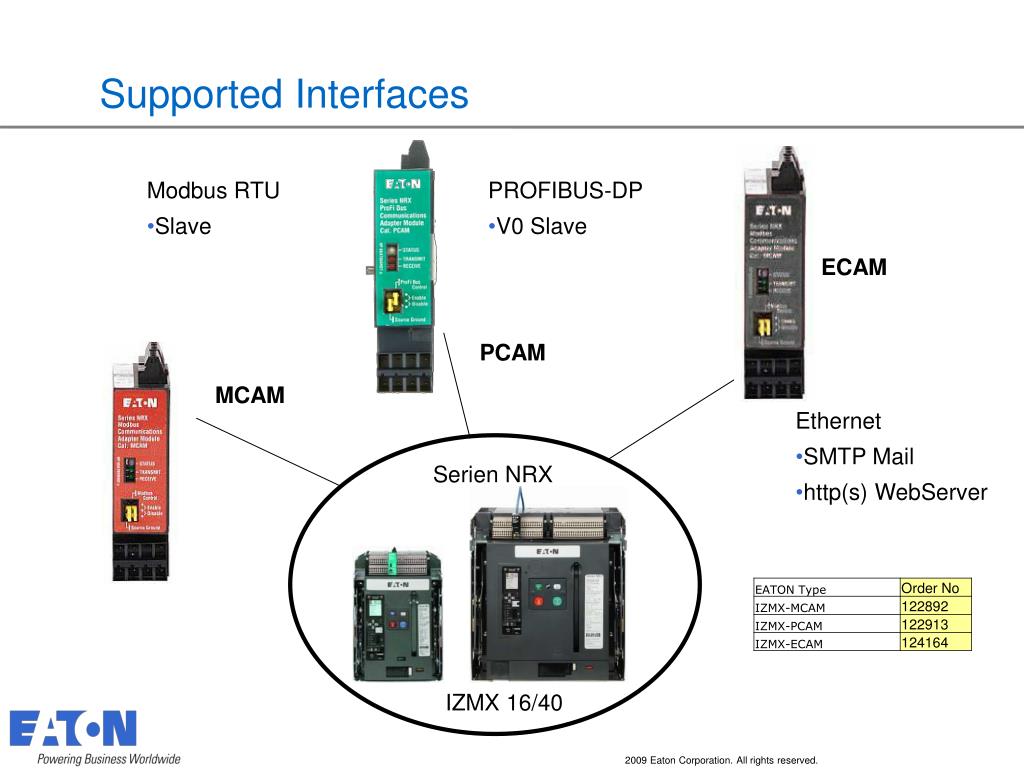

  11. Supported Interfaces Modbus RTU • Slave PROFIBUS-DP • V0 Slave ECAM PCAM MCAM Ethernet • SMTP Mail • http(s) WebServer Serien NRX IZMX 16/40

  12. SummaryCommunication IZM Breakers PROFIBUS-DP Modbus RTU Ethernet PMINT mMINT MCAM Incom ECAM Ethernet IZMX 16 IZM 26 BreakerVisu3.0

  13. BreakerVisu - Features BreakerVisu Visualization- and Logging-System for Energy Distribution • Ready-made fully programmed XV 102 application offers: • Quick overview for trouble shouting • Breaker “Ware Indication” for maintenance • Event-, Data and Energy Logging • Remote Access via integrated Web-Server

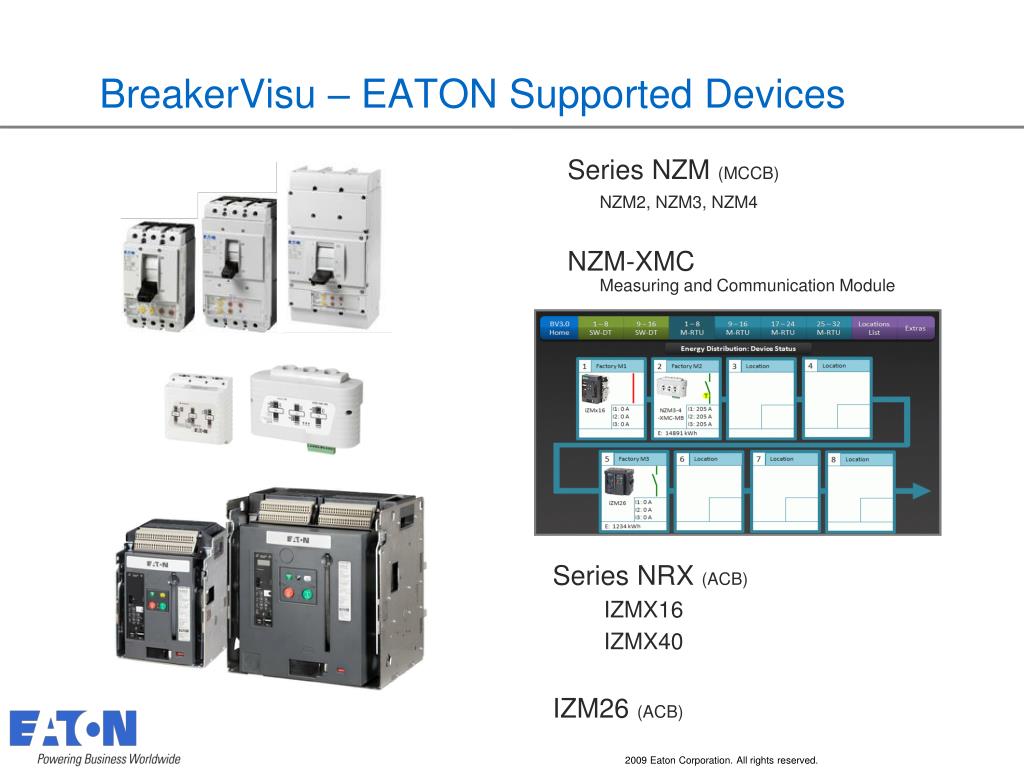

  14. Series NRX (ACB) IZMX16 IZMX40 IZM26 (ACB) BreakerVisu – EATON Supported Devices • Series NZM (MCCB) • NZM2, NZM3, NZM4 • NZM-XMCMeasuring and Communication Module
