Experts in OS Recovery and Migration

1. Cristie Software Experts in OS Recovery and Migration

2. Cristie Software Cristie Software was established in 2007 and has grown rapidly to become a leading software provider specialising in data protection, machine recovery, migration and availability.Our products provide fast, reliable and highly automated backup, recovery and migration solutions for Windows, Linux and other Unix machines. They are sold worldwide by IBM, Avnet, SHI and a global network of leading resellers. We have over 2,000 end users in over 70 countries including many of the world’s largest healthcare, retail, manufacturing, public sector and financial organizations.

3. What is BMR? Bare Machine Recovery (BMR) is a term used for the recovery of a machine to new (bare) hardware. Recovery includes the operating system and application configurations. A rebuild can take several hours and can require a high level of technical knowledge. Machine failure may be caused by a failure of the server hardware (disk or controller failure, physical damage, loss of power etc.) or a corruption of the operating system or applications (virus, user or disk errors etc.) Regular recovery does not provide BMR functionality and System Administrators therefore are required to manually reinstall and configure the operating systems, middleware and applications. A regular recovery process can take hours and have many steps that require technical documentation, license keys and installation disks and knowledge.

4. CBMR (Cristie Bare Machine Recovery) TBMR (Bare Machine Recovery for TSM) NBMR (NetWorker Bare Machine Recovery) CMC (Cristie Management Console) CCM (Cristie CloneManager) All products support Windows, Linux, AIX and Solaris Product Portfolio

5. CBMR Cristie Bare Machine Recovery

6. Introducing CBMR • Provides Bare Machine Recovery • Sold by IBM and leading resellers worldwide • Standalone BMR product that can integrate with TSM and many other Storage Management and Backup and Restore solutions • Recovers direct from stored backups • Can migrate physical and virtual machines • CBMR offers one common recovery infrastructure and management. No need to deploy multiple OS specific recovery tools

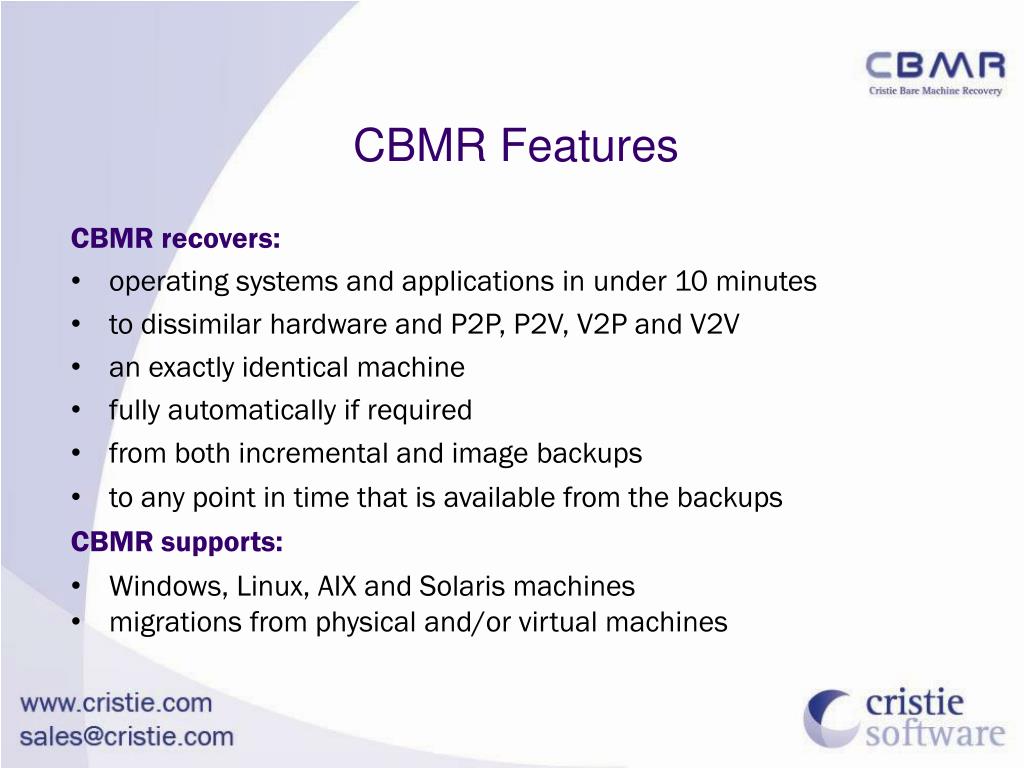

7. CBMR Features CBMR recovers: • operating systems and applications in under 10 minutes • to dissimilar hardware and P2P, P2V, V2P and V2V • an exactly identical machine • fully automatically if required • from both incremental and image backups • to any point in time that is available from the backups CBMR supports: • Windows, Linux, AIX and Solaris machines • migrations from physical and/or virtual machines

8. CBMR – Install Process C P V Configure CBMR to backup to TSM or to a File device on a Network Share P V C C P V Source Systems can be Physical, Virtual or Cloud Configure CBMR to run regular scheduled backups Create bootable media = 1 per OS Install CBMR onto source servers Network Storage or TSM Server TSM backup

9. CBMR – Restore Process P V C Boot target environment into Cristie Recovery Console P V C FUTURE ABILITY … to schedule the recovery P V C Network Storage or TSM Server Restore System Connect to CBMR Backup Location

10. Value Proposition • Improves recovery times and points • Servers restored in minutes versus hours • Multiple servers can be restored simultaneously • Can restore to any point in time that is available • Ensures reliability of the recovery process • Simplifies and automates the recovery process • Reduces the number of HA/clustering environments • No additional product knowledge required – reducing training • Can be used to create machine clones for testing or migration • Reduces storage and system requirements • Saves storage and network bandwidth – no additional backup • No separate backup software to install, schedule and manage

11. TBMR Tivoli Storage Management (TSM) Bare Machine Recovery

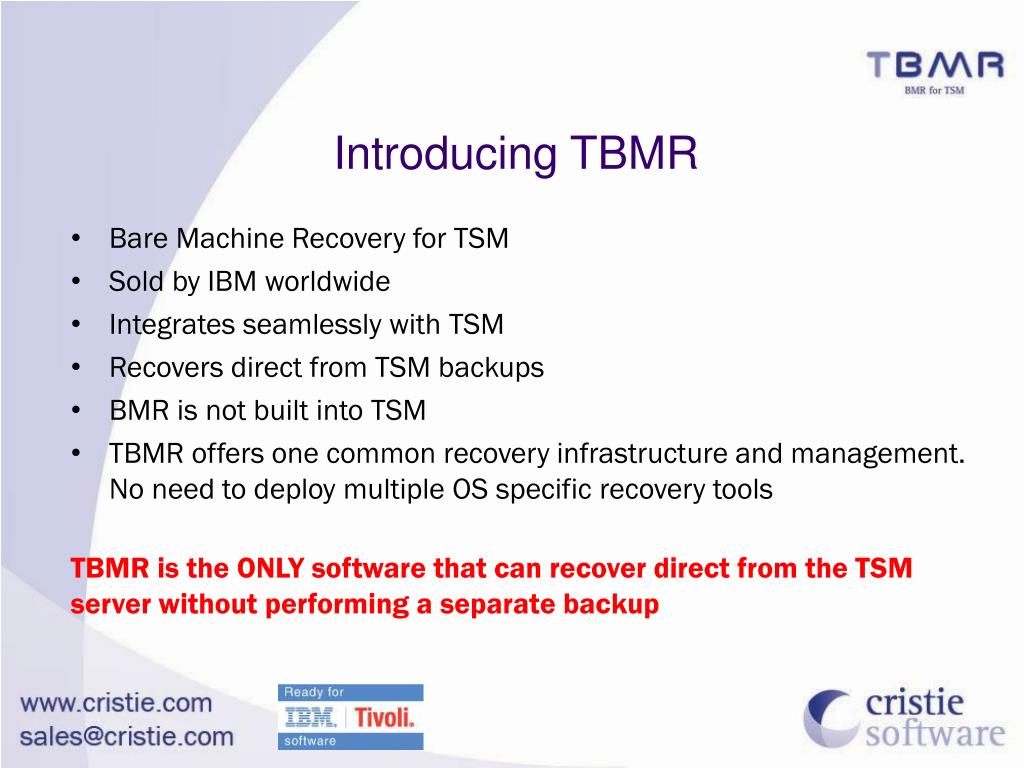

12. Introducing TBMR • Bare Machine Recovery for TSM • Sold by IBM worldwide • Integrates seamlessly with TSM • Recovers direct from TSM backups • BMR is not built into TSM • TBMR offers one common recovery infrastructure and management. No need to deploy multiple OS specific recovery tools TBMR is the ONLY software that can recover direct from the TSM server without performing a separate backup

13. TBMR Features TBMR recovers: • in under 10 minutes • to dissimilar hardware and P2P, P2V, V2P and V2V • an exactly identical machine • fully automatically if required • from both TSM incremental and image backups • to any point in time that is available in TSM TBMR supports: • Windows, Linux, AIX and Solaris machines • all TSM server and BA clients versions currently supported by IBM

14. TBMR – Install Process C P V Configure TSM BA Client for open file support and ensure BA Client is backing up all OS data P V C C P V Add Presched Command to the TSM options file to ensure tbmrcfg.exe runs during every TSM backup Source Systems can be Physical, Virtual or Cloud Create bootable media = 1 per OS Install TBMR onto source servers (pre-req: TSM BA Client is installed) TSM backup TSM Server

15. TBMR – Restore Process P V C Boot target environment into Cristie Recovery Console P V C FUTURE ABILITY … to schedule the recovery P V C TSM Server Restore System Connect to TSM

16. Value Proposition • Improves recovery times and points • Servers restored in minutes versus hours • Multiple servers can be restored simultaneously • Can restore to any point in time that is available from TSM • Ensures reliability of the recovery process • Simplifies and automates the recovery process • Reduces the number of HA/clustering environments • No additional product knowledge required – reducing training • Can be used to create machine clones for testing or migration • Reduces storage and system requirements • Saves storage and network bandwidth – no additional backup • No separate backup software to install, schedule and manage

17. NBMR EMC NetWorker (formally Legato NetWorker) Bare Machine Recovery

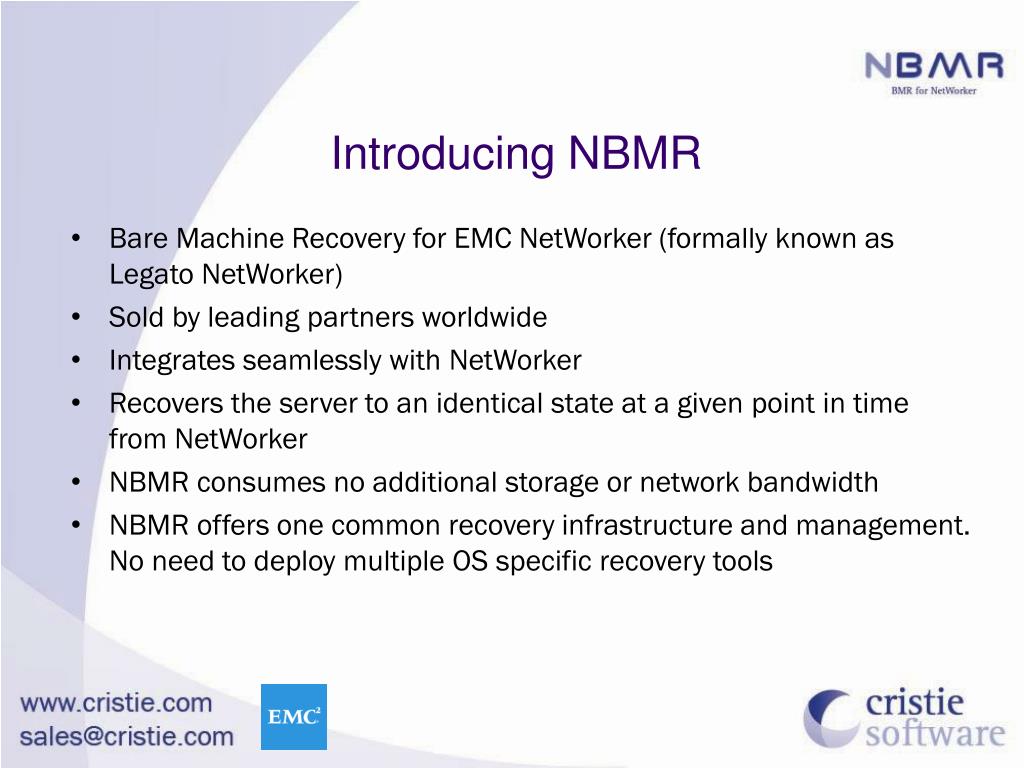

18. Introducing NBMR • Bare Machine Recovery for EMC NetWorker (formally known as Legato NetWorker) • Sold by leading partners worldwide • Integrates seamlessly with NetWorker • Recovers the server to an identical state at a given point in time from NetWorker • NBMR consumes no additional storage or network bandwidth • NBMR offers one common recovery infrastructure and management. No need to deploy multiple OS specific recovery tools

19. NBMR Features NBMR recovers: • in under 10 minutes • to dissimilar hardware and P2P, P2V, V2P and V2V • an exactly identical machine • fully automatically if required • Directly from EMC NetWorker backups direct • to any point in time that is available in NetWorker NBMR supports: • Windows, Linux, AIX and Solaris machines • all NetWorker versions currently supported by EMC

20. NBMR – Install Process C P V Configure NetWorker Client and ensure Client is backing up all Savesets & VSS objects P V C C P V Add Preschedule Command to the NetWorker server configuration to ensure nbmrcfg.exe runs during every NetWorker backup Source Systems can be Physical, Virtual or Cloud Create bootable media = 1 per OS Install NBMR onto source servers (pre-req: NetWorker Client is installed) NetWorker backup NetWorker Server

21. NBMR – Restore Process P V C Boot target environment into Cristie Recovery Console P V C FUTURE ABILITY … to schedule the recovery P V C NetWorker Server Restore System Connect to NetWorker

22. Value Proposition • Improves recovery times and points • Servers restored in minutes versus hours • Multiple servers can be restored simultaneously • Can restore to any point in time that is available from NetWorker • Ensures reliability of the recovery process • Simplifies and automates the recovery process • Reduces the number of HA/clustering environments • No additional product knowledge required – reducing training • Can be used to create machine clones for testing or migration • Reduces storage and system requirements • Saves storage and network bandwidth – no additional backup • No separate backup software to install, schedule and manage

23. CMC Cristie Management Console

24. Cristie Management Console Adding CMC enhances the functionality of CBMR, TBMR and NBMR allowing you to: Define users’ profile permissions Manage backup schedules Remotely start and manage multiple recoveries Control many recoveries from one console Monitor backup and recovery status Deploy and upgrade CBMR and TBMR

25. CCM Cristie CloneManager

26. Cristie CloneManager Features • Live or staged migration • Migration of Windows, Linux, AIX and Solaris machines • Remotely manages multiple concurrent migrations • Migration to or from VMs - P2P, P2V, V2P, V2V, C2P and P2C • Migration to dissimilar hardware • Ability to change IP and hostname of cloned machine • Migration typically takes around 10 minutes – OS only • Light-weight Java console • Provides integration into 3rd party hypervisors

27. Cristie CloneManager Screenshot of Cristie CloneManager Choose from source systems panel which servers are going to be migrated or recovered and then choose the target system that will be involved whether Virtual, Physical or Cloud.

28. Cristie CloneManager Currently integrated with: • CCM-Plugin - source and target systems on Windows, Linux, AIX and Solaris to allow full management of migrations • VMware vCenter, ESX and vCloud Director to create and configure the virtual infrastructure • Microsoft Hyper-V to create and configure the virtual infrastructure Future integration planned with: • Microsoft System Center Virtual Machine Manager (SCVMM) • AIX - HMC and VIOS to allow creation of AIX LPAR infrastructure • Oracle VM to allow creation of SPARC Solaris virtual environment • Other cloud products and providers

29. Customer Managed Single server migration Install CCM-plugin onto source server Boot target server into Cristie Migration Environment P P MSP Migrate system V V MSP C C MSP site MSP = Managed service provider customer

30. Multiple move group servers managed by customer or MSP P V C V P C P V C C V P FUTURE ABILITY … to schedule the migration Customer Systems P, V or C P V C C P V OPTIONAL … staged migration if required MSP MSP MSP MSP MSP MSP Multiple customer migrations can be completed simultaneously MSP MSP MSP Migrate systems Install CCM-plugin onto source servers CCM communicates with the source and target servers during the migration MSP

31. Cristie Software More Information

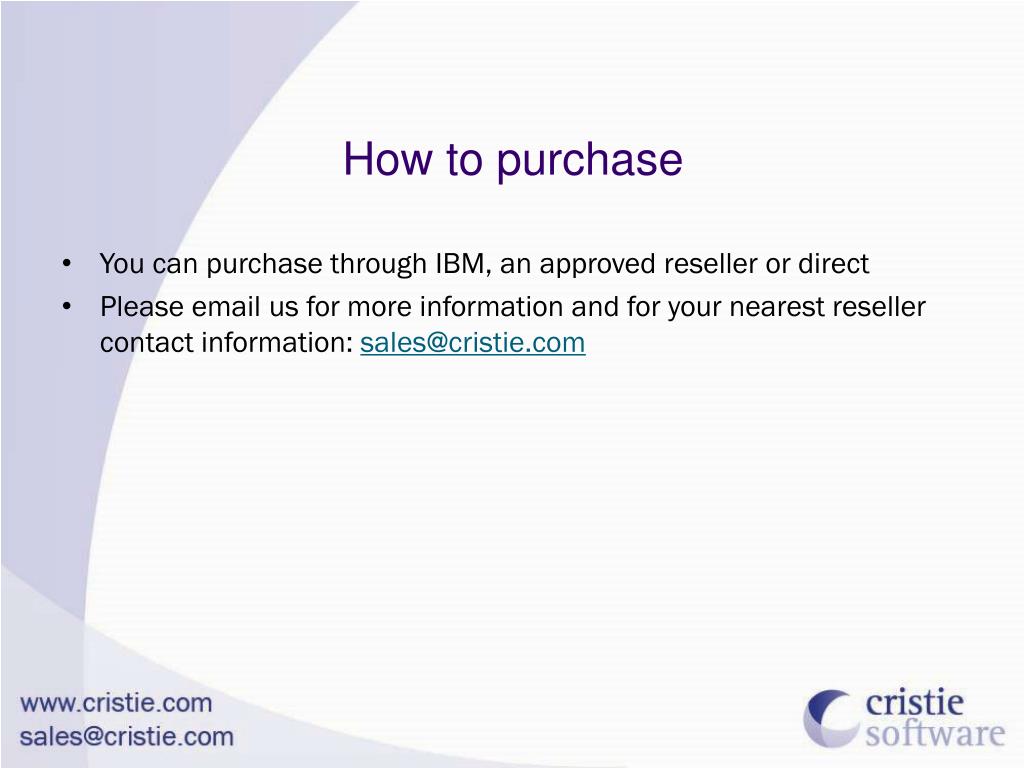

32. How to purchase • You can purchase through IBM, an approved reseller or direct • Please email us for more information and for your nearest reseller contact information: sales@cristie.com

33. Questions? More product information can be found at: www.cristie.com CBMR: www.cristie.com/products/disaster-recovery/cbmr TBMR: www.cristie.com/products/disaster-recovery/tbmr NBMR: www.cristie.com/products/disaster-recovery/nbmr CMC: www.cristie.com/products/console CloneManager: www.clonemanager.com Please email us at sales@cristie.com for further information

34. Cristie Software Contacts General enquiries sales@cristie.com +44 1453 847000 EMEA Sales Enquiries emea@cristie.com Americas Sales Enquiries americas@cristie.com APAC Sales Enquiries apac@cristie.com
