1. IgnominyTool for Analysing Software Dependencies and For Reducing Complexity in Large Software Systems On behalf of CMS Collaboration Lassi A. Tuura Northeastern University, Boston Lassi A. Tuura, Northeastern University

2. Motivation • IGUANA is largely an integrator for CMS: we need to have a good grasp of the external software before its inclusion into our system • By and large we are not seeking to select one product • but are trying to merge the strengths of several packages into a very good physics analysis environment • and are seeking to provide feedback to component authors • We are interested in, among others: • How much of the external package we would use • Its impact on our physical software structure • How well it fits in with the philosophy of CMS software and other imports—in design and architecture, usage patterns, GUI, … • What other software it depends in • Commitment required, possibility of varying how much we use

3. Examples See http://iguana.cern.ch/3_1_0/dependencies.html

4. Ignominy ignominy: dishonour, disgrace, shame; infamy; the condition of being in disgrace, etc.(Oxford English Dictionary) • Model • Examines and reports on direct and transitive source and binary dependencies • Creates reports of the collected results • As a set of web pages • Numerically • Graphically • As tables Dependency Database Metrics SourceCode Graphs BuildProducts + Tables User-definedlogical dependencies ignominy: a suite of perl and shell scripts plus a number of configuration files(IGUANA)

5. Dependency Analysis • Ignominy scans… • Make dependency data produced by the compilers (*.d files) • Source code for #includes (resolved against the ones actually seen) • Shared library dependencies (“ldd” output) • Defined and required symbols (“nm” output) • And maps… • Source code and binaries into packages • #include dependencies into package dependencies • Unresolved/defined symbols into package dependencies • And warns… about problems and ambiguities (e.g. multiply defined symbols or dependent shared libraries not found) • Produces a simple text file database for the different dependencies: source only, binaries only, combined, forward and reverse, by package, by domain, …

6. Single Package Dependencies • Cmscan/IgCmscan • Testing Level: 5 • Outgoing edges: 6 • from includes: 6 (145 files) • from symbols: 4 (636 symbols) • Incoming edges: 1 • from includes: 1 (1 file) • from symbols: 1 (1 symbol)

7. Domain Test Plan

8. Package Impact Diagram “Used-by” dependencies

9. An Extra Dependency Bad dependency in prototype code; was resolved to be from bad class placement 1 IgSoReaderAppDriver IgQtTwigBrowser via IgQtTwigModel.h 1 IgSoReaderAppDriver  IgQtTwigBrowser via IgQtTwigRep.h

10. Static vs. Logical Logical dependencies from packages used through “Interfaces”

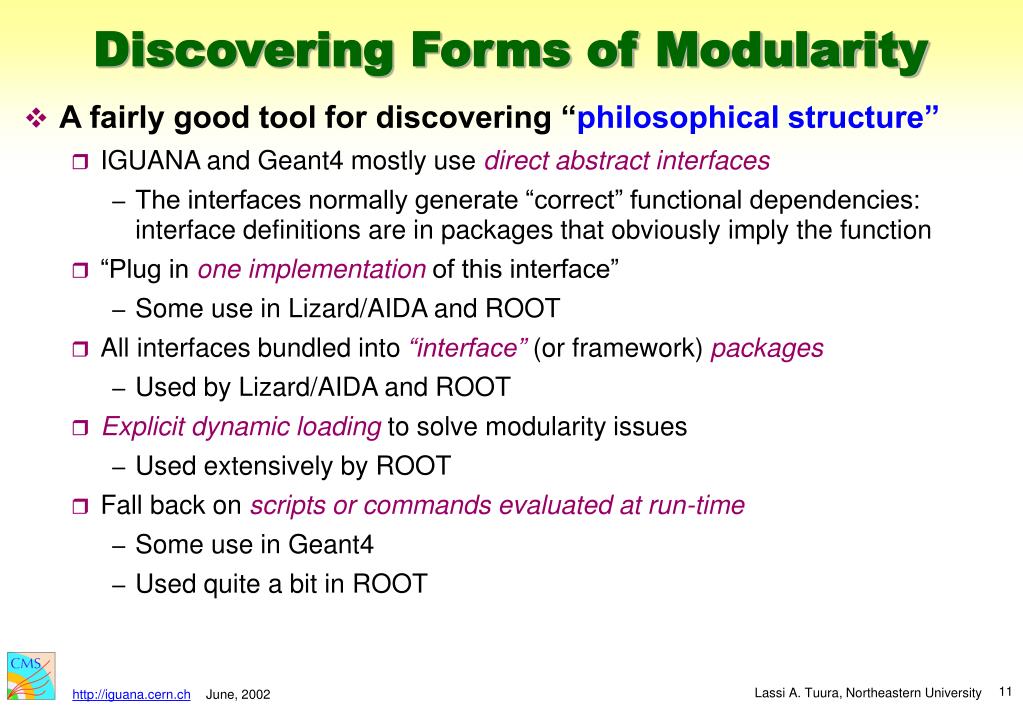

11. Discovering Forms of Modularity • A fairly good tool for discovering “philosophical structure” • IGUANA and Geant4 mostly use direct abstract interfaces • The interfaces normally generate “correct” functional dependencies: interface definitions are in packages that obviously imply the function • “Plug in one implementation of this interface” • Some use in Lizard/AIDA and ROOT • All interfaces bundled into “interface”(or framework)packages • Used by Lizard/AIDA and ROOT • Explicit dynamic loading to solve modularity issues • Used extensively by ROOT • Fall back on scripts or commands evaluated at run-time • Some use in Geant4 • Used quite a bit in ROOT

12. Analysis of Anaphe • Distribution of tools and utilities for LHC era physics • Combination of commercial, free and HEP software • Claims to be a toolkit • Appears to live up to its toolkit claims • Good work on modularity • Clean design is evident in many places • Dependency diagrams often splitnaturally into functional units

13. Analysis of ATLAS • Torture-test exercise for the tool • Large release size (~50% F77, ~50% mainly C++ but also C, Java) • Near the limit of Ignominy’s ability to discover software structure • Pictures below illustrate analysis difficulties • Visible (and known) problems • Many cleanly designed packages shadowed by a cycle with very unpleasant effects on the overall structure • A number of places show poor packaging and/or lack of abstract interfaces Known bybuild system Misconfigured analysis (1.3.2) Improved analysis (1.3.7)

14. Analysis of CMS/ORCA • Large C++ project • Deliberately fast development shows in places • Good design in key parts has helped • Recognised problems • Especially with the length of the release sequence • Clean-up/restructuring necessary soon • To some extent starting already • Large metric fluctuations from version to version ORCA Visualisation —needs most of the rest

15. Analysis of CMS/COBRA, IGUANA • COBRA • CMS Reconstruction, analysis and simulation framework • Recently successfully split off from ORCA • Quite many small packages • Has helped with modularity • Some issues with partitioning: some small cycles, certain package groups appear quite frequently • IGUANA • Generic data analysis environment with CMS focus • Many fairly small packages with targeted purpose (similar to Anaphe) • Project focus as an integrator and glue provider is fairly evident • We too have some rats nests to clean up, but at least they are small… • Has had the advantage of considerable monitoring!

16. Analysis of Geant4 • Fairly large C++ project • Very fine-grained (and multi-level) package structuring • Structure seems quite clean from the preliminary analysis • Fine package subdivision helps in many ways but makes analysis and code understanding more complicated • One subsystemseems stronglycoupled andneeds attention • Need to studythe use of theinternal commandsystem

17. Analysis of ROOT • ROOT developers have done a formidable job of breaking binary (shared library) dependencies, but… • It makes dubious use of its internal scripting facility • For example: By static analysis, nothingseems to use the postscript package directly (no incoming dependencies), but there is this code: void TPad::Print (const char *filename, Option_t *option){ […] TVirtualPS *psave = gVirtualPS; if (gROOT->LoadClass("TPostScript","Postscript")) return; gROOT->ProcessLineFast("new TPostScript()"); gVirtualPS->Open(psname,pstype); gVirtualPS->SetBit(kPrintingPS); […] } • Taking these and global objects into account makes the dependency diagrams very different—and cast doubt on usefulness of binary-only dependency diagrams for ROOT • Sign of fast growth? Need a “next evolutionary step”? • So “coherent” that replacing parts could get painful…

18. Analysis of ROOT… Binary + Source + Logical = Real Binary only

19. Package Metrics • Size = total amount of source code (roughly—not normalised across projects!) • ACD = average component dependency (~ libraries linked in) • CCD = sum of single-package component dependencies over whole release: test cost • NCCD = Measure of CCD compared to a balanced binary tree • < 1.0: structure is flatter than a binary tree (= independent packages) • > 1.0: structure is more strongly coupled (vertical or cyclic) • Aim: Minimise NCCD for given software/functionality (good toolkit: ~ 1.0)

20. Metrics: NCCD vs Cycles ATLAS ORCA6 ROOT ORCA4 G4 COBRA IGUANA Anaphe Toolkits & Frameworks

21. Metrics: NCCD vs Size ATLAS ORCA6 ROOT ORCA4 G4 COBRA IGUANA Anaphe Toolkits & Frameworks

22. Metrics: NCCD vs ACD ATLAS ROOT ORCA G4 COBRA IGUANA Anaphe Toolkits & Frameworks

23. Metrics: NCCD vs AID ATLAS ROOT ORCA COBRA G4 Anaphe IGUANA Toolkits & Frameworks

24. Metrics: Packages vs Size ORCA6 ATLAS ORCA4 G4 COBRA IGUANA Anaphe ROOT Toolkits & Frameworks

25. Metrics: Packages vs Size ORCA6 ATLAS ORCA4 G4 COBRA ROOT IGUANA Anaphe Toolkits & Frameworks

26. Caveats • Ignominy does only static dependencies, not dynamic ones • Indirect calls through pointers, virtual function calls • State dependencies: Data reads and writes, thread synchronisation, … • The analysis of external software is heuristic; exact information from the build system helps considerably • Difficulties are posed by copied code (copy and paste or merged libraries) and defaults dependent on link-order (“dummies” that are supposed to be overridden by client) • Most headaches so far with FORTRAN code • Ignominy must guess software structure when in doubt • Based on project-defined heuristic search rules, usually works fine • In face of an ambiguity Ignominy warns and assumes the worst • Multiply defined symbol: dependency on all definitions • Multiple header matches: dependency on all (but correct with compiler-generated dependency data!)

27. Status • Run for every IGUANA release as a part of release build • Canned configuration for any SCRAM-based project • Needs project specific colouring etc. configurations • Works with many other project structures • Tried on G4, ROOT and ATLAS • Plans • Consolidate scripts and fold in all the documentation • Make it somewhat easier to use and configure • Java support with Mark Donszelmann’s jneeds • Available for free at http://iguana.cern.ch/ • See the IGUANA distributions (latest = 3.1.0 recommended) • Questions? Please mail lassi.tuura@cern.ch or iguana-developers@cern.ch
