ACTIVE MEMBRANE TRANSPORTS

ACTIVE MEMBRANE TRANSPORTS.  transport of molecules against the con-centration, or electric gradients,  delivery of free energy from ATP is crucial.

pearly
Télécharger la présentation

ACTIVE MEMBRANE TRANSPORTS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

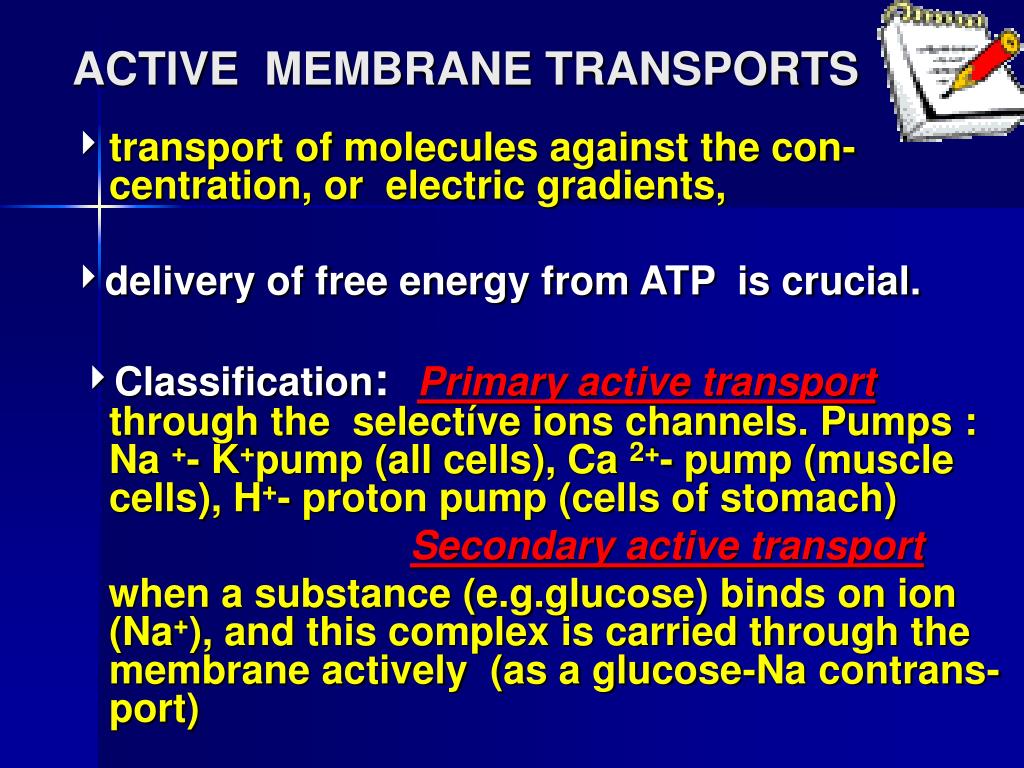

  1. ACTIVE MEMBRANE TRANSPORTS transport of molecules against the con-centration, or electric gradients, delivery of free energy from ATP is crucial. Classification:Primary active transport through the selectíve ions channels. Pumps : Na +- K+pump (all cells), Ca 2+- pump (muscle cells), H+- proton pump (cells of stomach) Secondary active transport when a substance (e.g.glucose) binds on ion (Na+), and this complex is carried through the membrane actively (as a glucose-Na contrans-port)

  2. Na-K pump (Na+- K+ ATPase)

  3. Na-K pump – scheme

  4. Na +- pump (Na +-K +-ATP-ase) - It isan enzyme,placed in a surface of a cell membrane (number =106 withinin a membrane of one neuron ) - it carries 3 ions of Na+from inside to outside, and at the same time, 2 K+from outside to inside • It can exchange max. 200 Na+ and 133 K+ / sec. - It requires delivery of free energy (from ATP) • It is important for renewal of electric charges of body cells

  5. Exocytosis, Endocytosis (Phagocytosis)

  6. ACTIVE membrane transpots.: Exo- and Endocytosis.  Exocytosis - “cell vomiting“ is a release of larger molecules by the protrusion of a cellular membrane, under delivery of energy and Ca2+ ions Endocytosis –“cell eating“ is an uptake of molecules by a cellular membrane,e.g. ingestion of bacteria by leukocytes (phagocytosis). It needs a delivery of energy, too.

  7. Resting membrane potential (RMP) It is an electric potential difference measured between + charged cell exterior and –charged cell interior. Its value equals to Sum of Equilibrium Potentials of all 3 ions (K+, Na+, Cl-). is a result of membrane semipermeability i.e. different leakage of membrane for ions permeability of cell membrane for ions at rest K+ : Na+ : Cl- = 1 : 0.04 : 0.45 K+ : Na+ : Cl- = 100 : 4 : 45 (%) RMP for nerve cells is -70 mV,sceletal muscle – 90 mV, heart muscle- 80mV, smooth muscle -50 mV

  8. Equilibrium Potential - EPis a value of electrical voltage that just stops the diffusion of ions (K+,Na+,Cl -) along their concentration gradientsCellInside - chargedCellOutside + char

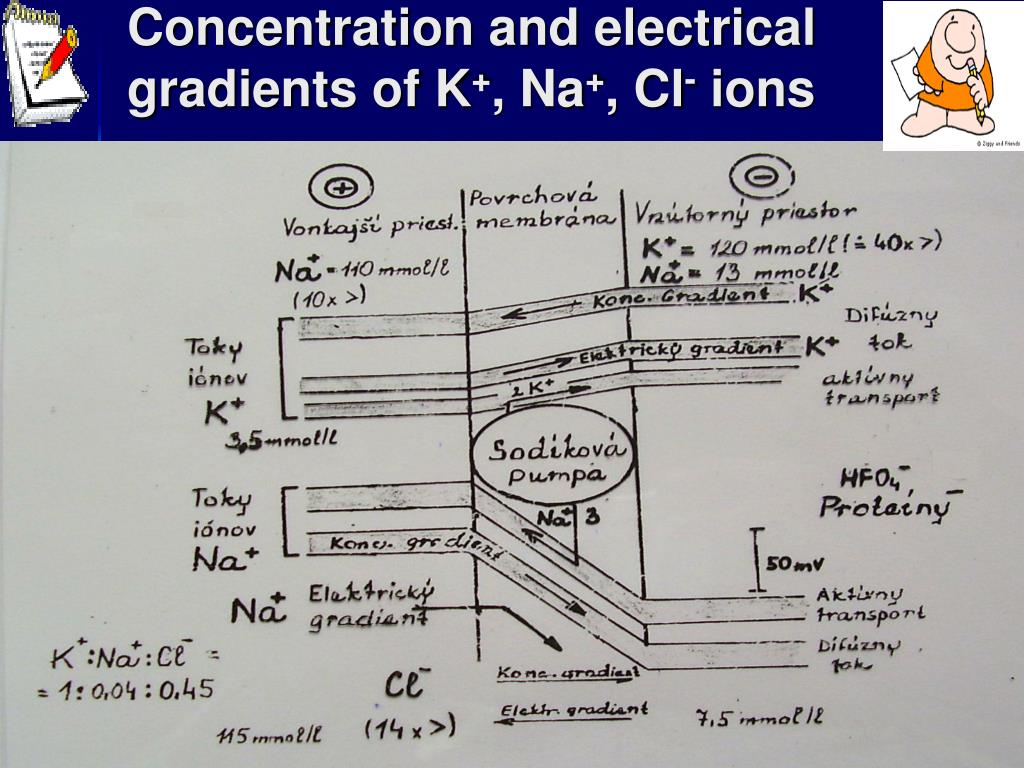

  9. Concentration and electrical gradients of K+, Na+, Cl- ions

  10. Nernst formulaEach ion has its own Equilibrium Potential (mV) that can be counted:

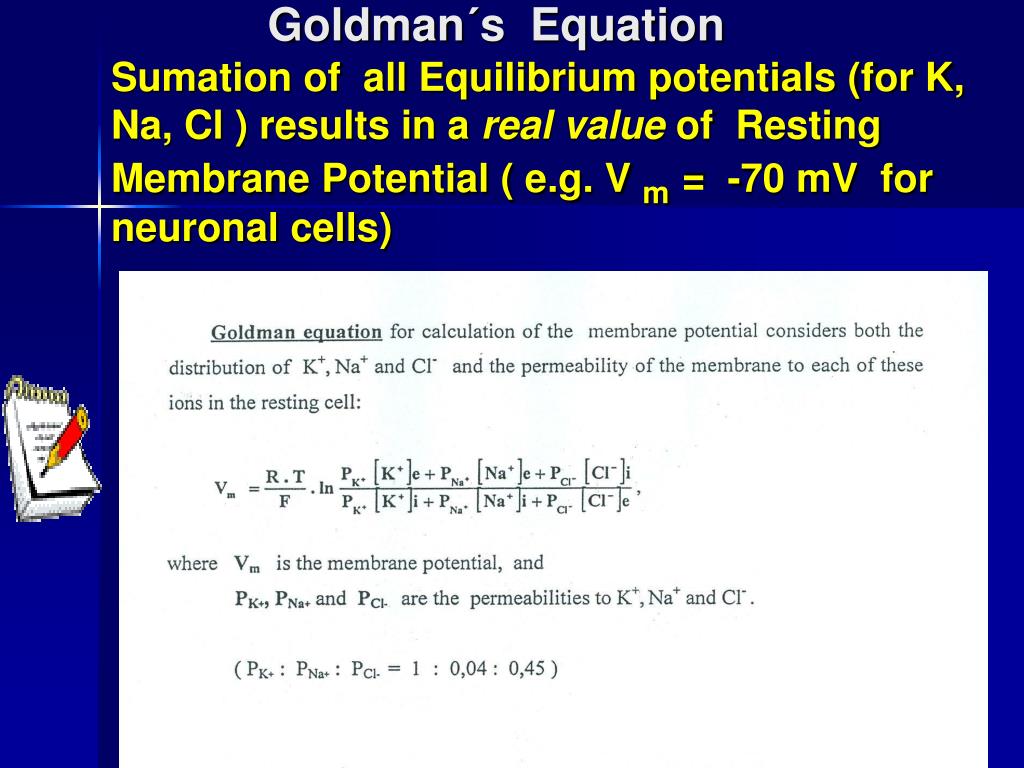

  11. Goldman´s EquationSumation of all Equilibrium potentials (for K, Na, Cl ) results in a real value of Resting Membrane Potential ( e.g. V m= -70 mV for neuronal cells)

  12. for comming and attention
