Hand Made Structures

Hand Made Structures. THREE RETREAT HUTS IN SPAIN made by Martin Hughes and Juliet Wallis. Keajraland - GRANADA. THE ROUND HOUSE. This is the first hut we built. The roof is a reciprocal beam design.

pearly
Télécharger la présentation

Hand Made Structures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Hand Made Structures • THREE RETREAT HUTS IN SPAIN made by Martin Hughes and Juliet Wallis

  2. Keajraland- GRANADA

  3. THE ROUND HOUSE • This is the first hut we built. • The roof is a reciprocal beam design. • Walls include a cord wood wall with a pentagonal window, a straw-bale wall and a wall made with bamboo canes.

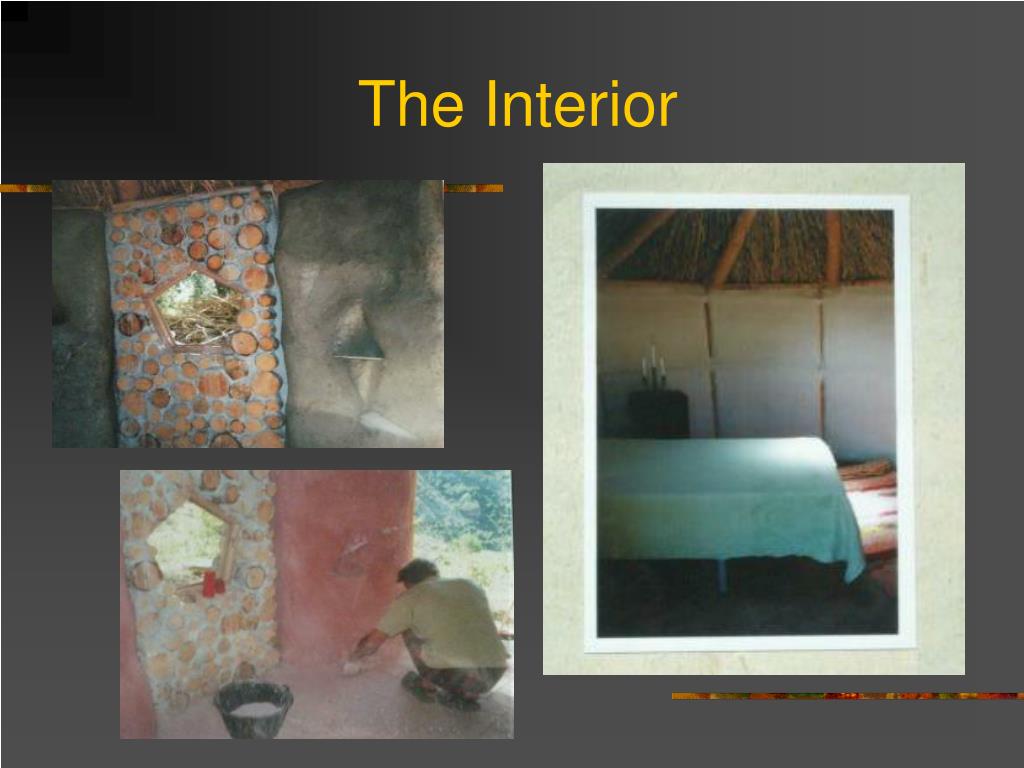

  4. The Interior

  5. The Mountain Top Hut

  6. Interior • The interior view of the roof shows the ridge and A-frame construction. This is overlaid with pallet-wood and a screen of chicken wire.

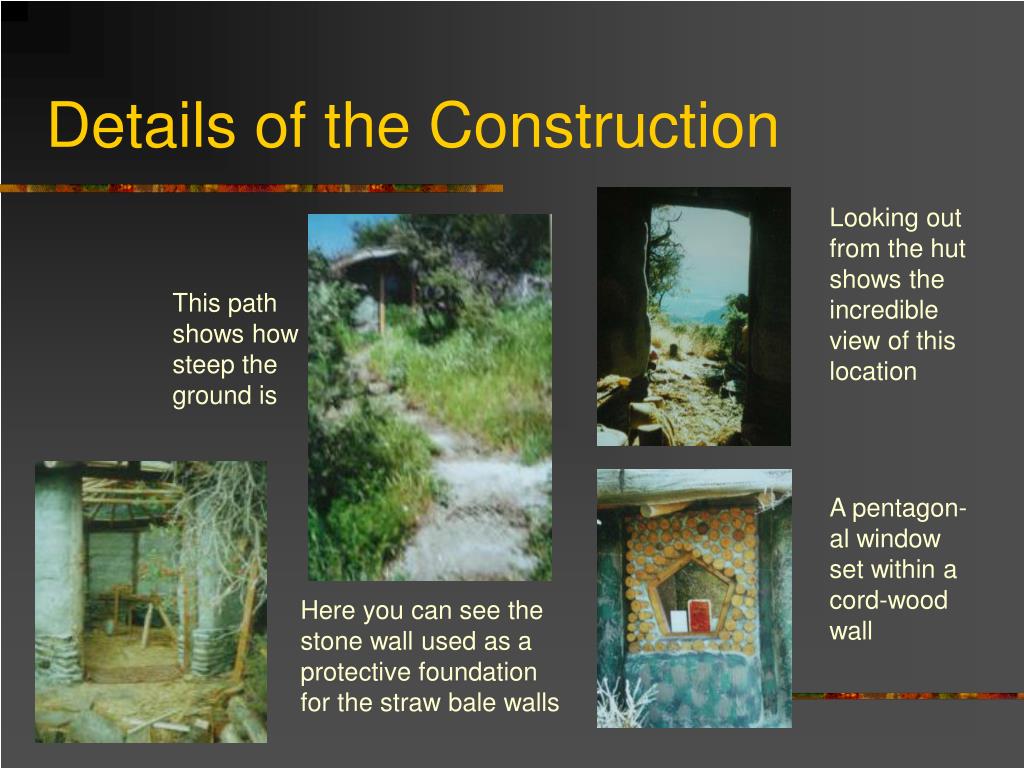

  7. Details of the Construction Looking out from the hut shows the incredible view of this location This path shows how steep the ground is A pentagon-al window set within a cord-wood wall Here you can see the stone wall used as a protective foundation for the straw bale walls

  8. The Three Year Retreat The inside is the size of a medium touring caravan and is ideal for a solitary meditator

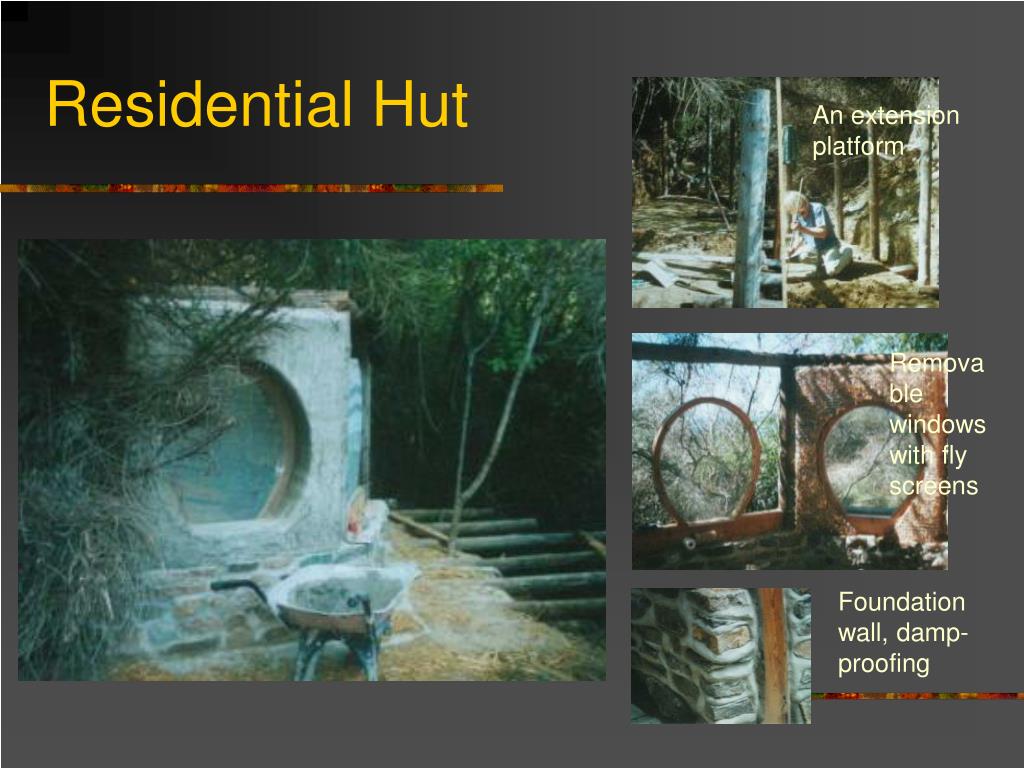

  9. Residential Hut An extension platform Removable windows with fly screens Foundation wall, damp-proofing

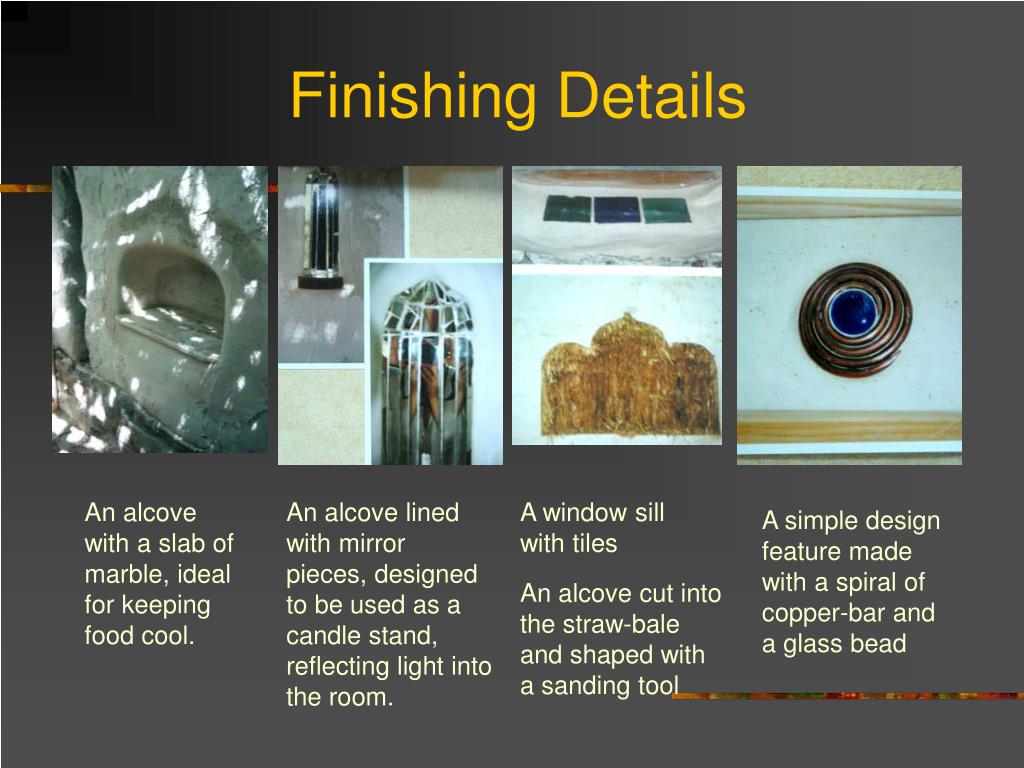

  10. Finishing Details An alcove with a slab of marble, ideal for keeping food cool. An alcove lined with mirror pieces, designed to be used as a candle stand, reflecting light into the room. A window sill with tiles A simple design feature made with a spiral of copper-bar and a glass bead An alcove cut into the straw-bale and shaped with a sanding tool

  11. Alternative Structures

  12. The End
