  1. Getting a Logo for YourWindows Driver Framework Driver NeslihanBulut Software Design Engineer in Test Windows Driver Foundation nebulut@microsoft.com

  2. Agenda • Why get drivers logo’ed? • WDF Logo Requirements • WDF Logo Testing

  3. Why Get Drivers Logo’ed? • Windows Logo Program identifies drivers that are designed and tested to deliver compatible experiences with Windows • Windows Logo provides Winqual signature • Trusted by every machine • Logo ensures: • Driver package integrity • Driver installs without any warnings or requests from an administrator • On 64-bit Windows unsigned drivers won’t load

  4. WDF Logo Requirements

  5. WDF Logo Tests • UMDF-specific & KMDF-specific Driver Settings • DDI Fault Injection and Driver Reliability Tests • WDF Redistributable Version Checks • INF File Validation with CheckInf

  6. UMDF Settings • Object Tracking will be enabled • Application Verifier will be on for the Host Process • Use !wudfext.Wudfdumpobjects in the debugger to see any leaked objects • Object Tracking will help catch WDF object leaks • UMDF will cause a driver stop because of leaked objects • If you discover object leaks, set Reference Count Tracking On • This setting provides add-release history of references

  7. KMDF Settings • Driver Verifier will be enabled • WDF Verifier will be enabled • Enhanced Verifier will be enabled • New feature for WDF 1.9 • Performs IRQL and Critical Region checks for event callbacks • Handle Tracking will be enabled via TrackHandles registry value for all WDF objects • Set TrackHandles registry value to * in the Wdfsubkey of driver’s Parameters key, WdfVerifier tool can be used for this. • With WDF 1.9, running the driver under Driver Verifier also enables WDF Verifier by default • Setting VerifierOn registry value to 0 in the Wdfsubkey of the driver’s Parameters key turns this off

  8. DDI Fault Injection • WDFTester from WDK Tools is used for fault injection • DDI return values will be fault-injected • When DDI return values are fault-injected, DDI out parameters can be fuzzed upon exit by the logo test • Drivers must inspect DDI return values properly

  9. WDFTester • Available in %wdk%\WDKVersionNumber\tools\wdf\wdftester\ • Uses advanced kernel techniques similar to Driver Verifier for fault injecting the DDIs called from your driver • Fault injection is currently limited to DDIs that return NTSTATUS codes • Has a WMI Interface for use by applications and scripts • WdfTesterScript.wsf is provided in WDK as a reference • This script provides command line interfaces to call into Wdftesterwmi methods • For more information, see wdftester.html in WDK • Provides call logging through traces • Use Traceview.exe (provided with the WDK) to view the call log

  10. WDFTester (continued) • 1. Register Driver 2. Execute Test • 3. GetDdiCallInfo 4. ConfigureDdiFi • 5. Execute Test 6. Unregister Driver • WdfTester order of execution

  11. WDFTester (continued) • 1. Register Driver 2. Inject own test • 3. GetDdiCallInfo • 4. ConfigureDdiFi 5. Inject own test • 6. Unregister Driver • Use with your own tests • At the 2nd and 5th stages run a test against the driver • With any test, Wdftester can collect DDI’s called from the driver and it can be used to fault inject those DDIs

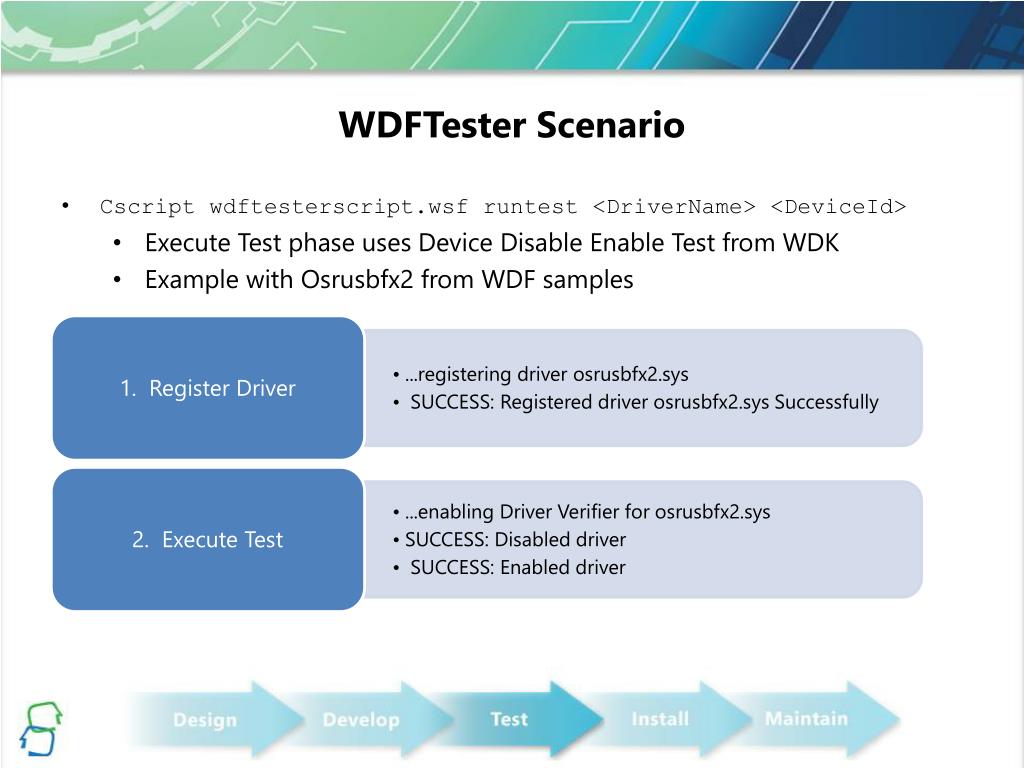

  12. WDFTester Scenario • Cscript wdftesterscript.wsf runtest <DriverName> <DeviceId> • Execute Test phase uses Device Disable Enable Test from WDK • Example with Osrusbfx2 from WDF samples

  13. WDFTester Scenario (continued)

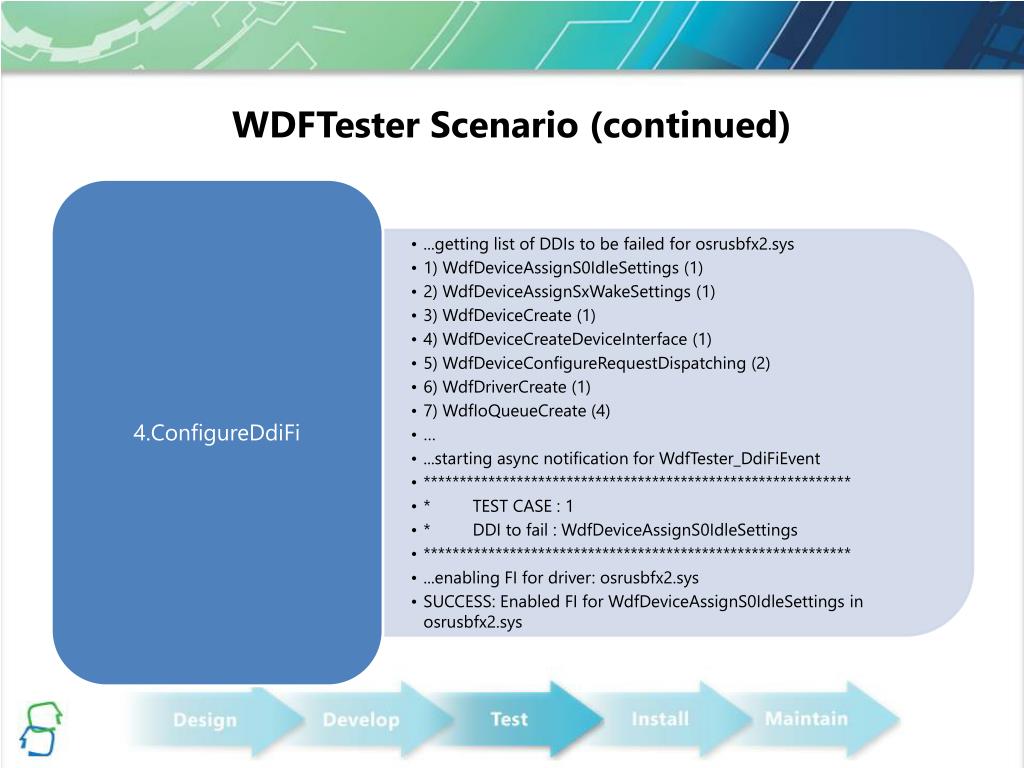

  14. WDFTester Scenario (continued)

  15. WDFTester Scenario (continued)

  16. Logo Test • Logo Test runs in 2 phases • 1st phase determines the DDIs called • 2nd phase configures fault injection on those DDIs • If the driver calls a DDI n times, fault injection can: • Occur at random calls, or • Be configured for any call of the DDI, inclusive 1 … n • 3 tests from WDK are run against the driver: • Device Disable/Enable • Sleep Test • PnP Tests

  17. Logo Test (continued) • Fault injection exercises these DDIs: • WdfDriverCreate • WdfDeviceCreate • WdfWaitLockCreate • WdfIoQueueCreate • WdfDeviceCreateDeviceInterface • WdfDeviceAssignMofResourceName • WdfWmiInstanceCreate • WdfDeviceOpenRegistryKey • WdfRegistryQueryULong • WdfWaitLockCreate • WdfDeviceCreateDeviceInterface

  18. Logo Test (continued) • … and these DDIs: • WdfDeviceAssignMofResourceName • WdfWmiInstanceCreate • WdfDeviceConfigureRequestDispatching • WdfUsbTargetDeviceCreate • WdfUsbTargetDeviceSelectConfig • WdfUsbTargetDeviceRetrieveInformation • WdfDeviceAssignS0IdleSettings • WdfDeviceAssignSxWakeSettings • WdfUsbTargetPipeConfigContinuousReader • WdfIoTargetStart • . . .

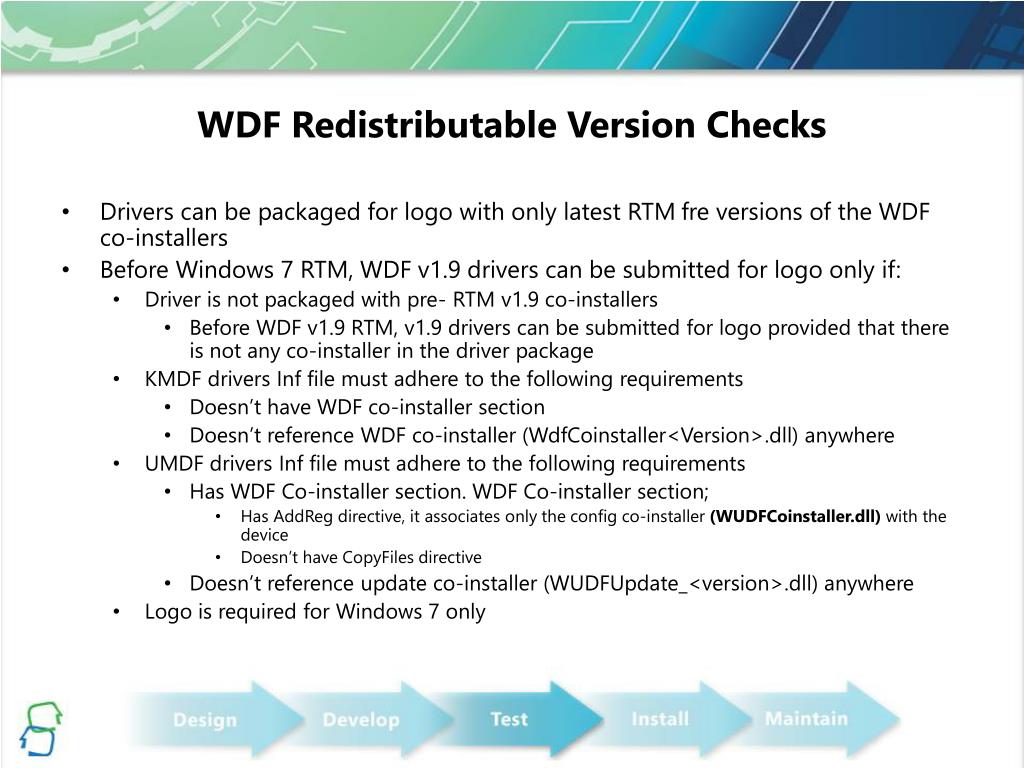

  19. WDF Redistributable Version Checks • Drivers can be packaged for logo with only latest RTM fre versions of the WDF co-installers • Before Windows 7 RTM, WDF v1.9 drivers can be submitted for logo only if: • Driver is not packaged with pre- RTM v1.9 co-installers • Before WDF v1.9 RTM, v1.9 drivers can be submitted for logo provided that there is not any co-installer in the driver package • KMDF drivers Inf file must adhere to the following requirements • Doesn’t have WDF co-installer section • Doesn’t reference WDF co-installer (WdfCoinstaller<Version>.dll) anywhere • UMDF drivers Inf file must adhere to the following requirements • Has WDF Co-installer section. WDF Co-installer section; • Has AddReg directive, it associates only the config co-installer (WUDFCoinstaller.dll) with the device • Doesn’t have CopyFiles directive • Doesn’t reference update co-installer (WUDFUpdate_<version>.dll) anywhere • Logo is required for Windows 7 only

  20. INF File Validation • Validation checks for: • Properly structured WDF-specific sections of INF • Coinstaller section • WDF section • KMDF Install section in KMDF drivers • UMDF Install section in UMDF drivers • Refer to MSDN and Developing Drivers with the Windows Driver Foundation book for details about WDF sections • CatalogFiledirective in the [Version] section of INF • Service Names, Hardware Ids , CLSIDs and Display names against the ones provided with WDK samples • Don’t copy/paste service names, Hardware Ids, CLSIDs and Display Names from WDF samples

  21. Call to Action • Test using WdfTester • Test WDF drivers with WDF Verifier and DriverVerifier • Test UMDF drivers with Application Verifier • Diagnose with WDF-specific registry settings enabled, by using WdfVerifier application • http://msdn.microsoft.com/en-us/library/cc264238.aspx • Use the latest RTM fre co-installers • Review and provide feedback on logo program requirements via https://winqual.microsoft.com • Certify your driver’s quality with Windows Logo

  22. Resources • Book: Developing Drivers with the Windows Driver Foundation • http://www.microsoft.com/MSPress/books/10512.aspx • Windows Logo Program • http://www.microsoft.com/whdc/winlogo/default.mspx • http://www.microsoft.com/whdc/winlogo/hwrequirements.mspx • WDF Testing and INF Documentation on MSDN • WdfTester: WDF Driver Testing Toolset http://msdn.microsoft.com/en-us/library/cc264231.aspx • Specifying WDF Directiveshttp://go.microsoft.com/fwlink/?LinkID=82953 • Installing the Framework's Co-installerhttp://msdn.microsoft.com/en-us/library/aa490024.aspx
