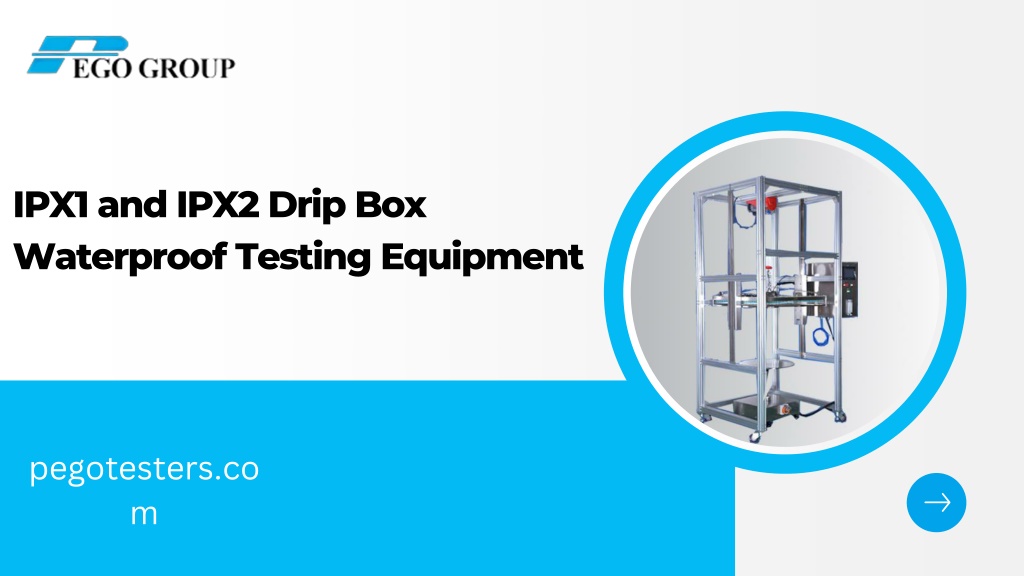

  1. IPX1 and IPX2 Drip Box Waterproof Testing Equipment pegotesters.com

  2. ABOUT US Pego Electronics (Yichun) Company Limited was founded by Pego Group in 2020, aiming to bring high-precision, high-quality, cost-effective electrical laboratory testing equipment Made-in-China to the world. PEGO has been deeply involved in lab testing equipment for household appliances, lighting and electric vehicle charging stations (EVCS) for decades, the equipment are strictly designed according to IEC, ISO, BS, UL, GB, BIS, ANSI and other relative standards. pegotesters.com

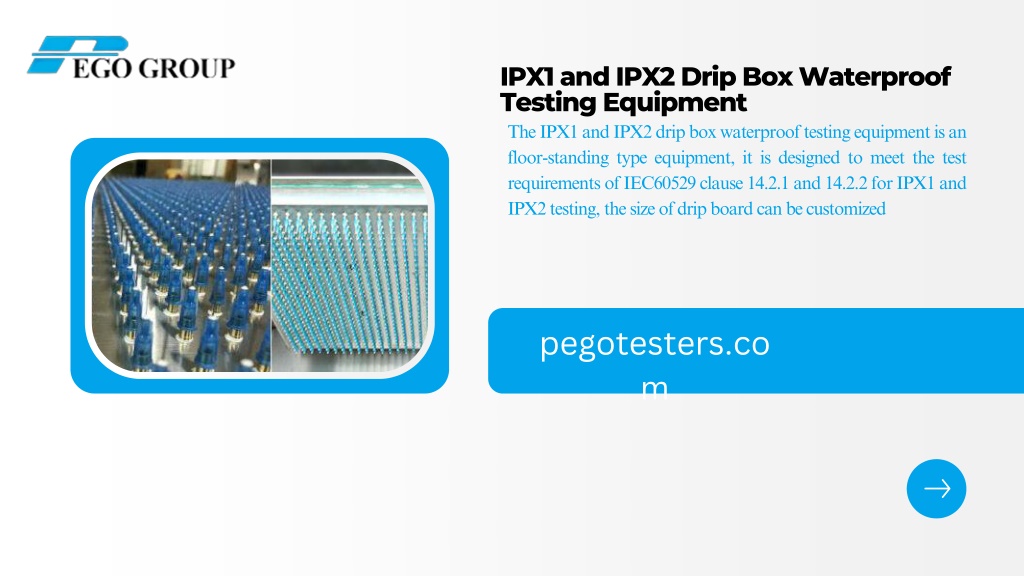

  3. IPX1 and IPX2 Drip Box Waterproof Testing Equipment The IPX1 and IPX2 drip box waterproof testing equipment is an floor-standing type equipment, it is designed to meet the test requirements of IEC60529 clause 14.2.1 and 14.2.2 for IPX1 and IPX2 testing, the size of drip board can be customized pegotesters.com

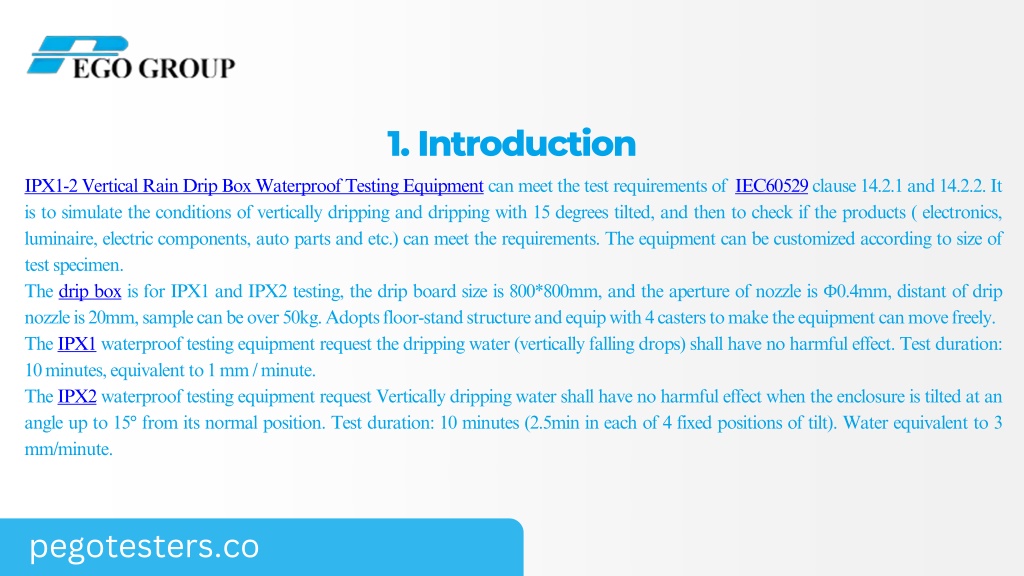

  4. 1. Introduction IPX1-2 Vertical Rain Drip Box Waterproof Testing Equipment can meet the test requirements of IEC60529 clause 14.2.1 and 14.2.2. It is to simulate the conditions of vertically dripping and dripping with 15 degrees tilted, and then to check if the products ( electronics, luminaire, electric components, auto parts and etc.) can meet the requirements. The equipment can be customized according to size of test specimen. The drip box is for IPX1 and IPX2 testing, the drip board size is 800*800mm, and the aperture of nozzle is Φ0.4mm, distant of drip nozzle is 20mm, sample can be over 50kg. Adopts floor-stand structure and equip with 4 casters to make the equipment can move freely. The IPX1 waterproof testing equipment request the dripping water (vertically falling drops) shall have no harmful effect. Test duration: 10 minutes, equivalent to 1 mm / minute. The IPX2 waterproof testing equipment request Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15° from its normal position. Test duration: 10 minutes (2.5min in each of 4 fixed positions of tilt). Water equivalent to 3 mm/minute. pegotesters.com
