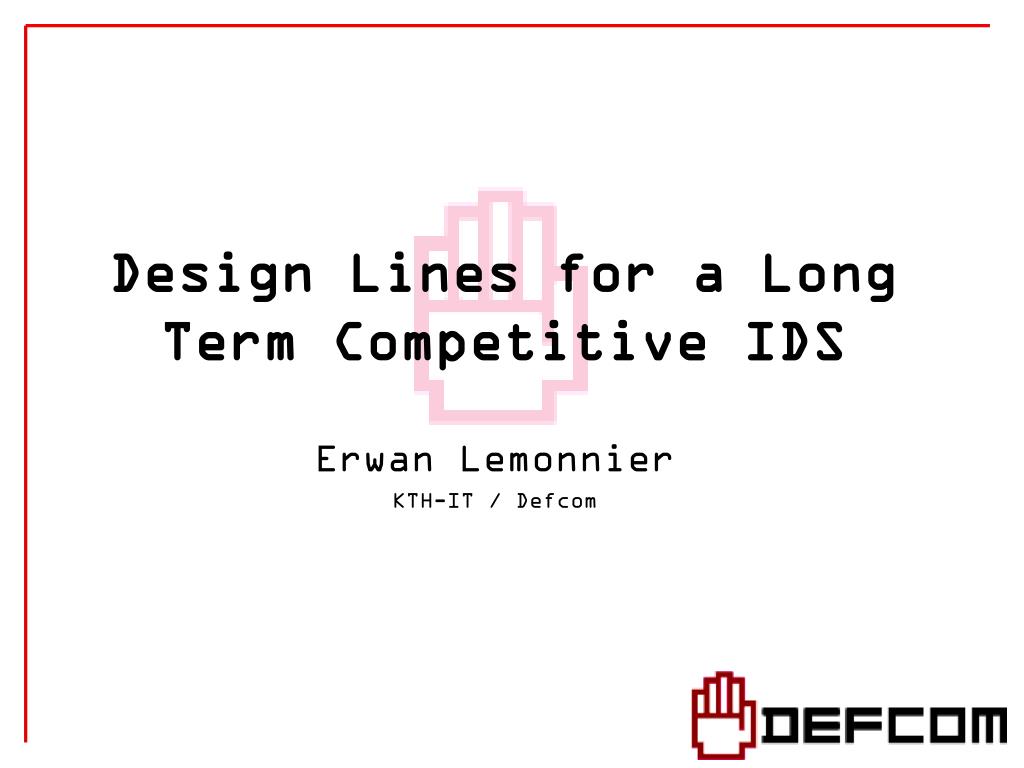

  1. Design Lines for a Long Term Competitive IDS Erwan Lemonnier KTH-IT / Defcom

  2. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Thesis’s subject: An analysis of IDSs difficulties and how to solve them. Two approaches are explored: • Designing efficient filters • Improving IDS architecture (MIDS)

  3. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 Plan of Presentation • Introduction to IDSs • IDS challenges • solution 1: Efficient filter design • solution 2: MIDS, an alternative IDS architecture

  4. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 Introduction to IDSs IDSs are programs monitoring a computer system (network, host) to detect intrusion attempts. Typically made of a sensor, some filters, an alert-flow and a monitoring center. Monitoring Center Alert-flow filter filter filter filter Filter SENSOR API SENSOR Sensor Monitored Data Host / Network Monitored System

  5. Protocol Standard Pratical Usage Attaques Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Sensors: • host based / network based Filters:small programs analyzing sensor data to detect intrusions. Detection Strategies: • Signature • Anomaly detection (protocol anomaly)

  6. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • IDS Challenges • Insertion & Evasion • Alert-flow control • Encrypted traffic • Learning from antiviruses • Technical obstacles

  7. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Insertion & Evasion • Efficient detection theoretically implies knowledge of monitored system’s state and rules • Despite standards, systems are implemented differently. • Ex: different TCP/IP stack implementation • => always make false assumptions on monitored system’s reactions • => possible to shape the traffic so that the IDS accepts a packet but not the monitored system (Insertion) or the contrary (Evasion)

  8. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Alert-flow control challenges • False positives Can not be avoided Increase with traffic • Hiding attacks • IDS evasion • Alert flood • Slow rate attacks • Distributed attacks need for intelligent alert-flow processing components

  9. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Encrypted Traffic • Network based IDS can’t monitor encrypted traffic • Only known solution = decryption proxy • but hard to deploy • ex: https Network Based IDS Decryption Proxy Client HTTP/SSL HTTP Server clear HTTP HTTPS

  10. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Learning from Antivirus • Virus/Antivirus similar to Attacks/IDS • similar techniques (signature, anomaly) • probably similar results, but antivirus are more mature • Evasion race (IDS evasion, polymorphism, etc.) • need for reactive/automated filter updating process • Anomaly detection effective if used with signatures

  11. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Technical obstacles • resistance to fragmentation/insertion/evasion • => efficient TCP/IP stack • monitoring high rate traffic • => load balancing

  12. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Solutions ? • approach 1:improving filters • approach 2:alternative IDS architectures

  13. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Efficient filters: • improves detection & alert-flow control • how ? • mixing signature & anomaly detection • protocol anomaly analysis engine enables • efficient signature matching • internal caching and filtering of alert-flow • reduces volume of alert-flow • more acurate analysis (corelation)

  14. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 Efficient filters: Telnet filter example

  15. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 Efficient filters: TCP filter example

  16. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Alternative IDS structure • IDSs are alert-flow management systems. • Focus on: • multiplying alert sources • merging alert-flows from different sources • processing intelligently the alert-flow

  17. IDS snort alert flow merger Corelation Engine ISS Monitoring Center Host / Network NFR alert-flow Monitored Data Monitored System Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 Suggested Architecture: Multi IDS • multiple IDSs • host & network based • multiple filtering techniques • alert-flow corelation

  18. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 Host based sensors: detect the host side of an attack hidden to network based IDS (evasion, encryption, etc.) Multiple different network based sensors: Many different TCP/IP stack implementation => reduce risk of evasion/insertion Alert-flow merging and processing Merging alert-flow Shaping alert-flow to increase its informational load Alert corelation Data mining solve evasion/insertion, alert flow control & encryption problems

  19. Design Lines for a Long Term Competitive IDS - Erwan Lemonnier - 2001/10/08 • Remaining problems: • reactive/automated filter updating process • => by out-sourcing IDS management to a specialized entity • alert-flows corelation: we are now working on it ! • Conclusion • Intelligent data and alert-flow processing is the future of IDSs.
