  1. TLS 1.2 and NIST SP 800-56A Tim Polk November 10, 2006

  2. Acknowledgements • The bulk of the analysis was performed by Ray Perlner at NIST • Reviewed -01 draft

  3. Background • NIST publishes cryptographic standards and specifications • Agencies protecting unclassified data with cryptography need to use Approved algorithms • Based on FIPS 140, FISMA, etc.. • Exception: where no Approved algorithms exist, agencies can select any algorithm • CMVP may impose additional constraints

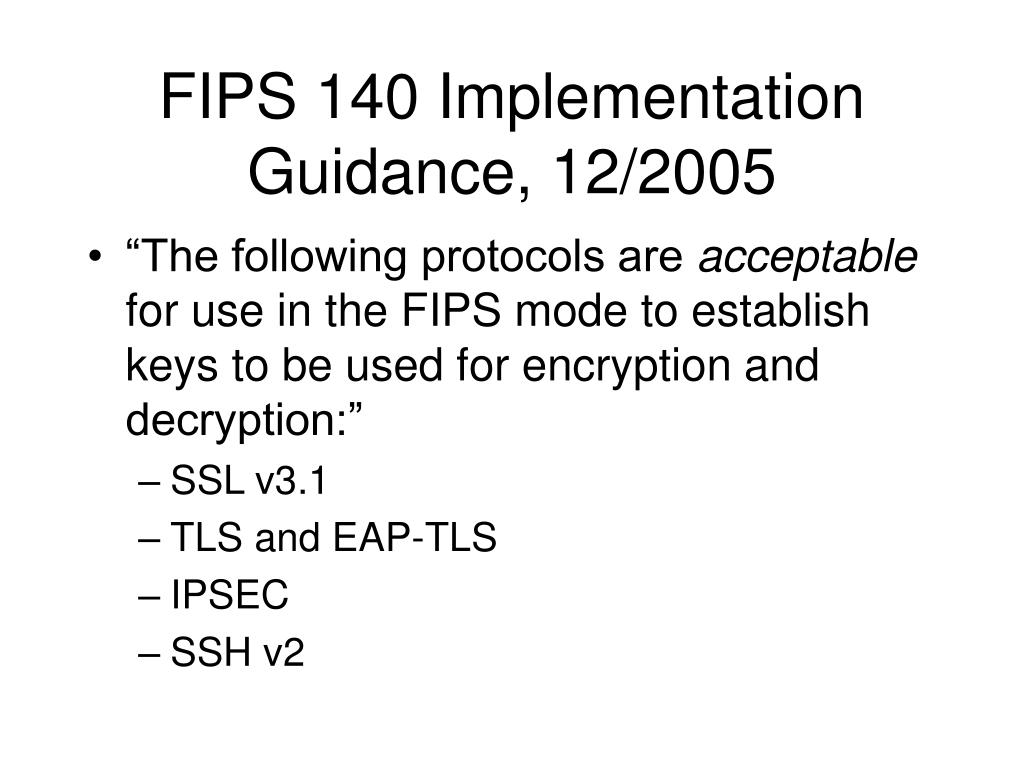

  4. FIPS 140 Implementation Guidance, 12/2005 • “The following protocols are acceptable for use in the FIPS mode to establish keys to be used for encryption and decryption:” • SSL v3.1 • TLS and EAP-TLS • IPSEC • SSH v2

  5. NIST 800-56A, Key Establishment • Recommendation for Pair-Wise Key Establishment Schemes Using Discrete Logarithm Cryptography • Published March, 2006 • Specifies key derivation function(s) • Basically, one kdf with two input formatting variants (ASN.1 and concatenated values)

  6. 800-56A KDF Overview.. • Generate keying material with a hash function from the shared secret and… • Cryptographic algorithm(s) identifier • Identifiers for communicating parties • Nonces (required if keys are static) • Optional information from both parties • The derived key material is bound to the complete communications context

  7. Silence Was Golden • Now that we specify a kdf… the FIPS 140 IG will be changing • Current proposal: • Accept protocols with 800-56A KDF • No such protocols exist • Review protocols that use non-conforming KDFs, accept with time limits • TLS is proposed for acceptance through the end of 2010

  8. Now That We’re Here… • This is clearly a bad situation • The WG chair reviewed the 800-56A KDF and determined it isn’t a good fit for TLS • The AD requested that NIST reconsider the problem • Could NIST accept the TLS kdf without an expiration date?

  9. Analysis • NIST could accept TLS 1.2 without an expiration date, with a few minor fixes • Finished message binds the context to the communications channel effectively • Niche cases exist where these bindings might not be established

  10. Certificate Hash • Certificate hash needs to be mandatory • If the hash is not included with the client certificate URL, the finished message will not factor in the name associated with the key. • Hash needs agility • The protocol mandates SHA-1, which is fine as a default, but there is no mechanism to specify a stronger algorithm.

  11. Upgrade Security Guidance to Requirements • TLS recommends mechanisms to protect against • Timing attacks (6.2.3.2, 7.4.9.1) • Bliechenbacher attack (7.4.9.1) • Can TLS 1.2 upgrade these to MUST? • Consider extending guidance for blinding to non-RSA key exchange algorithms?

  12. Clarifications in Error Handling • Need to clarify when alerts MUST be sent versus MAY be sent • Responses on list have been helpful; would like to see this information in the spec

  13. Incremental Changes • IVs • MUST use one of the specified IV generation techniques • Certificate Handling, HMAC truncation • Should require explicit agreement • DH • Recommend maintaining leading zeroes

  14. Anonymous Diffie-Hellman • Frankly, it makes us nervous. • List traffic does not support expunging Anonymous DH • Need to ensure that Anonymous DH is only used with user agreement • Bodo Moeller has suggested text: • http://www1.ietf.org/mail-archive/web/tls/current/msg00900.html

  15. Further Information • NIST 800-56A (see 5.8) • http://csrc.nist.gov/publications/nistpubs/800-56A/sp800-56A_May-3-06.pdf • Personal draft with KDFs • http://www.ietf.org/internet-drafts/draft-dang-nistkdf-01.txt

  16. Questions?
