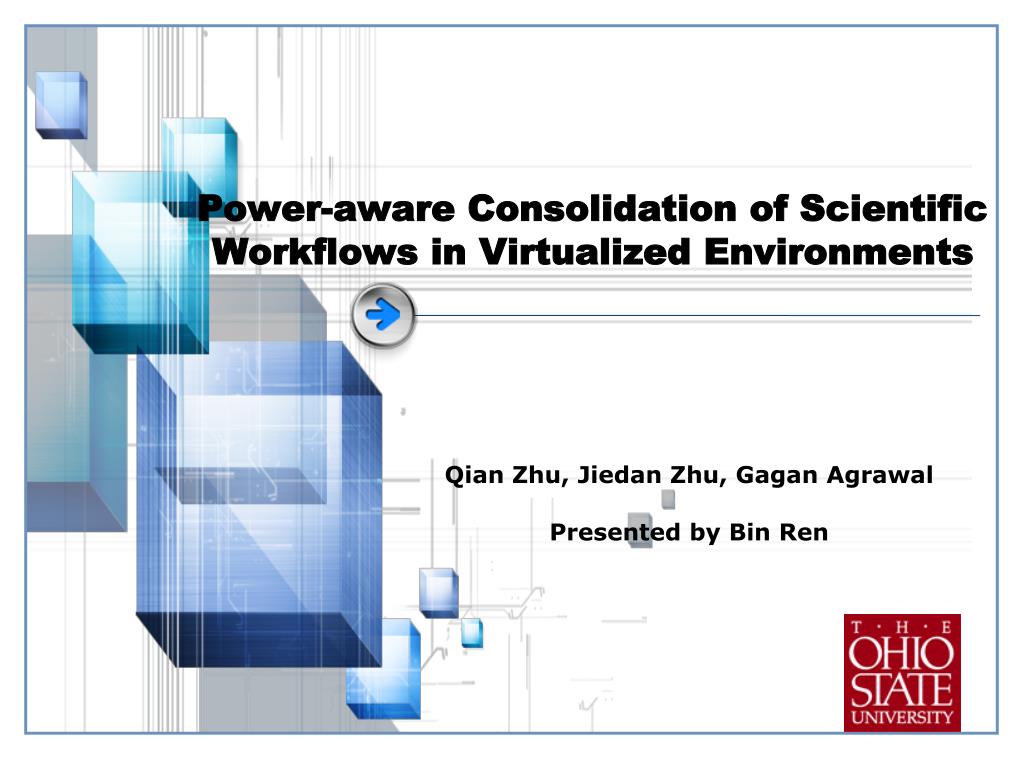

  1. Power-aware Consolidation of Scientific Workflows in Virtualized Environments Qian Zhu, Jiedan Zhu, GaganAgrawal Presented by Bin Ren

  2. 1 3 4 5 2 • Background Key points analysis • Design of pSicMapper • Experimental Evaluation • Motivating Applications Outlines 6 • Conclusion

  3. 1 3 4 5 2 • Background Key points analysis • Design of pSicMapper • Experimental Evaluation • Motivating Applications Outlines 6 • Conclusion

  4. Background • Scientific Workflow • Computing process model; • Input: • Various data; • Output: • Data product presentation and virtualization; • An important feature: • Different workflow modules may have different resource requirements; 1

  5. Background • Cloud Computing • Some scientific workflows have been experimented on cloud environments; • Two important characteristics: • Virtualization technologies; • Pay-as-you-go model. • An important issue – tradeoff between: • Power consumption; • Performance. 2

  6. Background • Topic of this work • Focus on: Effective energy and resource costs management for scientific workflows; • Goal: How to minimize the total power consumption and resource costs without a substantial degradation in performance; • Strategy: Consolidation of workflow tasks Why can we put tasks together without big performance degradation? Why this strategy can save power? How to decide which tasks can be put together? … 3

  7. 1 3 4 5 2 • Background Key points analysis • Design of pSicMapper • Experimental Evaluation • Motivating Applications Outlines 6 • Conclusion

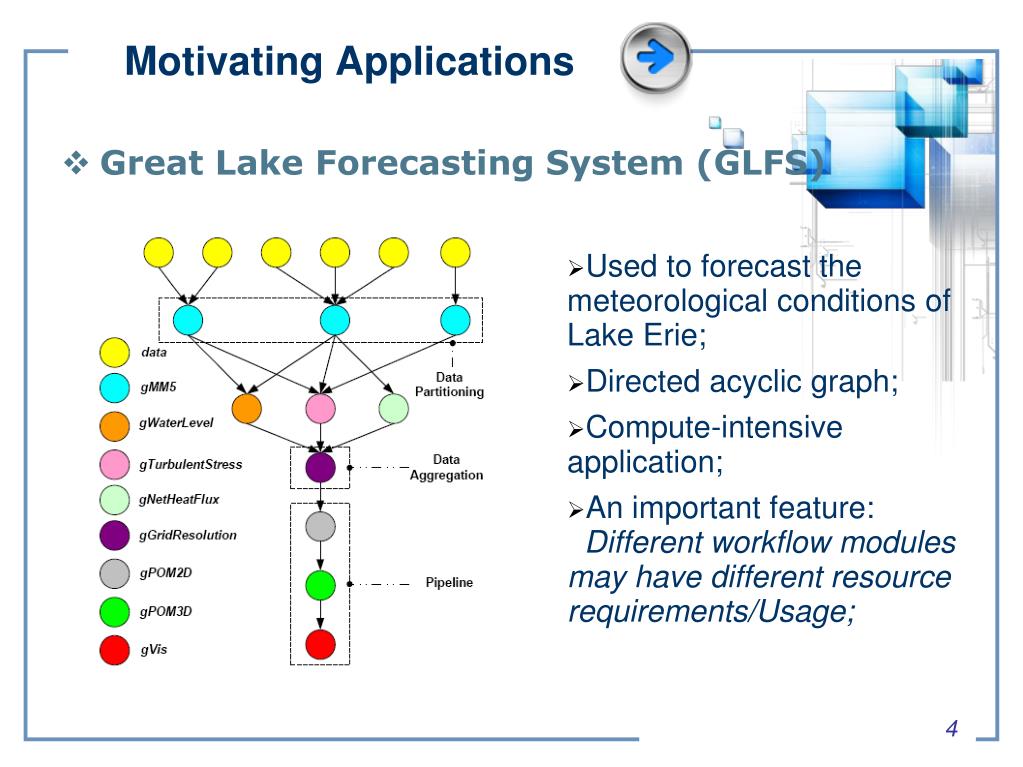

  8. Motivating Applications • Great Lake Forecasting System (GLFS) • Used to forecast the meteorological conditions of Lake Erie; • Directed acyclic graph; • Compute-intensive application; • An important feature: • Different workflow modules may have different resource requirements/Usage; 4

  9. Motivating Applications • Resource usage of GLFS tasks Task 1: 5

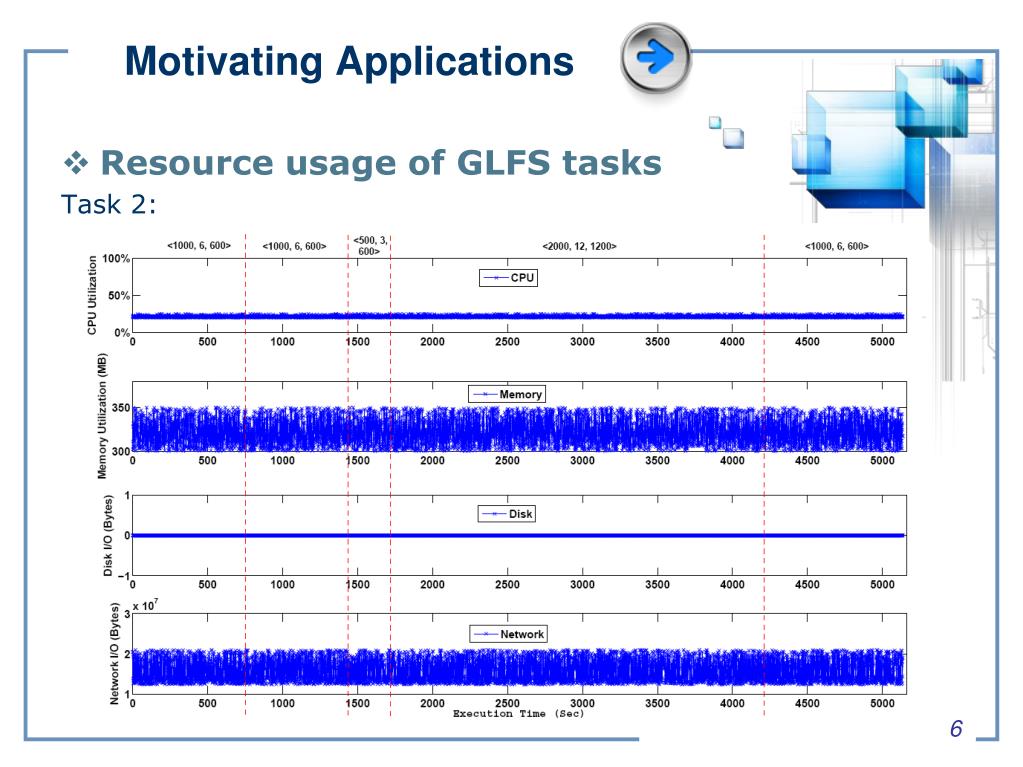

  10. Motivating Applications • Resource usage of GLFS tasks Task 2: 6

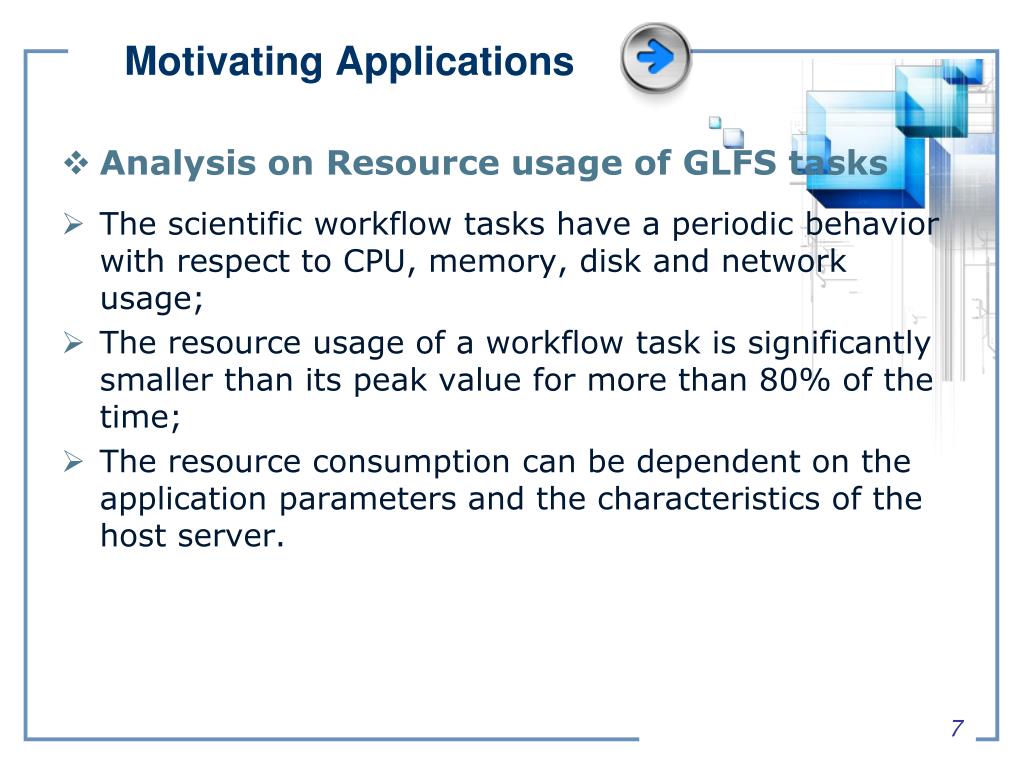

  11. Motivating Applications • Analysis on Resource usage of GLFS tasks • The scientific workflow tasks have a periodic behavior with respect to CPU, memory, disk and network usage; • The resource usage of a workflow task is significantly smaller than its peak value for more than 80% of the time; • The resource consumption can be dependent on the application parameters and the characteristics of the host server. 7

  12. 1 3 4 5 2 • Background Key points analysis • Design of pSicMapper • Experimental Evaluation • Motivating Applications Outlines 6 • Conclusion

  13. Key Points Analysis • Resource Usage and Power Consumption; • Virtualization Technologies usage and power consumption; • Consolidation and power consumption. Two important explanations: 1. Unit power denotes the power consumption every 1 second; 2. When the system is idle, there is still a power consumption of 32watt. 8

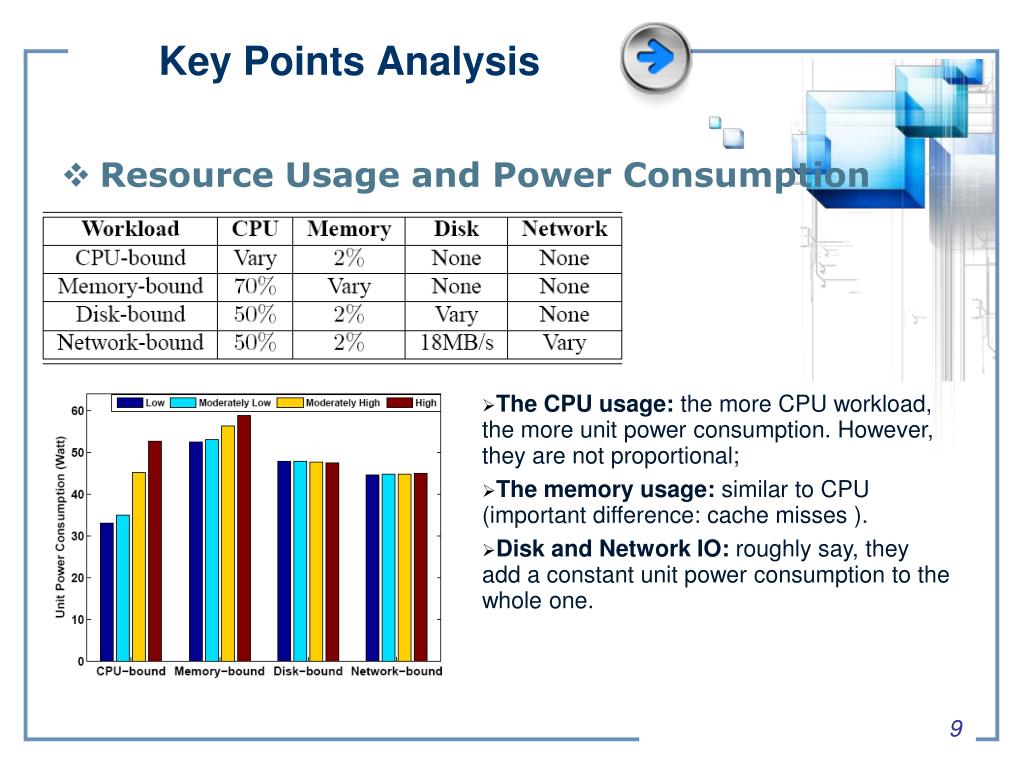

  14. Key Points Analysis • Resource Usage and Power Consumption • The CPU usage: the more CPU workload, the more unit power consumption. However, they are not proportional; • The memory usage: similar to CPU (important difference: cache misses ). • Disk and Network IO: roughly say, they add a constant unit power consumption to the whole one. 9

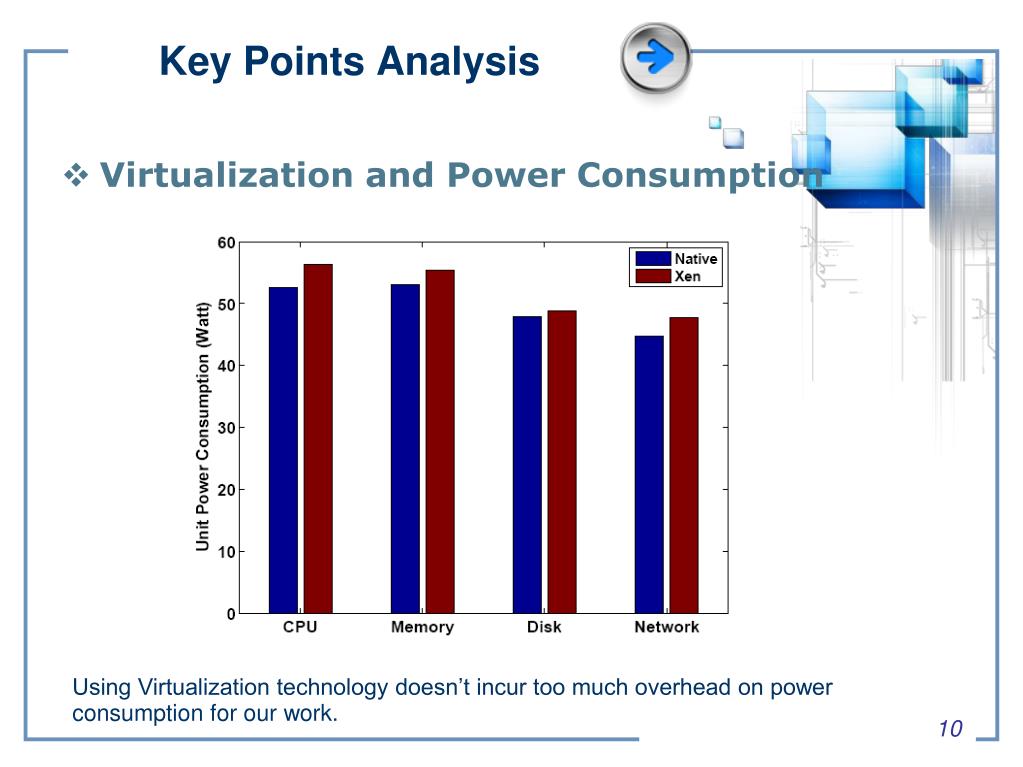

  15. Key Points Analysis • Virtualization and Power Consumption Using Virtualization technology doesn’t incur too much overhead on power consumption for our work. 10

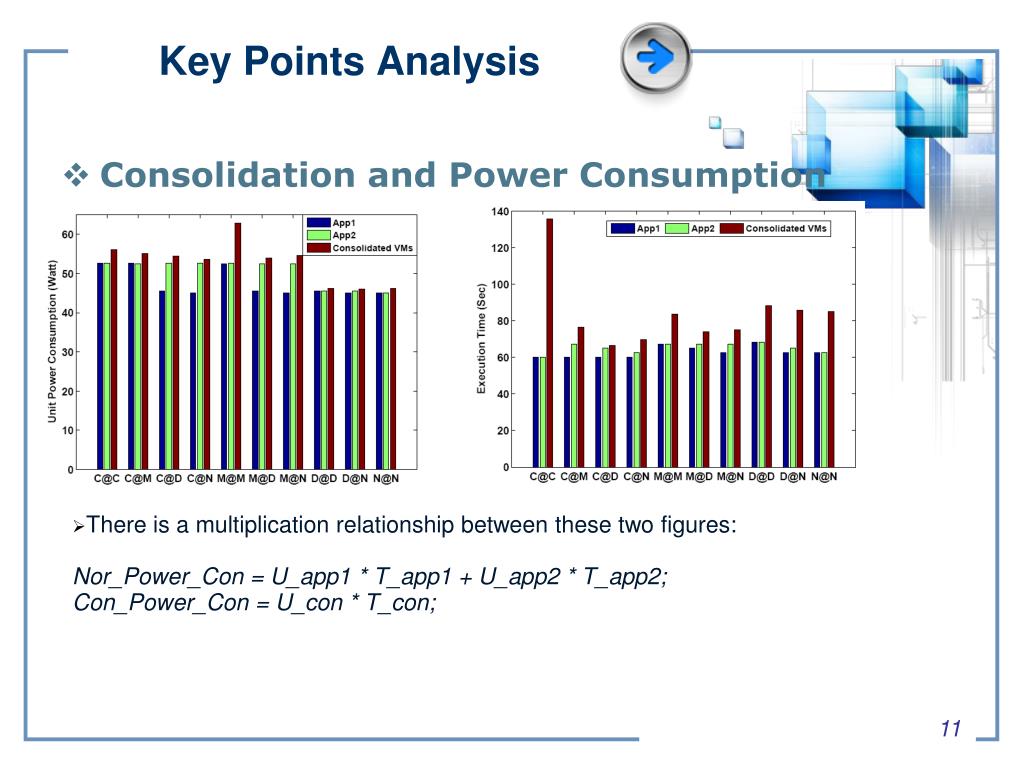

  16. Key Points Analysis • Consolidation and Power Consumption • There is a multiplication relationship between these two figures: • Nor_Power_Con = U_app1 * T_app1 + U_app2 * T_app2; • Con_Power_Con = U_con * T_con; 11

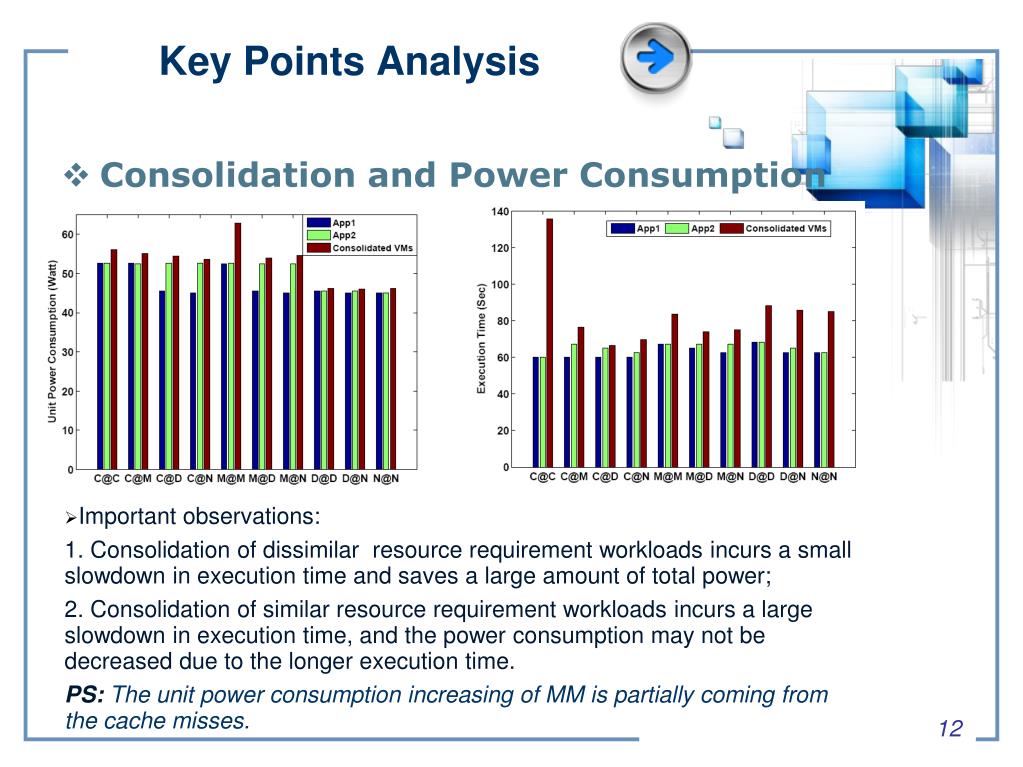

  17. Key Points Analysis • Consolidation and Power Consumption • Important observations: • 1. Consolidation of dissimilar resource requirement workloads incurs a small slowdown in execution time and saves a large amount of total power; • 2. Consolidation of similar resource requirement workloads incurs a large slowdown in execution time, and the power consumption may not be decreased due to the longer execution time. • PS: The unit power consumption increasing of MM is partially coming from the cache misses. 12

  18. 1 3 4 5 2 • Background Key points analysis • Design of pSicMapper • Experimental Evaluation • Motivating Applications Outlines 6 • Conclusion

  19. Design of pSciMapper • Overview of the whole system 13

  20. Design of pSciMapper • Explanation of pSciMapper The main algorithm -- Hierarchical clustering: • Data Modeling; • Distance Metric; • Clustering result evaluation 14

  21. Design of pSciMapper • Data Modeling • Predict the resource usage time series: • Application parameters; • Hardware specification; • Hidden Markov Model(HMM) • Temporal Feature Extraction – Temporal Signature: • Peak value: Max value of the time series; • Relative variance: Normalized sample variance; • Pattern: A sequence of samples to represent the pattern • Notation: 15

  22. Design of pSciMapper • Distance Metric Disti,j: The distance between task i and j; Ri: A kind of resource. There a four types, so (R1, R2) has 10 pairs; aff_score: The pre-defined affect factor for consolidation R1 and R2, value is (0, 1); Corr(peaki, peakj): The Pearson’s correlation between two workloads with regards to some kind of resource usage; 16

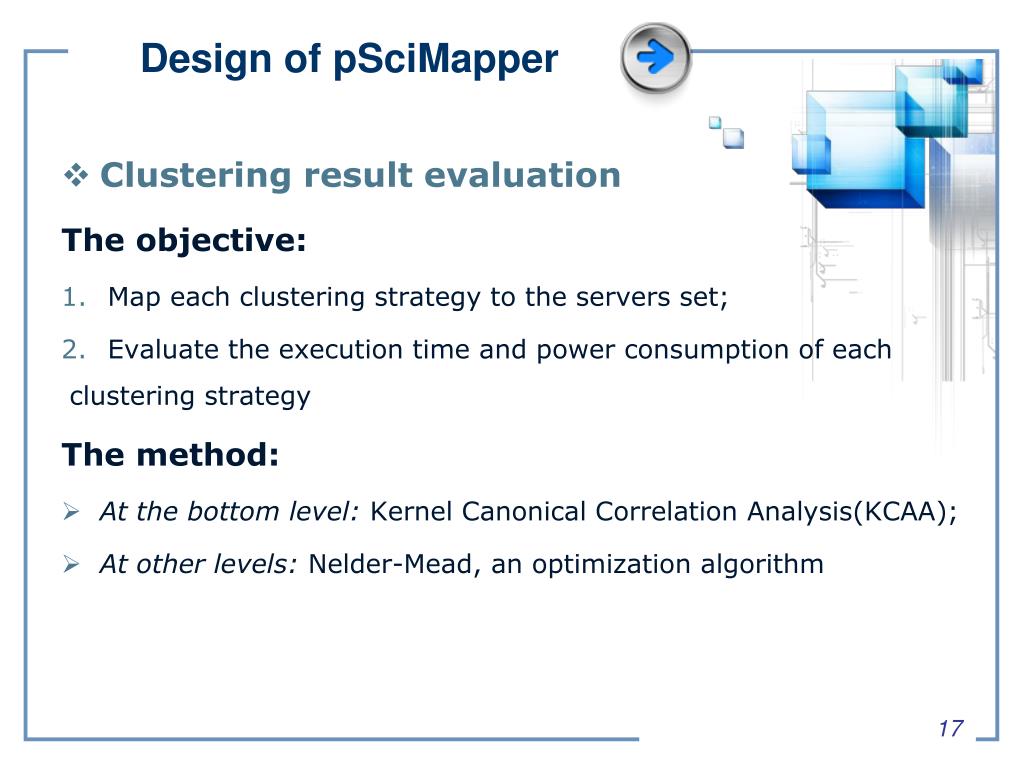

  23. Design of pSciMapper • Clustering result evaluation The objective: • Map each clustering strategy to the servers set; • Evaluate the execution time and power consumption of each clustering strategy The method: • At the bottom level: Kernel Canonical Correlation Analysis(KCAA); • At other levels: Nelder-Mead, an optimization algorithm 17

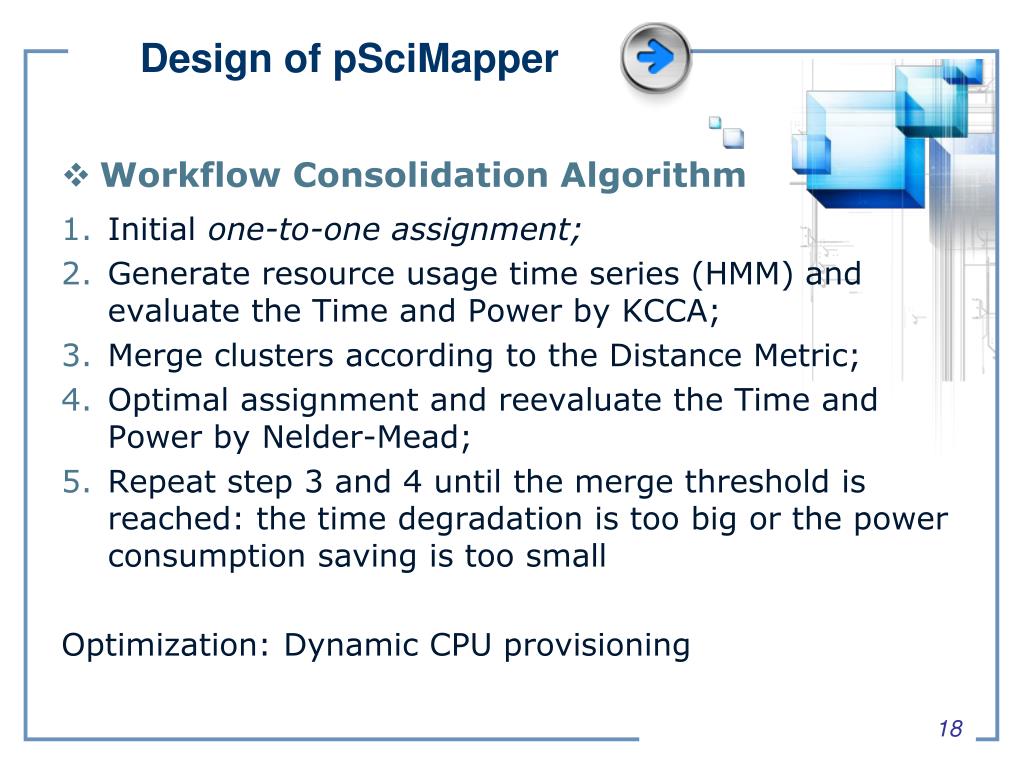

  24. Design of pSciMapper • Workflow Consolidation Algorithm • Initial one-to-one assignment; • Generate resource usage time series (HMM) and evaluate the Time and Power by KCCA; • Merge clusters according to the Distance Metric; • Optimal assignment and reevaluate the Time and Power by Nelder-Mead; • Repeat step 3 and 4 until the merge threshold is reached: the time degradation is too big or the power consumption saving is too small Optimization: Dynamic CPU provisioning 18

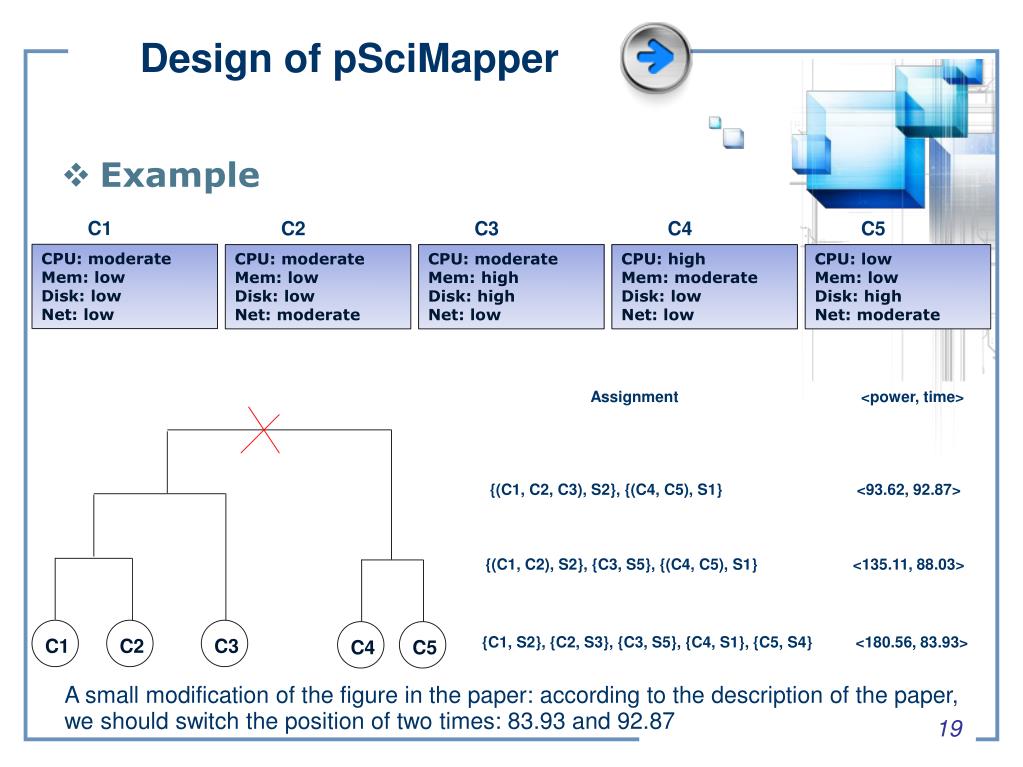

  25. Design of pSciMapper • Example C1 C2 C3 C4 C5 CPU: moderate Mem: low Disk: low Net: low CPU: moderate Mem: low Disk: low Net: moderate CPU: moderate Mem: high Disk: high Net: low CPU: high Mem: moderate Disk: low Net: low CPU: low Mem: low Disk: high Net: moderate Assignment <power, time> {(C1, C2, C3), S2}, {(C4, C5), S1} <93.62, 92.87> {(C1, C2), S2}, {C3, S5}, {(C4, C5), S1} <135.11, 88.03> {C1, S2}, {C2, S3}, {C3, S5}, {C4, S1}, {C5, S4} <180.56, 83.93> C1 C2 C3 C4 C5 A small modification of the figure in the paper: according to the description of the paper, we should switch the position of two times: 83.93 and 92.87 19

  26. 1 3 4 5 2 • Background Key points analysis • Design of pSicMapper • Experimental Evaluation • Motivating Applications Outlines 6 • Conclusion

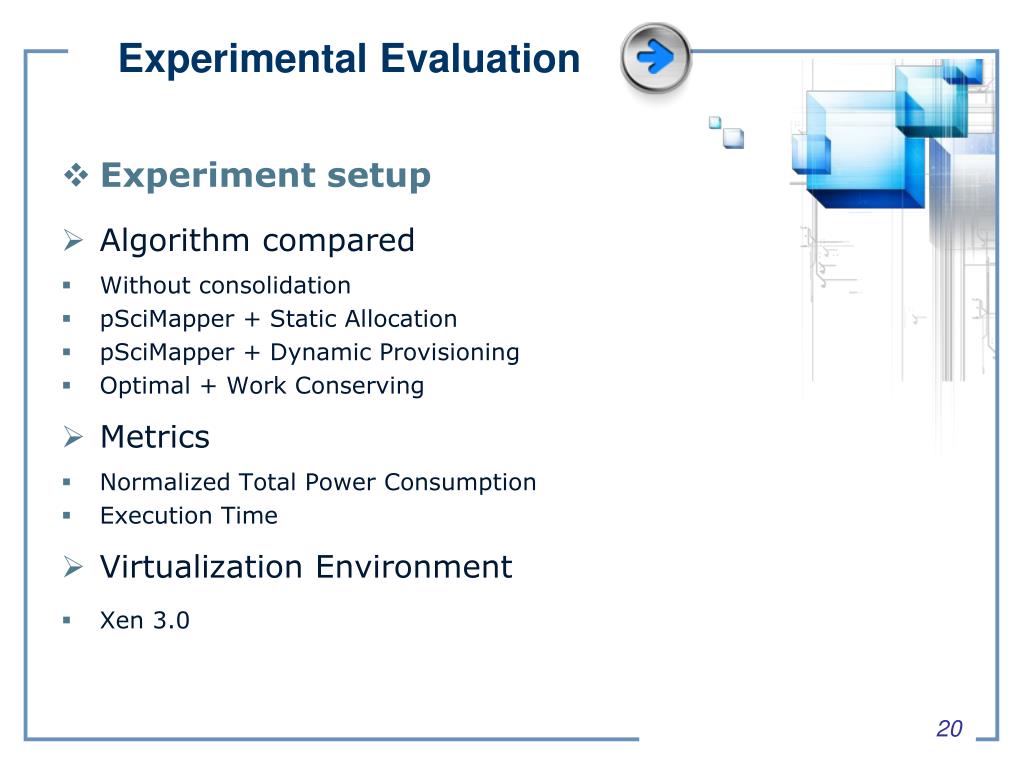

  27. Experimental Evaluation • Experiment setup • Algorithm compared • Without consolidation • pSciMapper + Static Allocation • pSciMapper + Dynamic Provisioning • Optimal + Work Conserving • Metrics • Normalized Total Power Consumption • Execution Time • Virtualization Environment • Xen 3.0 20

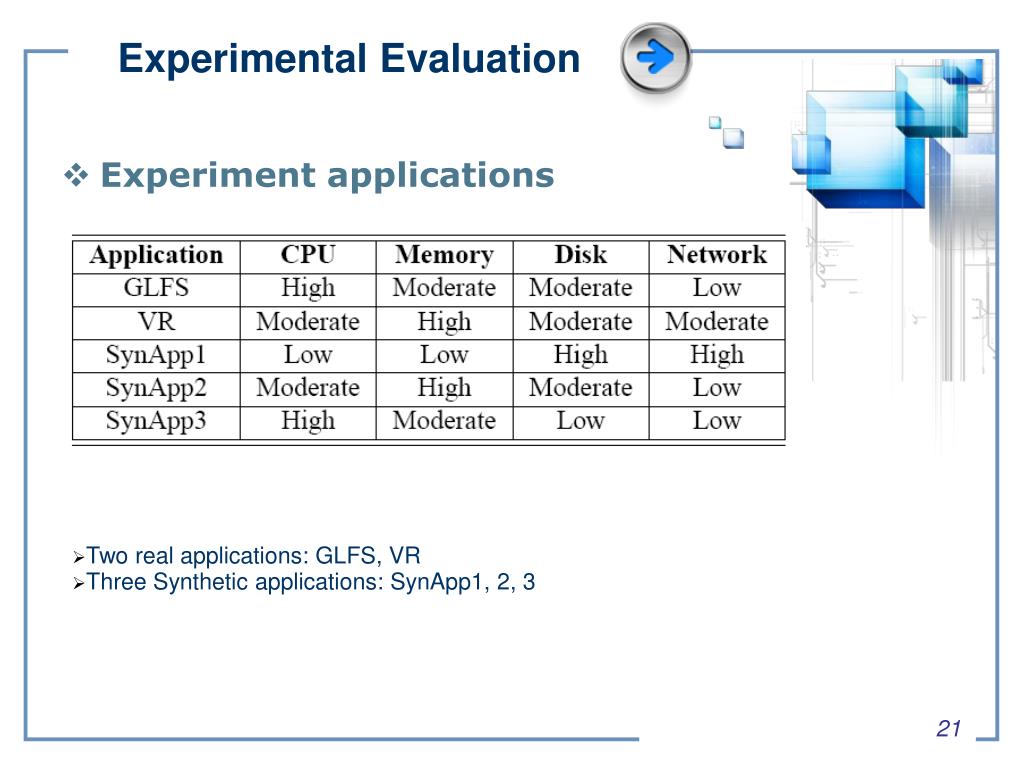

  28. Experimental Evaluation • Experiment applications • Two real applications: GLFS, VR • Three Synthetic applications: SynApp1, 2, 3 21

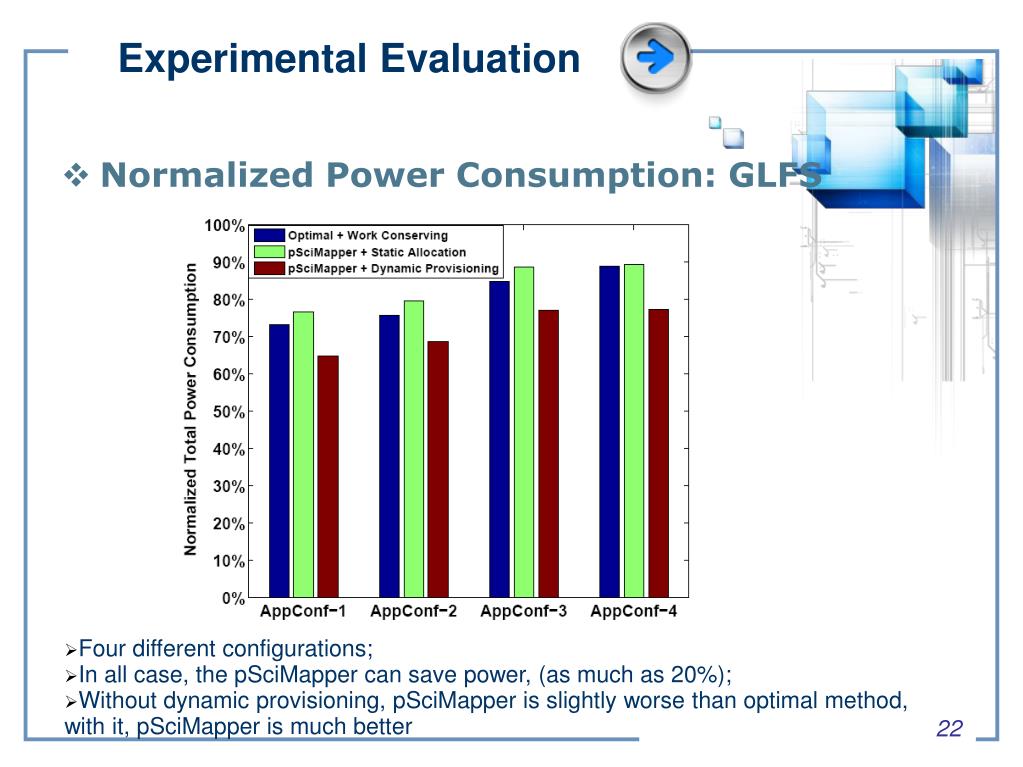

  29. Experimental Evaluation • Normalized Power Consumption: GLFS • Four different configurations; • In all case, the pSciMapper can save power, (as much as 20%); • Without dynamic provisioning, pSciMapper is slightly worse than optimal method, with it, pSciMapper is much better 22

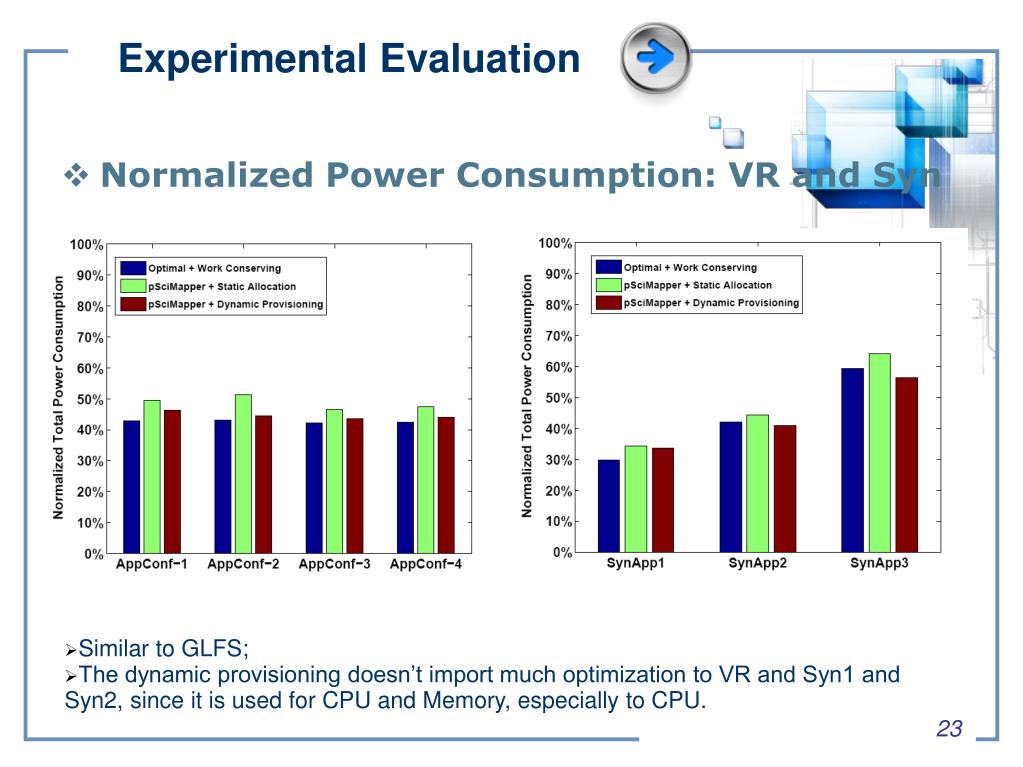

  30. Experimental Evaluation • Normalized Power Consumption: VR and Syn • Similar to GLFS; • The dynamic provisioning doesn’t import much optimization to VR and Syn1 and Syn2, since it is used for CPU and Memory, especially to CPU. 23

  31. Experimental Evaluation • Execution Time: GLFS • Clustering stop threshold is set: 15% degradation of execution time; • From the result, we know that the degradation of pSciMapper + dynamic provisioning is within 12% 24

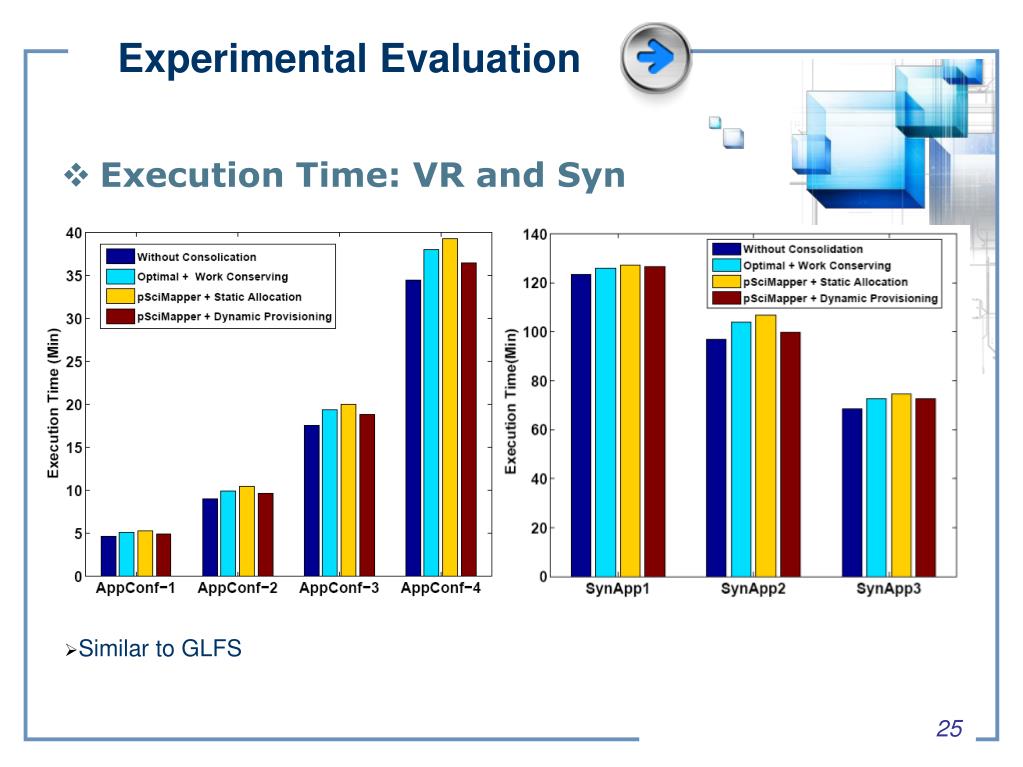

  32. Experimental Evaluation • Execution Time: VR and Syn • Similar to GLFS 25

  33. Experimental Evaluation • Consolidation Overhead and Scalability • The overhead of pSciMapper is much smaller than the heuristic optimal method; • The scalability of pSciMapper is good. 26

  34. 1 3 4 5 2 • Background Key points analysis • Design of pSicMapper • Experimental Evaluation • Motivating Applications Outlines 6 • Conclusion

  35. Conclusion • Design and implement a power-aware consolidation framework, pSciMapper, based on hierarchical clustering method; • pSciMapper is able to reduce the total power consumption by up to 56% with a most 15% slowdown for the workflow applications; • pSciMapper incurs low consolidation overhead so its scalability to large scale scientific workflow applications is good 27

  36. Thank you for your listening! Any Questions?
