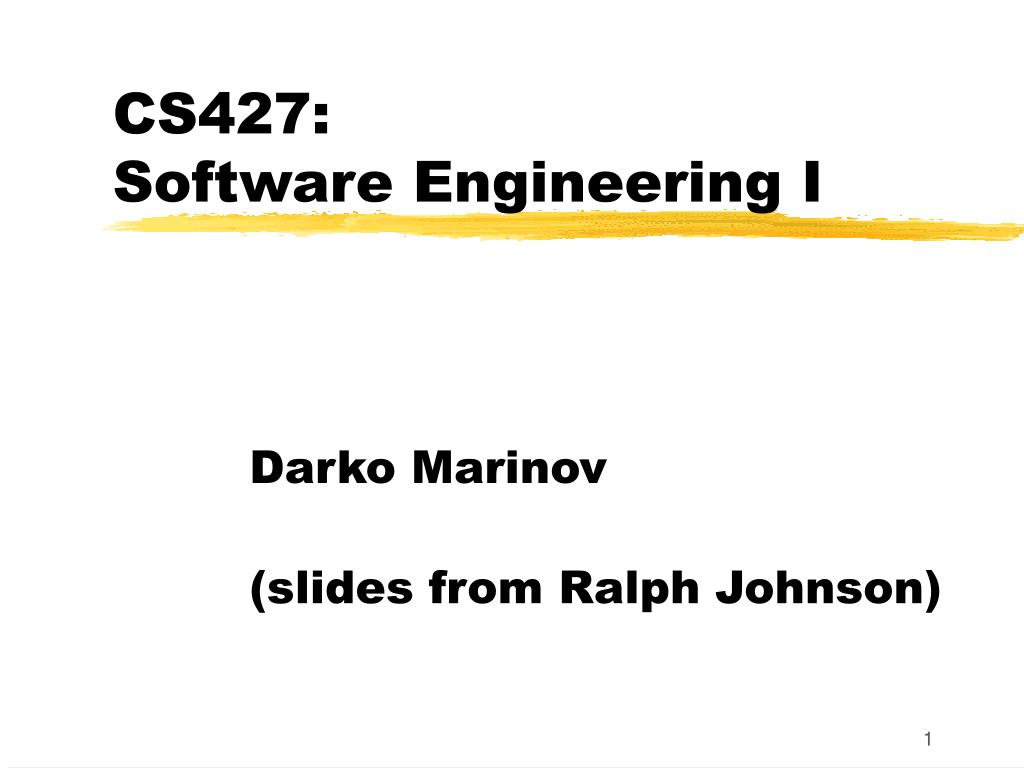

  1. CS427:Software Engineering I Darko Marinov (slides from Ralph Johnson)

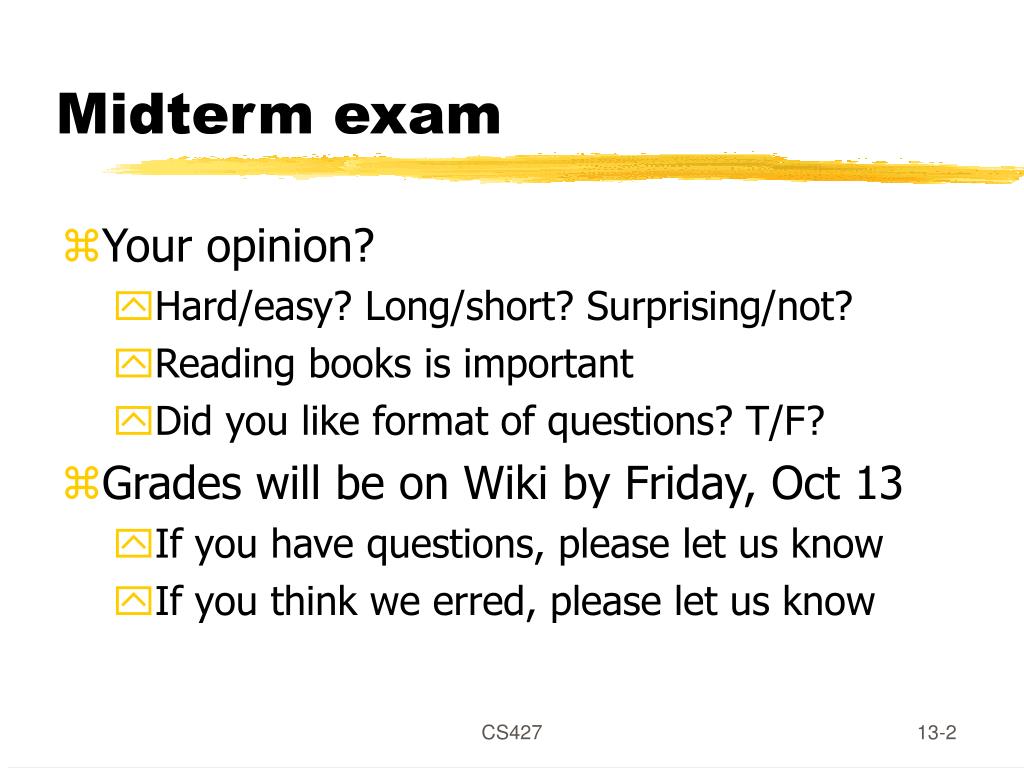

  2. Midterm exam • Your opinion? • Hard/easy? Long/short? Surprising/not? • Reading books is important • Did you like format of questions? T/F? • Grades will be on Wiki by Friday, Oct 13 • If you have questions, please let us know • If you think we erred, please let us know CS427

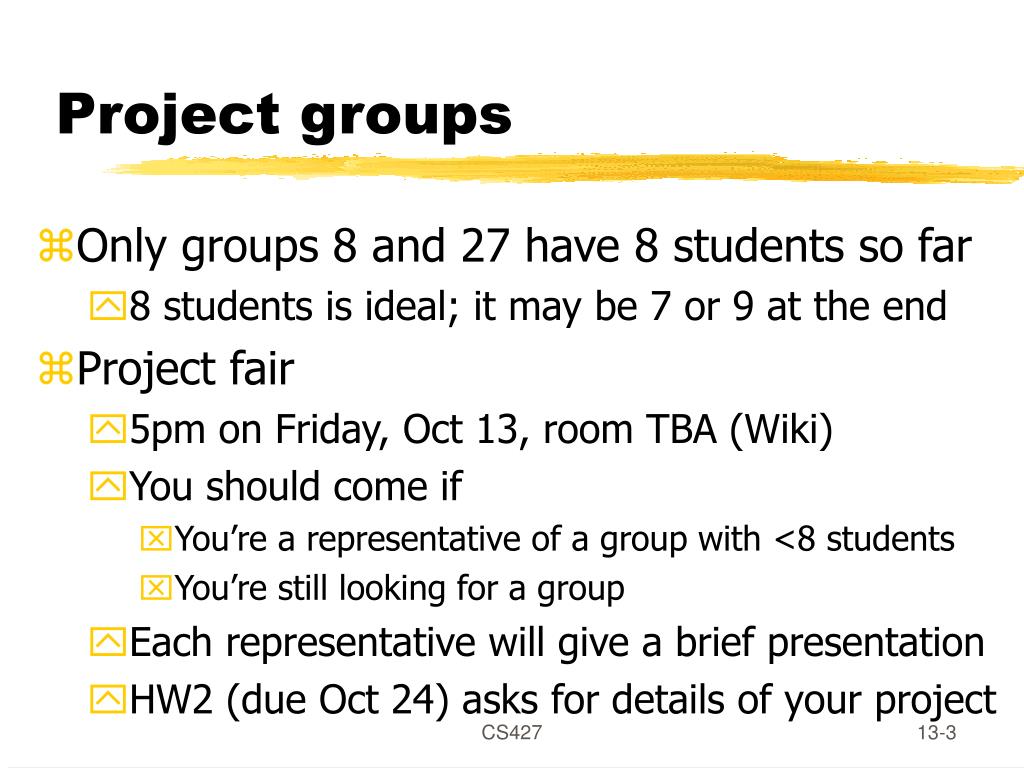

  3. Project groups • Only groups 8 and 27 have 8 students so far • 8 students is ideal; it may be 7 or 9 at the end • Project fair • 5pm on Friday, Oct 13, room TBA (Wiki) • You should come if • You’re a representative of a group with <8 students • You’re still looking for a group • Each representative will give a brief presentation • HW2 (due Oct 24) asks for details of your project CS427

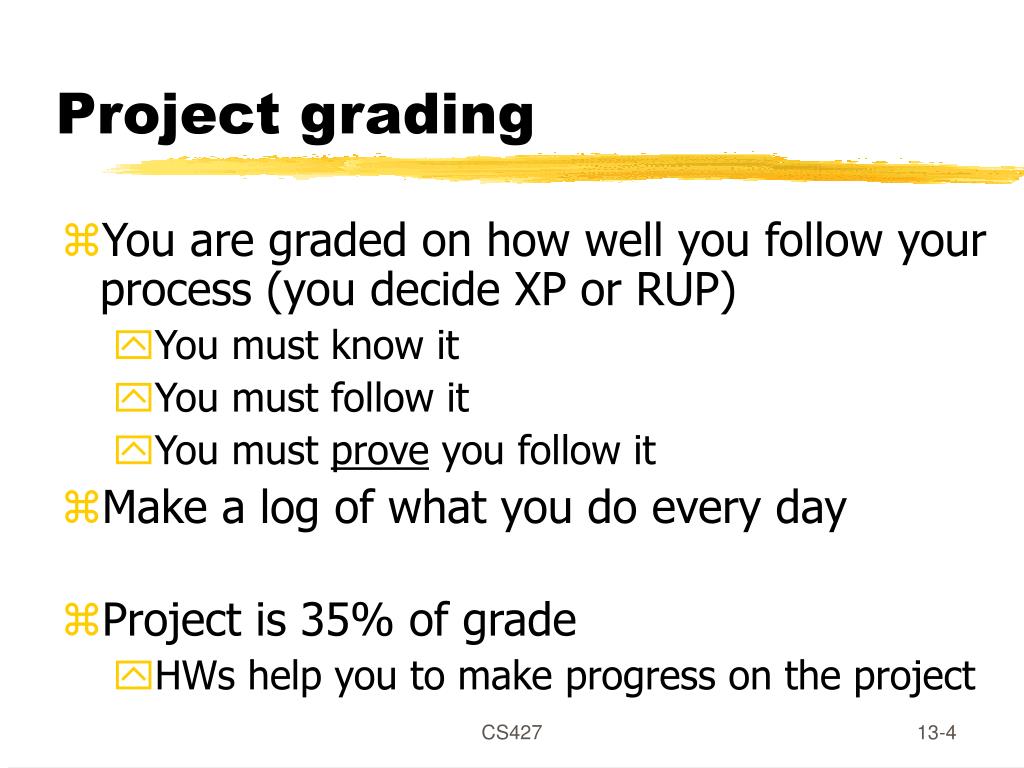

  4. Project grading • You are graded on how well you follow your process (you decide XP or RUP) • You must know it • You must follow it • You must prove you follow it • Make a log of what you do every day • Project is 35% of grade • HWs help you to make progress on the project CS427

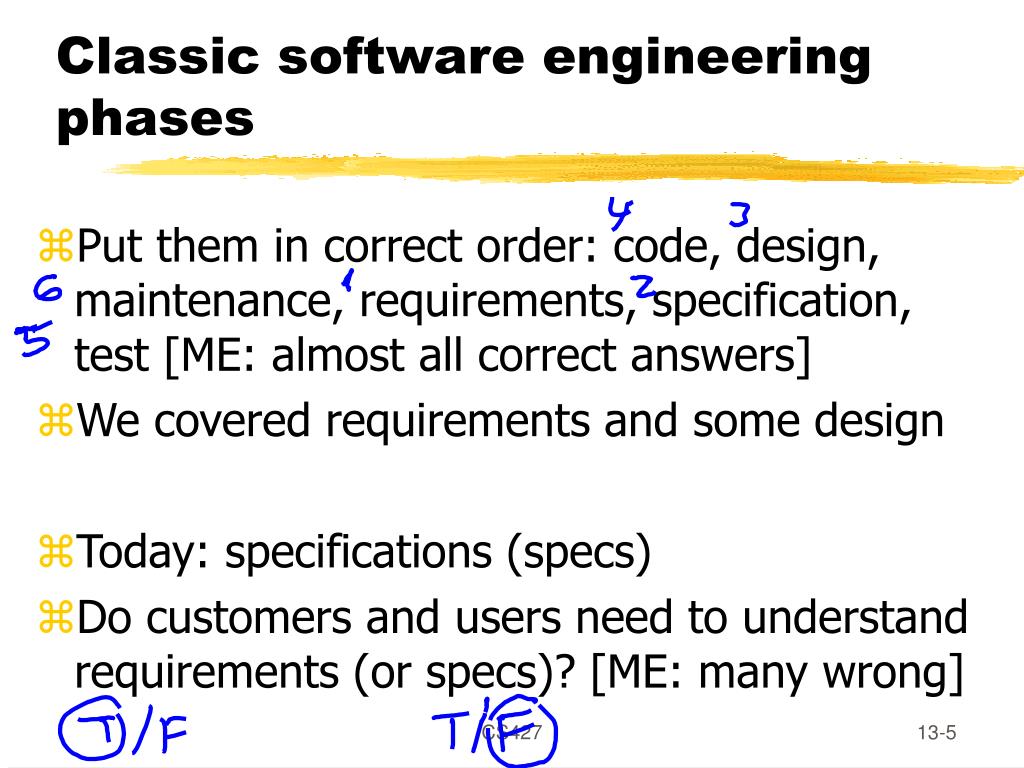

  5. Classic software engineering phases • Put them in correct order: code, design, maintenance, requirements, specification, test [ME: almost all correct answers] • We covered requirements and some design • Today: specifications (specs) • Do customers and users need to understand requirements (or specs)? [ME: many wrong] CS427

  6. Why phases? • Break big job into smaller steps • Let people specialize • Provide check-points • Provide early feedback • Provide multiple views CS427

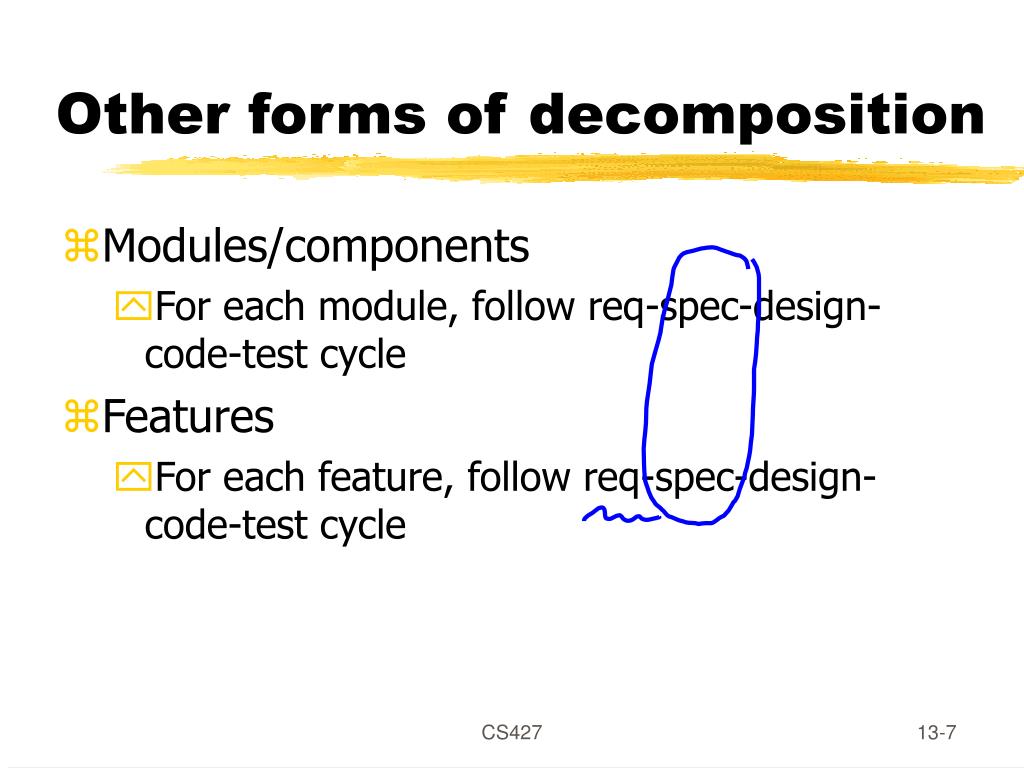

  7. Other forms of decomposition • Modules/components • For each module, follow req-spec-design-code-test cycle • Features • For each feature, follow req-spec-design-code-test cycle CS427

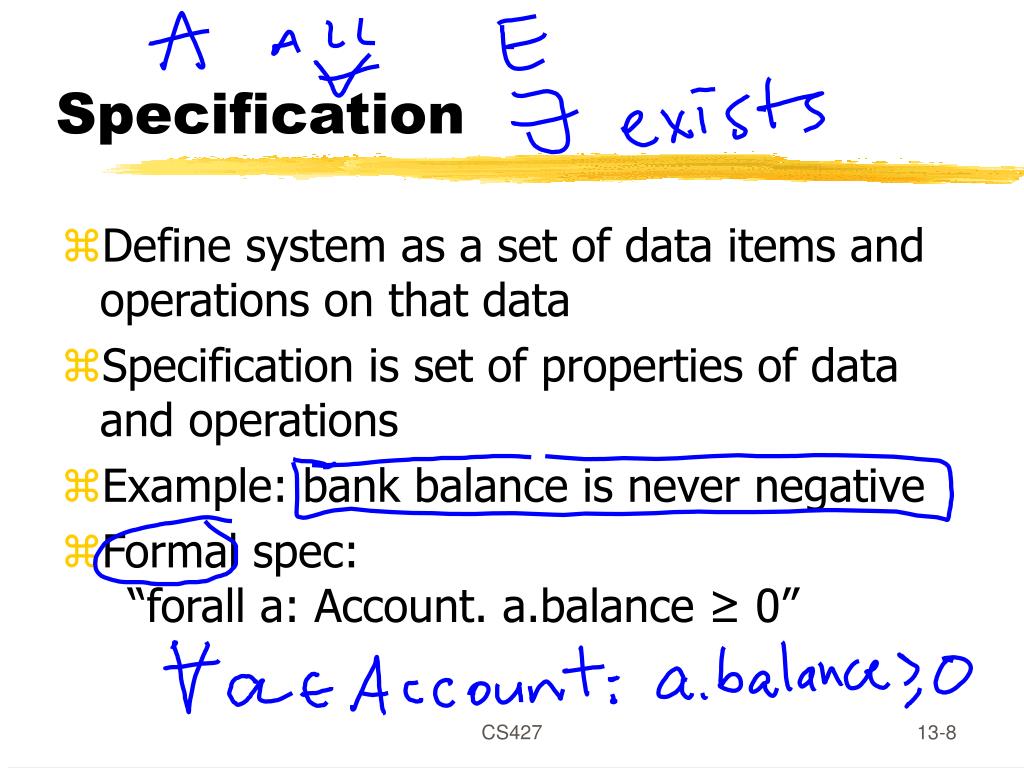

  8. Specification • Define system as a set of data items and operations on that data • Specification is set of properties of data and operations • Example: bank balance is never negative • Formal spec: “forall a: Account. a.balance ≥ 0” CS427

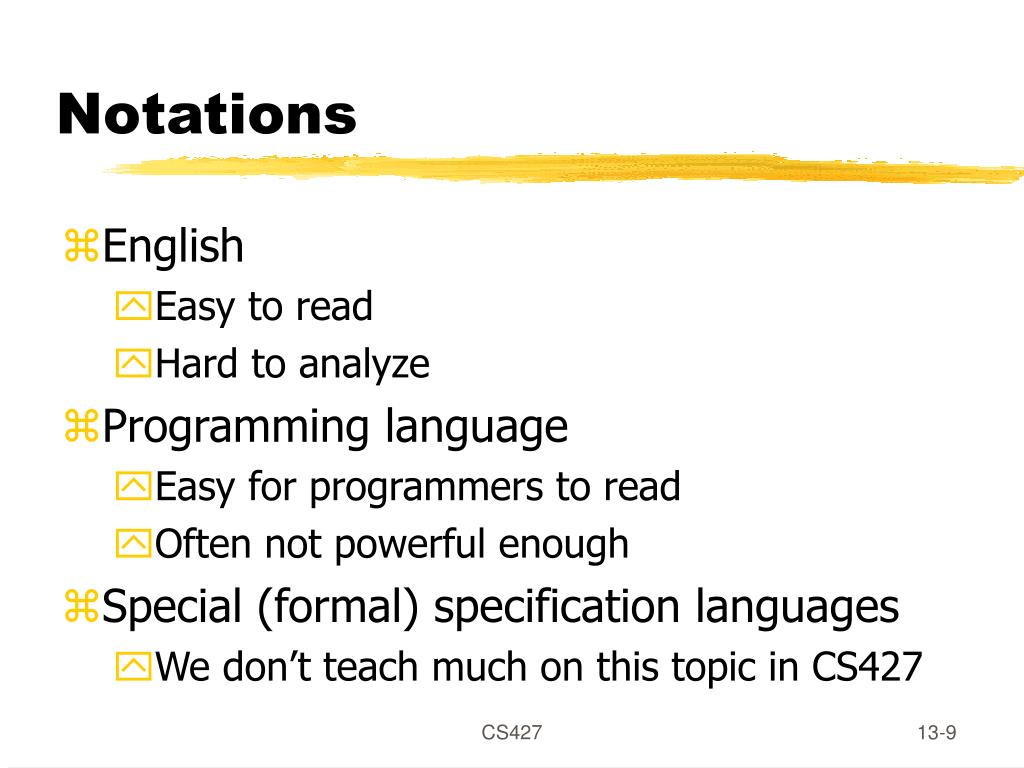

  9. Notations • English • Easy to read • Hard to analyze • Programming language • Easy for programmers to read • Often not powerful enough • Special (formal) specification languages • We don’t teach much on this topic in CS427 CS427

  10. Why formal languages? • Can describe many artifacts (specs, designs, requirements) [ME: many correct answers] • Documentation (precise, unambiguous) • Enables (automatic!) machine reasoning • Informal: “everybody likes a winner”? • exists w: Winner. exists p: Person. p.likes(w) • exists w: Winner. all p: Person. p.likes(w) • all p: Person. exists w: Winner. p.likes(w) • all p: Person. all w: Winner. p.likes(w) CS427

  11. Credit card • A credit card has a balance that is the sum of all charges minus the sum of all payments. If the balance is not paid within 20 days of billing, 1% of the unpaid balance is charged as interest. Each credit card has a particular day on which it is billed each month. Customers cannot charge if the charge would put balance over the limit. [Data and operations?] CS427

  12. Data and operations • Credit card has • balance • limit • billing day • Operations on credit card • pay(amount) • charge(amount) CS427

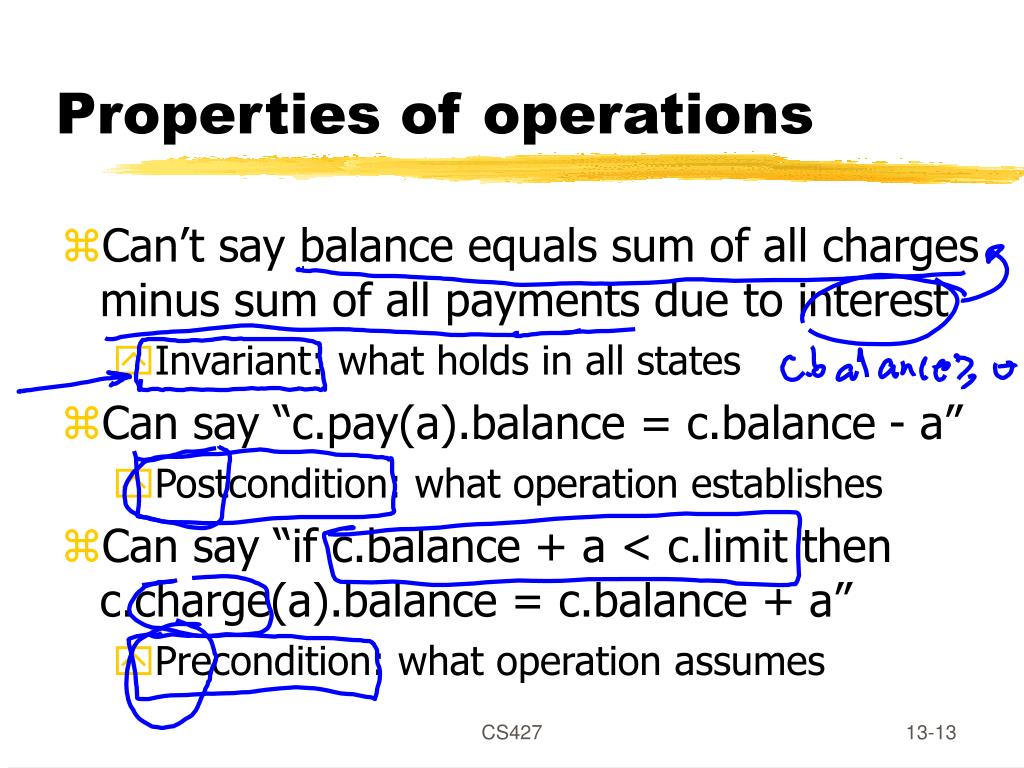

  13. Properties of operations • Can’t say balance equals sum of all charges minus sum of all payments due to interest • Invariant: what holds in all states • Can say “c.pay(a).balance = c.balance - a” • Postcondition: what operation establishes • Can say “if c.balance + a < c.limit then c.charge(a).balance = c.balance + a” • Precondition: what operation assumes CS427

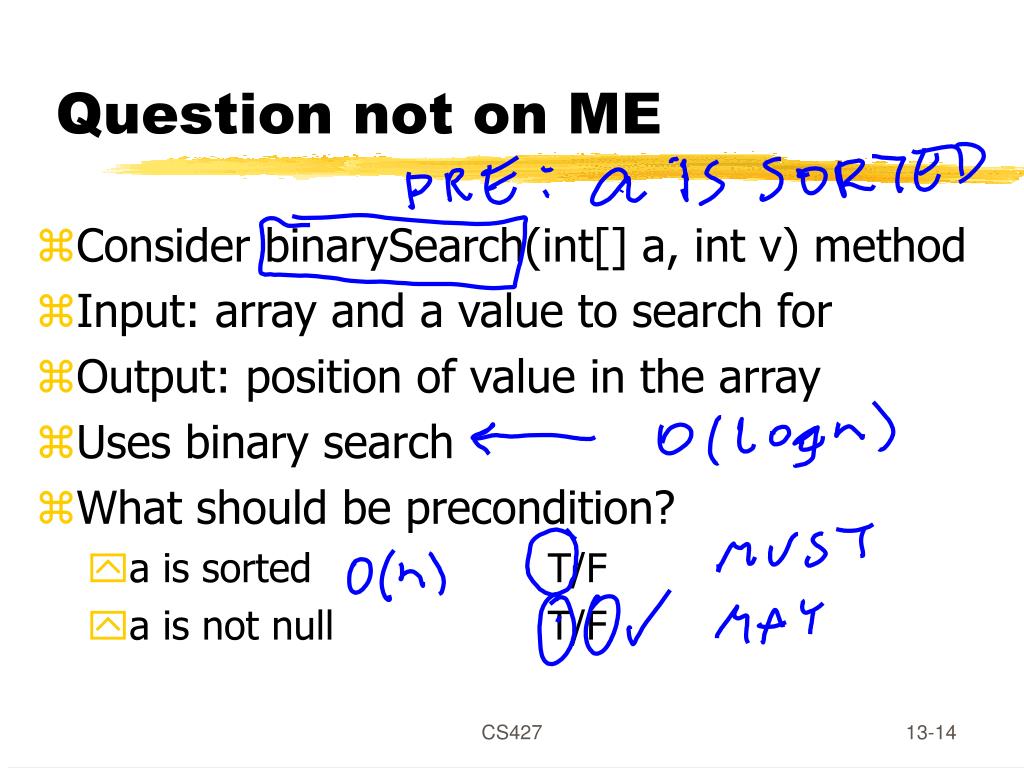

  14. Question not on ME • Consider binarySearch(int[] a, int v) method • Input: array and a value to search for • Output: position of value in the array • Uses binary search • What should be precondition? • a is sorted T/F • a is not null T/F CS427

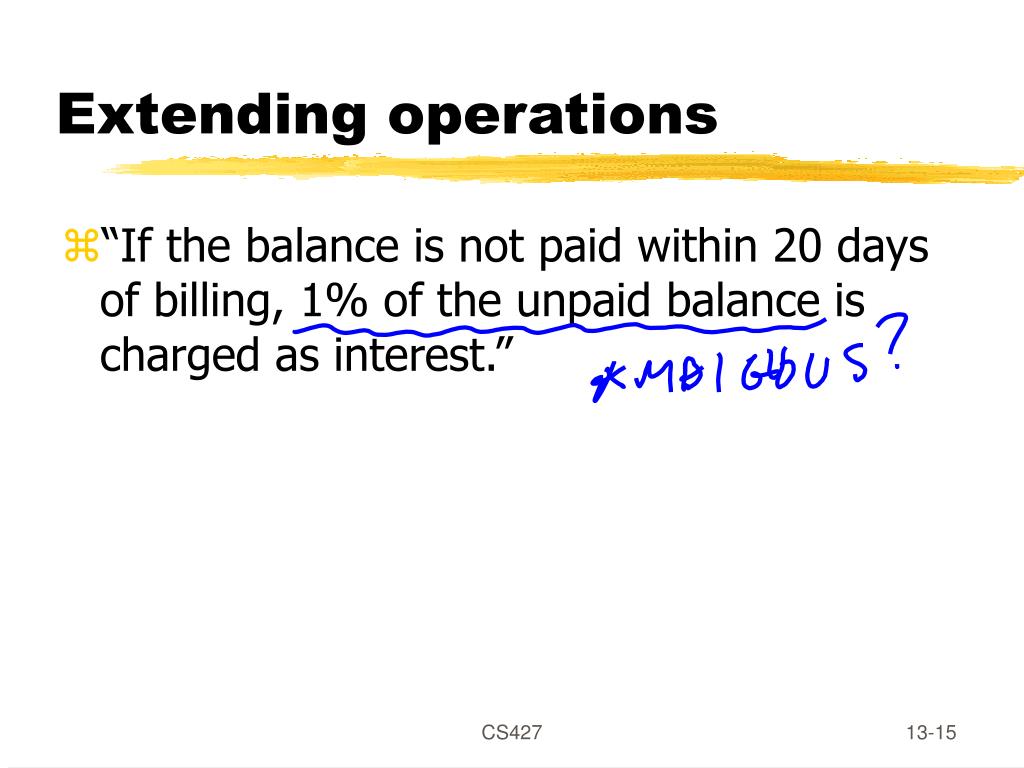

  15. Extending operations • “If the balance is not paid within 20 days of billing, 1% of the unpaid balance is charged as interest.” CS427

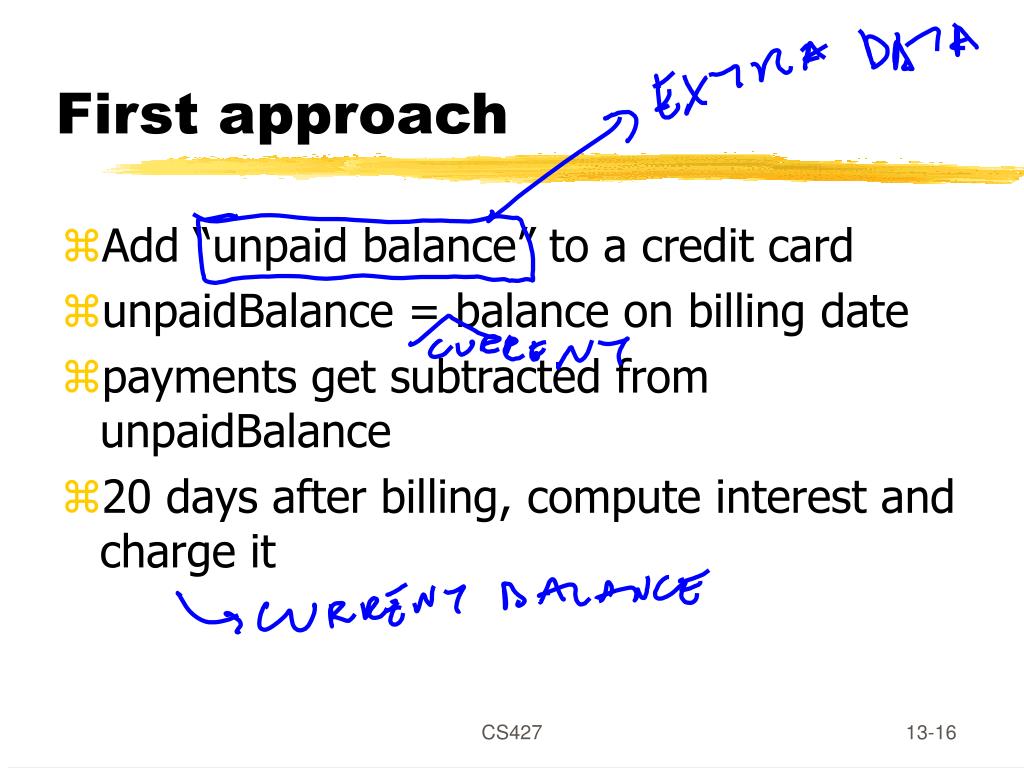

  16. First approach • Add “unpaid balance” to a credit card • unpaidBalance = balance on billing date • payments get subtracted from unpaidBalance • 20 days after billing, compute interest and charge it CS427

  17. Second approach • Add date to payments and charges • Operations on credit card • pay(amount, date) • charge(amount, date) • Credit card has • balance, limit, billing day • set of payments • set of charges CS427

  18. Second approach For each credit card balance(date) = (sum a for d<=date of charges(a,d)) –(sum a for d<=date of payments(a,d)) There is a c in charges(a, billingDate + 20) wherec.balance(billingDate) –sum a for d<=date of charges(a, d) CS427

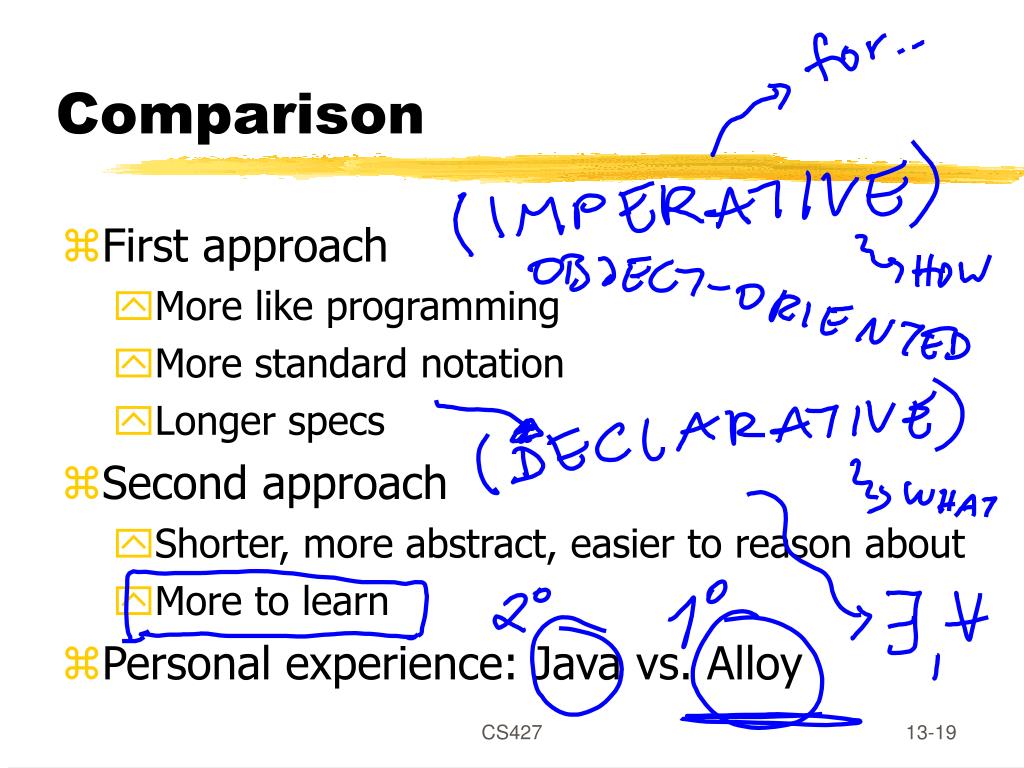

  19. Comparison • First approach • More like programming • More standard notation • Longer specs • Second approach • Shorter, more abstract, easier to reason about • More to learn • Personal experience: Java vs. Alloy CS427

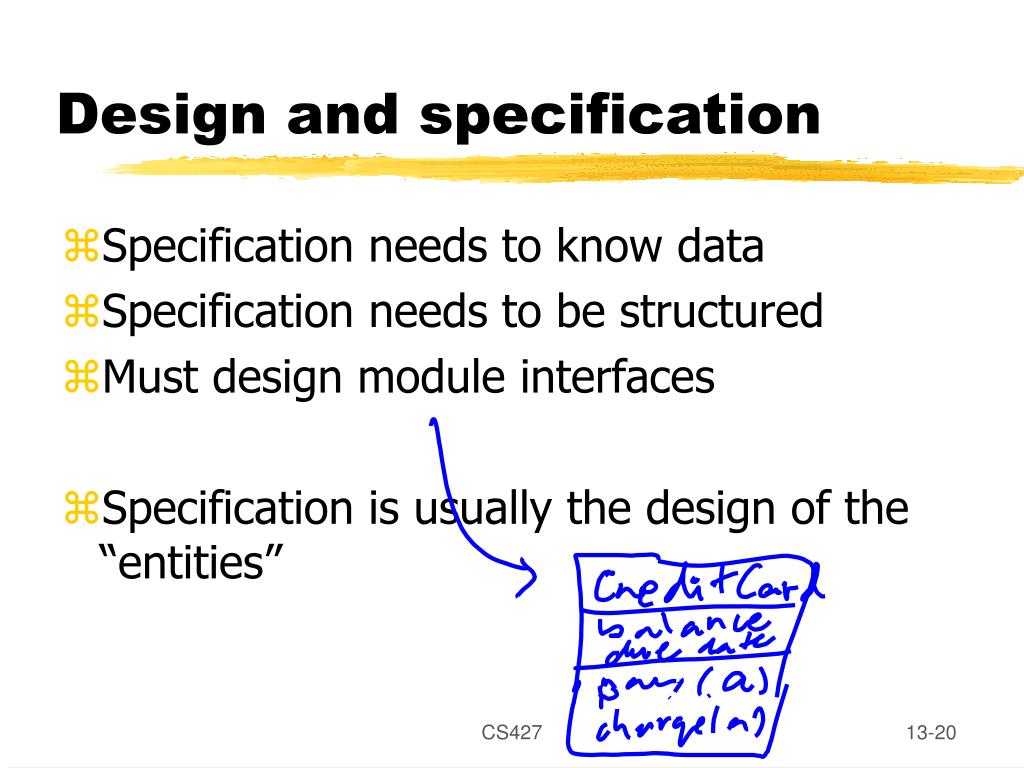

  20. Design and specification • Specification needs to know data • Specification needs to be structured • Must design module interfaces • Specification is usually the design of the “entities” CS427

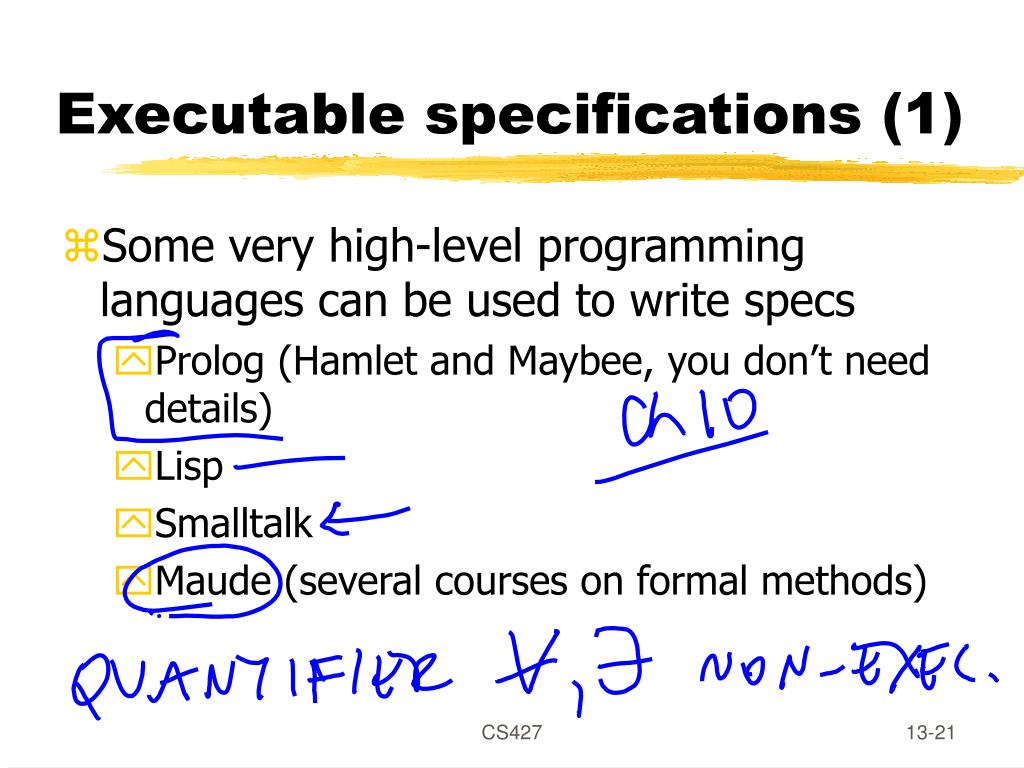

  21. Executable specifications (1) • Some very high-level programming languages can be used to write specs • Prolog (Hamlet and Maybee, you don’t need details) • Lisp • Smalltalk • Maude (several courses on formal methods) CS427

  22. Executable specifications (2) • Write and test specification • Rewrite in efficient language • Write and test specification • Rewrite to be more efficient CS427

  23. Story about Ada • Ada - language invented by military project around 1980 • Specification, verification suite • First Ada compiler written in SetL • “Set Language” • Slow, but tested spec and verification suite • Moral: executable specifications are useful CS427

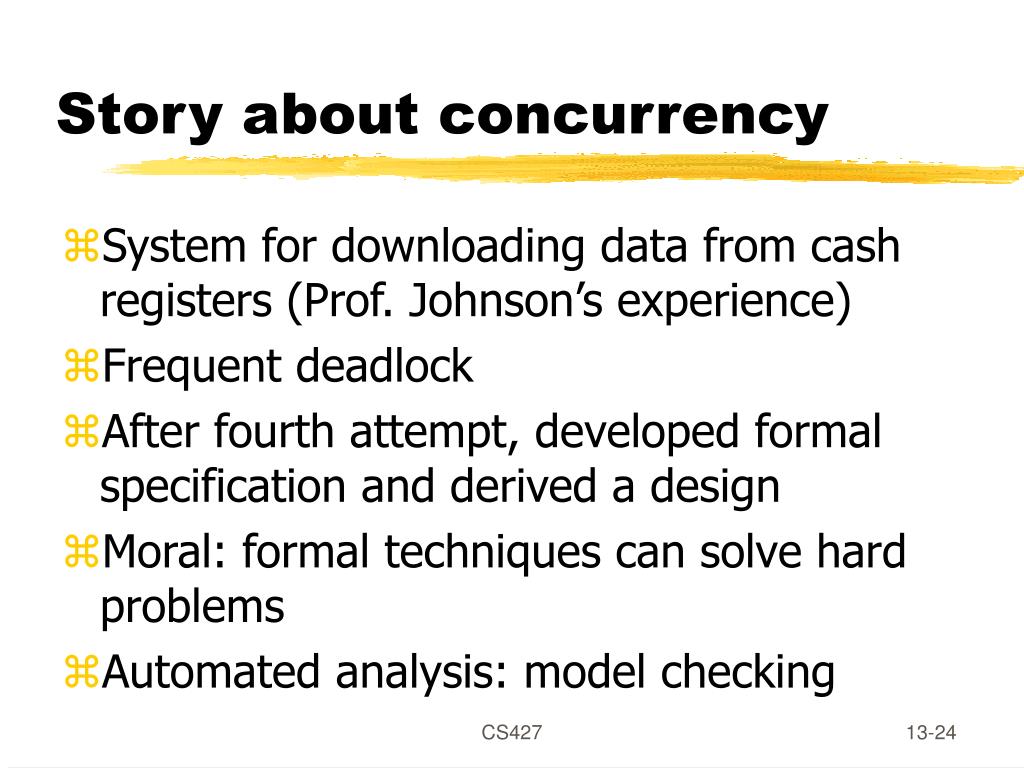

  24. Story about concurrency • System for downloading data from cash registers (Prof. Johnson’s experience) • Frequent deadlock • After fourth attempt, developed formal specification and derived a design • Moral: formal techniques can solve hard problems • Automated analysis: model checking CS427

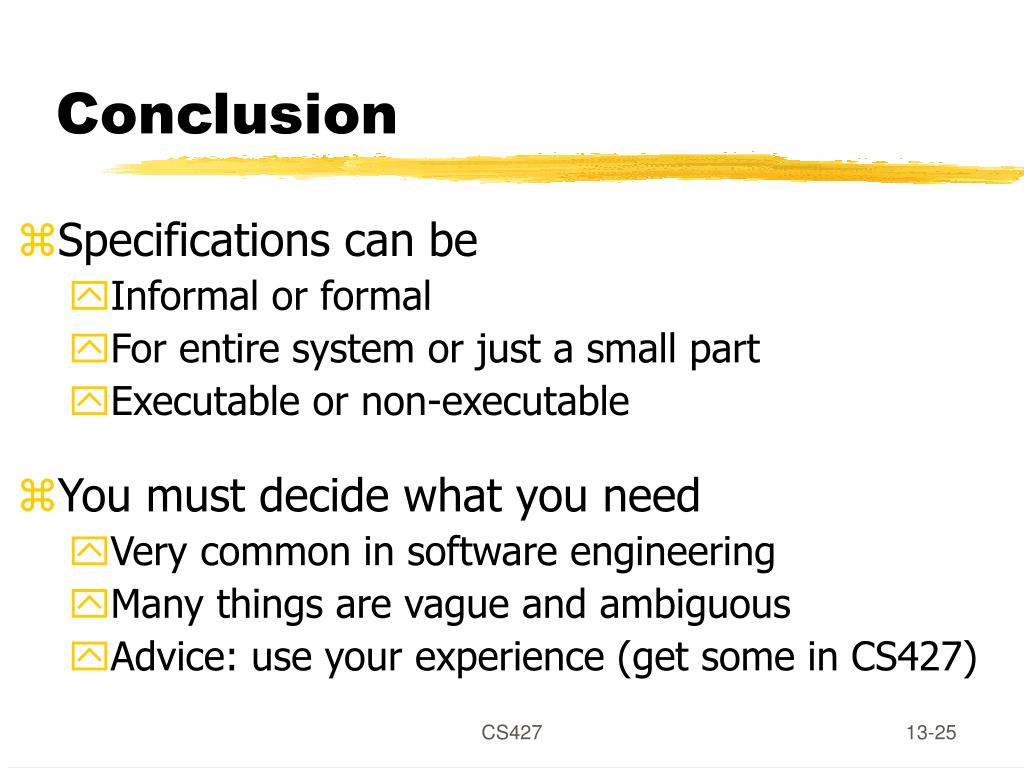

  25. Conclusion • Specifications can be • Informal or formal • For entire system or just a small part • Executable or non-executable • You must decide what you need • Very common in software engineering • Many things are vague and ambiguous • Advice: use your experience (get some in CS427) CS427

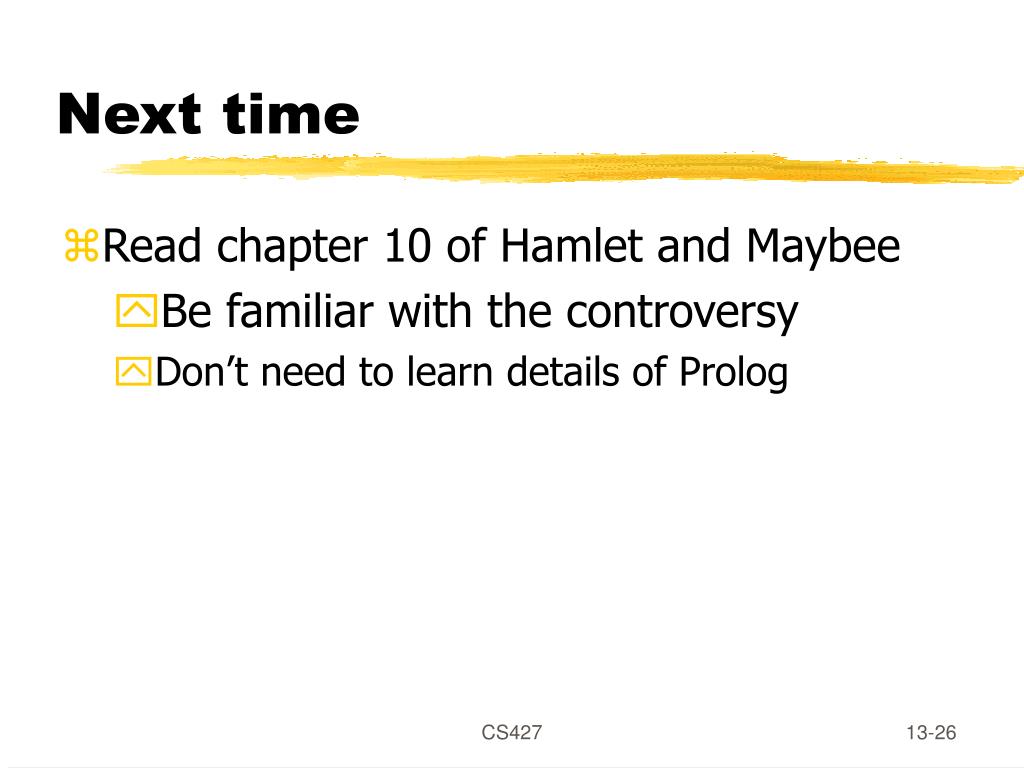

  26. Next time • Read chapter 10 of Hamlet and Maybee • Be familiar with the controversy • Don’t need to learn details of Prolog CS427
