Gradient between two points

y. x. ( y 2  y 1 ). ( x 2 , y 2 ). ( x 2  x 1 ). ( x 1 , y 1 ). Gradient between two points. The gradient of a line is the slope of the line. The gradient is the ratio of the rise to the run of the line. We use the letter m for gradient. For any line.

penha
Télécharger la présentation

Gradient between two points

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

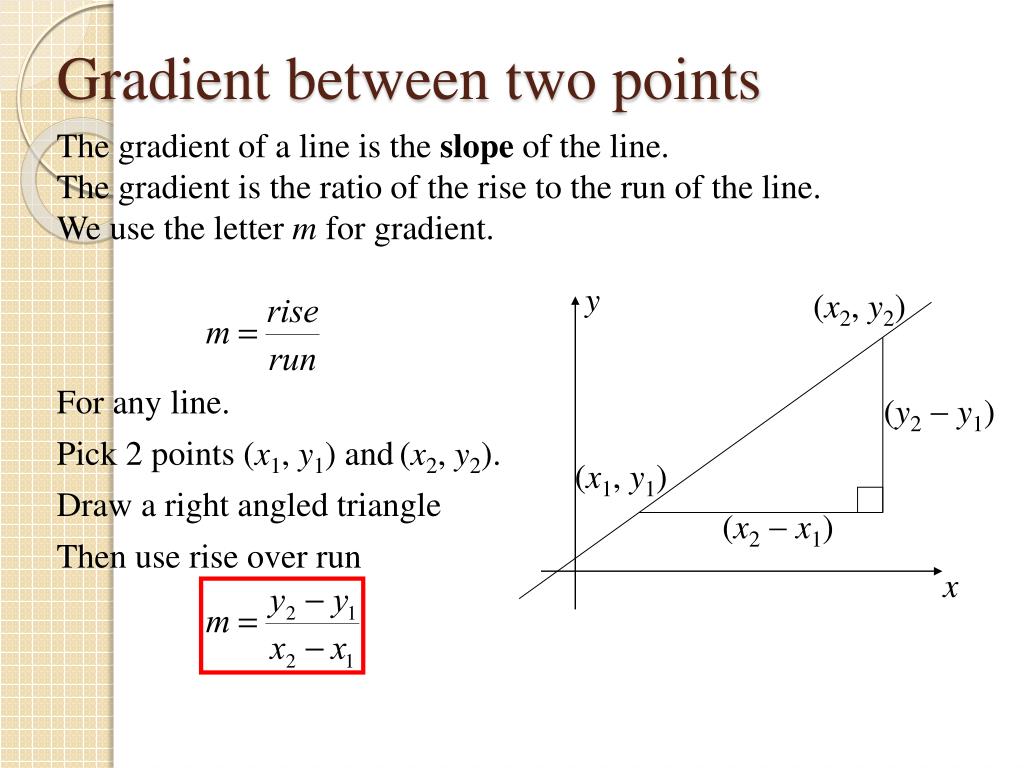

  1. y x (y2y1) (x2, y2) (x2x1) (x1, y1) Gradient between two points The gradient of a line is the slope of the line. The gradient is the ratio of the rise to the run of the line. We use the letter m for gradient. For any line. Pick 2 points (x1, y1) and(x2, y2). Draw a right angled triangle Then use rise over run

  2. Gradient between two points The gradient of a line may be small, having a “gentle” slope The gradient of a line may be large, having a “steep” slope A line with a positive gradient slopes “upwards” from left to right. A line with a negative gradient slopes “downwards” from left to right.

  3. Example 1 Show the points A(2, 5), B(6, 11) and C(–6, –7) are collinear. Remember collinear means the points lie on the same line. First calculate the gradient of any 2 points, say AB. Then calculate the gradient of either A or B and C. What would happen if we had the points the other way around?. As mAB = mAC A, B and C are collinear.

  4. Today’s work Exercise 7.3 Page 279 Q1 a→c Q2, 5, 6 & 12
