  1. The Shortest Distance Between Man and Machine Distributor Sales Training – MachineLogic Overview

  2. CTC Products • HMI Hardware and Software • Dedicated HMI - Interact Soft. / PowerStation Hard. • Windows HMI – InteractX Soft. / PowerStation Hard. • MotionPanel™ HMI for Compumotor 6K • PC-Based Control • MachineLogic SoftPLC for Interact Applications • MachineLogic SlotPLC for Interact and Windows Apps • Integrated with HMI Software and Hardware • Industrial PCs and Monitors • Factory-Hardened Touchscreen PCs • 10” and 18” TFT Displays

  3. MachineLogic – PC Based Control Complete control solution for machine applications… • MachineLogic PC Based Controller • MachinePoint I/O • Bundled with CTC HMI Software • Interact and P1/PS PowerStations • InteractX and PX PowerStations

  4. MachineLogic Overview Key Benefits… • Open PC architecture with PLC type reliability • Flexible and full featured IEC-61131 programming • Powerful real-time deterministic control • Select runtime target to meet application needs • One vendor for your PC based control needs

  5. MachineLogic Overview MachineLogic Includes… • Development Environment • Program Definition and Debugging • I/O Configuration • System Configuration and Management • Runtime Systems • Runtime Control • Runtime Management Software • I/O Interfaces • I/O Product

  6. MachineLogic Overview Development Environment • Mix and Match all 5 IEC-61131 Languages • Editing Wizards and Templates • Advanced Debugging Tools • Online Programming • I/O Forcing • Logic Analyzer • Cross References Ladder IL ST FB SFC

  7. MachineLogic Overview Runtime Environment • Pick platform for application • SoftPLC – micro applications • SlotPLC – small to large applications • Powerful performance • 16 simultaneous, 1 ms tasks • Up to 16K of physical I/0 • PLC type hardware features • High speed retentive variable memory • Hardware watchdog and power failure detection • Supports multiple distributed I/O types

  8. MachineLogic Runtime I/O Interfaces Supported • DeviceNet • Profibus-DP • Modbus TCP/IP Ethernet • PC/104 I/O Cards • Diamond GMM48 DIO • Acces Analog 8AI, 4A0, 24DIO • Dual Port RAM & I/O Port • Firmware Function Blocks • Custom Needs

  9. MachineLogic Runtime Complete CTC I/O Solutions… • I/O Networks • MachinePoint I/O Types • Digital I/O (24VDC and AC) • Analog I/O (mA and VDC) • Specialty Modules (Thermocoupler and Counter)

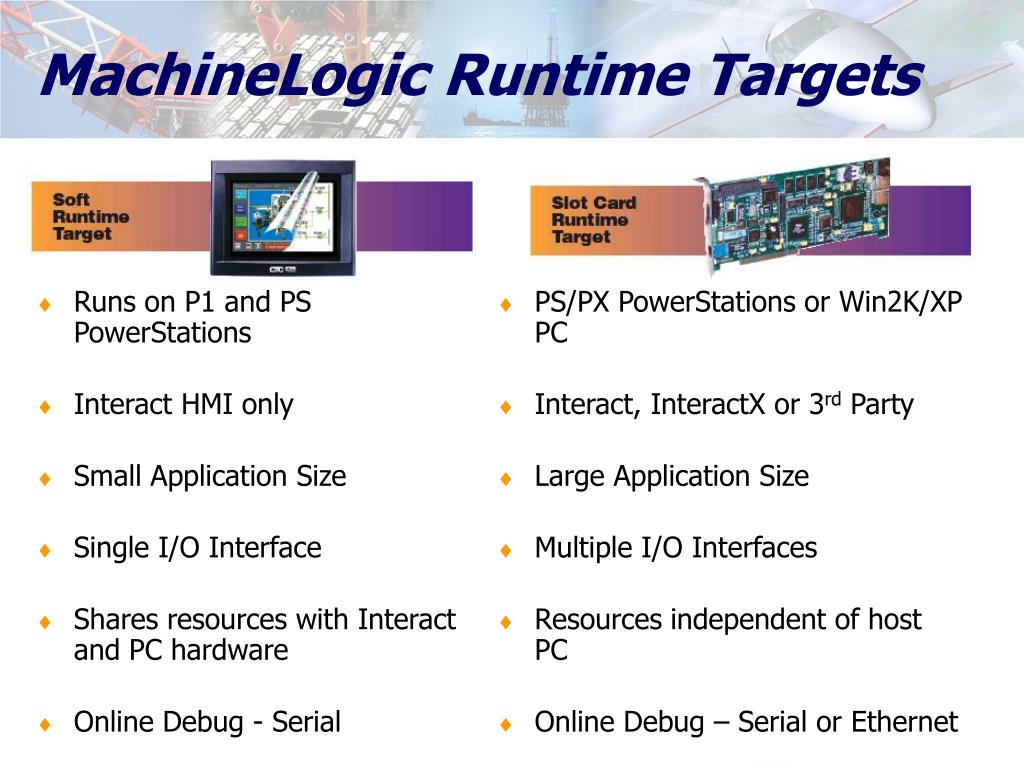

  10. Runs on P1 and PS PowerStations Interact HMI only Small Application Size Single I/O Interface Shares resources with Interact and PC hardware Online Debug - Serial PS/PX PowerStations or Win2K/XP PC Interact, InteractX or 3rd Party Large Application Size Multiple I/O Interfaces Resources independent of host PC Online Debug – Serial or Ethernet MachineLogic Runtime Targets

  11. MachineLogic Runtime Targets SoftPLC Runtime (MLPC) • Performance • Shares CPU with Interact • Operating System: RTXDOS • Application Size: Memory dependent • Tasks intervals depend on CPU 1000 Rungs of Ladder • 11ms on P1 • 1ms on PS10 • Application Storage on CompactFlash • Failsafe features on passive Control Adapter card • PC/104 or ISA Form Factor • Up to 32K Retentive Memory • Power Failure Detection • Watchdog Relay

  12. MachineLogic Slot Card • Control Engine on PCI card Complete PC-Based Control System on a Single Card! PC104 Interface for I/O (DeviceNet, Profibus) PCI Bus Master Interface Embedded 133MHz CPU Dedicated to run MachineLogic

  13. MachineLogic Runtime Targets SlotPLC Runtime (MLSC) • Performance • 133MHz CPU Independent of host PC • Operating System: 32-bit embedded • Application Size: up to 4MB (20x MLPC) • Tasks intervals: 1000 Rungs of Ladder <1ms • Slot Card features • ¾ Slot PCI Master • Onboard RS-232, Ethernet and I/O scanner connections • Application Storage on board • 32K Retentive Memory • Power Failure Detection • Watchdog Relay • Status LEDs

  14. MachineLogic InteractX Driver or OPC Server Slot Card Runtime (SlotPLC) Coming Soon for InteractX

  15. MachineLogic Demonstration…

  16. MachineLogic 1, 2, and 3 – Configure a runtime system…

  17. MachineLogic Configuring a runtime system (cont)…

  18. Model Numbers MSP-10??-P ($1500) MLC-6020 ($2250) Software supplied with MachineShop package Interact MachineLogic 3rd Party I/O Configuration Software Key Protected Model Numbers MLSC-6020 ($2250) Software on MachineLogic for Windows CD (different software than MachineShop package) MachineLogic 3rd Party I/O Configuration Software Key Protected MachineLogic Ordering a development system… With Interact With InteractX (ML for Windows)

  19. Questions & Answers
