Presentation Transcript

  1. Deploying a DevInfo 6 Database on the Web Presented by Marc Rabbat and Ray Goh

  2. Planning your DevInfo implementation • Regional or country wide scope • Access and performance • Hosting arrangements (ISPs, regional aggregator) • Bandwidth and number of anticipated users • Collaboration between parties • How to transfer/upload data • Integrity of data • Cleanliness of the data • Timeliness of the data • Capacity and future growth Web users are very picky and easily turned off

  3. Deploying DevInfo (Conceptual)

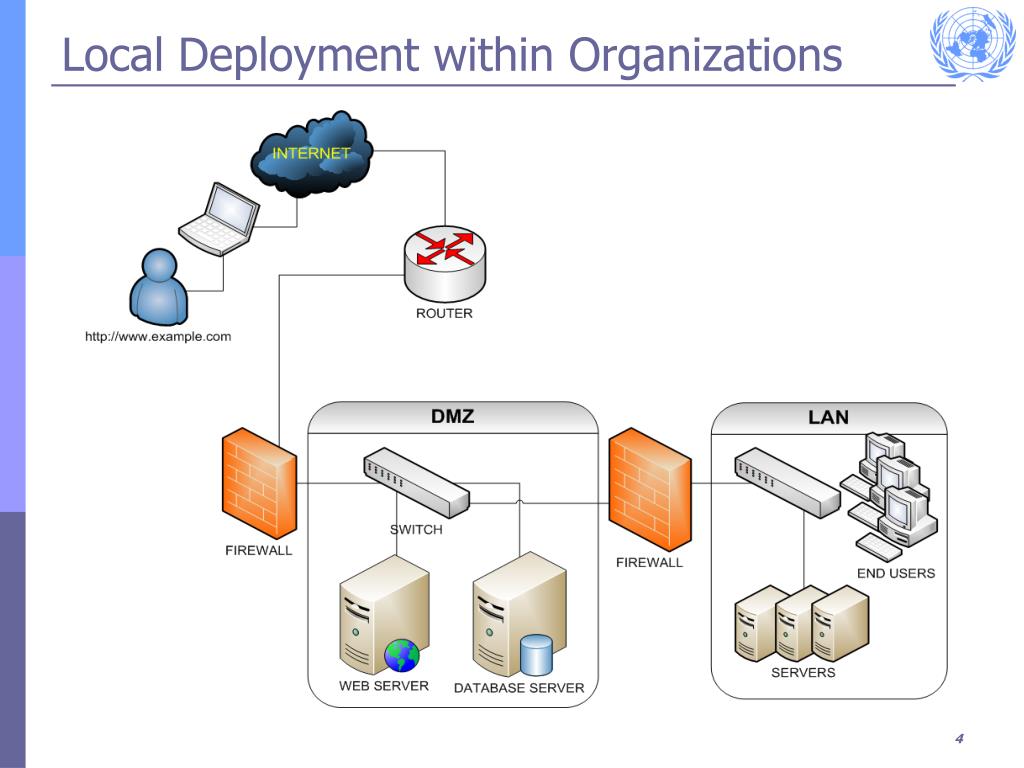

  4. Local Deployment within Organizations

  5. Requirements • Microsoft Windows 2000/2003 Server running IIS 5.0/6.0 • Microsoft SQL Server 2000/2005 to host the Database • Buying/Registering a Domain name.

  6. Components of DevInfo Deployment • 2 components for installation : • Database • Web

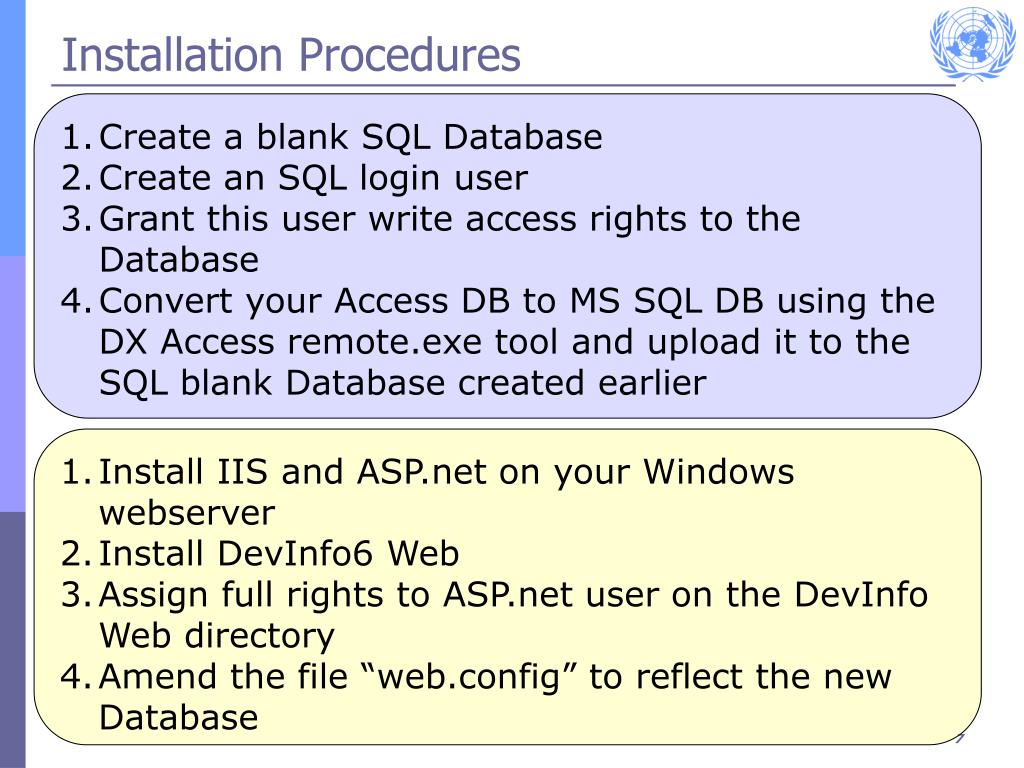

  7. Installation Procedures Create a blank SQL Database Create an SQL login user Grant this user write access rights to the Database Convert your Access DB to MS SQL DB using the DX Access remote.exe tool and upload it to the SQL blank Database created earlier Install IIS and ASP.net on your Windows webserver Install DevInfo6 Web Assign full rights to ASP.net user on the DevInfo Web directory Amend the file “web.config” to reflect the new Database

  8. Questions ?

  9. Technical Configuration

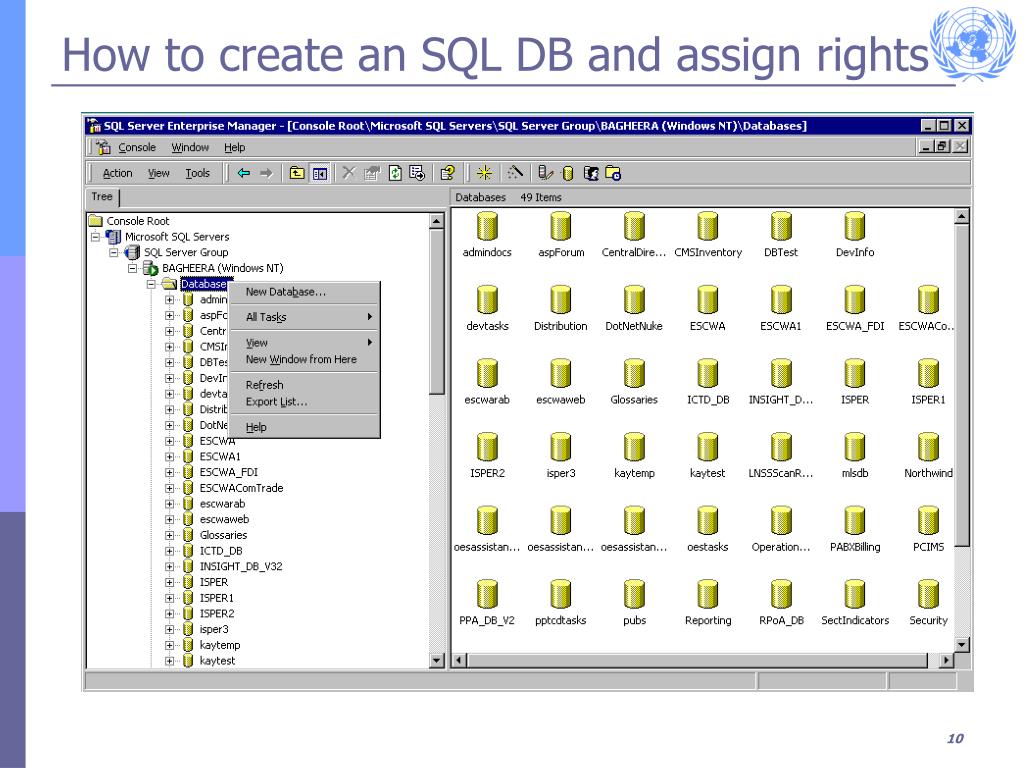

  10. How to create an SQL DB and assign rights

  11. Creating the Database

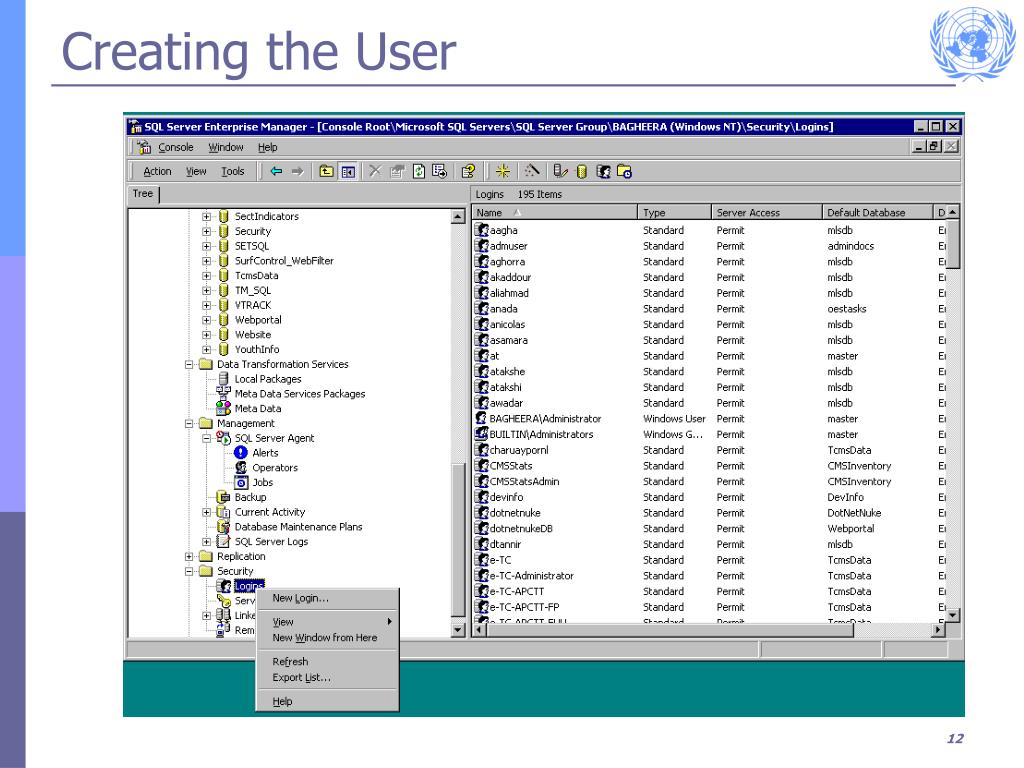

  12. Creating the User

  13. Assigning rights

  14. Install Devinfo Admin tool

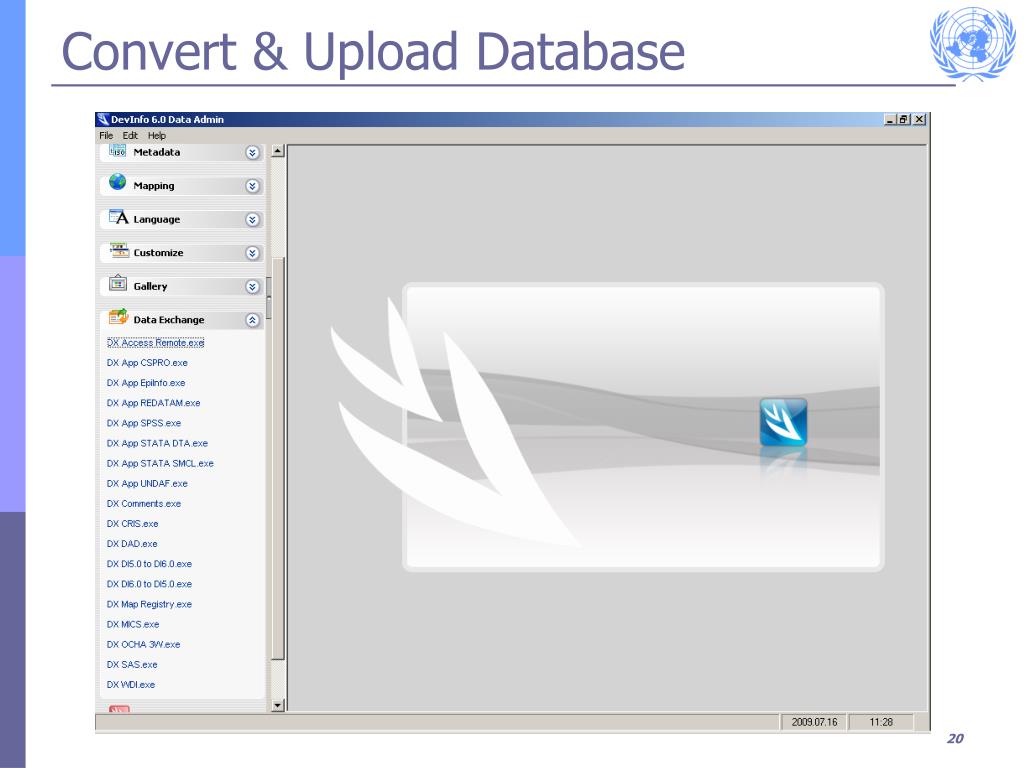

  15. Convert & Upload Database

  16. Selecting the Database to upload

  17. Creating the SQL connection

  18. Converting and Uploading to the SQL Database

  19. Installing IIS and ASP.NET

  20. Selecting components to install

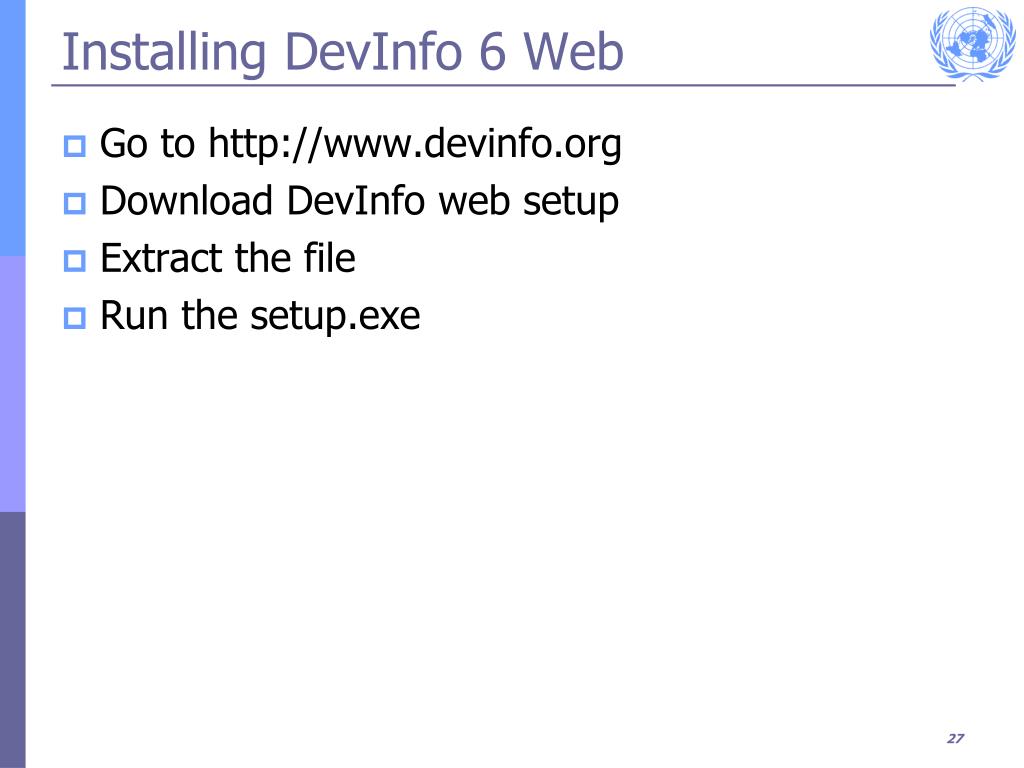

  21. Installing DevInfo 6 Web • Go to http://www.devinfo.org • Download DevInfo web setup • Extract the file • Run the setup.exe

  22. Installing DevInfo 6 Web

  23. Assigning full rights to ASP.NET User

  24. Customizing the website • Copy and replace the images located in C:\Inetpub\wwwroot\DI6web\images\adaptation\homepage\view\slideshow • Images size should be 268x323 pixels(widthxheight) • Replace the file “slideshow.swf” located in C:\Inetpub\wwwroot\DI6web\images\adaptation\homepage\view
