  1. Permission Encoding in 1609 William Whyte, Security Innovation April 7 2010

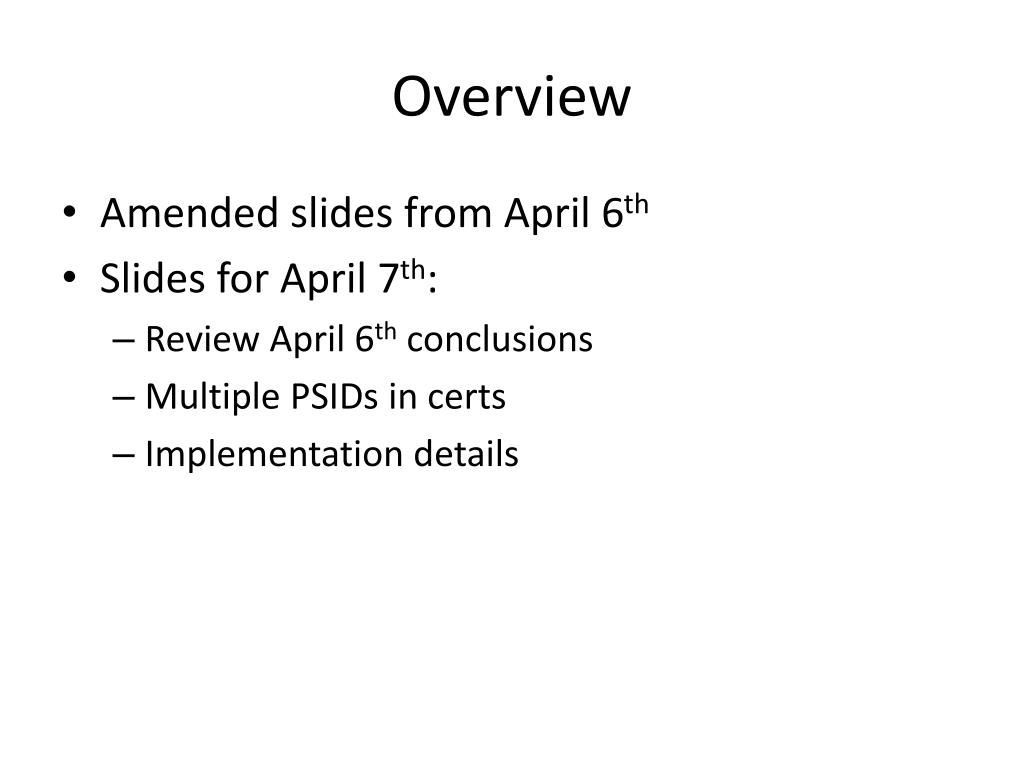

  2. Overview • Amended slides from April 6th • Slides for April 7th: • Review April 6th conclusions • Multiple PSIDs in certs • Implementation details

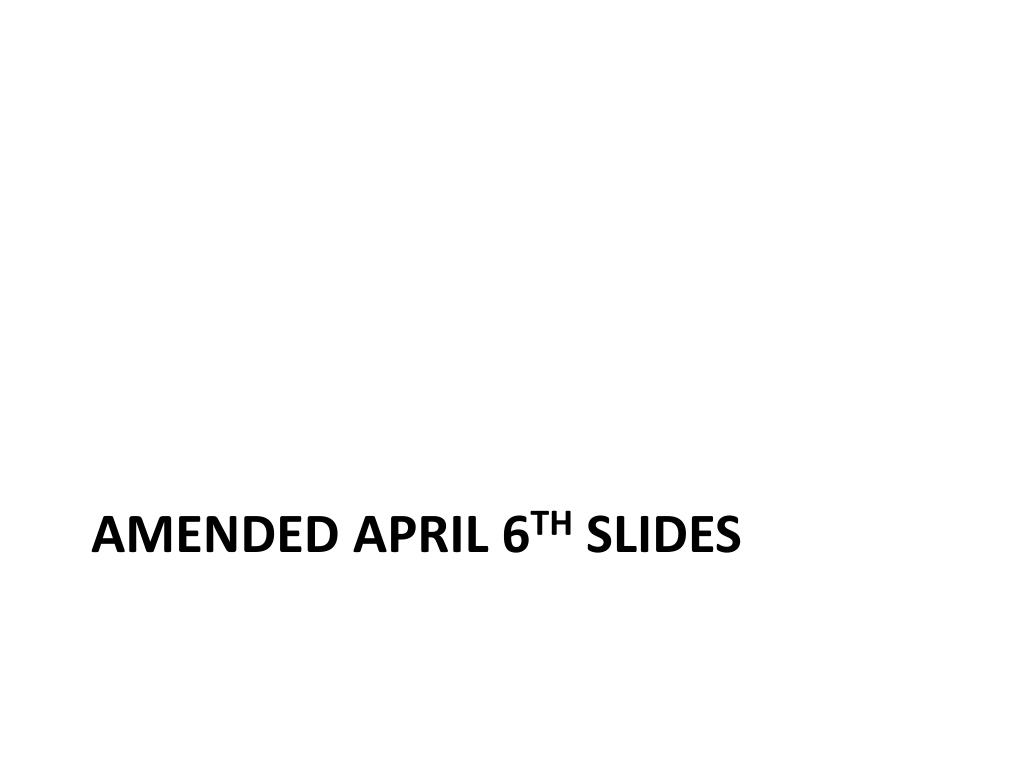

  3. Amended April 6th slides

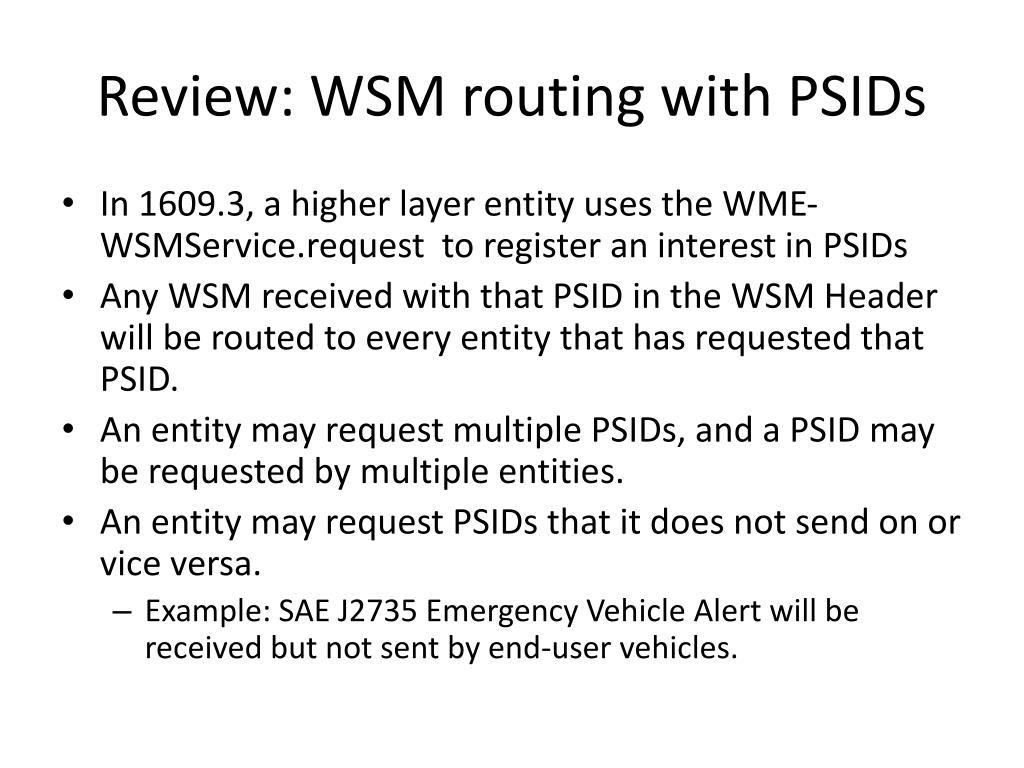

  4. Review: WSM routing with PSIDs • In 1609.3, a higher layer entity uses the WME-WSMService.request to register an interest in PSIDs • Any WSM received with that PSID in the WSM Header will be routed to every entity that has requested that PSID. • An entity may request multiple PSIDs, and a PSID may be requested by multiple entities. • An entity may request PSIDs that it does not send on or vice versa. • Example: SAE J2735 Emergency Vehicle Alert will be received but not sent by end-user vehicles.

  5. Permission enforcement • A sender states what permissions it’s claiming and gives proof that it’s entitled to those permissions • In 1609.2-2006: • Permissions are encoded by PSID • PSID appears in header of signed message • PSID appears in certificate • A certificate is a statement of the holder’s permissions, made by a trusted third party • If a higher layer entity receives a message on a requested PSID, signed and with an appropriate cert attached, can be trusted. • So PSIDs are used both for routing and for permission encoding

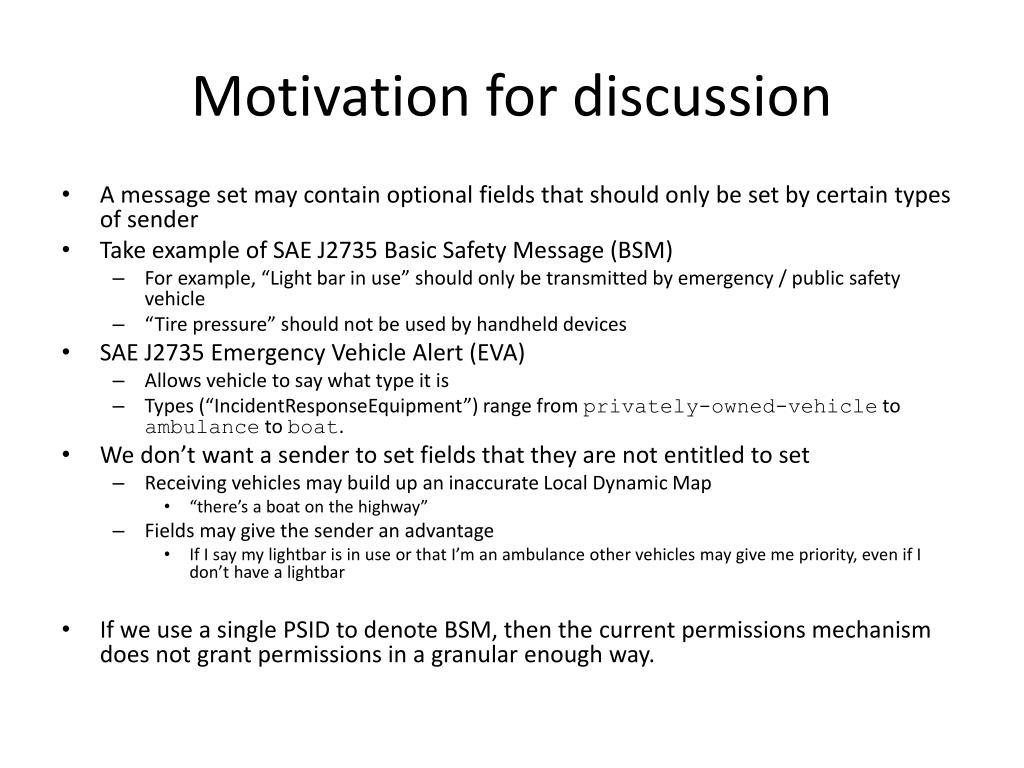

  6. Motivation for discussion • A message set may contain optional fields that should only be set by certain types of sender • Take example of SAE J2735 Basic Safety Message (BSM) • For example, “Light bar in use” should only be transmitted by emergency / public safety vehicle • “Tire pressure” should not be used by handheld devices • SAE J2735 Emergency Vehicle Alert (EVA) • Allows vehicle to say what type it is • Types (“IncidentResponseEquipment”) range from privately-owned-vehicle to ambulance to boat. • We don’t want a sender to set fields that they are not entitled to set • Receiving vehicles may build up an inaccurate Local Dynamic Map • “there’s a boat on the highway” • Fields may give the sender an advantage • If I say my lightbar is in use or that I’m an ambulance other vehicles may give me priority, even if I don’t have a lightbar • If we use a single PSID to denote BSM, then the current permissions mechanism does not grant permissions in a granular enough way.

  7. Options for using permissions • Permissions are only enforced at the message set level • If a device can send any message from a set, it can send all messages from that set • Use multiple PSIDs per message set to encode permissions with more granularity • For BSM, one PSID for “Ordinary vehicle”, one for “Tow Truck”, one for “Ambulance”, one for “Handheld”, … • For EVA, one PSID for each vehicle type? • Use a single PSID per message set but define an additional field, Service Specific Permissions (SSP), to encode the sender type • One SSP for “Ordinary vehicle”, one for “Tow Truck”, one for “Ambulance”, one for “Handheld”, … • Review the options on the next slides

  8. Permissions enforced at message set level • If a device can send any message from a set, all messages from that set will be accepted from it • EVA cert allows any EVA message • BSM cert allows any sender to claim they have their lightbar on • Anyone who can • compromise a unit, or • extract keys from a unit can send incorrect messages • Advantages: routing and permissions can be handled by the same mechanism; consistent with 1609.2-2006 • Disadvantages: • This is a problem if: • Inaccurate information is a problem, even if it does not involve an escalation of privileges (boat on the highway) • Different messages in the set have significantly different permissions • All future message set development must be policed to ensure that messages in a message set have similar privileges • But note that message set developers must be aware of differing privileges under any of the models in this presentation • Policing can be done by IEEE-RA as part of PSID issuance?

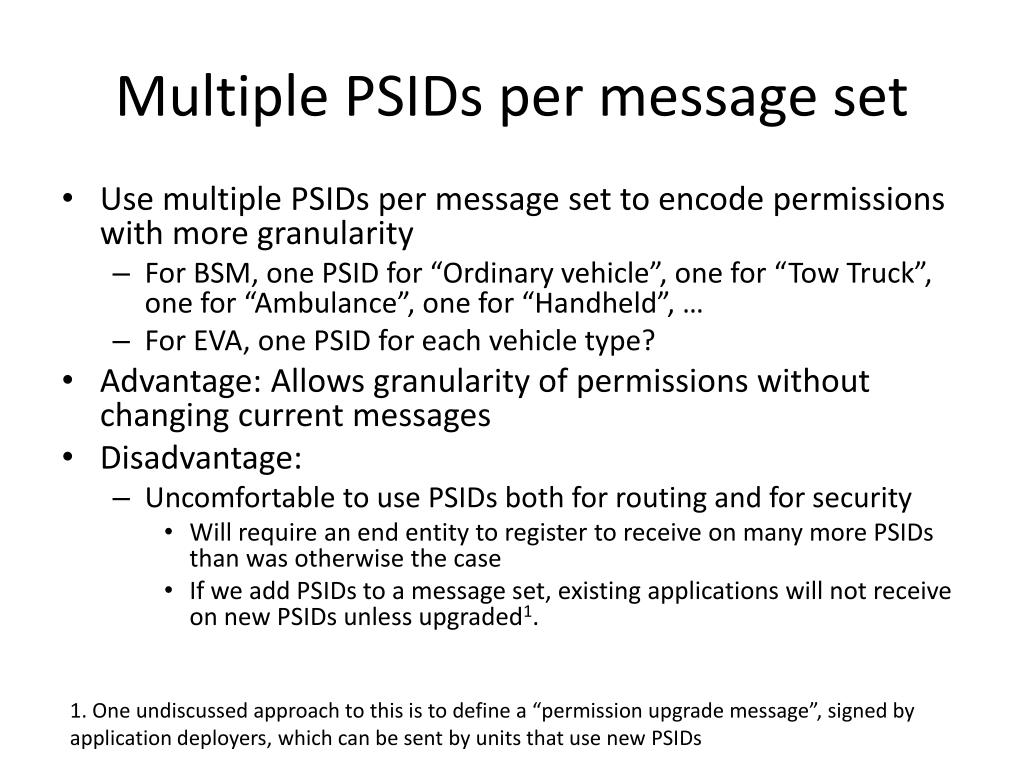

  9. Multiple PSIDs per message set • Use multiple PSIDs per message set to encode permissions with more granularity • For BSM, one PSID for “Ordinary vehicle”, one for “Tow Truck”, one for “Ambulance”, one for “Handheld”, … • For EVA, one PSID for each vehicle type? • Advantage: Allows granularity of permissions without changing current messages • Disadvantage: • Uncomfortable to use PSIDs both for routing and for security • Will require an end entity to register to receive on many more PSIDs than was otherwise the case • If we add PSIDs to a message set, existing applications will not receive on new PSIDs unless upgraded1. 1. One undiscussed approach to this is to define a “permission upgrade message”, signed by application deployers, which can be sent by units that use new PSIDs

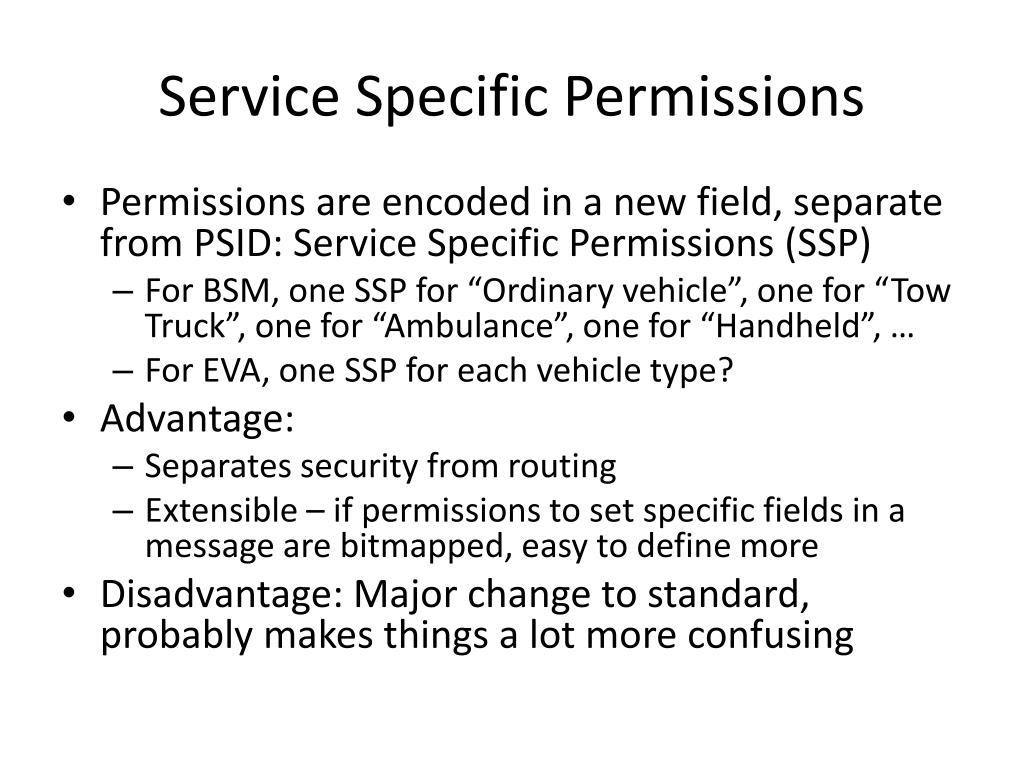

  10. Service Specific Permissions • Permissions are encoded in a new field, separate from PSID: Service Specific Permissions (SSP) • For BSM, one SSP for “Ordinary vehicle”, one for “Tow Truck”, one for “Ambulance”, one for “Handheld”, … • For EVA, one SSP for each vehicle type? • Advantage: • Separates security from routing • Extensible – if permissions to set specific fields in a message are bitmapped, easy to define more • Disadvantage: Major change to standard, probably makes things a lot more confusing

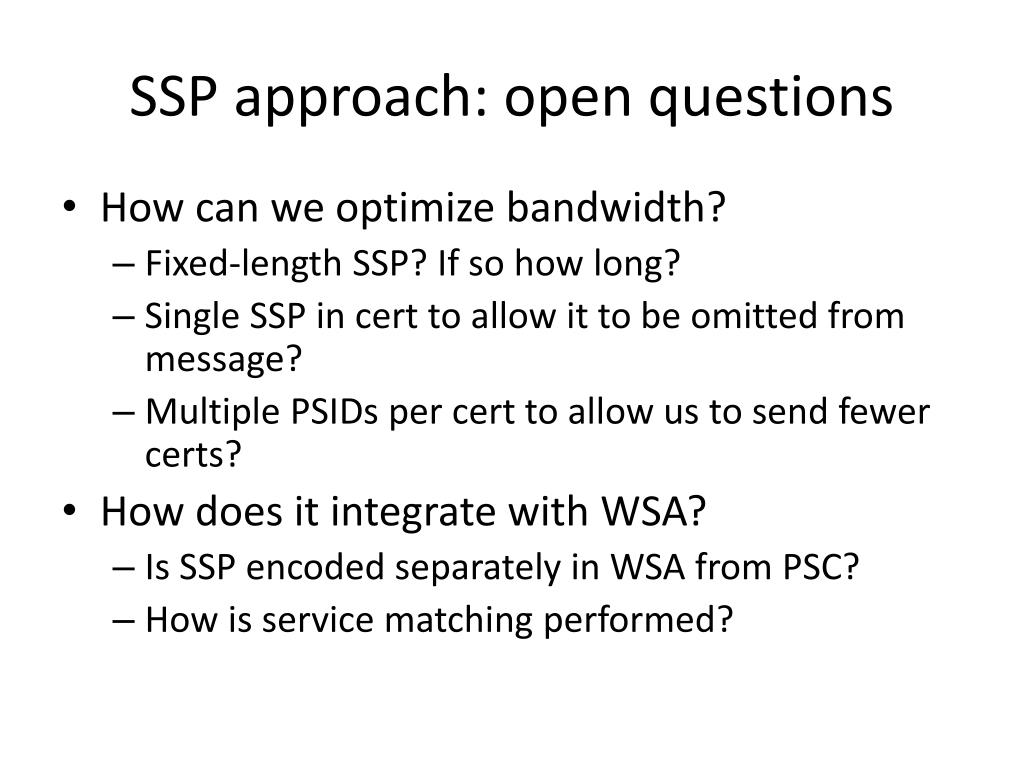

  11. SSP approach: open questions • How can we optimize bandwidth? • Fixed-length SSP? If so how long? • Single SSP in cert to allow it to be omitted from message? • Multiple PSIDs per cert to allow us to send fewer certs? • How does it integrate with WSA? • Is SSP encoded separately in WSA from PSC? • How is service matching performed?

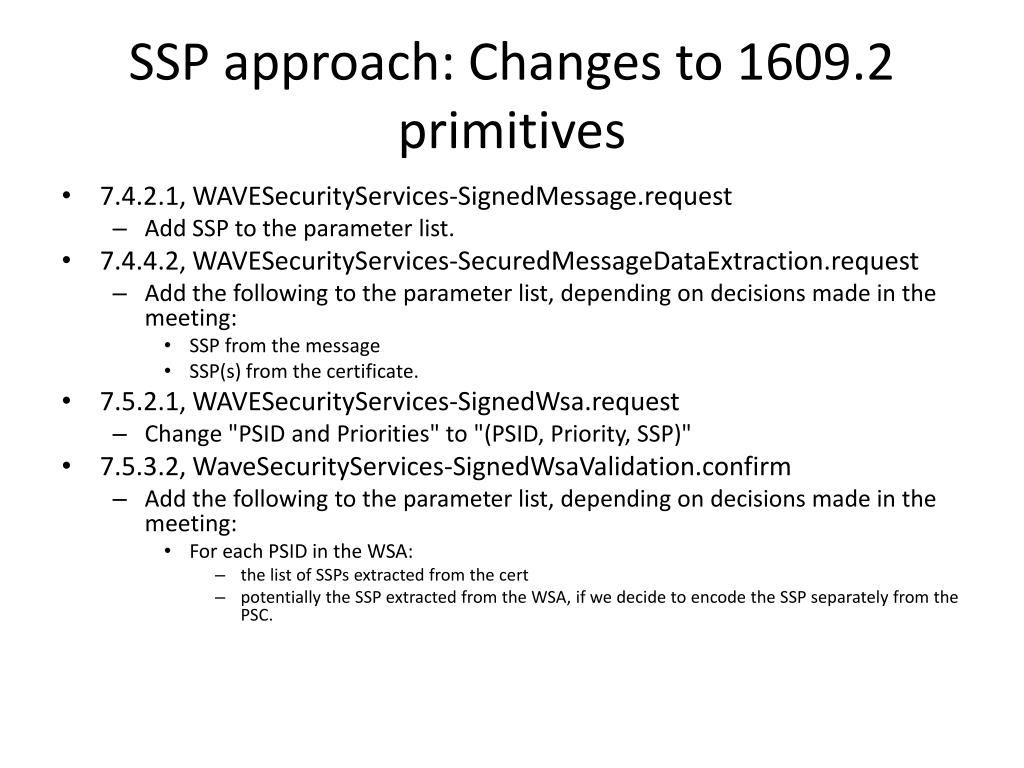

  12. SSP approach: Changes to 1609.2 primitives • 7.4.2.1, WAVESecurityServices-SignedMessage.request • Add SSP to the parameter list. • 7.4.4.2, WAVESecurityServices-SecuredMessageDataExtraction.request • Add the following to the parameter list, depending on decisions made in the meeting: • SSP from the message • SSP(s) from the certificate. • 7.5.2.1, WAVESecurityServices-SignedWsa.request • Change "PSID and Priorities" to "(PSID, Priority, SSP)" • 7.5.3.2, WaveSecurityServices-SignedWsaValidation.confirm • Add the following to the parameter list, depending on decisions made in the meeting: • For each PSID in the WSA: • the list of SSPs extracted from the cert • potentially the SSP extracted from the WSA, if we decide to encode the SSP separately from the PSC.

  13. SSP approach: Changes to 1609.3 • 6.4.2: SSP from the WSA need to go into the AvailableServiceInfo • 7.4.2.2 WME-ProviderService.Request • Add a parameter specifying the SSP. • 7.4.2.4 WME-UserService.Request • Add a parameter specifying the SSP. • A User Service may need to specify all the SSPs that it will accept.

  14. User service request with notifi-cation

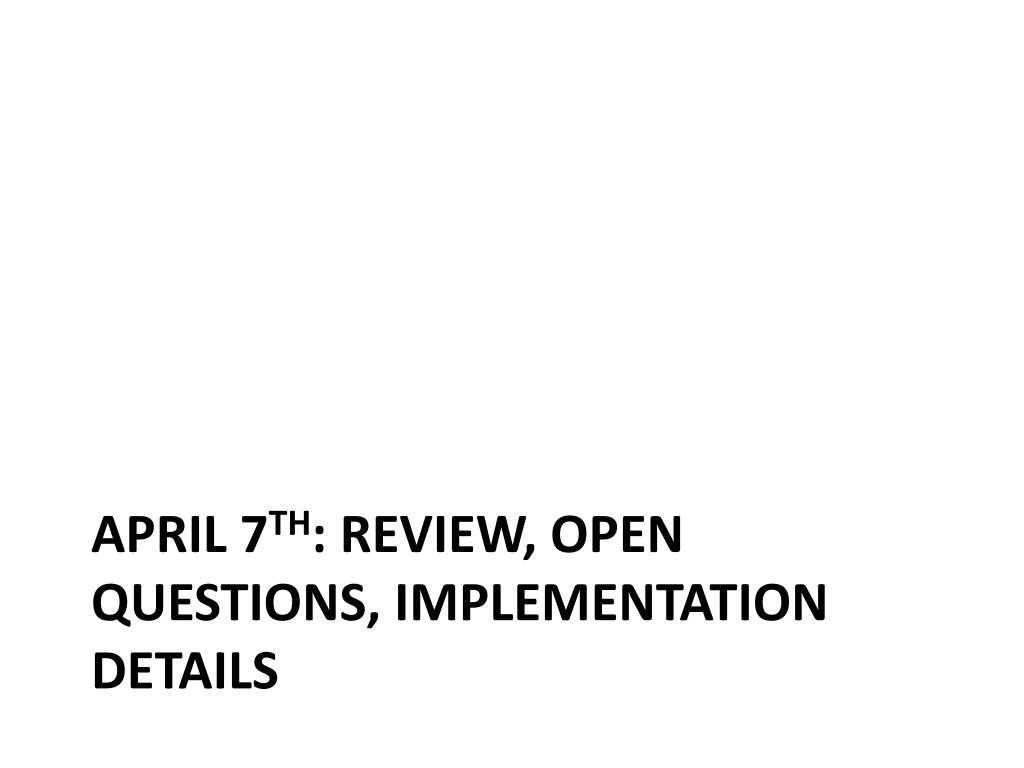

  15. April 7th: Review, Open questions, implementation details

  16. April 6th conclusions: Messages • Support optional field, the Service Specific Permission (SSP), in message certs • SSP is application information that is authorized, contained in a certificate, and passed around but not written or read by 1609.2 security processing • Variable-length SSP, length encoded in a single octet, max length 31 octets • Application Specification Organizations (“vendors”) define syntax and semantics • SSP syntax and semantics are specific to the sending PSID, though vendors may (of course) reuse syntax and semantics across all the PSIDs they control • Certs may only contain a single SSP for a given PSID • The SSP associated with a message is obtained from the accompanying or referenced cert

  17. April 6th conclusions: WSAs • Support optional SSP in WSA and WSA certs • Agree that if cert has single SSP for a given PSID, that SSP may be omitted from the relevant ServiceInfo in the WSA • Certs may contain multiple SSPs for a given PSID • If so, the relevant ServiceInfo must explicitly state its SSP • WW and JM have discussed necessary changes to 1609.3 and it seems possible to integrate SSP cleanly into existing 1609.3 WME processes • WW will make a comment on 1609.3 to enable this integration during sponsor ballot

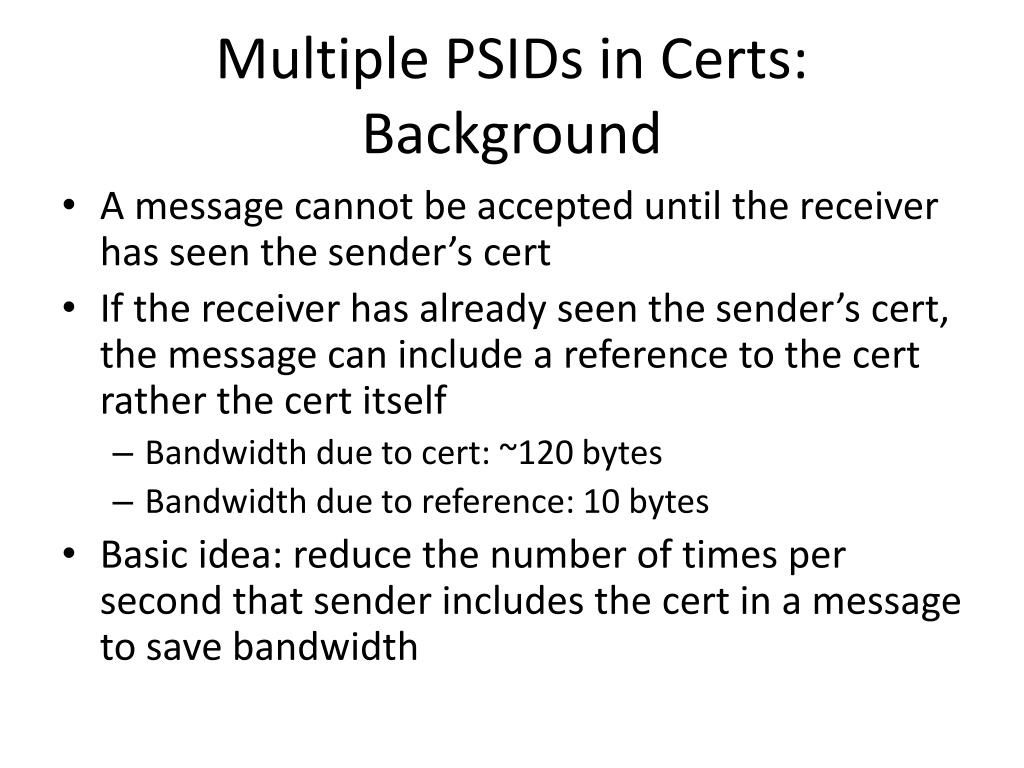

  18. Multiple PSIDs in Certs: Background • A message cannot be accepted until the receiver has seen the sender’s cert • If the receiver has already seen the sender’s cert, the message can include a reference to the cert rather the cert itself • Bandwidth due to cert: ~120 bytes • Bandwidth due to reference: 10 bytes • Basic idea: reduce the number of times per second that sender includes the cert in a message to save bandwidth

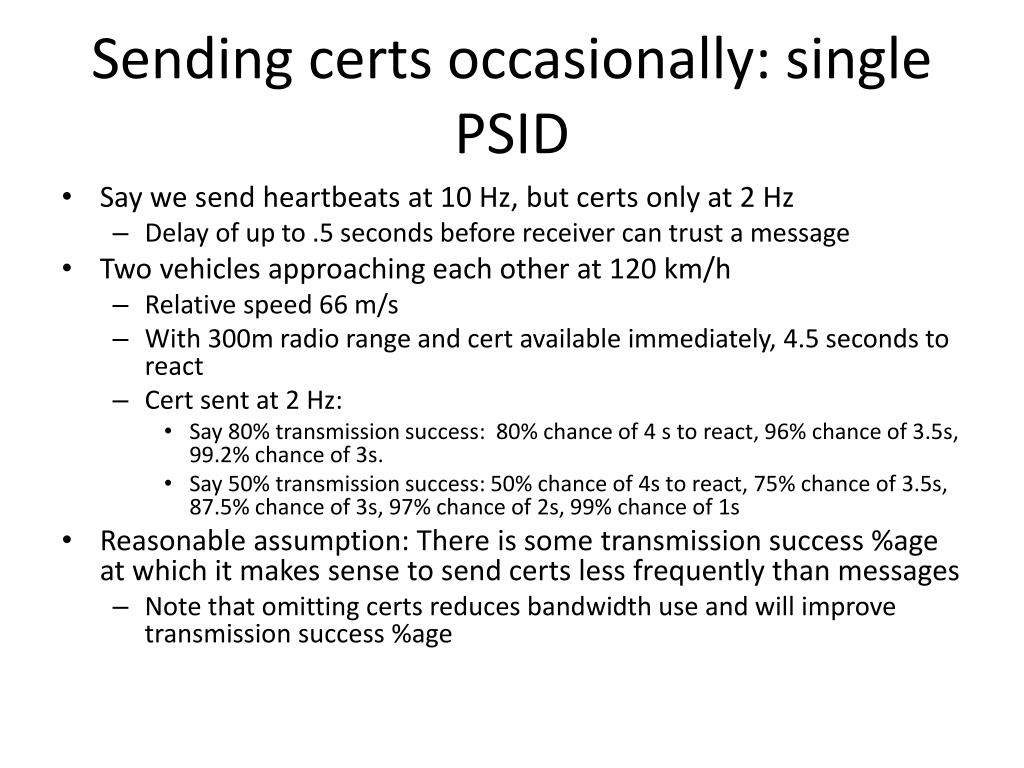

  19. Sending certs occasionally: single PSID • Say we send heartbeats at 10 Hz, but certs only at 2 Hz • Delay of up to .5 seconds before receiver can trust a message • Two vehicles approaching each other at 120 km/h • Relative speed 66 m/s • With 300m radio range and cert available immediately, 4.5 seconds to react • Cert sent at 2 Hz: • Say 80% transmission success: 80% chance of 4 s to react, 96% chance of 3.5s, 99.2% chance of 3s. • Say 50% transmission success: 50% chance of 4s to react, 75% chance of 3.5s, 87.5% chance of 3s, 97% chance of 2s, 99% chance of 1s • Reasonable assumption: There is some transmission success %age at which it makes sense to send certs less frequently than messages • Note that omitting certs reduces bandwidth use and will improve transmission success %age

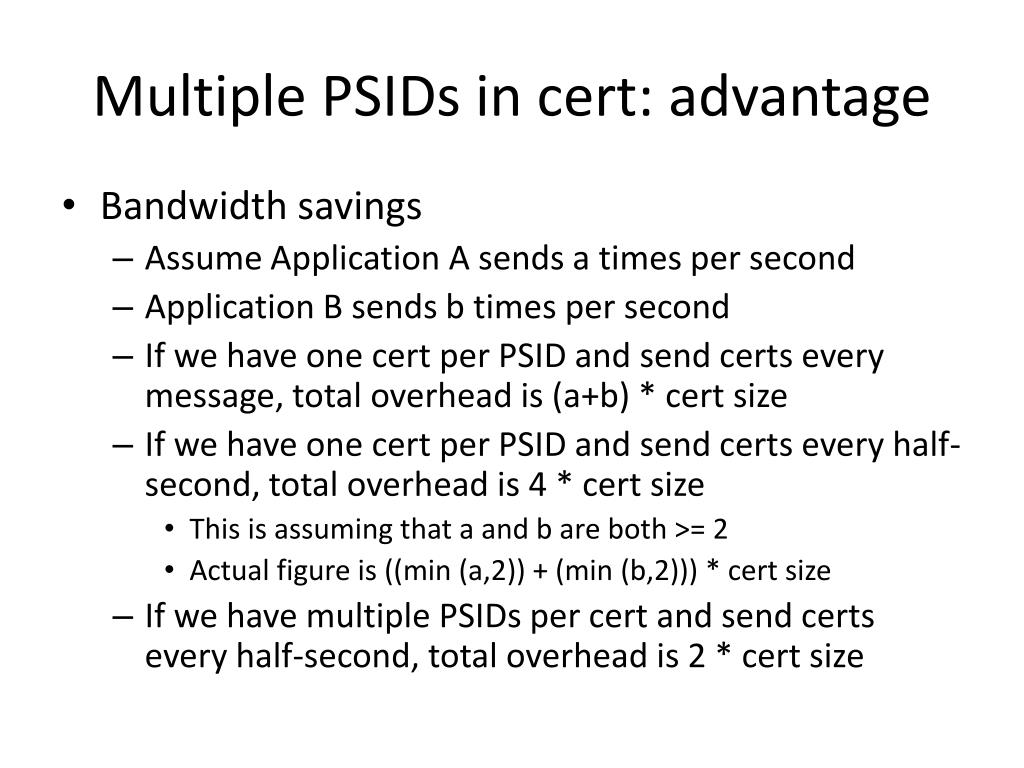

  20. Multiple PSIDs in cert: advantage • Bandwidth savings • Assume Application A sends a times per second • Application B sends b times per second • If we have one cert per PSID and send certs every message, total overhead is (a+b) * cert size • If we have one cert per PSID and send certs every half-second, total overhead is 4 * cert size • This is assuming that a and b are both >= 2 • Actual figure is ((min (a,2)) + (min (b,2))) * cert size • If we have multiple PSIDs per cert and send certs every half-second, total overhead is 2 * cert size

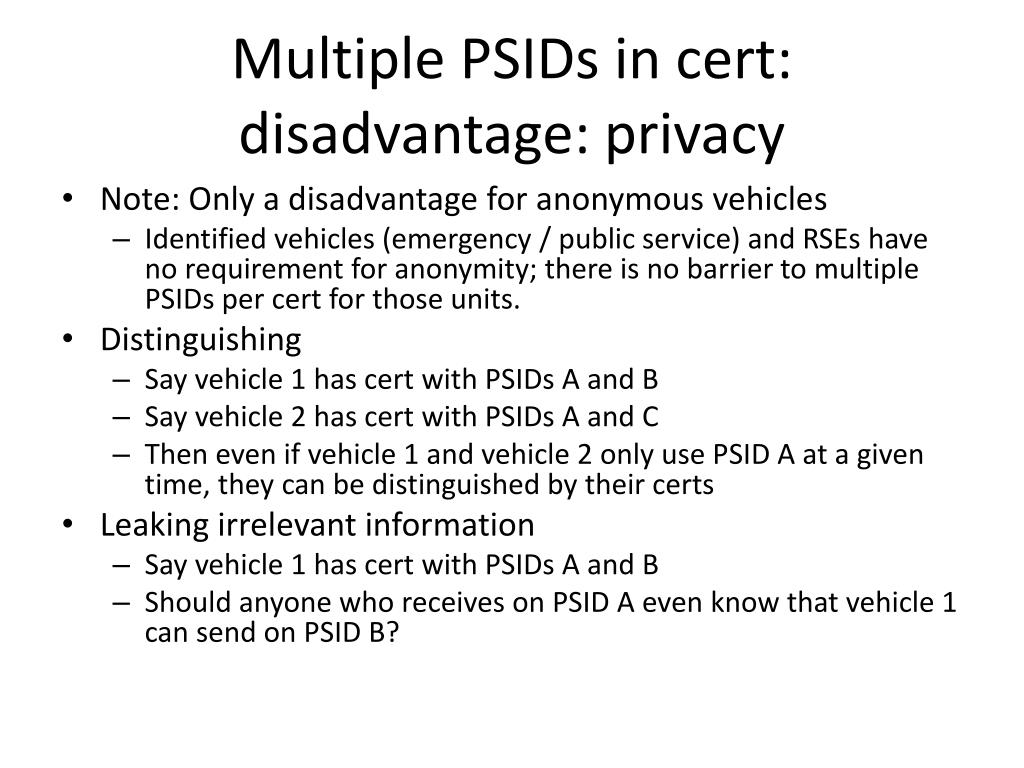

  21. Multiple PSIDs in cert: disadvantage: privacy • Note: Only a disadvantage for anonymous vehicles • Identified vehicles (emergency / public service) and RSEs have no requirement for anonymity; there is no barrier to multiple PSIDs per cert for those units. • Distinguishing • Say vehicle 1 has cert with PSIDs A and B • Say vehicle 2 has cert with PSIDs A and C • Then even if vehicle 1 and vehicle 2 only use PSID A at a given time, they can be distinguished by their certs • Leaking irrelevant information • Say vehicle 1 has cert with PSIDs A and B • Should anyone who receives on PSID A even know that vehicle 1 can send on PSID B?

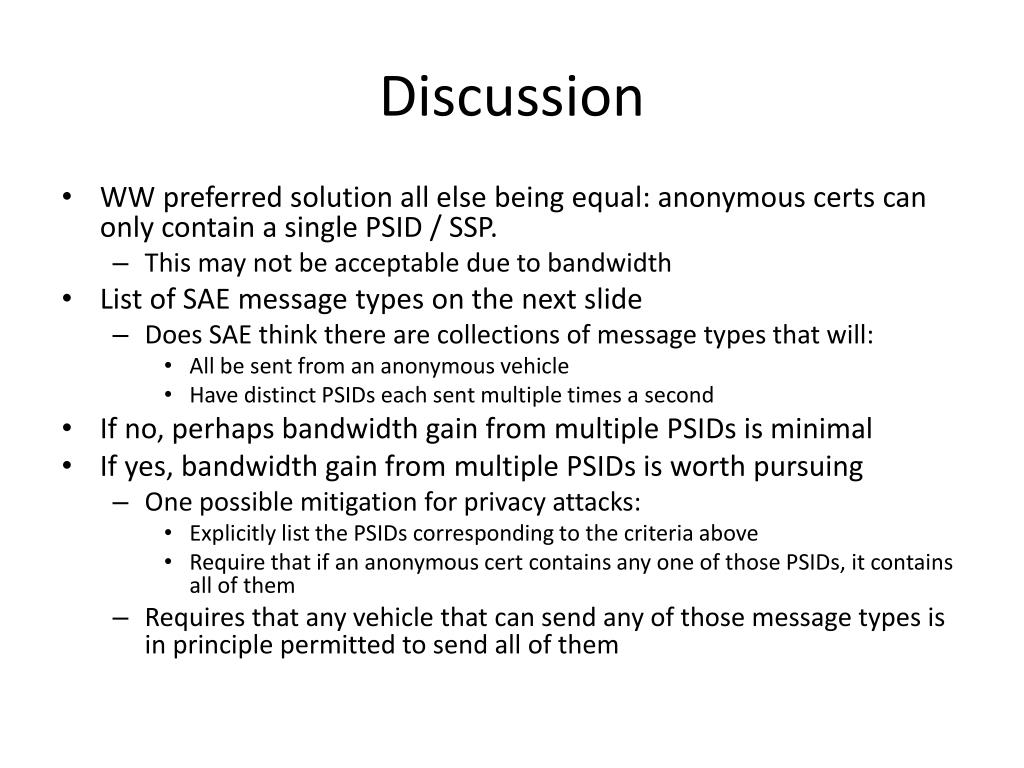

  22. Discussion • WW preferred solution all else being equal: anonymous certs can only contain a single PSID / SSP. • This may not be acceptable due to bandwidth • List of SAE message types on the next slide • Does SAE think there are collections of message types that will: • All be sent from an anonymous vehicle • Have distinct PSIDs each sent multiple times a second • If no, perhaps bandwidth gain from multiple PSIDs is minimal • If yes, bandwidth gain from multiple PSIDs is worth pursuing • One possible mitigation for privacy attacks: • Explicitly list the PSIDs corresponding to the criteria above • Require that if an anonymous cert contains any one of those PSIDs, it contains all of them • Requires that any vehicle that can send any of those message types is in principle permitted to send all of them

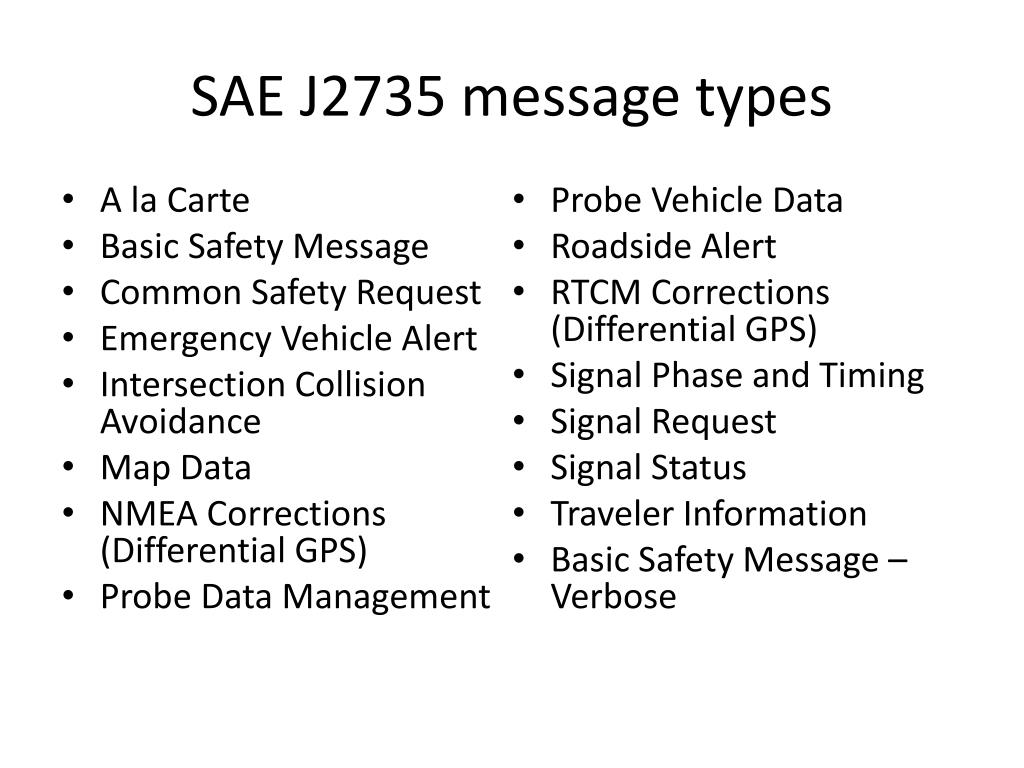

  23. SAE J2735 message types • A la Carte • Basic Safety Message • Common Safety Request • Emergency Vehicle Alert • Intersection Collision Avoidance • Map Data • NMEA Corrections (Differential GPS) • Probe Data Management • Probe Vehicle Data • Roadside Alert • RTCM Corrections (Differential GPS) • Signal Phase and Timing • Signal Request • Signal Status • Traveler Information • Basic Safety Message – Verbose

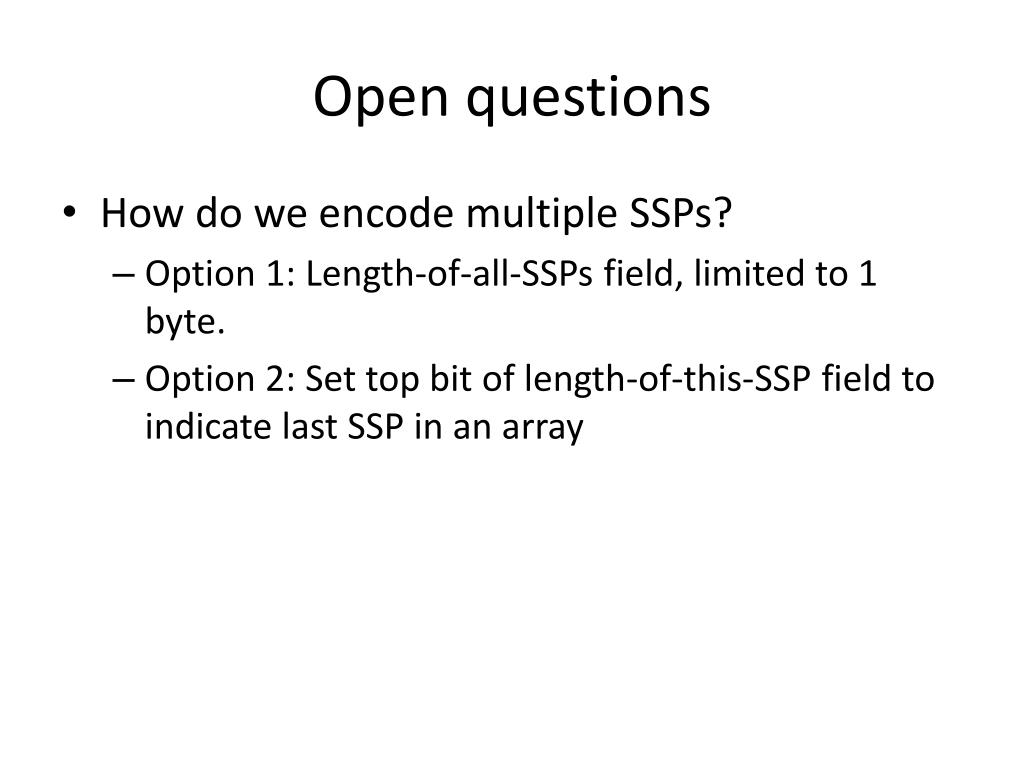

  24. Open questions • How do we encode multiple SSPs? • Option 1: Length-of-all-SSPs field, limited to 1 byte. • Option 2: Set top bit of length-of-this-SSP field to indicate last SSP in an array
