  1. Cardiovascular System Chapter 5

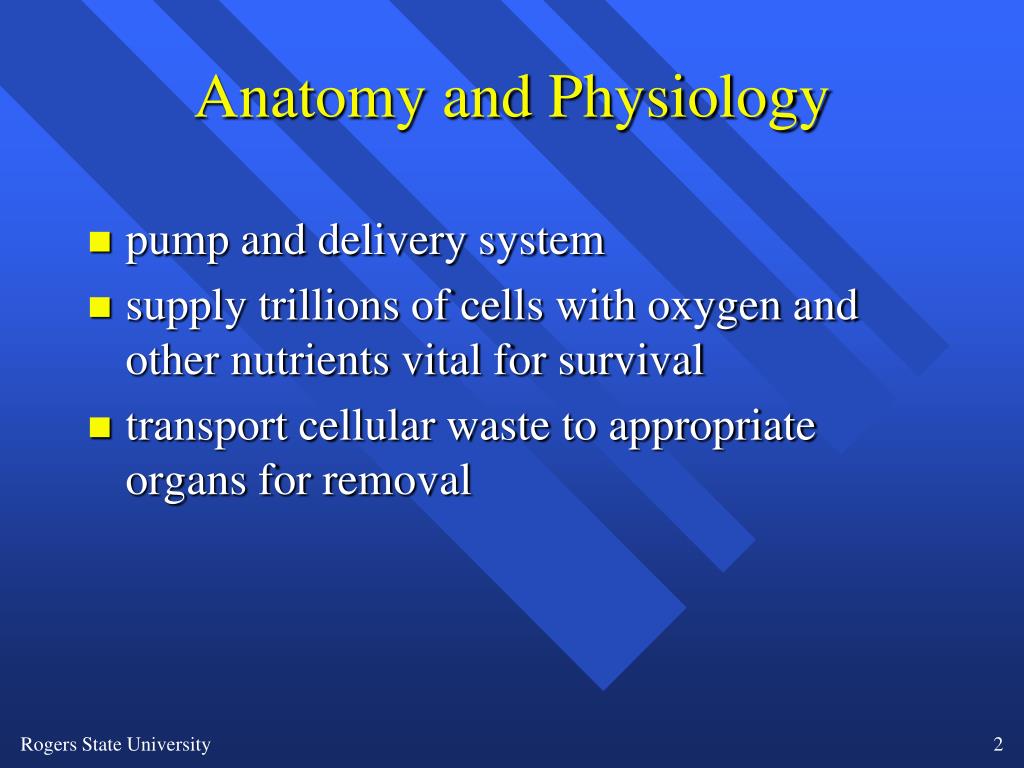

  2. Anatomy and Physiology • pump and delivery system • supply trillions of cells with oxygen and other nutrients vital for survival • transport cellular waste to appropriate organs for removal

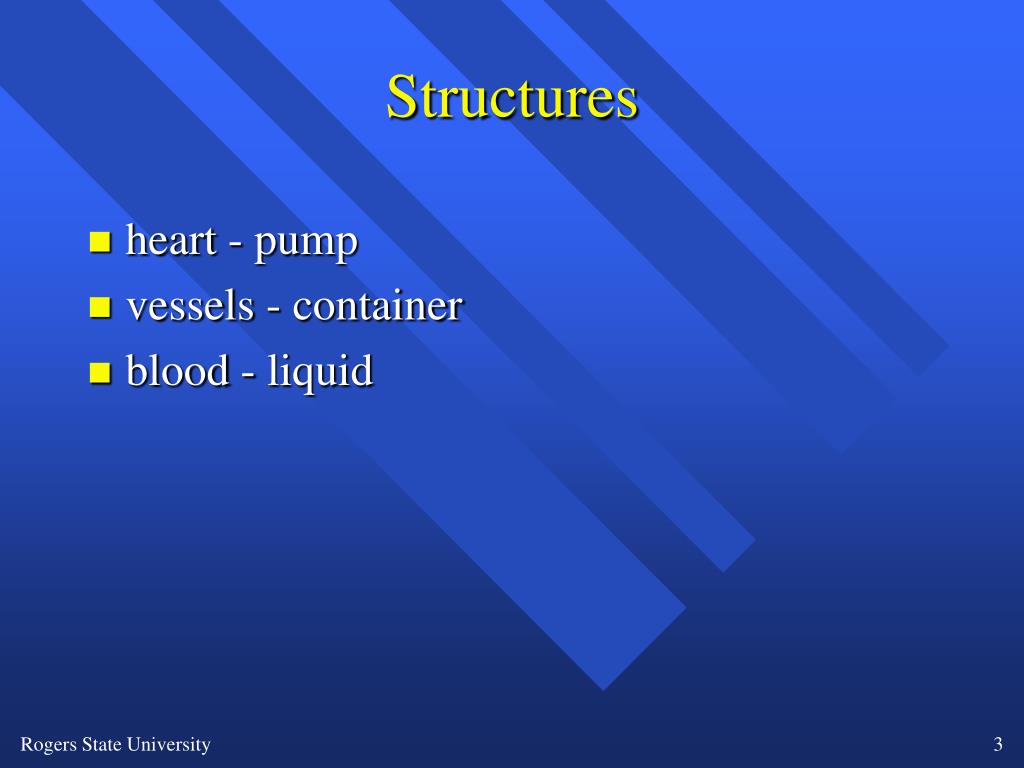

  3. Structures • heart - pump • vessels - container • blood - liquid

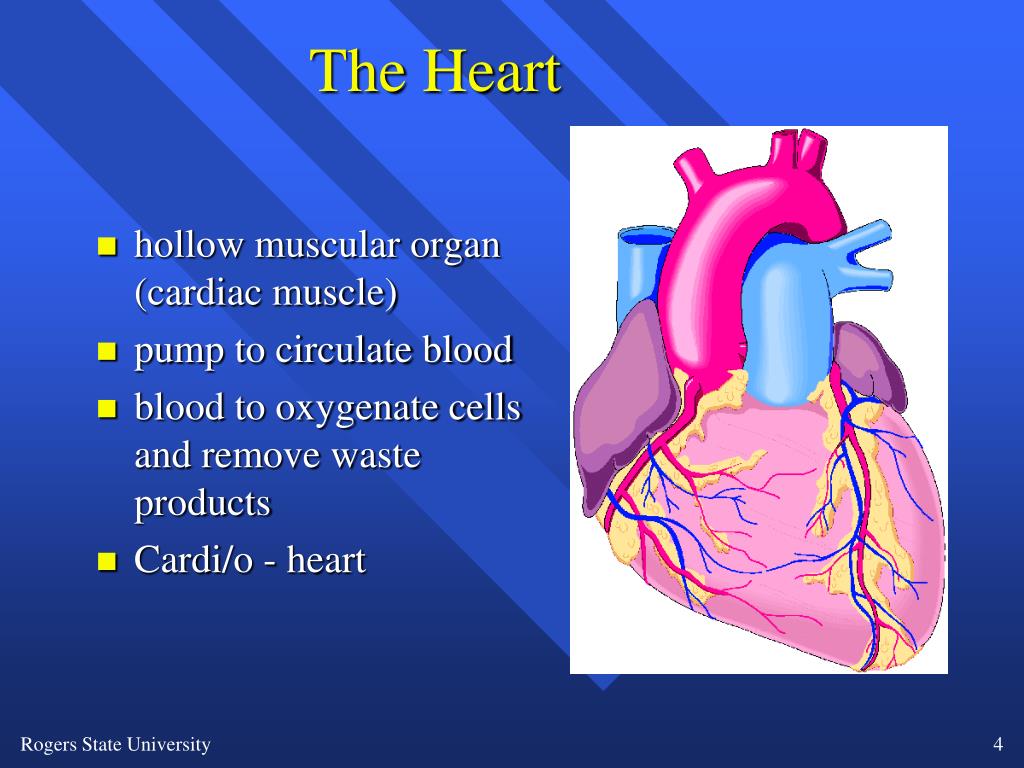

  4. The Heart • hollow muscular organ(cardiac muscle) • pump to circulate blood • blood to oxygenate cells and remove waste products • Cardi/o - heart

  5. Location and Protection • located between the lungs and above the diaphragm • Pericardium • Pericardial Fluid • Epicardium • Myocardium • Endocardium

  6. Blood Vessels • Blood Vessels - arteries, veins, capillariesangi/o and vas/o • arteries - carry blood away from heart, oxygenated blood • veins - carry blood to the heart, deoxygenated blood

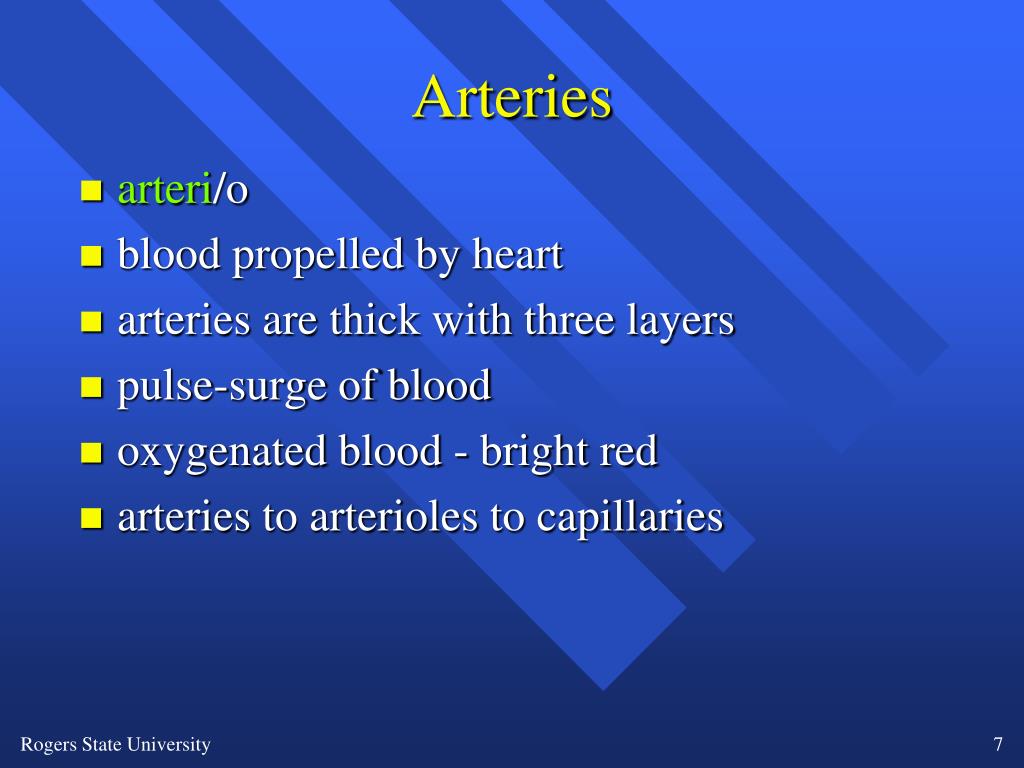

  7. Arteries • arteri/o • blood propelled by heart • arteries are thick with three layers • pulse-surge of blood • oxygenated blood - bright red • arteries to arterioles to capillaries

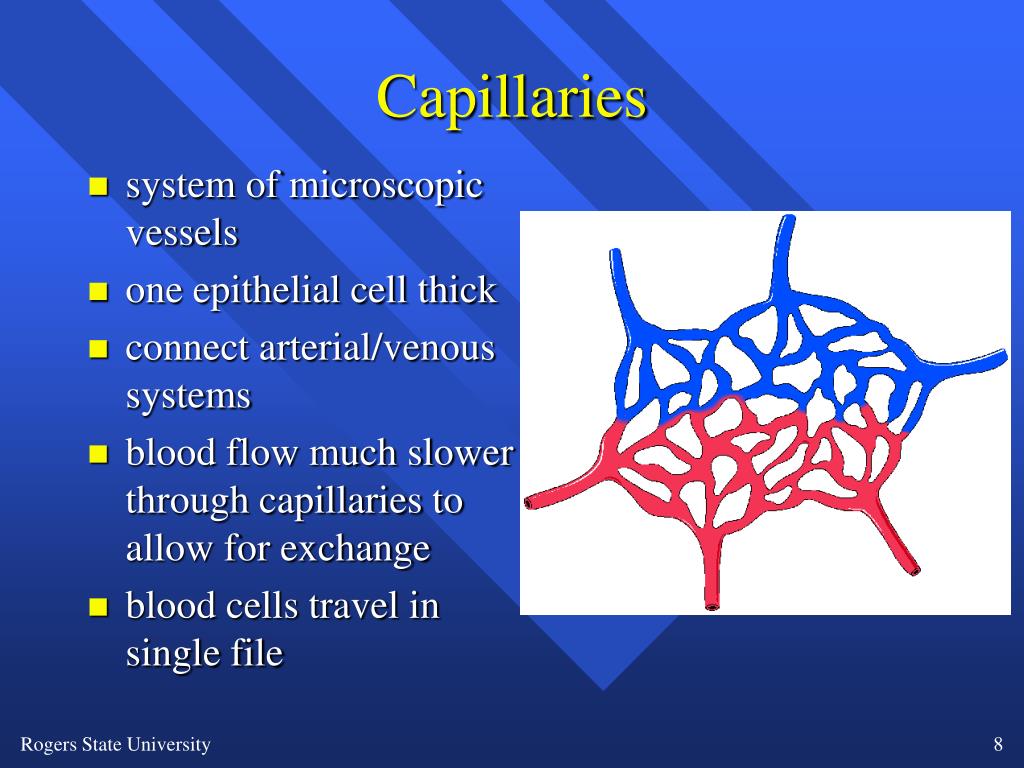

  8. Capillaries • system of microscopic vessels • one epithelial cell thick • connect arterial/venous systems • blood flow much slower through capillaries to allow for exchange • blood cells travel in single file

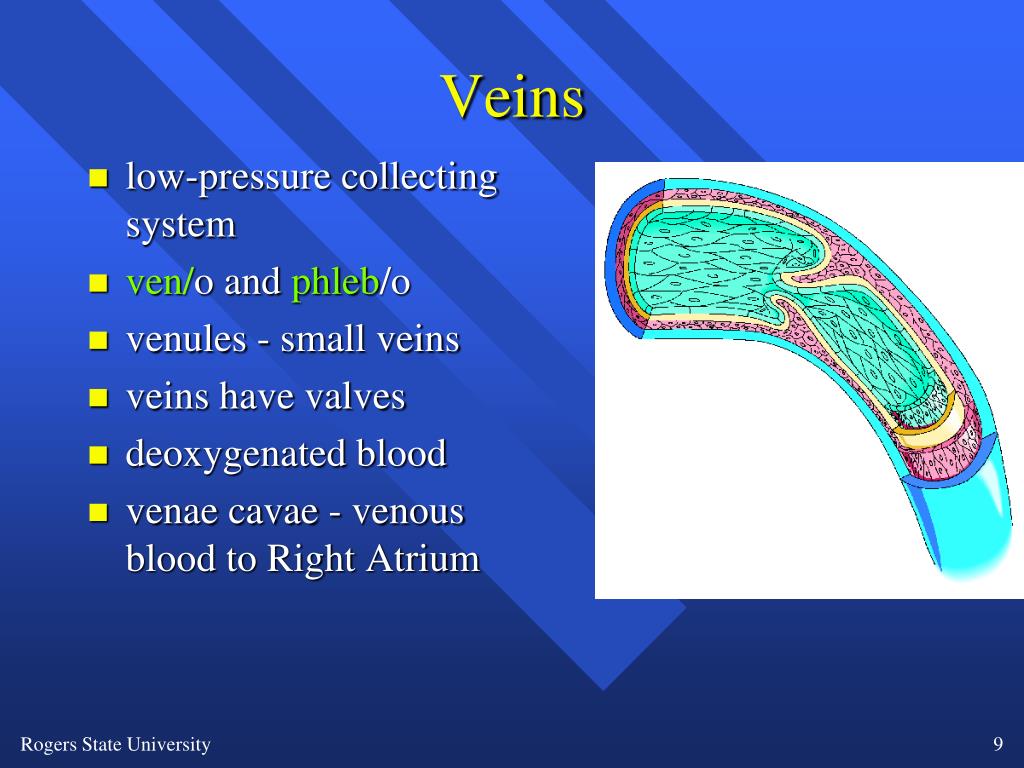

  9. Veins • low-pressure collecting system • ven/o and phleb/o • venules - small veins • veins have valves • deoxygenated blood • venae cavae - venous blood to Right Atrium

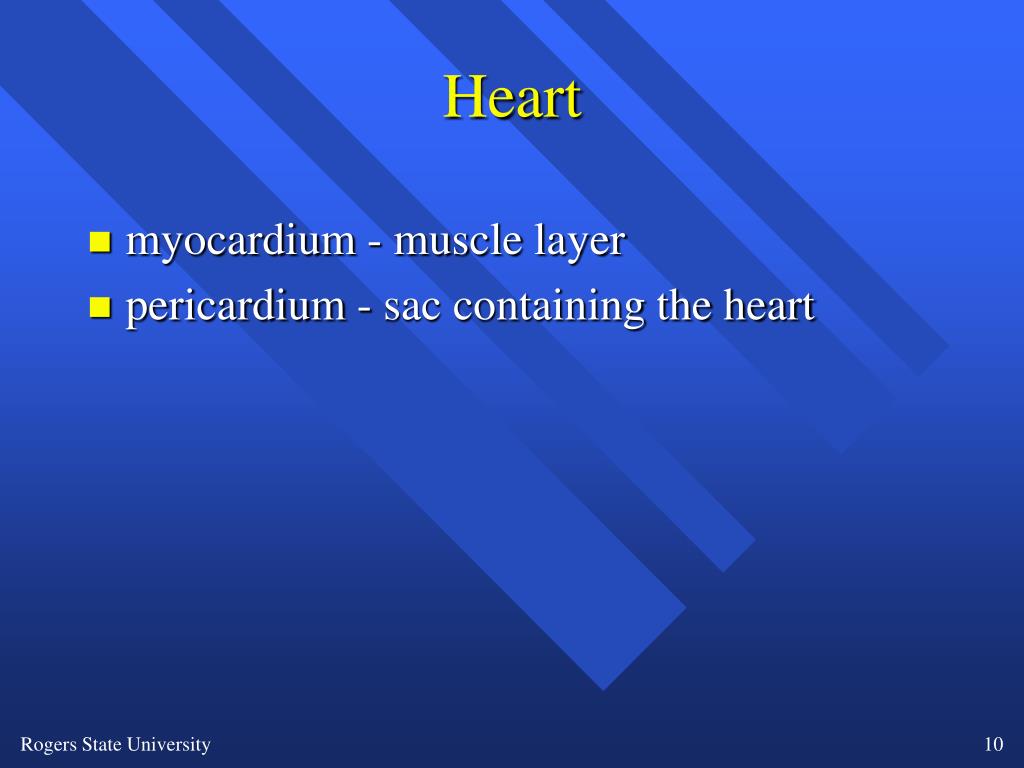

  10. Heart • myocardium - muscle layer • pericardium - sac containing the heart

  11. Heart Chambers Left Atrium Right Atrium Left Ventricle Right Ventricle Apex

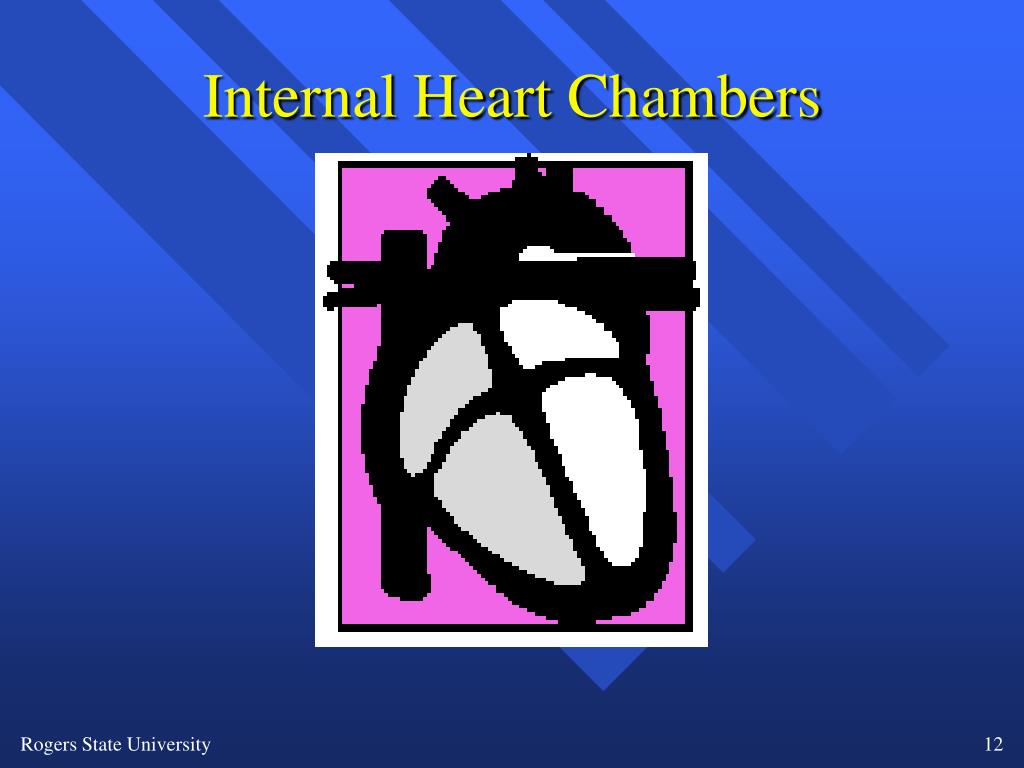

  12. Internal Heart Chambers

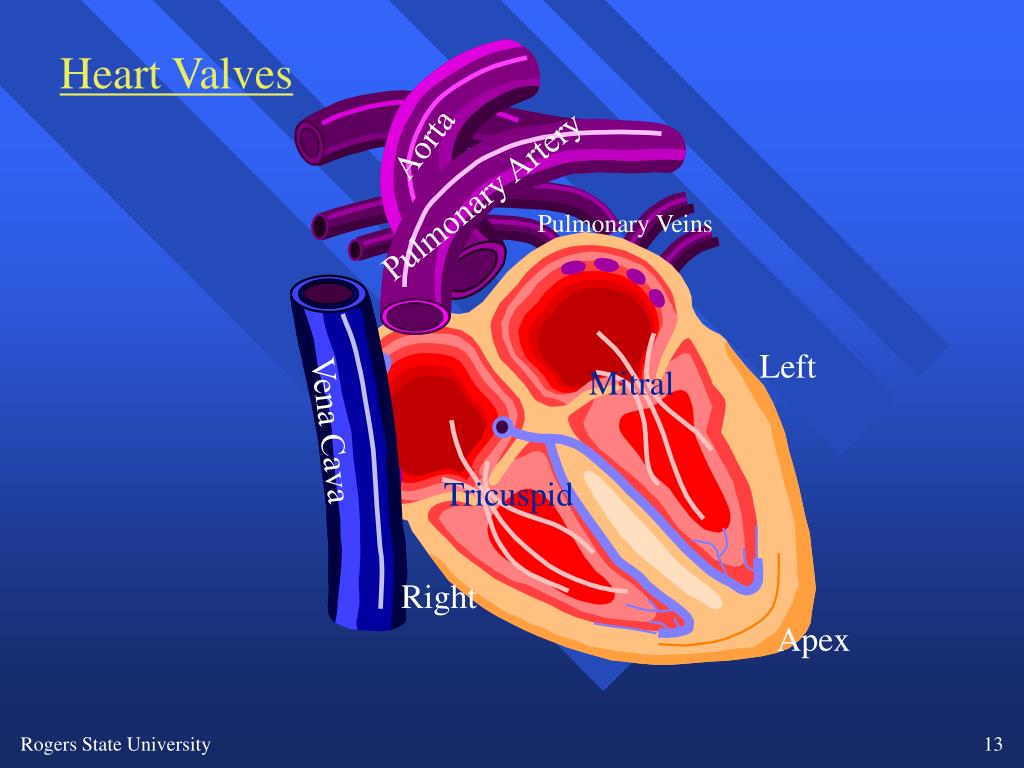

  13. Heart Valves Aorta Pulmonary Artery Pulmonary Veins Left Mitral Vena Cava Tricuspid Right Apex

  14. Blood Supply to Heart • Coronary Artery System • right coronary • left coronary • left anterior descending • circumflex

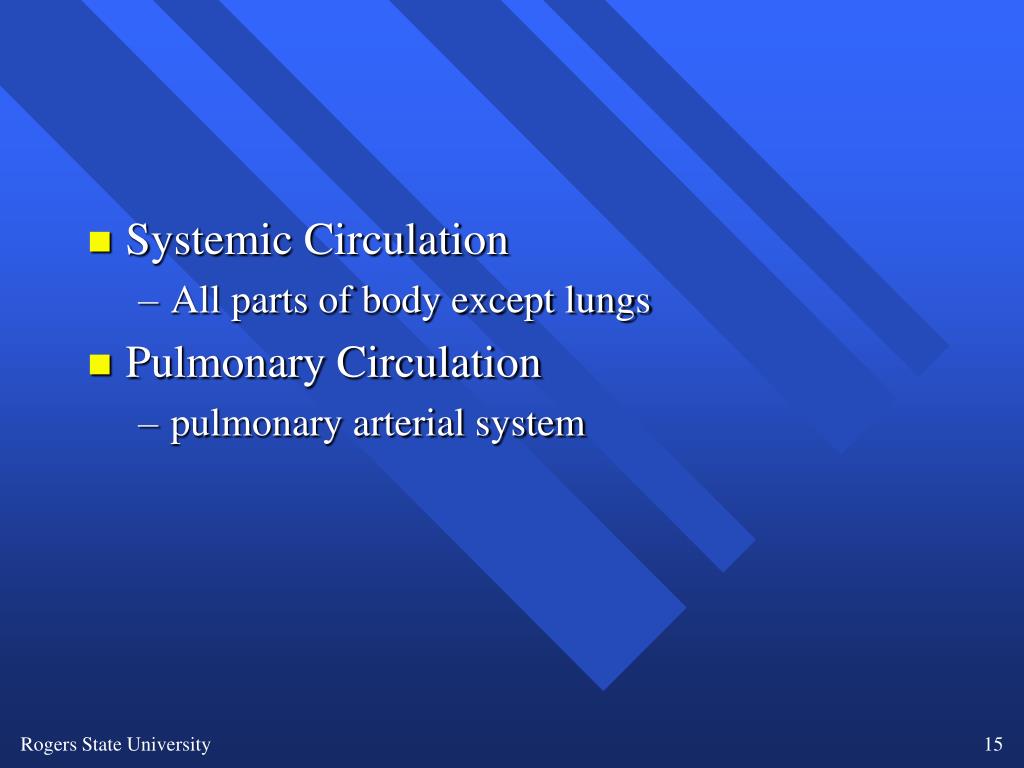

  15. Systemic Circulation • All parts of body except lungs • Pulmonary Circulation • pulmonary arterial system

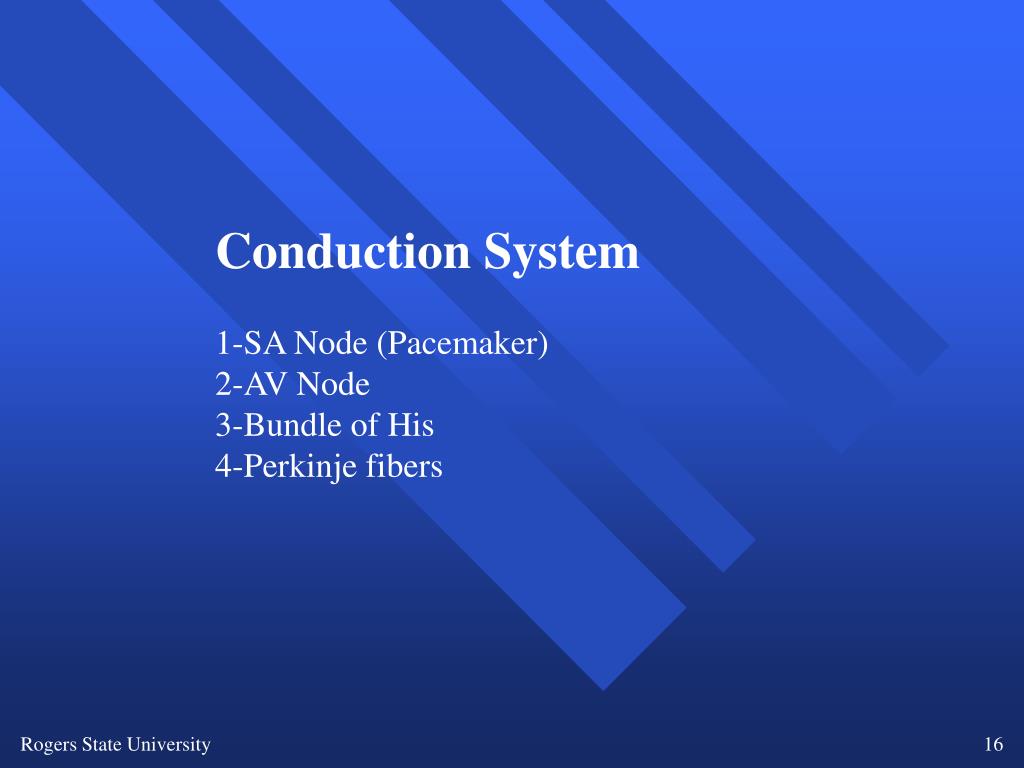

  16. Conduction System 1-SA Node (Pacemaker) 2-AV Node 3-Bundle of His 4-Perkinje fibers

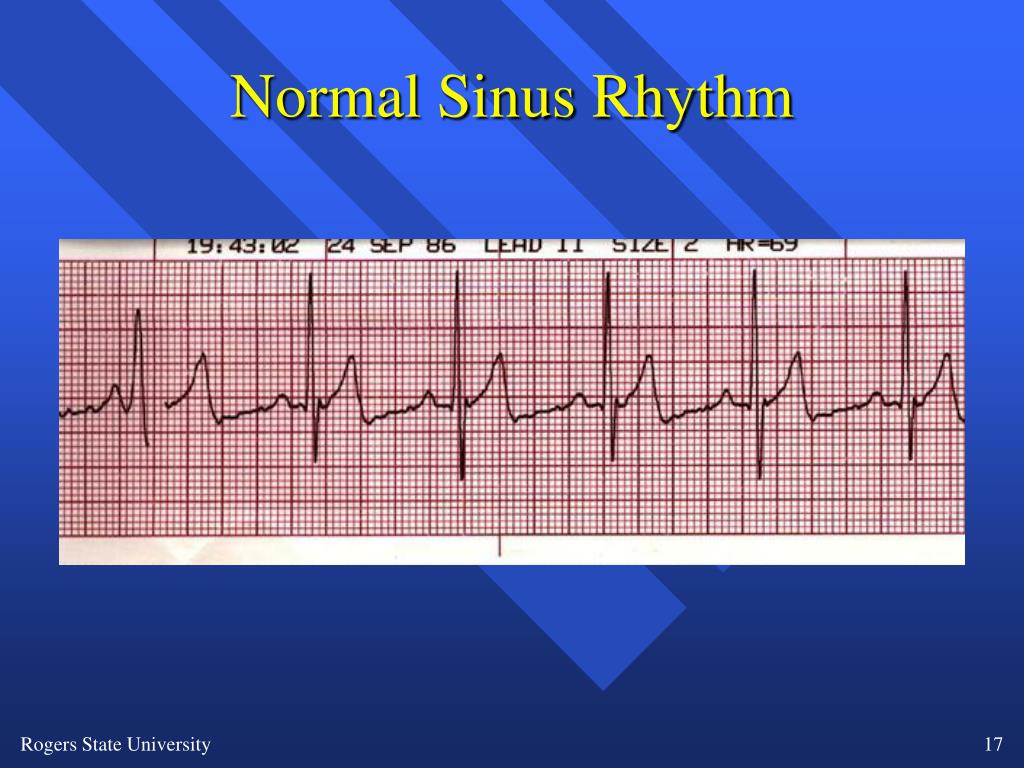

  17. Normal Sinus Rhythm

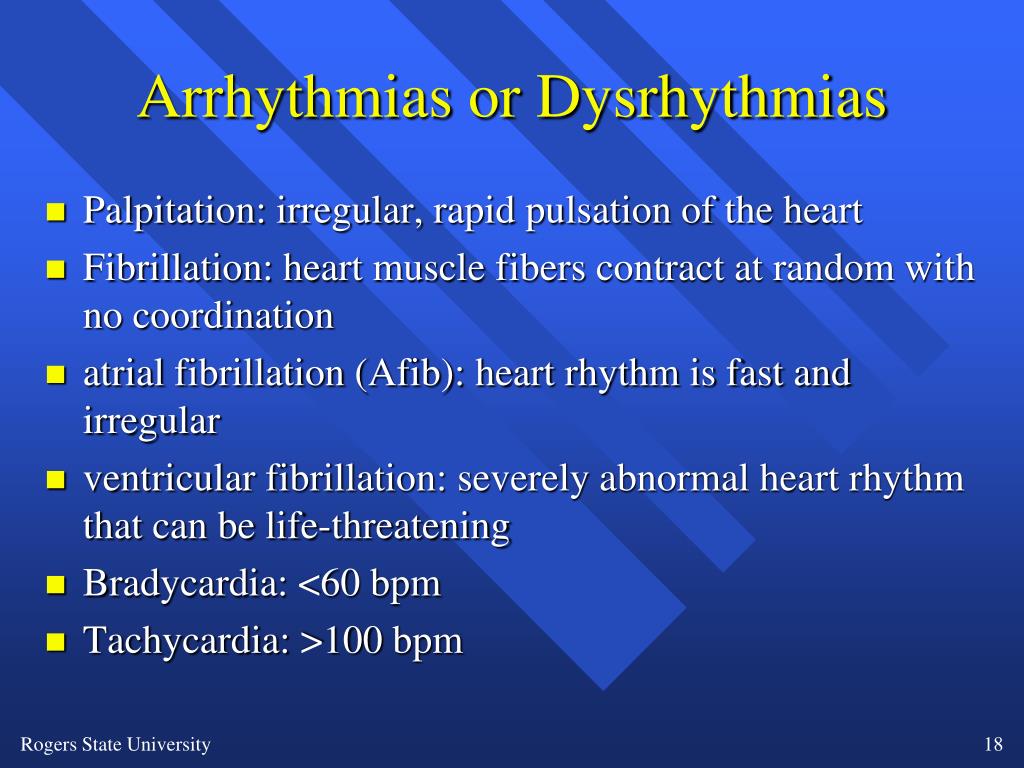

  18. Arrhythmias or Dysrhythmias • Palpitation: irregular, rapid pulsation of the heart • Fibrillation: heart muscle fibers contract at random with no coordination • atrial fibrillation (Afib): heart rhythm is fast and irregular • ventricular fibrillation: severely abnormal heart rhythm that can be life-threatening • Bradycardia: <60 bpm • Tachycardia: >100 bpm

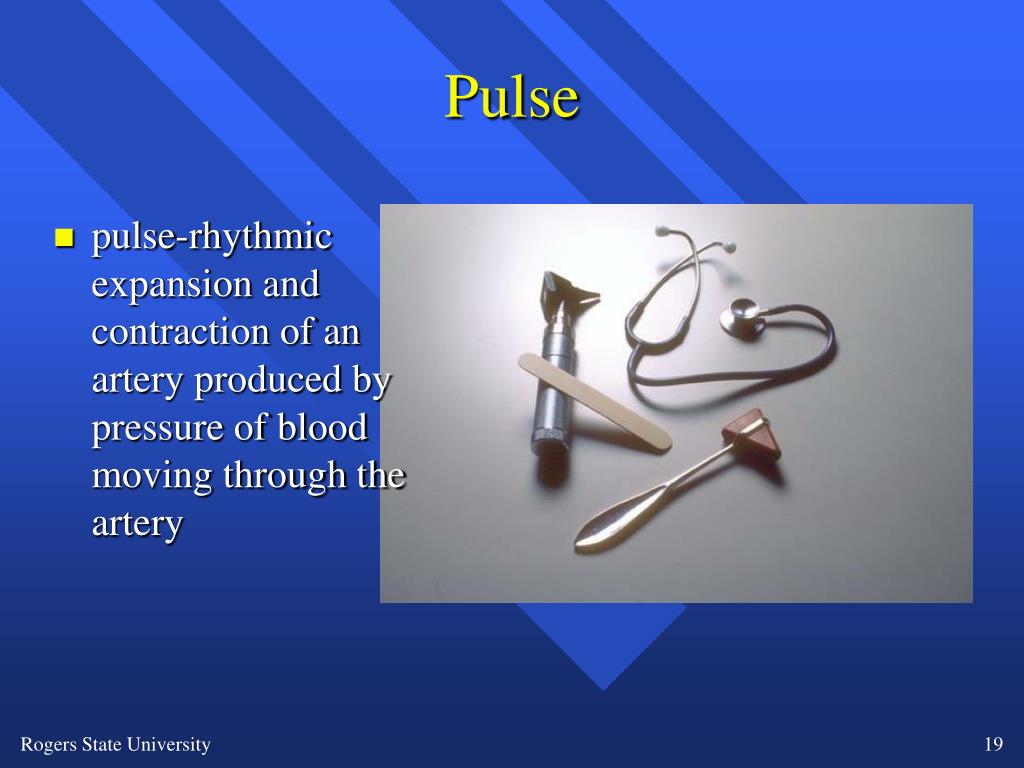

  19. Pulse • pulse-rhythmic expansion and contraction of an artery produced by pressure of blood moving through the artery

  20. Blood Pressure • Measurement of amount of pressure exerted against the walls of the vessels. • Systolic - highest pressure result of ventricular contraction • Diastolic - lowest pressure when ventricles relaxed

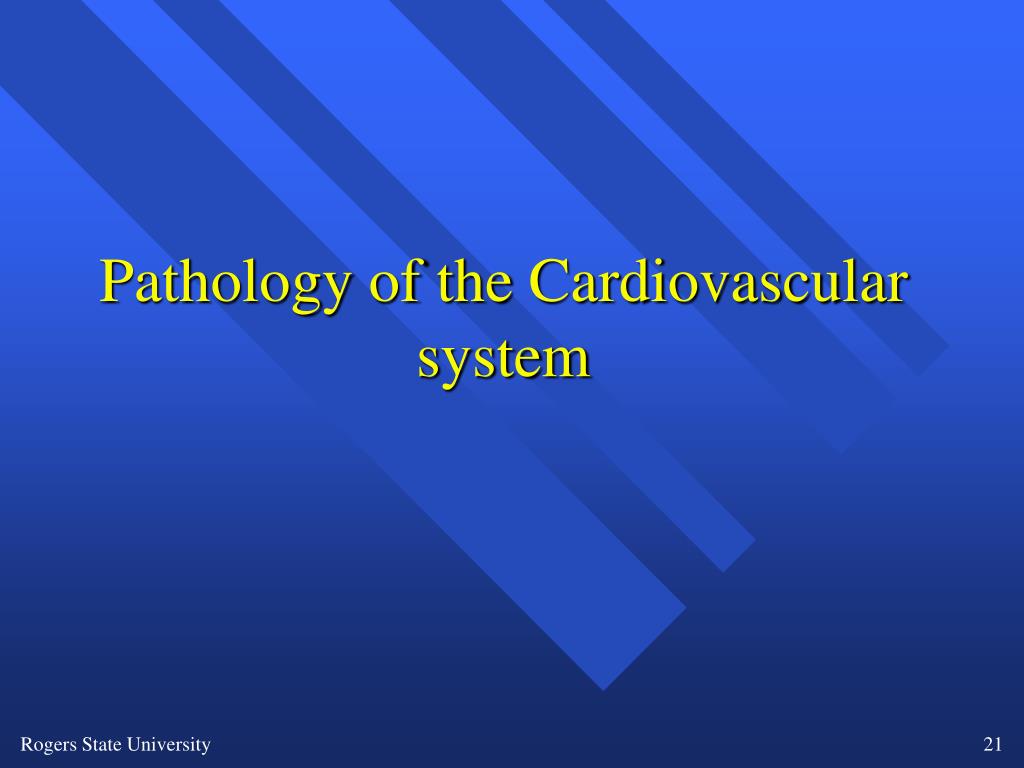

  21. Pathology of the Cardiovascular system

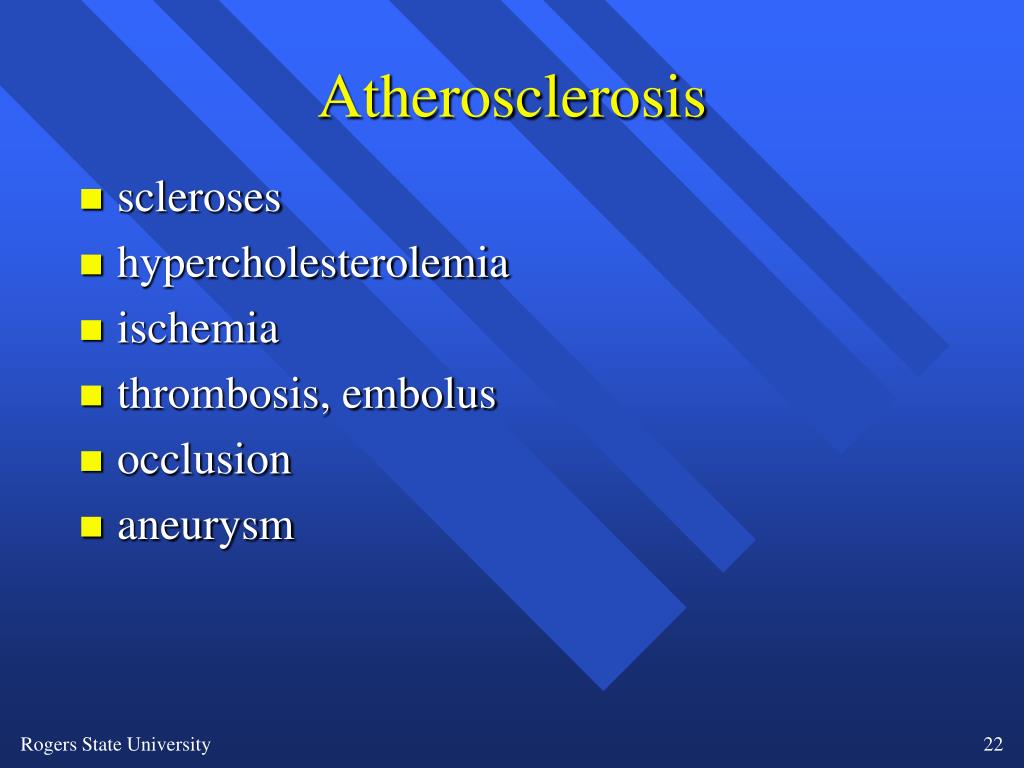

  22. Atherosclerosis • scleroses • hypercholesterolemia • ischemia • thrombosis, embolus • occlusion • aneurysm

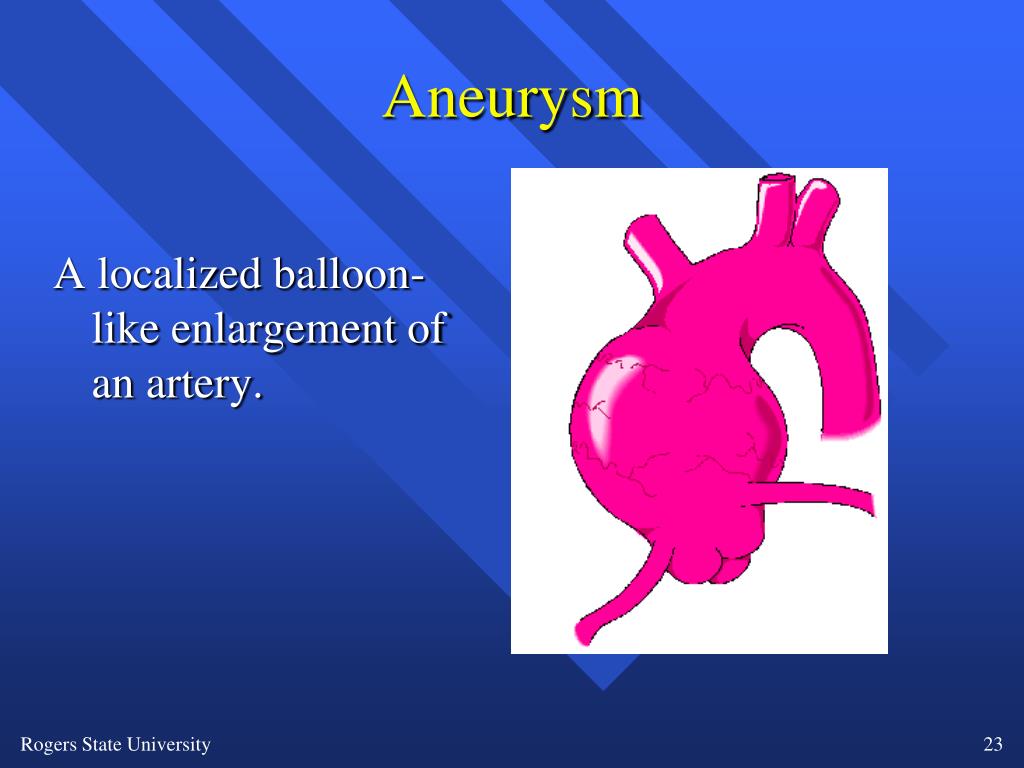

  23. Aneurysm A localized balloon-like enlargement of an artery.

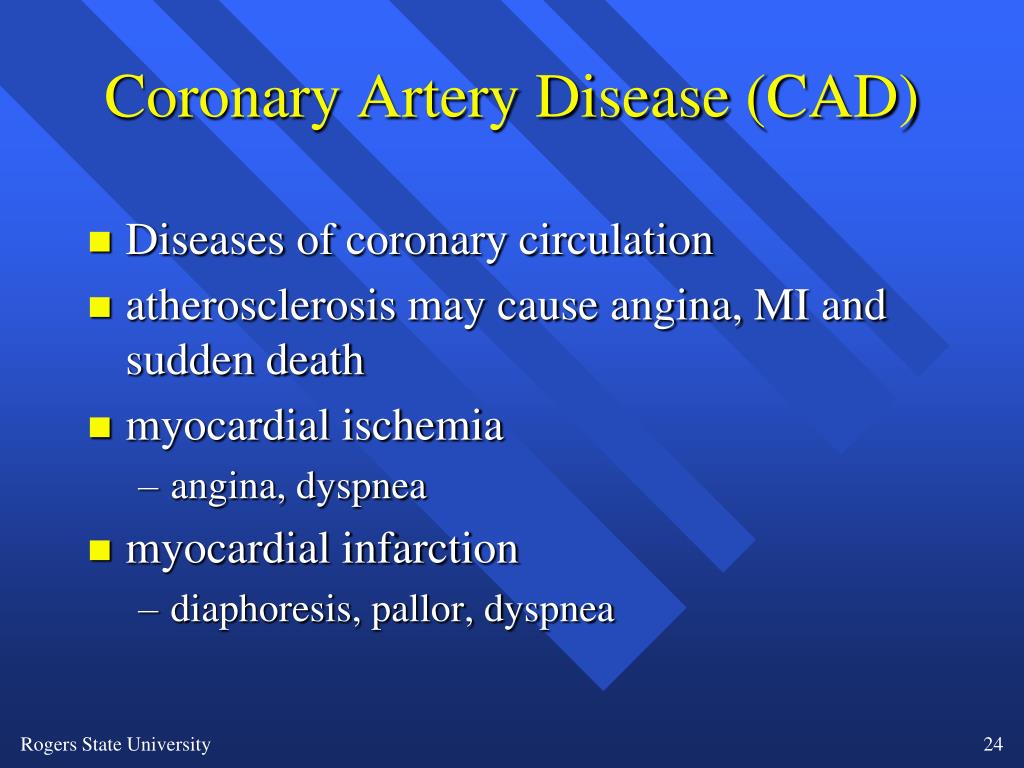

  24. Coronary Artery Disease (CAD) • Diseases of coronary circulation • atherosclerosis may cause angina, MI and sudden death • myocardial ischemia • angina, dyspnea • myocardial infarction • diaphoresis, pallor, dyspnea

  25. ProceduresOpening Blocked Arteries • Percutaneous transluminal coronary angioplasty (PTCA) • Carotid endarterectomy • Coronary artery bypass surgery • revascularization

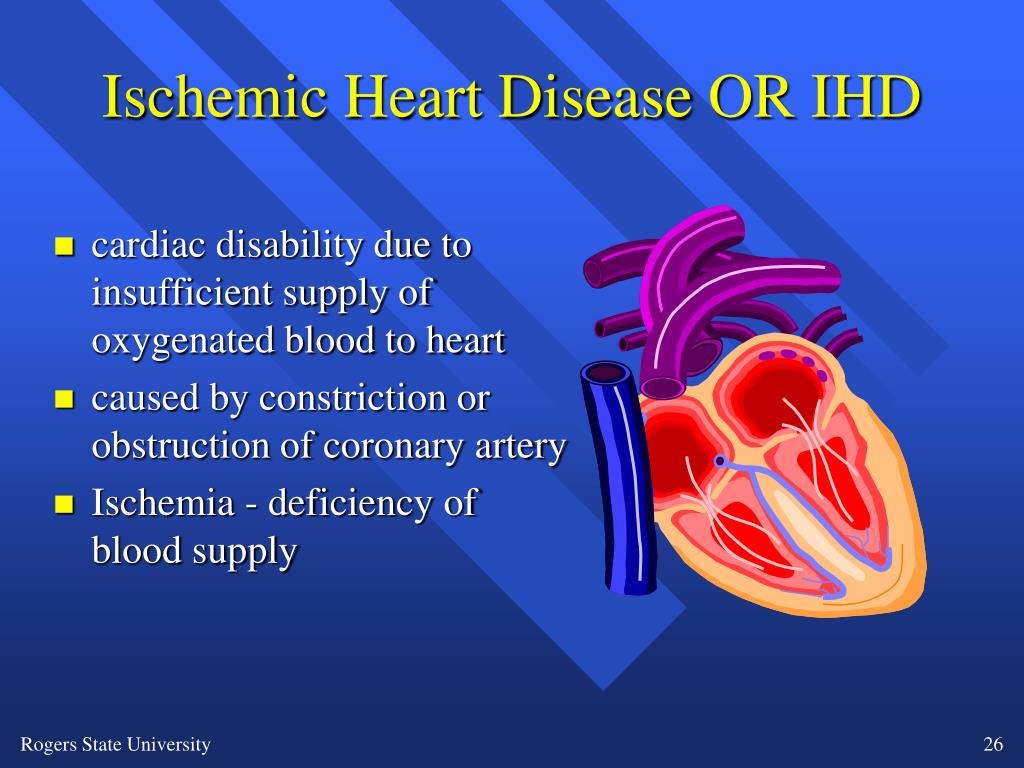

  26. Ischemic Heart Disease OR IHD • cardiac disability due to insufficient supply of oxygenated blood to heart • caused by constriction or obstruction of coronary artery • Ischemia - deficiency of blood supply

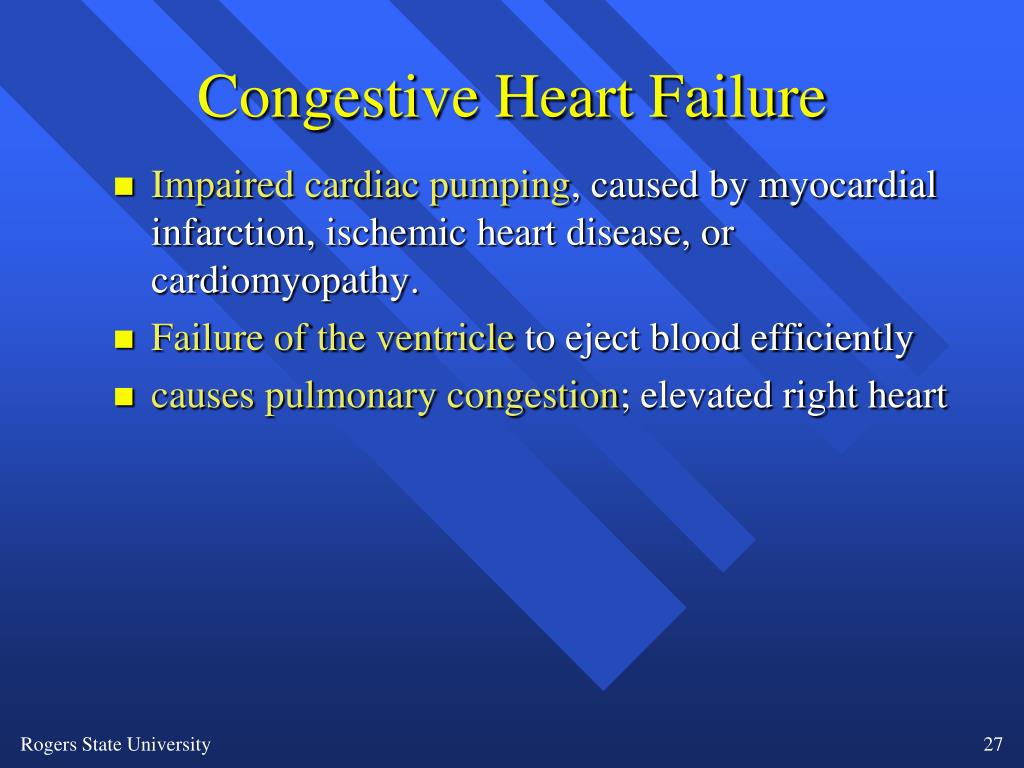

  27. Congestive Heart Failure • Impaired cardiac pumping, caused by myocardial infarction, ischemic heart disease, or cardiomyopathy. • Failure of the ventricle to eject blood efficiently • causes pulmonary congestion; elevated right heart

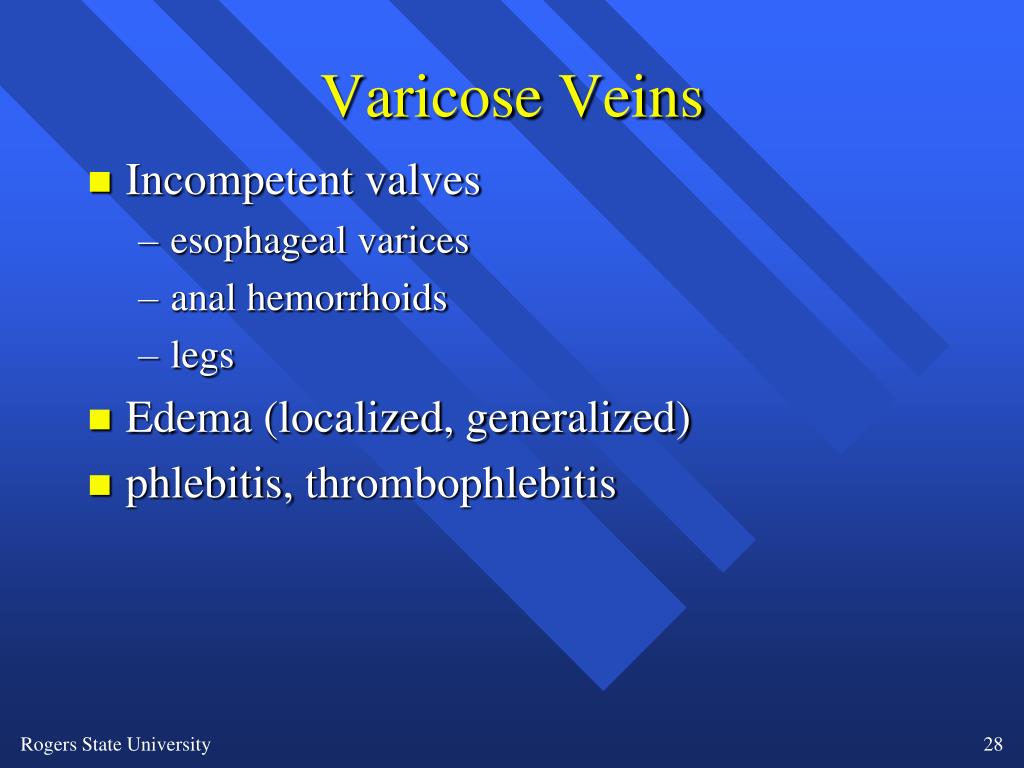

  28. Varicose Veins • Incompetent valves • esophageal varices • anal hemorrhoids • legs • Edema (localized, generalized) • phlebitis, thrombophlebitis

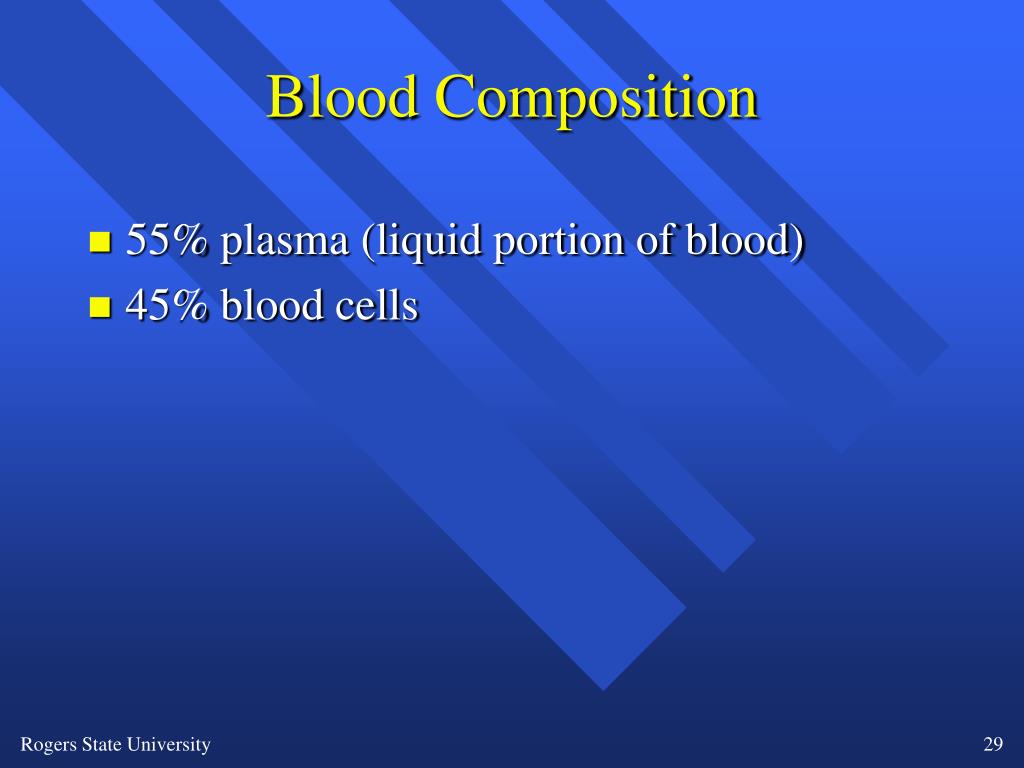

  29. Blood Composition 55% plasma (liquid portion of blood) 45% blood cells

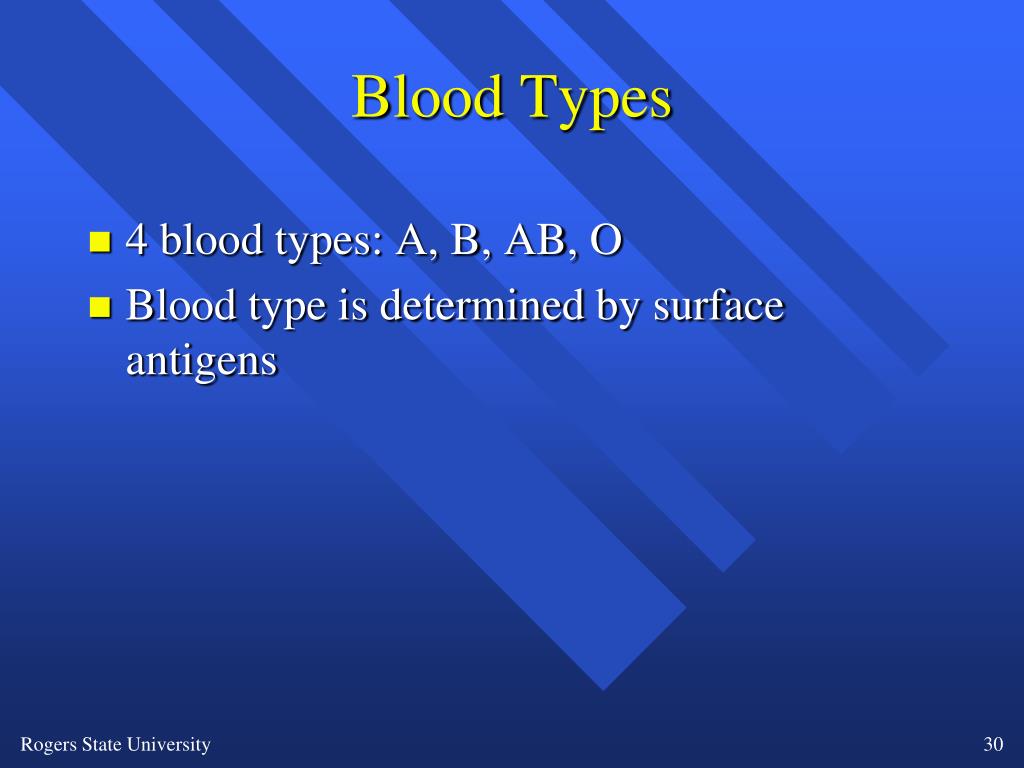

  30. Blood Types 4 blood types: A, B, AB, O Blood type is determined by surface antigens

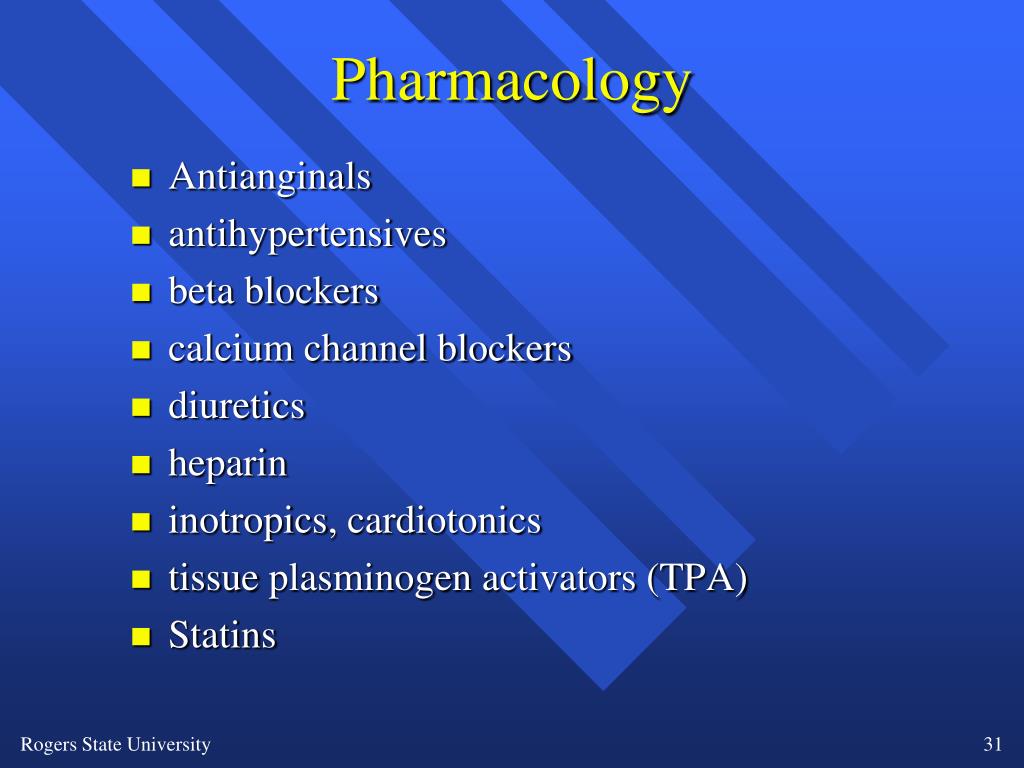

  31. Pharmacology • Antianginals • antihypertensives • beta blockers • calcium channel blockers • diuretics • heparin • inotropics, cardiotonics • tissue plasminogen activators (TPA) • Statins
