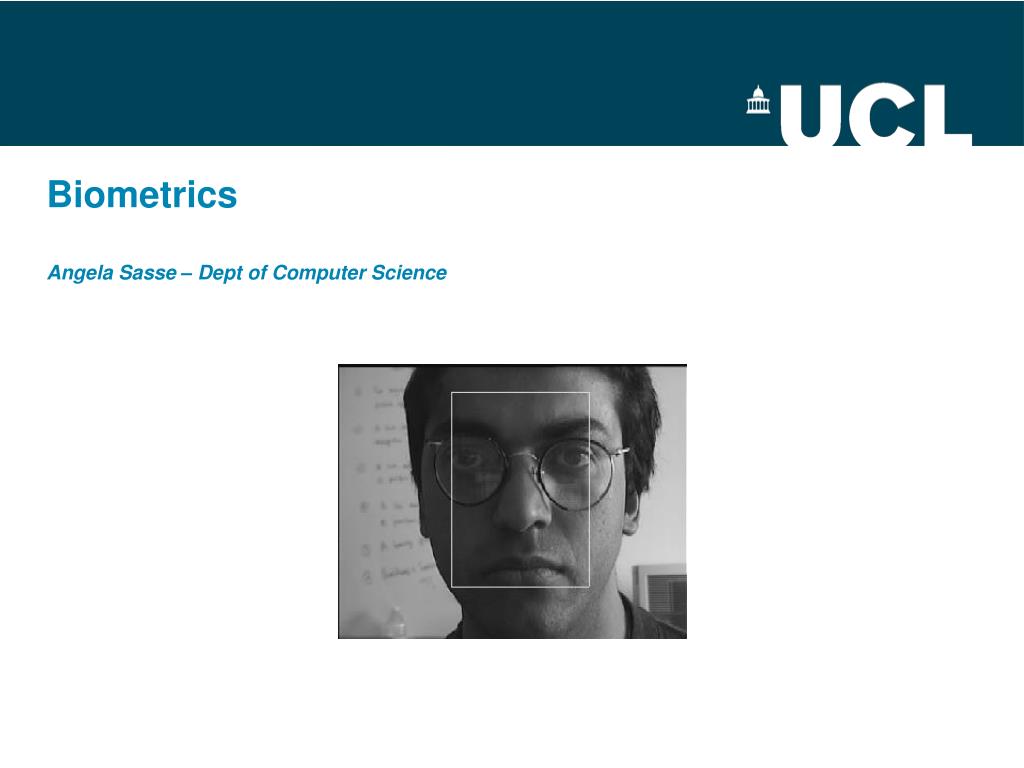

Biometrics Angela Sasse – Dept of Computer Science

1. BiometricsAngela Sasse – Dept of Computer Science

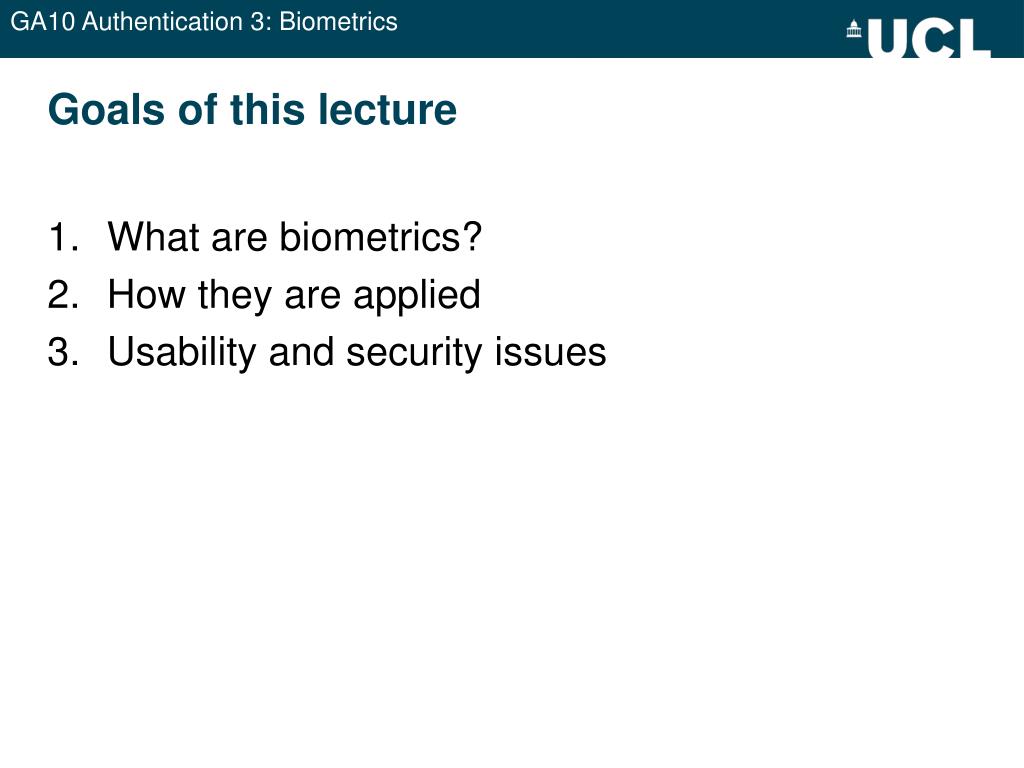

2. Goals of this lecture • What are biometrics? • How they are applied • Usability and security issues

3. biometric = biological or behavioural property of an individual that can be measured and from which distinguishing, repeatable biometric features can be extracted for the purpose of automated recognition of individuals • biometric sample = analog or digital representation of biometric characteristics prior to biometric feature extraction process and obtained from a biometric capture device or biometric capture subsystem (raw data) • biometric template = stored biometric features, applied to the biometric features of a recognition biometric sample during a comparison to give a comparison result. See http://www.bromba.com for a good FAQ on Biometric jargon

4. Some basics • Enrolment = capture of biometric feature and generation of biometric sample and/or template • Full images or templates • templates are more efficient • Images can be used to reverse-id/create new templates • Verification using ID + biometric, or • identification (biometric compared to database

5. Physical Fingerprint Finger / Palm Vein Hand geometry Face recognition Iris Retina Earshape Behavioural Voice print Dynamic Signature Recognition (DSR) Typing pattern Gait recognition Heart rate analysis Physical/behavioural

6. Enrolment • Crucial for security and subsequent performance • In some context, identity of enrolee needs to be checked • Biometrics enrolled need to be • genuine (see attacks) • good enough quality to work • Enrolment procedure needs to be formalised • Staff need to be trained • Staff need to be trustworthy or closely checked • Time taken to carry out enrolment often under-estimated

7. FTE • FTE (failure to enrol) rate = proportion of people who fail to be enrolled successfully • FTAs: users can be enrolled but biometric sample too poor quality to verify • Reasons for FTE/FTA • Biometric not present or temporarily inaccessible • Biometric not sufficiently prominent or stable • Problem for Universal Access – may exclude • Older users • Disabled • Equipment may be too difficult to use

8. FTE in UKPS enrolment trial UKPS (UK Passport Service) enrolment trial 2004

9. FAR & FRR • FAR (False Acceptance Rate) • accepting user who is not registered • mistaking one registered user for another • High security: FAR of .01% acceptable • FRR (False Rejection Rate) • – rejecting legitimate user • High FRRs reduce usability, high FARs reduce security • customer-based applications tend to raise FAR

10. Performance • User performance depends on • frequency of use: • Frequent users complete faster and with fewer errors, infrequent users need step-by-step guidance and detailed feedback • Degree of cooperation • Total usage time (not just for matching) • Quality of enrolled and presented samples has key impact (e.g. fingerprints 1 or 10 at a time?) • Different performance for identification and verification (1-1 verification or 1-many identification)

13. "We were aiming for it to scan 12 pupils a minute, but it was only managing 5 so has been temporarily suspended as we do not want pupils' meals getting cold while they wait in the queue." Careful balancing of business process requirements and security requirements needed

14. Total Usage Process • Time quoted by suppliers often only refer to capture of live image & matching • Walk up to machine • Put down bags, remove hats, etc. • Find token (if used) • Put on token (if used) • Read token • Wait for live image to be captured & matched • Walk away & free machine for next user • Plus average number of rejections & re-tries Average 12-20 seconds, longer with infrequent users

15. FRR in UKPS enrolment trial

16. Performance: Smartgate Sydney Airport • Problem: speedy & secure immigration • Technology: Face recognition system • Users: Quantas air crew (2000) • Performance: • FAR “less than 1%” • FRR 2% • “could be faster” (average 12 secs) • Several re-designs necessary, including updating of image templates

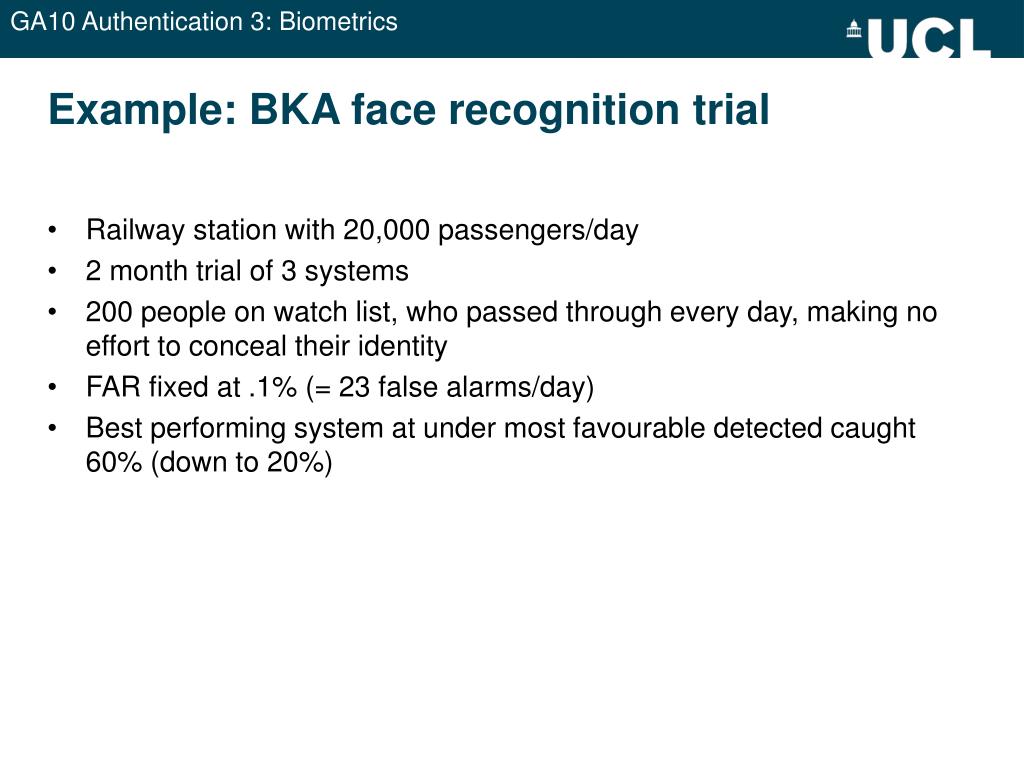

17. Example: BKA face recognition trial • Railway station with 20,000 passengers/day • 2 month trial of 3 systems • 200 people on watch list, who passed through every day, making no effort to conceal their identity • FAR fixed at .1% (= 23 false alarms/day) • Best performing system at under most favourable detected caught 60% (down to 20%)

18. Usability Issues: Finger • Which finger? • How to position • Where on sensor? • Which part of finger? • Straight or sideways? • Problems: arthritis, long fingernails, handcreme, circulation problems

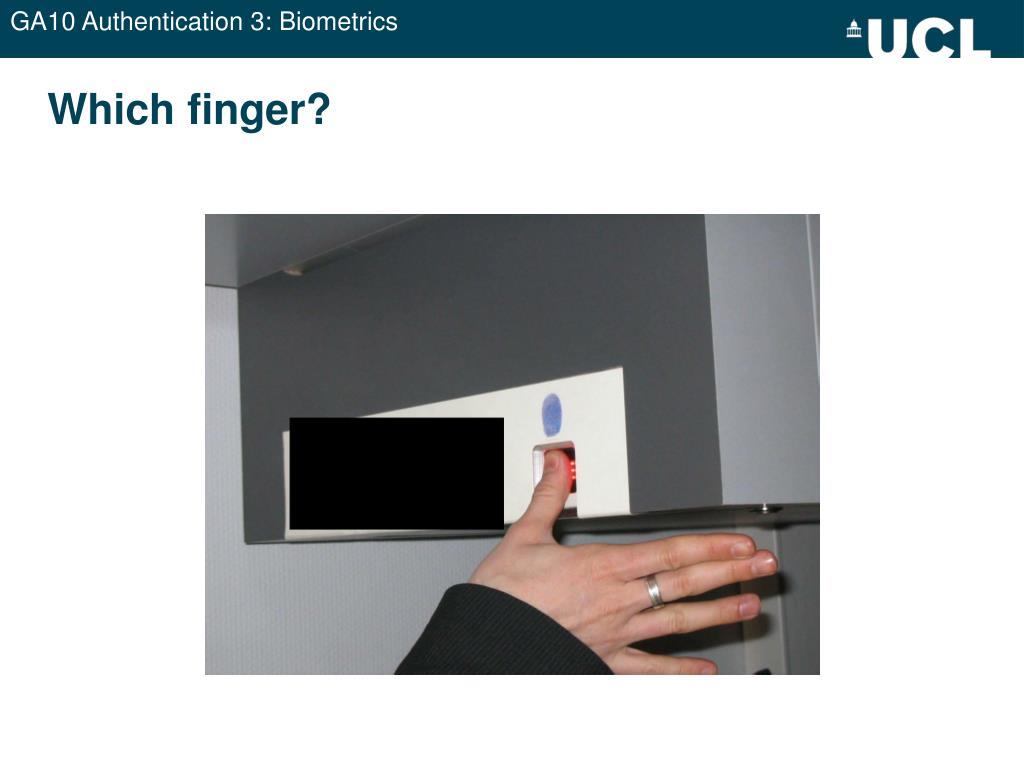

19. Which finger?

20. Finger position?

21. Usability Issues: Iris • What is it – iris or face? • One or both eyes? • One eye: how to focus? • Distance adjustment • Positioning • “rocking” or “swaying” • Glasses and contact lenses • about half of population wear them • Target area difficult to see when glasses are removed Example: Project IRIS at Heathrow

22. Focussing

23. Height adjustment • Often not sufficient for very short (under 1.55 m) or very tall (over 2.10) people, or wheelchair users • Need to use hand to adjust • If card needs to be held, other things users carry or hold need to be put down

24. Height adjustment

25. … but users may not realise this … or be reluctant to touch equipment, or think it takes too long

26. Usability Issues: Face • What is it? • Where do I stand? • Where do I look/what am I looking at? • Standing straight, keeping still • “Neutral expression” • Hats, changes in (facial) hair, makeup

27. Distance

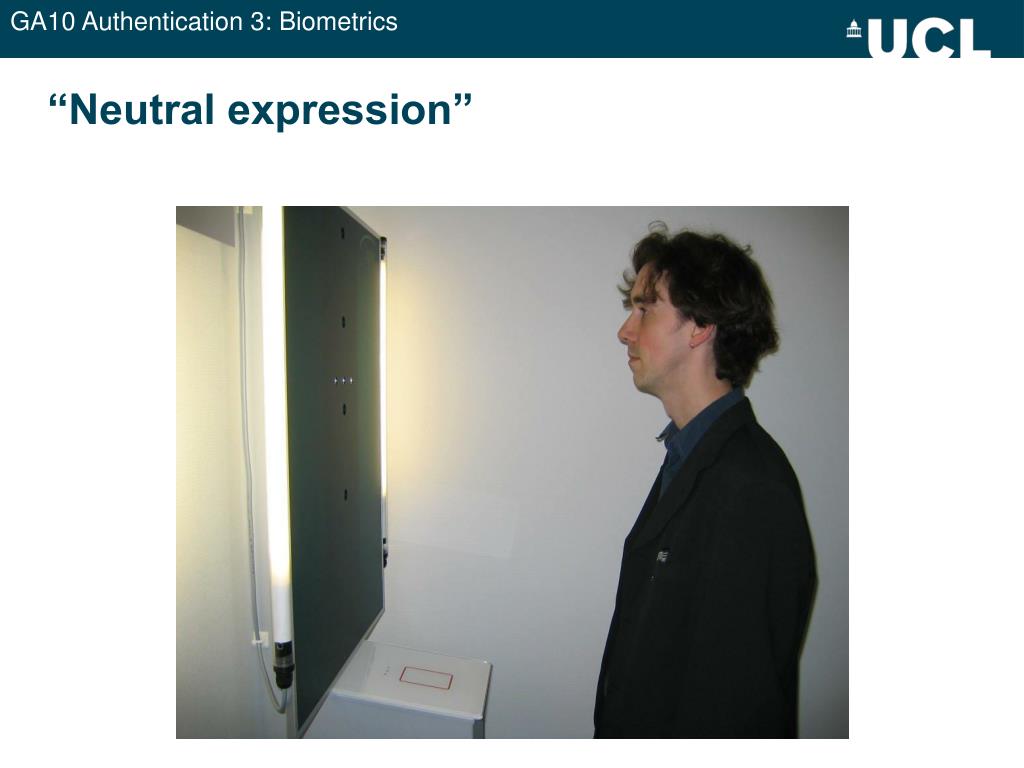

28. “Neutral expression”

29. User Acceptance Issues –Finger • Hygiene, Hygiene, Hygiene • Association with forensics/criminals • Finger chopped off

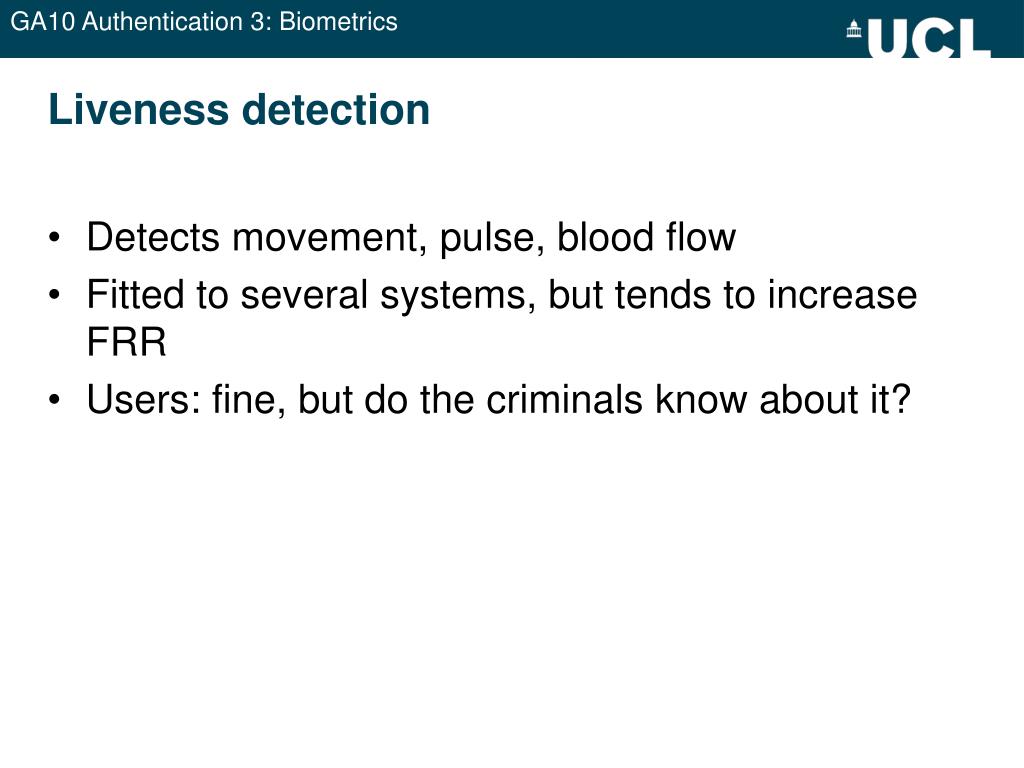

31. Liveness detection • Detects movement, pulse, blood flow • Fitted to several systems, but tends to increase FRR • Users: fine, but do the criminals know about it?

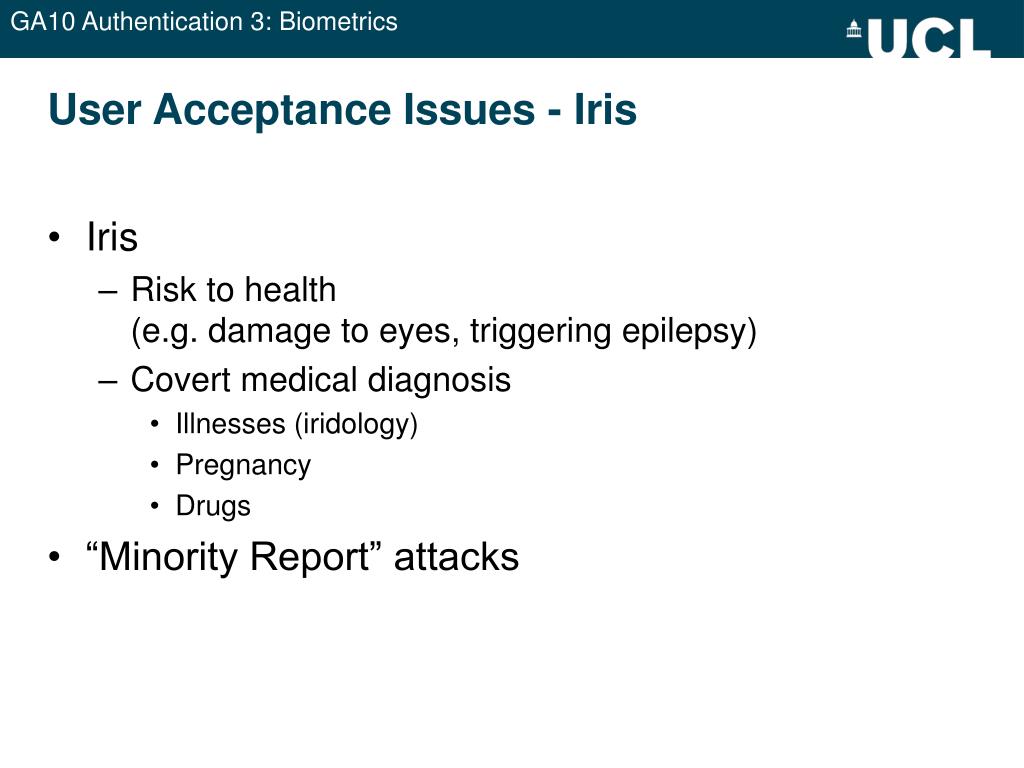

32. User Acceptance Issues - Iris • Iris • Risk to health (e.g. damage to eyes, triggering epilepsy) • Covert medical diagnosis • Illnesses (iridology) • Pregnancy • Drugs • “Minority Report” attacks

33. User Acceptance Issues - Face • Covert identification • Surveillance/tracking • Direct marketing

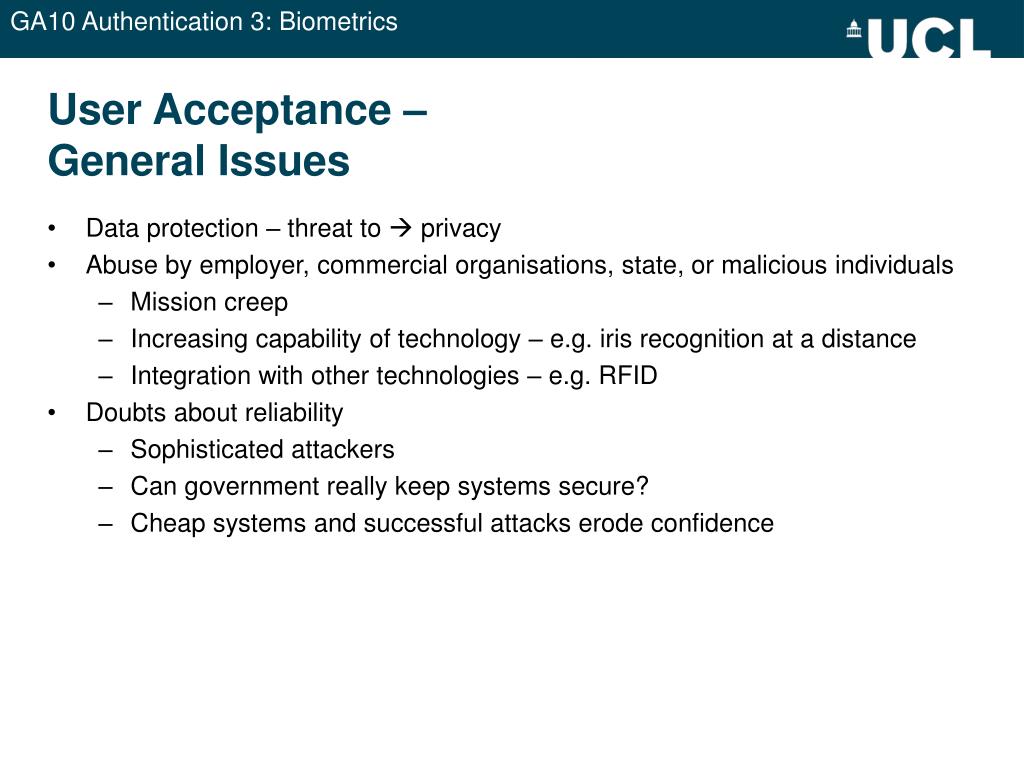

34. User Acceptance –General Issues • Data protection – threat to  privacy • Abuse by employer, commercial organisations, state, or malicious individuals • Mission creep • Increasing capability of technology – e.g. iris recognition at a distance • Integration with other technologies – e.g. RFID • Doubts about reliability • Sophisticated attackers • Can government really keep systems secure? • Cheap systems and successful attacks erode confidence

36. Simple Activate latent prints: breathing, bag with warm water Sophisticated Lift print with tape or photograph Gelatine print (gummy bear attack) – lasts 1x Silicone print Attacks - Finger

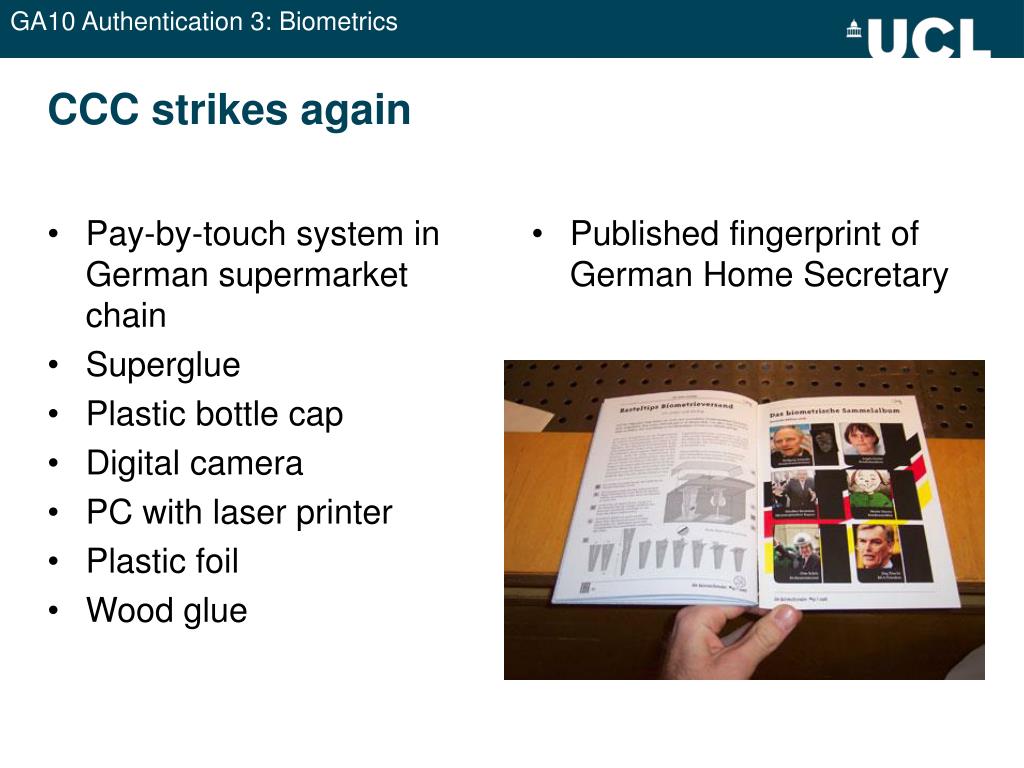

37. Pay-by-touch system in German supermarket chain Superglue Plastic bottle cap Digital camera PC with laser printer Plastic foil Wood glue Published fingerprint of German Home Secretary CCC strikes again

38. Simple Picture of eye stuck on glasses Sophisticated Coloured contact Attacks - Iris

39. Simple Replay attack (Photo or video of person) Glasses with strong frames Sophisticated Mask (Mission Impossible attack) Attacks - Face http://www.heise.de/ct/english/02/11/114/bild7.jpg
