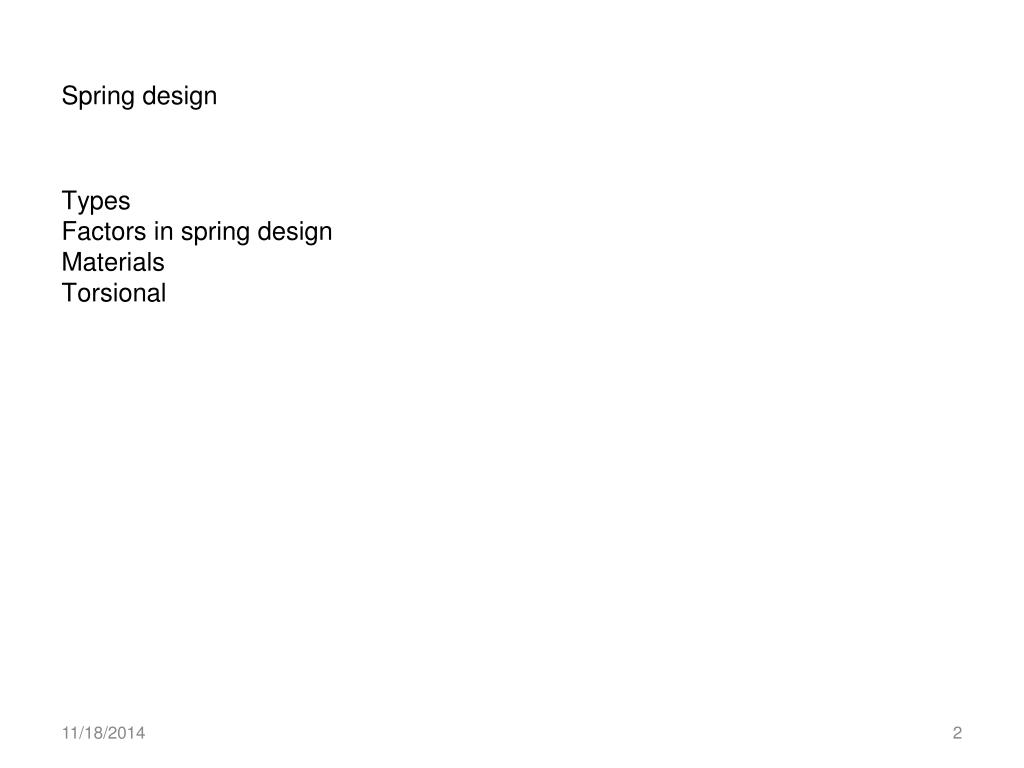

  1. Spring design • Types • Factors in spring design • Materials • Torsional

  2. Types of Springs

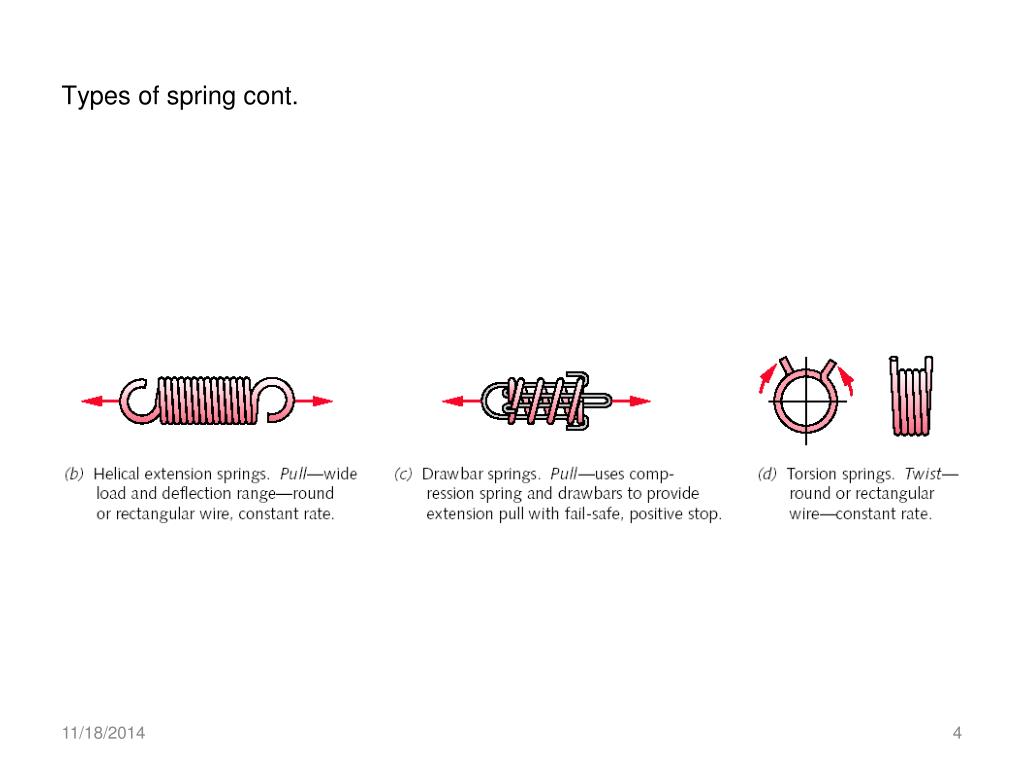

  3. Types of spring cont.

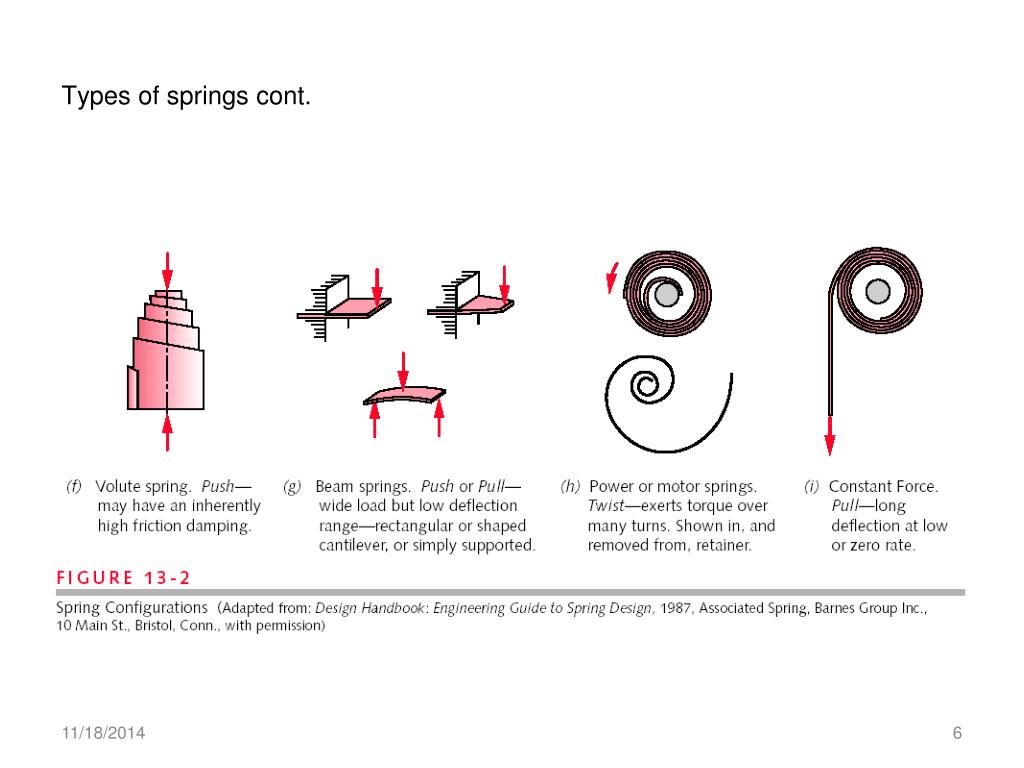

  4. Types of springs cont.

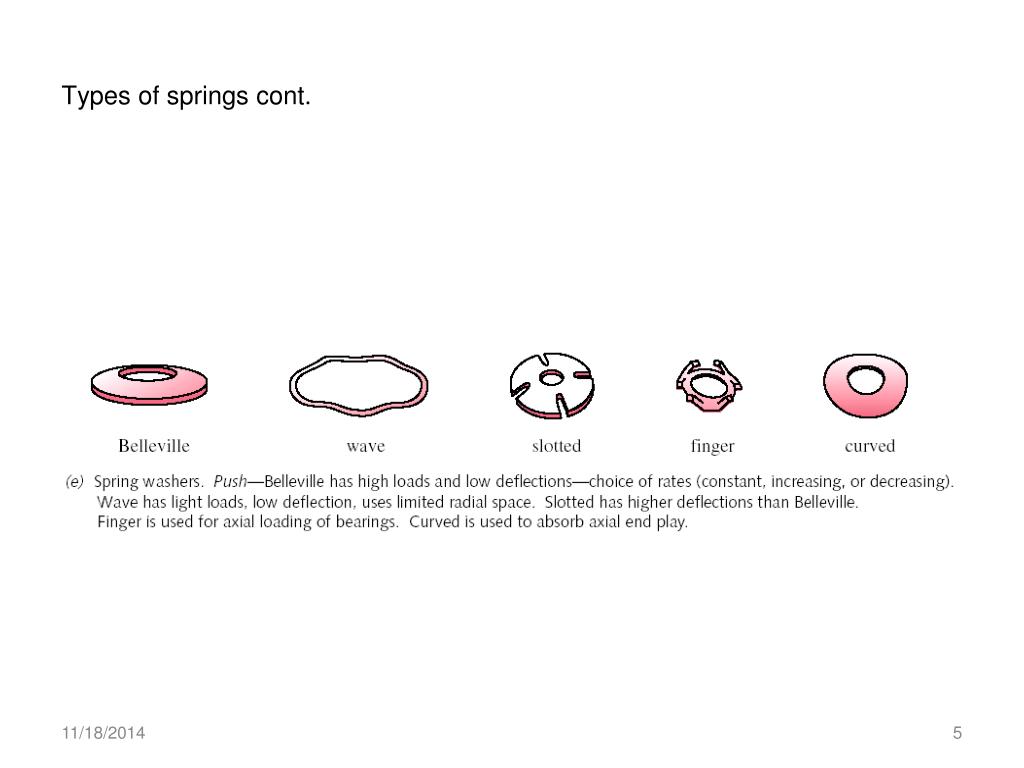

  5. Types of springs cont.

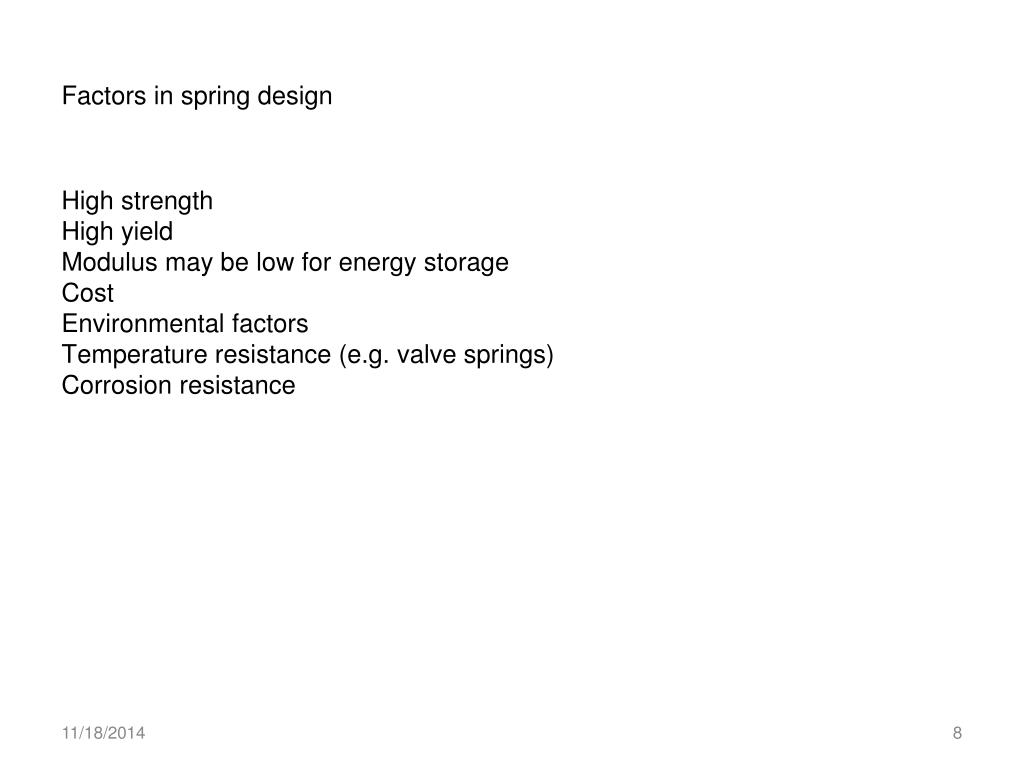

  6. Factors in spring design • High strength • High yield • Modulus may be low for energy storage • Cost • Environmental factors • Temperature resistance (e.g. valve springs) • Corrosion resistance

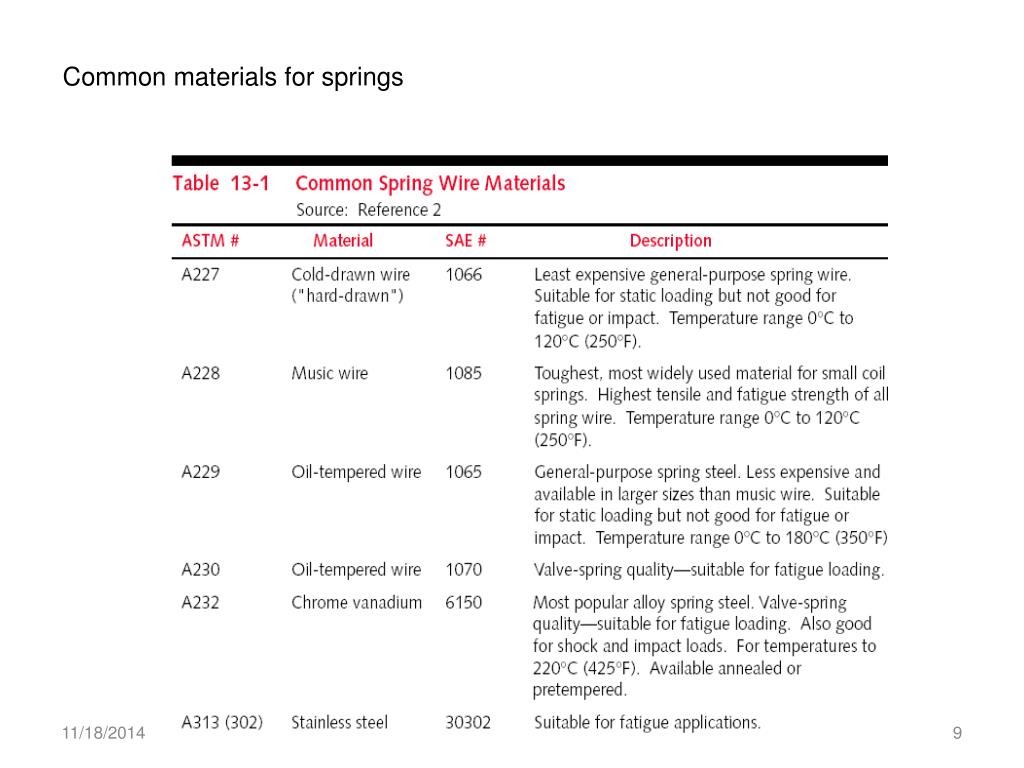

  7. Common materials for springs

  8. Influence of diameter on ultimate stress

  9. Influence of diameter on ultimate stress cont.

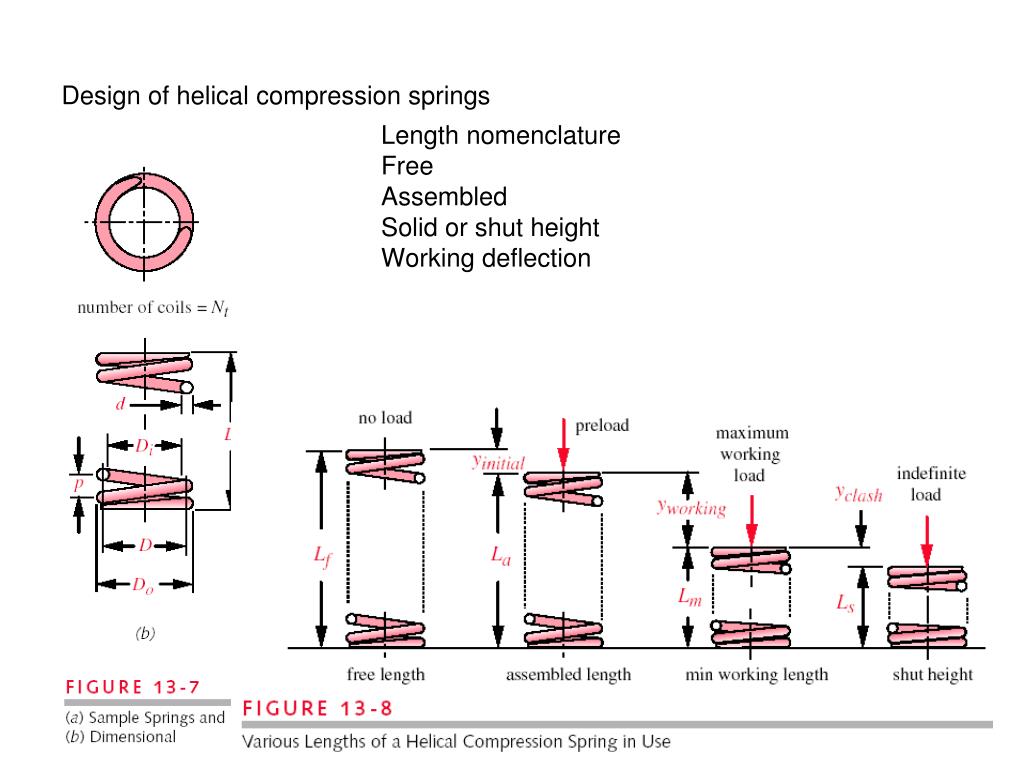

  10. Design of helical compression springs • Length nomenclature • Free • Assembled • Solid or shut height • Working deflection

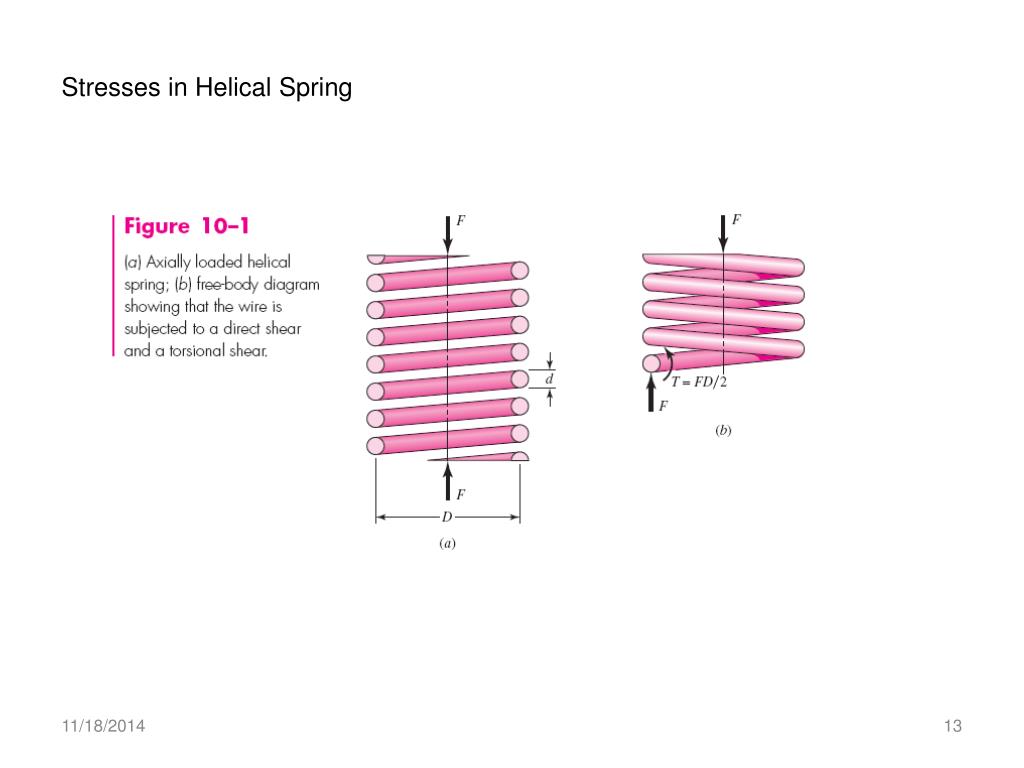

  11. Stresses in Helical Spring

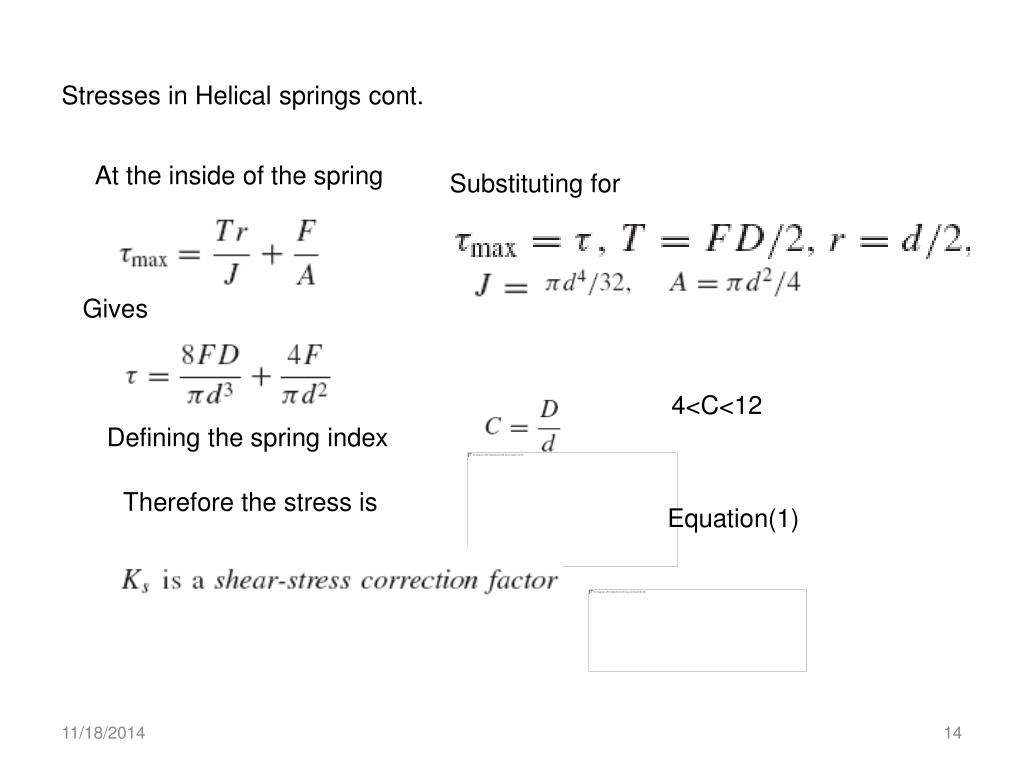

  12. Stresses in Helical springs cont. At the inside of the spring Substituting for Gives 4<C<12 Defining the spring index Therefore the stress is Equation(1)

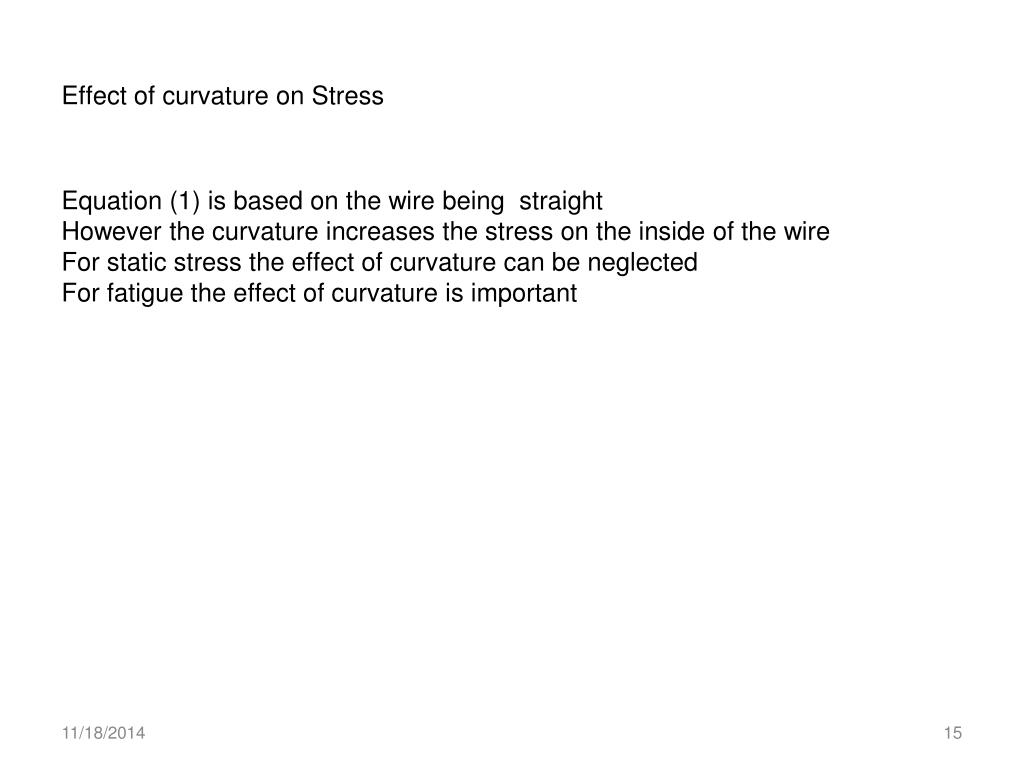

  13. Effect of curvature on Stress • Equation (1) is based on the wire being straight • However the curvature increases the stress on the inside of the wire • For static stress the effect of curvature can be neglected • For fatigue the effect of curvature is important

  14. Effect of curvature cont. Wahl factor Bergstrasser factor The results of the two equations differ by less than 1%. Bergstrasser factor is preferred due to simplicity

  15. Deflection • The external work done on an elastic member in deforming it is transformed into strain, or potential, energy. If the member is deformed a distance y, and if the force-deflection relationship is linear, this energy is equal to the product of the average force and the deflection, or • This equation is general in the sense that the force F can also mean torque, or moment, provided, that consistent units are used for k.

  16. Deflection cont.. • By substituting appropriate expressions for k, strain-energy formulas for various simple loadings may be obtained. For tension and compression and for torsion,

  17. Deflection of a helical spring • Using Castigliano’s theorem, strain energy is equal to • Substituting

  18. Deflection cont. • Using the spring index • Spring scale is

  19. Spring design – end treatment • End details affect active coils • Plain ends • Squared ends • Squared • Ground

  20. Number of active coils

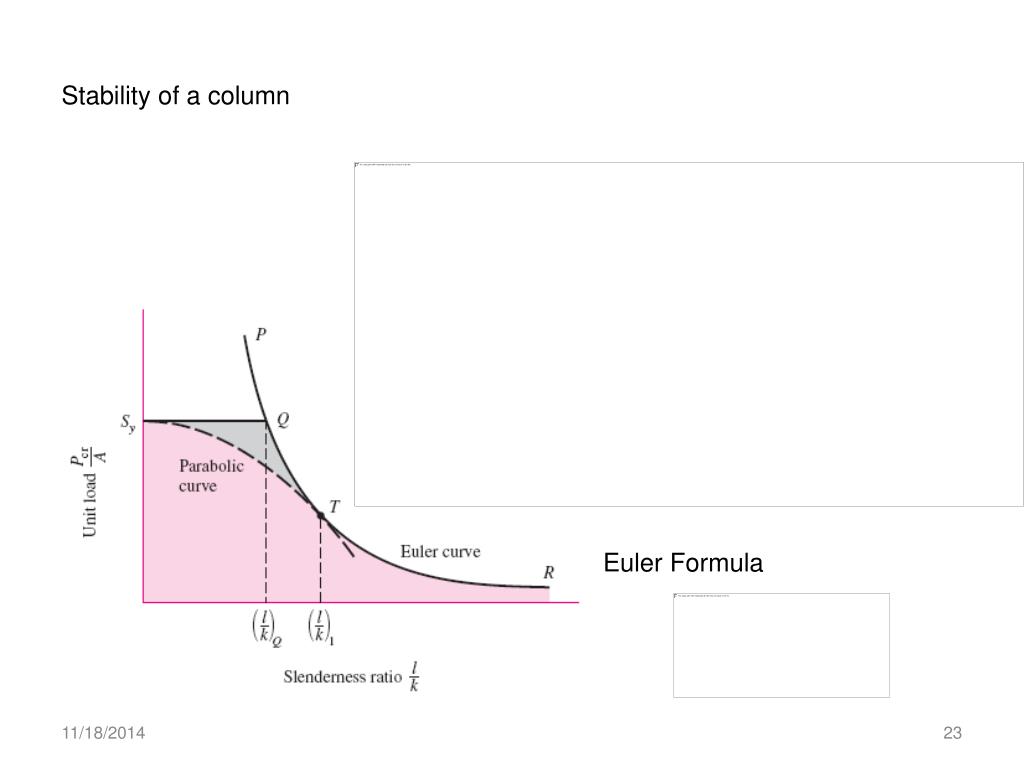

  21. Stability of a column Euler Formula

  22. Stability of a spring • We know a column will buckle when the load is too large • A compression coil spring will also buckle • ycr is the deflection corresponding to onset of instability

  23. Deflection cont. Is called the effective slenderness ratio Alpha = end condition constant Lo is the spring length D is the Coil diameter

  24. Instability cont. • End constraint alpha given by

  25. Instability cont. • For absolute stability • For steels it turns out • For square and ground ends

  26. Static design flow chart

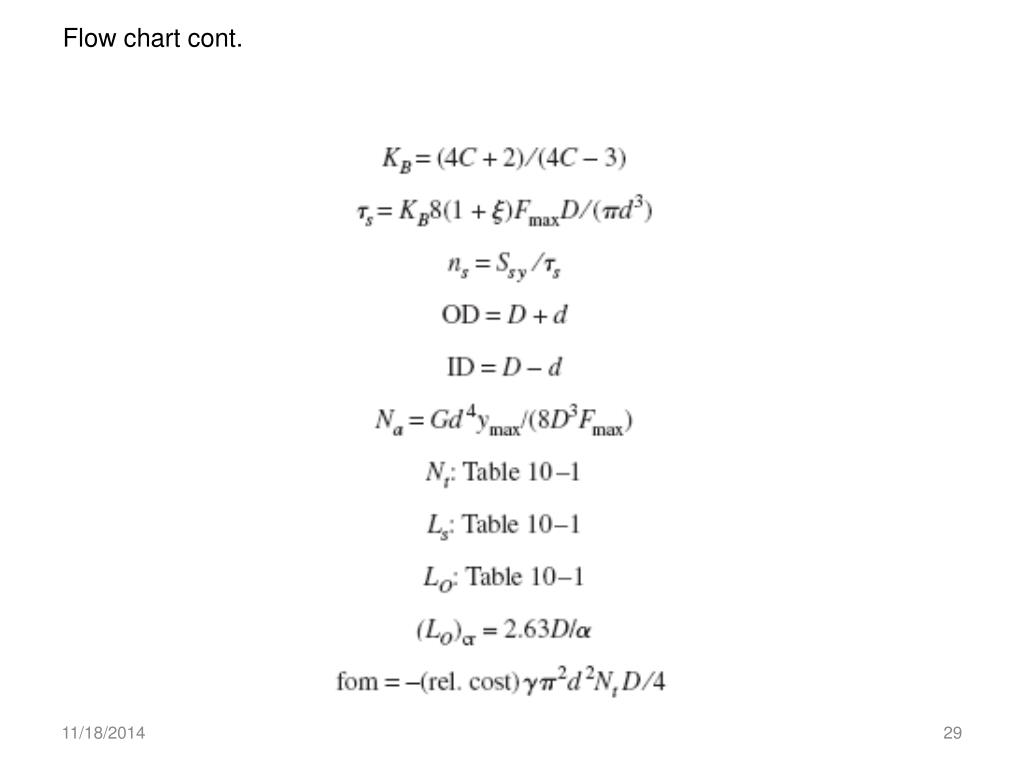

  27. Flow chart cont.

  28. Recommended design conditions Figure of merit (fom)

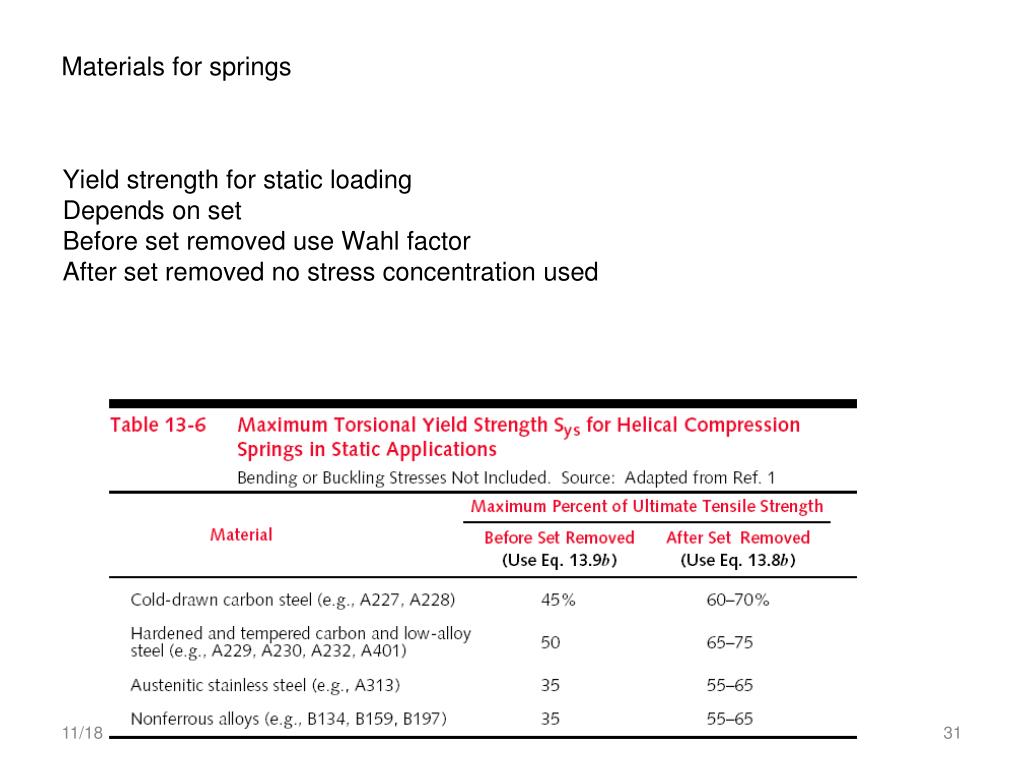

  29. Materials for springs • Yield strength for static loading • Depends on set • Before set removed use Wahl factor • After set removed no stress concentration used

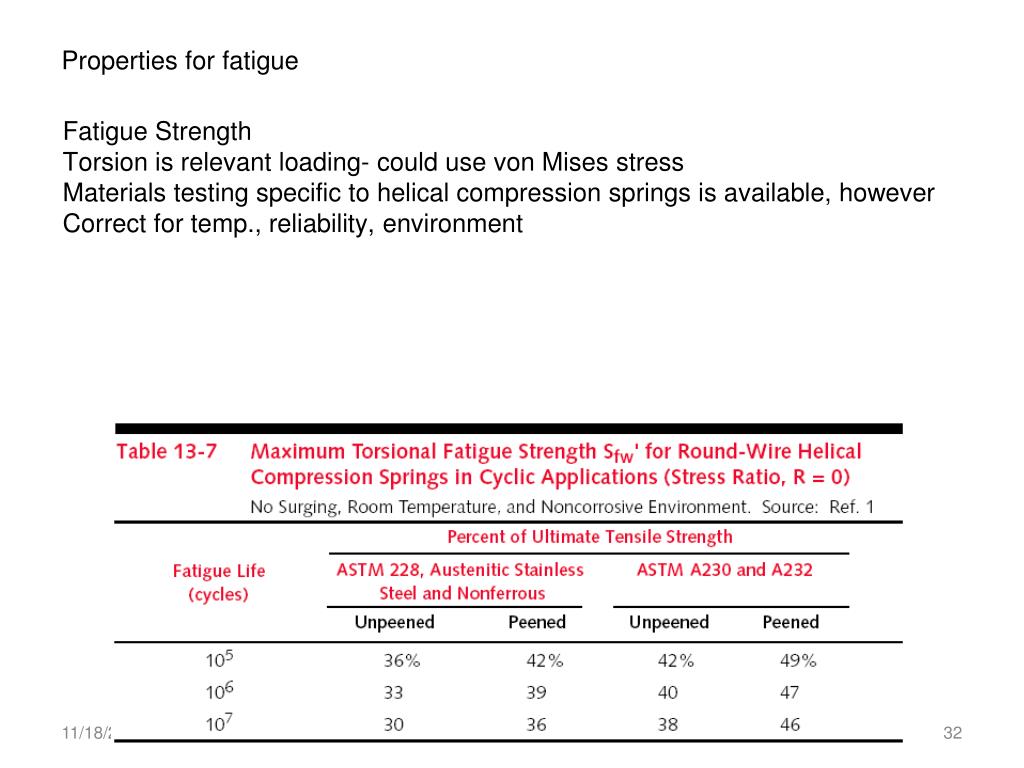

  30. Properties for fatigue • Fatigue Strength • Torsion is relevant loading- could use von Mises stress • Materials testing specific to helical compression springs is available, however • Correct for temp., reliability, environment

  31. Properties - endurance • Endurance Strength (steels) unlimited cycles • For high ultimate strengths, endurance limits max out at 45 kpsi (unpeened) and 67.5 kpsi (peened) • Small wires have high ultimate strength • Tests have been done specific to spring wire • Temperature may require compensation • Corrosion • Reliability

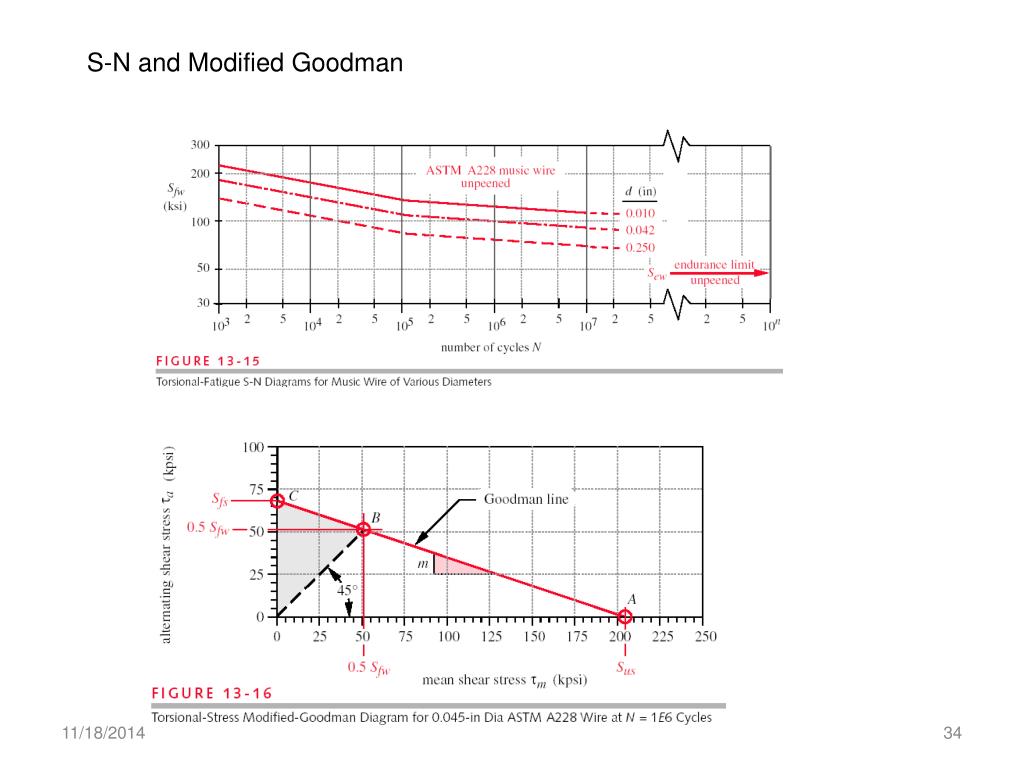

  32. S-N and Modified Goodman

  33. Designing springs Requirements Design Choices • Functionality • Stiffness • Lengths • Diameter • Forces • Reliable operation • Static factor of safety • Fatigue factor of safety • Buckling and surge • Manufacturability • Index C • Material • Wire and coil diameter • Number of turns • End treatment and constraint • Set and shot peen Constraints (other) • Bend radius

  34. Helical extension spring • Similar in most ways to compression springs • Usually wound to be closed coil at zero force • Thus a preload is required to stretch any, i.e. y=k(F-Fi ) • Spring hook is a source of failure in bending and torsion • No set is used • One coil not considered active

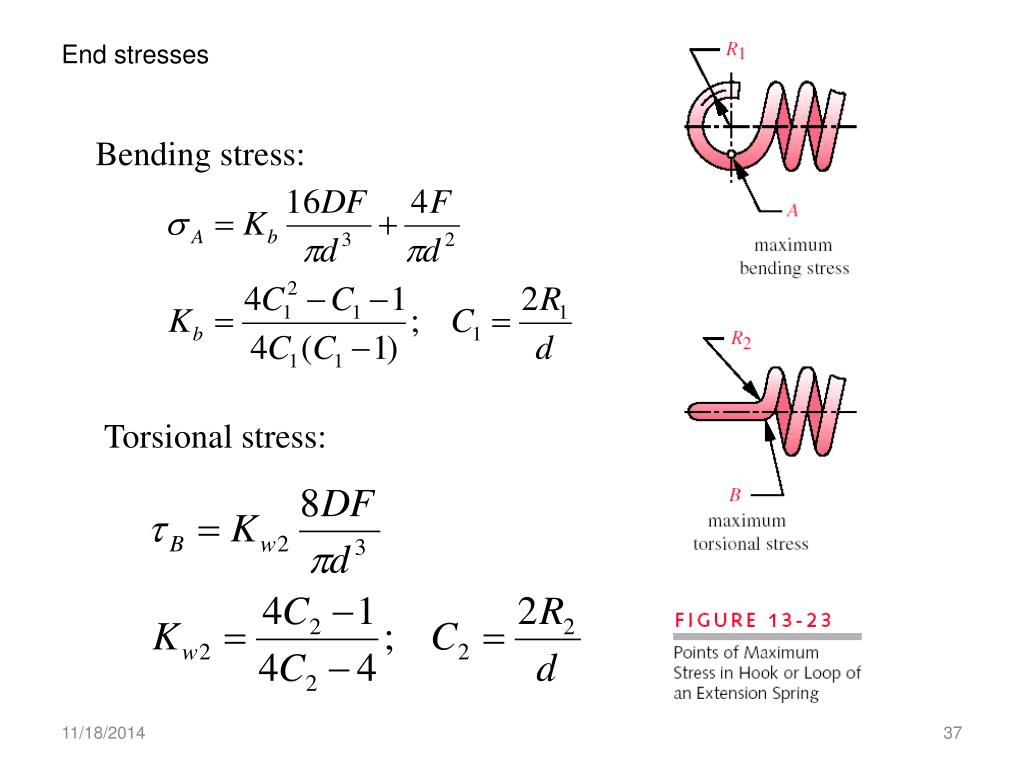

  35. End stresses Bending stress: Torsional stress:

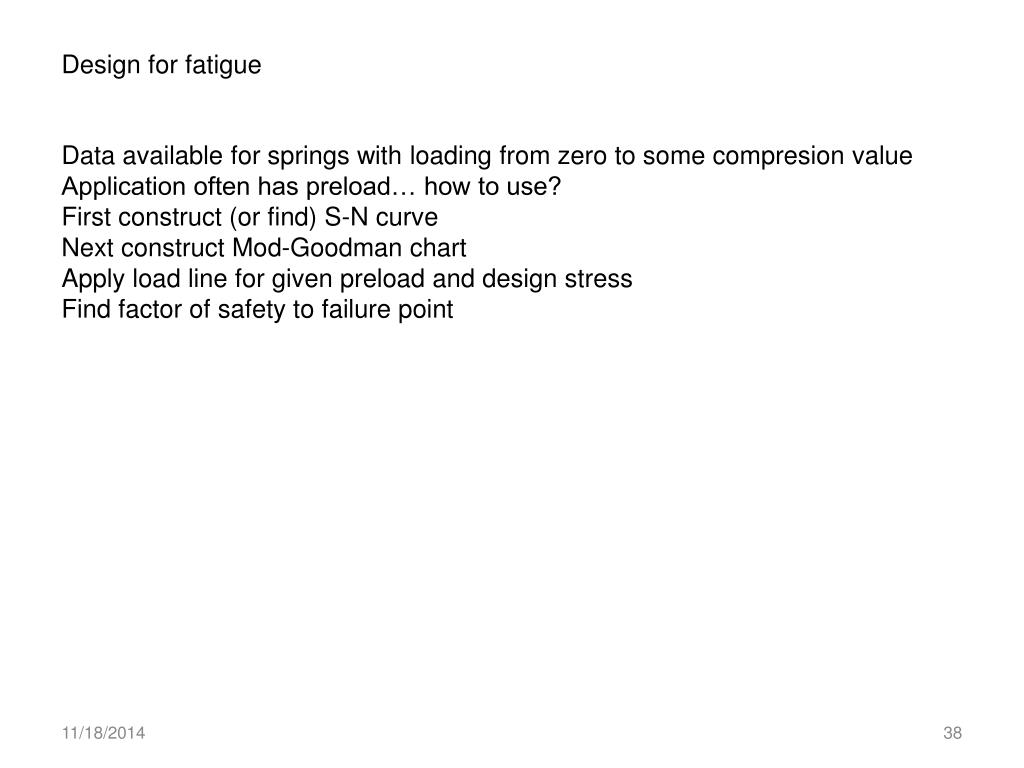

  36. Design for fatigue • Data available for springs with loading from zero to some compresion value • Application often has preload… how to use? • First construct (or find) S-N curve • Next construct Mod-Goodman chart • Apply load line for given preload and design stress • Find factor of safety to failure point

  37. Goodman curve

  38. A word about torsional springs • The wire in a torsional spring is primarily in bending • Spring constant is rotary M=k • Loading should act to wind up coil • Design process resembles compression springs

  39. Torsional

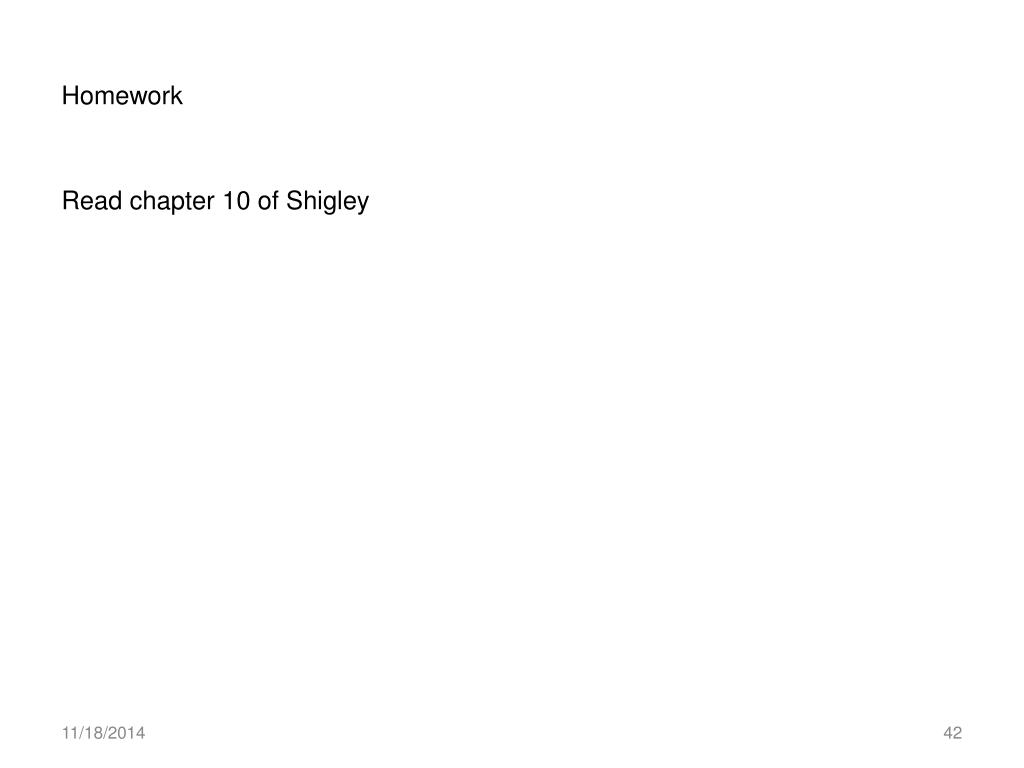

  40. Homework • Read chapter 10 of Shigley
