  1. The Structure of Matter Chapter 5

  2. Compounds • Compounds are made from two or more elements. • The compound has properties that are different from those of the elements that make it. • Compounds always have the same chemical formula.

  3. Chemical Bonds • The attractive forces that hold different atoms or ions together in compounds are called chemical bonds. • A bond length gives the distance between the nuclei of the two bonded atoms. • Bond angles tell how these atoms are oriented in space.

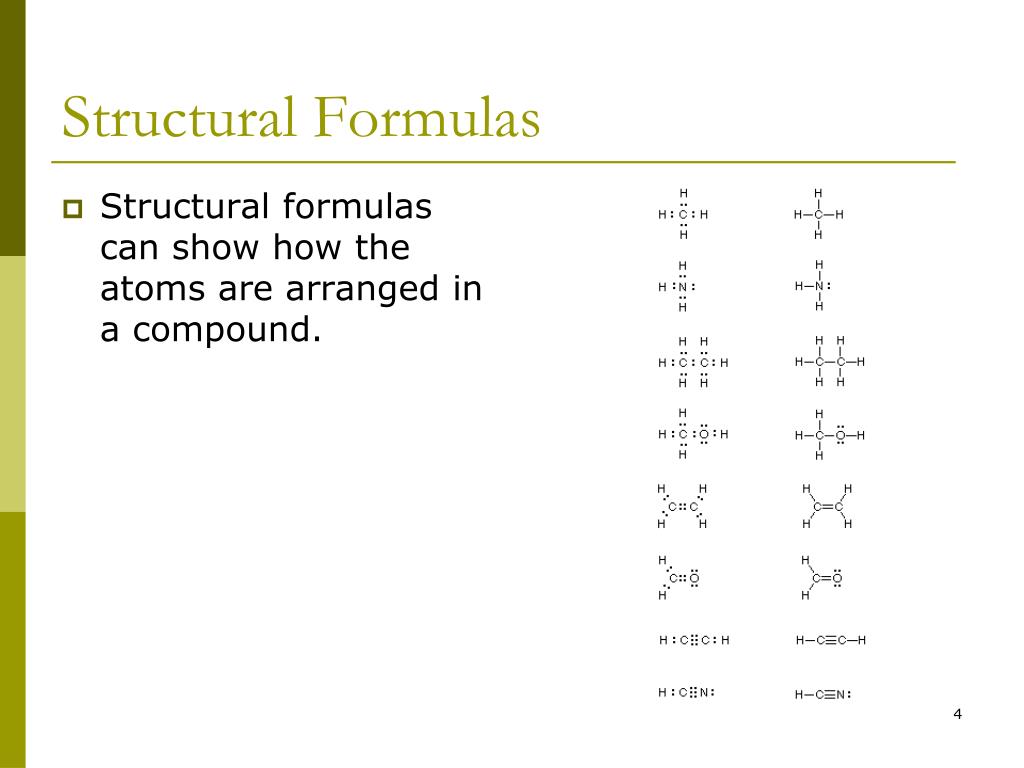

  4. Structural Formulas • Structural formulas can show how the atoms are arranged in a compound.

  5. What do we call the force that holds atoms in a molecule together? • Atoms • Chemical bond • Nucleus • Valence electrons

  6. The properties of a compound are different than the properties of the elements that make up the compound. • True • False

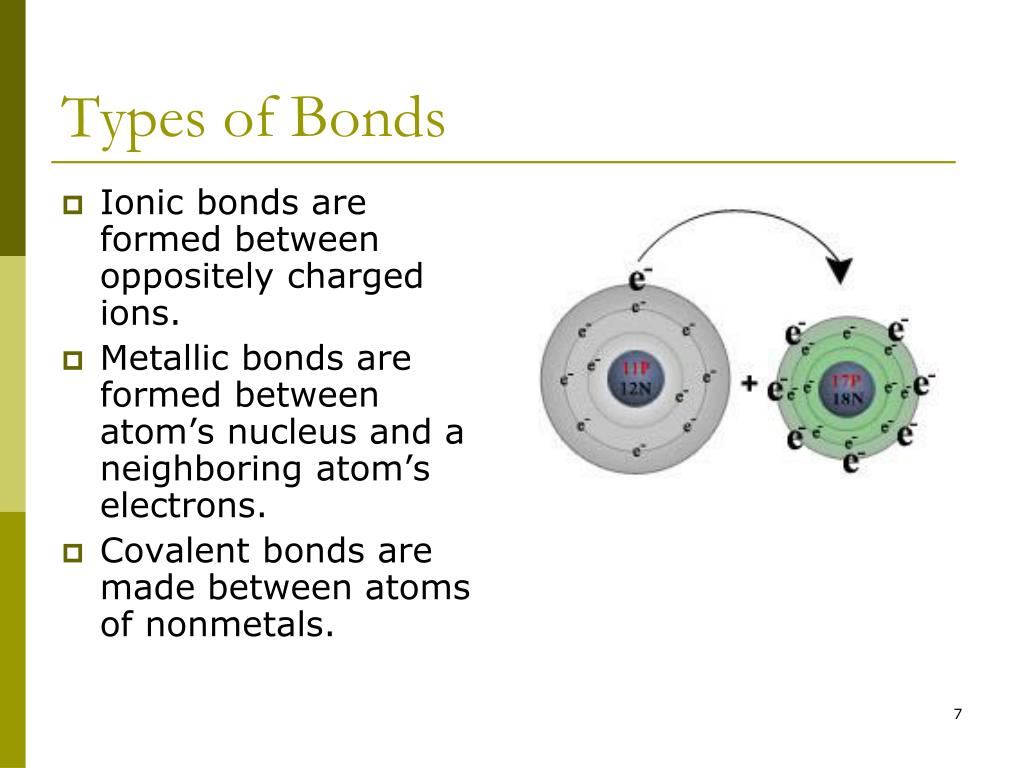

  7. Types of Bonds • Ionic bonds are formed between oppositely charged ions. • Metallic bonds are formed between atom’s nucleus and a neighboring atom’s electrons. • Covalent bonds are made between atoms of nonmetals.

  8. Ionic Bond • Bond between a metal ion and a nonmetal ion. • The oppositely charged ions are attracted to each other. • Forms ionic solids. • High melting point. • Conduct electric current.

  9. Metallic Bond • Bond that occur between atoms of metal. • Compounds are malleable and ductile. • Conduct electricity & heat. • Mixed to form alloys.

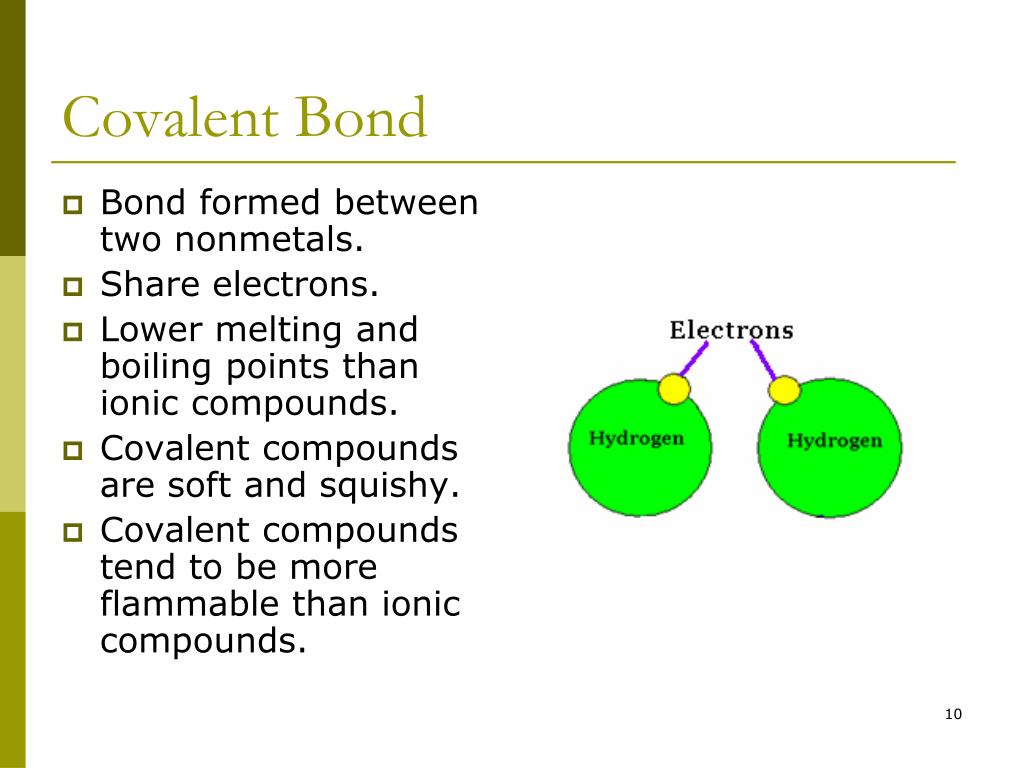

  10. Covalent Bond • Bond formed between two nonmetals. • Share electrons. • Lower melting and boiling points than ionic compounds. • Covalent compounds are soft and squishy. • Covalent compounds tend to be more flammable than ionic compounds.

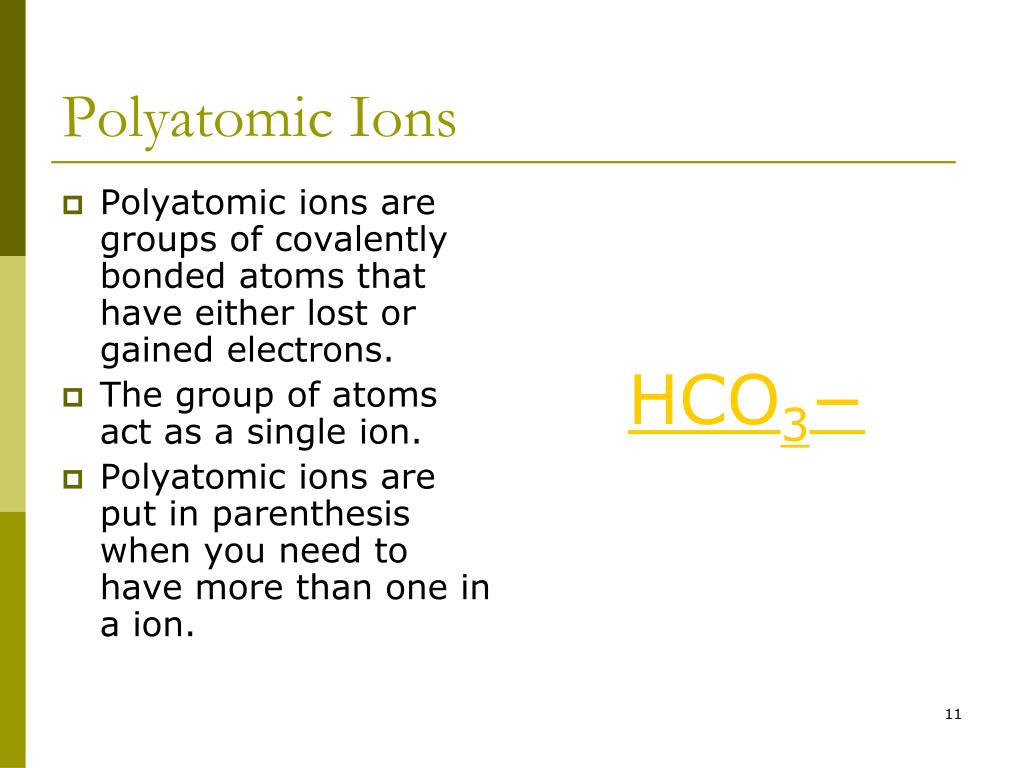

  11. Polyatomic Ions • Polyatomic ions are groups of covalently bonded atoms that have either lost or gained electrons. • The group of atoms act as a single ion. • Polyatomic ions are put in parenthesis when you need to have more than one in a ion. HCO3−

  12. Writing Chemical Formulas for Ionic Compounds • List the symbols for each ions. • Write the symbols for the ions with the cation first. • Find the least common multiple of the ions’ charges. • Write the chemical formula, indicating with subscripts how many of each ion are needed to make a neutral compound.

  13. Naming Covalent Compounds • Name the element that is farthest to the left on the periodic table. • Add a prefix if there is more than one atom. • Name the element that is farthest to the right on the periodic table and change the ending to an –ide.

  14. Writing Chemical Formulas for Covalent Compounds. • List the chemical symbols of the elements. • Add subscripts to indicate how many atoms of each element there is in a molecule of the compound. BaF2

  15. Empirical vs. Molecular Formulas • Empirical formula shows the smallest whole-number ratio of atoms that are in a compound. • Molecular formula tells how many atoms are in one molecule of the compound. C6H12O6

  16. Organic Compound • Organic compound is a covalently bonded compound made of molecules. • Organic compounds contain carbon and most of the time hydrogen. • Carbon can form four covalent bonds. • Compounds made of only hydrogen & carbon atoms are called hydrocarbons.

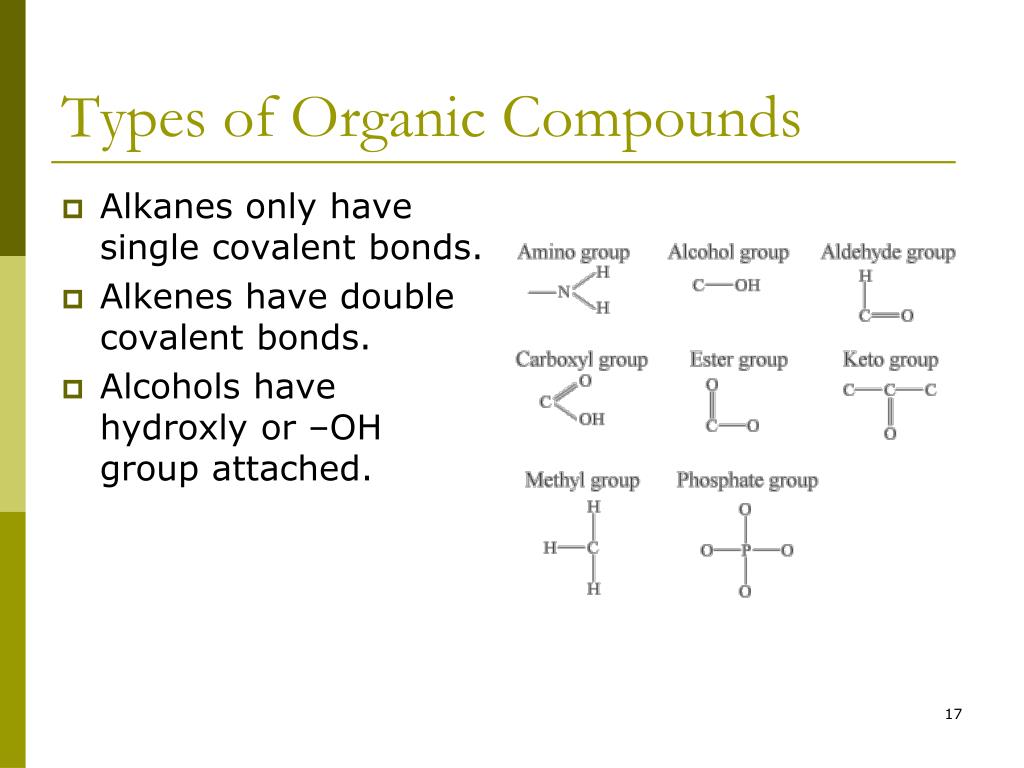

  17. Types of Organic Compounds • Alkanes only have single covalent bonds. • Alkenes have double covalent bonds. • Alcohols have hydroxly or –OH group attached.

  18. Alkanes • Methane • Ethane • Propane • Butane • Pentane • Hexane • Heptane • Octane • Nonane • Decane

  19. Alkenes • Methene • Ethene • Propene • Butene • Pentene • Hexene • Heptene • Octene • Nonene • Decene

  20. Alcohols • Methanol • Ethanol • Propanol • Butanol • Pentanol • Hexanol • Heptanol • Octanol • Nonanol • Decanol

  21. Polymers • Polymers are large molecule that is formed by more than five monomers or small units. • Polymers can be natural or synthetic. • Polymers elasticity varies depending on the structure.

  22. Biochemical Compounds • Biochemical compounds are naturally occurring organic compounds that are very important to living things. • Type of biochemical compounds: • Carbohydrates (simple sugars) • Proteins (amino acids) • Lipids (fatty acids)
