  1. Chapter 6 LectureSpin Echo Imaging MethodsMark D. Herbst, MD, PhD • Two Main Types of MR methods • Spin Echo –uses RF pulse to get an echo • Gradient Echo –uses gradient pulse to get an echo

  2. The spin echo process • Net magnetization vector starts at equilibrium, pointing up along the +z direction. • 90 degree RF pulse M now in xy plane • Spins in xy plane begin dephasing, and when totally dephased, M=0. • 180 degree refocusing RF pulse is applied • Spins in xy plane begin to rephase, and echo forms. This echo is captured and stored in k-space.

  3. The Spin Echo Process

  4. Three basic spin echo methods • PD-weighted (proton density) – long TR, short TE • T2-weighted – long TR, long TE • T1-weighted – short TR, short TE

  5. Causes of Spin Dephasing • Spin-spin interactions – energy exchange among the spinning nuclei causes relaxation (dephasing) • Magnetic field inhomogeneity – cases spins to dephase, reversed by 180 degree RF refocusing pulse

  6. Multiple Spin Echo • Done by using more than one 180 degree RF refocusing pulse • Commonly used to get both PDW and T2W images at the same time • Used in FSE (fast spin echo, turbo spin echo) to get images faster by filling k-space faster than conventional spin echo (CSE)

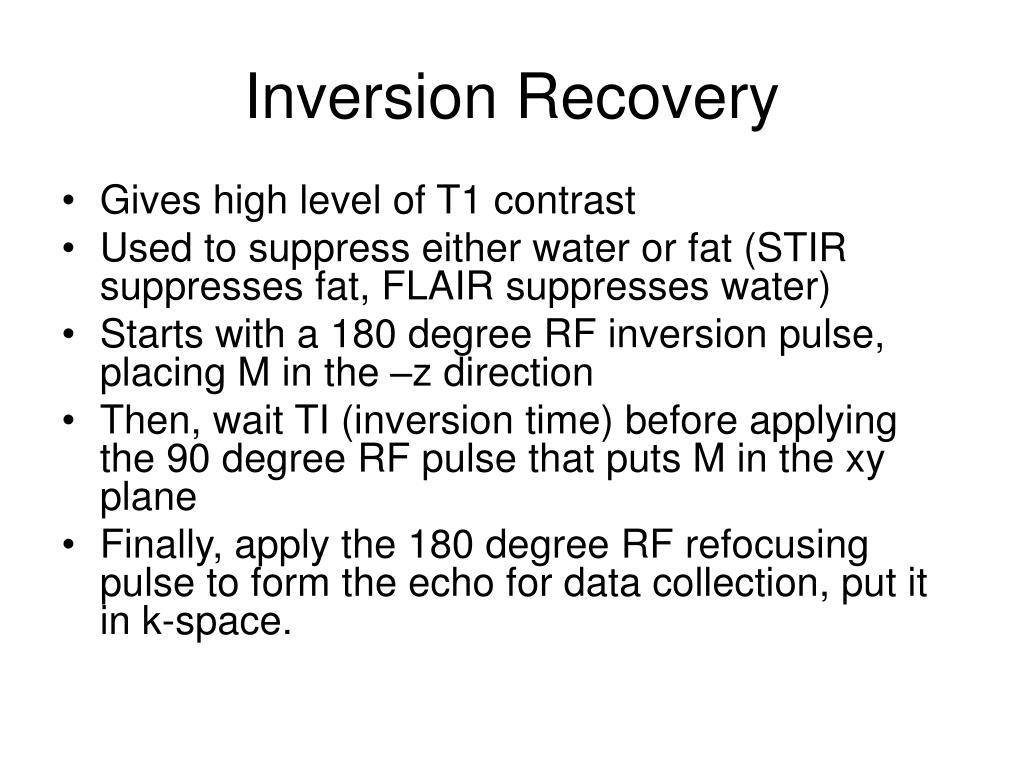

  7. Inversion Recovery • Gives high level of T1 contrast • Used to suppress either water or fat (STIR suppresses fat, FLAIR suppresses water) • Starts with a 180 degree RF inversion pulse, placing M in the –z direction • Then, wait TI (inversion time) before applying the 90 degree RF pulse that puts M in the xy plane • Finally, apply the 180 degree RF refocusing pulse to form the echo for data collection, put it in k-space.

  8. TI: inversion time • The time of inversion • The time that M is allowed to stay inverted (-z) • The time between the initial 180 degree inversion pulse and the 90 degree pulse that puts M in the xy plane.

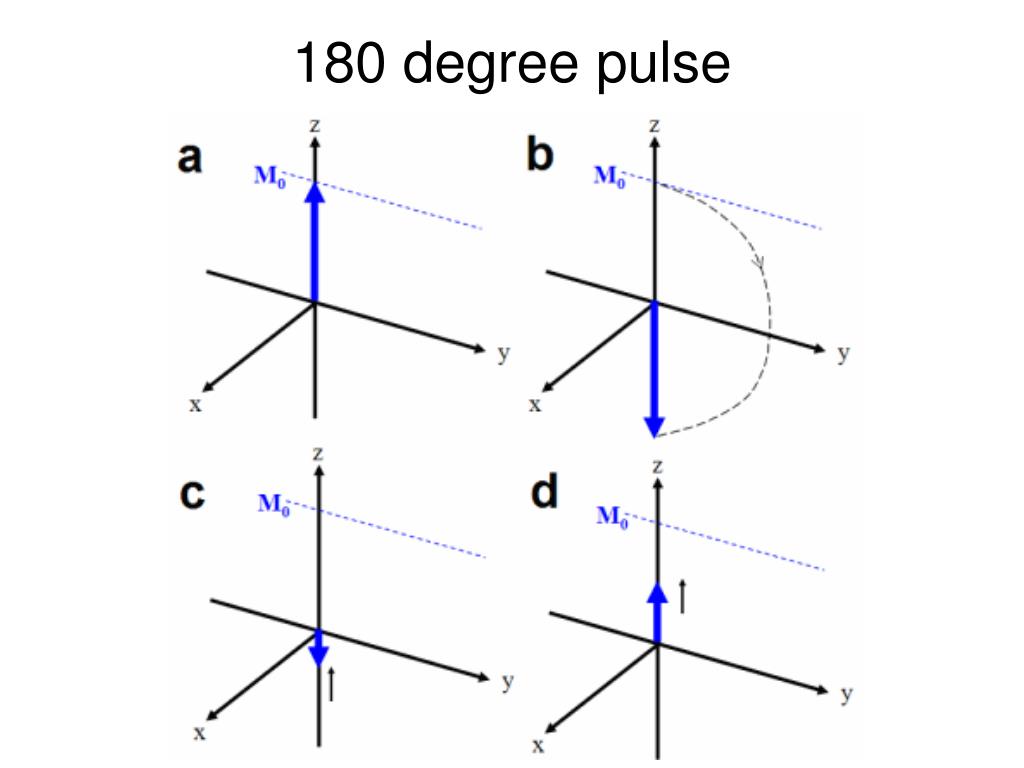

  9. 180 degree pulse

  10. IR pulse diagram (STIR and FLAIR)

  11. STIR – fat at null point

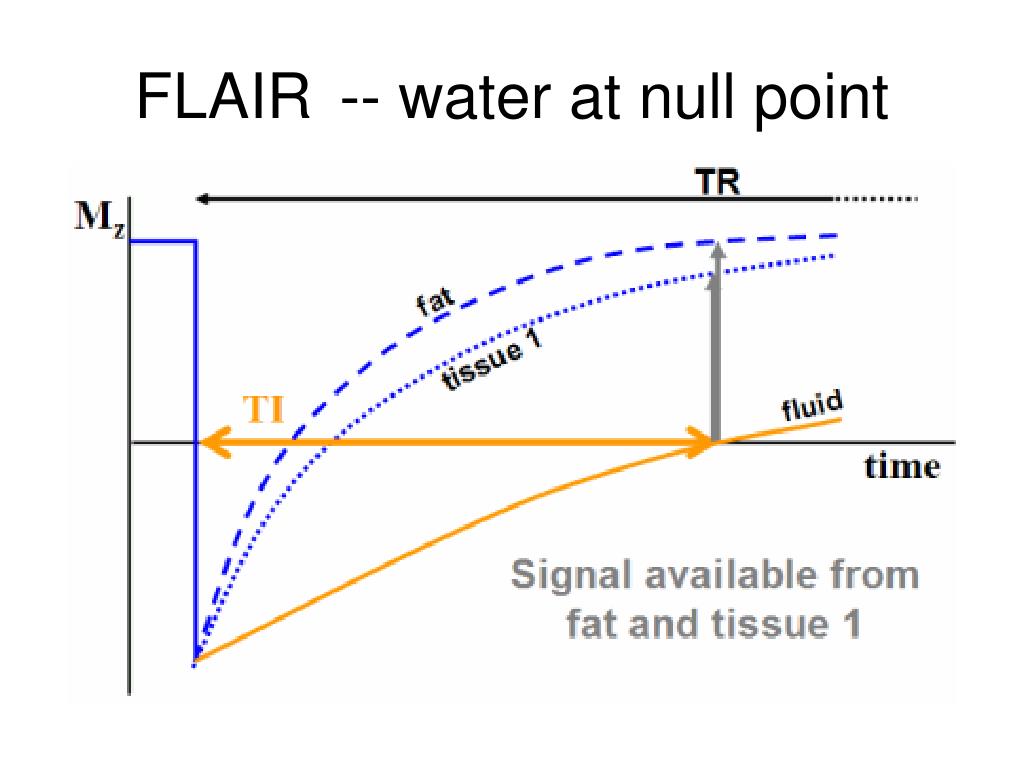

  12. FLAIR -- water at null point
