  1. Markov Localization Rowan Wing

  2. Problem Locate an autonomous mobile robot in a known environment using noisy sensors.

  3. Error Sensors have error that compounds as the robots moves.

  4. Background Internal Sensors (Odometry):

  5. Background External Sensors (Distance Sensors):

  6. Original Belief Distance Sensors Odometry

  7. Distance Sensor Updated Belief

  8. It Works!

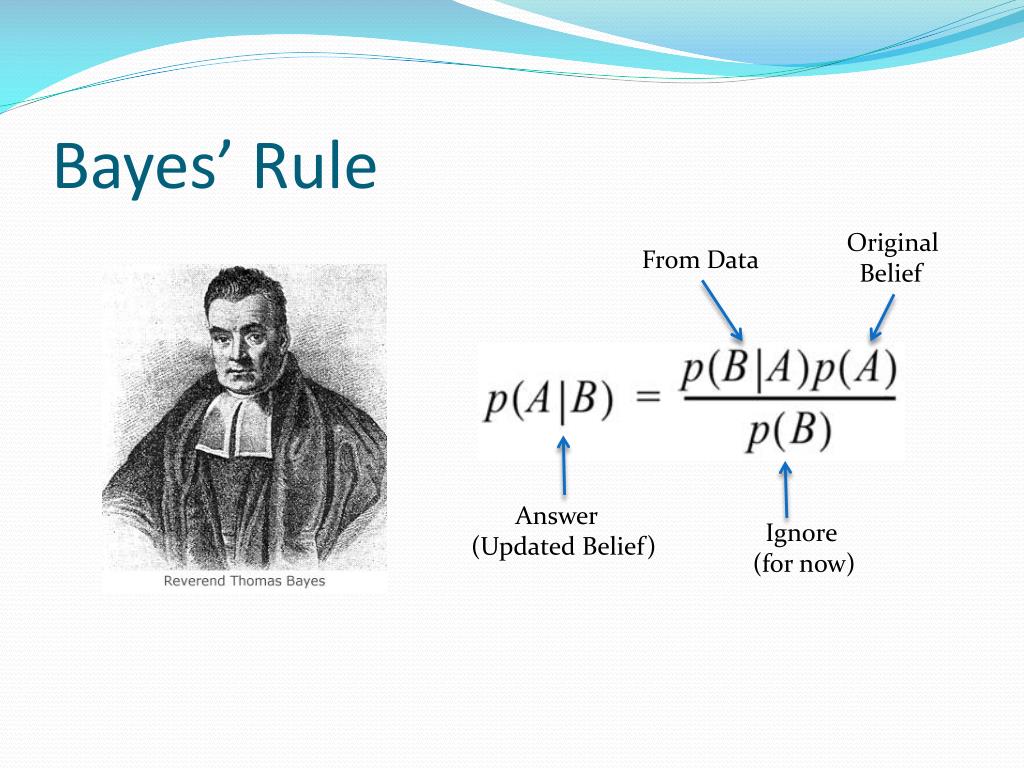

  9. Bayes’ Rule Original Belief From Data Answer (Updated Belief) Ignore (for now)

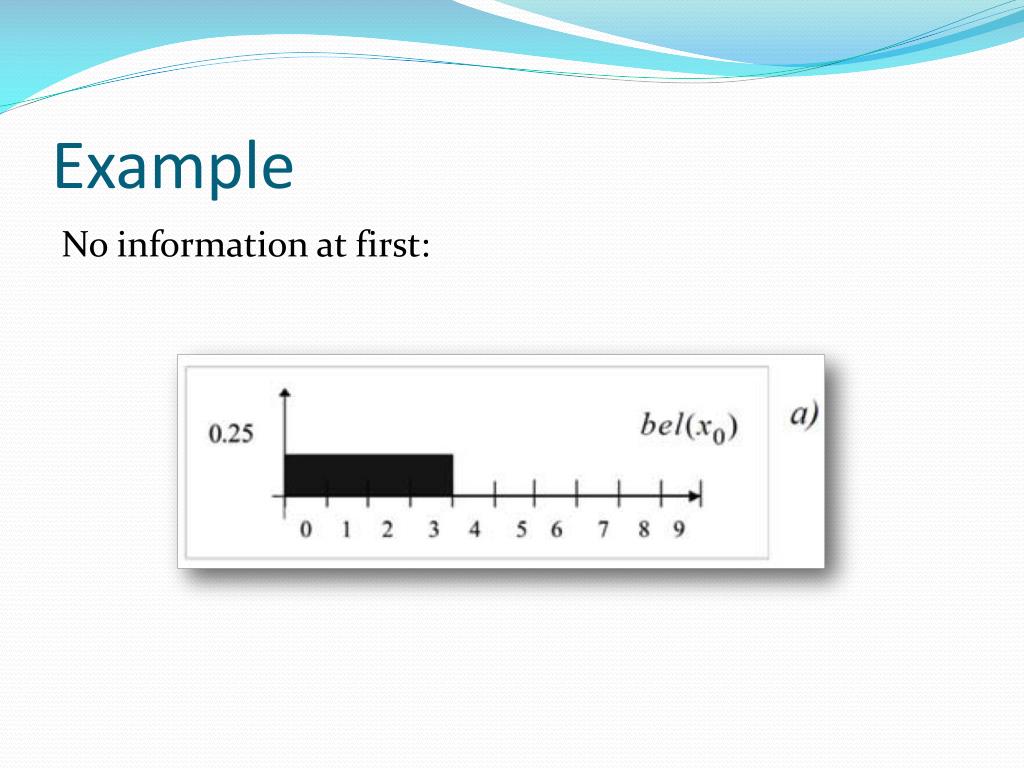

  10. Example No information at first:

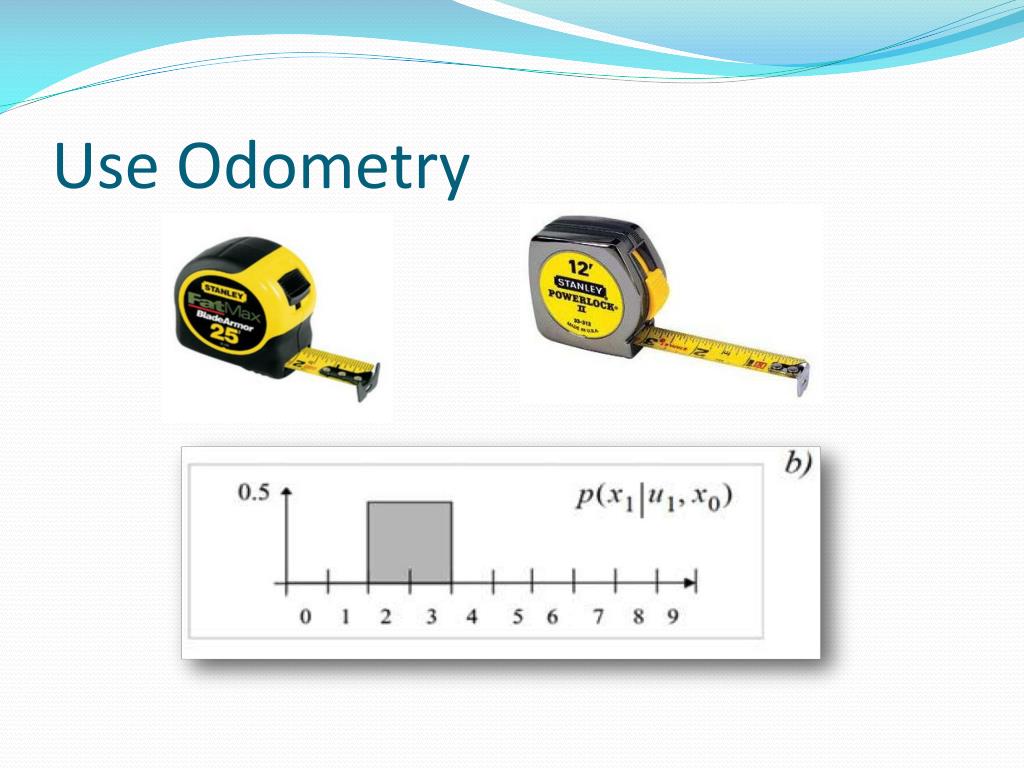

  11. Use Odometry

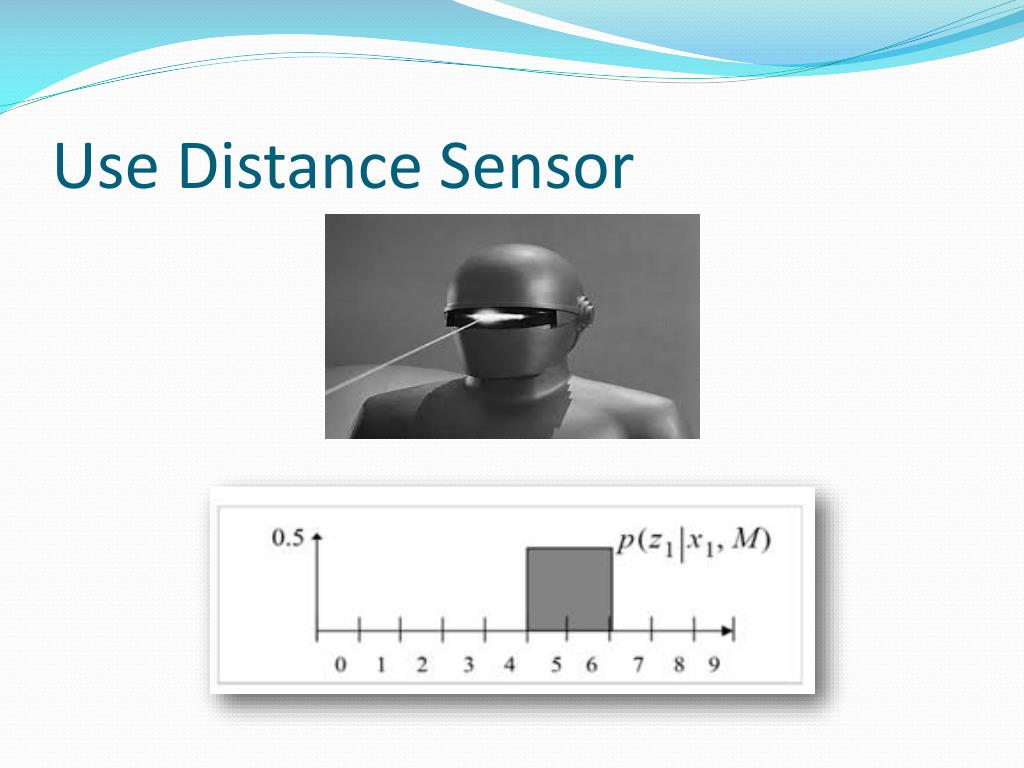

  12. Use Distance Sensor

  13. (Distance Sensor) = * (Updated Belief) (Odometry)

  14. References Pictures taken from: Autonomous Mobile Robots R. Siegwart, I. Nourbakhsh, D. Scaramuzza
