  1. Wireless Data Acquisition System and its application for electrical emission measurement in Substations Supervised by Dr. W.H.Siew Presented by Yu Wang

  2. Introduction of electrical emission measurement in substations • Purpose: To capture and record EMI signal caused by the switching actions in substation • Equipment: Sensors, Optical Fibber Links, Digital Storage Oscilloscopes(DSO), and Computers • Fibre Analog System

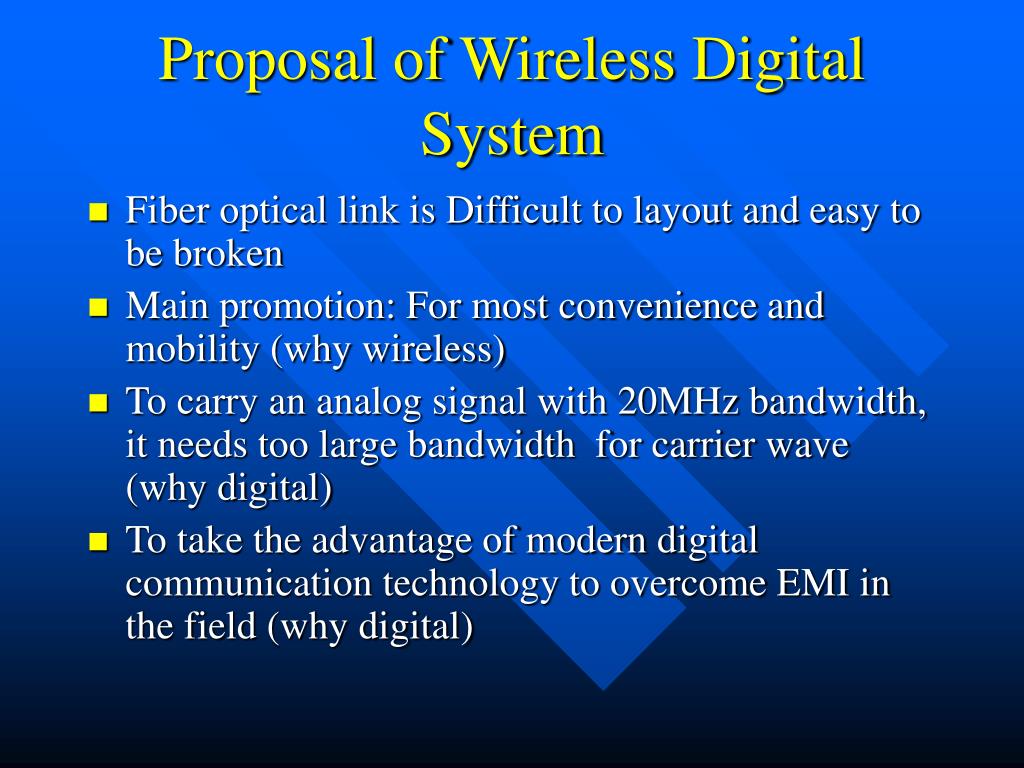

  3. Proposal of Wireless Digital System • Fiber optical link is Difficult to layout and easy to be broken • Main promotion: For most convenience and mobility (why wireless) • To carry an analog signal with 20MHz bandwidth, it needs too large bandwidth for carrier wave (why digital) • To take the advantage of modern digital communication technology to overcome EMI in the field (why digital)

  4. The structure of new system • Make up of RAU (Remote Acquisition Unit), wireless network and application software in PC side Wireless modem Sensor-1 RAU-1 Sensor-n RAU-n

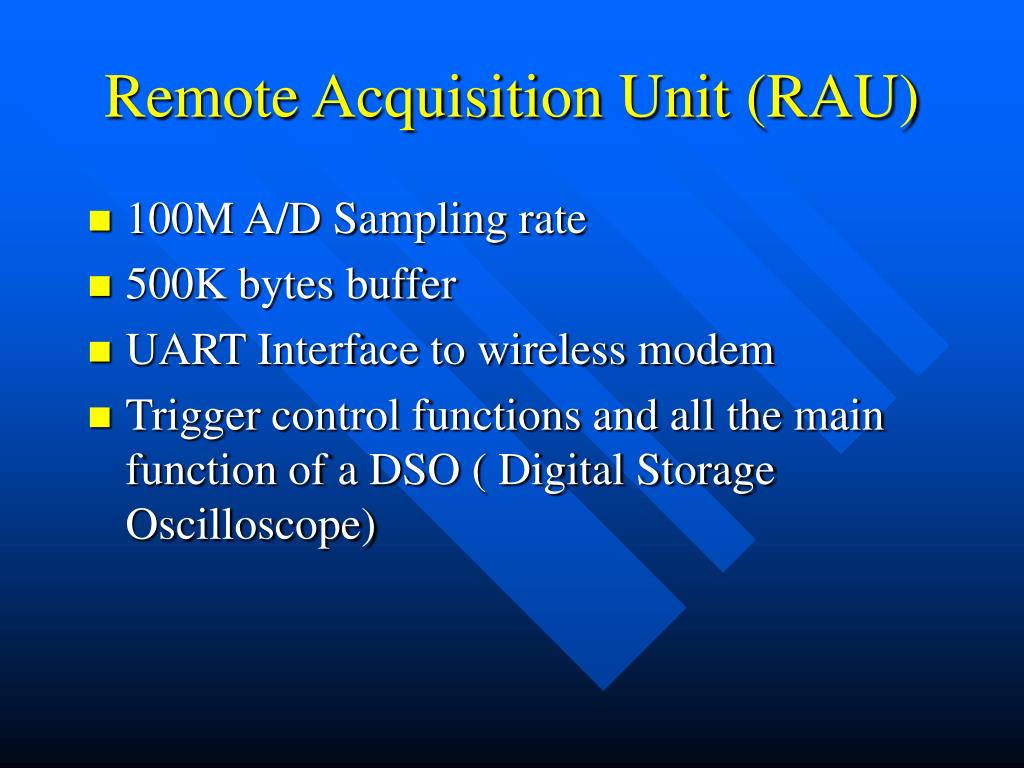

  5. Remote Acquisition Unit (RAU) • 100M A/D Sampling rate • 500K bytes buffer • UART Interface to wireless modem • Trigger control functions and all the main function of a DSO ( Digital Storage Oscilloscope)

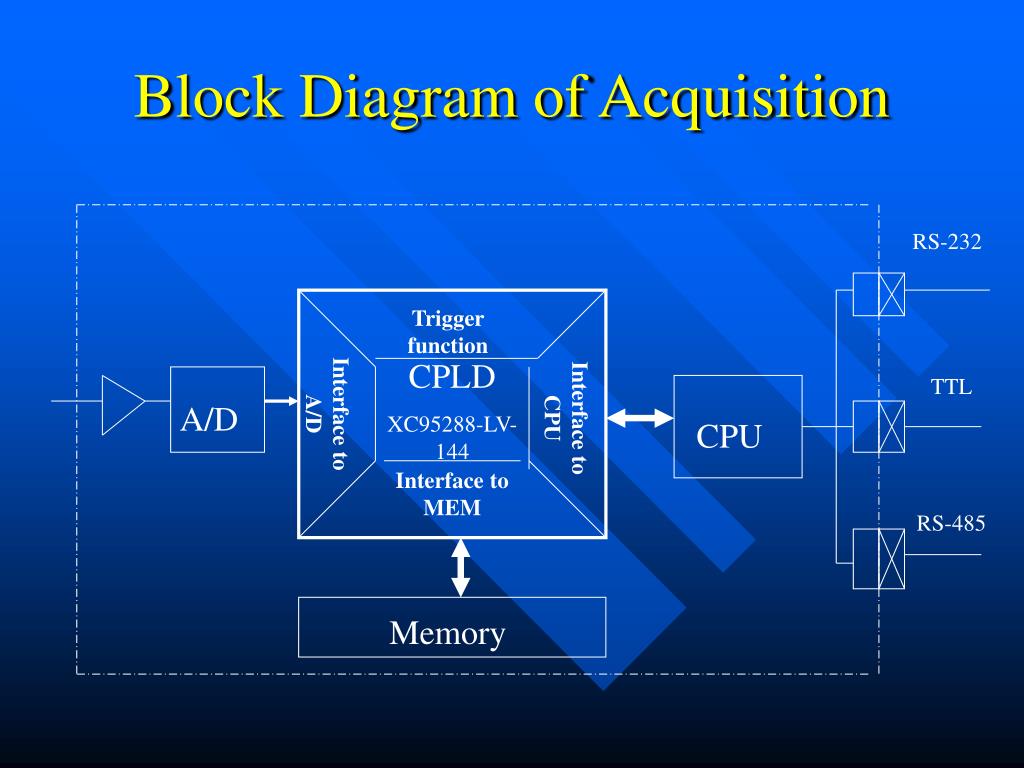

  6. Block Diagram of Acquisition RS-232 Trigger function Interface to A/D CPLD XC95288-LV-144 Interface to CPU TTL A/D CPU Interface to MEM RS-485 Memory

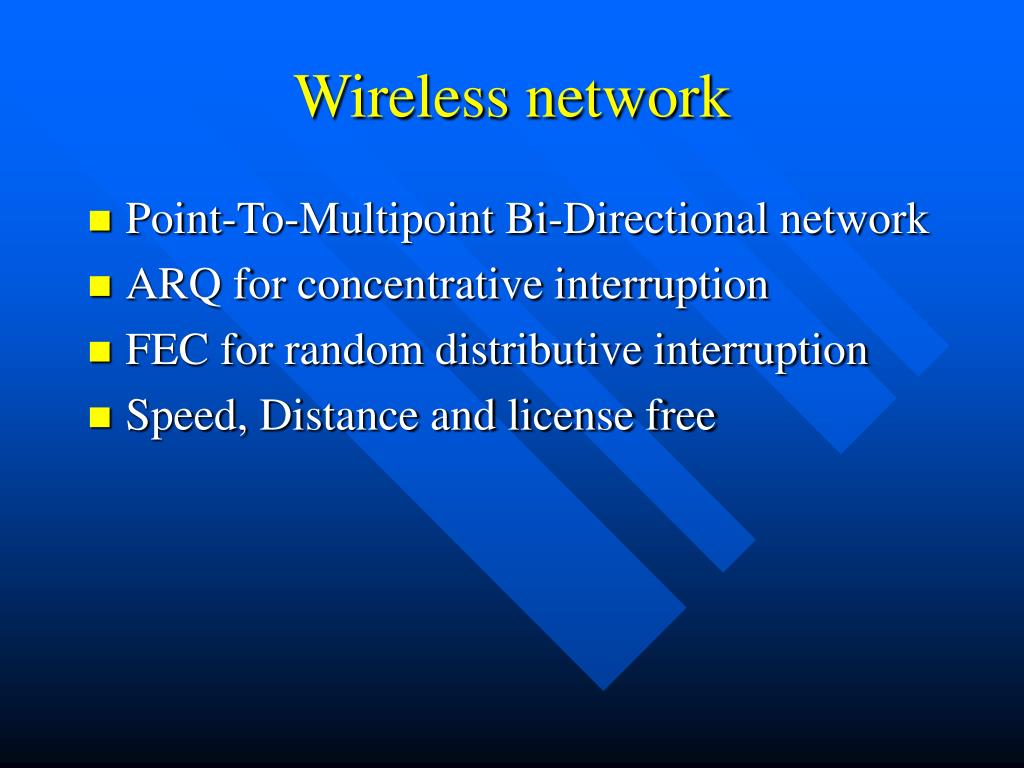

  7. Wireless network • Point-To-Multipoint Bi-Directional network • ARQ for concentrative interruption • FEC for random distributive interruption • Speed, Distance and license free

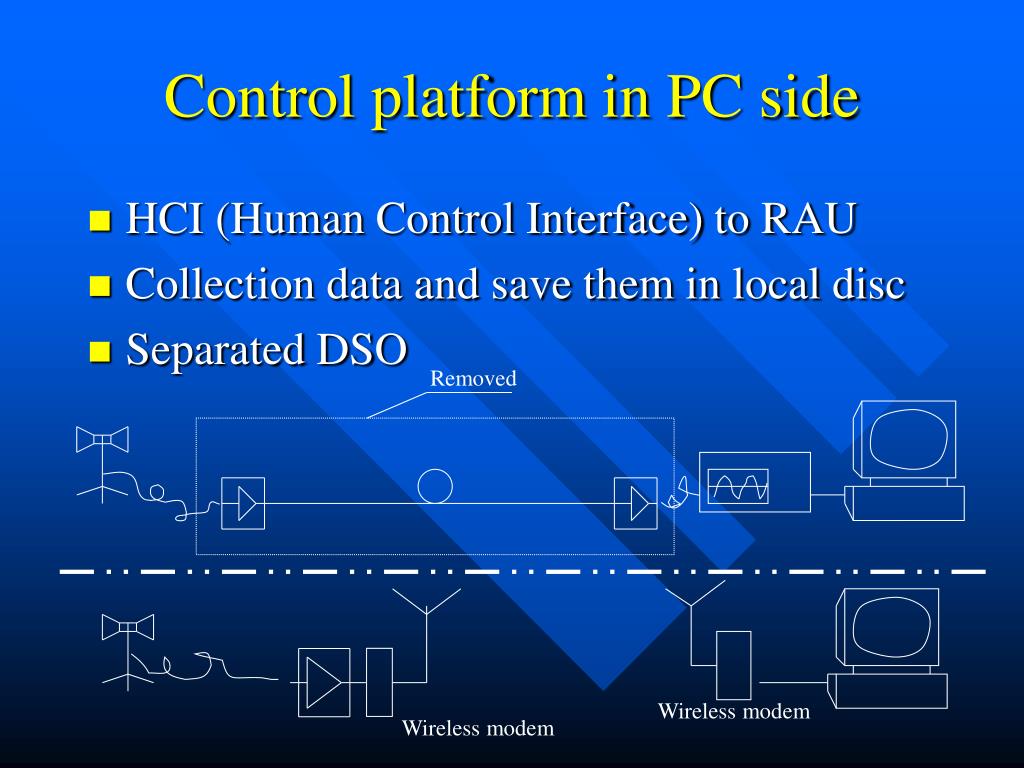

  8. Control platform in PC side • HCI (Human Control Interface) to RAU • Collection data and save them in local disc • Separated DSO Removed Wireless modem Wireless modem

  9. Current stage of development • PC Platform (finished) • Cable network link (finished) • Acquisition (finished) • Replacing Cable link with wireless modem

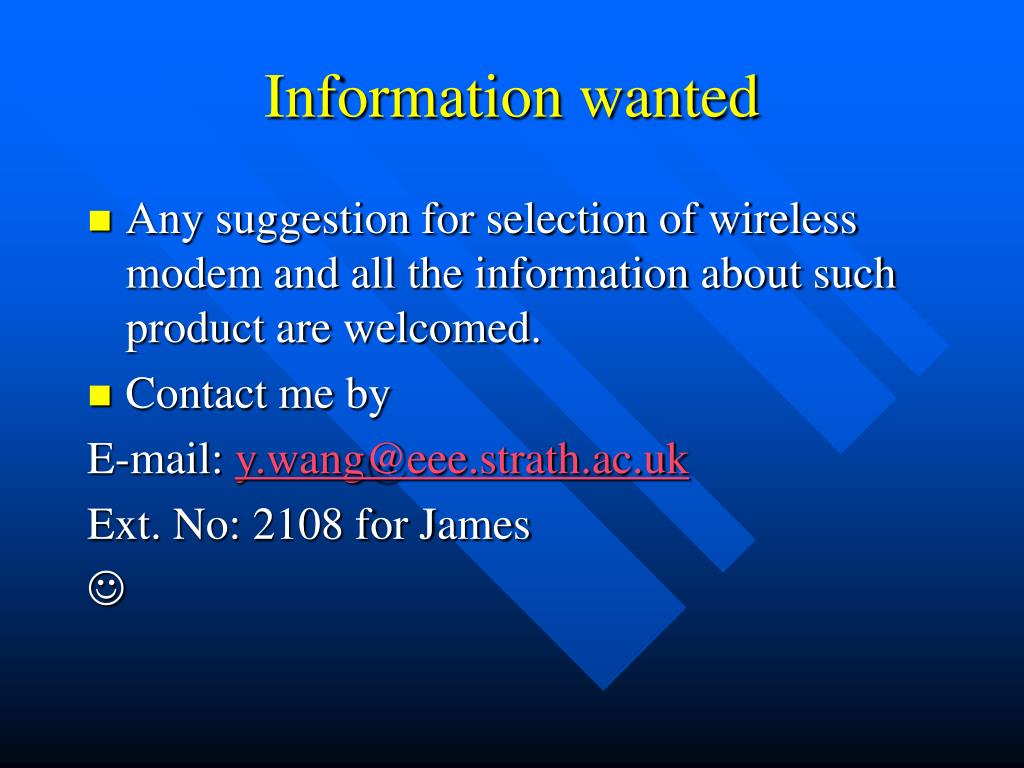

  10. Information wanted • Any suggestion for selection of wireless modem and all the information about such product are welcomed. • Contact me by E-mail: y.wang@eee.strath.ac.uk Ext. No: 2108 for James 

  11. . Thank you ! .
