  1. jGMA: A lightweight implementation of the Grid Monitoring Architecture Mat Grove Distributed Systems Group University of Portsmouth http://dsg.port.ac.uk/~mjeg/

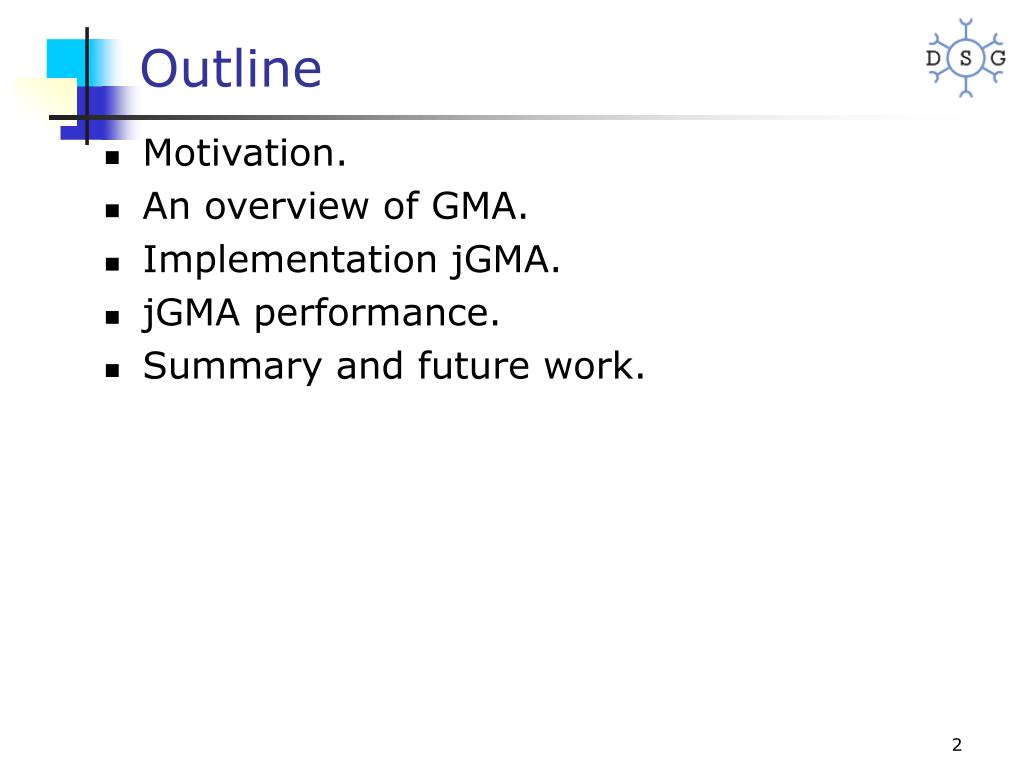

  2. Outline • Motivation. • An overview of GMA. • Implementation jGMA. • jGMA performance. • Summary and future work.

  3. Motivation • GridRM is: • A generic resource monitoring system – basically a framework for gathering data from heterogeneous data sources. • A scalable means of monitoring resources distributed over the Grid. • Written in Java, using commons standards: • Agent API, Servlets, XML, etc. • GridRM needed a “standards-based” transport layer to bind together its sites. • A GMA-based transport appears best candidate.

  4. An Overview of the Grid Monitoring Architecture • The GGF GMA is the recommended means for monitoring within the Grid. • The GMA document (2001) recommends: • A publish, subscribe and bind architecture. • An implementation that is: • Secure and scalable. • Has a low latency and high data rate. • Imposes minimal impact. • GMA compliancy: • Approximately 20 features. • GGF document is only a guide.

  5. GMA Components Registry Register/Search Register/Publish Bind Producer Consumer Events

  6. Some GMA Implementations • Embedded implementations: • For example, Globus MDS: • MDS3 planned to be standalone system. • Standalone implementations: • Berkeley National Lab – pyGMA. • Datagrid – R-GMA. • None of these meet systems meet GridRM requirements: • Compatible API (Java). • Minimal dependencies. • GMA compliant. • Led us to develop jGMA.

  7. jGMA Components • jGMA has the following components: • Registry. • Producer, Consumer (shared code-base). • PC Servlet. • jGMA features: • Small API (<20 calls). • No dependencies.

  8. jGMA Implementation

  9. jGMA Performance • Optimising LAN-based performance: • In the first instance point-to-point communication: • Need both blocking and non-blocking I/O. • Interested in latency and throughput. • Scalability of jGMA producer(s)/consumer(s): • Single consumer/producer multiple producers or consumers. • Some testing issues: • Java timer resolution: • Java only has clock with millisecond resolution, JNI native clock is required. • Configuration of the JVM.

  10. jGMA Performance (Cont’) • Optimise jGMA I/O: • Initial results were not satisfactory: • Moved from RMI to Sockets. • Improve performance by: • Minimising the number of times data is copied. • Moved from Java objects to byte arrays. • Improved message queue handling.

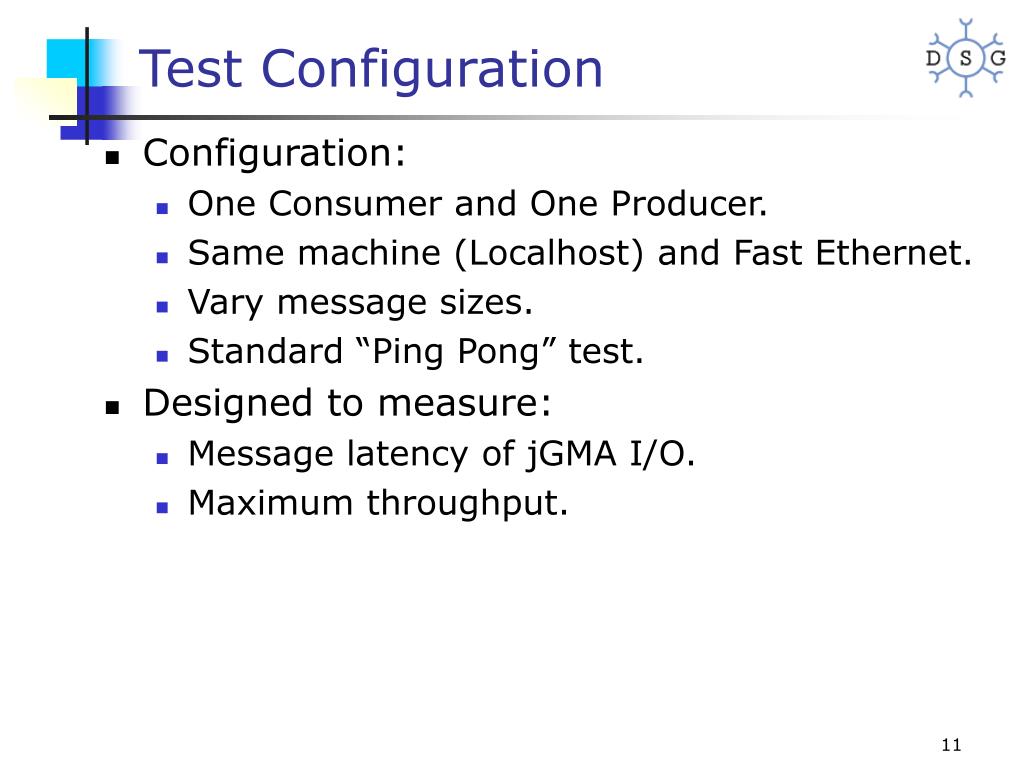

  11. Test Configuration • Configuration: • One Consumer and One Producer. • Same machine (Localhost) and Fast Ethernet. • Vary message sizes. • Standard “Ping Pong” test. • Designed to measure: • Message latency of jGMA I/O. • Maximum throughput.

  12. Blocking I/O the same for Localhost & Ethernet Message Latency Results Time (Microseconds) 256k Message Length (Bytes)

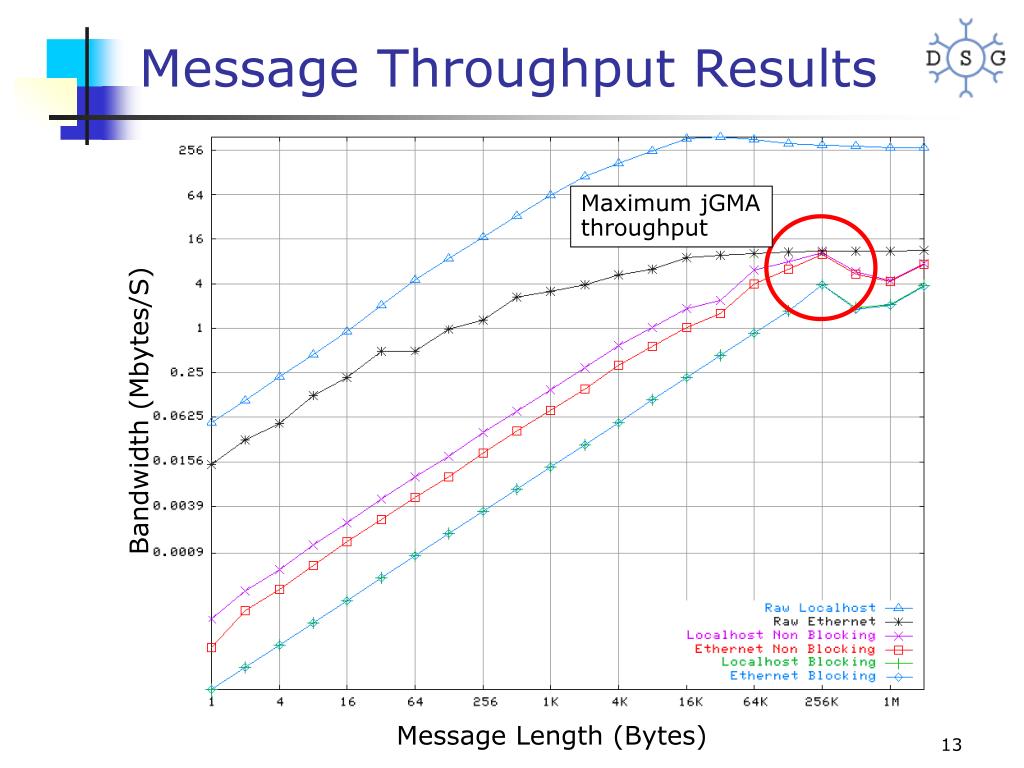

  13. Maximum jGMA throughput Message Throughput Results Bandwidth (Mbytes/S) Message Length (Bytes)

  14. Scalability Test Configuration • Configuration: • One Consumer multiple Producers: • Could be other way around and get same results. • Over Fast Ethernet. • Selected Message Sizes – appropriate for GridRM. • Designed to measure: • Scalability of Consumer/Producer setup. • Maximum Consumer/Producer message consumption. • Producer/Consumer stability under extreme loading.

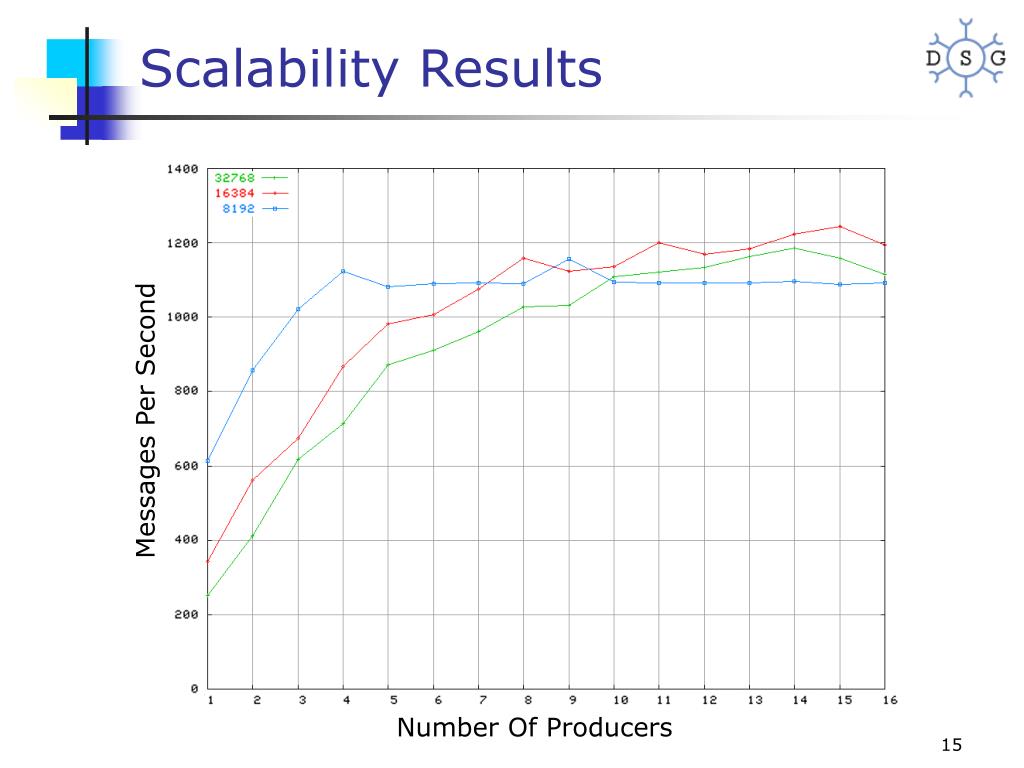

  15. Scalability Results • Messages Per Second Number Of Producers

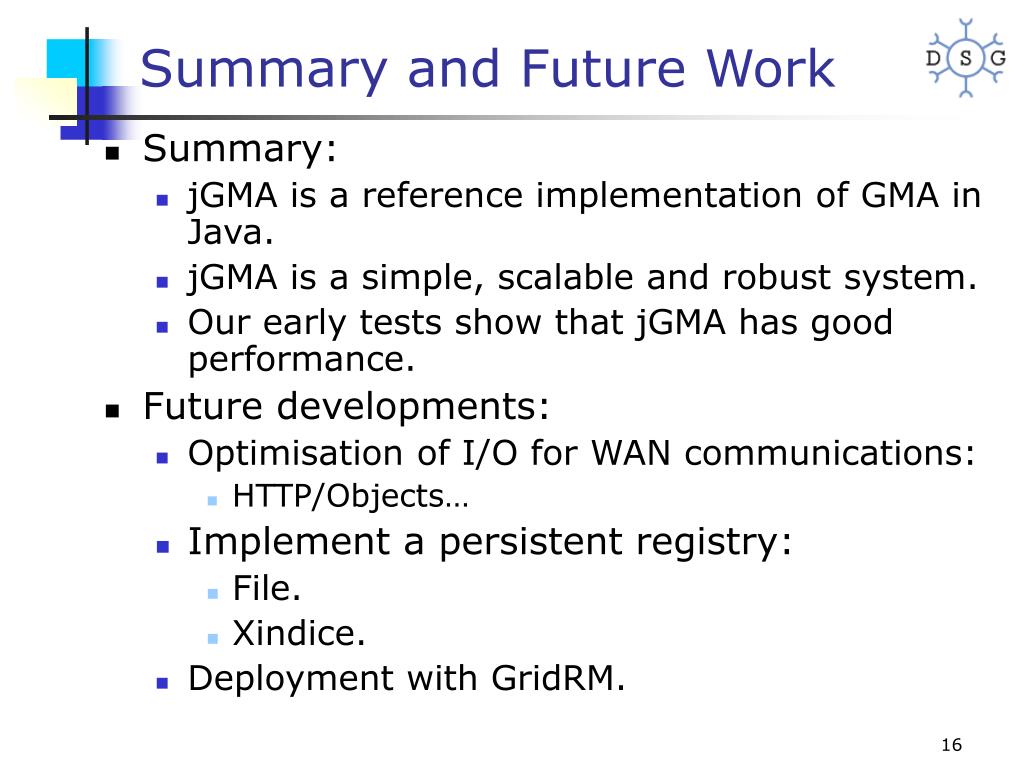

  16. Summary and Future Work • Summary: • jGMA is a reference implementation of GMA in Java. • jGMA is a simple, scalable and robust system. • Our early tests show that jGMA has good performance. • Future developments: • Optimisation of I/O for WAN communications: • HTTP/Objects… • Implement a persistent registry: • File. • Xindice. • Deployment with GridRM.

  17. Acknowledgements • University of Portsmouth, • Member of the DSG: • Mark Baker, • Hong Ong, • Garry Smith, • Mr Boe-akis, • Aamir Shafi.

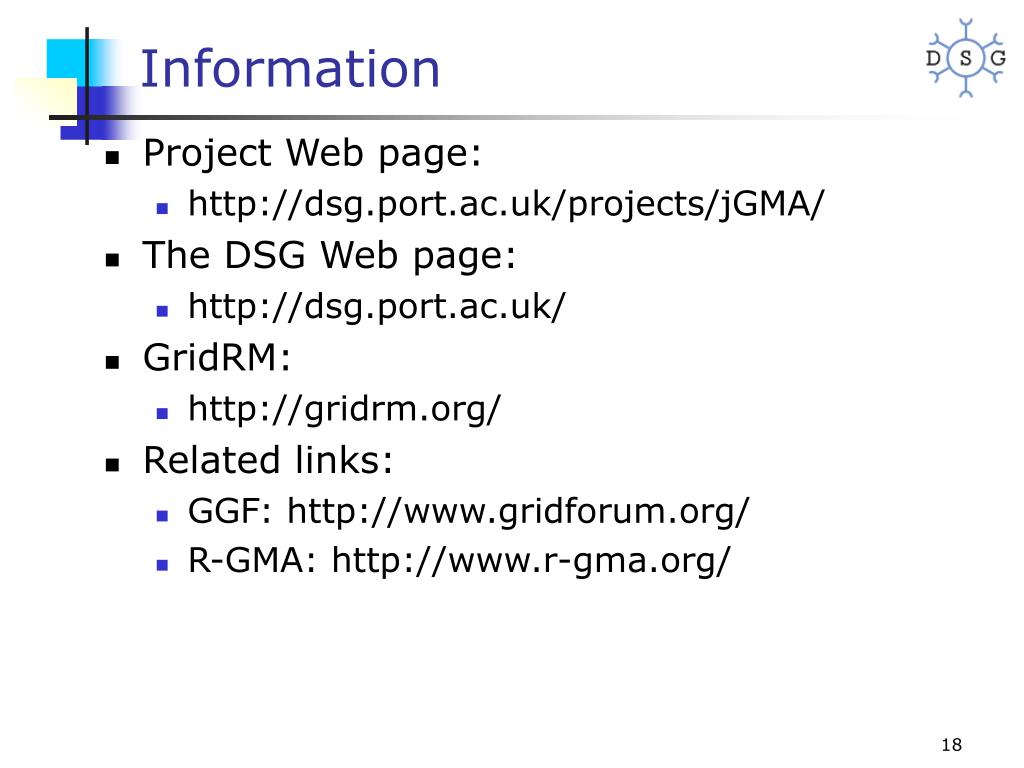

  18. Information • Project Web page: • http://dsg.port.ac.uk/projects/jGMA/ • The DSG Web page: • http://dsg.port.ac.uk/ • GridRM: • http://gridrm.org/ • Related links: • GGF: http://www.gridforum.org/ • R-GMA: http://www.r-gma.org/
