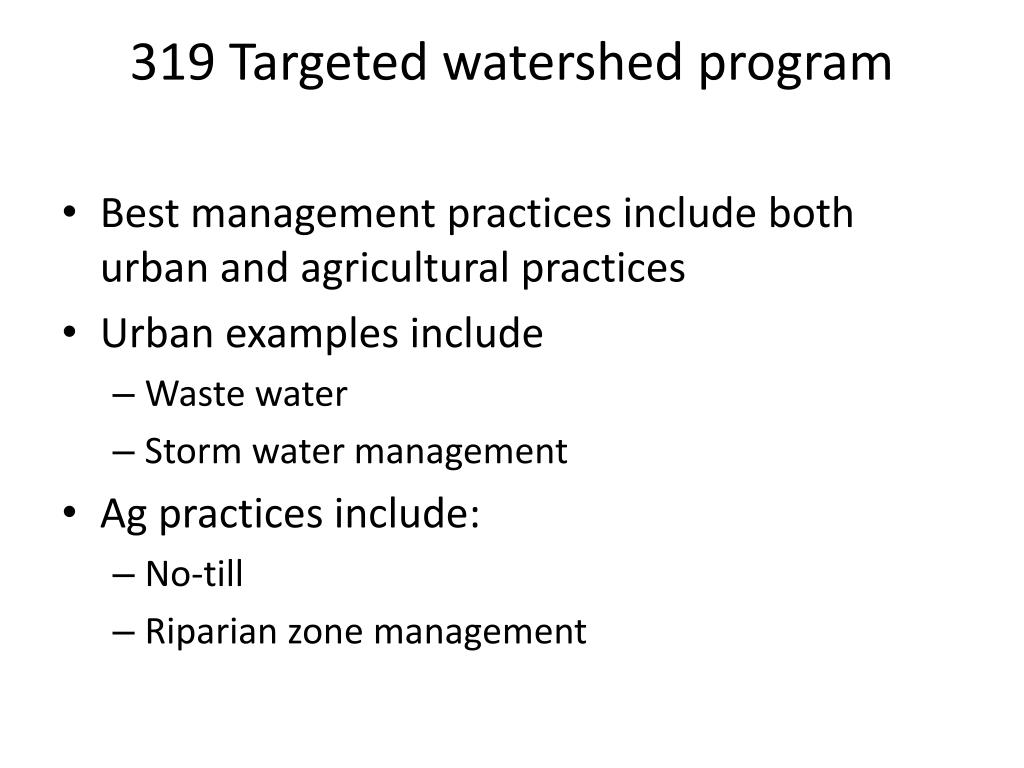

  1. 319 Targeted watershed program • Best management practices include both urban and agricultural practices • Urban examples include • Waste water • Storm water management • Ag practices include: • No-till • Riparian zone management

  2. 319 Targeted watershed program • The program also includes educational efforts • Lawn and landscape nutrient management • Cropland nutrient management • Etc. • Water monitoring a key component of Oklahoma watershed program • State operated monitoring sites • Volunteer programs, (Blue thumb)

  3. Oklahoma Carbon Sequestration Certification Program • Is voluntary • The first to be run by a state agency with statutory authority to verify carbon offsets. • Is developing verification protocols for grasslands, conservation tillage, rangeland, forestry, and geologic injection. • Also interested in Methane Capture, and N2O reductions • Provides a mechanism for Oklahomans to take advantage of existing voluntary carbon markets and future manditory markets. • Supports and promotes soil carbon research.

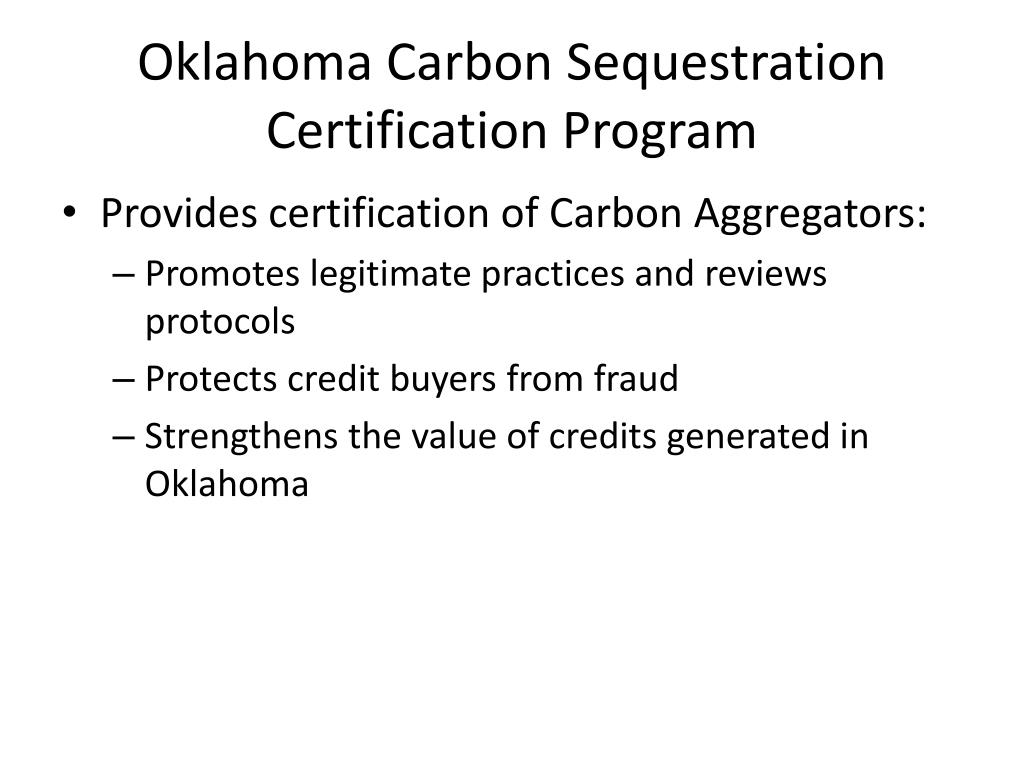

  4. Oklahoma Carbon Sequestration Certification Program • Provides certification of Carbon Aggregators: • Promotes legitimate practices and reviews protocols • Protects credit buyers from fraud • Strengthens the value of credits generated in Oklahoma

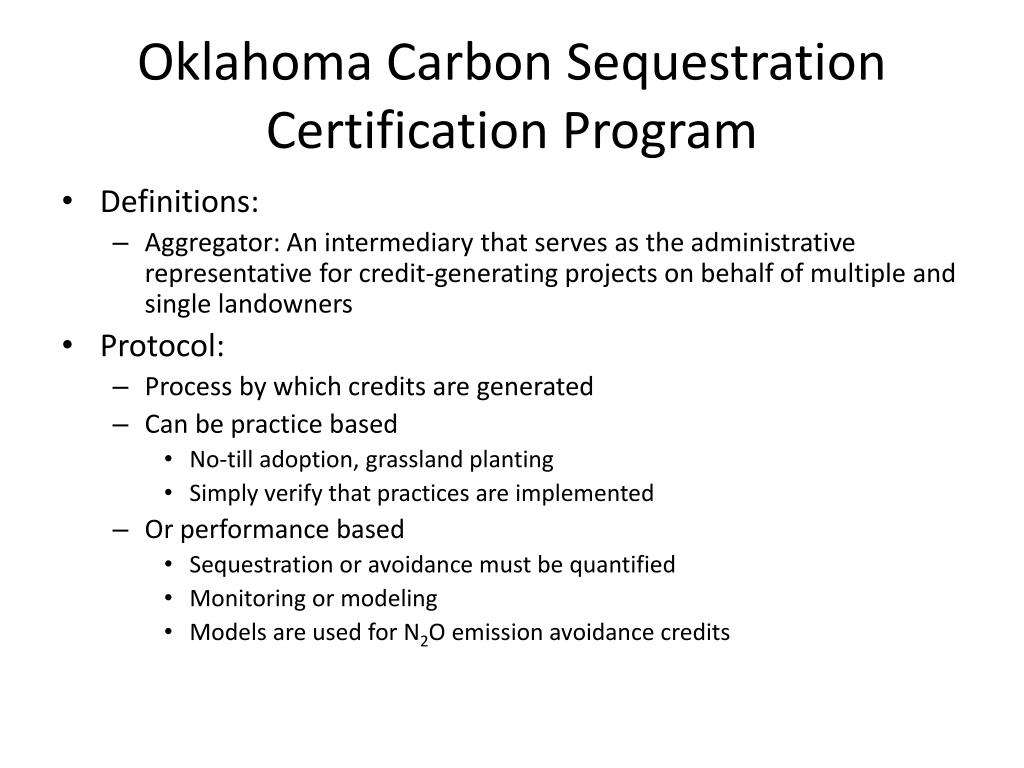

  5. Oklahoma Carbon Sequestration Certification Program • Definitions: • Aggregator: An intermediary that serves as the administrative representative for credit-generating projects on behalf of multiple and single landowners • Protocol: • Process by which credits are generated • Can be practice based • No-till adoption, grassland planting • Simply verify that practices are implemented • Or performance based • Sequestration or avoidance must be quantified • Monitoring or modeling • Models are used for N2O emission avoidance credits

  6. Oklahoma Carbon Sequestration Certification Program • Why is the Water Quality Division of the OCC in charge or carbon program? • Because most practices that sequester GHG’s or avoid their emissions have positive impacts on water quality! • Also, provides for privatization of conservation incentive programs

  7. Oklahoma Carbon Sequestration Certification Program • Currently the OCC will certify credits generated from the following: • Ag Credits: • No-till conversion Grassland Planting • Forestry Credits: • Reforestation • Afforestation • Improved forest management • Geologic injection

  8. Oklahoma Carbon Sequestration Certification Program • The OCC is reviewing/developing protocols for the following: • Rangeland carbon sequestration • N2O emissions reduction from N fertilizer • Methane capture from animal waste management

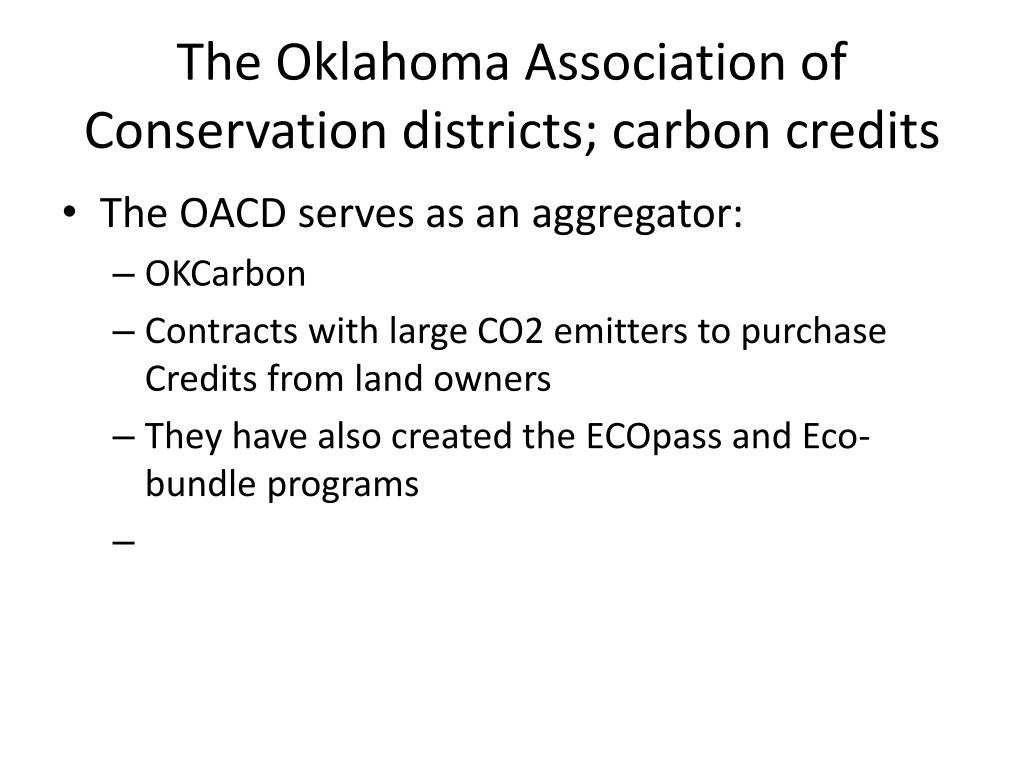

  9. The Oklahoma Association of Conservation districts; carbon credits • The OACD serves as an aggregator: • OKCarbon • Contracts with large CO2 emitters to purchase Credits from land owners • They have also created the ECOpass and Eco-bundle programs

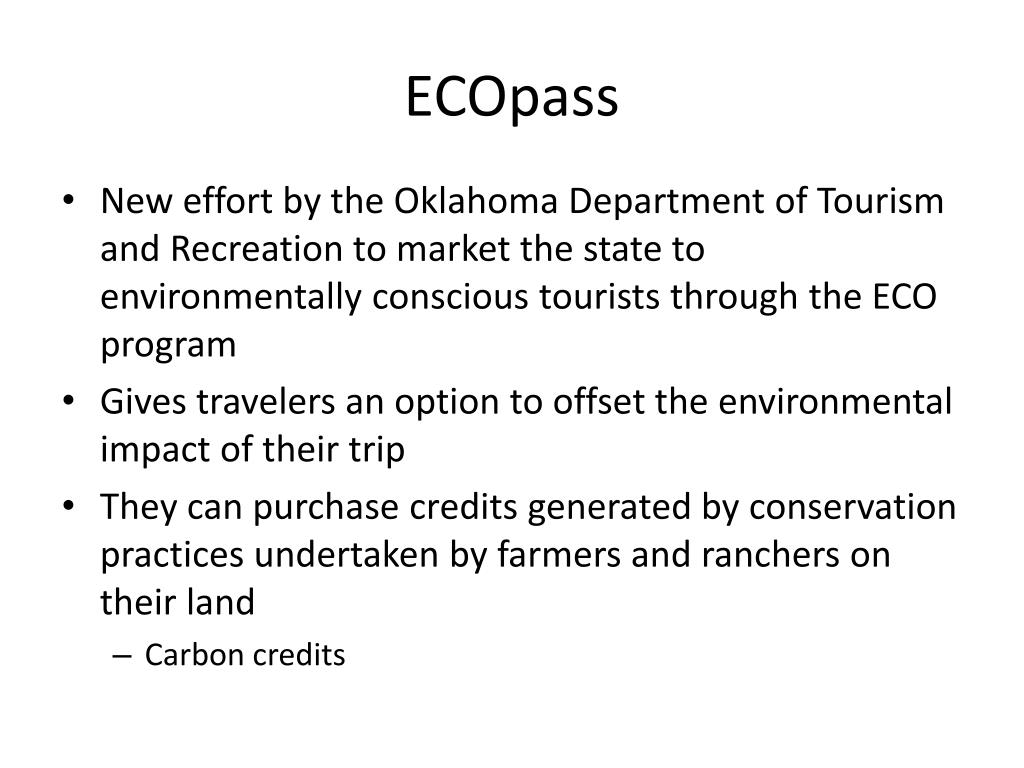

  10. ECOpass • New effort by the Oklahoma Department of Tourism and Recreation to market the state to environmentally conscious tourists through the ECO program • Gives travelers an option to offset the environmental impact of their trip • They can purchase credits generated by conservation practices undertaken by farmers and ranchers on their land • Carbon credits

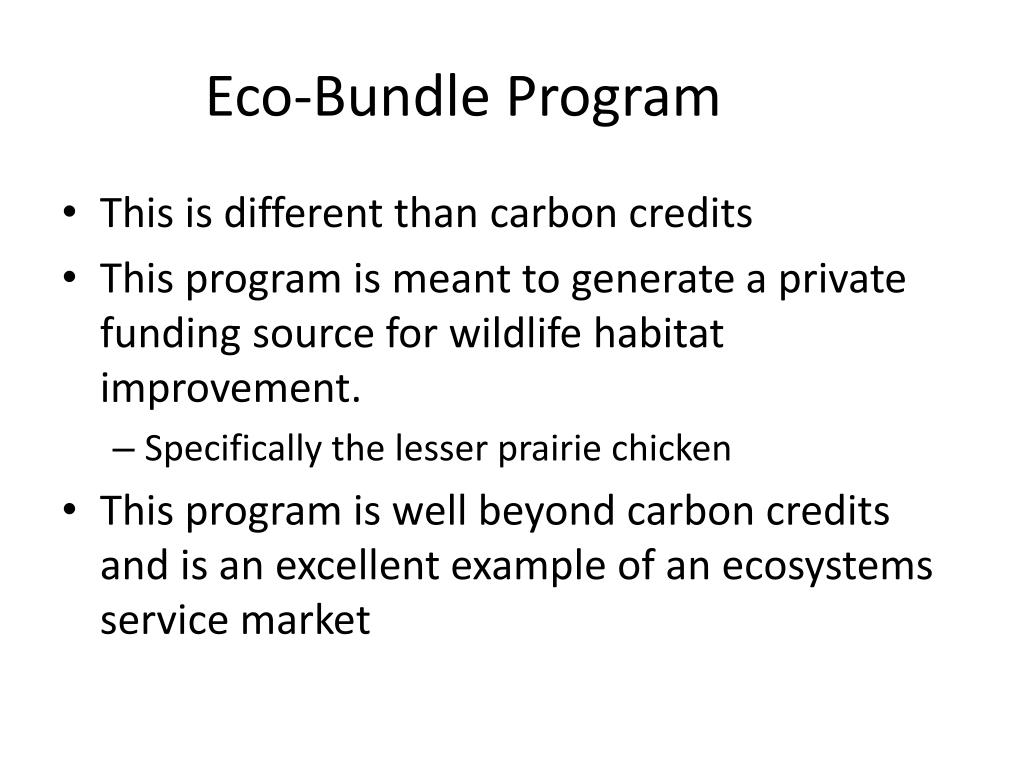

  11. Eco-Bundle Program • This is different than carbon credits • This program is meant to generate a private funding source for wildlife habitat improvement. • Specifically the lesser prairie chicken • This program is well beyond carbon credits and is an excellent example of an ecosystems service market

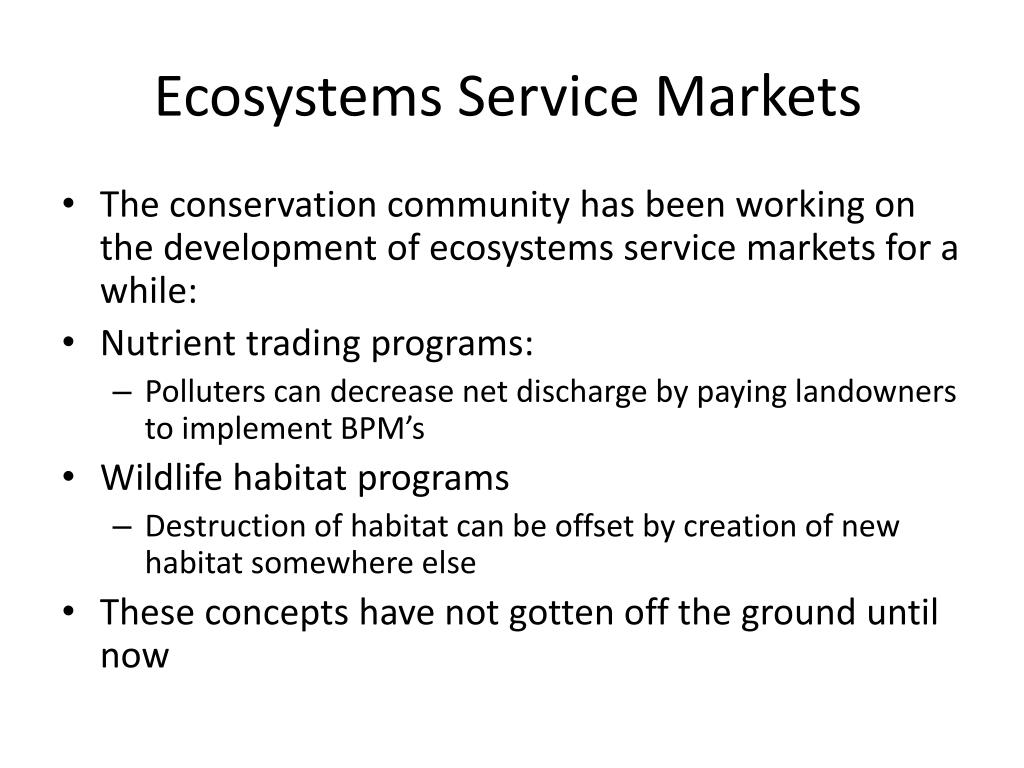

  12. Ecosystems Service Markets • The conservation community has been working on the development of ecosystems service markets for a while: • Nutrient trading programs: • Polluters can decrease net discharge by paying landowners to implement BPM’s • Wildlife habitat programs • Destruction of habitat can be offset by creation of new habitat somewhere else • These concepts have not gotten off the ground until now

  13. Nutrient Trading • Concept: • An industrial or municipal source can pay a farmer to decrease N and P runoff • Problem: • In general it is very difficult to quantify reduction in non-point source pollution and verify that BMP was implemented • Carbon credits have the same problem but they have been somewhat over looked

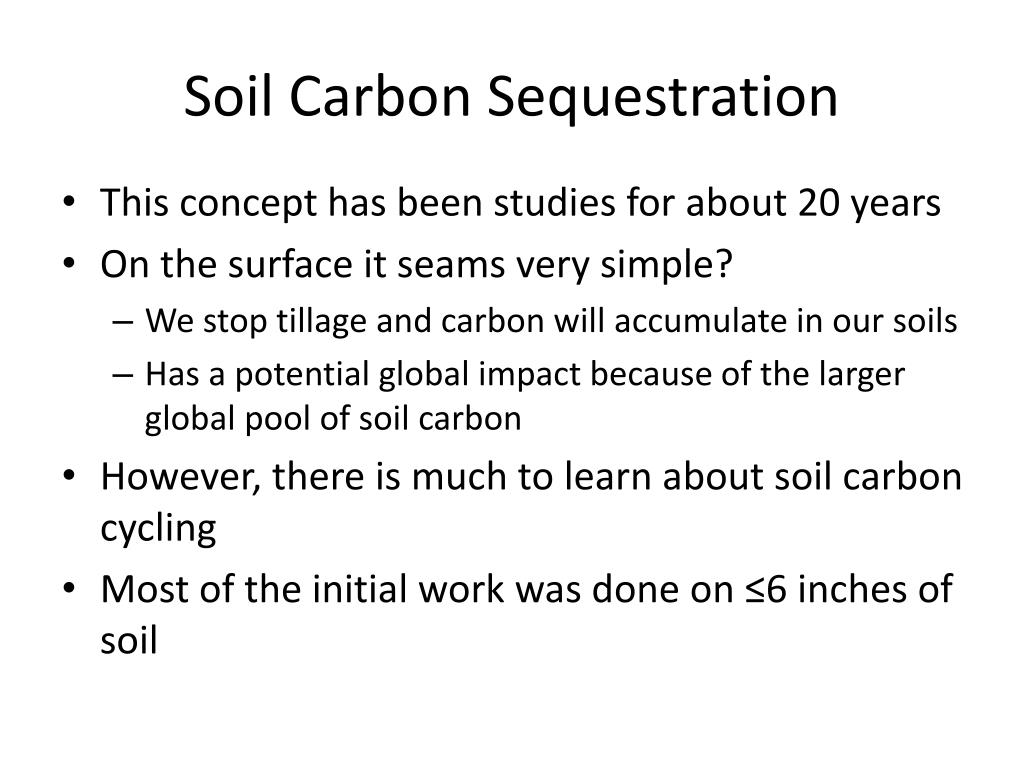

  14. Soil Carbon Sequestration • This concept has been studies for about 20 years • On the surface it seams very simple? • We stop tillage and carbon will accumulate in our soils • Has a potential global impact because of the larger global pool of soil carbon • However, there is much to learn about soil carbon cycling • Most of the initial work was done on ≤6 inches of soil

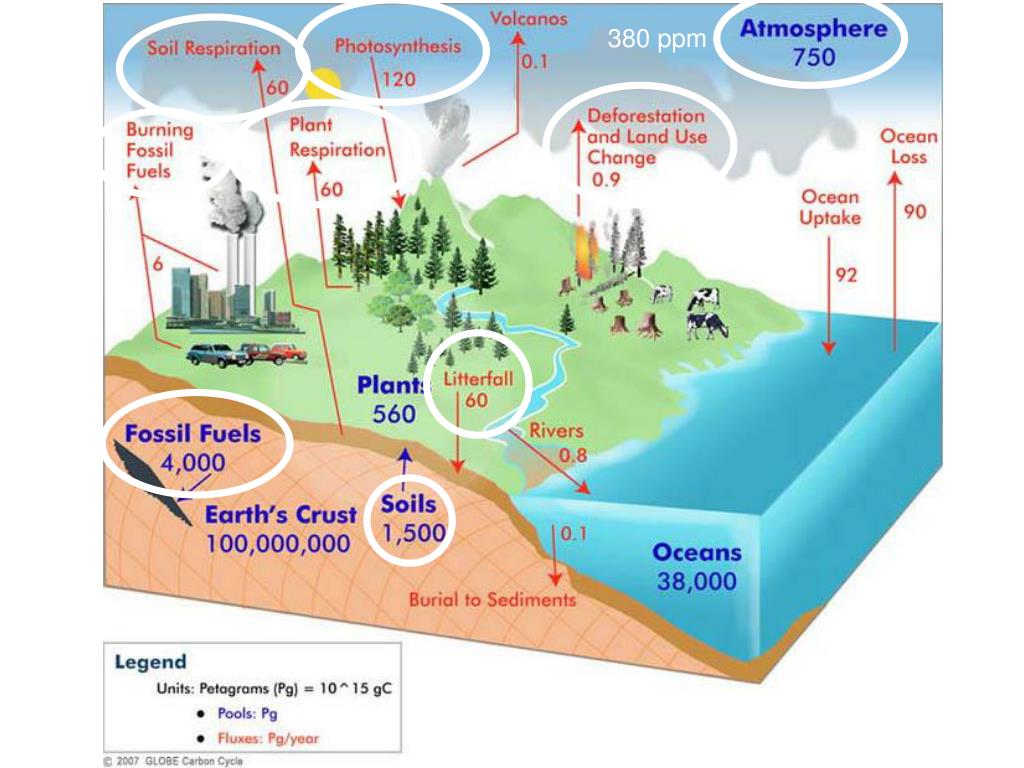

  15. 380 ppm

  16. What’s the Potential for Soil Sequestration of CO2 • The USDA estimates that U.S. Farms and Rangeland could sequester 12-14% of current U.S. CO2 emission • Much of this CO2 will be sequestered through the reversal of soil carbon losses from: • Cultivation • Overgrazing

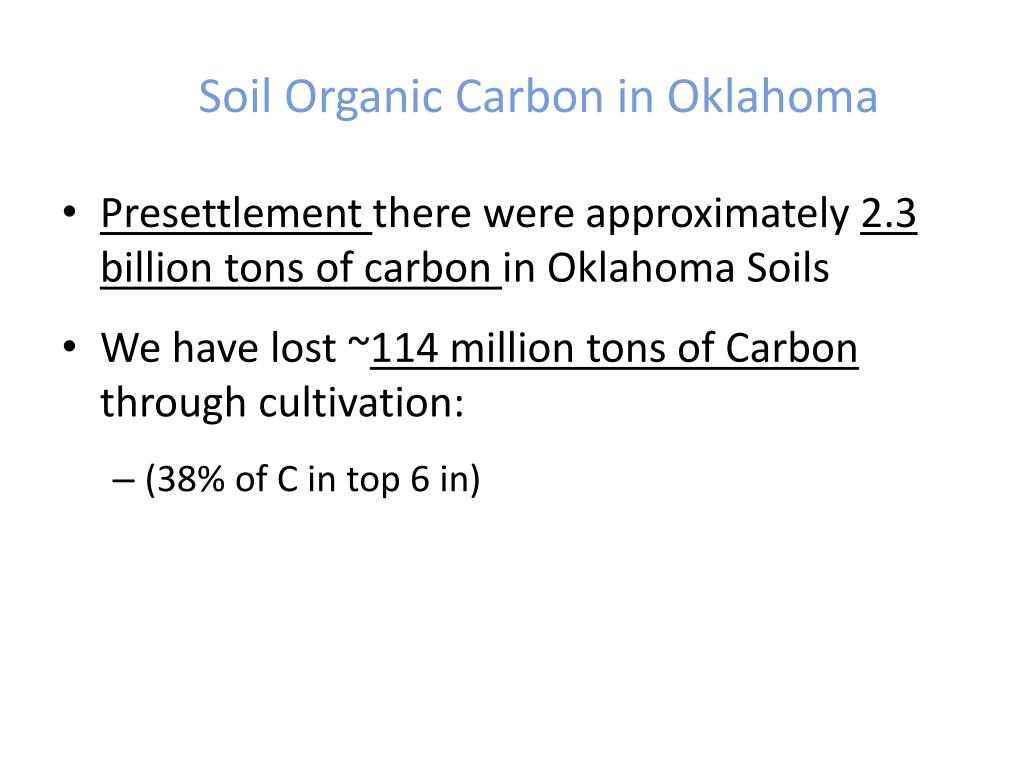

  17. Soil Organic Carbon in Oklahoma • Presettlement there were approximately 2.3 billion tons of carbon in Oklahoma Soils • We have lost ~114 million tons of Carbon through cultivation: • (38% of C in top 6 in)

  18. Why do we lose Carbon after cultivation. • Cultivation aerates the soil and breaks up soil aggregates. • Aeration increases microbial respiration • Organic Carbon is utilized for energy • Incorporated residue is in close proximity to soil microbes • Residue on the surface is not readily decomposed.

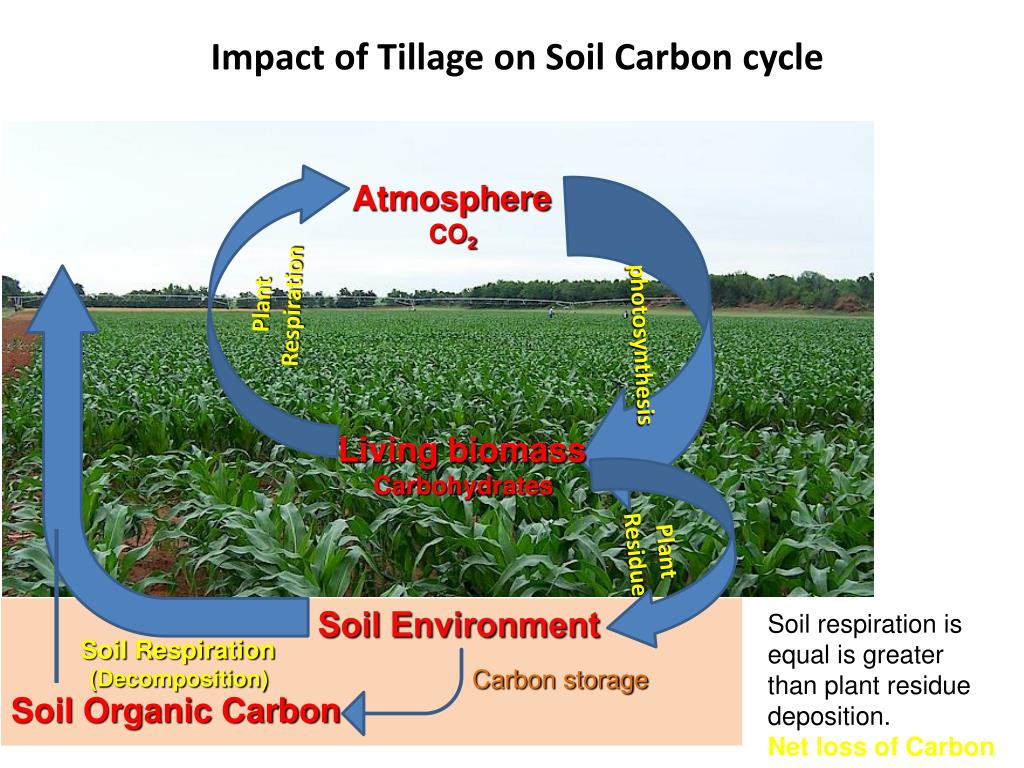

  19. Impact of Tillage on Soil Carbon cycle Atmosphere CO2 Plant Respiration photosynthesis Living biomass Carbohydrates Plant Residue Soil Environment Soil respiration is equal is greater than plant residue deposition. Net loss of Carbon Soil Respiration (Decomposition) Carbon storage Soil Organic Carbon

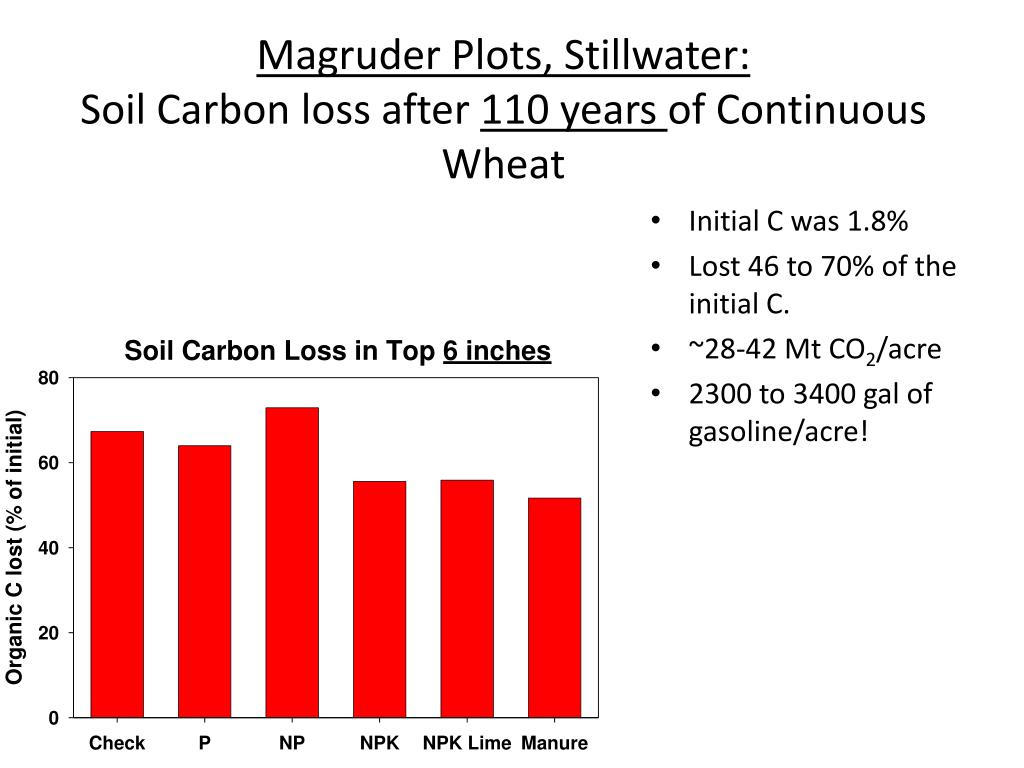

  20. Magruder Plots, Stillwater:Soil Carbon loss after 110 years of Continuous Wheat • Initial C was 1.8% • Lost 46 to 70% of the initial C. • ~28-42 Mt CO2/acre • 2300 to 3400 gal of gasoline/acre!

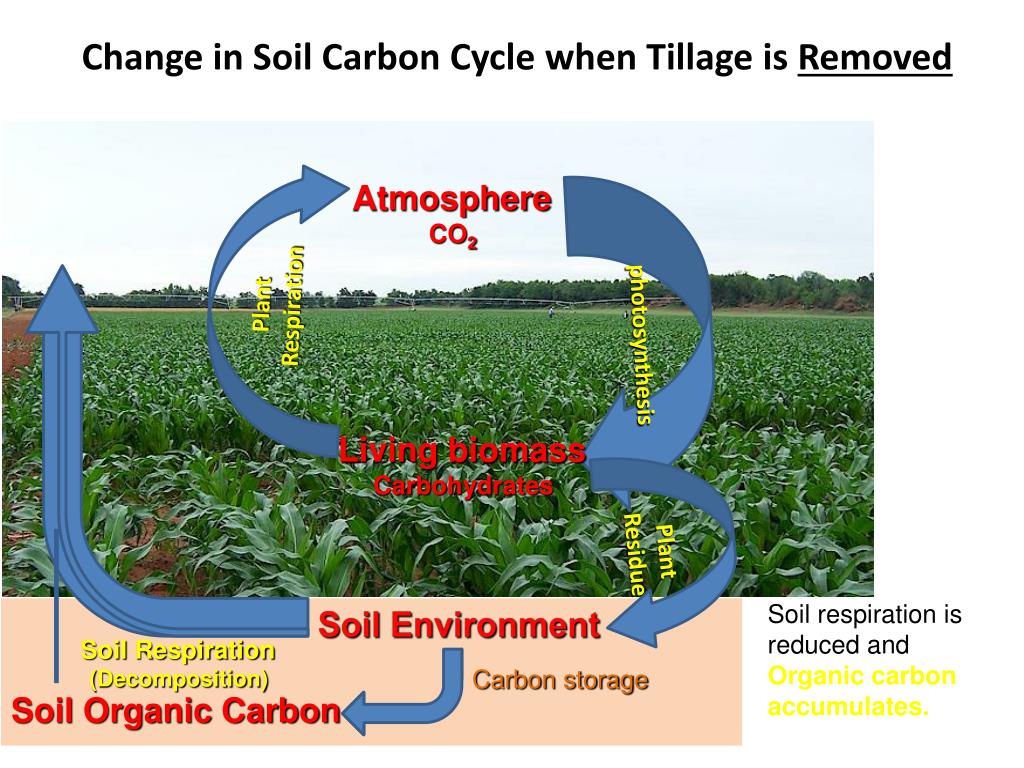

  21. Change in Soil Carbon Cycle when Tillage is Removed Atmosphere CO2 Plant Respiration photosynthesis Living biomass Carbohydrates Plant Residue Soil respiration is reduced and Organic carbon accumulates. Soil Environment Soil Respiration (Decomposition) Carbon storage Soil Organic Carbon

  22. Other Factors influencing soil Carbon Sequestration • Crop Residue input in to soil system • Crop Residue Quality

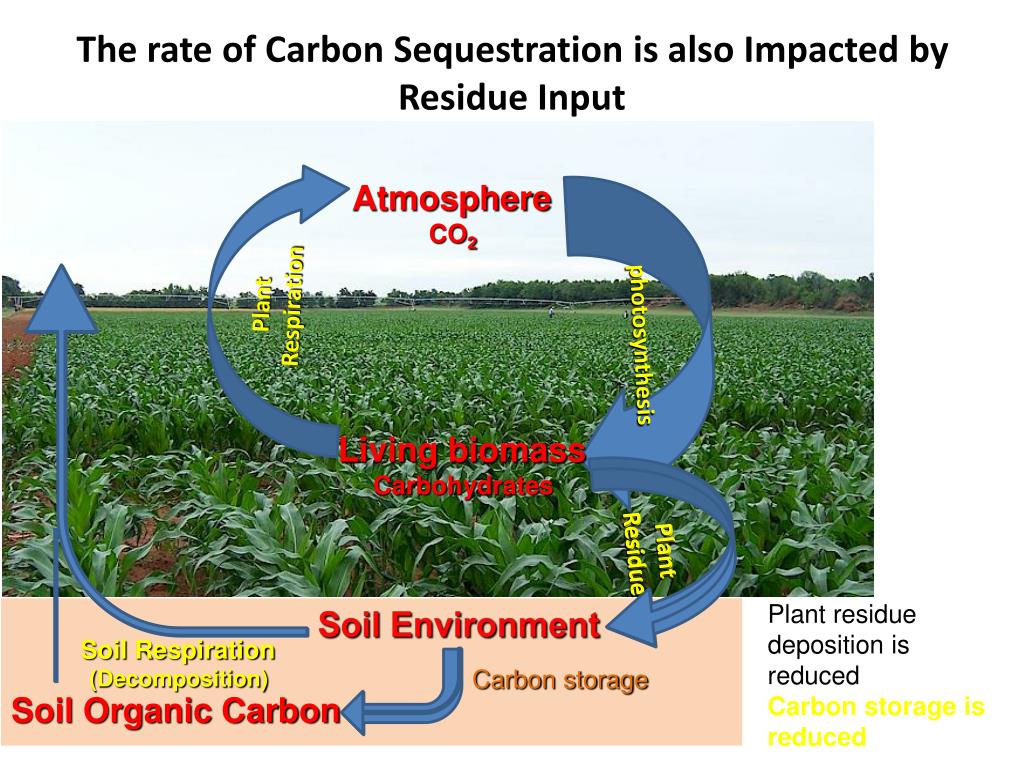

  23. The rate of Carbon Sequestration is also Impacted by Residue Input Atmosphere CO2 Plant Respiration photosynthesis Living biomass Carbohydrates Plant Residue Plant Residue Plant residue deposition is reduced Carbon storage is reduced Soil Environment Soil Respiration (Decomposition) Carbon storage Soil Organic Carbon

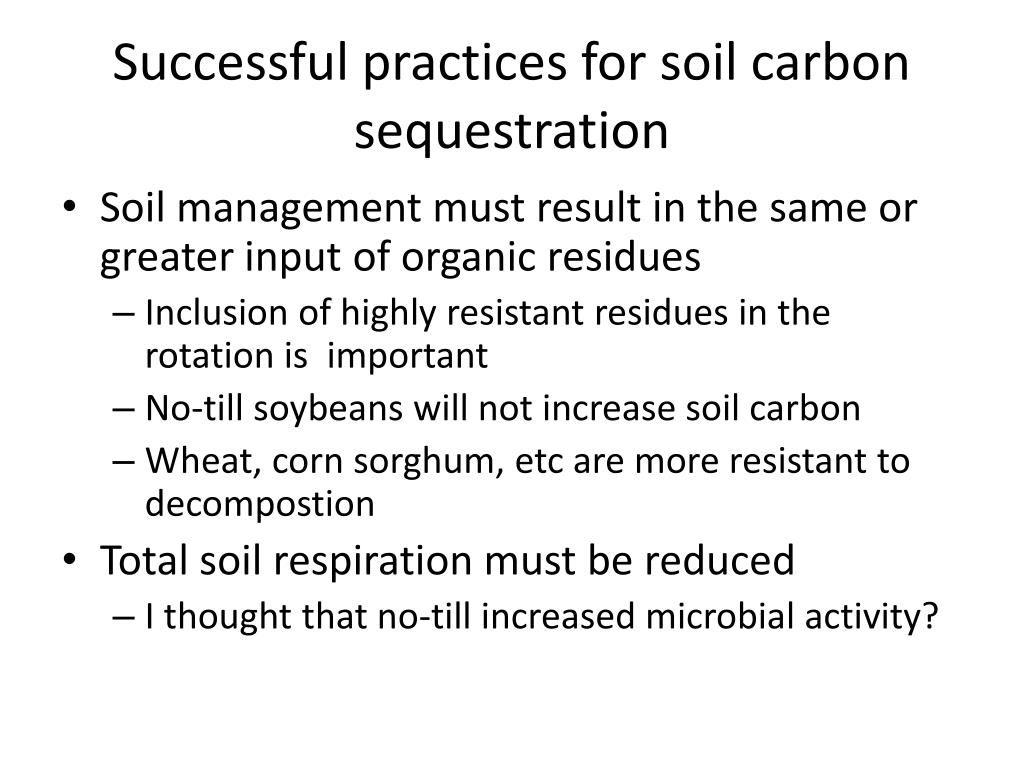

  24. Successful practices for soil carbon sequestration • Soil management must result in the same or greater input of organic residues • Inclusion of highly resistant residues in the rotation is important • No-till soybeans will not increase soil carbon • Wheat, corn sorghum, etc are more resistant to decompostion • Total soil respiration must be reduced • I thought that no-till increased microbial activity?

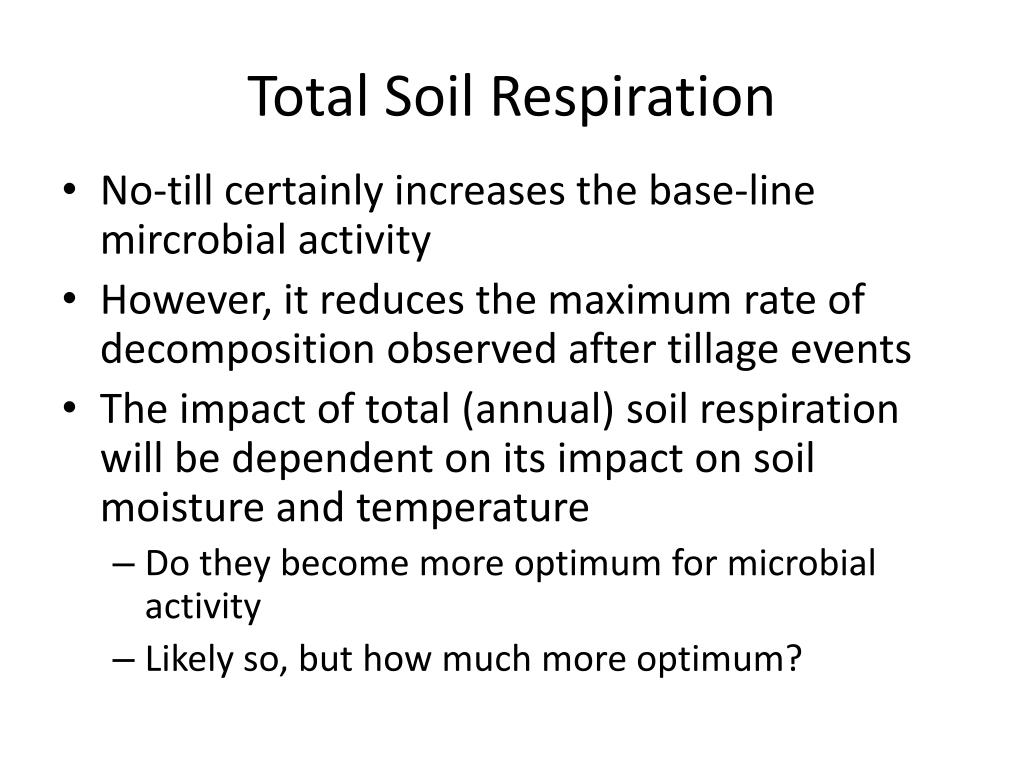

  25. Total Soil Respiration • No-till certainly increases the base-line mircrobial activity • However, it reduces the maximum rate of decomposition observed after tillage events • The impact of total (annual) soil respiration will be dependent on its impact on soil moisture and temperature • Do they become more optimum for microbial activity • Likely so, but how much more optimum?

  26. The Current State of our Understanding • Removal of tillage from our cropland systems will increase soil organic carbon in the topsoil given that inputs are not reduced • High level of uncertainty about what is happening in the subsoils • Recently, research has suggested that no-till may cause a decline in subsoil carbon?

  27. Problem with Using Shallow Samples • Potential errors due to deeper rooting in cultivated soils. • 0-7.5 inch samples give sequestration rate of: • 3 Mt CO2/acre/yr • 0-20 inches gives: • 2.3 Mt CO2acre/yr • It is important to evaluate whole soil to provide accurate estimates of sequestration Blanco-Canqui, and Lal, 2008 Central Kentucky

  28. Whole soil Profile Assessment • Potential mechanisms responsible for decrease in subsoil carbon: • Decrease in transfer of carbon through tillage • We are simply changing the distribution of carbon • Decreased rooting depth • Decrease subsoil moisture resulting in increased microbial activity (improved aeration)

  29. Whole soil Profile Assessment • Whole profile assessment is very important but very difficult • Analysis of profile carbon results in an assessment of a very small change in a very large carbon pool. • Therefore, it will take many years to fully understand the impacts of management on whole soil carbon

  30. Simple Difference in Carbon Stocks Among No-till and Conventional Tillage Average of all Soils collected Difference 1.7 Mton *** (p<0.05) Difference 2.0 Mtons NS 20 Mton acre-1 NS 38 Mton acre-1 Difference 2.4 Mton NS 70 Mton acre-1 120 Mton acre-1 NS 150 Mton acre-1
