Section 5.1 - Parallelograms

Section 5.1 - Parallelograms. 11/15 Remember: a quadrilateral is any 4-sided polygon. Parallelograms are a type of quadrilateral with both pairs of opposite sides parallel. Recall: The sum of the interior angles of a parallelogram (and quadrilateral) is 360 ْ .

platt
Télécharger la présentation

Section 5.1 - Parallelograms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

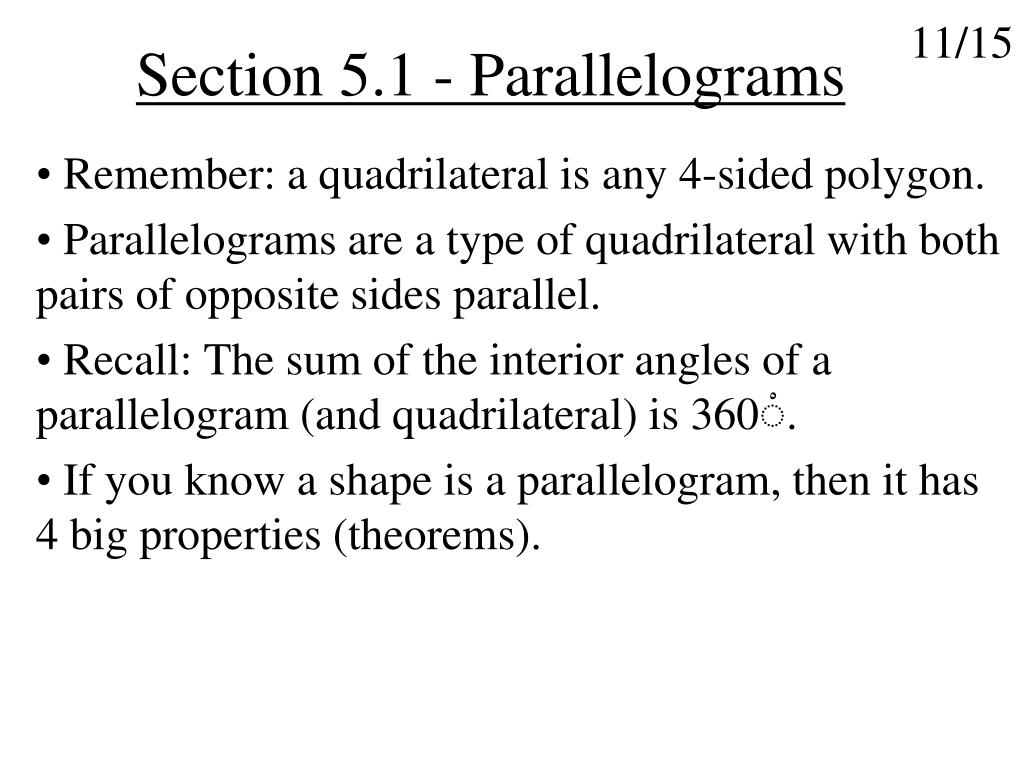

  1. Section 5.1 - Parallelograms 11/15 Remember: a quadrilateral is any 4-sided polygon. Parallelograms are a type of quadrilateral with both pairs of opposite sides parallel. Recall: The sum of the interior angles of a parallelogram (and quadrilateral) is 360ْ. If you know a shape is a parallelogram, then it has 4 big properties (theorems).

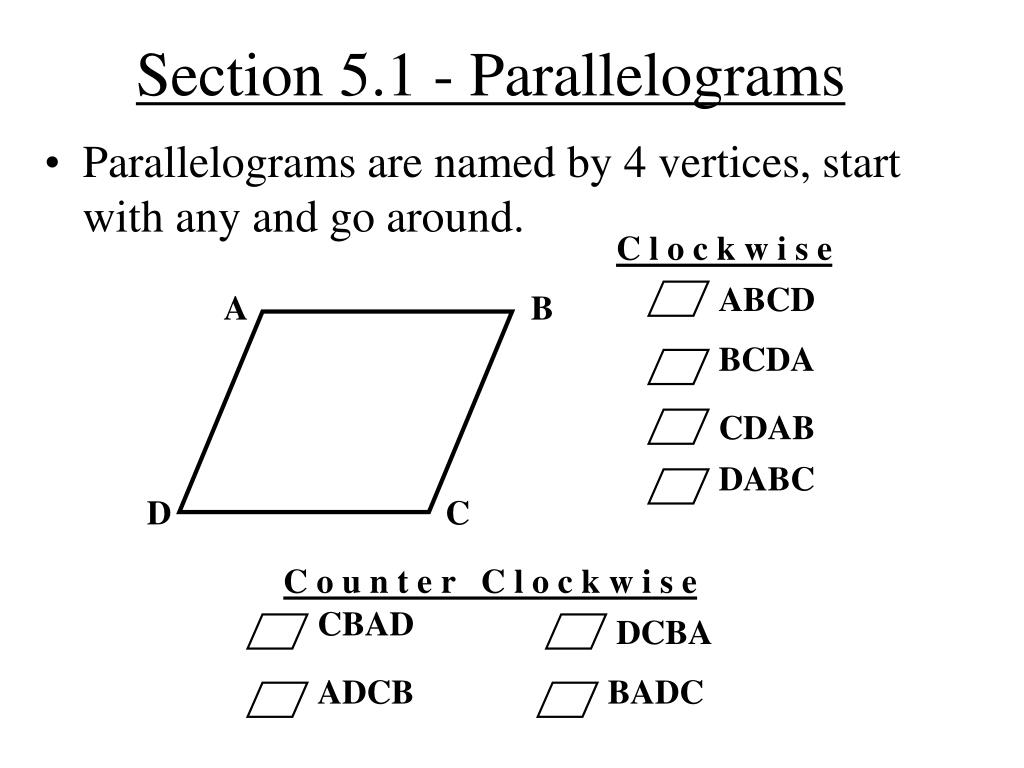

  2. Section 5.1 - Parallelograms • Parallelograms are named by 4 vertices, start with any and go around. C l o c k w i s e ABCD A B BCDA CDAB DABC D C C o u n t e r C l o c k w i s e CBAD DCBA ADCB BADC

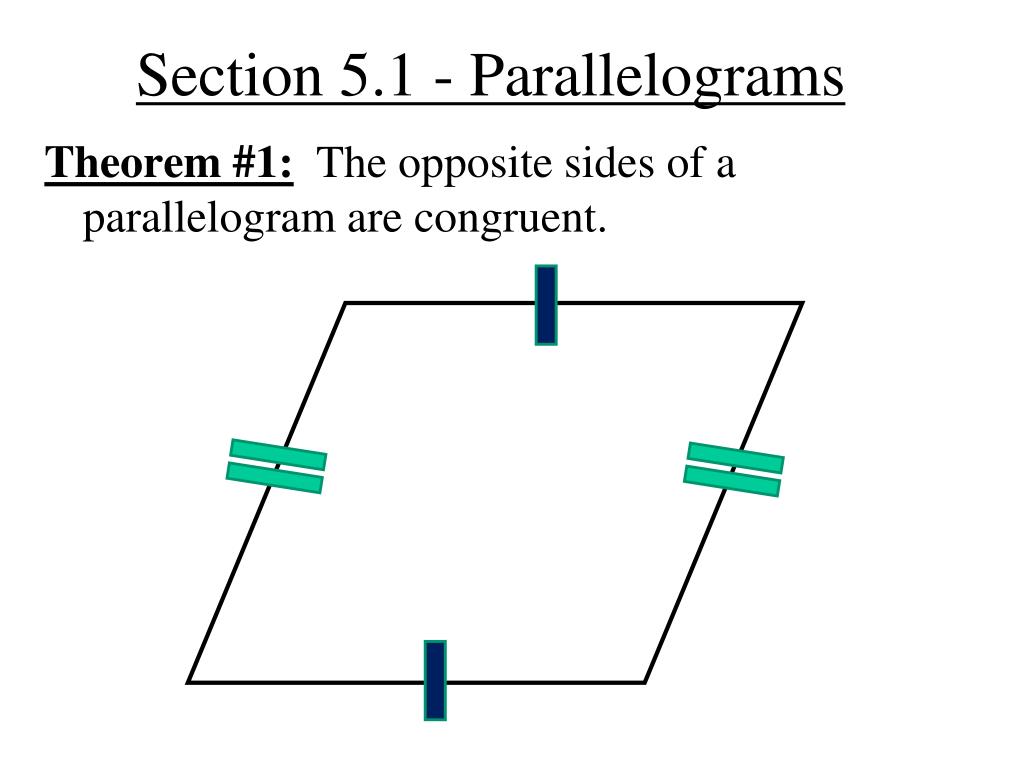

  3. Section 5.1 - Parallelograms Theorem #1: The opposite sides of a parallelogram are congruent.

  4. Section 5.1 - Parallelograms Theorem #1: The opposite sides of a parallelogram are congruent. Proving Theorem #1:

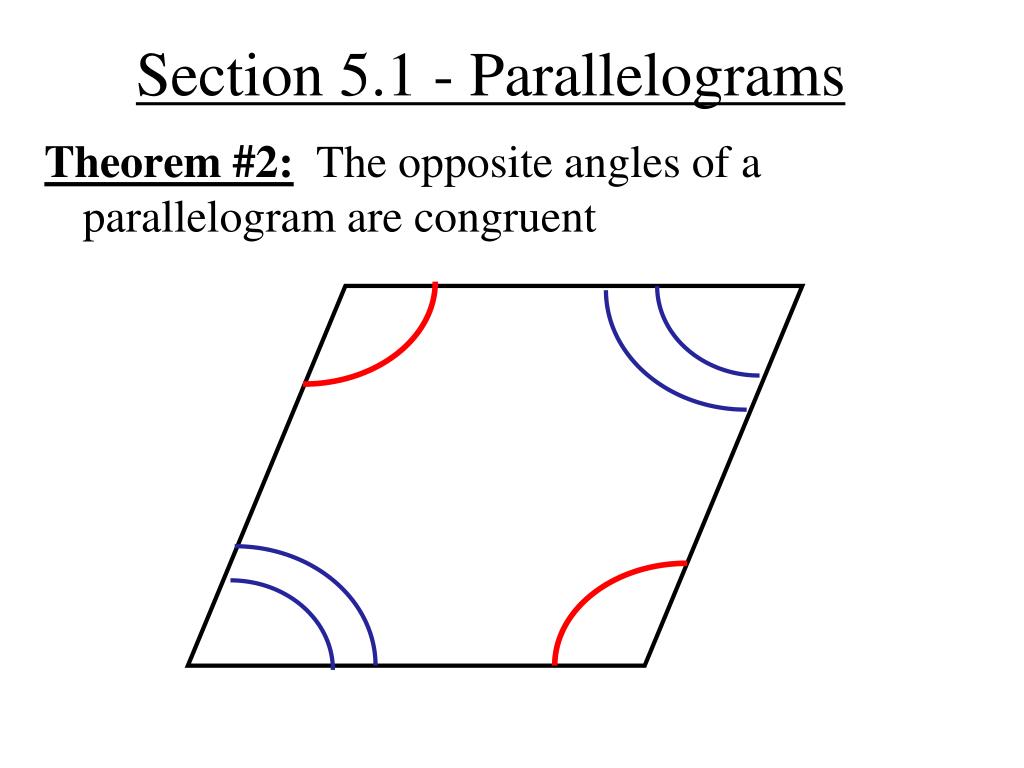

  5. Section 5.1 - Parallelograms Theorem #2: The opposite angles of a parallelogram are congruent

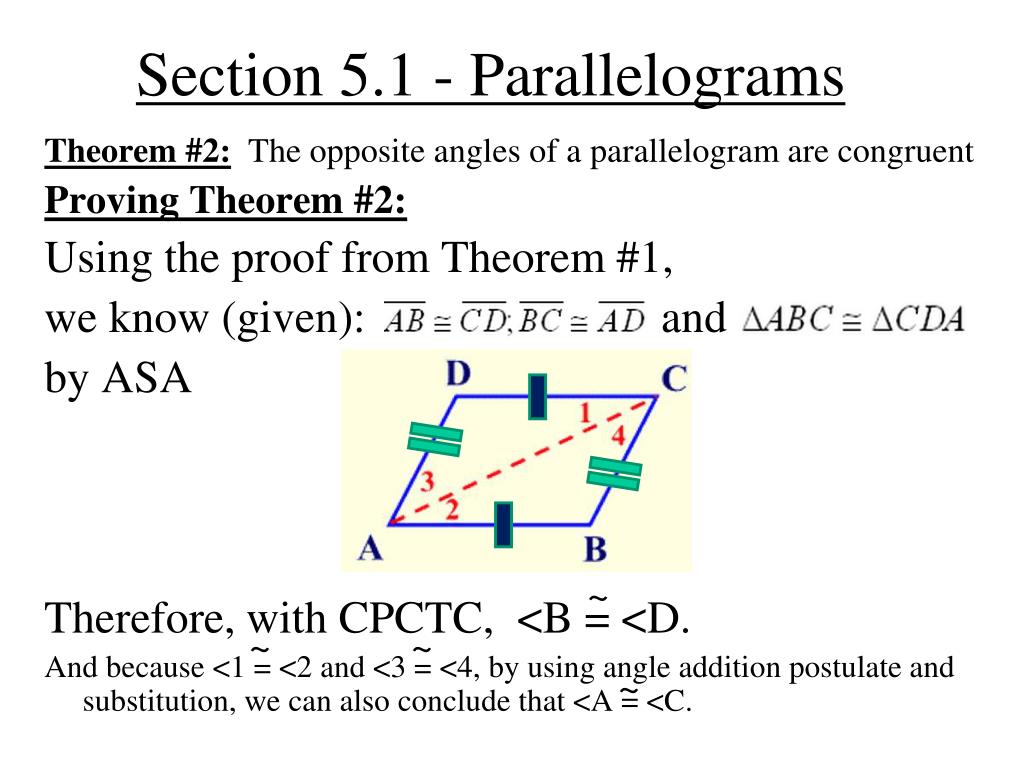

  6. Section 5.1 - Parallelograms Theorem #2: The opposite angles of a parallelogram are congruent Proving Theorem #2: Using the proof from Theorem #1, we know (given): and by ASA Therefore, with CPCTC, <B = <D. And because <1 = <2 and <3 = <4, by using angle addition postulate and substitution, we can also conclude that <A = <C. ~ ~ ~ ~

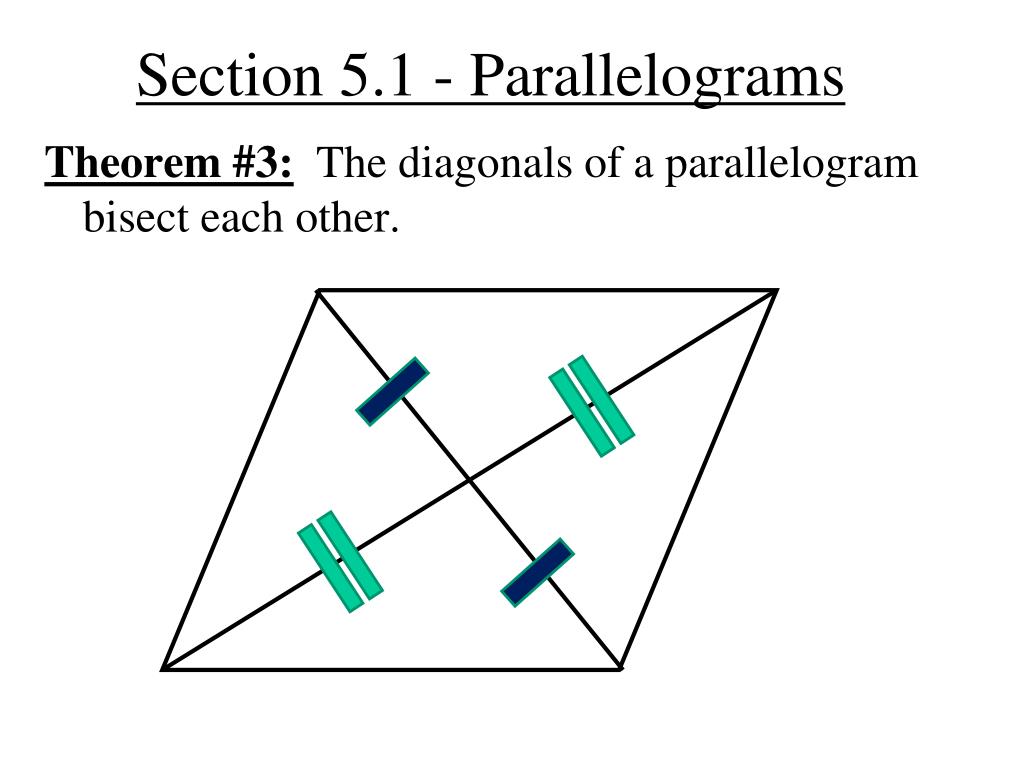

  7. Section 5.1 - Parallelograms Theorem #3: The diagonals of a parallelogram bisect each other.

  8. Section 5.1 - Parallelograms Theorem #3: The diagonals of a parallelogram bisect each other. Proving Theorem #3: Using the proof from Theorem #1 and #2, we know (given): ΔABC = ΔCDA and ΔDBA = ΔBDC ~ ~ 5 8 O 7 6 ~ ~ 5 8 O ~ O 7 6

  9. Section 5.1 - Parallelograms Theorem #4: The same-side interior angles (consecutive angles) of a parallelogram are supplementary angles. C A D B ﮮA +ﮮ B = 180ْ ﮮC +ﮮ A = 180ْ ﮮC +ﮮ D = 180ْ ﮮD +ﮮ B = 180ْ

  10. Parallelograms – We Do 18 A B w x The following quadrilaterals are parallelograms. Example 1 Solve for w,x,y,z. Example 2 Solve for j,k,l,m,n. y 10 w = 115º x = 65º 115º y = 10 z = 18 D C z E F 55º 65º j = 60º k = 55º n 40º l l = 120º m = 40º j m n = 20º k H G

  11. Parallelograms – You Do • Textbook practice: Pg 168 #2-8
