  1. Machine Vision Applications Case Study No. 1 Analysing Surface Texture

  2. Texture • Often impossible to define mathematically • Good and bad texture is recognisable, by its physical effect, geometry, physics (e.g. conductivity, taking stains), chemistry or visual appearance. For example: • Apple gives a pleasant biting sensation • Paint peals quickly • Measurable surface roughness • We have to learn what a good texture is.

  3. Sample images provided with QT • Creased fabric, 28 • Coffee beans, 4 • Metal sieve, 2 • Cork, 5 • Cookie, 109 • Machined metal surface, 103 • Woven cane-work, 156 • Printed text, 95

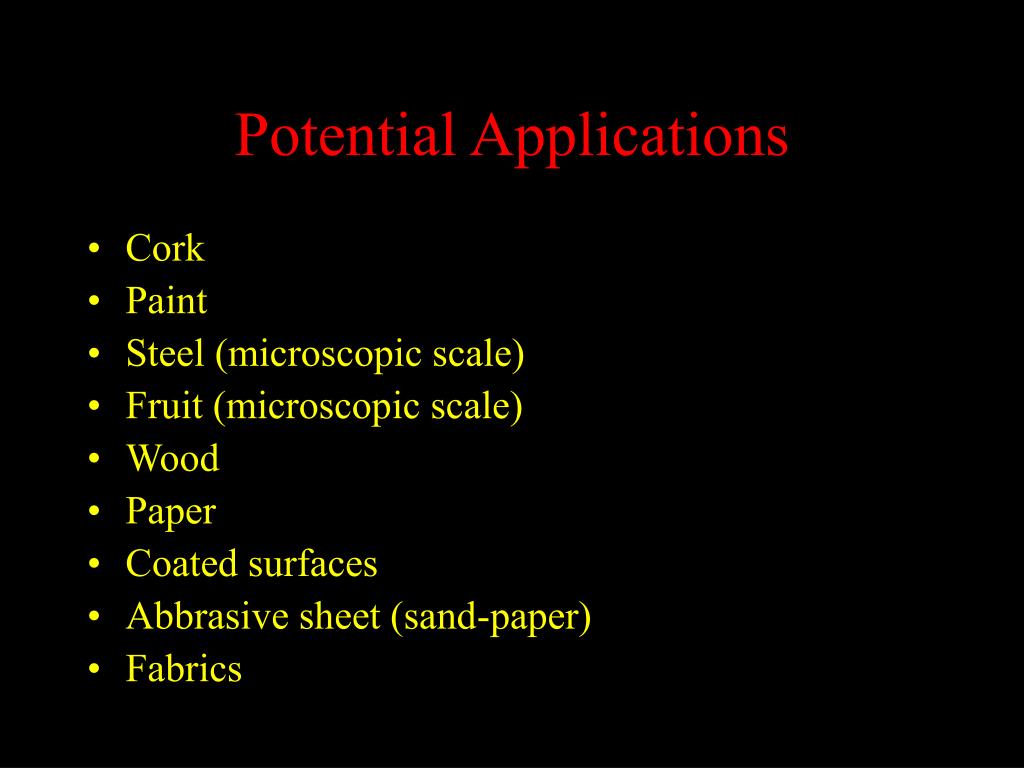

  4. Potential Applications • Cork • Paint • Steel (microscopic scale) • Fruit (microscopic scale) • Wood • Paper • Coated surfaces • Abbrasive sheet (sand-paper) • Fabrics

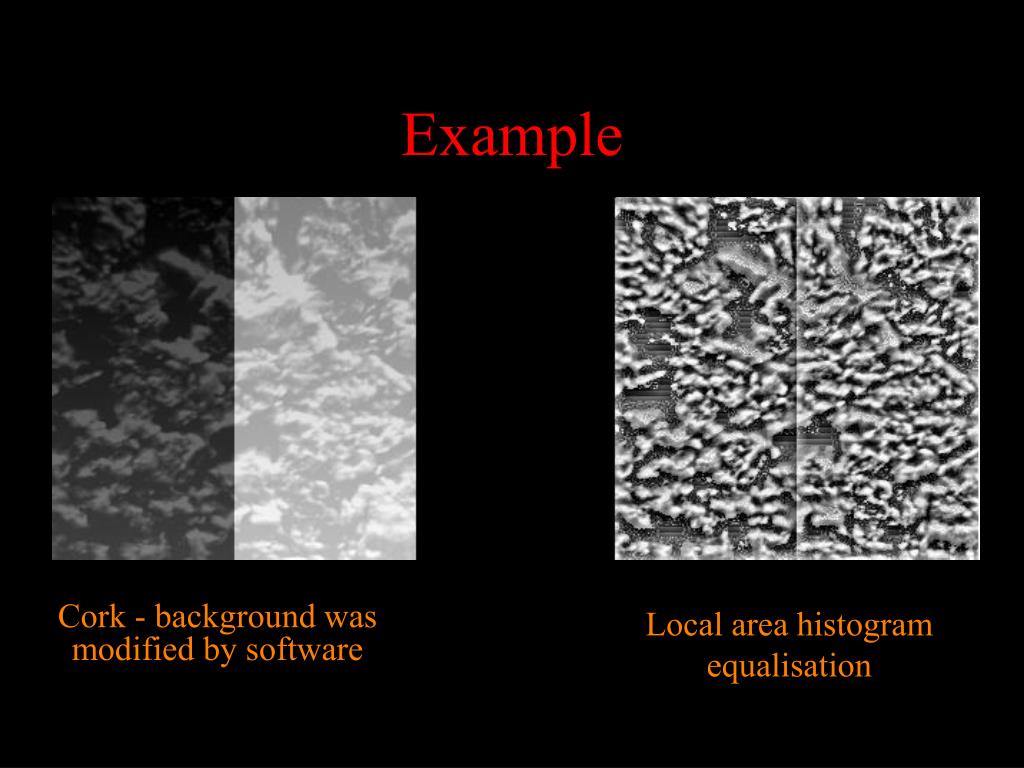

  5. Example Cork - background was modified by software Local area histogram equalisation

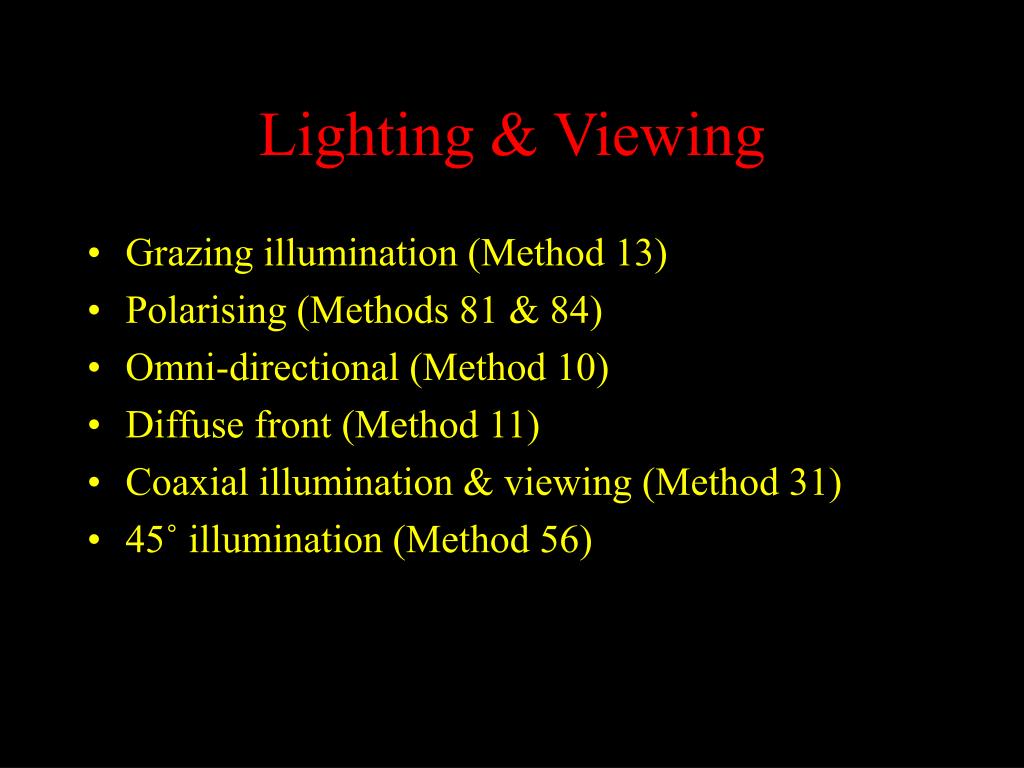

  6. Lighting & Viewing • Grazing illumination (Method 13) • Polarising (Methods 81 & 84) • Omni-directional (Method 10) • Diffuse front (Method 11) • Coaxial illumination & viewing (Method 31) • 45˚ illumination (Method 56)

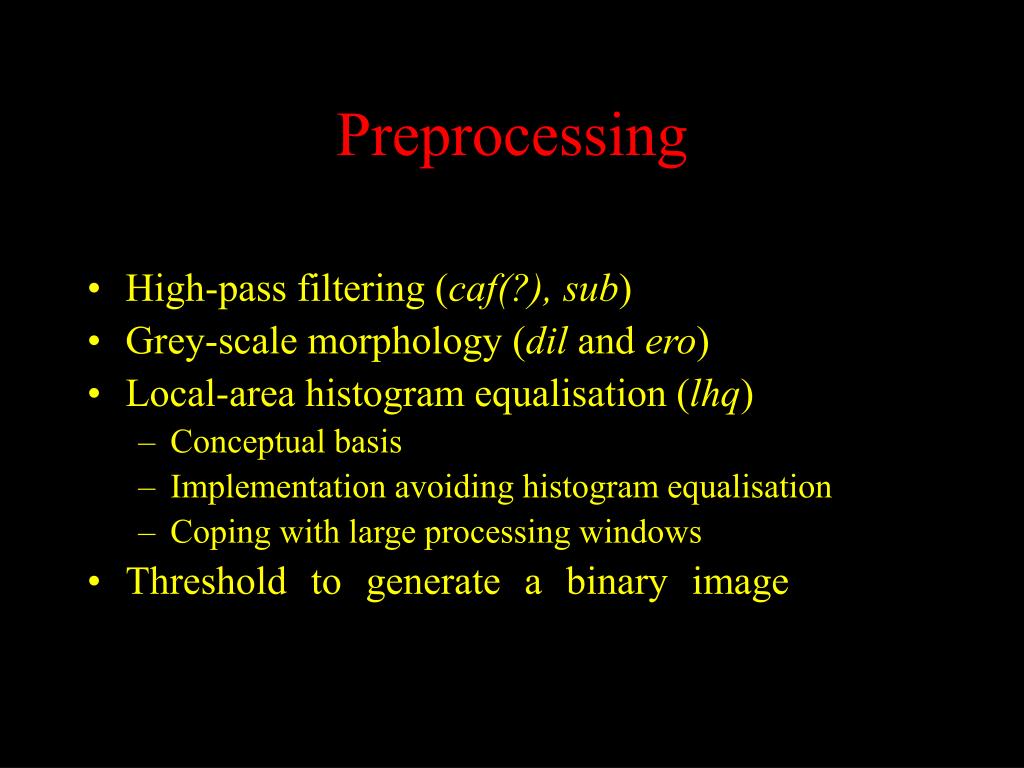

  7. Preprocessing • High-pass filtering (caf(?), sub) • Grey-scale morphology (dil and ero) • Local-area histogram equalisation (lhq) • Conceptual basis • Implementation avoiding histogram equalisation • Coping with large processing windows • Threshold to generate a binary imagedecisions about texture • Learning • Learning

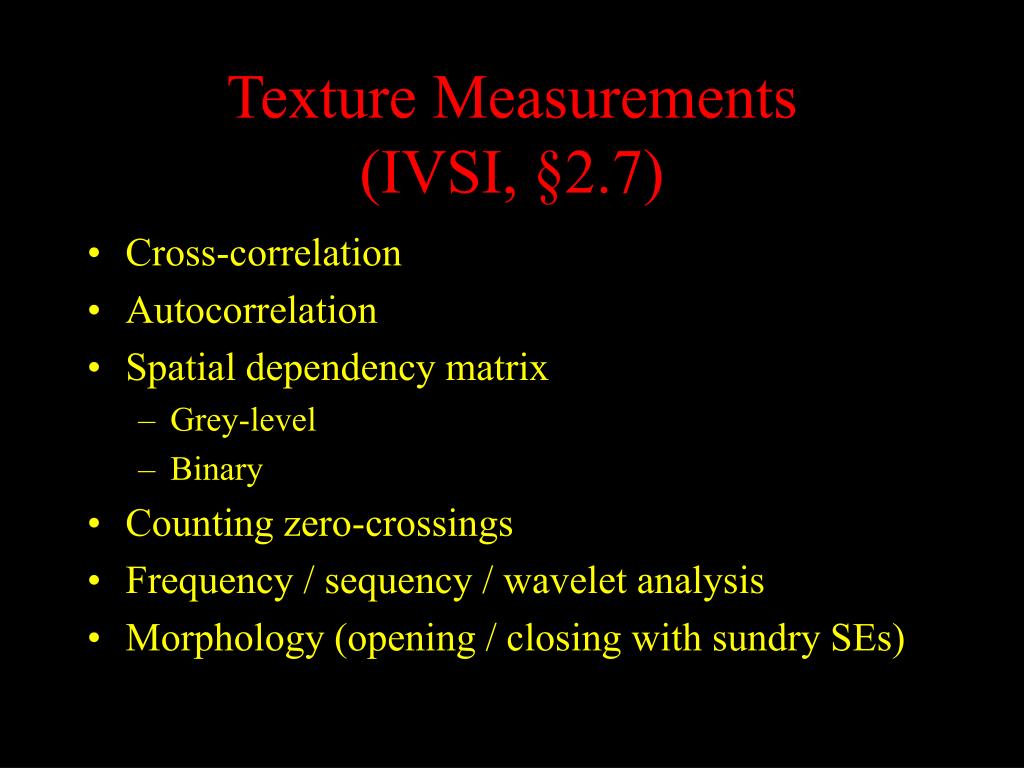

  8. Texture Measurements(IVSI, §2.7) • Cross-correlation • Autocorrelation • Spatial dependency matrix • Grey-level • Binary • Counting zero-crossings • Frequency / sequency / wavelet analysis • Morphology (opening / closing with sundry SEs)

  9. Making Decisions • Pattern Recognition • Classification • Linear • Compound Classifier • Learning • Two-class learning • Single-class learning
