  1. Yahoo! / TPG Case Study Applying WAI-ARIA to Yahoo! Mail

  2. Introductions: Yahoo & TPG • Yahoo • Global Internet services company providing vast range of products, including a Web 2.0 email client • TPG • Provides accessibility related consultancy, development and auditing

  3. Introductions: Yahoo Mail • Yahoo Mail • Provides a rich, desktop like experience • Highly dependent on clientside scripting • Interface based on customized controls and interaction model • Advanced, integrated features, such as • Instant messaging • Text messaging • RSS feeds

  4. Introductions: ARIA • Solves a major accessibility problem with webapps: Role and state information • Role: what is the type of this widget? Examples: • Slider • Tree • Tab • menubar • State: What are it’s current features, what properties does it have? Examples: • Expanded • Selected • disabled • readonly • This information is Exposed to AT (e.g. Screen readers) • AT can correctly convey the control to the user, as if it was a desktop based control

  5. Introductions: the Project • Yahoo Mail is an ideal candidate for ARIA • Highly dynamic • Highly Customized • TPG contractor was brought in as an experimental project • Assess accessibility requirements • Make necessary changes for ARIA to work • Apply ARIA roles and states • Three months were spent at Yahoo Sunnyvale • Results: It’s a start, but not there yet.

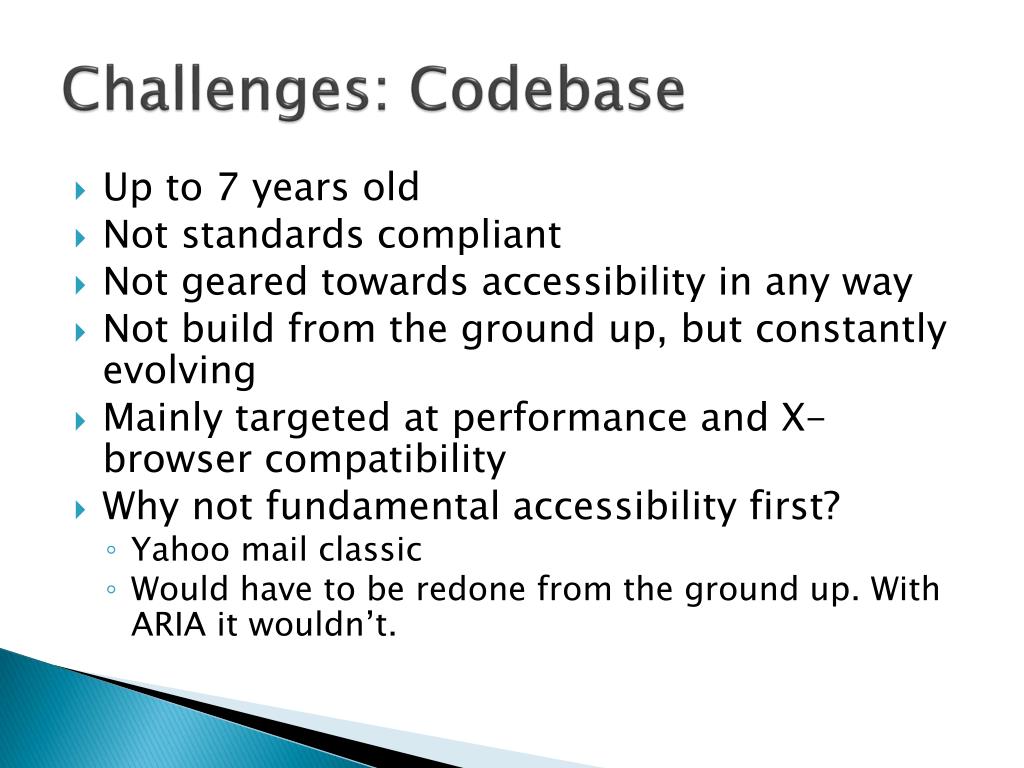

  6. Challenges: Codebase • Up to 7 years old • Not standards compliant • Not geared towards accessibility in any way • Not build from the ground up, but constantly evolving • Mainly targeted at performance and X- browser compatibility • Why not fundamental accessibility first? • Yahoo mail classic • Would have to be redone from the ground up. With ARIA it wouldn’t.

  7. Challenges: Focus • Focus in Yahoo Mail is mostly simulated • Visually something appears to have focus • Programmaticaly, neither the browser, OS or AT are aware • For ARIA to work, proper focus must be applied: • Solution: Setting tabindex value: • tabindex=“0”: element becomes part of the tab order • Tabindex=“-1”: element just becomes focusable (through scripting or clicking)

  8. Focus (ctd.) • Focus loss often occurs due to • Rerendering of interface components • Destruction and recreation of currently focused control. • Loading of external (out of our control) content. • Tracking focus globally, forcing it back if needed.

  9. Challenges: Focus order • Tab key used in different ways • Pane to pane navigation • Control to control navigation • Default (element to element) tab navigation is suppressed. • Tab key currently loops main segments and toolbars • Toolbars considered too many stops by some, possibly moving to shortcuts. • Discoverability vs. Efficiency? • Arrow keys are used for subpart navigation • Rich text editor tab trap

  10. Challenges: Keyboard Shortcuts • Yahoo Mail overrides some browser –native shortcuts, e.g. • Closing tabs • Searching in messages • Set of shortcuts is provided for fast keyboard interaction. • Paradigm conflict: • webpage pretends to be a desktop application, but is in fact running inside another desktop application

  11. Challenges: Applying ARIA • Namespacing difficulties (no longer an issue since FF3) • Content handled as partial HTML text strings, difficult to determine where it becomes action DOM content • Controls are drawn multiple times • Roles and states are destroyed everytime, will have to be reapplied • Library was created similar to enable.js • Class based approach vs direct assignment • Apply to single or root container element: performance risk

  12. Challenges: Message Table • Both column and row navigation • Table header announcement problematic • JAWS: no announcement at all in PC cursor mode • WE: Correct heading announcement, breaks at focusable rows • Checkbox type cells • Selection announcement (alert role)

  13. Challenges: Screen Readers • Targeted at JAWS 9.0 beta & WindowEyes 6.1 • Designed for non-virtual mode (browse mode off) • Difficult to get a clear idea of compatibility • Ertratic behavior • Few ‘real world examples’ • Biggest issues: • Role = document vs role = application • Cell navigation • Cheats sometimes chosen: • Describedby

  14. Components • YUI components are sometimes used in Yahoo Mail, e.g. In Menu component • Currently ARIA is manually applied • Next upgrade will include built in ARIA for YUI
