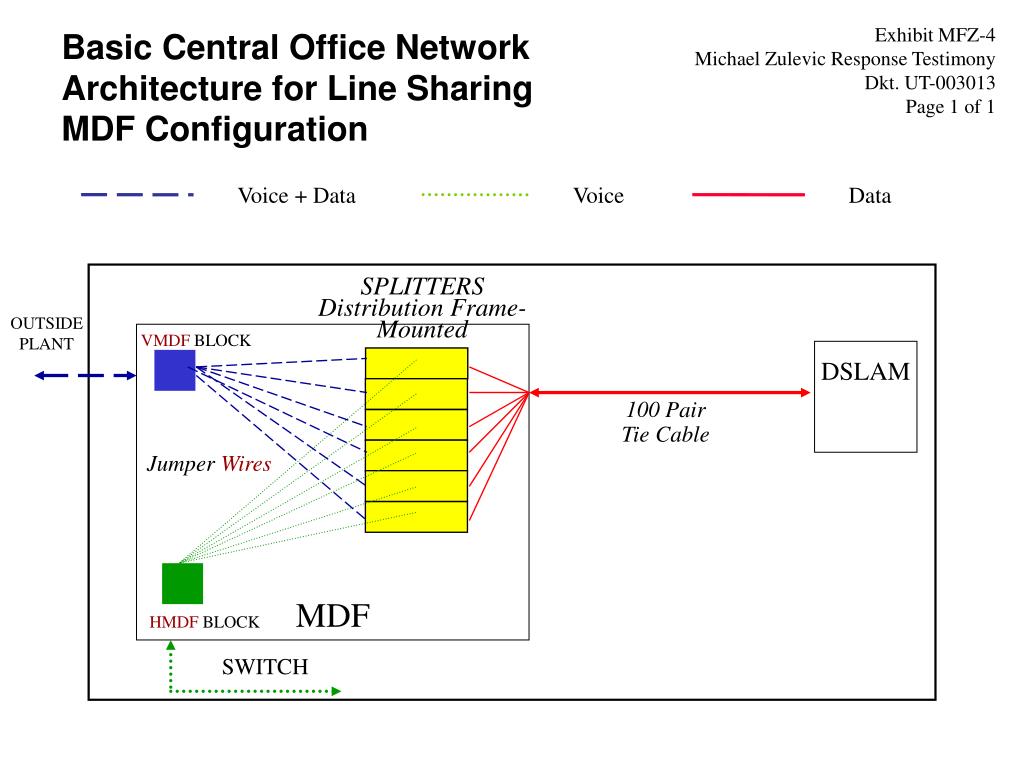

  1. Exhibit MFZ-4 Michael Zulevic Response Testimony Dkt. UT-003013 Page 1 of 1 Basic Central Office Network Architecture for Line Sharing MDF Configuration Voice + Data Voice Data SPLITTERS Distribution Frame- Mounted OUTSIDE PLANT VMDF BLOCK DSLAM 100 Pair Tie Cable Jumper Wires MDF HMDF BLOCK SWITCH

  2. Basic Central Office Network Architecture for Line Sharing Relay Rack Configuration Exhibit MFZ-5 Michael Zulevic Response Testimony Dkt. UT-003013 Page 1 of 1 Voice + Data Voice Data SPLITTER Mounted On Relay Rack Adjacent to MDF VMDF BLOCK HMDF BLOCK OUTSIDE PLANT Jumper Wires Tie Cables HMDF BLOCK Tie Cable Jumper Wires HMDF BLOCK DSLAM MDF SWITCH

  3. Basic Central Office Network Architecture for Line Sharing Collocation Area Configuration Exhibit MFZ-6 Michael Zulevic Response Testimony Dkt. UT-003013 Page 1 of 1 Voice + Data Voice Data SPLITTERS In Collocation Area VMDF BLOCK HMDF BLOCK OUTSIDE PLANT Tie Cables Jumper Wires DSLAM HMDF BLOCK Tie Cables HMDF BLOCK MDF SWITCH
