Application of Equilibrium Equations in Structural Analysis

DESCRIPTION

This lecture covers the application of equilibrium equations in structural analysis, focusing on the key procedures involved in determining reactions for various structures. It outlines essential steps, including establishing a suitable coordinate system, drawing a free body diagram (FBD), and applying the three equations of equilibrium to solve for unknown reactions. Numerous examples and group work scenarios are provided to enhance understanding and application of these concepts in practical situations related to simple constructions.

1 / 26

Télécharger la présentation

Application of Equilibrium Equations in Structural Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Eng: Eyad Haddad Summer Semester 2009 Adopted from Dr. Ali Tayeh Structure Analysis I

  2. Lecture 4 Application of Equilibrium Equation

  3. Application of Equation of Equilibrium Procedure steps 1. If not given, establish a suitable x - y coordinate system. 2. Draw a free body diagram (FBD) of the object under analysis. 3. Apply the three equations of equilibrium to solve for the unknowns.

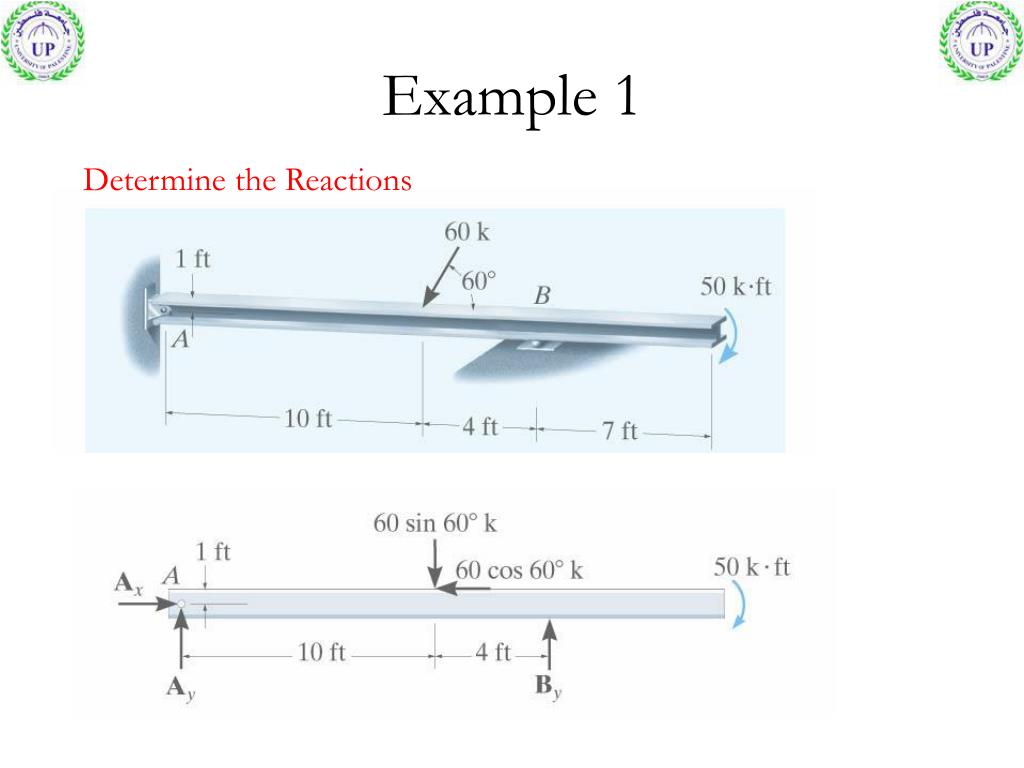

  4. Example 1 Determine the Reactions

  5. Example 2 Determine the Reactions

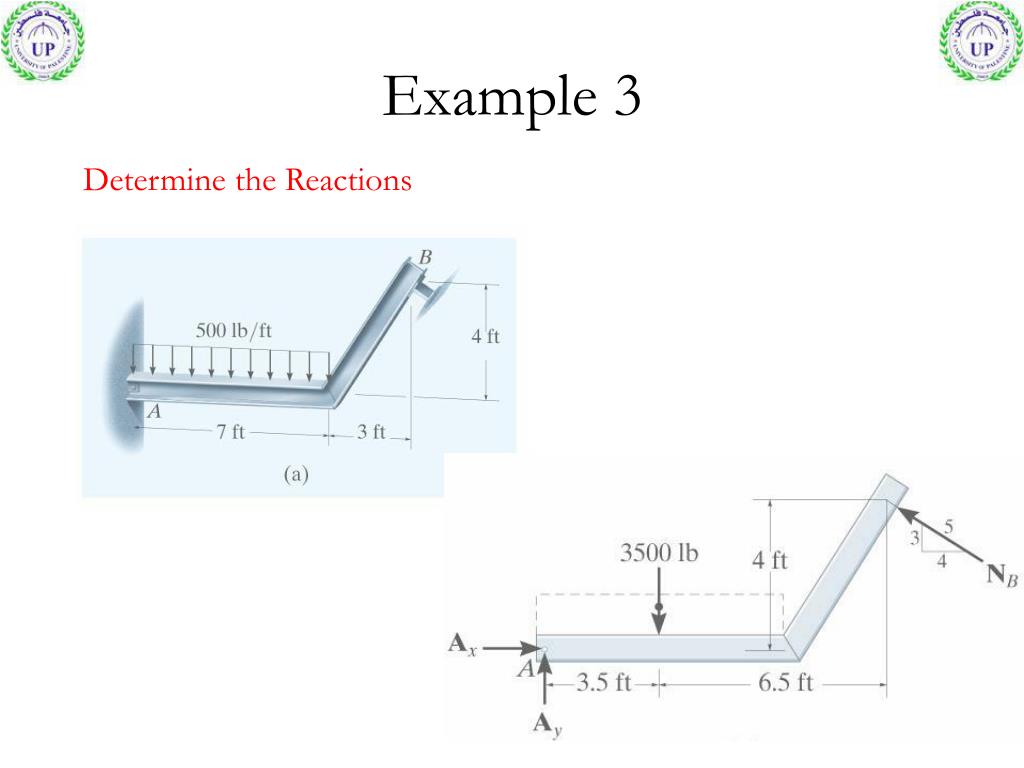

  6. Example 3 Determine the Reactions

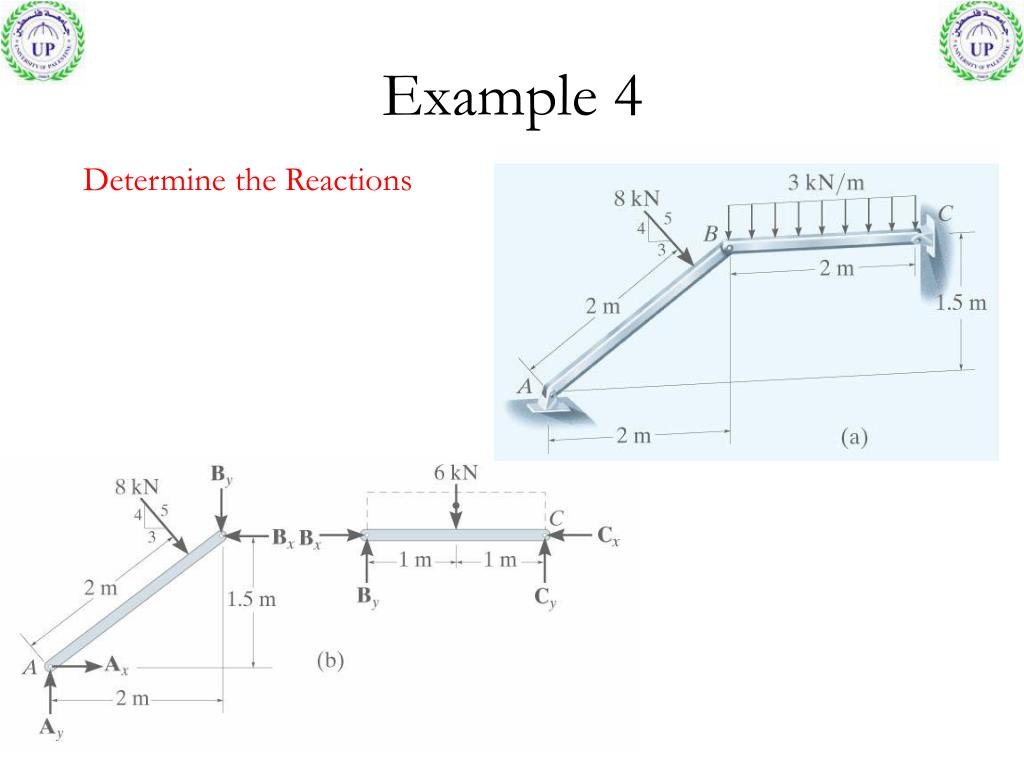

  7. Example 4 Determine the Reactions

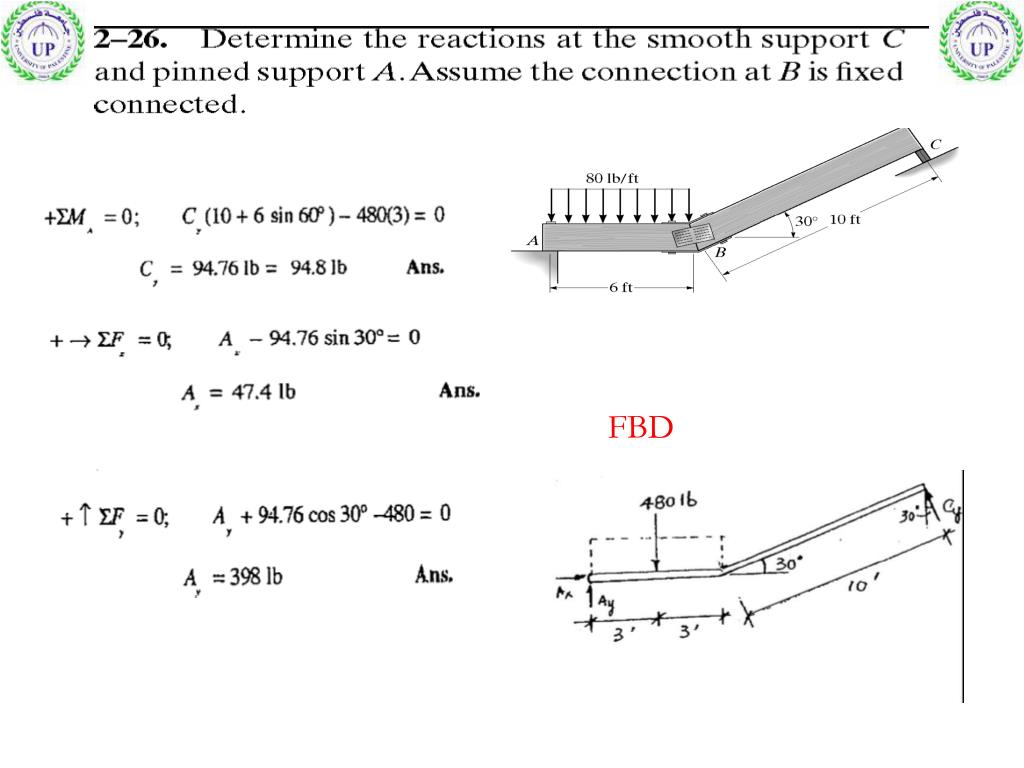

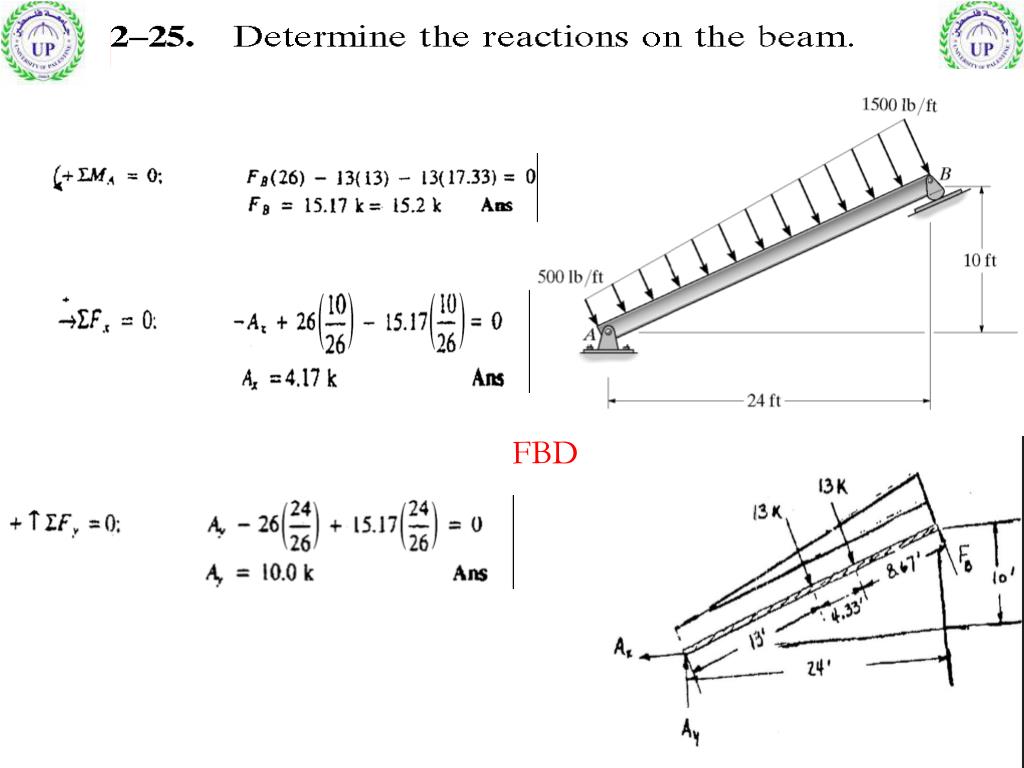

  8. Example 4 Determine the Reactions

  9. Example 5 Determine the Reactionsحساب ردود الافعال للإنشاءات البسيطة

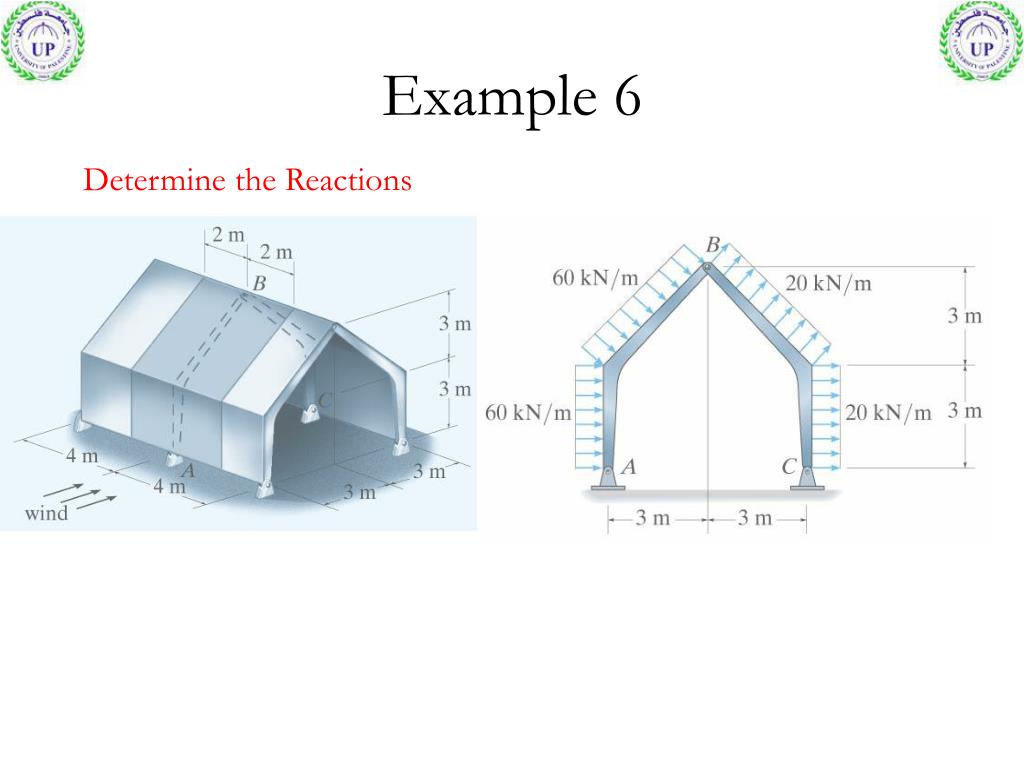

  10. Example 6 Determine the Reactions

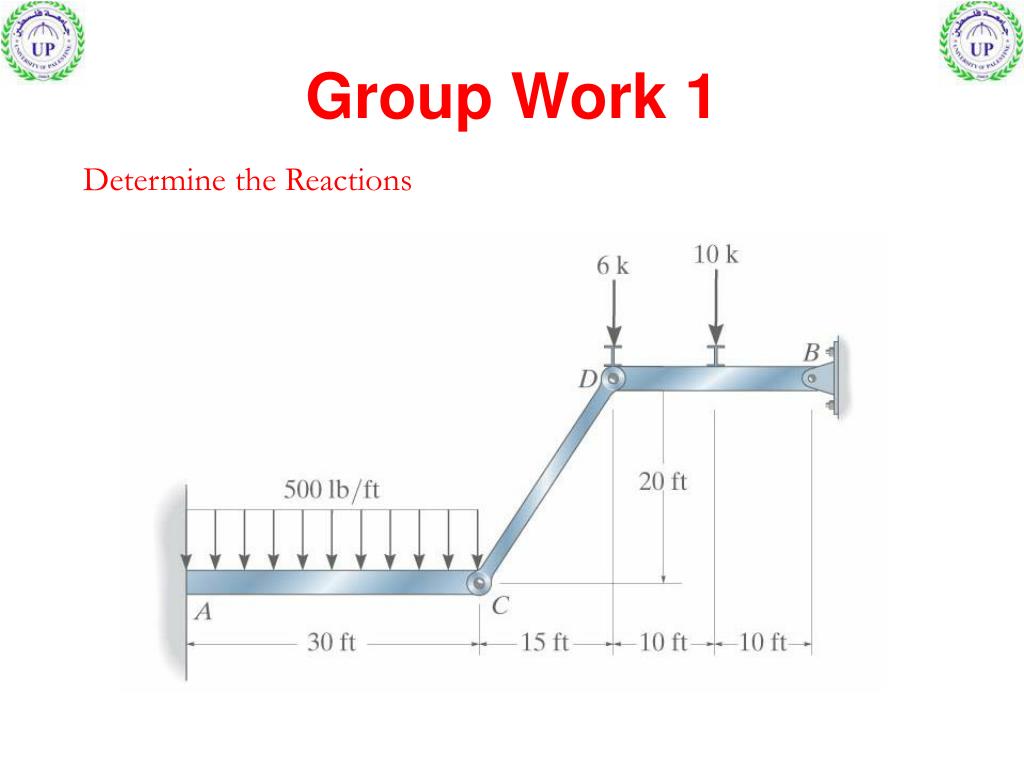

  11. Group Work 1 Determine the Reactions

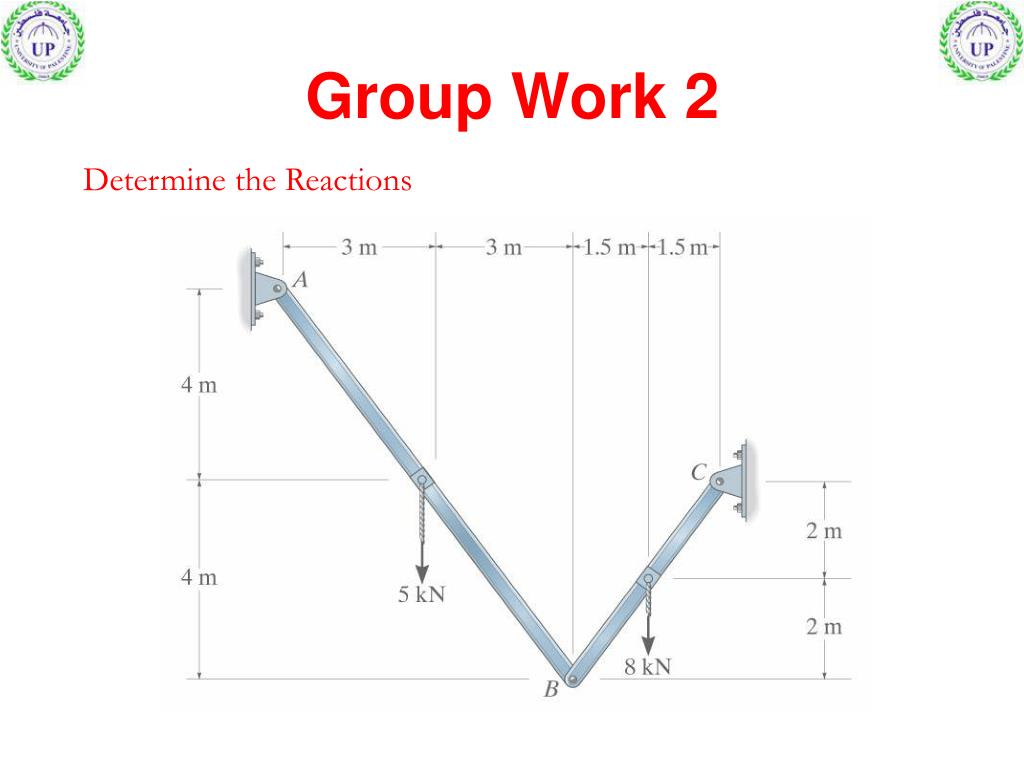

  12. Group Work 2 Determine the Reactions

  13. Group Work 3 Determine the Reactions

  14. FBD

  15. FBD
