QA plots/cuts for pure D 0

QA plots/cuts for pure D 0. reproduce pure D 0 sample (1 per event) with : 30 k with flat p T : 0<p T <5 10k with flat p T : 0<p T <10 Motivation : make plots with better statistic and extend the pT range to assure the trend observed for 0<p T <5 is identical for p T >5

pravat
Télécharger la présentation

QA plots/cuts for pure D 0

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. QA plots/cuts for pure D0 • reproduce pure D0 sample (1 per event) with : • 30 k with flat pT: 0<pT<5 • 10k with flat pT: 0<pT<10 • Motivation : make plots with better statistic and extend the pT range to assure the trend observed for 0<pT<5 is identical for pT>5 • Some cuts I looked : • slength • dca product • DCA to PV • cospointing • Lxy/errLxy

  2. slength vs. pT (0<pT<10)

  3. slength vs pT (wrong sign,0<pT<10)

  4. slength vs. pT (0<pT<5)

  5. comments • Generate D0 up to pT = 10 GeV to have a better view of trend ; pure D0 • Observations : • Mean (filled symbols) and std (open symbols) of slength (TCFIT) increase with pT of D0 • Max (of mean) do not exceed (up to 10GeV) 600 microns --> set this as an upper limit • No dependence with probability • No dependence with wrong signs association

  6. dcaProduct of daughters

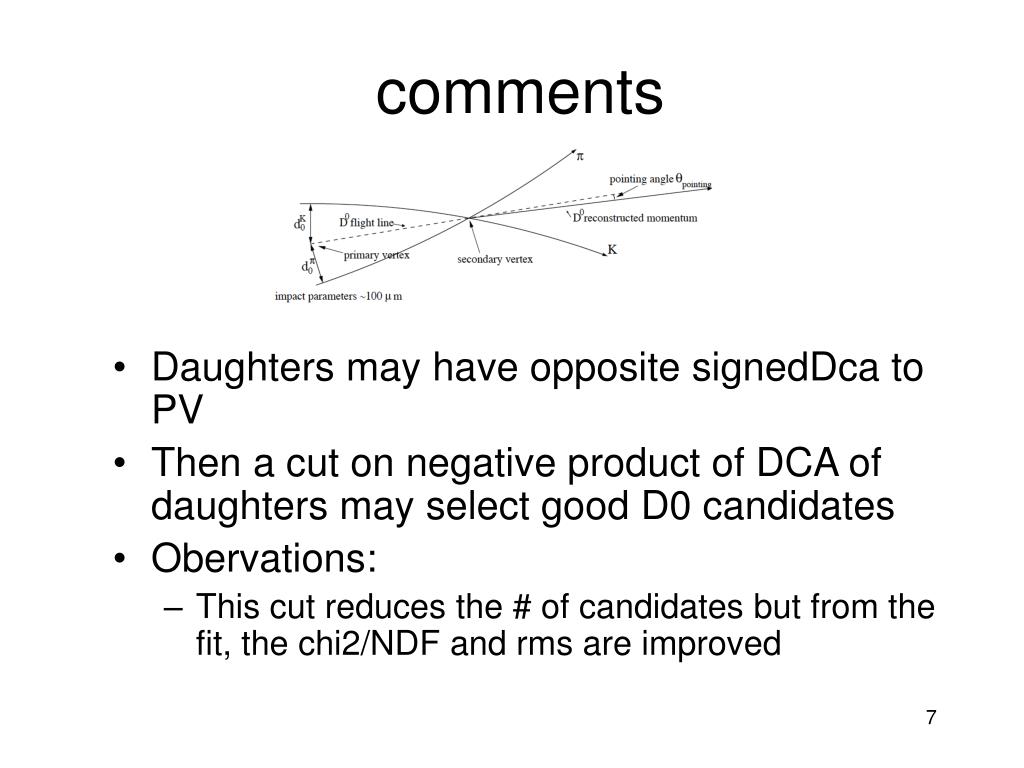

  7. comments • Daughters may have opposite signedDca to PV • Then a cut on negative product of DCA of daughters may select good D0 candidates • Obervations: • This cut reduces the # of candidates but from the fit, the chi2/NDF and rms are improved

  8. Dca (daughters) to PV

  9. comments • Apply a cut of min DcatoPV to select tracks that are NOT originating from the Primary Vertex • Observations : • Improvement when the cut is large (100 microns) • also tried an upper limit to remove tracks from kaons and hyperons (panel bottom right)

  10. Mass vs cospointing

  11. comments • Solid line : all associations ; red markers : good signs (K-π+) ; blue marker : wrong signs (K+π-) • Observations : • As seen before, the tails in the inv. Mass are coming from wrong signs associations • The cut on cosThetaPointing acts like a cut on the DCA of D0 to PV • For high values, the wrong signs contribution decreases

  12. Lxy/errLxy (from a thesis of HERA collaboration)

  13. details • In simulation, the primary vertex covariance matrix (C1) is null then I took the values from real data (x =y =z = 20 microns) • I have assumed that the crossed terms of the covariance matrices of primary and secondary vertices are null • For the secondary vertex(C2), as I don’t know the errors,I have tried by taking the double of C1 terms.

  14. Lxy/errLxy slength/dslength • slength/dslength is much broader than Lxy/errLxy • Due to the approximation I did for the primary and secondary vertices matrices • The plot on the right shows the inv. mass (pure sample) with no cut on good signs • Reminder : the wrong signs associations make the inv. mass broader • With the cut on Lxy/errLxy, this background is reduced
