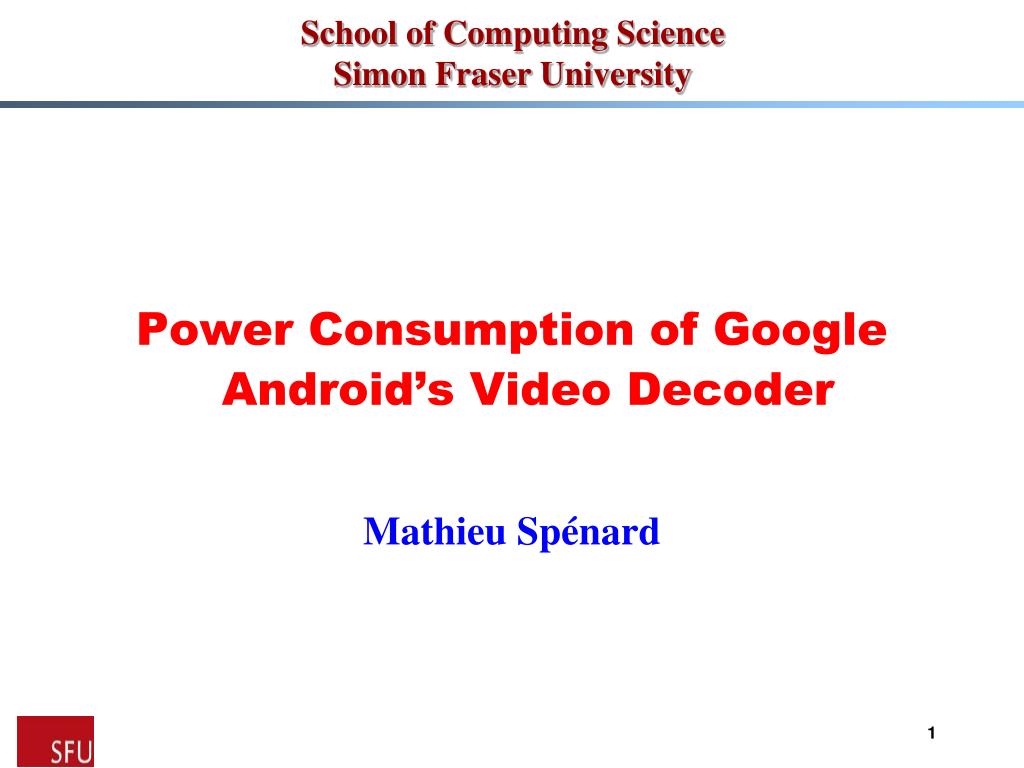

  1. School of Computing ScienceSimon Fraser University Power Consumption of Google Android’s Video Decoder Mathieu Spénard

  2. Outline • Goal • How the experimentwasconducted • Experimentresults • Challenges and Difficulties • Conclusion

  3. Goal • Understand how a videodecoder consumes power within a cell phone, whenrenderin H.264/AVC encodedvideos • Experimentdone on a real phone, not a chip • Understand how variousprocessesinvolved in a phone impacts the overall power consumption of rendering a video

  4. Tools Used • Power Tutor [1], whichallowsmeasuring power on the phone using a software with a 5% accuracy for the HTC G1, HTC G2 and Nexus One • Ffmpeg [2] to encode videos • City, Crew and Foremanvideosequences [3] • Linda File Manager [4], a free file management system thatallows for quicklynavigating files within an Android phone

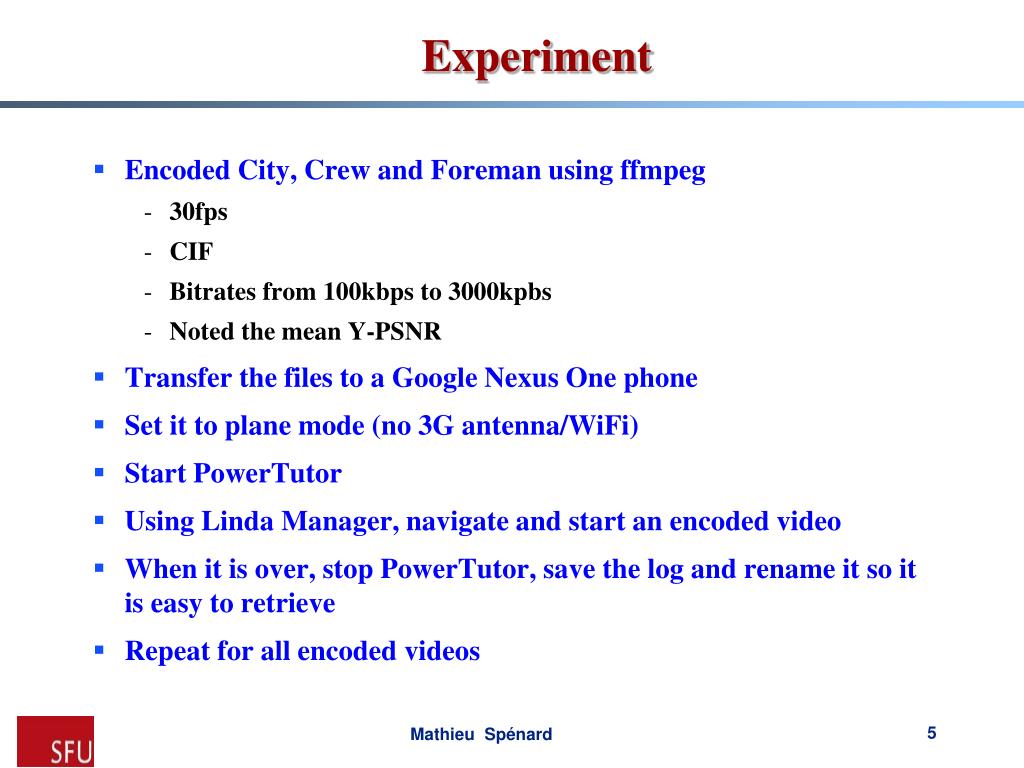

  5. Experiment • Encoded City, Crew and Foremanusingffmpeg • 30fps • CIF • Bitratesfrom 100kbps to 3000kpbs • Noted the mean Y-PSNR • Transfer the files to a Google Nexus One phone • Set it to plane mode (no 3G antenna/WiFi) • Start PowerTutor • Using Linda Manager, navigate and start an encodedvideo • Whenitis over, stop PowerTutor, save the log and renameitsoitiseasy to retrieve • Repeat for all encodedvideos

  6. Results

  7. Results

  8. Results

  9. Results • Videodecodercouldn’tplayvideosencodedat 2000, 2250 and 2500 kbps, and alsofrom 4000 to 5000 kbps • Couldn’t stop the Compassprocess. Consumes verylittle power, but couldadd to the operating system overhead

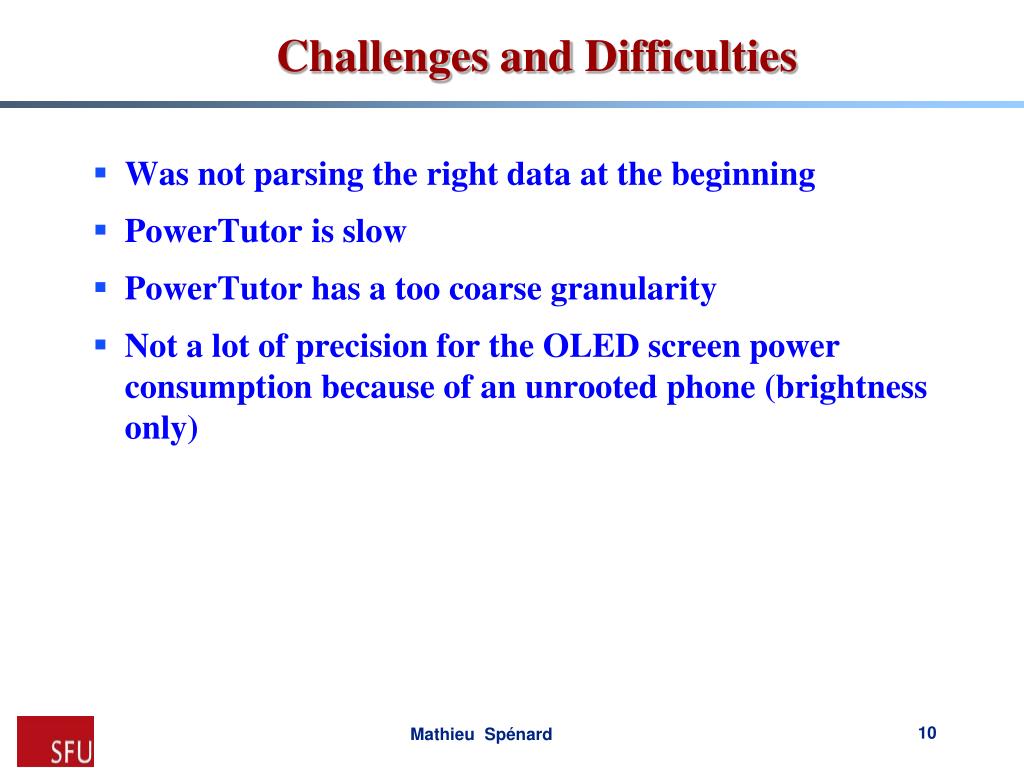

  10. Challenges and Difficulties • Was not parsing the right data at the beginning • PowerTutoris slow • PowerTutor has a toocoarsegranularity • Not a lot of precision for the OLED screen power consumptionbecause of an unrooted phone (brightnessonly)

  11. Conclusion • Bitrate and mean Y-PSNR do have an impact on the power consumption of a H.264/AVC videodecoder • System overhead consumes more power thandecoding • Screen consumes most of power; does not leave a lot of room for improvement • A studyusing a 3D videodecodercouldgive a differentdecoder/screen power consumption

  12. References • [1] “PowerTutor,” http://ziyang.eecs.umich.edu/projects/powertutor/ • [2] “FFmpeg.” [Online]. Available: http://www.ffmpeg.org/ • [3] “Video Library and Tools - NSL.” [Online]. Available: http://nsl.cs.sfu.ca/wiki/index.php/Video_Library_and_Tools • [4] “Linda File Manager.” [Online].Available: http://www.androlib.com/android.application.com/lindaandny-lindamanager-jpBj.aspx
