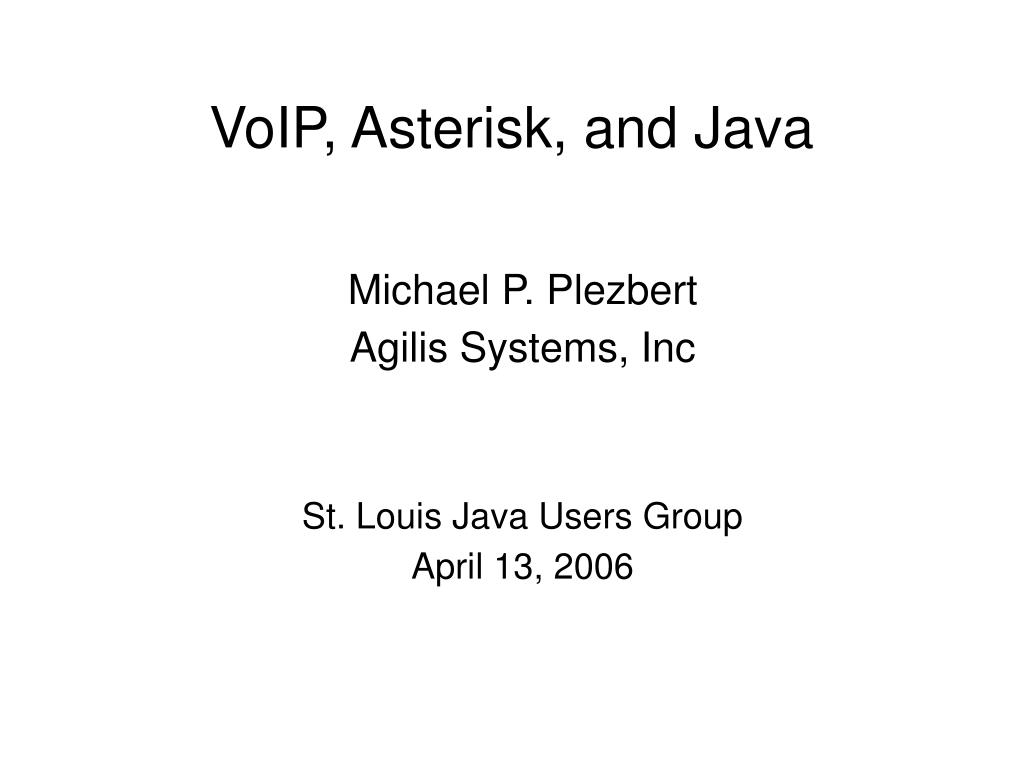

Michael P. Plezbert Agilis Systems, Inc St. Louis Java Users Group April 13, 2006 VoIP, Asterisk, and Java

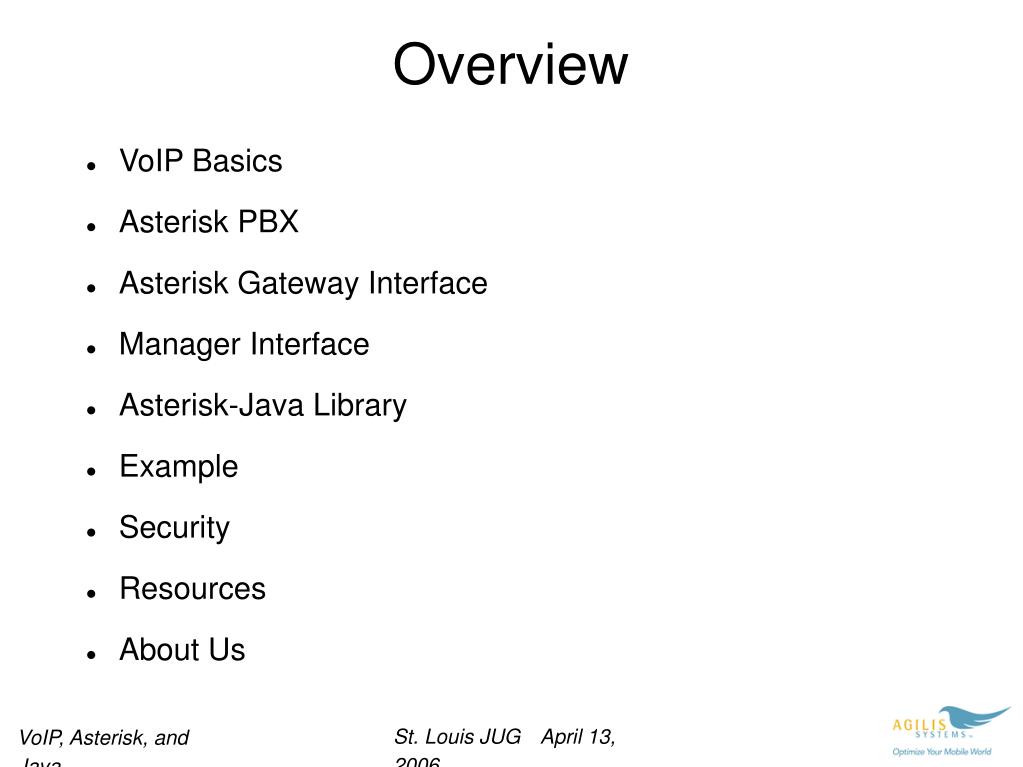

Overview • VoIP Basics • Asterisk PBX • Asterisk Gateway Interface • Manager Interface • Asterisk-Java Library • Example • Security • Resources • About Us
VoIP • Two-way (pseudo-) real-time audio communication over IP network • Allows “free” computer-to-computer calls (disregarding broadband connection fees), e.g. Skype • Calls to “regular” phone network requires specialized hardware or service provider, e.g. Vonage

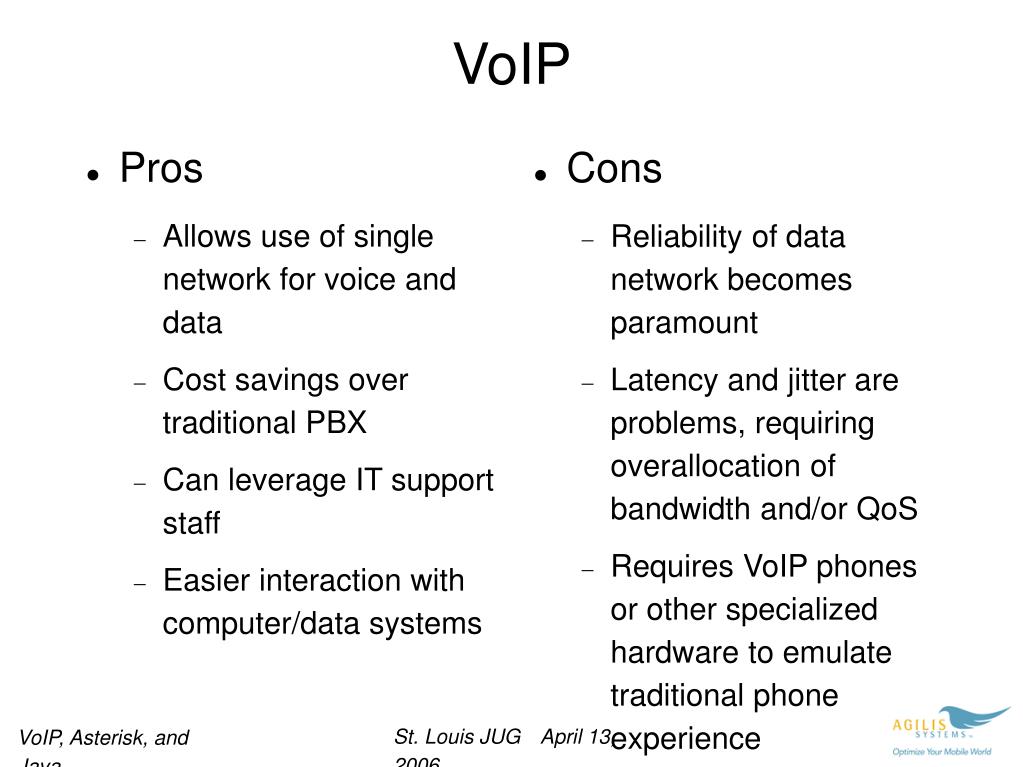

Cons Reliability of data network becomes paramount Latency and jitter are problems, requiring overallocation of bandwidth and/or QoS Requires VoIP phones or other specialized hardware to emulate traditional phone experience VoIP • Pros • Allows use of single network for voice and data • Cost savings over traditional PBX • Can leverage IT support staff • Easier interaction with computer/data systems

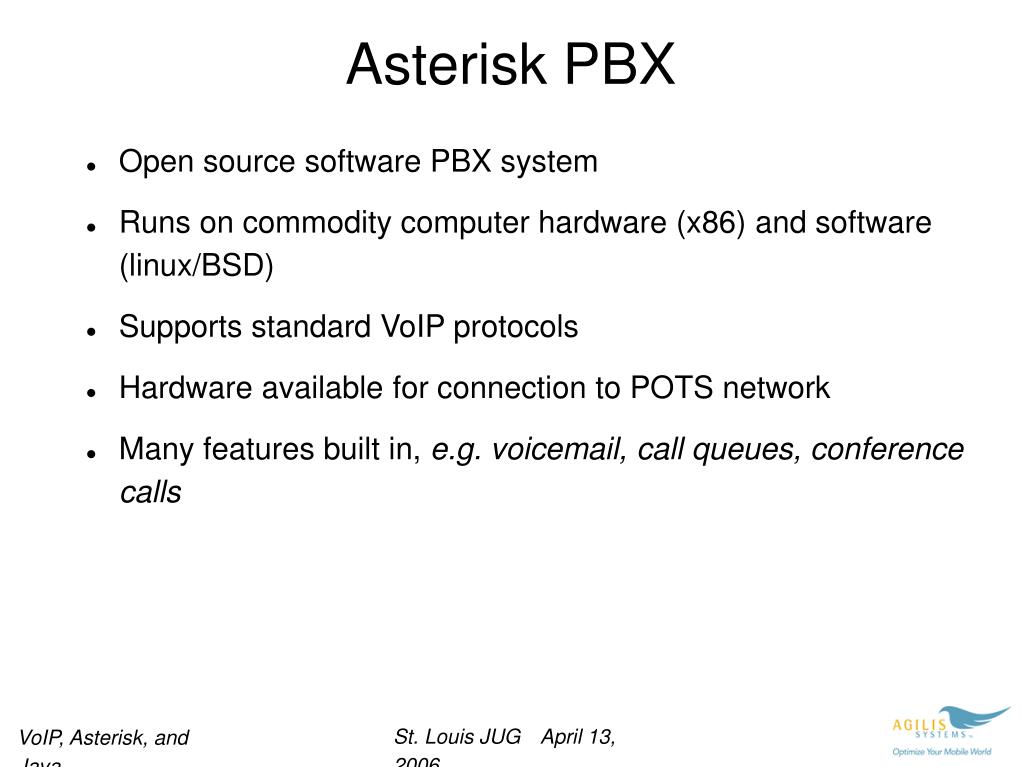

Asterisk PBX • Open source software PBX system • Runs on commodity computer hardware (x86) and software (linux/BSD) • Supports standard VoIP protocols • Hardware available for connection to POTS network • Many features built in, e.g. voicemail, call queues, conference calls

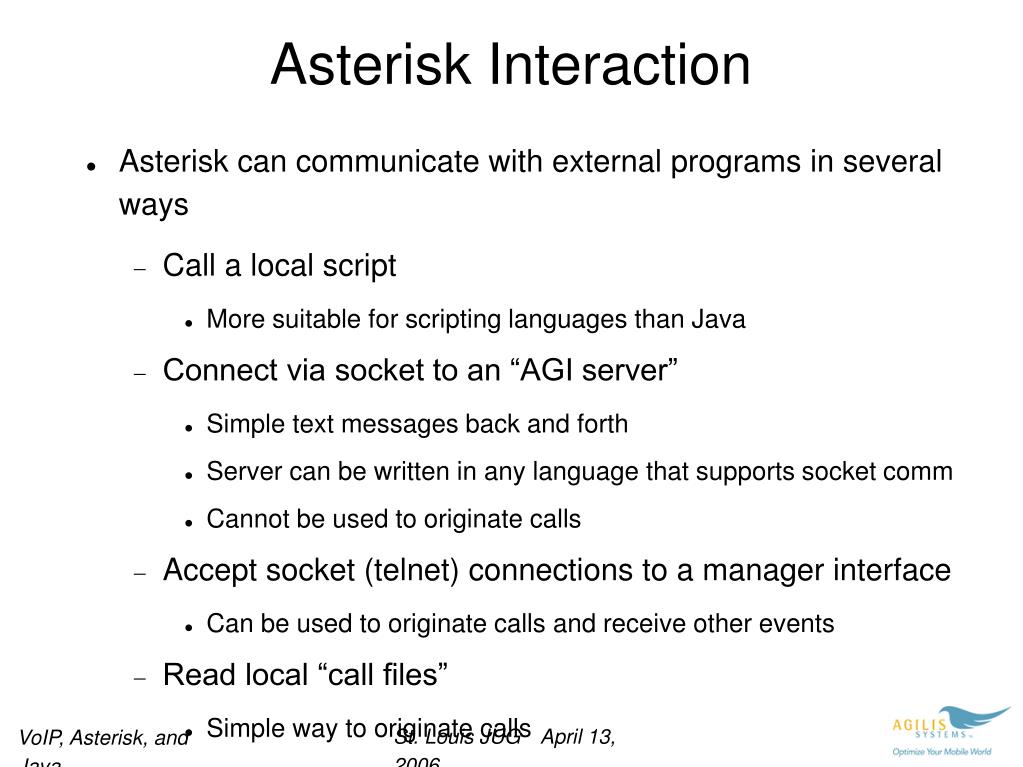

Asterisk Interaction • Asterisk can communicate with external programs in several ways • Call a local script • More suitable for scripting languages than Java • Connect via socket to an “AGI server” • Simple text messages back and forth • Server can be written in any language that supports socket comm • Cannot be used to originate calls • Accept socket (telnet) connections to a manager interface • Can be used to originate calls and receive other events • Read local “call files” • Simple way to originate calls
Asterisk Gateway Interface 1: a call comes into the asterisk server 2: the asterisk server makes a socket connection to an AGI server 3: the AGI server sends commands and receives results over the socket, controlling the flow of the call • Note that the AGI server cannot originate a call using this interface
AGI Commands • The AGI contains many commands for controlling a call, including • answer • hangup • stream file • Limited to streaming local sound files on the asterisk server, NOT over the socket interface • wait for digit • record file • Records to local file on the asterisk server

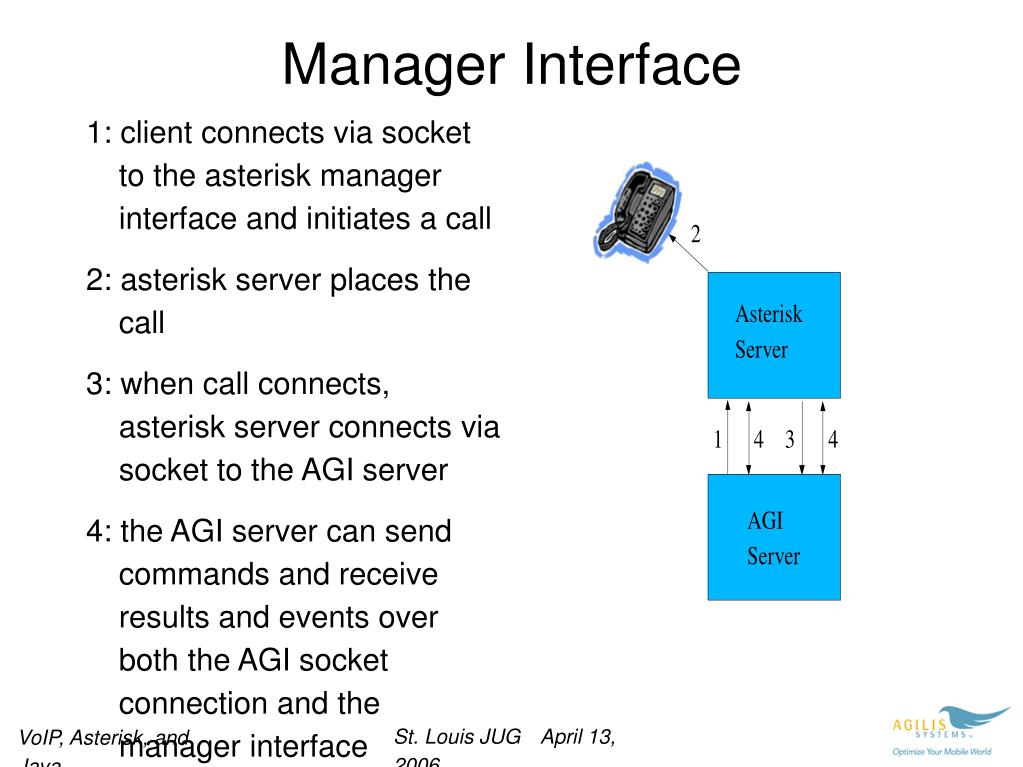

Manager Interface 1: client connects via socket to the asterisk manager interface and initiates a call 2: asterisk server places the call 3: when call connects, asterisk server connects via socket to the AGI server 4: the AGI server can send commands and receive results and events over both the AGI socket connection and the manager interface connection
The Asterisk-Java Library • Implements both the AGI server interface and the manager client interface • Contains classes and methods for sending commands and receiving events • Eliminates the need to manually build or parse command strings

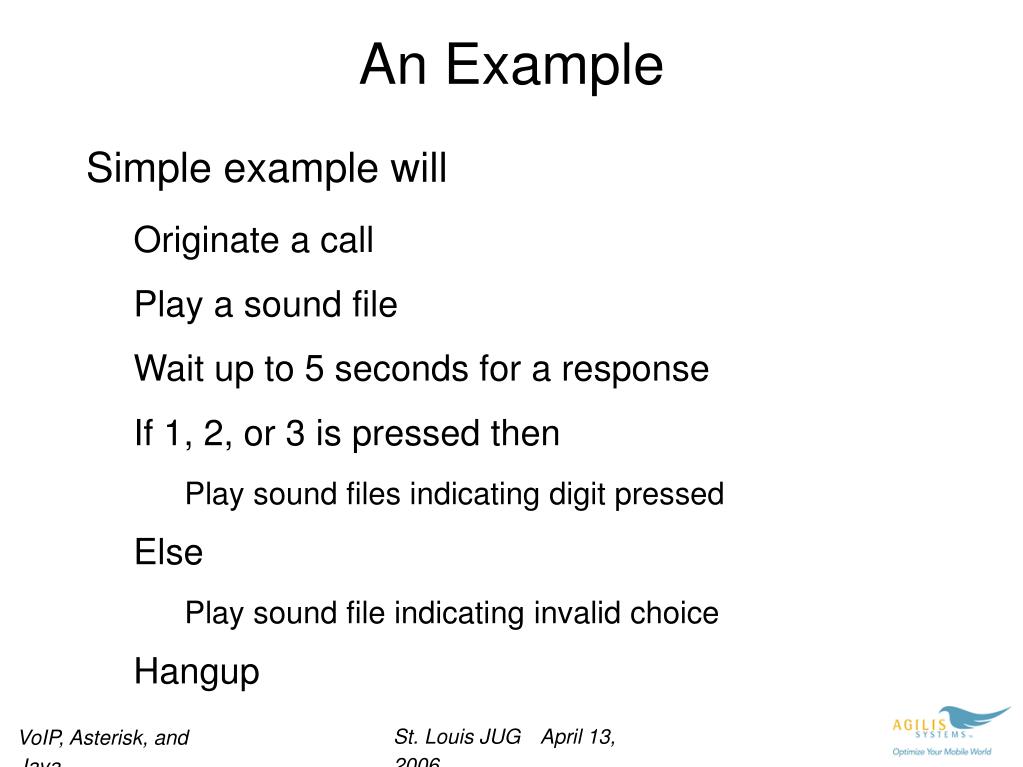

An Example Simple example will Originate a call Play a sound file Wait up to 5 seconds for a response If 1, 2, or 3 is pressed then Play sound files indicating digit pressed Else Play sound file indicating invalid choice Hangup
Security • VPN or ssl-tunnel suggested • Socket comm is plain text (including authentication to manager interface) • AGI connection is not authenticated • Asterisk configuration • Limit accessibility of external calls

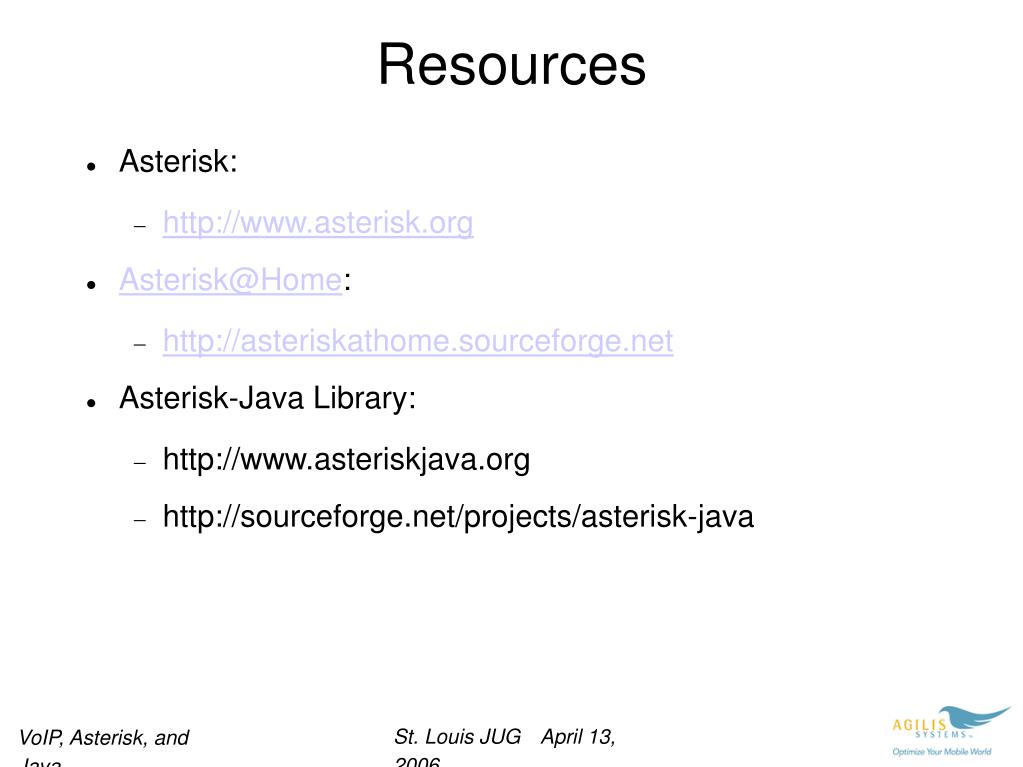

Resources • Asterisk: • http://www.asterisk.org • Asterisk@Home: • http://asteriskathome.sourceforge.net • Asterisk-Java Library: • http://www.asteriskjava.org • http://sourceforge.net/projects/asterisk-java
