Maximizing EMI Shielding with the PFMF302S‑100 SCIF EMI Filter

In high-security environments like SCIFs and military installations, electromagnetic interference (EMI) can compromise both data and operational integrity. The PFMF302Su2011100 EMI Filter from Premier Filters delivers a robust 100u202fdB attenuation from 14u202fkHz to 40u202fGHz, accommodates 0u2013277/0u2013480u202fVAC, and supports up to 100u202fA per lineu2014all within a compact chassis. It meets rigorous standards including UL1283, MILu2011STDu2011220, MILu2011Fu201115733, MILu2011STDu2011810, and the LV Directive <br><br>Secure your facility with military-grade EMI protectionu2014Explore the PFMF302Su2011100 EMI Filter.

premierfilters
Télécharger la présentation

Maximizing EMI Shielding with the PFMF302S‑100 SCIF EMI Filter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

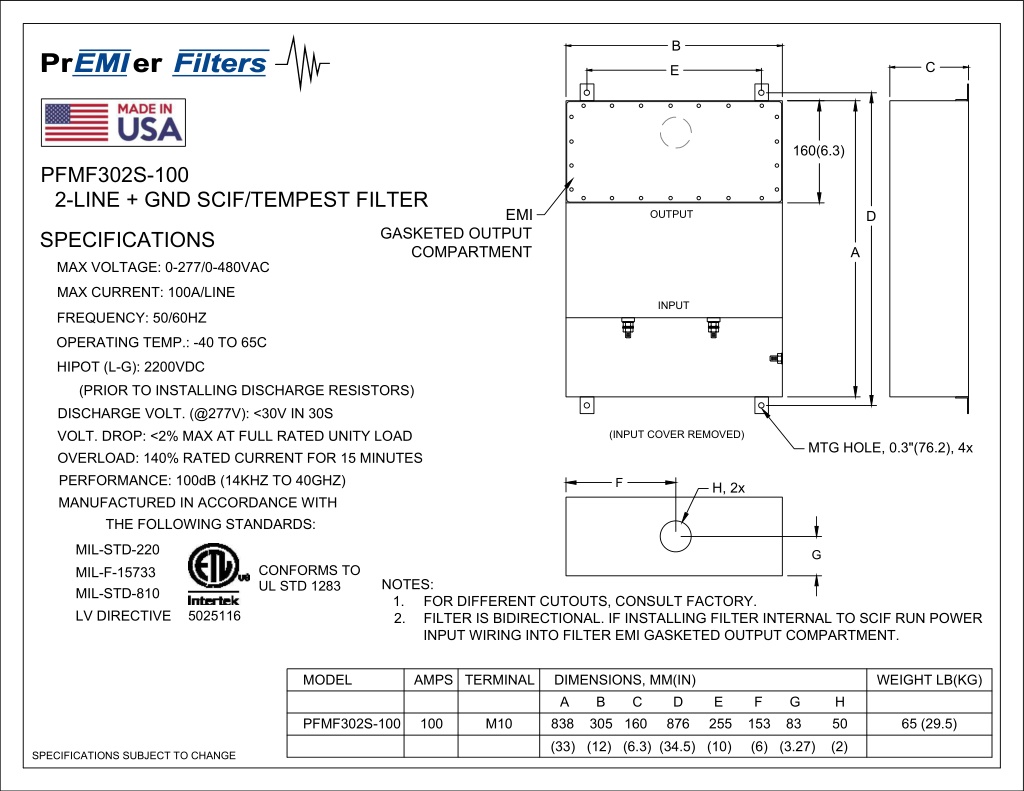

  1. B C E 160(6.3) PFMF302S-100 2-LINE + GND SCIF/TEMPEST FILTER EMI D OUTPUT GASKETED OUTPUT COMPARTMENT SPECIFICATIONS A MAX VOLTAGE: 0-277/0-480VAC MAX CURRENT: 100A/LINE INPUT FREQUENCY: 50/60HZ OPERATING TEMP.: -40 TO 65C HIPOT (L-G): 2200VDC (PRIOR TO INSTALLING DISCHARGE RESISTORS) DISCHARGE VOLT. (@277V): <30V IN 30S VOLT. DROP: <2% MAX AT FULL RATED UNITY LOAD OVERLOAD: 140% RATED CURRENT FOR 15 MINUTES (INPUT COVER REMOVED) MTG HOLE, 0.3"(76.2), 4x PERFORMANCE: 100dB (14KHZ TO 40GHZ) MANUFACTURED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: F H, 2x MIL-STD-220 G CONFORMS TO UL STD 1283 MIL-F-15733 MIL-STD-810 NOTES: 1. 2. FOR DIFFERENT CUTOUTS, CONSULT FACTORY. FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT. LV DIRECTIVE 5025116 MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LB(KG) A B C D E F G H PFMF302S-100 100 M10 838 305 160 876 255 153 83 50 65 (29.5) (33) (12) (6.3) (34.5) (10) (6) (3.27) (2) SPECIFICATIONS SUBJECT TO CHANGE
