  1. Ultrafast Dynamic Study of Spin and Magnetization Reversal in (Ga,Mn)As Xinhui Zhang (张新惠） State Key Laboratory for Superlattices and Microstructures Institute of Semiconductors Chinese Academy of Sciences, Beijing, China （中科院半导体研究所超晶格国家重点实验室）

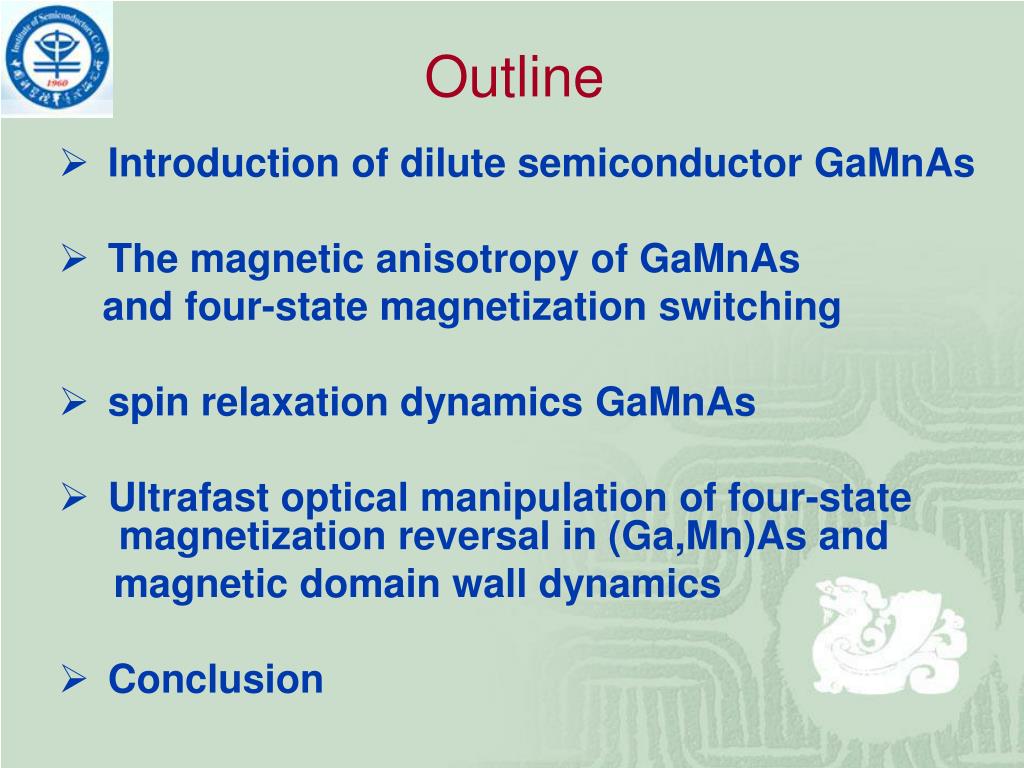

  2. Outline • Introduction of dilute semiconductor GaMnAs • The magnetic anisotropy of GaMnAs and four-state magnetization switching • spin relaxation dynamics GaMnAs • Ultrafast optical manipulation of four-state magnetization reversal in (Ga,Mn)As and magnetic domain wall dynamics • Conclusion

  3. GaMnAs, Ohno (Tohoko),APL’96 InMnAs, Ohno et al, (IBM,’92) Tc up 190K is now achieved Mn% ~ 15% T. Dietl, Science 287,1019,(2000) III-Mn-V group: intrinsic DMS

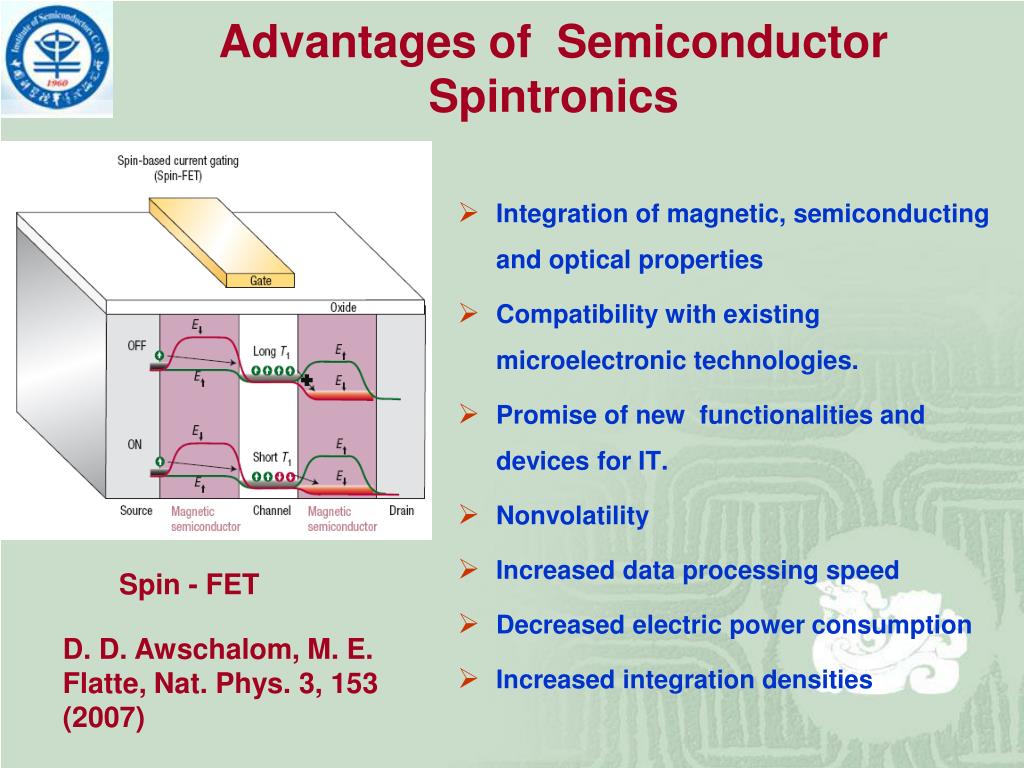

  4. Spin - FET D. D. Awschalom, M. E. Flatte, Nat. Phys. 3, 153 (2007) Advantages of Semiconductor Spintronics • Integration of magnetic, semiconducting and optical properties • Compatibility with existing microelectronic technologies. • Promise of new functionalities and devices for IT. • Nonvolatility • Increased data processing speed • Decreased electric power consumption • Increased integration densities

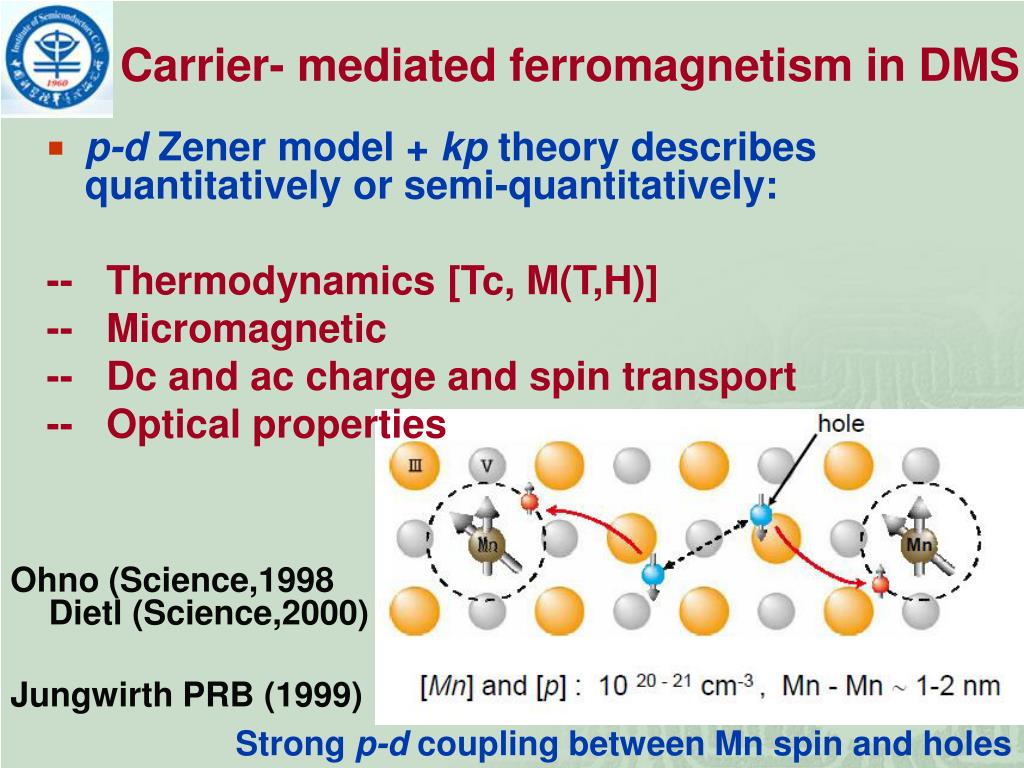

  5. Carrier- mediated ferromagnetism in DMS • p-d Zener model + kp theory describes quantitatively or semi-quantitatively: -- Thermodynamics [Tc, M(T,H)] -- Micromagnetic -- Dc and ac charge and spin transport -- Optical properties Ohno (Science,1998 Dietl (Science,2000) Jungwirth PRB (1999) Strong p-d coupling between Mn spin and holes

  6. Manipulation of Spin Carrier- mediated ferromagnetism in DMS: ---- A base for magnetization manipulation through: • Light • Electric field • Electric current in trilayer structures • Domain-wall displacement induced by electric current

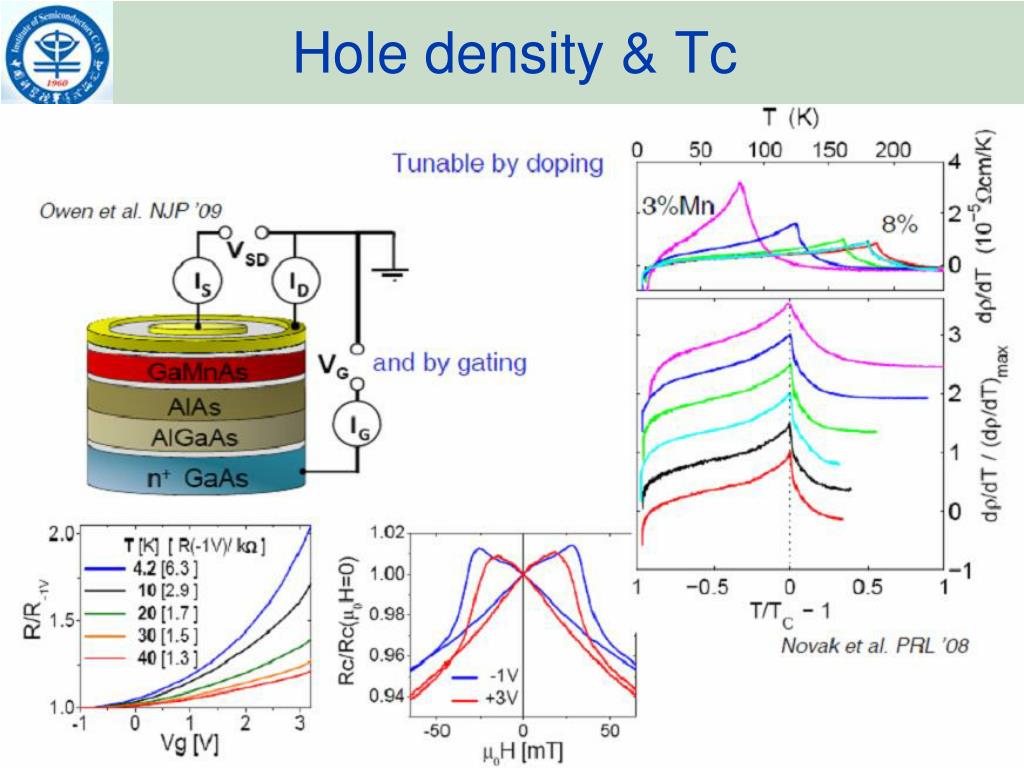

  7. Hole density & Tc

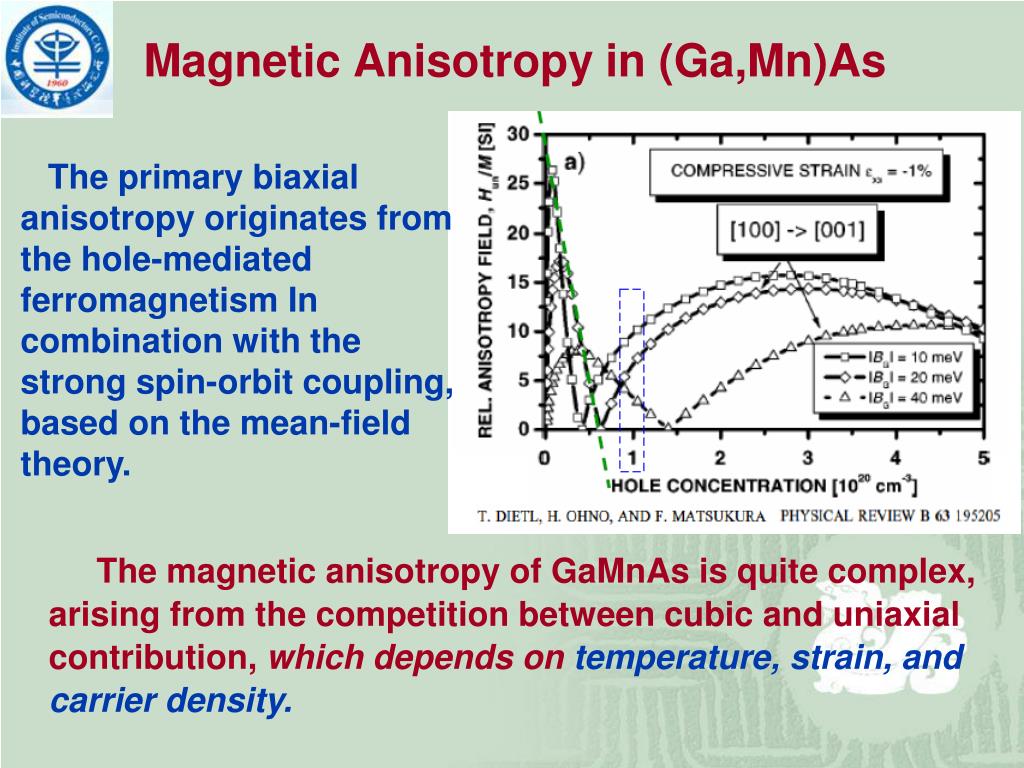

  8. The primary biaxial anisotropy originates from the hole-mediated ferromagnetism In combination with the strong spin-orbit coupling, based on the mean-field theory. Magnetic Anisotropyin (Ga,Mn)As The magnetic anisotropy of GaMnAs is quite complex, arising from the competition between cubic and uniaxial contribution, which depends on temperature, strain, and carrier density.

  9. Hamaya, PRB, 74,045201(2006) • Shin, PRB, 74,035327(2007) Magnetic Anisotropyin (Ga,Mn)As

  10. ◆Current-driven magnetization switching could be performed by using giant planar Hall Effect of (Ga,Mn)As epilayers. The required driven current density is 2-3 orders of magnitude lower than ferromagnetic metals! H.X.Tang ,90,107201(2003) Spin memory device ◆The most practical application of GaMnAs – ----spin memory device: the information can be stored via the direction of magnetization ◆ The magnetic properties related to the Magnetization reversal can be controlled by varing carrier density through electric field or optical excitation.

  11. The compressively strained (Ga,Mn)Asgrown on (001)GaAs substrate is known to be dominated by in-plane biaxial magnetocrystalline anisotropy with easy axes along [100] and [010] at low temperatures In-plane biaxial magnetocrystalline anisotropy& four-state magnetic reversal --- Allowing magnetization switching between two pairs of states --- Leading to doubling of the recording density!

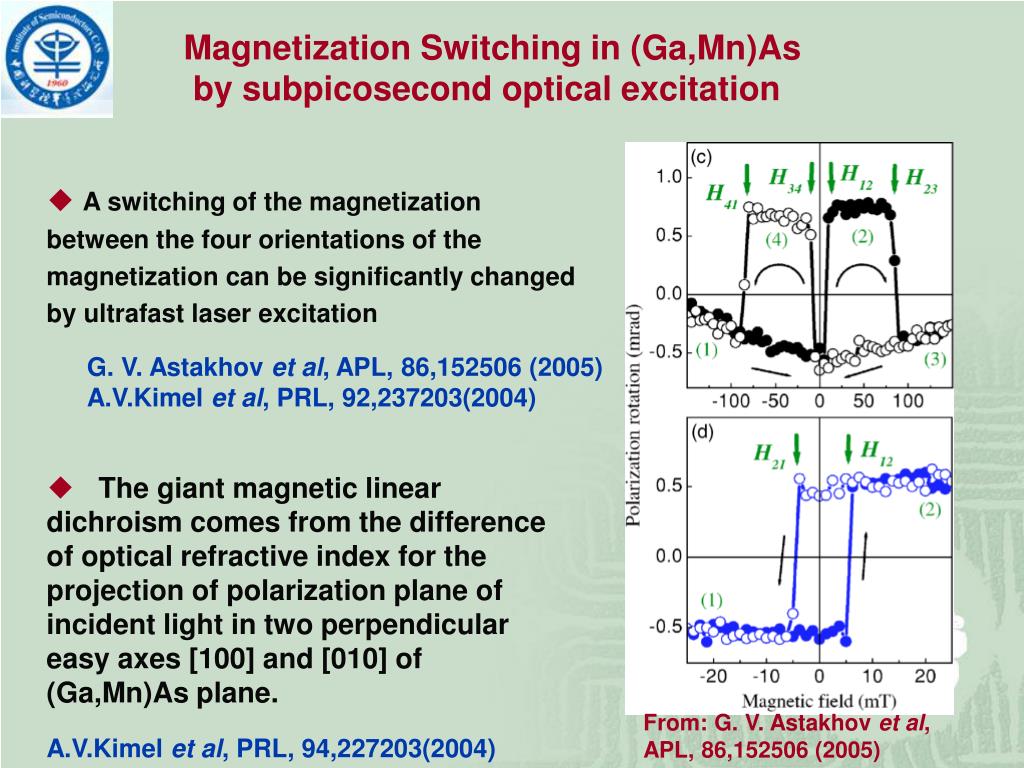

  12. From: G. V. Astakhov et al, APL, 86,152506 (2005) Magnetization Switching in (Ga,Mn)As by subpicosecond optical excitation ◆A switching of the magnetization between the four orientations of the magnetization can be significantly changed by ultrafast laser excitation G. V. Astakhov et al, APL, 86,152506 (2005) A.V.Kimel et al, PRL, 92,237203(2004) ◆The giant magnetic linear dichroism comes from the difference of optical refractive index for the projection of polarization plane of incident light in two perpendicular easy axes [100] and [010] of (Ga,Mn)As plane. A.V.Kimel et al, PRL, 94,227203(2004)

  13. Questions? • Spin Dynamics and mechanisms? --- s-d exchange coupling? --- p-d exchange couplng? --- electron-hole exchange coupling? --- carrier/impurity scattering? --- spin & disorder fluctuation? • Magnetization precession and switching? --- Thermal or Non-thermal effect?

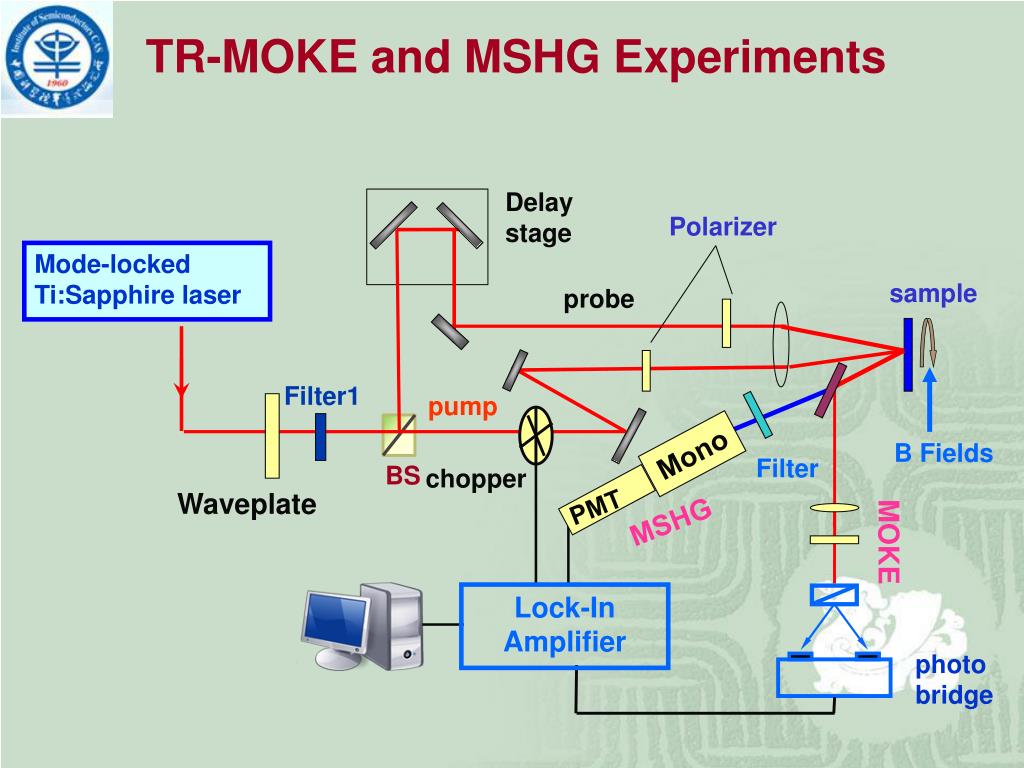

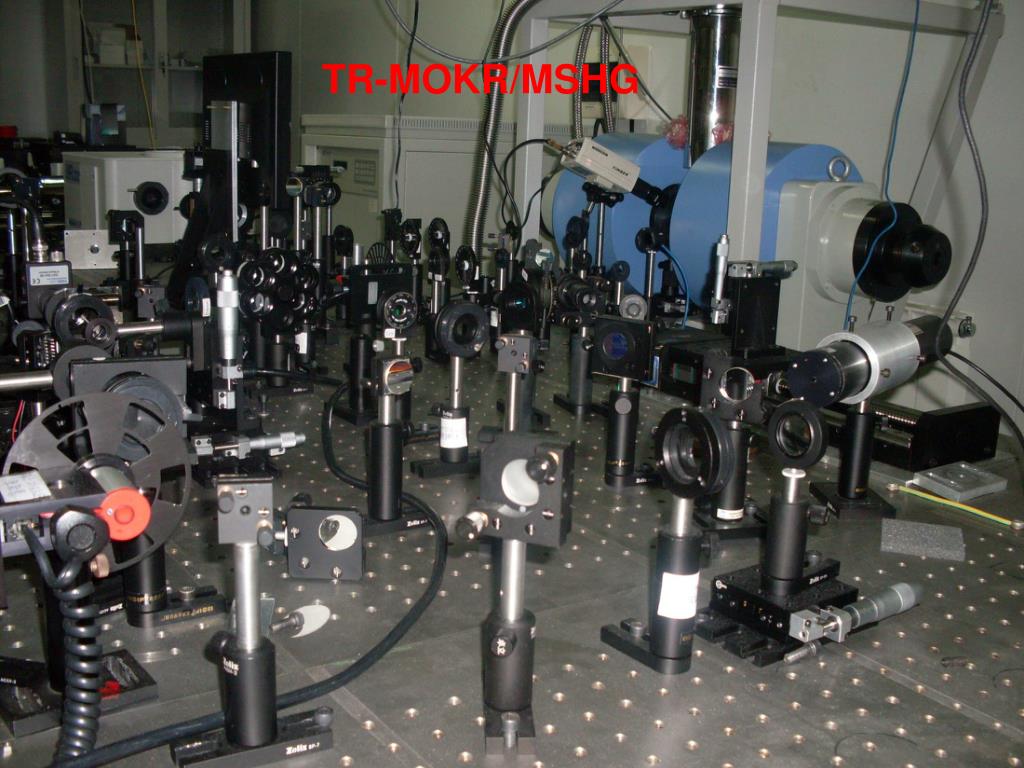

  14. Delay stage Polarizer Mode-locked Ti:Sapphire laser sample probe pump Filter1 PMT Mono B Fields Filter BS chopper Waveplate MSHG MOKE Lock-In Amplifier photo bridge TR-MOKE and MSHG Experiments

  15. TR-MOKR/MSHG Mn, Ga, As Fabrication of (Ga,Mn)As ◆VG V80 MARKII MBE System: --- III-V Diluted magnetic semiconducutors and ferromagnetic metals ◆ModGenII MBE: -III-V Low Dimensional structures

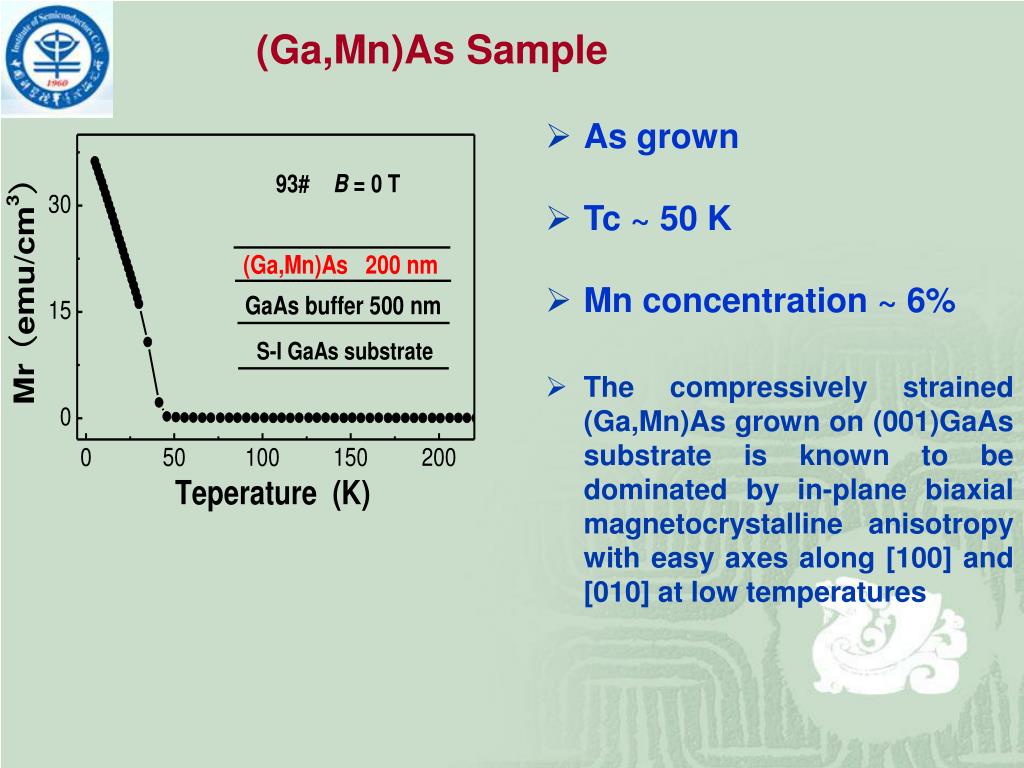

  16. (Ga,Mn)As Sample • As grown • Tc ~ 50 K • Mn concentration ~ 6% • The compressively strained (Ga,Mn)Asgrown on (001)GaAs substrate is known to be dominated by in-plane biaxial magnetocrystalline anisotropy with easy axes along [100] and [010] at low temperatures

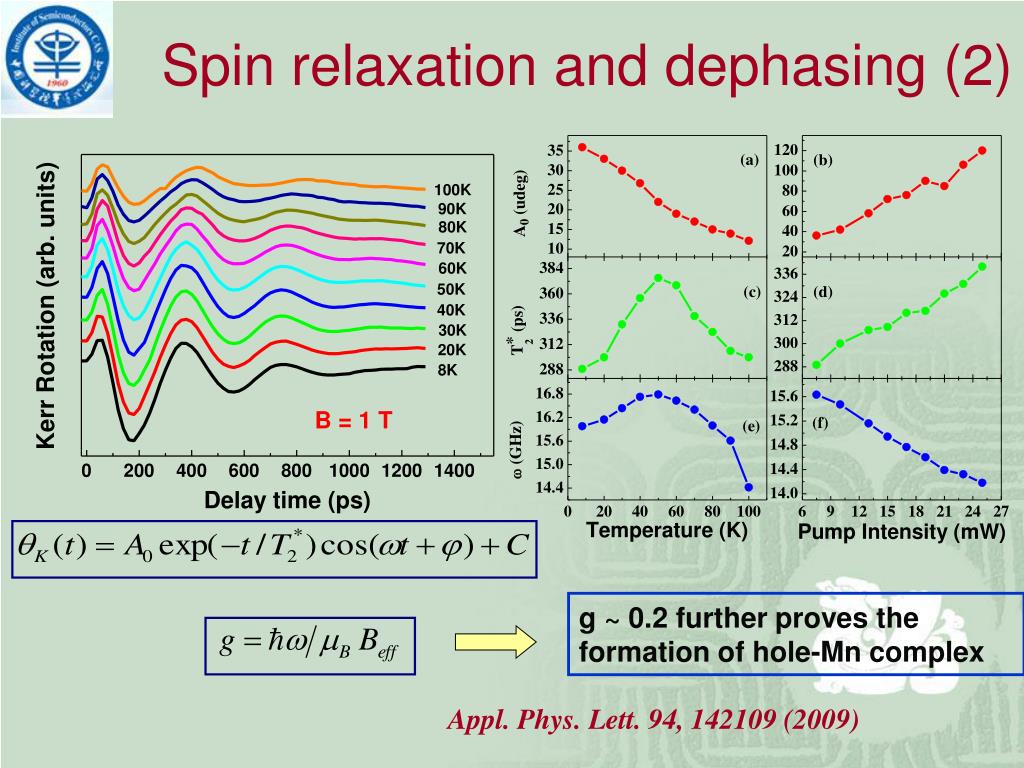

  17. Relaxation time ~ 524 ps Pump intensity hole density Rising time ~ 120 ps: the formation time for spin alignment of magnetic ions by the photoexcited holes Mn-Mn coupling Relaxation time Spin relaxation and dephasing (1)

  18. g ~ 0.2 further proves the formation of hole-Mn complex Appl. Phys. Lett. 94, 142109 (2009) Spin relaxation and dephasing (2)

  19. Major Loop Minor Loop Measured at 8K B12= - B34 = 33 G B23 = -B41= 264 G The static photo-induced four-state magnetization switching measurement B field is applied in-plane of the sample along about 5o off the [110] direction

  20. ◆The magnetic reversal signals are dramatically suppressed at positive delay time and gradually recover back within ～500 psto that measured before arrival of pump pulse. Strong manipulation of the magnetic property and anisotropy fields by polarized holes injected by the circularly polarized pump light Ultrafast optical manipulation of four-state magnetization reversal in (Ga,Mn)As ◆ photo-induced magnetic anisotropy change upon applying pump pulse: hole density increase upon pumping significantly reduces the cubic magnetic anisotropy (Kc) along the [100] direction, while enhances the uniaxial magnetic anisotropy (Ku) along [110]

  21. Measured at 8K Time evolution of small switching field Hc1 ～500ps 2～3ps The different time evolution behavior of Hc1 and Hc2implies that different magnetization reversal mechanisms have been involved Ultrafast optical manipulation of switching fields ◆Hc1 increases abruptly to 108 Gauss upon pumping and then recovers back to the value before pumping within about 500 ps. ◆However it is found that Hc2 is almost independent of delay time. Appl. Phys. Lett. 95, 052108 (2009)

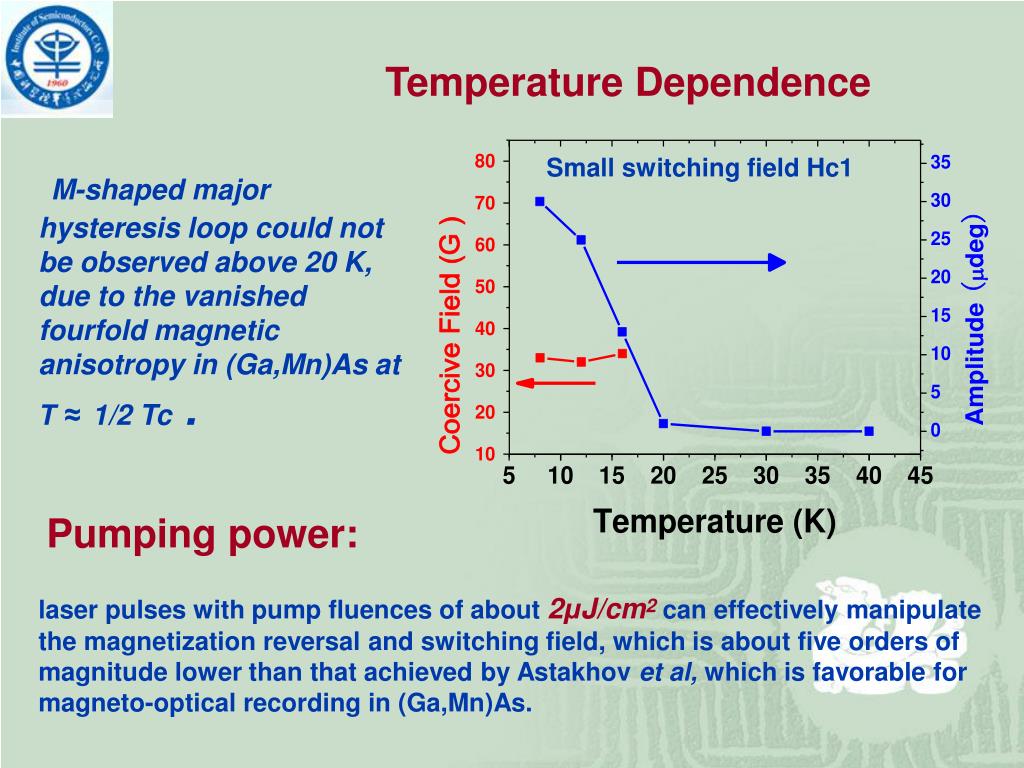

  22. Small switching field Hc1 Temperature Dependence M-shaped major hysteresis loop could not be observed above 20 K, due to the vanished fourfold magnetic anisotropy in (Ga,Mn)As at T ≈1/2 Tc . Pumping power: laser pulses with pump fluences of about 2μJ/cm2can effectively manipulate the magnetization reversal and switching field, which is about five orders of magnitude lower than that achieved by Astakhov et al, which is favorable for magneto-optical recording in (Ga,Mn)As.

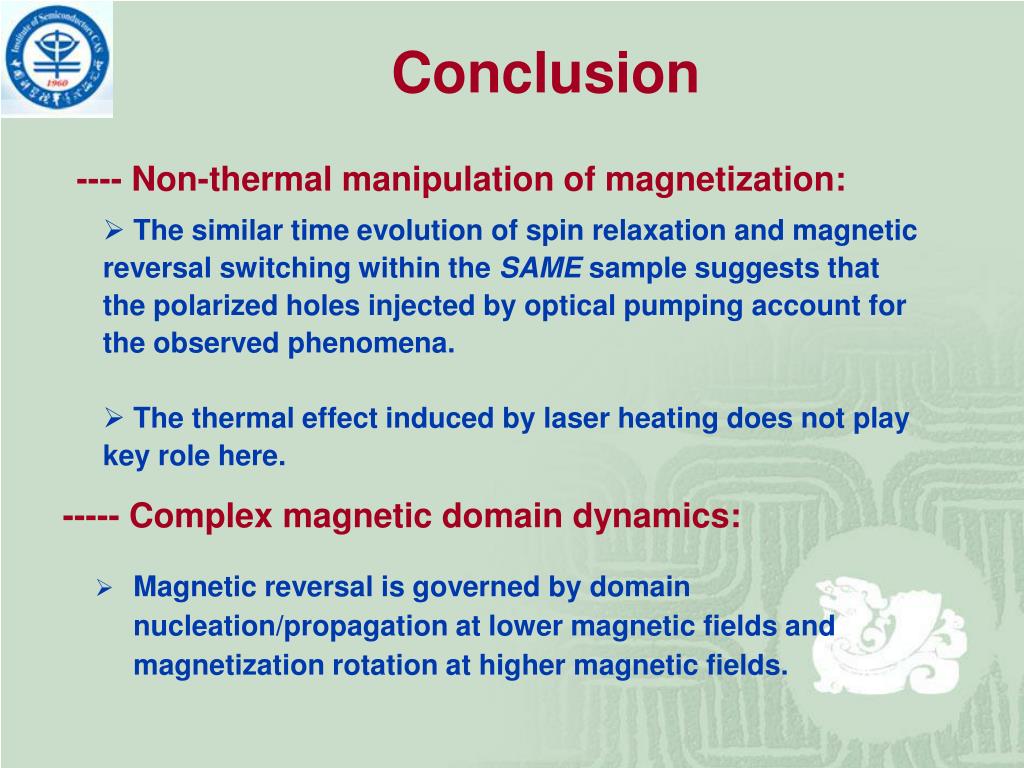

  23. ---- Non-thermal manipulation of magnetization: • The similar time evolution of spin relaxation and magnetic reversal switching within the SAME sample suggests that the polarized holes injected by optical pumping account for the observed phenomena. • The thermal effect induced by laser heating does not play key role here. ----- Complex magnetic domain dynamics: • Magnetic reversal is governed by domain nucleation/propagation at lower magnetic fields and magnetization rotation at higher magnetic fields. Conclusion

  24. Magnetic field Electric field (or current) Optical pumping Challenge: is there any other mechanism for faster manipulation of magnetization? Manipulation of magnetization and magnetic switching Manipulation of magnetization in the ultrafast fashion: ---- A torque can be induced optically through the non-thermal pass, and results in the non-equilibrium state of magnetization. The state is controllable by optical pulses.

  25. Coherent interaction between photons, charges and spins Incoherent ultrafast demagnetization Associated with the thermalization of charges and spins into phonon bath (lattice) Nature Physics,5,515 (2009); 5, 499 (2009) • New aspect 1: Femtomagnetism: Femotosecond laser pulse

  26. New aspect 2: Ultrafast Magnetic Recording:PRL, 103,117201(2009) The fastest “read-write” event is demonstrated to be 30ps for magnetic recording

  27. Acknowledgement Mrs. Yonggang Zhu (朱永刚）, Lin Chen（陈林） Prof. Jinhua Zhao （赵建华） This work is supported by the National Natural Science Foundation of China (No. 1067 4131, 60836002), the National Key Projects for Basic Research of China under Grant No 2007CB924904, and the Knowledge Innovation Project of Chinese Academy of Sciences (No. KJCX2. YW. W09).

  28. Thank You And Expecting Your Comments
