Understanding Surface Chemistry of Nanoporous Membranes from Diblock Copolymer Structures

prescott-west avatar
1 diapositives · 162 Views · Nov 19, 2014

This study explores the surface chemistry of nanoporous membranes created from cylinder-forming diblock copolymers, specifically PS-b-PMMA. These membranes feature uniform cylindrical nanoscale pores suitable for applications in chemical catalysis and separations. We present findings on the influence of surface roughness on PMMA domain orientation, the size-exclusion properties of nanoporous films for biomolecules, and the differential chemical properties of PS and PMMA domains. Notably, we demonstrate the requirement of a PEG layer for ferritin penetration, revealing selective deposition patterns on different polymer regions.

Understanding Surface Chemistry of Nanoporous Membranes from Diblock Copolymer Structures - slide 1
01 / 1Understanding Surface Chemistry of Nanoporous Membranes from Diblock Copolymer Structures
1 / 17

Télécharger la présentation

Understanding Surface Chemistry of Nanoporous Membranes from Diblock Copolymer Structures
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

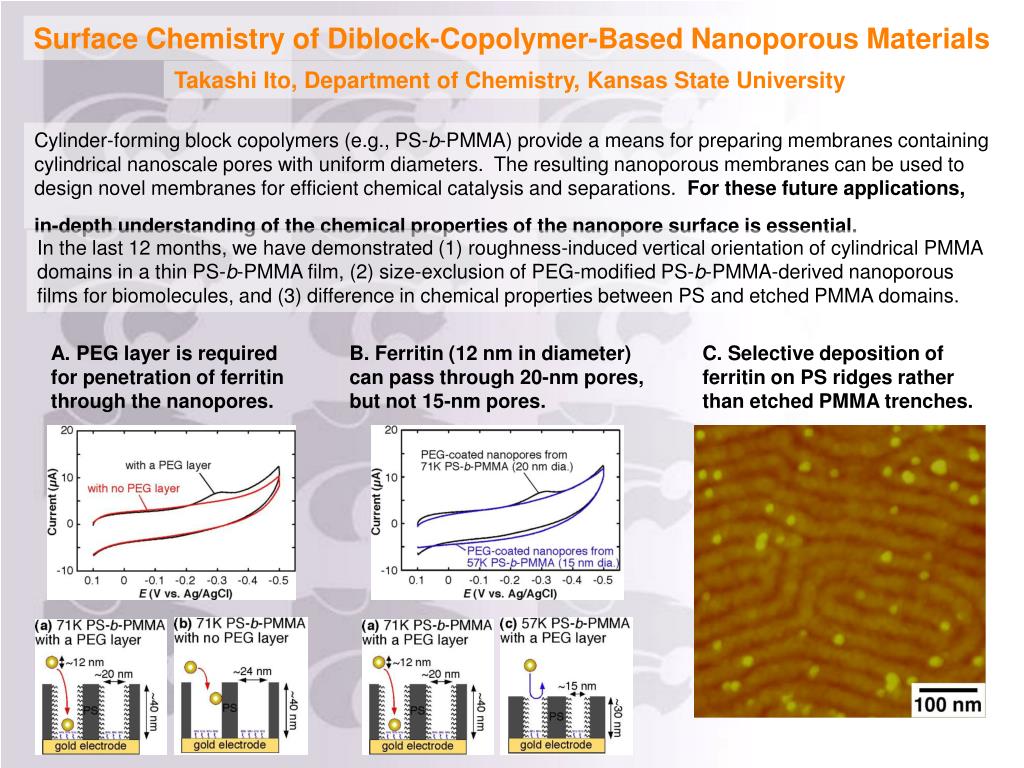

  1. Surface Chemistry of Diblock-Copolymer-Based Nanoporous Materials Takashi Ito, Department of Chemistry, Kansas State University Cylinder-forming block copolymers (e.g., PS-b-PMMA) provide a means for preparing membranes containing cylindrical nanoscale pores with uniform diameters. The resulting nanoporous membranes can be used to design novel membranes for efficient chemical catalysis and separations. For these future applications, in-depth understanding of the chemical properties of the nanopore surface is essential. In the last 12 months, we have demonstrated (1)roughness-induced vertical orientation of cylindrical PMMA domains in a thin PS-b-PMMA film, (2) size-exclusion of PEG-modified PS-b-PMMA-derived nanoporous films for biomolecules, and (3) difference in chemical properties between PS and etched PMMA domains. A. PEG layer is required for penetration of ferritin through the nanopores. B. Ferritin (12 nm in diameter) can pass through 20-nm pores, but not 15-nm pores. C. Selective deposition of ferritin on PS ridges rather than etched PMMA trenches.
