1 / 2

1Kb

1Kb. cutC. cutA. orf2. orf3. orf4. cutB. orf5-1. cutR. cutC. cutA. orf2. orf3. orf4. orf6. orf1. cutB. orf5-3. 5 : Primer 5F and 6R. 1 : Primer 1F and BR. 1364. 1433. 4 : Primer 4F and 5R. 366 bp. 1512. 1560. 3: Primer 3F and 4R 413 bp. 2 : Primer 3F and 5R.

presley
Télécharger la présentation

1Kb

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

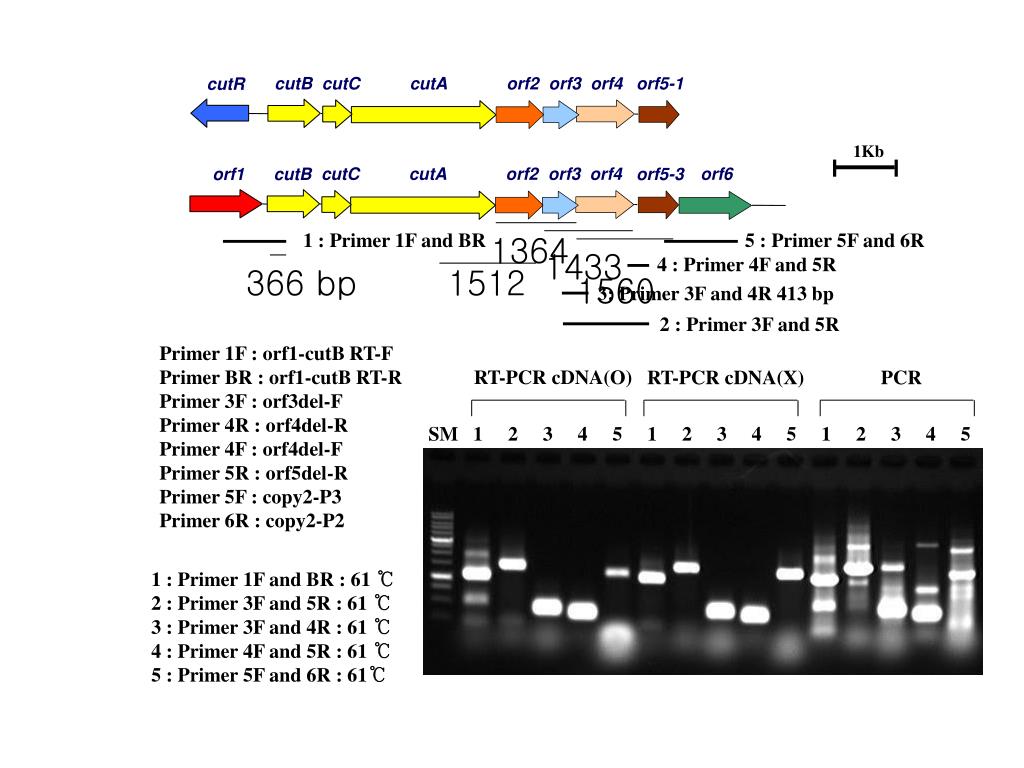

  1. 1Kb cutC cutA orf2 orf3 orf4 cutB orf5-1 cutR cutC cutA orf2 orf3 orf4 orf6 orf1 cutB orf5-3 5 : Primer 5F and 6R 1 : Primer 1F and BR 1364 1433 4 : Primer 4F and 5R 366 bp 1512 1560 3: Primer 3F and 4R 413 bp 2 : Primer 3F and 5R Primer 1F : orf1-cutB RT-F Primer BR : orf1-cutB RT-R Primer 3F : orf3del-F Primer 4R : orf4del-R Primer 4F : orf4del-F Primer 5R : orf5del-R Primer 5F : copy2-P3 Primer 6R : copy2-P2 RT-PCR cDNA(O) RT-PCR cDNA(X) PCR SM 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 : Primer 1F and BR : 61 ℃ 2 : Primer 3F and 5R : 61 ℃ 3 : Primer 3F and 4R : 61 ℃ 4 : Primer 4F and 5R : 61 ℃ 5 : Primer 5F and 6R : 61℃

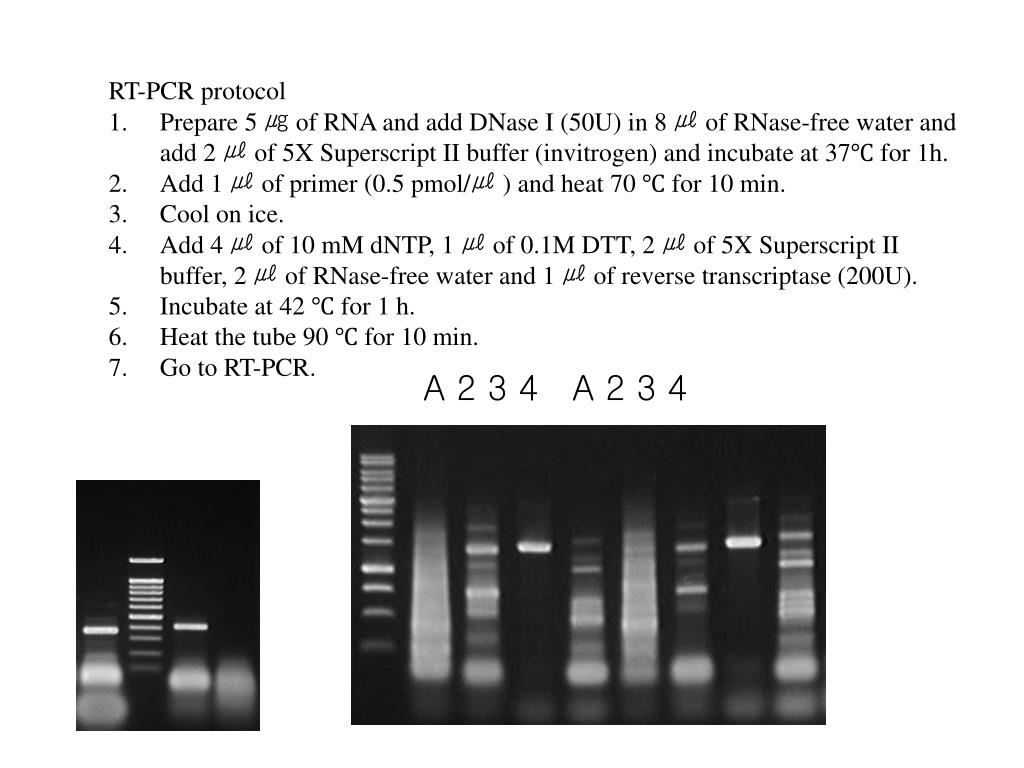

  2. RT-PCR protocol • Prepare 5 ㎍ of RNA and add DNase I (50U) in 8 ㎕ of RNase-free water and add 2 ㎕ of 5X Superscript II buffer (invitrogen) and incubate at 37℃ for 1h. • Add 1 ㎕ of primer (0.5 pmol/㎕ ) and heat 70 ℃ for 10 min. • Cool on ice. • Add 4 ㎕ of 10 mM dNTP, 1 ㎕ of 0.1M DTT, 2 ㎕ of 5X Superscript II buffer, 2 ㎕ of RNase-free water and 1 ㎕ of reverse transcriptase (200U). • Incubate at 42 ℃ for 1 h. • Heat the tube 90 ℃ for 10 min. • Go to RT-PCR. A 2 3 4 A 2 3 4
